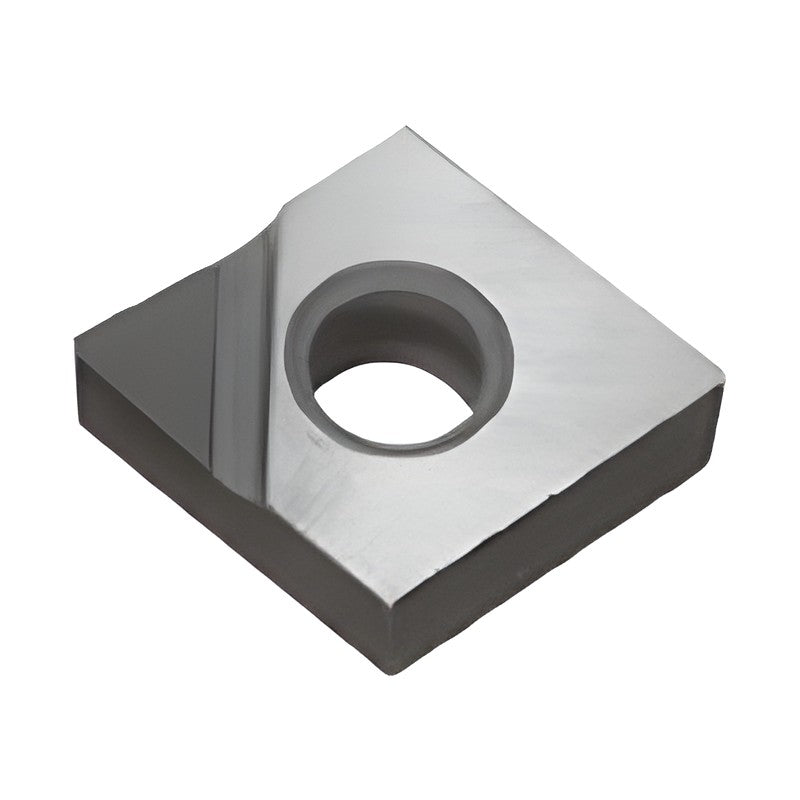

Sumitomo Electric Hardmetal SUMIDIA PCD Insert CNMX1204

SUMIDIA diamond insert CNMX1204 (80° rhombic, negative (0° clearance)) for machining aluminum alloys, non-ferrous metals and cemented carbide.

Key features

Grades: DA1000, DA150
NF- full-face types

NF-CNMX120402 DA1000		IC (mm): 12.70 \| Thickness (mm): 4.76 \| Hole diameter (mm): 5.16 \| RE (mm): 0.2 \| Cutting edge length (mm): 5.5 \| Grade: DA1000 \| Stock: Yes
NF-CNMX120404 DA1000		IC (mm): 12.70 \| Thickness (mm): 4.76 \| Hole diameter (mm): 5.16 \| RE (mm): 0.4 \| Cutting edge length (mm): 5.4 \| Grade: DA1000 \| Stock: Yes
NF-CNMX120408 DA1000		IC (mm): 12.70 \| Thickness (mm): 4.76 \| Hole diameter (mm): 5.16 \| RE (mm): 0.8 \| Cutting edge length (mm): 5.4 \| Grade: DA1000 \| Stock: Yes
NF-CNMX120412 DA1000		IC (mm): 12.70 \| Thickness (mm): 4.76 \| Hole diameter (mm): 5.16 \| RE (mm): 1.2 \| Cutting edge length (mm): 5.3 \| Grade: DA1000 \| Stock: Yes
CNMX120402 DA1000		IC (mm): 12.70 \| Thickness (mm): 4.76 \| Hole diameter (mm): 5.16 \| RE (mm): 0.2 \| Cutting edge length (mm): 5.5 \| Grade: DA1000 \| Stock: Yes
CNMX120404 DA150		IC (mm): 12.70 \| Thickness (mm): 4.76 \| Hole diameter (mm): 5.16 \| RE (mm): 0.4 \| Cutting edge length (mm): 5.4 \| Grade: DA150 \| Stock: Yes
CNMX120404 DA1000		IC (mm): 12.70 \| Thickness (mm): 4.76 \| Hole diameter (mm): 5.16 \| RE (mm): 0.4 \| Cutting edge length (mm): 5.4 \| Grade: DA1000 \| Stock: Yes
CNMX120408 DA150		IC (mm): 12.70 \| Thickness (mm): 4.76 \| Hole diameter (mm): 5.16 \| RE (mm): 0.8 \| Cutting edge length (mm): 5.4 \| Grade: DA150 \| Stock: Yes
CNMX120408 DA1000		IC (mm): 12.70 \| Thickness (mm): 4.76 \| Hole diameter (mm): 5.16 \| RE (mm): 0.8 \| Cutting edge length (mm): 5.4 \| Grade: DA1000 \| Stock: Yes
CNMX120412 DA150		IC (mm): 12.70 \| Thickness (mm): 4.76 \| Hole diameter (mm): 5.16 \| RE (mm): 1.2 \| Cutting edge length (mm): 5.3 \| Grade: DA150 \| Stock: Yes

PCD InsertsSumitomo Electric Hardmetal

10 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SUMIDIA PCD Insert CNMX1204

Brand Sumitomo Electric Hardmetal·PCD Inserts

Available part numbers (10)

NF-CNMX120402 DA1000, NF-CNMX120404 DA1000, NF-CNMX120408 DA1000, NF-CNMX120412 DA1000, CNMX120402 DA1000, CNMX120404 DA150, CNMX120404 DA1000, CNMX120408 DA150, CNMX120408 DA1000, CNMX120412 DA150

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

	Product code	Spec
	NF-CNMX120402 DA1000	IC (mm): 12.70 \| Thickness (mm): 4.76 \| Hole diameter (mm): 5.16 \| RE (mm): 0.2 \| Cutting edge length (mm): 5.5 \| Grade: DA1000 \| Stock: Yes
	NF-CNMX120404 DA1000	IC (mm): 12.70 \| Thickness (mm): 4.76 \| Hole diameter (mm): 5.16 \| RE (mm): 0.4 \| Cutting edge length (mm): 5.4 \| Grade: DA1000 \| Stock: Yes
	NF-CNMX120408 DA1000	IC (mm): 12.70 \| Thickness (mm): 4.76 \| Hole diameter (mm): 5.16 \| RE (mm): 0.8 \| Cutting edge length (mm): 5.4 \| Grade: DA1000 \| Stock: Yes
	NF-CNMX120412 DA1000	IC (mm): 12.70 \| Thickness (mm): 4.76 \| Hole diameter (mm): 5.16 \| RE (mm): 1.2 \| Cutting edge length (mm): 5.3 \| Grade: DA1000 \| Stock: Yes
	CNMX120402 DA1000	IC (mm): 12.70 \| Thickness (mm): 4.76 \| Hole diameter (mm): 5.16 \| RE (mm): 0.2 \| Cutting edge length (mm): 5.5 \| Grade: DA1000 \| Stock: Yes
	CNMX120404 DA150	IC (mm): 12.70 \| Thickness (mm): 4.76 \| Hole diameter (mm): 5.16 \| RE (mm): 0.4 \| Cutting edge length (mm): 5.4 \| Grade: DA150 \| Stock: Yes
	CNMX120404 DA1000	IC (mm): 12.70 \| Thickness (mm): 4.76 \| Hole diameter (mm): 5.16 \| RE (mm): 0.4 \| Cutting edge length (mm): 5.4 \| Grade: DA1000 \| Stock: Yes
	CNMX120408 DA150	IC (mm): 12.70 \| Thickness (mm): 4.76 \| Hole diameter (mm): 5.16 \| RE (mm): 0.8 \| Cutting edge length (mm): 5.4 \| Grade: DA150 \| Stock: Yes
	CNMX120408 DA1000	IC (mm): 12.70 \| Thickness (mm): 4.76 \| Hole diameter (mm): 5.16 \| RE (mm): 0.8 \| Cutting edge length (mm): 5.4 \| Grade: DA1000 \| Stock: Yes
	CNMX120412 DA150	IC (mm): 12.70 \| Thickness (mm): 4.76 \| Hole diameter (mm): 5.16 \| RE (mm): 1.2 \| Cutting edge length (mm): 5.3 \| Grade: DA150 \| Stock: Yes
