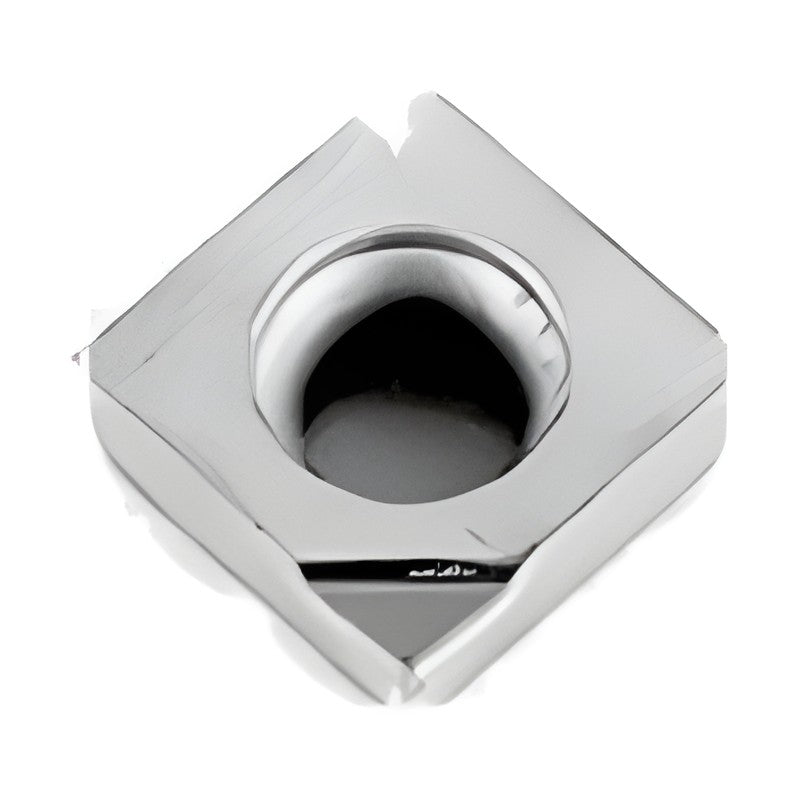

Sumitomo Electric Hardmetal SUMIDIA PCD Insert SCMT0702

Sumitomo Electric Hardmetal SUMIDIA PCD Insert SCMT0702

SUMIDIA diamond insert SCMT0702 (square, positive (7° clearance)) for machining aluminum alloys, non-ferrous metals and cemented carbide.

Key features

  • Grades: DA1000, DA150
  • NF- full-face types
NF-SCMT070202 DA1000 IC (mm): 7.94 | Thickness (mm): 2.38 | Hole diameter (mm): 3.4 | RE (mm): 0.2 | Cutting edge length (mm): 2.9 | Grade: DA1000 | Stock: Yes
NF-SCMT070204 DA1000 IC (mm): 7.94 | Thickness (mm): 2.38 | Hole diameter (mm): 3.4 | RE (mm): 0.4 | Cutting edge length (mm): 2.9 | Grade: DA1000 | Stock: Yes
SCMT070201 DA150 IC (mm): 7.94 | Thickness (mm): 2.38 | Hole diameter (mm): 3.4 | RE (mm): 0.1 | Cutting edge length (mm): 2.9 | Grade: DA150 | Stock: Yes
SCMT070202 DA150 IC (mm): 7.94 | Thickness (mm): 2.38 | Hole diameter (mm): 3.4 | RE (mm): 0.2 | Cutting edge length (mm): 2.9 | Grade: DA150 | Stock: Yes
SCMT070204 DA150 IC (mm): 7.94 | Thickness (mm): 2.38 | Hole diameter (mm): 3.4 | RE (mm): 0.4 | Cutting edge length (mm): 2.9 | Grade: DA150 | Stock: Yes
PCD InsertsSumitomo Electric Hardmetal
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SUMIDIA PCD Insert SCMT0702

Brand Sumitomo Electric Hardmetal·PCD Inserts

Available part numbers (5)

NF-SCMT070202 DA1000, NF-SCMT070204 DA1000, SCMT070201 DA150, SCMT070202 DA150, SCMT070204 DA150

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NF-SCMT070202 DA1000IC (mm): 7.94 | Thickness (mm): 2.38 | Hole diameter (mm): 3.4 | RE (mm): 0.2 | Cutting edge length (mm): 2.9 | Grade: DA1000 | Stock: Yes
NF-SCMT070204 DA1000IC (mm): 7.94 | Thickness (mm): 2.38 | Hole diameter (mm): 3.4 | RE (mm): 0.4 | Cutting edge length (mm): 2.9 | Grade: DA1000 | Stock: Yes
SCMT070201 DA150IC (mm): 7.94 | Thickness (mm): 2.38 | Hole diameter (mm): 3.4 | RE (mm): 0.1 | Cutting edge length (mm): 2.9 | Grade: DA150 | Stock: Yes
SCMT070202 DA150IC (mm): 7.94 | Thickness (mm): 2.38 | Hole diameter (mm): 3.4 | RE (mm): 0.2 | Cutting edge length (mm): 2.9 | Grade: DA150 | Stock: Yes
SCMT070204 DA150IC (mm): 7.94 | Thickness (mm): 2.38 | Hole diameter (mm): 3.4 | RE (mm): 0.4 | Cutting edge length (mm): 2.9 | Grade: DA150 | Stock: Yes
