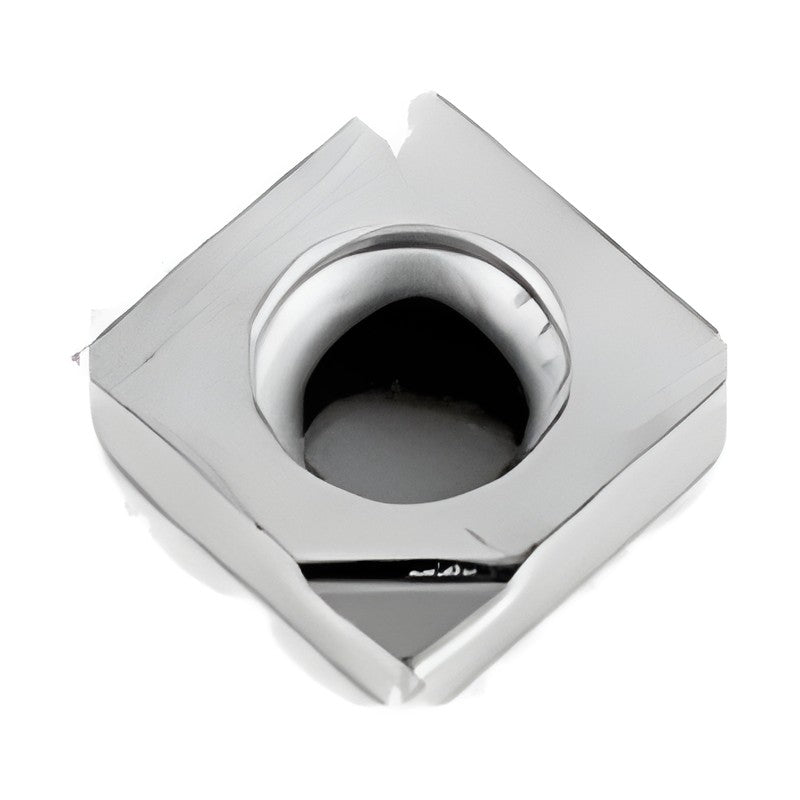

Sumitomo Electric Hardmetal SUMIDIA PCD Insert SNMA1204

SUMIDIA diamond insert SNMA1204 (square, negative (0° clearance)) for machining aluminum alloys, non-ferrous metals and cemented carbide.

Key features

Grades: DA1090, DA90, NPD10
Binderless nano-polycrystalline diamond (NPD10) types
NF- full-face types

NF-SNMA120408 DA1090		IC (mm): 12.70 \| Thickness (mm): 5.16 \| Hole diameter (mm): 4.76 \| RE (mm): 0.8 \| Cutting edge length (mm): 2.4 \| Grade: DA1090 \| Stock: Yes
NF-SNMA120408 DA90		IC (mm): 12.70 \| Thickness (mm): 5.16 \| Hole diameter (mm): 4.76 \| RE (mm): 0.8 \| Cutting edge length (mm): 2.4 \| Grade: DA90 \| Stock: Yes
NF-SNMA120412 DA1090		IC (mm): 12.70 \| Thickness (mm): 5.16 \| Hole diameter (mm): 4.76 \| RE (mm): 1.2 \| Cutting edge length (mm): 2.4 \| Grade: DA1090 \| Stock: Yes
NF-SNMA120412 DA90		IC (mm): 12.70 \| Thickness (mm): 5.16 \| Hole diameter (mm): 4.76 \| RE (mm): 1.2 \| Cutting edge length (mm): 2.4 \| Grade: DA90 \| Stock: Yes
SNMA120408RH NPD10		IC (mm): 12.70 \| Thickness (mm): 5.16 \| Hole diameter (mm): 4.76 \| RE (mm): 0.8 \| Cutting edge length (mm): 1.7 \| Grade: NPD10 \| Stock: Yes
SNMA120412RH NPD10		IC (mm): 12.70 \| Thickness (mm): 5.16 \| Hole diameter (mm): 4.76 \| RE (mm): 1.2 \| Cutting edge length (mm): 1.7 \| Grade: NPD10 \| Stock: Yes
SNMA120408RH DA1090		Cutting edge length (mm): 1.7 \| RE (mm): 0.8 \| Grade: DA1090 \| Stock: Yes
SNMA120408RH DA90		Cutting edge length (mm): 1.7 \| RE (mm): 0.8 \| Grade: DA90 \| Stock: Yes
SNMA120412RH DA1090		Cutting edge length (mm): 1.7 \| RE (mm): 1.2 \| Grade: DA1090 \| Stock: Yes
SNMA120412RH DA90		Cutting edge length (mm): 1.7 \| RE (mm): 1.2 \| Grade: DA90 \| Stock: Yes

PCD InsertsSumitomo Electric Hardmetal

10 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SUMIDIA PCD Insert SNMA1204

Brand Sumitomo Electric Hardmetal·PCD Inserts

Available part numbers (10)

NF-SNMA120408 DA1090, NF-SNMA120408 DA90, NF-SNMA120412 DA1090, NF-SNMA120412 DA90, SNMA120408RH NPD10, SNMA120412RH NPD10, SNMA120408RH DA1090, SNMA120408RH DA90, SNMA120412RH DA1090, SNMA120412RH DA90

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

	Product code	Spec
	NF-SNMA120408 DA1090	IC (mm): 12.70 \| Thickness (mm): 5.16 \| Hole diameter (mm): 4.76 \| RE (mm): 0.8 \| Cutting edge length (mm): 2.4 \| Grade: DA1090 \| Stock: Yes
	NF-SNMA120408 DA90	IC (mm): 12.70 \| Thickness (mm): 5.16 \| Hole diameter (mm): 4.76 \| RE (mm): 0.8 \| Cutting edge length (mm): 2.4 \| Grade: DA90 \| Stock: Yes
	NF-SNMA120412 DA1090	IC (mm): 12.70 \| Thickness (mm): 5.16 \| Hole diameter (mm): 4.76 \| RE (mm): 1.2 \| Cutting edge length (mm): 2.4 \| Grade: DA1090 \| Stock: Yes
	NF-SNMA120412 DA90	IC (mm): 12.70 \| Thickness (mm): 5.16 \| Hole diameter (mm): 4.76 \| RE (mm): 1.2 \| Cutting edge length (mm): 2.4 \| Grade: DA90 \| Stock: Yes
	SNMA120408RH NPD10	IC (mm): 12.70 \| Thickness (mm): 5.16 \| Hole diameter (mm): 4.76 \| RE (mm): 0.8 \| Cutting edge length (mm): 1.7 \| Grade: NPD10 \| Stock: Yes
	SNMA120412RH NPD10	IC (mm): 12.70 \| Thickness (mm): 5.16 \| Hole diameter (mm): 4.76 \| RE (mm): 1.2 \| Cutting edge length (mm): 1.7 \| Grade: NPD10 \| Stock: Yes
	SNMA120408RH DA1090	Cutting edge length (mm): 1.7 \| RE (mm): 0.8 \| Grade: DA1090 \| Stock: Yes
	SNMA120408RH DA90	Cutting edge length (mm): 1.7 \| RE (mm): 0.8 \| Grade: DA90 \| Stock: Yes
	SNMA120412RH DA1090	Cutting edge length (mm): 1.7 \| RE (mm): 1.2 \| Grade: DA1090 \| Stock: Yes
	SNMA120412RH DA90	Cutting edge length (mm): 1.7 \| RE (mm): 1.2 \| Grade: DA90 \| Stock: Yes
