• Sumitomo Electric Hardmetal SUMIDIA PCD Insert TBGW0601
1 1

Sumitomo Electric Hardmetal SUMIDIA PCD Insert TBGW0601

Sumitomo Electric Hardmetal SUMIDIA PCD Insert TBGW0601

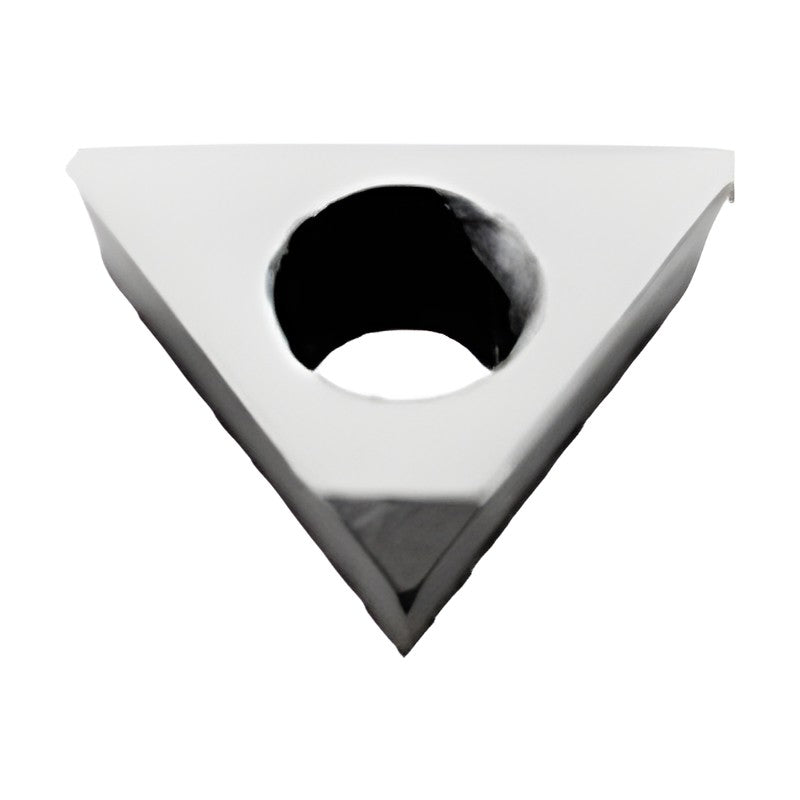

SUMIDIA diamond insert TBGW0601 (triangular, positive (5° clearance)) for machining aluminum alloys, non-ferrous metals and cemented carbide.

Key features

  • Grades: DA1000, DA150
  • NF- full-face types
NF-TBGW060104 DA1000 IC (mm): 3.97 | Thickness (mm): 1.59 | Hole diameter (mm): 2.2 | RE (mm): 0.4 | Cutting edge length (mm): 2.2 | Grade: DA1000 | Stock: Yes
TBGW060102 DA150 IC (mm): 3.97 | Thickness (mm): 1.59 | Hole diameter (mm): 2.2 | RE (mm): 0.2 | Cutting edge length (mm): 2.3 | Grade: DA150 | Stock: Yes
TBGW060104 DA150 IC (mm): 3.97 | Thickness (mm): 1.59 | Hole diameter (mm): 2.2 | RE (mm): 0.4 | Cutting edge length (mm): 2.1 | Grade: DA150 | Stock: Yes
PCD InsertsSumitomo Electric Hardmetal
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SUMIDIA PCD Insert TBGW0601

Brand Sumitomo Electric Hardmetal·PCD Inserts

Available part numbers (3)

NF-TBGW060104 DA1000, TBGW060102 DA150, TBGW060104 DA150

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NF-TBGW060104 DA1000IC (mm): 3.97 | Thickness (mm): 1.59 | Hole diameter (mm): 2.2 | RE (mm): 0.4 | Cutting edge length (mm): 2.2 | Grade: DA1000 | Stock: Yes
TBGW060102 DA150IC (mm): 3.97 | Thickness (mm): 1.59 | Hole diameter (mm): 2.2 | RE (mm): 0.2 | Cutting edge length (mm): 2.3 | Grade: DA150 | Stock: Yes
TBGW060104 DA150IC (mm): 3.97 | Thickness (mm): 1.59 | Hole diameter (mm): 2.2 | RE (mm): 0.4 | Cutting edge length (mm): 2.1 | Grade: DA150 | Stock: Yes
