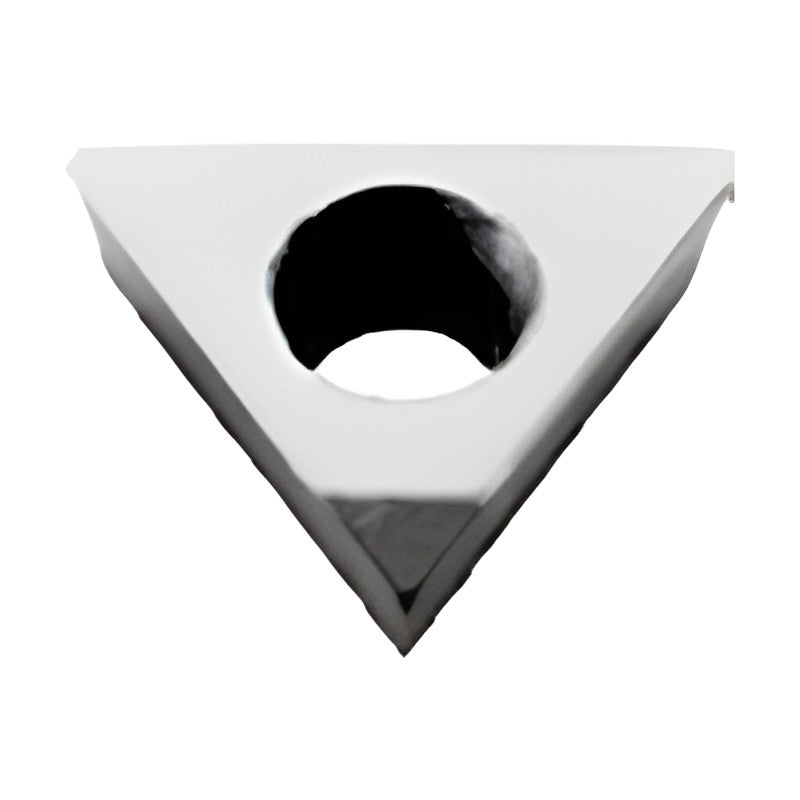

Sumitomo Electric Hardmetal SUMIDIA PCD Insert TCMT0902

Sumitomo Electric Hardmetal SUMIDIA PCD Insert TCMT0902

SUMIDIA diamond insert TCMT0902 (triangular, positive (7° clearance)) for machining aluminum alloys, non-ferrous metals and cemented carbide.

Key features

  • Grades: DA1000, DA150
  • NF- full-face types
NF-TCMT090204 DA1000 IC (mm): 5.56 | Thickness (mm): 2.38 | Hole diameter (mm): 2.5 | RE (mm): 0.4 | Cutting edge length (mm): 2.8 | Grade: DA1000 | Stock: Yes
TCMT090202 DA150 IC (mm): 5.56 | Thickness (mm): 2.38 | Hole diameter (mm): 2.5 | RE (mm): 0.2 | Cutting edge length (mm): 2.7 | Grade: DA150 | Stock: Yes
TCMT090204 DA150 IC (mm): 5.56 | Thickness (mm): 2.38 | Hole diameter (mm): 2.5 | RE (mm): 0.4 | Cutting edge length (mm): 2.6 | Grade: DA150 | Stock: Yes
PCD InsertsSumitomo Electric Hardmetal
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SUMIDIA PCD Insert TCMT0902

Brand Sumitomo Electric Hardmetal·PCD Inserts

Available part numbers (3)

NF-TCMT090204 DA1000, TCMT090202 DA150, TCMT090204 DA150

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NF-TCMT090204 DA1000IC (mm): 5.56 | Thickness (mm): 2.38 | Hole diameter (mm): 2.5 | RE (mm): 0.4 | Cutting edge length (mm): 2.8 | Grade: DA1000 | Stock: Yes
TCMT090202 DA150IC (mm): 5.56 | Thickness (mm): 2.38 | Hole diameter (mm): 2.5 | RE (mm): 0.2 | Cutting edge length (mm): 2.7 | Grade: DA150 | Stock: Yes
TCMT090204 DA150IC (mm): 5.56 | Thickness (mm): 2.38 | Hole diameter (mm): 2.5 | RE (mm): 0.4 | Cutting edge length (mm): 2.6 | Grade: DA150 | Stock: Yes
