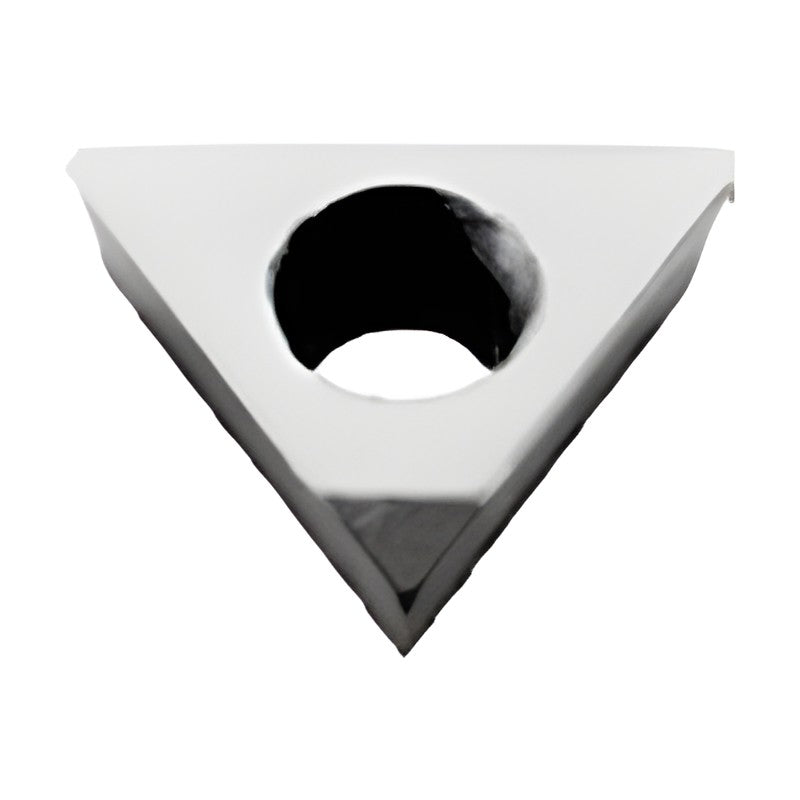

Sumitomo Electric Hardmetal SUMIDIA PCD Insert TNMX1604

Sumitomo Electric Hardmetal SUMIDIA PCD Insert TNMX1604

SUMIDIA diamond insert TNMX1604 (triangular, negative (0° clearance)) for machining aluminum alloys, non-ferrous metals and cemented carbide.

Key features

  • Grades: DA1000, DA150
  • NF- full-face types
NF-TNMX160402 DA1000 IC (mm): 9.525 | Thickness (mm): 4.76 | Hole diameter (mm): 3.81 | RE (mm): 0.2 | Cutting edge length (mm): 3.7 | Grade: DA1000 | Stock: Yes
NF-TNMX160404 DA1000 IC (mm): 9.525 | Thickness (mm): 4.76 | Hole diameter (mm): 3.81 | RE (mm): 0.4 | Cutting edge length (mm): 3.6 | Grade: DA1000 | Stock: Yes
NF-TNMX160408 DA1000 IC (mm): 9.525 | Thickness (mm): 4.76 | Hole diameter (mm): 3.81 | RE (mm): 0.8 | Cutting edge length (mm): 3.3 | Grade: DA1000 | Stock: Yes
TNMX160402 DA1000 IC (mm): 9.525 | Thickness (mm): 4.76 | Hole diameter (mm): 3.81 | RE (mm): 0.2 | Cutting edge length (mm): 3.7 | Grade: DA1000 | Stock: Yes
TNMX160404 DA150 IC (mm): 9.525 | Thickness (mm): 4.76 | Hole diameter (mm): 3.81 | RE (mm): 0.4 | Cutting edge length (mm): 3.6 | Grade: DA150 | Stock: Yes
TNMX160404 DA1000 IC (mm): 9.525 | Thickness (mm): 4.76 | Hole diameter (mm): 3.81 | RE (mm): 0.4 | Cutting edge length (mm): 3.6 | Grade: DA1000 | Stock: Yes
TNMX160408 DA150 IC (mm): 9.525 | Thickness (mm): 4.76 | Hole diameter (mm): 3.81 | RE (mm): 0.8 | Cutting edge length (mm): 3.3 | Grade: DA150 | Stock: Yes
TNMX160408 DA1000 IC (mm): 9.525 | Thickness (mm): 4.76 | Hole diameter (mm): 3.81 | RE (mm): 0.8 | Cutting edge length (mm): 3.3 | Grade: DA1000 | Stock: Yes
PCD InsertsSumitomo Electric Hardmetal
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SUMIDIA PCD Insert TNMX1604

Brand Sumitomo Electric Hardmetal·PCD Inserts

Available part numbers (8)

NF-TNMX160402 DA1000, NF-TNMX160404 DA1000, NF-TNMX160408 DA1000, TNMX160402 DA1000, TNMX160404 DA150, TNMX160404 DA1000, TNMX160408 DA150, TNMX160408 DA1000

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NF-TNMX160402 DA1000IC (mm): 9.525 | Thickness (mm): 4.76 | Hole diameter (mm): 3.81 | RE (mm): 0.2 | Cutting edge length (mm): 3.7 | Grade: DA1000 | Stock: Yes
NF-TNMX160404 DA1000IC (mm): 9.525 | Thickness (mm): 4.76 | Hole diameter (mm): 3.81 | RE (mm): 0.4 | Cutting edge length (mm): 3.6 | Grade: DA1000 | Stock: Yes
NF-TNMX160408 DA1000IC (mm): 9.525 | Thickness (mm): 4.76 | Hole diameter (mm): 3.81 | RE (mm): 0.8 | Cutting edge length (mm): 3.3 | Grade: DA1000 | Stock: Yes
TNMX160402 DA1000IC (mm): 9.525 | Thickness (mm): 4.76 | Hole diameter (mm): 3.81 | RE (mm): 0.2 | Cutting edge length (mm): 3.7 | Grade: DA1000 | Stock: Yes
TNMX160404 DA150IC (mm): 9.525 | Thickness (mm): 4.76 | Hole diameter (mm): 3.81 | RE (mm): 0.4 | Cutting edge length (mm): 3.6 | Grade: DA150 | Stock: Yes
TNMX160404 DA1000IC (mm): 9.525 | Thickness (mm): 4.76 | Hole diameter (mm): 3.81 | RE (mm): 0.4 | Cutting edge length (mm): 3.6 | Grade: DA1000 | Stock: Yes
TNMX160408 DA150IC (mm): 9.525 | Thickness (mm): 4.76 | Hole diameter (mm): 3.81 | RE (mm): 0.8 | Cutting edge length (mm): 3.3 | Grade: DA150 | Stock: Yes
TNMX160408 DA1000IC (mm): 9.525 | Thickness (mm): 4.76 | Hole diameter (mm): 3.81 | RE (mm): 0.8 | Cutting edge length (mm): 3.3 | Grade: DA1000 | Stock: Yes
