Sumitomo Electric Hardmetal SUMIDIA PCD Insert TPGN1103

Sumitomo Electric Hardmetal SUMIDIA PCD Insert TPGN1103

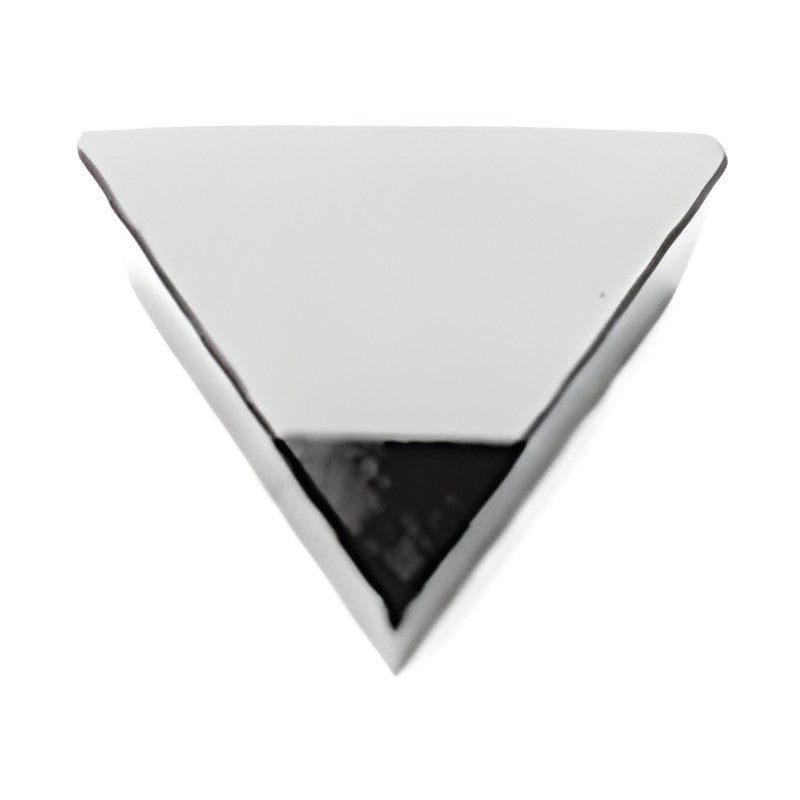

SUMIDIA diamond insert TPGN1103 (triangular, positive (11° clearance)) for machining aluminum alloys, non-ferrous metals and cemented carbide.

Key features

  • Grades: DA1000, DA150
  • NF- full-face types
NF-TPGN110304 DA1000 IC (mm): 6.35 | Thickness (mm): 3.18 | Hole diameter (mm): 110308 | Cutting edge length (mm): 2.9 | Grade: DA1000 | Stock: Yes
NF-TPGN110308 DA1000 IC (mm): 6.35 | Thickness (mm): 3.18 | Hole diameter (mm): 110308 | Cutting edge length (mm): 2.7 | Grade: DA1000 | Stock: Yes
NF-TPGN110304P DA1000 IC (mm): 6.35 | Thickness (mm): 3.18 | Hole diameter (mm): 110308 | Cutting edge length (mm): 10.4 | Grade: DA1000 | Stock: Yes
NF-TPGN110308P DA1000 IC (mm): 6.35 | Thickness (mm): 3.18 | Hole diameter (mm): 110308 | Cutting edge length (mm): 9.8 | Grade: DA1000 | Stock: Yes
TPGN110302 DA150 IC (mm): 6.35 | Thickness (mm): 3.18 | Hole diameter (mm): 110308 | RE (mm): 0.05 | Cutting edge length (mm): 3.7 | Grade: DA150 | Stock: Yes
TPGN110304 DA150 IC (mm): 6.35 | Thickness (mm): 3.18 | Hole diameter (mm): 110308 | Cutting edge length (mm): 3.6 | Grade: DA150 | Stock: Yes
PCD InsertsSumitomo Electric Hardmetal
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SUMIDIA PCD Insert TPGN1103

Brand Sumitomo Electric Hardmetal·PCD Inserts

Available part numbers (6)

NF-TPGN110304 DA1000, NF-TPGN110308 DA1000, NF-TPGN110304P DA1000, NF-TPGN110308P DA1000, TPGN110302 DA150, TPGN110304 DA150

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NF-TPGN110304 DA1000IC (mm): 6.35 | Thickness (mm): 3.18 | Hole diameter (mm): 110308 | Cutting edge length (mm): 2.9 | Grade: DA1000 | Stock: Yes
NF-TPGN110308 DA1000IC (mm): 6.35 | Thickness (mm): 3.18 | Hole diameter (mm): 110308 | Cutting edge length (mm): 2.7 | Grade: DA1000 | Stock: Yes
NF-TPGN110304P DA1000IC (mm): 6.35 | Thickness (mm): 3.18 | Hole diameter (mm): 110308 | Cutting edge length (mm): 10.4 | Grade: DA1000 | Stock: Yes
NF-TPGN110308P DA1000IC (mm): 6.35 | Thickness (mm): 3.18 | Hole diameter (mm): 110308 | Cutting edge length (mm): 9.8 | Grade: DA1000 | Stock: Yes
TPGN110302 DA150IC (mm): 6.35 | Thickness (mm): 3.18 | Hole diameter (mm): 110308 | RE (mm): 0.05 | Cutting edge length (mm): 3.7 | Grade: DA150 | Stock: Yes
TPGN110304 DA150IC (mm): 6.35 | Thickness (mm): 3.18 | Hole diameter (mm): 110308 | Cutting edge length (mm): 3.6 | Grade: DA150 | Stock: Yes
