• Sumitomo Electric Hardmetal SUMIDIA PCD Insert TPGW1102
1 1

Sumitomo Electric Hardmetal SUMIDIA PCD Insert TPGW1102

Sumitomo Electric Hardmetal SUMIDIA PCD Insert TPGW1102

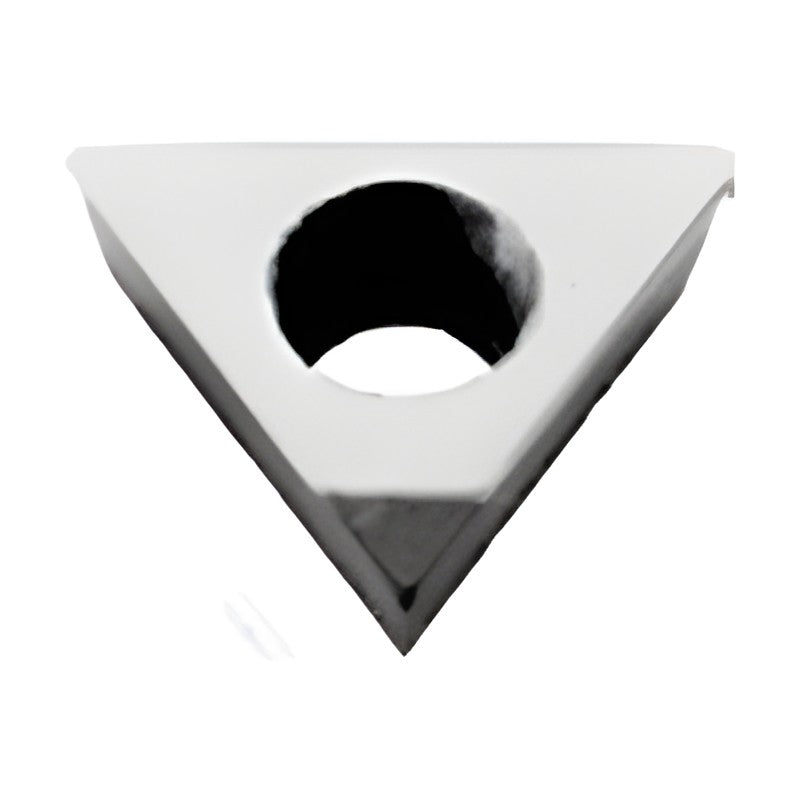

SUMIDIA diamond insert TPGW1102 (triangular, positive (11° clearance)) for machining aluminum alloys, non-ferrous metals and cemented carbide.

Key features

  • Grades: DA1000, DA150
  • NF- full-face types
NF-TPGW110201 DA1000 Thickness (mm): 2.38 | RE (mm): 0.1 | Cutting edge length (mm): 3.1 | Grade: DA1000 | Stock: Yes
NF-TPGW110202 DA1000 Thickness (mm): 2.38 | RE (mm): 0.2 | Cutting edge length (mm): 3.0 | Grade: DA1000 | Stock: Yes
NF-TPGW110204 DA1000 Thickness (mm): 2.38 | RE (mm): 0.4 | Cutting edge length (mm): 2.9 | Grade: DA1000 | Stock: Yes
TPGW110202 DA150 Thickness (mm): 2.38 | RE (mm): 0.2 | Cutting edge length (mm): 3.7 | Grade: DA150 | Stock: Yes
TPGW110204 DA150 Thickness (mm): 2.38 | RE (mm): 0.4 | Cutting edge length (mm): 3.6 | Grade: DA150 | Stock: Yes
PCD InsertsSumitomo Electric Hardmetal
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SUMIDIA PCD Insert TPGW1102

Brand Sumitomo Electric Hardmetal·PCD Inserts

Available part numbers (5)

NF-TPGW110201 DA1000, NF-TPGW110202 DA1000, NF-TPGW110204 DA1000, TPGW110202 DA150, TPGW110204 DA150

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NF-TPGW110201 DA1000Thickness (mm): 2.38 | RE (mm): 0.1 | Cutting edge length (mm): 3.1 | Grade: DA1000 | Stock: Yes
NF-TPGW110202 DA1000Thickness (mm): 2.38 | RE (mm): 0.2 | Cutting edge length (mm): 3.0 | Grade: DA1000 | Stock: Yes
NF-TPGW110204 DA1000Thickness (mm): 2.38 | RE (mm): 0.4 | Cutting edge length (mm): 2.9 | Grade: DA1000 | Stock: Yes
TPGW110202 DA150Thickness (mm): 2.38 | RE (mm): 0.2 | Cutting edge length (mm): 3.7 | Grade: DA150 | Stock: Yes
TPGW110204 DA150Thickness (mm): 2.38 | RE (mm): 0.4 | Cutting edge length (mm): 3.6 | Grade: DA150 | Stock: Yes
