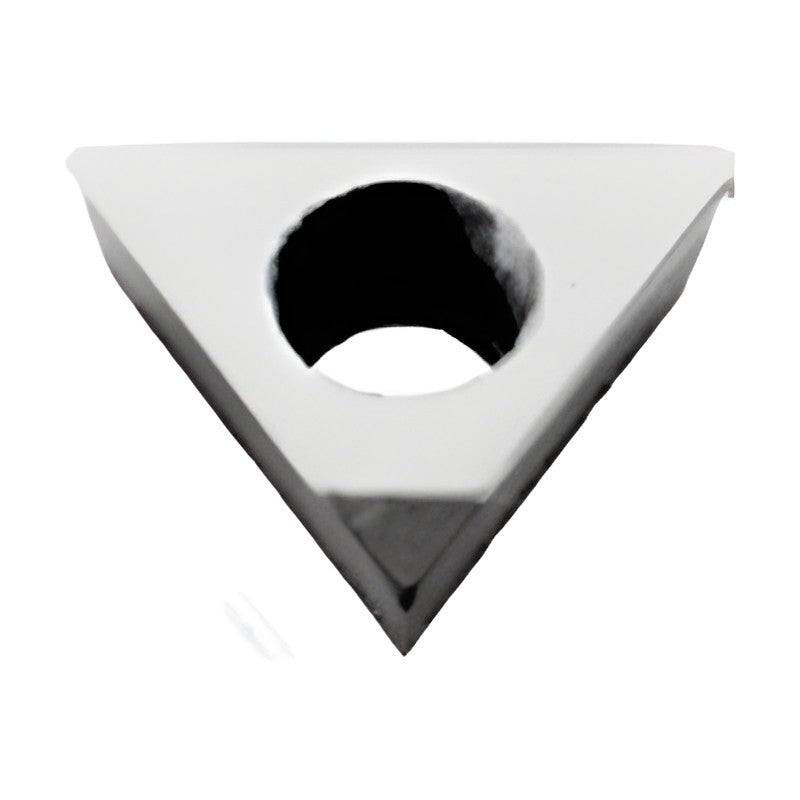

Sumitomo Electric Hardmetal SUMIDIA PCD Insert TPGW1103

SUMIDIA diamond insert TPGW1103 (triangular, positive (11° clearance)) for machining aluminum alloys, non-ferrous metals and cemented carbide.

Key features

Grades: DA1000, DA150
NF- full-face types

NF-TPGW110301 DA1000		IC (mm): 6.35 \| Thickness (mm): 3.18 \| Hole diameter (mm): 3.4 \| Cutting edge length (mm): 3.1 \| Grade: DA1000 \| Stock: Yes
NF-TPGW110302 DA1000		IC (mm): 6.35 \| Thickness (mm): 3.18 \| Hole diameter (mm): 3.4 \| Cutting edge length (mm): 3.0 \| Grade: DA1000 \| Stock: Yes
NF-TPGW110304 DA1000		IC (mm): 6.35 \| Thickness (mm): 3.18 \| Hole diameter (mm): 3.4 \| Cutting edge length (mm): 2.9 \| Grade: DA1000 \| Stock: Yes
NF-TPGW110308 DA1000		IC (mm): 6.35 \| Thickness (mm): 3.18 \| Hole diameter (mm): 3.4 \| Cutting edge length (mm): 2.7 \| Grade: DA1000 \| Stock: Yes
NF-TPGW110304P DA1000		IC (mm): 6.35 \| Thickness (mm): 3.18 \| Hole diameter (mm): 3.4 \| Cutting edge length (mm): 10.4 \| Grade: DA1000 \| Stock: Yes
NF-TPGW110308P DA1000		IC (mm): 6.35 \| Thickness (mm): 3.18 \| Hole diameter (mm): 3.4 \| Cutting edge length (mm): 9.8 \| Grade: DA1000 \| Stock: Yes
TPGW110302 DA150		IC (mm): 6.35 \| Thickness (mm): 3.18 \| Hole diameter (mm): 3.4 \| RE (mm): 0.05 \| Cutting edge length (mm): 3.7 \| Grade: DA150 \| Stock: Yes
TPGW110304 DA150		IC (mm): 6.35 \| Thickness (mm): 3.18 \| Hole diameter (mm): 3.4 \| Cutting edge length (mm): 3.6 \| Grade: DA150 \| Stock: Yes
TPGW110308 DA150		IC (mm): 6.35 \| Thickness (mm): 3.18 \| Hole diameter (mm): 3.4 \| Cutting edge length (mm): 3.3 \| Grade: DA150 \| Stock: Yes

PCD InsertsSumitomo Electric Hardmetal

9 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SUMIDIA PCD Insert TPGW1103

Brand Sumitomo Electric Hardmetal·PCD Inserts

Available part numbers (9)

NF-TPGW110301 DA1000, NF-TPGW110302 DA1000, NF-TPGW110304 DA1000, NF-TPGW110308 DA1000, NF-TPGW110304P DA1000, NF-TPGW110308P DA1000, TPGW110302 DA150, TPGW110304 DA150, TPGW110308 DA150

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

	Product code	Spec
	NF-TPGW110301 DA1000	IC (mm): 6.35 \| Thickness (mm): 3.18 \| Hole diameter (mm): 3.4 \| Cutting edge length (mm): 3.1 \| Grade: DA1000 \| Stock: Yes
	NF-TPGW110302 DA1000	IC (mm): 6.35 \| Thickness (mm): 3.18 \| Hole diameter (mm): 3.4 \| Cutting edge length (mm): 3.0 \| Grade: DA1000 \| Stock: Yes
	NF-TPGW110304 DA1000	IC (mm): 6.35 \| Thickness (mm): 3.18 \| Hole diameter (mm): 3.4 \| Cutting edge length (mm): 2.9 \| Grade: DA1000 \| Stock: Yes
	NF-TPGW110308 DA1000	IC (mm): 6.35 \| Thickness (mm): 3.18 \| Hole diameter (mm): 3.4 \| Cutting edge length (mm): 2.7 \| Grade: DA1000 \| Stock: Yes
	NF-TPGW110304P DA1000	IC (mm): 6.35 \| Thickness (mm): 3.18 \| Hole diameter (mm): 3.4 \| Cutting edge length (mm): 10.4 \| Grade: DA1000 \| Stock: Yes
	NF-TPGW110308P DA1000	IC (mm): 6.35 \| Thickness (mm): 3.18 \| Hole diameter (mm): 3.4 \| Cutting edge length (mm): 9.8 \| Grade: DA1000 \| Stock: Yes
	TPGW110302 DA150	IC (mm): 6.35 \| Thickness (mm): 3.18 \| Hole diameter (mm): 3.4 \| RE (mm): 0.05 \| Cutting edge length (mm): 3.7 \| Grade: DA150 \| Stock: Yes
	TPGW110304 DA150	IC (mm): 6.35 \| Thickness (mm): 3.18 \| Hole diameter (mm): 3.4 \| Cutting edge length (mm): 3.6 \| Grade: DA150 \| Stock: Yes
	TPGW110308 DA150	IC (mm): 6.35 \| Thickness (mm): 3.18 \| Hole diameter (mm): 3.4 \| Cutting edge length (mm): 3.3 \| Grade: DA150 \| Stock: Yes
