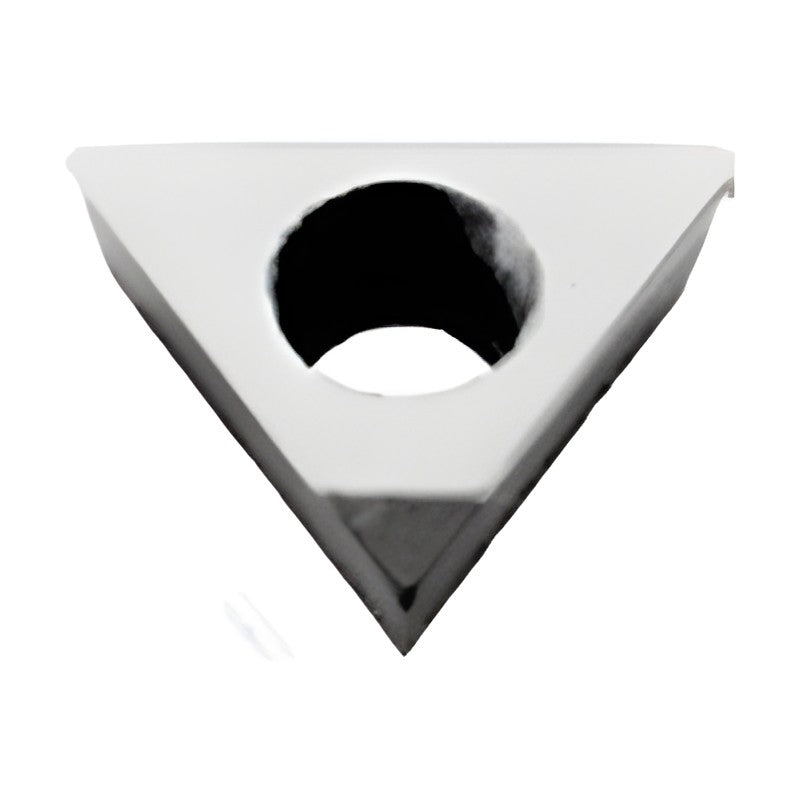

Sumitomo Electric Hardmetal SUMIDIA PCD Insert TPGW1603

Sumitomo Electric Hardmetal SUMIDIA PCD Insert TPGW1603

SUMIDIA diamond insert TPGW1603 (triangular, positive (11° clearance)) for machining aluminum alloys, non-ferrous metals and cemented carbide.

Key features

  • Grades: DA1000
  • NF- full-face types
NF-TPGW160302 DA1000 IC (mm): 9.525 | Thickness (mm): 3.18 | Hole diameter (mm): 4.4 | RE (mm): 0.2 | Cutting edge length (mm): 3.1 | Grade: DA1000 | Stock: Yes
NF-TPGW160304 DA1000 IC (mm): 9.525 | Thickness (mm): 3.18 | Hole diameter (mm): 4.4 | RE (mm): 0.4 | Cutting edge length (mm): 2.9 | Grade: DA1000 | Stock: Yes
NF-TPGW160308 DA1000 IC (mm): 9.525 | Thickness (mm): 3.18 | Hole diameter (mm): 4.4 | RE (mm): 0.8 | Cutting edge length (mm): 2.7 | Grade: DA1000 | Stock: Yes
PCD InsertsSumitomo Electric Hardmetal
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SUMIDIA PCD Insert TPGW1603

Brand Sumitomo Electric Hardmetal·PCD Inserts

Available part numbers (3)

NF-TPGW160302 DA1000, NF-TPGW160304 DA1000, NF-TPGW160308 DA1000

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NF-TPGW160302 DA1000IC (mm): 9.525 | Thickness (mm): 3.18 | Hole diameter (mm): 4.4 | RE (mm): 0.2 | Cutting edge length (mm): 3.1 | Grade: DA1000 | Stock: Yes
NF-TPGW160304 DA1000IC (mm): 9.525 | Thickness (mm): 3.18 | Hole diameter (mm): 4.4 | RE (mm): 0.4 | Cutting edge length (mm): 2.9 | Grade: DA1000 | Stock: Yes
NF-TPGW160308 DA1000IC (mm): 9.525 | Thickness (mm): 3.18 | Hole diameter (mm): 4.4 | RE (mm): 0.8 | Cutting edge length (mm): 2.7 | Grade: DA1000 | Stock: Yes
