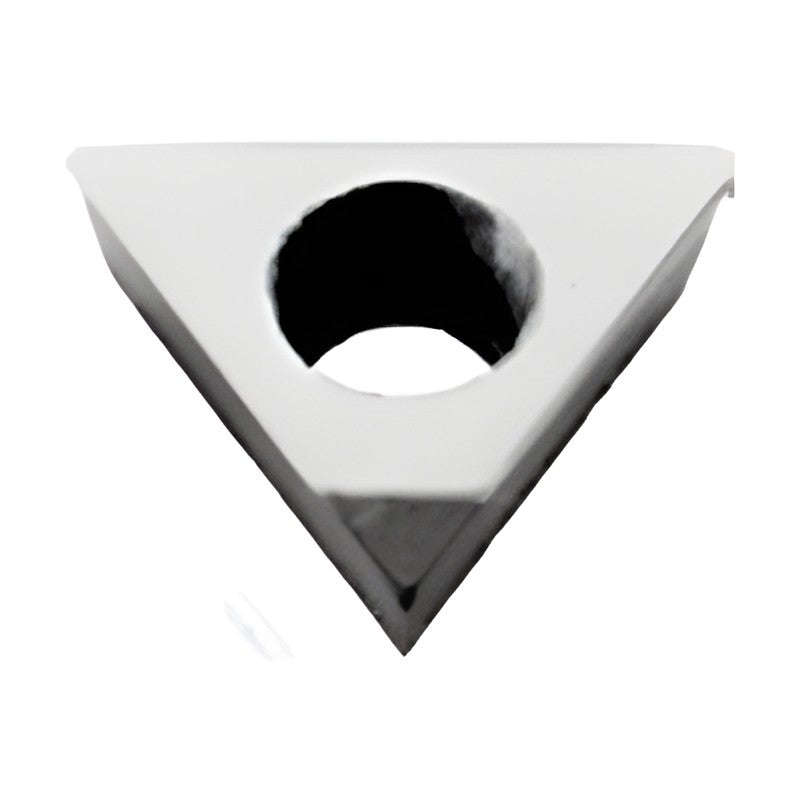

Sumitomo Electric Hardmetal SUMIDIA PCD Insert TPMT1103

SUMIDIA diamond insert TPMT1103 (triangular, positive (11° clearance)) for machining aluminum alloys, non-ferrous metals and cemented carbide.

Key features

Grades: DA1000, DA150
NF- full-face types

NF-TPMT110301 DA1000		IC (mm): 6.35 \| Thickness (mm): 3.18 \| Hole diameter (mm): 3.4 \| Cutting edge length (mm): 3.0 \| Grade: DA1000 \| Stock: Yes
NF-TPMT110302 DA1000		IC (mm): 6.35 \| Thickness (mm): 3.18 \| Hole diameter (mm): 3.4 \| Cutting edge length (mm): 2.9 \| Grade: DA1000 \| Stock: Yes
NF-TPMT110304 DA1000		IC (mm): 6.35 \| Thickness (mm): 3.18 \| Hole diameter (mm): 3.4 \| Cutting edge length (mm): 2.8 \| Grade: DA1000 \| Stock: Yes
NF-TPMT110308 DA1000		IC (mm): 6.35 \| Thickness (mm): 3.18 \| Hole diameter (mm): 3.4 \| Cutting edge length (mm): 2.5 \| Grade: DA1000 \| Stock: Yes
NF-TPMT110302N-LD DA1000		IC (mm): 6.35 \| Thickness (mm): 3.18 \| Hole diameter (mm): 3.4 \| Cutting edge length (mm): 3.1 \| Grade: DA1000 \| Stock: Yes
NF-TPMT110304N-LD DA1000		IC (mm): 6.35 \| Thickness (mm): 3.18 \| Hole diameter (mm): 3.4 \| Cutting edge length (mm): 2.9 \| Grade: DA1000 \| Stock: Yes
NF-TPMT110308N-LD DA1000		IC (mm): 6.35 \| Thickness (mm): 3.18 \| Hole diameter (mm): 3.4 \| Cutting edge length (mm): 2.7 \| Grade: DA1000 \| Stock: Yes
NF-TPMT110302N-GD DA1000		IC (mm): 6.35 \| Thickness (mm): 3.18 \| Hole diameter (mm): 3.4 \| Cutting edge length (mm): 3.1 \| Grade: DA1000 \| Stock: Yes
NF-TPMT110304N-GD DA1000		IC (mm): 6.35 \| Thickness (mm): 3.18 \| Hole diameter (mm): 3.4 \| Cutting edge length (mm): 2.9 \| Grade: DA1000 \| Stock: Yes
NF-TPMT110308N-GD DA1000		IC (mm): 6.35 \| Thickness (mm): 3.18 \| Hole diameter (mm): 3.4 \| Cutting edge length (mm): 2.7 \| Grade: DA1000 \| Stock: Yes
NU-TPMT110302L-DM DA150		IC (mm): 6.35 \| Thickness (mm): 3.18 \| Hole diameter (mm): 3.4 \| Cutting edge length (mm): 2.5 \| Grade: DA150 \| Stock: Yes
NU-TPMT110304L-DM DA150		IC (mm): 6.35 \| Thickness (mm): 3.18 \| Hole diameter (mm): 3.4 \| RE (mm): 0.05 \| Cutting edge length (mm): 2.3 \| Grade: DA150 \| Stock: Yes

PCD InsertsSumitomo Electric Hardmetal

12 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SUMIDIA PCD Insert TPMT1103

Brand Sumitomo Electric Hardmetal·PCD Inserts

Available part numbers (12)

NF-TPMT110301 DA1000, NF-TPMT110302 DA1000, NF-TPMT110304 DA1000, NF-TPMT110308 DA1000, NF-TPMT110302N-LD DA1000, NF-TPMT110304N-LD DA1000, NF-TPMT110308N-LD DA1000, NF-TPMT110302N-GD DA1000, NF-TPMT110304N-GD DA1000, NF-TPMT110308N-GD DA1000 + 2 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

	Product code	Spec
	NF-TPMT110301 DA1000	IC (mm): 6.35 \| Thickness (mm): 3.18 \| Hole diameter (mm): 3.4 \| Cutting edge length (mm): 3.0 \| Grade: DA1000 \| Stock: Yes
	NF-TPMT110302 DA1000	IC (mm): 6.35 \| Thickness (mm): 3.18 \| Hole diameter (mm): 3.4 \| Cutting edge length (mm): 2.9 \| Grade: DA1000 \| Stock: Yes
	NF-TPMT110304 DA1000	IC (mm): 6.35 \| Thickness (mm): 3.18 \| Hole diameter (mm): 3.4 \| Cutting edge length (mm): 2.8 \| Grade: DA1000 \| Stock: Yes
	NF-TPMT110308 DA1000	IC (mm): 6.35 \| Thickness (mm): 3.18 \| Hole diameter (mm): 3.4 \| Cutting edge length (mm): 2.5 \| Grade: DA1000 \| Stock: Yes
	NF-TPMT110302N-LD DA1000	IC (mm): 6.35 \| Thickness (mm): 3.18 \| Hole diameter (mm): 3.4 \| Cutting edge length (mm): 3.1 \| Grade: DA1000 \| Stock: Yes
	NF-TPMT110304N-LD DA1000	IC (mm): 6.35 \| Thickness (mm): 3.18 \| Hole diameter (mm): 3.4 \| Cutting edge length (mm): 2.9 \| Grade: DA1000 \| Stock: Yes
	NF-TPMT110308N-LD DA1000	IC (mm): 6.35 \| Thickness (mm): 3.18 \| Hole diameter (mm): 3.4 \| Cutting edge length (mm): 2.7 \| Grade: DA1000 \| Stock: Yes
	NF-TPMT110302N-GD DA1000	IC (mm): 6.35 \| Thickness (mm): 3.18 \| Hole diameter (mm): 3.4 \| Cutting edge length (mm): 3.1 \| Grade: DA1000 \| Stock: Yes
	NF-TPMT110304N-GD DA1000	IC (mm): 6.35 \| Thickness (mm): 3.18 \| Hole diameter (mm): 3.4 \| Cutting edge length (mm): 2.9 \| Grade: DA1000 \| Stock: Yes
	NF-TPMT110308N-GD DA1000	IC (mm): 6.35 \| Thickness (mm): 3.18 \| Hole diameter (mm): 3.4 \| Cutting edge length (mm): 2.7 \| Grade: DA1000 \| Stock: Yes
	NU-TPMT110302L-DM DA150	IC (mm): 6.35 \| Thickness (mm): 3.18 \| Hole diameter (mm): 3.4 \| Cutting edge length (mm): 2.5 \| Grade: DA150 \| Stock: Yes
	NU-TPMT110304L-DM DA150	IC (mm): 6.35 \| Thickness (mm): 3.18 \| Hole diameter (mm): 3.4 \| RE (mm): 0.05 \| Cutting edge length (mm): 2.3 \| Grade: DA150 \| Stock: Yes
