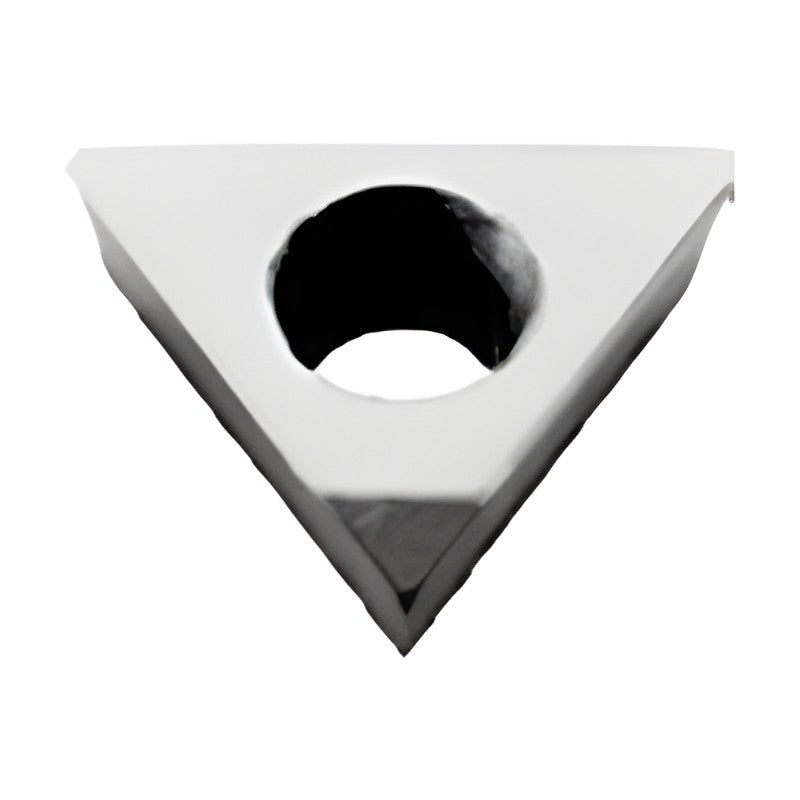

Sumitomo Electric Hardmetal SUMIDIA PCD Insert TPMW0802

Sumitomo Electric Hardmetal SUMIDIA PCD Insert TPMW0802

SUMIDIA diamond insert TPMW0802 (triangular, positive (11° clearance)) for machining aluminum alloys, non-ferrous metals and cemented carbide.

Key features

  • Grades: DA1090, DA90, NPD10
  • Binderless nano-polycrystalline diamond (NPD10) types
  • NF- full-face types
NF-TPMW080204 DA1090 IC (mm): 4.76 | Thickness (mm): 2.38 | Hole diameter (mm): 2.4 | RE (mm): 0.4 | Cutting edge length (mm): 2.4 | Grade: DA1090 | Stock: Yes
NF-TPMW080204 DA90 IC (mm): 4.76 | Thickness (mm): 2.38 | Hole diameter (mm): 2.4 | RE (mm): 0.4 | Cutting edge length (mm): 2.4 | Grade: DA90 | Stock: Yes
TPMW080202RH NPD10 IC (mm): 4.76 | Thickness (mm): 2.38 | Hole diameter (mm): 2.4 | RE (mm): 0.2 | Cutting edge length (mm): 1.2 | Grade: NPD10 | Stock: Yes
TPMW080204RH NPD10 IC (mm): 4.76 | Thickness (mm): 2.38 | Hole diameter (mm): 2.4 | RE (mm): 0.4 | Cutting edge length (mm): 1.0 | Grade: NPD10 | Stock: Yes
TPMW080202RH DA1090 Cutting edge length (mm): 1.2 | RE (mm): 0.2 | Grade: DA1090 | Stock: Yes
TPMW080202RH DA90 Cutting edge length (mm): 1.2 | RE (mm): 0.2 | Grade: DA90 | Stock: Yes
TPMW080204RH DA1090 Cutting edge length (mm): 1.0 | RE (mm): 0.4 | Grade: DA1090 | Stock: Yes
TPMW080204RH DA90 Cutting edge length (mm): 1.0 | RE (mm): 0.4 | Grade: DA90 | Stock: Yes
PCD InsertsSumitomo Electric Hardmetal
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SUMIDIA PCD Insert TPMW0802

Brand Sumitomo Electric Hardmetal·PCD Inserts

Available part numbers (8)

NF-TPMW080204 DA1090, NF-TPMW080204 DA90, TPMW080202RH NPD10, TPMW080204RH NPD10, TPMW080202RH DA1090, TPMW080202RH DA90, TPMW080204RH DA1090, TPMW080204RH DA90

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NF-TPMW080204 DA1090IC (mm): 4.76 | Thickness (mm): 2.38 | Hole diameter (mm): 2.4 | RE (mm): 0.4 | Cutting edge length (mm): 2.4 | Grade: DA1090 | Stock: Yes
NF-TPMW080204 DA90IC (mm): 4.76 | Thickness (mm): 2.38 | Hole diameter (mm): 2.4 | RE (mm): 0.4 | Cutting edge length (mm): 2.4 | Grade: DA90 | Stock: Yes
TPMW080202RH NPD10IC (mm): 4.76 | Thickness (mm): 2.38 | Hole diameter (mm): 2.4 | RE (mm): 0.2 | Cutting edge length (mm): 1.2 | Grade: NPD10 | Stock: Yes
TPMW080204RH NPD10IC (mm): 4.76 | Thickness (mm): 2.38 | Hole diameter (mm): 2.4 | RE (mm): 0.4 | Cutting edge length (mm): 1.0 | Grade: NPD10 | Stock: Yes
TPMW080202RH DA1090Cutting edge length (mm): 1.2 | RE (mm): 0.2 | Grade: DA1090 | Stock: Yes
TPMW080202RH DA90Cutting edge length (mm): 1.2 | RE (mm): 0.2 | Grade: DA90 | Stock: Yes
TPMW080204RH DA1090Cutting edge length (mm): 1.0 | RE (mm): 0.4 | Grade: DA1090 | Stock: Yes
TPMW080204RH DA90Cutting edge length (mm): 1.0 | RE (mm): 0.4 | Grade: DA90 | Stock: Yes
