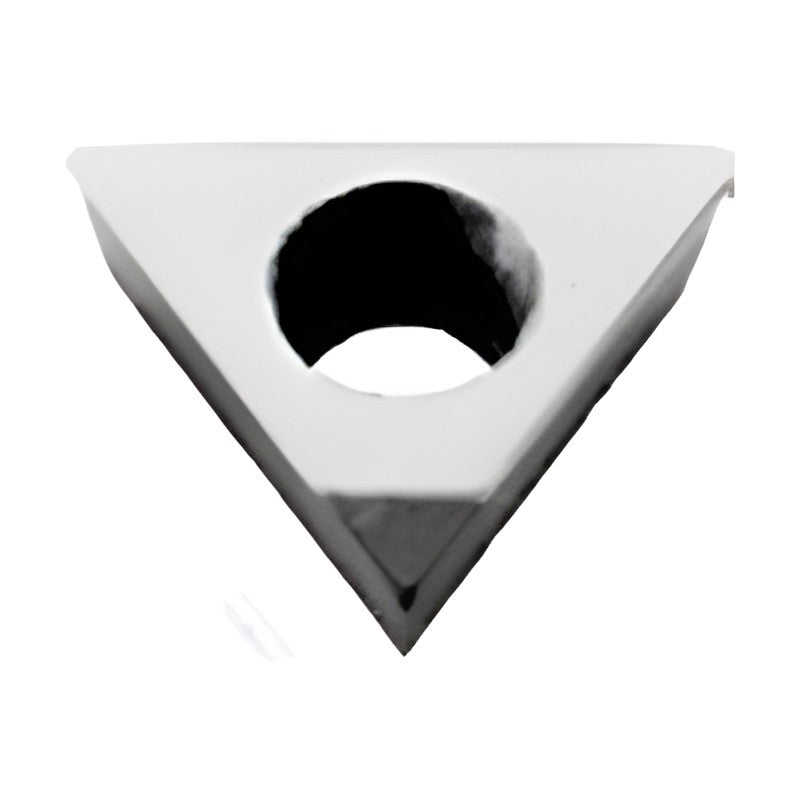

Sumitomo Electric Hardmetal SUMIDIA PCD Insert TPMW1103

SUMIDIA diamond insert TPMW1103 (triangular, positive (11° clearance)) for machining aluminum alloys, non-ferrous metals and cemented carbide.

Key features

Grades: DA1090, DA90, NPD10
Binderless nano-polycrystalline diamond (NPD10) types
NF- full-face types

NF-TPMW110302 DA1090		IC (mm): 6.35 \| Thickness (mm): 3.18 \| Hole diameter (mm): 3.4 \| Cutting edge length (mm): 2.5 \| Grade: DA1090 \| Stock: Yes
NF-TPMW110302 DA90		IC (mm): 6.35 \| Thickness (mm): 3.18 \| Hole diameter (mm): 3.4 \| Cutting edge length (mm): 2.5 \| Grade: DA90 \| Stock: Yes
NF-TPMW110304 DA1090		IC (mm): 6.35 \| Thickness (mm): 3.18 \| Hole diameter (mm): 3.4 \| Cutting edge length (mm): 2.4 \| Grade: DA1090 \| Stock: Yes
NF-TPMW110304 DA90		IC (mm): 6.35 \| Thickness (mm): 3.18 \| Hole diameter (mm): 3.4 \| Cutting edge length (mm): 2.4 \| Grade: DA90 \| Stock: Yes
NF-TPMW110308 DA1090		IC (mm): 6.35 \| Thickness (mm): 3.18 \| Hole diameter (mm): 3.4 \| Cutting edge length (mm): 2.1 \| Grade: DA1090 \| Stock: Yes
NF-TPMW110308 DA90		IC (mm): 6.35 \| Thickness (mm): 3.18 \| Hole diameter (mm): 3.4 \| Cutting edge length (mm): 2.1 \| Grade: DA90 \| Stock: Yes
TPMW110302RH NPD10		IC (mm): 6.35 \| Thickness (mm): 3.18 \| Hole diameter (mm): 3.4 \| Cutting edge length (mm): 1.5 \| Grade: NPD10 \| Stock: Yes
TPMW110304RH NPD10		IC (mm): 6.35 \| Thickness (mm): 3.18 \| Hole diameter (mm): 3.4 \| Cutting edge length (mm): 1.3 \| Grade: NPD10 \| Stock: Yes
TPMW110308RH NPD10		IC (mm): 6.35 \| Thickness (mm): 3.18 \| Hole diameter (mm): 3.4 \| Cutting edge length (mm): 1.0 \| Grade: NPD10 \| Stock: Yes
TPMW110302RH DA1090		Cutting edge length (mm): 1.5 \| RE (mm): 0.2 \| Grade: DA1090 \| Stock: Yes
TPMW110302RH DA90		Cutting edge length (mm): 1.5 \| RE (mm): 0.2 \| Grade: DA90 \| Stock: Yes
TPMW110308RH DA1090		Cutting edge length (mm): 1.0 \| RE (mm): 0.8 \| Grade: DA1090 \| Stock: Yes
TPMW110308RH DA90		Cutting edge length (mm): 1.0 \| RE (mm): 0.8 \| Grade: DA90 \| Stock: Yes

PCD InsertsSumitomo Electric Hardmetal

13 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SUMIDIA PCD Insert TPMW1103

Brand Sumitomo Electric Hardmetal·PCD Inserts

Available part numbers (13)

NF-TPMW110302 DA1090, NF-TPMW110302 DA90, NF-TPMW110304 DA1090, NF-TPMW110304 DA90, NF-TPMW110308 DA1090, NF-TPMW110308 DA90, TPMW110302RH NPD10, TPMW110304RH NPD10, TPMW110308RH NPD10, TPMW110302RH DA1090 + 3 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

	Product code	Spec
	NF-TPMW110302 DA1090	IC (mm): 6.35 \| Thickness (mm): 3.18 \| Hole diameter (mm): 3.4 \| Cutting edge length (mm): 2.5 \| Grade: DA1090 \| Stock: Yes
	NF-TPMW110302 DA90	IC (mm): 6.35 \| Thickness (mm): 3.18 \| Hole diameter (mm): 3.4 \| Cutting edge length (mm): 2.5 \| Grade: DA90 \| Stock: Yes
	NF-TPMW110304 DA1090	IC (mm): 6.35 \| Thickness (mm): 3.18 \| Hole diameter (mm): 3.4 \| Cutting edge length (mm): 2.4 \| Grade: DA1090 \| Stock: Yes
	NF-TPMW110304 DA90	IC (mm): 6.35 \| Thickness (mm): 3.18 \| Hole diameter (mm): 3.4 \| Cutting edge length (mm): 2.4 \| Grade: DA90 \| Stock: Yes
	NF-TPMW110308 DA1090	IC (mm): 6.35 \| Thickness (mm): 3.18 \| Hole diameter (mm): 3.4 \| Cutting edge length (mm): 2.1 \| Grade: DA1090 \| Stock: Yes
	NF-TPMW110308 DA90	IC (mm): 6.35 \| Thickness (mm): 3.18 \| Hole diameter (mm): 3.4 \| Cutting edge length (mm): 2.1 \| Grade: DA90 \| Stock: Yes
	TPMW110302RH NPD10	IC (mm): 6.35 \| Thickness (mm): 3.18 \| Hole diameter (mm): 3.4 \| Cutting edge length (mm): 1.5 \| Grade: NPD10 \| Stock: Yes
	TPMW110304RH NPD10	IC (mm): 6.35 \| Thickness (mm): 3.18 \| Hole diameter (mm): 3.4 \| Cutting edge length (mm): 1.3 \| Grade: NPD10 \| Stock: Yes
	TPMW110308RH NPD10	IC (mm): 6.35 \| Thickness (mm): 3.18 \| Hole diameter (mm): 3.4 \| Cutting edge length (mm): 1.0 \| Grade: NPD10 \| Stock: Yes
	TPMW110302RH DA1090	Cutting edge length (mm): 1.5 \| RE (mm): 0.2 \| Grade: DA1090 \| Stock: Yes
	TPMW110302RH DA90	Cutting edge length (mm): 1.5 \| RE (mm): 0.2 \| Grade: DA90 \| Stock: Yes
	TPMW110308RH DA1090	Cutting edge length (mm): 1.0 \| RE (mm): 0.8 \| Grade: DA1090 \| Stock: Yes
	TPMW110308RH DA90	Cutting edge length (mm): 1.0 \| RE (mm): 0.8 \| Grade: DA90 \| Stock: Yes
