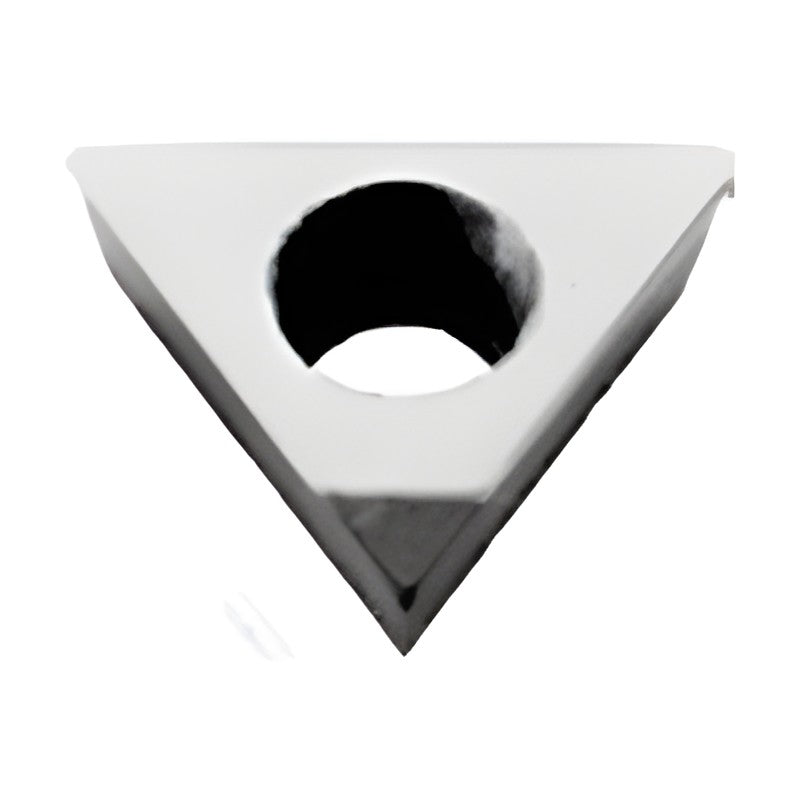

Sumitomo Electric Hardmetal SUMIDIA PCD Insert TPMW1604

Sumitomo Electric Hardmetal SUMIDIA PCD Insert TPMW1604

SUMIDIA diamond insert TPMW1604 (triangular, positive (11° clearance)) for machining aluminum alloys, non-ferrous metals and cemented carbide.

Key features

  • Grades: DA1090, DA90, NPD10
  • Binderless nano-polycrystalline diamond (NPD10) types
  • NF- full-face types
NF-TPMW160404 DA1090 IC (mm): 9.525 | Thickness (mm): 4.76 | Hole diameter (mm): 4.4 | RE (mm): 0.4 | Cutting edge length (mm): 2.4 | Grade: DA1090 | Stock: Yes
NF-TPMW160404 DA90 IC (mm): 9.525 | Thickness (mm): 4.76 | Hole diameter (mm): 4.4 | RE (mm): 0.4 | Cutting edge length (mm): 2.4 | Grade: DA90 | Stock: Yes
NF-TPMW160408 DA1090 IC (mm): 9.525 | Thickness (mm): 4.76 | Hole diameter (mm): 4.4 | RE (mm): 0.8 | Cutting edge length (mm): 2.1 | Grade: DA1090 | Stock: Yes
NF-TPMW160408 DA90 IC (mm): 9.525 | Thickness (mm): 4.76 | Hole diameter (mm): 4.4 | RE (mm): 0.8 | Cutting edge length (mm): 2.1 | Grade: DA90 | Stock: Yes
TPMW160402RH DA1090 IC (mm): 9.525 | Thickness (mm): 4.76 | Hole diameter (mm): 4.4 | RE (mm): 0.2 | Cutting edge length (mm): 2.2 | Grade: DA1090 | Stock: Yes
TPMW160402RH DA90 IC (mm): 9.525 | Thickness (mm): 4.76 | Hole diameter (mm): 4.4 | RE (mm): 0.2 | Cutting edge length (mm): 2.2 | Grade: DA90 | Stock: Yes
TPMW160404RH DA1090 IC (mm): 9.525 | Thickness (mm): 4.76 | Hole diameter (mm): 4.4 | RE (mm): 0.4 | Cutting edge length (mm): 2.0 | Grade: DA1090 | Stock: Yes
TPMW160404RH DA90 IC (mm): 9.525 | Thickness (mm): 4.76 | Hole diameter (mm): 4.4 | RE (mm): 0.4 | Cutting edge length (mm): 2.0 | Grade: DA90 | Stock: Yes
TPMW160408RH DA1090 IC (mm): 9.525 | Thickness (mm): 4.76 | Hole diameter (mm): 4.4 | RE (mm): 0.8 | Cutting edge length (mm): 1.6 | Grade: DA1090 | Stock: Yes
TPMW160408RH DA90 IC (mm): 9.525 | Thickness (mm): 4.76 | Hole diameter (mm): 4.4 | RE (mm): 0.8 | Cutting edge length (mm): 1.6 | Grade: DA90 | Stock: Yes
TPMW160402RH NPD10 Cutting edge length (mm): 2.2 | RE (mm): 0.2 | Grade: NPD10 | Stock: Yes
TPMW160404RH NPD10 Cutting edge length (mm): 2.0 | RE (mm): 0.4 | Grade: NPD10 | Stock: Yes
TPMW160408RH NPD10 Cutting edge length (mm): 1.6 | RE (mm): 0.8 | Grade: NPD10 | Stock: Yes
PCD InsertsSumitomo Electric Hardmetal
13 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SUMIDIA PCD Insert TPMW1604

Brand Sumitomo Electric Hardmetal·PCD Inserts

Available part numbers (13)

NF-TPMW160404 DA1090, NF-TPMW160404 DA90, NF-TPMW160408 DA1090, NF-TPMW160408 DA90, TPMW160402RH DA1090, TPMW160402RH DA90, TPMW160404RH DA1090, TPMW160404RH DA90, TPMW160408RH DA1090, TPMW160408RH DA90 + 3 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NF-TPMW160404 DA1090IC (mm): 9.525 | Thickness (mm): 4.76 | Hole diameter (mm): 4.4 | RE (mm): 0.4 | Cutting edge length (mm): 2.4 | Grade: DA1090 | Stock: Yes
NF-TPMW160404 DA90IC (mm): 9.525 | Thickness (mm): 4.76 | Hole diameter (mm): 4.4 | RE (mm): 0.4 | Cutting edge length (mm): 2.4 | Grade: DA90 | Stock: Yes
NF-TPMW160408 DA1090IC (mm): 9.525 | Thickness (mm): 4.76 | Hole diameter (mm): 4.4 | RE (mm): 0.8 | Cutting edge length (mm): 2.1 | Grade: DA1090 | Stock: Yes
NF-TPMW160408 DA90IC (mm): 9.525 | Thickness (mm): 4.76 | Hole diameter (mm): 4.4 | RE (mm): 0.8 | Cutting edge length (mm): 2.1 | Grade: DA90 | Stock: Yes
TPMW160402RH DA1090IC (mm): 9.525 | Thickness (mm): 4.76 | Hole diameter (mm): 4.4 | RE (mm): 0.2 | Cutting edge length (mm): 2.2 | Grade: DA1090 | Stock: Yes
TPMW160402RH DA90IC (mm): 9.525 | Thickness (mm): 4.76 | Hole diameter (mm): 4.4 | RE (mm): 0.2 | Cutting edge length (mm): 2.2 | Grade: DA90 | Stock: Yes
TPMW160404RH DA1090IC (mm): 9.525 | Thickness (mm): 4.76 | Hole diameter (mm): 4.4 | RE (mm): 0.4 | Cutting edge length (mm): 2.0 | Grade: DA1090 | Stock: Yes
TPMW160404RH DA90IC (mm): 9.525 | Thickness (mm): 4.76 | Hole diameter (mm): 4.4 | RE (mm): 0.4 | Cutting edge length (mm): 2.0 | Grade: DA90 | Stock: Yes
TPMW160408RH DA1090IC (mm): 9.525 | Thickness (mm): 4.76 | Hole diameter (mm): 4.4 | RE (mm): 0.8 | Cutting edge length (mm): 1.6 | Grade: DA1090 | Stock: Yes
TPMW160408RH DA90IC (mm): 9.525 | Thickness (mm): 4.76 | Hole diameter (mm): 4.4 | RE (mm): 0.8 | Cutting edge length (mm): 1.6 | Grade: DA90 | Stock: Yes
TPMW160402RH NPD10Cutting edge length (mm): 2.2 | RE (mm): 0.2 | Grade: NPD10 | Stock: Yes
TPMW160404RH NPD10Cutting edge length (mm): 2.0 | RE (mm): 0.4 | Grade: NPD10 | Stock: Yes
TPMW160408RH NPD10Cutting edge length (mm): 1.6 | RE (mm): 0.8 | Grade: NPD10 | Stock: Yes
