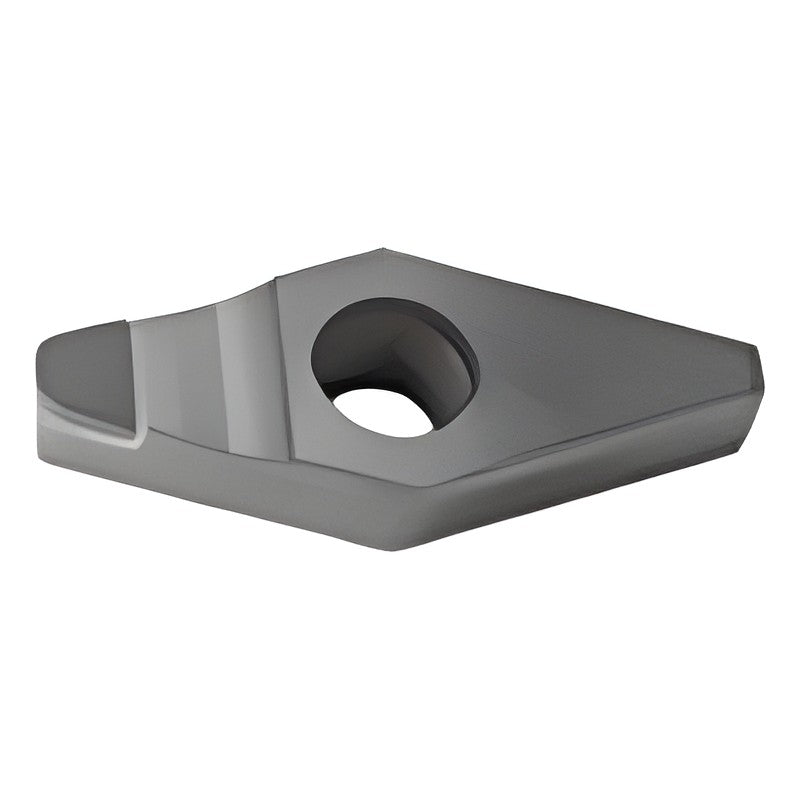

Sumitomo Electric Hardmetal SUMIDIA PCD Insert VCMT1103

Sumitomo Electric Hardmetal SUMIDIA PCD Insert VCMT1103

SUMIDIA diamond insert VCMT1103 (35° rhombic, positive (7° clearance)) for machining aluminum alloys, non-ferrous metals and cemented carbide.

Key features

  • Grades: DA1000
  • NF- full-face types
NF-VCMT110301 DA1000 IC (mm): 6.35 | Thickness (mm): 3.18 | Hole diameter (mm): 2.8 | RE (mm): 0.1 | Cutting edge length (mm): 3.5 | Grade: DA1000 | Stock: Yes
NF-VCMT110302 DA1000 IC (mm): 6.35 | Thickness (mm): 3.18 | Hole diameter (mm): 2.8 | RE (mm): 0.2 | Cutting edge length (mm): 3.4 | Grade: DA1000 | Stock: Yes
NF-VCMT110304 DA1000 IC (mm): 6.35 | Thickness (mm): 3.18 | Hole diameter (mm): 2.8 | RE (mm): 0.4 | Cutting edge length (mm): 3.0 | Grade: DA1000 | Stock: Yes
NF-VCMT110302N-LD DA1000 IC (mm): 6.35 | Thickness (mm): 3.18 | Hole diameter (mm): 2.8 | RE (mm): 0.2 | Cutting edge length (mm): 3.8 | Grade: DA1000 | Stock: Yes
NF-VCMT110304N-LD DA1000 IC (mm): 6.35 | Thickness (mm): 3.18 | Hole diameter (mm): 2.8 | RE (mm): 0.4 | Cutting edge length (mm): 3.4 | Grade: DA1000 | Stock: Yes
NF-VCMT110302N-GD DA1000 IC (mm): 6.35 | Thickness (mm): 3.18 | Hole diameter (mm): 2.8 | RE (mm): 0.2 | Cutting edge length (mm): 3.8 | Grade: DA1000 | Stock: Yes
NF-VCMT110304N-GD DA1000 IC (mm): 6.35 | Thickness (mm): 3.18 | Hole diameter (mm): 2.8 | RE (mm): 0.4 | Cutting edge length (mm): 3.4 | Grade: DA1000 | Stock: Yes
PCD InsertsSumitomo Electric Hardmetal
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SUMIDIA PCD Insert VCMT1103

Brand Sumitomo Electric Hardmetal·PCD Inserts

Available part numbers (7)

NF-VCMT110301 DA1000, NF-VCMT110302 DA1000, NF-VCMT110304 DA1000, NF-VCMT110302N-LD DA1000, NF-VCMT110304N-LD DA1000, NF-VCMT110302N-GD DA1000, NF-VCMT110304N-GD DA1000

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NF-VCMT110301 DA1000IC (mm): 6.35 | Thickness (mm): 3.18 | Hole diameter (mm): 2.8 | RE (mm): 0.1 | Cutting edge length (mm): 3.5 | Grade: DA1000 | Stock: Yes
NF-VCMT110302 DA1000IC (mm): 6.35 | Thickness (mm): 3.18 | Hole diameter (mm): 2.8 | RE (mm): 0.2 | Cutting edge length (mm): 3.4 | Grade: DA1000 | Stock: Yes
NF-VCMT110304 DA1000IC (mm): 6.35 | Thickness (mm): 3.18 | Hole diameter (mm): 2.8 | RE (mm): 0.4 | Cutting edge length (mm): 3.0 | Grade: DA1000 | Stock: Yes
NF-VCMT110302N-LD DA1000IC (mm): 6.35 | Thickness (mm): 3.18 | Hole diameter (mm): 2.8 | RE (mm): 0.2 | Cutting edge length (mm): 3.8 | Grade: DA1000 | Stock: Yes
NF-VCMT110304N-LD DA1000IC (mm): 6.35 | Thickness (mm): 3.18 | Hole diameter (mm): 2.8 | RE (mm): 0.4 | Cutting edge length (mm): 3.4 | Grade: DA1000 | Stock: Yes
NF-VCMT110302N-GD DA1000IC (mm): 6.35 | Thickness (mm): 3.18 | Hole diameter (mm): 2.8 | RE (mm): 0.2 | Cutting edge length (mm): 3.8 | Grade: DA1000 | Stock: Yes
NF-VCMT110304N-GD DA1000IC (mm): 6.35 | Thickness (mm): 3.18 | Hole diameter (mm): 2.8 | RE (mm): 0.4 | Cutting edge length (mm): 3.4 | Grade: DA1000 | Stock: Yes
