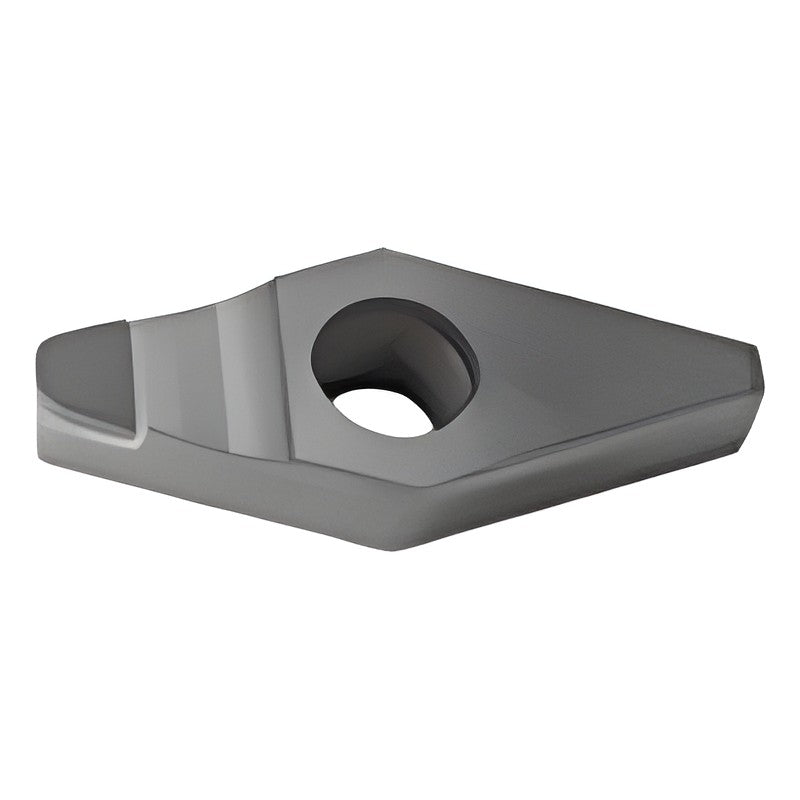

Sumitomo Electric Hardmetal SUMIDIA PCD Insert VCMW0802

SUMIDIA diamond insert VCMW0802 (35° rhombic, positive (7° clearance)) for machining aluminum alloys, non-ferrous metals and cemented carbide.

Key features

Grades: DA1090, DA90, NPD10
Binderless nano-polycrystalline diamond (NPD10) types
NF- full-face types

NF-VCMW080202 DA1090		Thickness (mm): 2.38 \| RE (mm): 0.2 \| Cutting edge length (mm): 3.2 \| Grade: DA1090 \| Stock: Yes
NF-VCMW080202 DA90		Thickness (mm): 2.38 \| RE (mm): 0.2 \| Cutting edge length (mm): 3.2 \| Grade: DA90 \| Stock: Yes
NF-VCMW080204 DA1090		Thickness (mm): 2.38 \| RE (mm): 0.4 \| Cutting edge length (mm): 2.8 \| Grade: DA1090 \| Stock: Yes
NF-VCMW080204 DA90		Thickness (mm): 2.38 \| RE (mm): 0.4 \| Cutting edge length (mm): 2.8 \| Grade: DA90 \| Stock: Yes
VCMW080201RH NPD10		Thickness (mm): 2.38 \| RE (mm): 0.1 \| Cutting edge length (mm): 2.2 \| Grade: NPD10 \| Stock: Yes
VCMW080202RH NPD10		Thickness (mm): 2.38 \| RE (mm): 0.2 \| Cutting edge length (mm): 1.9 \| Grade: NPD10 \| Stock: Yes
VCMW080204RH NPD10		Thickness (mm): 2.38 \| RE (mm): 0.4 \| Cutting edge length (mm): 1.5 \| Grade: NPD10 \| Stock: Yes
VCMW080201RH DA1090		Cutting edge length (mm): 2.2 \| RE (mm): 0.1 \| Grade: DA1090 \| Stock: Yes
VCMW080201RH DA90		Cutting edge length (mm): 2.2 \| RE (mm): 0.1 \| Grade: DA90 \| Stock: Yes
VCMW080202RH DA1090		Cutting edge length (mm): 1.9 \| RE (mm): 0.2 \| Grade: DA1090 \| Stock: Yes
VCMW080202RH DA90		Cutting edge length (mm): 1.9 \| RE (mm): 0.2 \| Grade: DA90 \| Stock: Yes

PCD InsertsSumitomo Electric Hardmetal

11 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SUMIDIA PCD Insert VCMW0802

Brand Sumitomo Electric Hardmetal·PCD Inserts

Available part numbers (11)

NF-VCMW080202 DA1090, NF-VCMW080202 DA90, NF-VCMW080204 DA1090, NF-VCMW080204 DA90, VCMW080201RH NPD10, VCMW080202RH NPD10, VCMW080204RH NPD10, VCMW080201RH DA1090, VCMW080201RH DA90, VCMW080202RH DA1090 + 1 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

	Product code	Spec
	NF-VCMW080202 DA1090	Thickness (mm): 2.38 \| RE (mm): 0.2 \| Cutting edge length (mm): 3.2 \| Grade: DA1090 \| Stock: Yes
	NF-VCMW080202 DA90	Thickness (mm): 2.38 \| RE (mm): 0.2 \| Cutting edge length (mm): 3.2 \| Grade: DA90 \| Stock: Yes
	NF-VCMW080204 DA1090	Thickness (mm): 2.38 \| RE (mm): 0.4 \| Cutting edge length (mm): 2.8 \| Grade: DA1090 \| Stock: Yes
	NF-VCMW080204 DA90	Thickness (mm): 2.38 \| RE (mm): 0.4 \| Cutting edge length (mm): 2.8 \| Grade: DA90 \| Stock: Yes
	VCMW080201RH NPD10	Thickness (mm): 2.38 \| RE (mm): 0.1 \| Cutting edge length (mm): 2.2 \| Grade: NPD10 \| Stock: Yes
	VCMW080202RH NPD10	Thickness (mm): 2.38 \| RE (mm): 0.2 \| Cutting edge length (mm): 1.9 \| Grade: NPD10 \| Stock: Yes
	VCMW080204RH NPD10	Thickness (mm): 2.38 \| RE (mm): 0.4 \| Cutting edge length (mm): 1.5 \| Grade: NPD10 \| Stock: Yes
	VCMW080201RH DA1090	Cutting edge length (mm): 2.2 \| RE (mm): 0.1 \| Grade: DA1090 \| Stock: Yes
	VCMW080201RH DA90	Cutting edge length (mm): 2.2 \| RE (mm): 0.1 \| Grade: DA90 \| Stock: Yes
	VCMW080202RH DA1090	Cutting edge length (mm): 1.9 \| RE (mm): 0.2 \| Grade: DA1090 \| Stock: Yes
	VCMW080202RH DA90	Cutting edge length (mm): 1.9 \| RE (mm): 0.2 \| Grade: DA90 \| Stock: Yes
