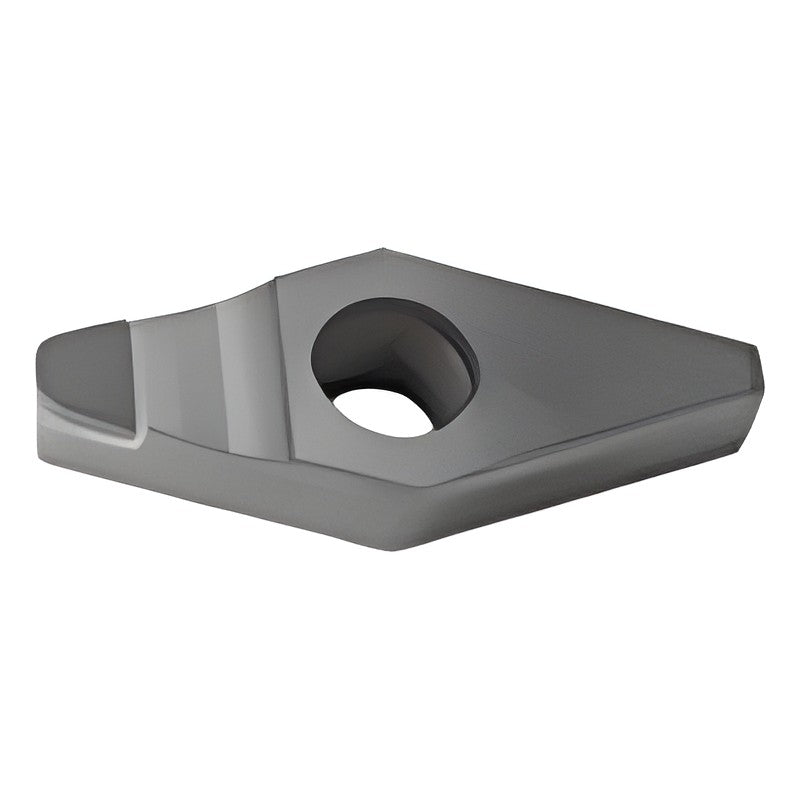

Sumitomo Electric Hardmetal SUMIDIA PCD Insert VCMW1103

Sumitomo Electric Hardmetal SUMIDIA PCD Insert VCMW1103

SUMIDIA diamond insert VCMW1103 (35° rhombic, positive (7° clearance)) for machining aluminum alloys, non-ferrous metals and cemented carbide.

Key features

  • Grades: DA1090, DA90, NPD10
  • Binderless nano-polycrystalline diamond (NPD10) types
  • NF- full-face types
NF-VCMW110302 DA1090 Thickness (mm): 2.38 | RE (mm): 0.2 | Cutting edge length (mm): 3.2 | Grade: DA1090 | Stock: Yes
NF-VCMW110302 DA90 Thickness (mm): 2.38 | RE (mm): 0.2 | Cutting edge length (mm): 3.2 | Grade: DA90 | Stock: Yes
NF-VCMW110304 DA1090 IC (mm): 6.35 | Thickness (mm): 3.18 | Hole diameter (mm): 2.8 | RE (mm): 0.4 | Cutting edge length (mm): 2.8 | Grade: DA1090 | Stock: Yes
NF-VCMW110304 DA90 IC (mm): 6.35 | Thickness (mm): 3.18 | Hole diameter (mm): 2.8 | RE (mm): 0.4 | Cutting edge length (mm): 2.8 | Grade: DA90 | Stock: Yes
VCMW110302RH NPD10 IC (mm): 6.35 | Thickness (mm): 3.18 | Hole diameter (mm): 2.8 | RE (mm): 0.2 | Cutting edge length (mm): 2.1 | Grade: NPD10 | Stock: Yes
VCMW110304RH NPD10 IC (mm): 6.35 | Thickness (mm): 3.18 | Hole diameter (mm): 2.8 | RE (mm): 0.4 | Cutting edge length (mm): 1.7 | Grade: NPD10 | Stock: Yes
VCMW110302RH DA1090 Cutting edge length (mm): 2.1 | RE (mm): 0.2 | Grade: DA1090 | Stock: Yes
VCMW110302RH DA90 Cutting edge length (mm): 2.1 | RE (mm): 0.2 | Grade: DA90 | Stock: Yes
VCMW110304RH DA1090 Cutting edge length (mm): 1.7 | RE (mm): 0.4 | Grade: DA1090 | Stock: Yes
VCMW110304RH DA90 Cutting edge length (mm): 1.7 | RE (mm): 0.4 | Grade: DA90 | Stock: Yes
PCD InsertsSumitomo Electric Hardmetal
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SUMIDIA PCD Insert VCMW1103

Brand Sumitomo Electric Hardmetal·PCD Inserts

Available part numbers (10)

NF-VCMW110302 DA1090, NF-VCMW110302 DA90, NF-VCMW110304 DA1090, NF-VCMW110304 DA90, VCMW110302RH NPD10, VCMW110304RH NPD10, VCMW110302RH DA1090, VCMW110302RH DA90, VCMW110304RH DA1090, VCMW110304RH DA90

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NF-VCMW110302 DA1090Thickness (mm): 2.38 | RE (mm): 0.2 | Cutting edge length (mm): 3.2 | Grade: DA1090 | Stock: Yes
NF-VCMW110302 DA90Thickness (mm): 2.38 | RE (mm): 0.2 | Cutting edge length (mm): 3.2 | Grade: DA90 | Stock: Yes
NF-VCMW110304 DA1090IC (mm): 6.35 | Thickness (mm): 3.18 | Hole diameter (mm): 2.8 | RE (mm): 0.4 | Cutting edge length (mm): 2.8 | Grade: DA1090 | Stock: Yes
NF-VCMW110304 DA90IC (mm): 6.35 | Thickness (mm): 3.18 | Hole diameter (mm): 2.8 | RE (mm): 0.4 | Cutting edge length (mm): 2.8 | Grade: DA90 | Stock: Yes
VCMW110302RH NPD10IC (mm): 6.35 | Thickness (mm): 3.18 | Hole diameter (mm): 2.8 | RE (mm): 0.2 | Cutting edge length (mm): 2.1 | Grade: NPD10 | Stock: Yes
VCMW110304RH NPD10IC (mm): 6.35 | Thickness (mm): 3.18 | Hole diameter (mm): 2.8 | RE (mm): 0.4 | Cutting edge length (mm): 1.7 | Grade: NPD10 | Stock: Yes
VCMW110302RH DA1090Cutting edge length (mm): 2.1 | RE (mm): 0.2 | Grade: DA1090 | Stock: Yes
VCMW110302RH DA90Cutting edge length (mm): 2.1 | RE (mm): 0.2 | Grade: DA90 | Stock: Yes
VCMW110304RH DA1090Cutting edge length (mm): 1.7 | RE (mm): 0.4 | Grade: DA1090 | Stock: Yes
VCMW110304RH DA90Cutting edge length (mm): 1.7 | RE (mm): 0.4 | Grade: DA90 | Stock: Yes
