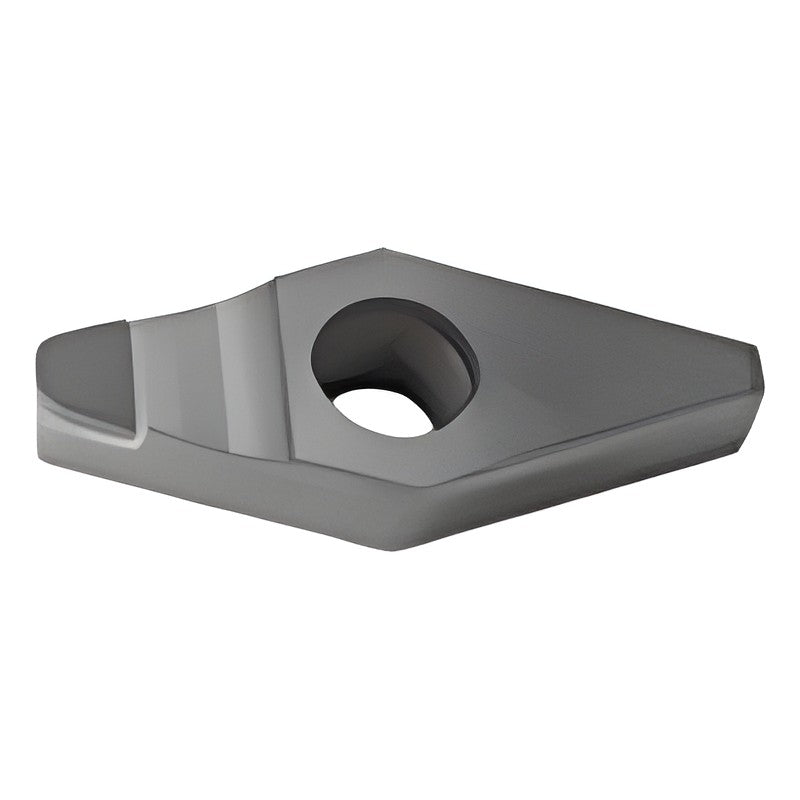

Sumitomo Electric Hardmetal SUMIDIA PCD Insert VCMW1604

Sumitomo Electric Hardmetal SUMIDIA PCD Insert VCMW1604

SUMIDIA diamond insert VCMW1604 (35° rhombic, positive (7° clearance)) for machining aluminum alloys, non-ferrous metals and cemented carbide.

Key features

  • Grades: DA1090, DA90, NPD10
  • Binderless nano-polycrystalline diamond (NPD10) types
  • NF- full-face types
NF-VCMW160404 DA1090 IC (mm): 9.525 | Thickness (mm): 4.76 | Hole diameter (mm): 4.4 | RE (mm): 0.4 | Cutting edge length (mm): 3.3 | Grade: DA1090 | Stock: Yes
NF-VCMW160404 DA90 IC (mm): 9.525 | Thickness (mm): 4.76 | Hole diameter (mm): 4.4 | RE (mm): 0.4 | Cutting edge length (mm): 3.3 | Grade: DA90 | Stock: Yes
NF-VCMW160408 DA1090 IC (mm): 9.525 | Thickness (mm): 4.76 | Hole diameter (mm): 4.4 | RE (mm): 0.8 | Cutting edge length (mm): 2.4 | Grade: DA1090 | Stock: Yes
NF-VCMW160408 DA90 IC (mm): 9.525 | Thickness (mm): 4.76 | Hole diameter (mm): 4.4 | RE (mm): 0.8 | Cutting edge length (mm): 2.4 | Grade: DA90 | Stock: Yes
NF-VCMW160412 DA1090 IC (mm): 9.525 | Thickness (mm): 4.76 | Hole diameter (mm): 4.4 | RE (mm): 1.2 | Cutting edge length (mm): 2.1 | Grade: DA1090 | Stock: Yes
NF-VCMW160412 DA90 IC (mm): 9.525 | Thickness (mm): 4.76 | Hole diameter (mm): 4.4 | RE (mm): 1.2 | Cutting edge length (mm): 2.1 | Grade: DA90 | Stock: Yes
VCMW160402RH NPD10 IC (mm): 9.525 | Thickness (mm): 4.76 | Hole diameter (mm): 4.4 | RE (mm): 0.2 | Cutting edge length (mm): 2.1 | Grade: NPD10 | Stock: Yes
VCMW160404RH NPD10 IC (mm): 9.525 | Thickness (mm): 4.76 | Hole diameter (mm): 4.4 | RE (mm): 0.4 | Cutting edge length (mm): 1.7 | Grade: NPD10 | Stock: Yes
VCMW160408RH NPD10 IC (mm): 9.525 | Thickness (mm): 4.76 | Hole diameter (mm): 4.4 | RE (mm): 0.8 | Cutting edge length (mm): 1.8 | Grade: NPD10 | Stock: Yes
VCMW160412RH NPD10 IC (mm): 9.525 | Thickness (mm): 4.76 | Hole diameter (mm): 4.4 | RE (mm): 1.2 | Cutting edge length (mm): 1.5 | Grade: NPD10 | Stock: Yes
VCMW160402RH DA1090 Cutting edge length (mm): 2.1 | RE (mm): 0.2 | Grade: DA1090 | Stock: Yes
VCMW160402RH DA90 Cutting edge length (mm): 2.1 | RE (mm): 0.2 | Grade: DA90 | Stock: Yes
VCMW160404RH DA1090 Cutting edge length (mm): 1.7 | RE (mm): 0.4 | Grade: DA1090 | Stock: Yes
VCMW160404RH DA90 Cutting edge length (mm): 1.7 | RE (mm): 0.4 | Grade: DA90 | Stock: Yes
VCMW160408RH DA1090 Cutting edge length (mm): 1.8 | RE (mm): 0.8 | Grade: DA1090 | Stock: Yes
VCMW160408RH DA90 Cutting edge length (mm): 1.8 | RE (mm): 0.8 | Grade: DA90 | Stock: Yes
VCMW160412RH DA1090 Cutting edge length (mm): 1.5 | RE (mm): 1.2 | Grade: DA1090 | Stock: Yes
VCMW160412RH DA90 Cutting edge length (mm): 1.5 | RE (mm): 1.2 | Grade: DA90 | Stock: Yes
PCD InsertsSumitomo Electric Hardmetal
18 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SUMIDIA PCD Insert VCMW1604

Brand Sumitomo Electric Hardmetal·PCD Inserts

Available part numbers (18)

NF-VCMW160404 DA1090, NF-VCMW160404 DA90, NF-VCMW160408 DA1090, NF-VCMW160408 DA90, NF-VCMW160412 DA1090, NF-VCMW160412 DA90, VCMW160402RH NPD10, VCMW160404RH NPD10, VCMW160408RH NPD10, VCMW160412RH NPD10 + 8 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NF-VCMW160404 DA1090IC (mm): 9.525 | Thickness (mm): 4.76 | Hole diameter (mm): 4.4 | RE (mm): 0.4 | Cutting edge length (mm): 3.3 | Grade: DA1090 | Stock: Yes
NF-VCMW160404 DA90IC (mm): 9.525 | Thickness (mm): 4.76 | Hole diameter (mm): 4.4 | RE (mm): 0.4 | Cutting edge length (mm): 3.3 | Grade: DA90 | Stock: Yes
NF-VCMW160408 DA1090IC (mm): 9.525 | Thickness (mm): 4.76 | Hole diameter (mm): 4.4 | RE (mm): 0.8 | Cutting edge length (mm): 2.4 | Grade: DA1090 | Stock: Yes
NF-VCMW160408 DA90IC (mm): 9.525 | Thickness (mm): 4.76 | Hole diameter (mm): 4.4 | RE (mm): 0.8 | Cutting edge length (mm): 2.4 | Grade: DA90 | Stock: Yes
NF-VCMW160412 DA1090IC (mm): 9.525 | Thickness (mm): 4.76 | Hole diameter (mm): 4.4 | RE (mm): 1.2 | Cutting edge length (mm): 2.1 | Grade: DA1090 | Stock: Yes
NF-VCMW160412 DA90IC (mm): 9.525 | Thickness (mm): 4.76 | Hole diameter (mm): 4.4 | RE (mm): 1.2 | Cutting edge length (mm): 2.1 | Grade: DA90 | Stock: Yes
VCMW160402RH NPD10IC (mm): 9.525 | Thickness (mm): 4.76 | Hole diameter (mm): 4.4 | RE (mm): 0.2 | Cutting edge length (mm): 2.1 | Grade: NPD10 | Stock: Yes
VCMW160404RH NPD10IC (mm): 9.525 | Thickness (mm): 4.76 | Hole diameter (mm): 4.4 | RE (mm): 0.4 | Cutting edge length (mm): 1.7 | Grade: NPD10 | Stock: Yes
VCMW160408RH NPD10IC (mm): 9.525 | Thickness (mm): 4.76 | Hole diameter (mm): 4.4 | RE (mm): 0.8 | Cutting edge length (mm): 1.8 | Grade: NPD10 | Stock: Yes
VCMW160412RH NPD10IC (mm): 9.525 | Thickness (mm): 4.76 | Hole diameter (mm): 4.4 | RE (mm): 1.2 | Cutting edge length (mm): 1.5 | Grade: NPD10 | Stock: Yes
VCMW160402RH DA1090Cutting edge length (mm): 2.1 | RE (mm): 0.2 | Grade: DA1090 | Stock: Yes
VCMW160402RH DA90Cutting edge length (mm): 2.1 | RE (mm): 0.2 | Grade: DA90 | Stock: Yes
VCMW160404RH DA1090Cutting edge length (mm): 1.7 | RE (mm): 0.4 | Grade: DA1090 | Stock: Yes
VCMW160404RH DA90Cutting edge length (mm): 1.7 | RE (mm): 0.4 | Grade: DA90 | Stock: Yes
VCMW160408RH DA1090Cutting edge length (mm): 1.8 | RE (mm): 0.8 | Grade: DA1090 | Stock: Yes
VCMW160408RH DA90Cutting edge length (mm): 1.8 | RE (mm): 0.8 | Grade: DA90 | Stock: Yes
VCMW160412RH DA1090Cutting edge length (mm): 1.5 | RE (mm): 1.2 | Grade: DA1090 | Stock: Yes
VCMW160412RH DA90Cutting edge length (mm): 1.5 | RE (mm): 1.2 | Grade: DA90 | Stock: Yes
