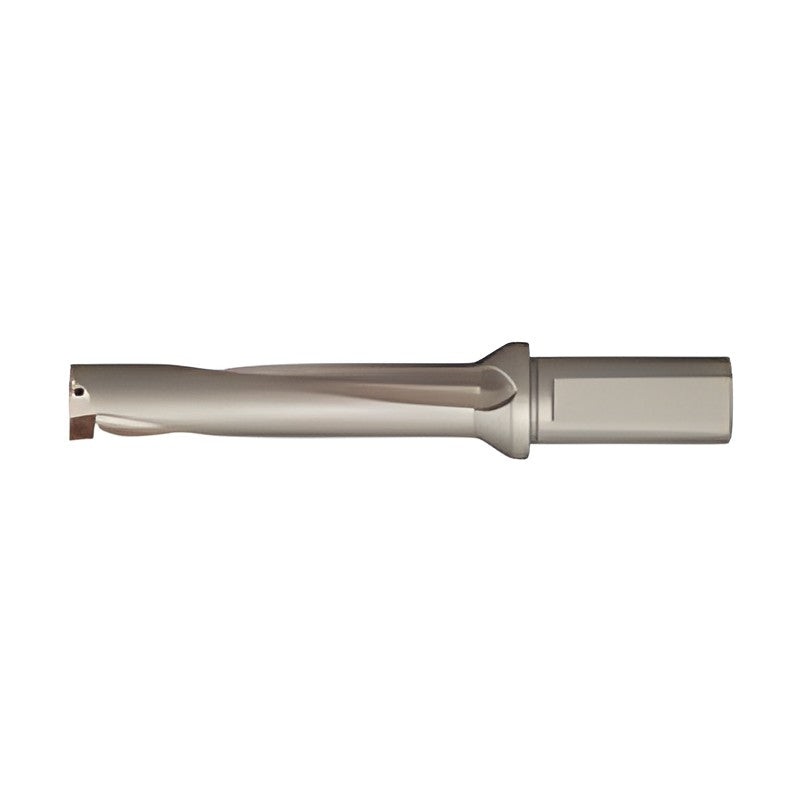

Sumitomo Electric Hardmetal SumiDrill WDX Type Indexable Drill Holder (Internal Coolant)

Sumitomo Electric Hardmetal SumiDrill WDX Type Indexable Drill Holder (Internal Coolant)

Indexable insert drill with balanced cutting between central and peripheral edges, for general steel through stainless steel and aluminum alloys; also usable for enlarging, counterboring and turning.

Key features

  • Balanced central/peripheral edge layout
  • Four-corner inserts used for both edges
  • L/D 2, 3, 4 and 5
  • Diameter 13.0-68.0 mm

Specifications

Coolant Internal
WDX130D2S20 DC (mm): 13.0 | LUX (mm): 29 | LPR (mm): 44 | OAL (mm): 88 | LS (mm): 44 | DCSFMS (mm): 28.0 | DCON (mm): 20 | Max radial offset (mm): 0.35 | Insert: WDXT042004 | Stock: Yes
WDX135D2S20 DC (mm): 13.5 | LUX (mm): 30 | LPR (mm): 45 | OAL (mm): 89 | LS (mm): 44 | DCSFMS (mm): 28.0 | DCON (mm): 20 | Max radial offset (mm): 0.30 | Insert: WDXT042004 | Stock: Yes
WDX140D2S20 DC (mm): 14.0 | LUX (mm): 31 | LPR (mm): 46 | OAL (mm): 90 | LS (mm): 44 | DCSFMS (mm): 28.0 | DCON (mm): 20 | Max radial offset (mm): 0.25 | Insert: WDXT042004 | Stock: Yes
WDX145D2S20 DC (mm): 14.5 | LUX (mm): 32 | LPR (mm): 47 | OAL (mm): 91 | LS (mm): 44 | DCSFMS (mm): 28.0 | DCON (mm): 20 | Max radial offset (mm): 0.20 | Insert: WDXT042004 | Stock: Yes
WDX150D2S20 DC (mm): 15.0 | LUX (mm): 33 | LPR (mm): 48 | OAL (mm): 92 | LS (mm): 44 | DCSFMS (mm): 28.0 | DCON (mm): 20 | Max radial offset (mm): 0.15 | Insert: WDXT042004 | Stock: Yes
WDX155D2S20 DC (mm): 15.5 | LUX (mm): 34 | LPR (mm): 49 | OAL (mm): 93 | LS (mm): 44 | DCSFMS (mm): 30.0 | DCON (mm): 20 | Max radial offset (mm): 0.40 | Insert: WDXT052504 | Stock: Yes
WDX160D2S20 DC (mm): 16.0 | LUX (mm): 35 | LPR (mm): 50 | OAL (mm): 94 | LS (mm): 44 | DCSFMS (mm): 30.0 | DCON (mm): 20 | Insert: WDXT052504 | Stock: Yes
WDX165D2S20 DC (mm): 16.5 | LUX (mm): 36 | LPR (mm): 51 | OAL (mm): 95 | LS (mm): 44 | DCSFMS (mm): 30.0 | DCON (mm): 20 | Max radial offset (mm): 0.35 | Insert: WDXT052504 | Stock: Yes
WDX170D2S20 DC (mm): 17.0 | LUX (mm): 37 | LPR (mm): 52 | OAL (mm): 96 | LS (mm): 44 | DCSFMS (mm): 30.0 | DCON (mm): 20 | Max radial offset (mm): 0.30 | Insert: WDXT052504 | Stock: Yes
WDX175D2S25 DC (mm): 17.5 | LUX (mm): 38 | LPR (mm): 53 | OAL (mm): 109 | LS (mm): 56 | DCSFMS (mm): 32.0 | DCON (mm): 25 | Max radial offset (mm): 0.25 | Insert: WDXT052504 | Stock: Yes
WDX180D2S25 DC (mm): 18.0 | LUX (mm): 39 | LPR (mm): 54 | OAL (mm): 110 | LS (mm): 56 | DCSFMS (mm): 32.0 | DCON (mm): 25 | Max radial offset (mm): 0.20 | Insert: WDXT052504 | Stock: Yes
WDX185D2S25 DC (mm): 18.5 | LUX (mm): 40 | LPR (mm): 55 | OAL (mm): 111 | LS (mm): 56 | DCSFMS (mm): 33.0 | DCON (mm): 25 | Max radial offset (mm): 0.50 | Insert: WDXT063006 | Stock: Yes
WDX190D2S25 DC (mm): 19.0 | LUX (mm): 41 | LPR (mm): 56 | OAL (mm): 112 | LS (mm): 56 | DCSFMS (mm): 33.0 | DCON (mm): 25 | Max radial offset (mm): 0.45 | Insert: WDXT063006 | Stock: Yes
WDX195D2S25 DC (mm): 19.5 | LUX (mm): 42 | LPR (mm): 57 | OAL (mm): 113 | LS (mm): 56 | DCSFMS (mm): 33.0 | DCON (mm): 25 | Max radial offset (mm): 0.40 | Insert: WDXT063006 | Stock: Yes
WDX200D2S25 DC (mm): 20.0 | LUX (mm): 43 | LPR (mm): 58 | OAL (mm): 114 | LS (mm): 56 | DCSFMS (mm): 33.0 | DCON (mm): 25 | Max radial offset (mm): 0.30 | Insert: WDXT063006 | Stock: Yes
WDX205D2S25 DC (mm): 20.5 | LUX (mm): 44 | LPR (mm): 59 | OAL (mm): 115 | LS (mm): 56 | DCSFMS (mm): 33.0 | DCON (mm): 25 | Insert: WDXT063006 | Stock: Yes
WDX210D2S25 DC (mm): 21.0 | LUX (mm): 45 | LPR (mm): 60 | OAL (mm): 116 | LS (mm): 56 | DCSFMS (mm): 33.0 | DCON (mm): 25 | Max radial offset (mm): 0.20 | Insert: WDXT063006 | Stock: Yes
WDX215D2S25 DC (mm): 21.5 | LUX (mm): 46 | LPR (mm): 61 | OAL (mm): 117 | LS (mm): 56 | DCSFMS (mm): 33.0 | DCON (mm): 25 | Max radial offset (mm): 0.15 | Insert: WDXT063006 | Stock: Yes
WDX220D2S25 DC (mm): 22.0 | LUX (mm): 47 | LPR (mm): 62 | OAL (mm): 118 | LS (mm): 56 | DCSFMS (mm): 33.0 | DCON (mm): 25 | Max radial offset (mm): 0.10 | Insert: WDXT063006 | Stock: Yes
WDX225D2S25 DC (mm): 22.5 | LUX (mm): 48 | LPR (mm): 63 | OAL (mm): 119 | LS (mm): 56 | DCSFMS (mm): 33.0 | DCON (mm): 25 | Max radial offset (mm): 0.05 | Insert: WDXT063006 | Stock: Yes
WDX230D2S25 DC (mm): 23.0 | LUX (mm): 49 | LPR (mm): 67 | OAL (mm): 123 | LS (mm): 56 | DCSFMS (mm): 37.0 | DCON (mm): 25 | Max radial offset (mm): 0.70 | Insert: WDXT073506 | Stock: Yes
WDX235D2S25 DC (mm): 23.5 | LUX (mm): 50 | LPR (mm): 68 | OAL (mm): 124 | LS (mm): 56 | DCSFMS (mm): 37.0 | DCON (mm): 25 | Insert: WDXT073506 | Stock: Yes
WDX240D2S25 DC (mm): 24.0 | LUX (mm): 51 | LPR (mm): 69 | OAL (mm): 125 | LS (mm): 56 | DCSFMS (mm): 37.0 | DCON (mm): 25 | Max radial offset (mm): 0.60 | Insert: WDXT073506 | Stock: Yes
WDX245D2S25 DC (mm): 24.5 | LUX (mm): 52 | LPR (mm): 70 | OAL (mm): 126 | LS (mm): 56 | DCSFMS (mm): 37.0 | DCON (mm): 25 | Max radial offset (mm): 0.50 | Insert: WDXT073506 | Stock: Yes
WDX250D2S25 DC (mm): 25.0 | LUX (mm): 53 | LPR (mm): 71 | OAL (mm): 127 | LS (mm): 56 | DCSFMS (mm): 37.0 | DCON (mm): 25 | Insert: WDXT073506 | Stock: Yes
WDX255D2S32 DC (mm): 25.5 | LUX (mm): 54 | LPR (mm): 74 | OAL (mm): 134 | LS (mm): 60 | DCSFMS (mm): 41.0 | DCON (mm): 32 | Max radial offset (mm): 0.45 | Insert: WDXT073506 | Stock: Yes
WDX260D2S32 DC (mm): 26.0 | LUX (mm): 55 | LPR (mm): 75 | OAL (mm): 135 | LS (mm): 60 | DCSFMS (mm): 41.0 | DCON (mm): 32 | Max radial offset (mm): 0.40 | Insert: WDXT073506 | Stock: Yes
WDX265D2S32 DC (mm): 26.5 | LUX (mm): 56 | LPR (mm): 76 | OAL (mm): 136 | LS (mm): 60 | DCSFMS (mm): 41.0 | DCON (mm): 32 | Max radial offset (mm): 0.35 | Insert: WDXT073506 | Stock: Yes
WDX270D2S32 DC (mm): 27.0 | LUX (mm): 57 | LPR (mm): 77 | OAL (mm): 137 | LS (mm): 60 | DCSFMS (mm): 41.0 | DCON (mm): 32 | Max radial offset (mm): 0.25 | Insert: WDXT073506 | Stock: Yes
WDX275D2S32 DC (mm): 27.5 | LUX (mm): 58 | LPR (mm): 78 | OAL (mm): 138 | LS (mm): 60 | DCSFMS (mm): 41.0 | DCON (mm): 32 | Max radial offset (mm): 0.20 | Insert: WDXT073506 | Stock: Yes
WDX280D2S32 DC (mm): 28.0 | LUX (mm): 59 | LPR (mm): 79 | OAL (mm): 139 | LS (mm): 60 | DCSFMS (mm): 41.0 | DCON (mm): 32 | Max radial offset (mm): 0.15 | Insert: WDXT073506 | Stock: Yes
WDX285D2S32 DC (mm): 28.5 | LUX (mm): 60 | LPR (mm): 80 | OAL (mm): 140 | LS (mm): 60 | DCSFMS (mm): 41.0 | DCON (mm): 32 | Max radial offset (mm): 0.10 | Insert: WDXT073506 | Stock: Yes
WDX290D2S32 DC (mm): 29.0 | LUX (mm): 62 | LPR (mm): 83 | OAL (mm): 143 | LS (mm): 60 | DCSFMS (mm): 50.0 | DCON (mm): 32 | Max radial offset (mm): 1.00 | Insert: WDXT094008 | Stock: Yes
WDX295D2S32 DC (mm): 29.5 | LUX (mm): 63 | LPR (mm): 84 | OAL (mm): 144 | LS (mm): 60 | DCSFMS (mm): 50.0 | DCON (mm): 32 | Max radial offset (mm): 0.95 | Insert: WDXT094008 | Stock: Yes
WDX300D2S32 DC (mm): 30.0 | LUX (mm): 64 | LPR (mm): 88 | OAL (mm): 148 | LS (mm): 60 | DCSFMS (mm): 54.0 | DCON (mm): 32 | Max radial offset (mm): 0.90 | Insert: WDXT094008 | Stock: Yes
WDX310D2S32 DC (mm): 31.0 | LUX (mm): 66 | LPR (mm): 90 | OAL (mm): 150 | LS (mm): 60 | DCSFMS (mm): 54.0 | DCON (mm): 32 | Max radial offset (mm): 0.80 | Insert: WDXT094008 | Stock: Yes
WDX320D2S32 DC (mm): 32.0 | LUX (mm): 68 | LPR (mm): 92 | OAL (mm): 152 | LS (mm): 60 | DCSFMS (mm): 54.0 | DCON (mm): 32 | Max radial offset (mm): 0.70 | Insert: WDXT094008 | Stock: Yes
WDX300D2S40 DC (mm): 30.0 | LUX (mm): 64 | LPR (mm): 88 | OAL (mm): 158 | LS (mm): 70 | DCSFMS (mm): 54.0 | DCON (mm): 40 | Max radial offset (mm): 0.90 | Insert: WDXT094008 | Stock: Yes
WDX310D2S40 DC (mm): 31.0 | LUX (mm): 66 | LPR (mm): 90 | OAL (mm): 160 | LS (mm): 70 | DCSFMS (mm): 54.0 | DCON (mm): 40 | Max radial offset (mm): 0.80 | Insert: WDXT094008 | Stock: Yes
WDX320D2S40 DC (mm): 32.0 | LUX (mm): 68 | LPR (mm): 92 | OAL (mm): 162 | LS (mm): 70 | DCSFMS (mm): 54.0 | DCON (mm): 40 | Max radial offset (mm): 0.70 | Insert: WDXT094008 | Stock: Yes
WDX330D2S40 DC (mm): 33.0 | LUX (mm): 70 | LPR (mm): 94 | OAL (mm): 164 | LS (mm): 70 | DCSFMS (mm): 54.0 | DCON (mm): 40 | Max radial offset (mm): 0.55 | Insert: WDXT094008 | Stock: Yes
WDX340D2S40 DC (mm): 34.0 | LUX (mm): 72 | LPR (mm): 96 | OAL (mm): 166 | LS (mm): 70 | DCSFMS (mm): 54.0 | DCON (mm): 40 | Max radial offset (mm): 0.45 | Insert: WDXT094008 | Stock: Yes
WDX350D2S40 DC (mm): 35.0 | LUX (mm): 74 | LPR (mm): 98 | OAL (mm): 168 | LS (mm): 70 | DCSFMS (mm): 54.0 | DCON (mm): 40 | Max radial offset (mm): 0.35 | Insert: WDXT094008 | Stock: Yes
WDX360D2S40 DC (mm): 36.0 | LUX (mm): 76 | LPR (mm): 100 | OAL (mm): 170 | LS (mm): 70 | DCSFMS (mm): 54.0 | DCON (mm): 40 | Max radial offset (mm): 0.20 | Insert: WDXT094008 | Stock: Yes
WDX370D2S40 DC (mm): 37.0 | LUX (mm): 79 | LPR (mm): 109 | OAL (mm): 179 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 | Max radial offset (mm): 1.00 | Insert: WDXT125012 | Stock: Yes
WDX380D2S40 DC (mm): 38.0 | LUX (mm): 81 | LPR (mm): 111 | OAL (mm): 181 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 | Insert: WDXT125012 | Stock: Yes
WDX390D2S40 DC (mm): 39.0 | LUX (mm): 83 | LPR (mm): 113 | OAL (mm): 183 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 | Max radial offset (mm): 0.90 | Insert: WDXT125012 | Stock: Yes
WDX400D2S40 DC (mm): 40.0 | LUX (mm): 85 | LPR (mm): 115 | OAL (mm): 185 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 | Max radial offset (mm): 0.80 | Insert: WDXT125012 | Stock: Yes
WDX410D2S40 DC (mm): 41.0 | LUX (mm): 87 | LPR (mm): 117 | OAL (mm): 187 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 | Max radial offset (mm): 0.70 | Insert: WDXT125012 | Stock: Yes
WDX420D2S40 DC (mm): 42.0 | LUX (mm): 89 | LPR (mm): 119 | OAL (mm): 189 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 | Max radial offset (mm): 0.60 | Insert: WDXT125012 | Stock: Yes
WDX430D2S40 DC (mm): 43.0 | LUX (mm): 91 | LPR (mm): 121 | OAL (mm): 191 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 | Max radial offset (mm): 0.50 | Insert: WDXT125012 | Stock: Yes
WDX440D2S40 DC (mm): 44.0 | LUX (mm): 93 | LPR (mm): 123 | OAL (mm): 193 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 | Insert: WDXT125012 | Stock: Yes
WDX450D2S40 DC (mm): 45.0 | LUX (mm): 95 | LPR (mm): 125 | OAL (mm): 195 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 | Max radial offset (mm): 0.40 | Insert: WDXT125012 | Stock: Yes
WDX460D2S40 DC (mm): 46.0 | LUX (mm): 97 | LPR (mm): 127 | OAL (mm): 197 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 | Max radial offset (mm): 1.50 | Insert: WDXT156012 | Stock: Yes
WDX470D2S40 DC (mm): 47.0 | LUX (mm): 99 | LPR (mm): 129 | OAL (mm): 199 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 | Max radial offset (mm): 1.40 | Insert: WDXT156012 | Stock: Yes
WDX480D2S40 DC (mm): 48.0 | LUX (mm): 101 | LPR (mm): 131 | OAL (mm): 201 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 | Max radial offset (mm): 1.30 | Insert: WDXT156012 | Stock: Yes
WDX490D2S40 DC (mm): 49.0 | LUX (mm): 103 | LPR (mm): 133 | OAL (mm): 203 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 | Max radial offset (mm): 1.20 | Insert: WDXT156012 | Stock: Yes
WDX500D2S40 DC (mm): 50.0 | LUX (mm): 105 | LPR (mm): 135 | OAL (mm): 205 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 | Max radial offset (mm): 1.10 | Insert: WDXT156012 | Stock: Yes
WDX510D2S40 DC (mm): 51.0 | LUX (mm): 107 | LPR (mm): 137 | OAL (mm): 207 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 | Max radial offset (mm): 1.00 | Insert: WDXT156012 | Stock: Yes
WDX520D2S40 DC (mm): 52.0 | LUX (mm): 109 | LPR (mm): 139 | OAL (mm): 209 | LS (mm): 70 | DCSFMS (mm): 50.5 | DCON (mm): 40 | Max radial offset (mm): 0.90 | Insert: WDXT156012 | Stock: Yes
WDX530D2S40 DC (mm): 53.0 | LUX (mm): 111 | LPR (mm): 141 | OAL (mm): 211 | LS (mm): 70 | DCSFMS (mm): 51.5 | DCON (mm): 40 | Max radial offset (mm): 0.80 | Insert: WDXT156012 | Stock: Yes
WDX540D2S40 DC (mm): 54.0 | LUX (mm): 113 | LPR (mm): 143 | OAL (mm): 213 | LS (mm): 70 | DCSFMS (mm): 52.5 | DCON (mm): 40 | Max radial offset (mm): 0.60 | Insert: WDXT156012 | Stock: Yes
WDX550D2S40 DC (mm): 55.0 | LUX (mm): 115 | LPR (mm): 145 | OAL (mm): 215 | LS (mm): 70 | DCSFMS (mm): 53.5 | DCON (mm): 40 | Max radial offset (mm): 0.50 | Insert: WDXT156012 | Stock: Yes
WDX560D2S40 DC (mm): 56.0 | LUX (mm): 120 | LPR (mm): 152 | OAL (mm): 222 | LS (mm): 70 | DCSFMS (mm): 54.0 | DCON (mm): 40 | Max radial offset (mm): 2.00 | Insert: WDXT186012 | Stock: Yes
WDX570D2S40 DC (mm): 57.0 | LUX (mm): 122 | LPR (mm): 154 | OAL (mm): 224 | LS (mm): 70 | DCSFMS (mm): 55.0 | DCON (mm): 40 | Max radial offset (mm): 1.80 | Insert: WDXT186012 | Stock: Yes
WDX580D2S40 DC (mm): 58.0 | LUX (mm): 124 | LPR (mm): 156 | OAL (mm): 226 | LS (mm): 70 | DCSFMS (mm): 56.0 | DCON (mm): 40 | Max radial offset (mm): 1.70 | Insert: WDXT186012 | Stock: Yes
WDX590D2S40 DC (mm): 59.0 | LUX (mm): 126 | LPR (mm): 158 | OAL (mm): 228 | LS (mm): 70 | DCSFMS (mm): 57.0 | DCON (mm): 40 | Max radial offset (mm): 1.60 | Insert: WDXT186012 | Stock: Yes
WDX600D2S40 DC (mm): 60.0 | LUX (mm): 128 | LPR (mm): 160 | OAL (mm): 230 | LS (mm): 70 | DCSFMS (mm): 58.0 | DCON (mm): 40 | Max radial offset (mm): 1.50 | Insert: WDXT186012 | Stock: Yes
WDX610D2S40 DC (mm): 61.0 | LUX (mm): 130 | LPR (mm): 162 | OAL (mm): 232 | LS (mm): 70 | DCSFMS (mm): 59.0 | DCON (mm): 40 | Max radial offset (mm): 1.40 | Insert: WDXT186012 | Stock: Yes
WDX620D2S40 DC (mm): 62.0 | LUX (mm): 132 | LPR (mm): 164 | OAL (mm): 234 | LS (mm): 70 | DCSFMS (mm): 60.0 | DCON (mm): 40 | Max radial offset (mm): 1.30 | Insert: WDXT186012 | Stock: Yes
WDX630D2S40 DC (mm): 63.0 | LUX (mm): 134 | LPR (mm): 166 | OAL (mm): 236 | LS (mm): 70 | DCSFMS (mm): 61.0 | DCON (mm): 40 | Max radial offset (mm): 1.20 | Insert: WDXT186012 | Stock: Yes
WDX640D2S40 DC (mm): 64.0 | LUX (mm): 136 | LPR (mm): 168 | OAL (mm): 238 | LS (mm): 70 | DCSFMS (mm): 62.0 | DCON (mm): 40 | Max radial offset (mm): 1.00 | Insert: WDXT186012 | Stock: Yes
WDX650D2S40 DC (mm): 65.0 | LUX (mm): 138 | LPR (mm): 170 | OAL (mm): 240 | LS (mm): 70 | DCSFMS (mm): 63.0 | DCON (mm): 40 | Max radial offset (mm): 0.90 | Insert: WDXT186012 | Stock: Yes
WDX660D2S40 DC (mm): 66.0 | LUX (mm): 140 | LPR (mm): 172 | OAL (mm): 242 | LS (mm): 70 | DCSFMS (mm): 64.0 | DCON (mm): 40 | Max radial offset (mm): 0.70 | Insert: WDXT186012 | Stock: Yes
WDX670D2S40 DC (mm): 67.0 | LUX (mm): 142 | LPR (mm): 174 | OAL (mm): 244 | LS (mm): 70 | DCSFMS (mm): 65.0 | DCON (mm): 40 | Max radial offset (mm): 0.60 | Insert: WDXT186012 | Stock: Yes
WDX680D2S40 DC (mm): 68.0 | LUX (mm): 144 | LPR (mm): 176 | OAL (mm): 246 | LS (mm): 70 | DCSFMS (mm): 66.0 | DCON (mm): 40 | Max radial offset (mm): 0.50 | Insert: WDXT186012 | Stock: Yes
WDX130D3S20 DC (mm): 13.0 | LUX (mm): 42.0 | LPR (mm): 57.0 | OAL (mm): 101.0 | LS (mm): 44 | DCSFMS (mm): 28.0 | DCON (mm): 20 | Max radial offset (mm): 0.35 | Insert: WDXT042004 | Stock: Yes
WDX135D3S20 DC (mm): 13.5 | LUX (mm): 43.5 | LPR (mm): 58.5 | OAL (mm): 102.5 | LS (mm): 44 | DCSFMS (mm): 28.0 | DCON (mm): 20 | Max radial offset (mm): 0.30 | Insert: WDXT042004 | Stock: Yes
WDX140D3S20 DC (mm): 14.0 | LUX (mm): 45.0 | LPR (mm): 60.0 | OAL (mm): 104.0 | LS (mm): 44 | DCSFMS (mm): 28.0 | DCON (mm): 20 | Max radial offset (mm): 0.25 | Insert: WDXT042004 | Stock: Yes
WDX145D3S20 DC (mm): 14.5 | LUX (mm): 46.5 | LPR (mm): 61.5 | OAL (mm): 105.5 | LS (mm): 44 | DCSFMS (mm): 28.0 | DCON (mm): 20 | Max radial offset (mm): 0.20 | Insert: WDXT042004 | Stock: Yes
WDX150D3S20 DC (mm): 15.0 | LUX (mm): 48.0 | LPR (mm): 63.0 | OAL (mm): 107.0 | LS (mm): 44 | DCSFMS (mm): 28.0 | DCON (mm): 20 | Max radial offset (mm): 0.15 | Insert: WDXT042004 | Stock: Yes
WDX155D3S20 DC (mm): 15.5 | LUX (mm): 49.5 | LPR (mm): 64.5 | OAL (mm): 108.5 | LS (mm): 44 | DCSFMS (mm): 30.0 | DCON (mm): 20 | Max radial offset (mm): 0.40 | Insert: WDXT052504 | Stock: Yes
WDX160D3S20 DC (mm): 16.0 | LUX (mm): 51.0 | LPR (mm): 66.0 | OAL (mm): 110.0 | LS (mm): 44 | DCSFMS (mm): 30.0 | DCON (mm): 20 | Insert: WDXT052504 | Stock: Yes
WDX165D3S20 DC (mm): 16.5 | LUX (mm): 52.5 | LPR (mm): 67.5 | OAL (mm): 111.5 | LS (mm): 44 | DCSFMS (mm): 30.0 | DCON (mm): 20 | Max radial offset (mm): 0.35 | Insert: WDXT052504 | Stock: Yes
WDX170D3S20 DC (mm): 17.0 | LUX (mm): 54.0 | LPR (mm): 69.0 | OAL (mm): 113.0 | LS (mm): 44 | DCSFMS (mm): 30.0 | DCON (mm): 20 | Max radial offset (mm): 0.30 | Insert: WDXT052504 | Stock: Yes
WDX175D3S25 DC (mm): 17.5 | LUX (mm): 55.5 | LPR (mm): 70.5 | OAL (mm): 126.5 | LS (mm): 56 | DCSFMS (mm): 32.0 | DCON (mm): 25 | Max radial offset (mm): 0.25 | Insert: WDXT052504 | Stock: Yes
WDX180D3S25 DC (mm): 18.0 | LUX (mm): 57.0 | LPR (mm): 72.0 | OAL (mm): 128.0 | LS (mm): 56 | DCSFMS (mm): 32.0 | DCON (mm): 25 | Max radial offset (mm): 0.20 | Insert: WDXT052504 | Stock: Yes
WDX185D3S25 DC (mm): 18.5 | LUX (mm): 58.5 | LPR (mm): 73.5 | OAL (mm): 129.5 | LS (mm): 56 | DCSFMS (mm): 33.0 | DCON (mm): 25 | Max radial offset (mm): 0.50 | Insert: WDXT063006 | Stock: Yes
WDX190D3S25 DC (mm): 19.0 | LUX (mm): 60.0 | LPR (mm): 75.0 | OAL (mm): 131.0 | LS (mm): 56 | DCSFMS (mm): 33.0 | DCON (mm): 25 | Max radial offset (mm): 0.45 | Insert: WDXT063006 | Stock: Yes
WDX195D3S25 DC (mm): 19.5 | LUX (mm): 61.5 | LPR (mm): 76.5 | OAL (mm): 132.5 | LS (mm): 56 | DCSFMS (mm): 33.0 | DCON (mm): 25 | Max radial offset (mm): 0.40 | Insert: WDXT063006 | Stock: Yes
WDX200D3S25 DC (mm): 20.0 | LUX (mm): 63.0 | LPR (mm): 78.0 | OAL (mm): 134.0 | LS (mm): 56 | DCSFMS (mm): 33.0 | DCON (mm): 25 | Max radial offset (mm): 0.30 | Insert: WDXT063006 | Stock: Yes
WDX205D3S25 DC (mm): 20.5 | LUX (mm): 64.5 | LPR (mm): 79.5 | OAL (mm): 135.5 | LS (mm): 56 | DCSFMS (mm): 33.0 | DCON (mm): 25 | Insert: WDXT063006 | Stock: Yes
WDX210D3S25 DC (mm): 21.0 | LUX (mm): 66.0 | LPR (mm): 81.0 | OAL (mm): 137.0 | LS (mm): 56 | DCSFMS (mm): 33.0 | DCON (mm): 25 | Max radial offset (mm): 0.20 | Insert: WDXT063006 | Stock: Yes
WDX215D3S25 DC (mm): 21.5 | LUX (mm): 67.5 | LPR (mm): 82.5 | OAL (mm): 138.5 | LS (mm): 56 | DCSFMS (mm): 33.0 | DCON (mm): 25 | Max radial offset (mm): 0.15 | Insert: WDXT063006 | Stock: Yes
WDX220D3S25 DC (mm): 22.0 | LUX (mm): 69.0 | LPR (mm): 84.0 | OAL (mm): 140.0 | LS (mm): 56 | DCSFMS (mm): 33.0 | DCON (mm): 25 | Max radial offset (mm): 0.10 | Insert: WDXT063006 | Stock: Yes
WDX225D3S25 DC (mm): 22.5 | LUX (mm): 70.5 | LPR (mm): 85.5 | OAL (mm): 141.5 | LS (mm): 56 | DCSFMS (mm): 33.0 | DCON (mm): 25 | Max radial offset (mm): 0.05 | Insert: WDXT063006 | Stock: Yes
WDX230D3S25 DC (mm): 23.0 | LUX (mm): 72.0 | LPR (mm): 90.0 | OAL (mm): 146.0 | LS (mm): 56 | DCSFMS (mm): 37.0 | DCON (mm): 25 | Max radial offset (mm): 0.70 | Insert: WDXT073506 | Stock: Yes
WDX235D3S25 DC (mm): 23.5 | LUX (mm): 73.5 | LPR (mm): 91.5 | OAL (mm): 147.5 | LS (mm): 56 | DCSFMS (mm): 37.0 | DCON (mm): 25 | Insert: WDXT073506 | Stock: Yes
WDX240D3S25 DC (mm): 24.0 | LUX (mm): 75.0 | LPR (mm): 93.0 | OAL (mm): 149.0 | LS (mm): 56 | DCSFMS (mm): 37.0 | DCON (mm): 25 | Max radial offset (mm): 0.60 | Insert: WDXT073506 | Stock: Yes
WDX245D3S25 DC (mm): 24.5 | LUX (mm): 76.5 | LPR (mm): 94.5 | OAL (mm): 150.5 | LS (mm): 56 | DCSFMS (mm): 37.0 | DCON (mm): 25 | Max radial offset (mm): 0.50 | Insert: WDXT073506 | Stock: Yes
WDX250D3S25 DC (mm): 25.0 | LUX (mm): 78.0 | LPR (mm): 96.0 | OAL (mm): 152.0 | LS (mm): 56 | DCSFMS (mm): 37.0 | DCON (mm): 25 | Insert: WDXT073506 | Stock: Yes
WDX255D3S32 DC (mm): 25.5 | LUX (mm): 79.5 | LPR (mm): 99.5 | OAL (mm): 159.5 | LS (mm): 60 | DCSFMS (mm): 41.0 | DCON (mm): 32 | Max radial offset (mm): 0.45 | Insert: WDXT073506 | Stock: Yes
WDX260D3S32 DC (mm): 26.0 | LUX (mm): 81.0 | LPR (mm): 101.0 | OAL (mm): 161.0 | LS (mm): 60 | DCSFMS (mm): 41.0 | DCON (mm): 32 | Max radial offset (mm): 0.40 | Insert: WDXT073506 | Stock: Yes
WDX265D3S32 DC (mm): 26.5 | LUX (mm): 82.5 | LPR (mm): 102.5 | OAL (mm): 162.5 | LS (mm): 60 | DCSFMS (mm): 41.0 | DCON (mm): 32 | Max radial offset (mm): 0.35 | Insert: WDXT073506 | Stock: Yes
WDX270D3S32 DC (mm): 27.0 | LUX (mm): 84.0 | LPR (mm): 104.0 | OAL (mm): 164.0 | LS (mm): 60 | DCSFMS (mm): 41.0 | DCON (mm): 32 | Max radial offset (mm): 0.25 | Insert: WDXT073506 | Stock: Yes
WDX275D3S32 DC (mm): 27.5 | LUX (mm): 85.5 | LPR (mm): 105.5 | OAL (mm): 165.5 | LS (mm): 60 | DCSFMS (mm): 41.0 | DCON (mm): 32 | Max radial offset (mm): 0.20 | Insert: WDXT073506 | Stock: Yes
WDX280D3S32 DC (mm): 28.0 | LUX (mm): 87.0 | LPR (mm): 107.0 | OAL (mm): 167.0 | LS (mm): 60 | DCSFMS (mm): 41.0 | DCON (mm): 32 | Max radial offset (mm): 0.15 | Insert: WDXT073506 | Stock: Yes
WDX285D3S32 DC (mm): 28.5 | LUX (mm): 88.5 | LPR (mm): 108.5 | OAL (mm): 168.5 | LS (mm): 60 | DCSFMS (mm): 41.0 | DCON (mm): 32 | Max radial offset (mm): 0.10 | Insert: WDXT073506 | Stock: Yes
WDX290D3S32 DC (mm): 29.0 | LUX (mm): 91.0 | LPR (mm): 112.0 | OAL (mm): 172.0 | LS (mm): 60 | DCSFMS (mm): 50.0 | DCON (mm): 32 | Max radial offset (mm): 1.00 | Insert: WDXT094008 | Stock: Yes
WDX295D3S32 DC (mm): 29.5 | LUX (mm): 92.5 | LPR (mm): 113.5 | OAL (mm): 173.5 | LS (mm): 60 | DCSFMS (mm): 50.0 | DCON (mm): 32 | Max radial offset (mm): 0.95 | Insert: WDXT094008 | Stock: Yes
WDX300D3S32 DC (mm): 30.0 | LUX (mm): 94.0 | LPR (mm): 118.0 | OAL (mm): 178.0 | LS (mm): 60 | DCSFMS (mm): 54.0 | DCON (mm): 32 | Max radial offset (mm): 0.90 | Insert: WDXT094008 | Stock: Yes
WDX310D3S32 DC (mm): 31.0 | LUX (mm): 97.0 | LPR (mm): 121.0 | OAL (mm): 181.0 | LS (mm): 60 | DCSFMS (mm): 54.0 | DCON (mm): 32 | Max radial offset (mm): 0.80 | Insert: WDXT094008 | Stock: Yes
WDX320D3S32 DC (mm): 32.0 | LUX (mm): 100.0 | LPR (mm): 124.0 | OAL (mm): 184.0 | LS (mm): 60 | DCSFMS (mm): 54.0 | DCON (mm): 32 | Max radial offset (mm): 0.70 | Insert: WDXT094008 | Stock: Yes
WDX300D3S40 DC (mm): 30.0 | LUX (mm): 94.0 | LPR (mm): 118.0 | OAL (mm): 188.0 | LS (mm): 70 | DCSFMS (mm): 54.0 | DCON (mm): 40 | Max radial offset (mm): 0.90 | Insert: WDXT094008 | Stock: Yes
WDX310D3S40 DC (mm): 31.0 | LUX (mm): 97.0 | LPR (mm): 121.0 | OAL (mm): 191.0 | LS (mm): 70 | DCSFMS (mm): 54.0 | DCON (mm): 40 | Max radial offset (mm): 0.80 | Insert: WDXT094008 | Stock: Yes
WDX320D3S40 DC (mm): 32.0 | LUX (mm): 100.0 | LPR (mm): 124.0 | OAL (mm): 194.0 | LS (mm): 70 | DCSFMS (mm): 54.0 | DCON (mm): 40 | Max radial offset (mm): 0.70 | Insert: WDXT094008 | Stock: Yes
WDX330D3S40 DC (mm): 33.0 | LUX (mm): 103.0 | LPR (mm): 127.0 | OAL (mm): 197.0 | LS (mm): 70 | DCSFMS (mm): 54.0 | DCON (mm): 40 | Max radial offset (mm): 0.55 | Insert: WDXT094008 | Stock: Yes
WDX340D3S40 DC (mm): 34.0 | LUX (mm): 106.0 | LPR (mm): 130.0 | OAL (mm): 200.0 | LS (mm): 70 | DCSFMS (mm): 54.0 | DCON (mm): 40 | Max radial offset (mm): 0.45 | Insert: WDXT094008 | Stock: Yes
WDX350D3S40 DC (mm): 35.0 | LUX (mm): 109.0 | LPR (mm): 133.0 | OAL (mm): 203.0 | LS (mm): 70 | DCSFMS (mm): 54.0 | DCON (mm): 40 | Max radial offset (mm): 0.35 | Insert: WDXT094008 | Stock: Yes
WDX360D3S40 DC (mm): 36.0 | LUX (mm): 112.0 | LPR (mm): 136.0 | OAL (mm): 206.0 | LS (mm): 70 | DCSFMS (mm): 54.0 | DCON (mm): 40 | Max radial offset (mm): 0.20 | Insert: WDXT094008 | Stock: Yes
WDX370D3S40 DC (mm): 37.0 | LUX (mm): 116.0 | LPR (mm): 146.0 | OAL (mm): 216.0 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 | Max radial offset (mm): 1.00 | Insert: WDXT125012 | Stock: Yes
WDX380D3S40 DC (mm): 38.0 | LUX (mm): 119.0 | LPR (mm): 149.0 | OAL (mm): 219.0 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 | Insert: WDXT125012 | Stock: Yes
WDX390D3S40 DC (mm): 39.0 | LUX (mm): 122.0 | LPR (mm): 152.0 | OAL (mm): 222.0 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 | Max radial offset (mm): 0.90 | Insert: WDXT125012 | Stock: Yes
WDX400D3S40 DC (mm): 40.0 | LUX (mm): 125.0 | LPR (mm): 155.0 | OAL (mm): 225.0 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 | Max radial offset (mm): 0.80 | Insert: WDXT125012 | Stock: Yes
WDX410D3S40 DC (mm): 41.0 | LUX (mm): 128.0 | LPR (mm): 158.0 | OAL (mm): 228.0 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 | Max radial offset (mm): 0.70 | Insert: WDXT125012 | Stock: Yes
WDX420D3S40 DC (mm): 42.0 | LUX (mm): 131.0 | LPR (mm): 161.0 | OAL (mm): 231.0 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 | Max radial offset (mm): 0.60 | Insert: WDXT125012 | Stock: Yes
WDX430D3S40 DC (mm): 43.0 | LUX (mm): 134.0 | LPR (mm): 164.0 | OAL (mm): 234.0 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 | Max radial offset (mm): 0.50 | Insert: WDXT125012 | Stock: Yes
WDX440D3S40 DC (mm): 44.0 | LUX (mm): 137.0 | LPR (mm): 167.0 | OAL (mm): 237.0 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 | Insert: WDXT125012 | Stock: Yes
WDX450D3S40 DC (mm): 45.0 | LUX (mm): 140.0 | LPR (mm): 170.0 | OAL (mm): 240.0 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 | Max radial offset (mm): 0.40 | Insert: WDXT125012 | Stock: Yes
WDX460D3S40 DC (mm): 46.0 | LUX (mm): 143.0 | LPR (mm): 173.0 | OAL (mm): 243.0 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 1 | Insert: .50.40.30.20.10 WDXT.00 156012.90.80.60.50 | Stock: Yes
WDX470D3S40 DC (mm): 47.0 | LUX (mm): 146.0 | LPR (mm): 176.0 | OAL (mm): 246.0 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 1 | Insert: .50.40.30.20.10 WDXT.00 156012.90.80.60.50 | Stock: Yes
WDX480D3S40 DC (mm): 48.0 | LUX (mm): 149.0 | LPR (mm): 179.0 | OAL (mm): 249.0 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 1 | Insert: .50.40.30.20.10 WDXT.00 156012.90.80.60.50 | Stock: Yes
WDX490D3S40 DC (mm): 49.0 | LUX (mm): 152.0 | LPR (mm): 182.0 | OAL (mm): 252.0 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 1 | Insert: .50.40.30.20.10 WDXT.00 156012.90.80.60.50 | Stock: Yes
WDX500D3S40 DC (mm): 50.0 | LUX (mm): 155.0 | LPR (mm): 185.0 | OAL (mm): 255.0 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 1 | Insert: .50.40.30.20.10 WDXT.00 156012.90.80.60.50 | Stock: Yes
WDX510D3S40 DC (mm): 51.0 | LUX (mm): 158.0 | LPR (mm): 188.0 | OAL (mm): 258.0 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 1 | Insert: .50.40.30.20.10 WDXT.00 156012.90.80.60.50 | Stock: Yes
WDX520D3S40 DC (mm): 52.0 | LUX (mm): 161.0 | LPR (mm): 191.0 | OAL (mm): 261.0 | LS (mm): 70 | DCSFMS (mm): 50.5 | DCON (mm): 40 0 | Insert: .50.40.30.20.10 WDXT.00 156012.90.80.60.50 | Stock: Yes
WDX530D3S40 DC (mm): 53.0 | LUX (mm): 164.0 | LPR (mm): 194.0 | OAL (mm): 264.0 | LS (mm): 70 | DCSFMS (mm): 51.5 | DCON (mm): 40 0 | Insert: .50.40.30.20.10 WDXT.00 156012.90.80.60.50 | Stock: Yes
WDX540D3S40 DC (mm): 54.0 | LUX (mm): 167.0 | LPR (mm): 197.0 | OAL (mm): 267.0 | LS (mm): 70 | DCSFMS (mm): 52.5 | DCON (mm): 40 0 | Insert: .50.40.30.20.10 WDXT.00 156012.90.80.60.50 | Stock: Yes
WDX550D3S40 DC (mm): 55.0 | LUX (mm): 170.0 | LPR (mm): 200.0 | OAL (mm): 270.0 | LS (mm): 70 | DCSFMS (mm): 53.5 | DCON (mm): 40 0 | Insert: .50.40.30.20.10 WDXT.00 156012.90.80.60.50 | Stock: Yes
WDX560D3S40 DC (mm): 56.0 | LUX (mm): 176.0 | LPR (mm): 208.0 | OAL (mm): 278.0 | LS (mm): 70 | DCSFMS (mm): 54.0 | DCON (mm): 40 2 | Insert: .00.80.70.60.50.40WDXT.30186012.20.00.90.70.60.50 | Stock: Yes
WDX570D3S40 DC (mm): 57.0 | LUX (mm): 179.0 | LPR (mm): 211.0 | OAL (mm): 281.0 | LS (mm): 70 | DCSFMS (mm): 55.0 | DCON (mm): 40 1 | Insert: .00.80.70.60.50.40WDXT.30186012.20.00.90.70.60.50 | Stock: Yes
WDX580D3S40 DC (mm): 58.0 | LUX (mm): 182.0 | LPR (mm): 214.0 | OAL (mm): 284.0 | LS (mm): 70 | DCSFMS (mm): 56.0 | DCON (mm): 40 1 | Insert: .00.80.70.60.50.40WDXT.30186012.20.00.90.70.60.50 | Stock: Yes
WDX590D3S40 DC (mm): 59.0 | LUX (mm): 185.0 | LPR (mm): 217.0 | OAL (mm): 287.0 | LS (mm): 70 | DCSFMS (mm): 57.0 | DCON (mm): 40 1 | Insert: .00.80.70.60.50.40WDXT.30186012.20.00.90.70.60.50 | Stock: Yes
WDX600D3S40 DC (mm): 60.0 | LUX (mm): 188.0 | LPR (mm): 220.0 | OAL (mm): 290.0 | LS (mm): 70 | DCSFMS (mm): 58.0 | DCON (mm): 40 1 | Insert: .00.80.70.60.50.40WDXT.30186012.20.00.90.70.60.50 | Stock: Yes
WDX610D3S40 DC (mm): 61.0 | LUX (mm): 191.0 | LPR (mm): 223.0 | OAL (mm): 293.0 | LS (mm): 70 | DCSFMS (mm): 59.0 | DCON (mm): 40 1 | Insert: .00.80.70.60.50.40WDXT.30186012.20.00.90.70.60.50 | Stock: Yes
WDX620D3S40 DC (mm): 62.0 | LUX (mm): 194.0 | LPR (mm): 226.0 | OAL (mm): 296.0 | LS (mm): 70 | DCSFMS (mm): 60.0 | DCON (mm): 40 1 | Insert: .00.80.70.60.50.40WDXT.30186012.20.00.90.70.60.50 | Stock: Yes
WDX630D3S40 DC (mm): 63.0 | LUX (mm): 197.0 | LPR (mm): 229.0 | OAL (mm): 299.0 | LS (mm): 70 | DCSFMS (mm): 61.0 | DCON (mm): 40 1 | Insert: .00.80.70.60.50.40WDXT.30186012.20.00.90.70.60.50 | Stock: Yes
WDX640D3S40 DC (mm): 64.0 | LUX (mm): 200.0 | LPR (mm): 232.0 | OAL (mm): 302.0 | LS (mm): 70 | DCSFMS (mm): 62.0 | DCON (mm): 40 1 | Insert: .00.80.70.60.50.40WDXT.30186012.20.00.90.70.60.50 | Stock: Yes
WDX650D3S40 DC (mm): 65.0 | LUX (mm): 203.0 | LPR (mm): 235.0 | OAL (mm): 305.0 | LS (mm): 70 | DCSFMS (mm): 63.0 | DCON (mm): 40 0 | Insert: .00.80.70.60.50.40WDXT.30186012.20.00.90.70.60.50 | Stock: Yes
WDX660D3S40 DC (mm): 66.0 | LUX (mm): 206.0 | LPR (mm): 238.0 | OAL (mm): 308.0 | LS (mm): 70 | DCSFMS (mm): 64.0 | DCON (mm): 40 0 | Insert: .00.80.70.60.50.40WDXT.30186012.20.00.90.70.60.50 | Stock: Yes
WDX670D3S40 DC (mm): 67.0 | LUX (mm): 209.0 | LPR (mm): 241.0 | OAL (mm): 311.0 | LS (mm): 70 | DCSFMS (mm): 65.0 | DCON (mm): 40 0 | Insert: .00.80.70.60.50.40WDXT.30186012.20.00.90.70.60.50 | Stock: Yes
WDX680D3S40 DC (mm): 68.0 | LUX (mm): 212.0 | LPR (mm): 244.0 | OAL (mm): 314.0 | LS (mm): 70 | DCSFMS (mm): 66.0 | DCON (mm): 40 0 | Insert: .00.80.70.60.50.40WDXT.30186012.20.00.90.70.60.50 | Stock: Yes
WDX130D4S20 DC (mm): 13.0 | LUX (mm): 55 | LPR (mm): 70 | OAL (mm): 114 | LS (mm): 44 | DCSFMS (mm): 28.0 | DCON (mm): 20 | Max radial offset (mm): 0.35 | Insert: WDXT042004 | Stock: Yes
WDX135D4S20 DC (mm): 13.5 | LUX (mm): 57 | LPR (mm): 72 | OAL (mm): 116 | LS (mm): 44 | DCSFMS (mm): 28.0 | DCON (mm): 20 | Max radial offset (mm): 0.30 | Insert: WDXT042004 | Stock: Yes
WDX140D4S20 DC (mm): 14.0 | LUX (mm): 59 | LPR (mm): 74 | OAL (mm): 118 | LS (mm): 44 | DCSFMS (mm): 28.0 | DCON (mm): 20 | Max radial offset (mm): 0.25 | Insert: WDXT042004 | Stock: Yes
WDX145D4S20 DC (mm): 14.5 | LUX (mm): 61 | LPR (mm): 76 | OAL (mm): 120 | LS (mm): 44 | DCSFMS (mm): 28.0 | DCON (mm): 20 | Max radial offset (mm): 0.20 | Insert: WDXT042004 | Stock: Yes
WDX150D4S20 DC (mm): 15.0 | LUX (mm): 63 | LPR (mm): 78 | OAL (mm): 122 | LS (mm): 44 | DCSFMS (mm): 28.0 | DCON (mm): 20 | Max radial offset (mm): 0.15 | Insert: WDXT042004 | Stock: Yes
WDX155D4S20 DC (mm): 15.5 | LUX (mm): 65 | LPR (mm): 80 | OAL (mm): 124 | LS (mm): 44 | DCSFMS (mm): 30.0 | DCON (mm): 20 | Max radial offset (mm): 0.40 | Insert: WDXT052504 | Stock: Yes
WDX160D4S20 DC (mm): 16.0 | LUX (mm): 67 | LPR (mm): 82 | OAL (mm): 126 | LS (mm): 44 | DCSFMS (mm): 30.0 | DCON (mm): 20 | Insert: WDXT052504 | Stock: Yes
WDX165D4S20 DC (mm): 16.5 | LUX (mm): 69 | LPR (mm): 84 | OAL (mm): 128 | LS (mm): 44 | DCSFMS (mm): 30.0 | DCON (mm): 20 | Max radial offset (mm): 0.35 | Insert: WDXT052504 | Stock: Yes
WDX170D4S20 DC (mm): 17.0 | LUX (mm): 71 | LPR (mm): 86 | OAL (mm): 130 | LS (mm): 44 | DCSFMS (mm): 30.0 | DCON (mm): 20 | Max radial offset (mm): 0.30 | Insert: WDXT052504 | Stock: Yes
WDX175D4S25 DC (mm): 17.5 | LUX (mm): 73 | LPR (mm): 88 | OAL (mm): 144 | LS (mm): 56 | DCSFMS (mm): 32.0 | DCON (mm): 25 | Max radial offset (mm): 0.25 | Insert: WDXT052504 | Stock: Yes
WDX180D4S25 DC (mm): 18.0 | LUX (mm): 75 | LPR (mm): 90 | OAL (mm): 146 | LS (mm): 56 | DCSFMS (mm): 32.0 | DCON (mm): 25 | Max radial offset (mm): 0.20 | Insert: WDXT052504 | Stock: Yes
WDX185D4S25 DC (mm): 18.5 | LUX (mm): 77 | LPR (mm): 92 | OAL (mm): 148 | LS (mm): 56 | DCSFMS (mm): 33.0 | DCON (mm): 25 | Max radial offset (mm): 0.50 | Insert: WDXT063006 | Stock: Yes
WDX190D4S25 DC (mm): 19.0 | LUX (mm): 79 | LPR (mm): 94 | OAL (mm): 150 | LS (mm): 56 | DCSFMS (mm): 33.0 | DCON (mm): 25 | Max radial offset (mm): 0.45 | Insert: WDXT063006 | Stock: Yes
WDX195D4S25 DC (mm): 19.5 | LUX (mm): 81 | LPR (mm): 96 | OAL (mm): 152 | LS (mm): 56 | DCSFMS (mm): 33.0 | DCON (mm): 25 | Max radial offset (mm): 0.40 | Insert: WDXT063006 | Stock: Yes
WDX200D4S25 DC (mm): 20.0 | LUX (mm): 83 | LPR (mm): 98 | OAL (mm): 154 | LS (mm): 56 | DCSFMS (mm): 33.0 | DCON (mm): 25 | Max radial offset (mm): 0.30 | Insert: WDXT063006 | Stock: Yes
WDX205D4S25 DC (mm): 20.5 | LUX (mm): 85 | LPR (mm): 100 | OAL (mm): 156 | LS (mm): 56 | DCSFMS (mm): 33.0 | DCON (mm): 25 | Insert: WDXT063006 | Stock: Yes
WDX210D4S25 DC (mm): 21.0 | LUX (mm): 87 | LPR (mm): 102 | OAL (mm): 158 | LS (mm): 56 | DCSFMS (mm): 33.0 | DCON (mm): 25 | Max radial offset (mm): 0.20 | Insert: WDXT063006 | Stock: Yes
WDX215D4S25 DC (mm): 21.5 | LUX (mm): 89 | LPR (mm): 104 | OAL (mm): 160 | LS (mm): 56 | DCSFMS (mm): 33.0 | DCON (mm): 25 | Max radial offset (mm): 0.15 | Insert: WDXT063006 | Stock: Yes
WDX220D4S25 DC (mm): 22.0 | LUX (mm): 91 | LPR (mm): 106 | OAL (mm): 162 | LS (mm): 56 | DCSFMS (mm): 33.0 | DCON (mm): 25 | Max radial offset (mm): 0.10 | Insert: WDXT063006 | Stock: Yes
WDX225D4S25 DC (mm): 22.5 | LUX (mm): 93 | LPR (mm): 108 | OAL (mm): 164 | LS (mm): 56 | DCSFMS (mm): 33.0 | DCON (mm): 25 | Max radial offset (mm): 0.05 | Insert: WDXT063006 | Stock: Yes
WDX230D4S25 DC (mm): 23.0 | LUX (mm): 95 | LPR (mm): 113 | OAL (mm): 169 | LS (mm): 56 | DCSFMS (mm): 37.0 | DCON (mm): 25 | Max radial offset (mm): 0.70 | Insert: WDXT073506 | Stock: Yes
WDX235D4S25 DC (mm): 23.5 | LUX (mm): 97 | LPR (mm): 115 | OAL (mm): 171 | LS (mm): 56 | DCSFMS (mm): 37.0 | DCON (mm): 25 | Insert: WDXT073506 | Stock: Yes
WDX240D4S25 DC (mm): 24.0 | LUX (mm): 99 | LPR (mm): 117 | OAL (mm): 173 | LS (mm): 56 | DCSFMS (mm): 37.0 | DCON (mm): 25 | Max radial offset (mm): 0.60 | Insert: WDXT073506 | Stock: Yes
WDX245D4S25 DC (mm): 24.5 | LUX (mm): 101 | LPR (mm): 119 | OAL (mm): 175 | LS (mm): 56 | DCSFMS (mm): 37.0 | DCON (mm): 25 | Max radial offset (mm): 0.50 | Insert: WDXT073506 | Stock: Yes
WDX250D4S25 DC (mm): 25.0 | LUX (mm): 103 | LPR (mm): 121 | OAL (mm): 177 | LS (mm): 56 | DCSFMS (mm): 37.0 | DCON (mm): 25 | Insert: WDXT073506 | Stock: Yes
WDX255D4S32 DC (mm): 25.5 | LUX (mm): 105 | LPR (mm): 125 | OAL (mm): 185 | LS (mm): 60 | DCSFMS (mm): 41.0 | DCON (mm): 32 | Max radial offset (mm): 0.45 | Insert: WDXT073506 | Stock: Yes
WDX260D4S32 DC (mm): 26.0 | LUX (mm): 107 | LPR (mm): 127 | OAL (mm): 187 | LS (mm): 60 | DCSFMS (mm): 41.0 | DCON (mm): 32 | Max radial offset (mm): 0.40 | Insert: WDXT073506 | Stock: Yes
WDX265D4S32 DC (mm): 26.5 | LUX (mm): 109 | LPR (mm): 129 | OAL (mm): 189 | LS (mm): 60 | DCSFMS (mm): 41.0 | DCON (mm): 32 | Max radial offset (mm): 0.35 | Insert: WDXT073506 | Stock: Yes
WDX270D4S32 DC (mm): 27.0 | LUX (mm): 111 | LPR (mm): 131 | OAL (mm): 191 | LS (mm): 60 | DCSFMS (mm): 41.0 | DCON (mm): 32 | Max radial offset (mm): 0.25 | Insert: WDXT073506 | Stock: Yes
WDX275D4S32 DC (mm): 27.5 | LUX (mm): 113 | LPR (mm): 133 | OAL (mm): 193 | LS (mm): 60 | DCSFMS (mm): 41.0 | DCON (mm): 32 | Max radial offset (mm): 0.20 | Insert: WDXT073506 | Stock: Yes
WDX280D4S32 DC (mm): 28.0 | LUX (mm): 115 | LPR (mm): 135 | OAL (mm): 195 | LS (mm): 60 | DCSFMS (mm): 41.0 | DCON (mm): 32 | Max radial offset (mm): 0.15 | Insert: WDXT073506 | Stock: Yes
WDX285D4S32 DC (mm): 28.5 | LUX (mm): 117 | LPR (mm): 137 | OAL (mm): 197 | LS (mm): 60 | DCSFMS (mm): 41.0 | DCON (mm): 32 | Max radial offset (mm): 0.10 | Insert: WDXT073506 | Stock: Yes
WDX290D4S32 DC (mm): 29.0 | LUX (mm): 120 | LPR (mm): 141 | OAL (mm): 201 | LS (mm): 60 | DCSFMS (mm): 50.0 | DCON (mm): 32 | Max radial offset (mm): 1.00 | Insert: WDXT094008 | Stock: Yes
WDX295D4S32 DC (mm): 29.5 | LUX (mm): 122 | LPR (mm): 143 | OAL (mm): 203 | LS (mm): 60 | DCSFMS (mm): 50.0 | DCON (mm): 32 | Max radial offset (mm): 0.95 | Insert: WDXT094008 | Stock: Yes
WDX300D4S32 DC (mm): 30.0 | LUX (mm): 124 | LPR (mm): 148 | OAL (mm): 208 | LS (mm): 60 | DCSFMS (mm): 54.0 | DCON (mm): 32 | Max radial offset (mm): 0.90 | Insert: WDXT094008 | Stock: Yes
WDX310D4S32 DC (mm): 31.0 | LUX (mm): 128 | LPR (mm): 152 | OAL (mm): 212 | LS (mm): 60 | DCSFMS (mm): 54.0 | DCON (mm): 32 | Max radial offset (mm): 0.80 | Insert: WDXT094008 | Stock: Yes
WDX320D4S32 DC (mm): 32.0 | LUX (mm): 132 | LPR (mm): 156 | OAL (mm): 216 | LS (mm): 60 | DCSFMS (mm): 54.0 | DCON (mm): 32 | Max radial offset (mm): 0.70 | Insert: WDXT094008 | Stock: Yes
WDX300D4S40 DC (mm): 30.0 | LUX (mm): 124 | LPR (mm): 148 | OAL (mm): 218 | LS (mm): 70 | DCSFMS (mm): 54.0 | DCON (mm): 40 | Max radial offset (mm): 0.90 | Insert: WDXT094008 | Stock: Yes
WDX310D4S40 DC (mm): 31.0 | LUX (mm): 128 | LPR (mm): 152 | OAL (mm): 222 | LS (mm): 70 | DCSFMS (mm): 54.0 | DCON (mm): 40 | Max radial offset (mm): 0.80 | Insert: WDXT094008 | Stock: Yes
WDX320D4S40 DC (mm): 32.0 | LUX (mm): 132 | LPR (mm): 156 | OAL (mm): 226 | LS (mm): 70 | DCSFMS (mm): 54.0 | DCON (mm): 40 | Max radial offset (mm): 0.70 | Insert: WDXT094008 | Stock: Yes
WDX330D4S40 DC (mm): 33.0 | LUX (mm): 136 | LPR (mm): 160 | OAL (mm): 230 | LS (mm): 70 | DCSFMS (mm): 54.0 | DCON (mm): 40 | Max radial offset (mm): 0.55 | Insert: WDXT094008 | Stock: Yes
WDX340D4S40 DC (mm): 34.0 | LUX (mm): 140 | LPR (mm): 164 | OAL (mm): 234 | LS (mm): 70 | DCSFMS (mm): 54.0 | DCON (mm): 40 | Max radial offset (mm): 0.45 | Insert: WDXT094008 | Stock: Yes
WDX350D4S40 DC (mm): 35.0 | LUX (mm): 144 | LPR (mm): 168 | OAL (mm): 238 | LS (mm): 70 | DCSFMS (mm): 54.0 | DCON (mm): 40 | Max radial offset (mm): 0.35 | Insert: WDXT094008 | Stock: Yes
WDX360D4S40 DC (mm): 36.0 | LUX (mm): 148 | LPR (mm): 172 | OAL (mm): 242 | LS (mm): 70 | DCSFMS (mm): 54.0 | DCON (mm): 40 | Max radial offset (mm): 0.20 | Insert: WDXT094008 | Stock: Yes
WDX370D4S40 DC (mm): 37.0 | LUX (mm): 153 | LPR (mm): 183 | OAL (mm): 253 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 | Max radial offset (mm): 1.00 | Insert: WDXT125012 | Stock: Yes
WDX380D4S40 DC (mm): 38.0 | LUX (mm): 157 | LPR (mm): 187 | OAL (mm): 257 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 | Insert: WDXT125012 | Stock: Yes
WDX390D4S40 DC (mm): 39.0 | LUX (mm): 161 | LPR (mm): 191 | OAL (mm): 261 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 | Max radial offset (mm): 0.90 | Insert: WDXT125012 | Stock: Yes
WDX400D4S40 DC (mm): 40.0 | LUX (mm): 165 | LPR (mm): 195 | OAL (mm): 265 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 | Max radial offset (mm): 0.80 | Insert: WDXT125012 | Stock: Yes
WDX410D4S40 DC (mm): 41.0 | LUX (mm): 169 | LPR (mm): 199 | OAL (mm): 269 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 | Max radial offset (mm): 0.70 | Insert: WDXT125012 | Stock: Yes
WDX420D4S40 DC (mm): 42.0 | LUX (mm): 173 | LPR (mm): 203 | OAL (mm): 273 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 | Max radial offset (mm): 0.60 | Insert: WDXT125012 | Stock: Yes
WDX430D4S40 DC (mm): 43.0 | LUX (mm): 177 | LPR (mm): 207 | OAL (mm): 277 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 | Max radial offset (mm): 0.50 | Insert: WDXT125012 | Stock: Yes
WDX440D4S40 DC (mm): 44.0 | LUX (mm): 181 | LPR (mm): 211 | OAL (mm): 281 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 | Insert: WDXT125012 | Stock: Yes
WDX450D4S40 DC (mm): 45.0 | LUX (mm): 185 | LPR (mm): 215 | OAL (mm): 285 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 | Max radial offset (mm): 0.40 | Insert: WDXT125012 | Stock: Yes
WDX460D4S40 DC (mm): 46.0 | LUX (mm): 189 | LPR (mm): 219 | OAL (mm): 289 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 | Max radial offset (mm): 1.50 | Insert: WDXT156012 | Stock: Yes
WDX470D4S40 DC (mm): 47.0 | LUX (mm): 193 | LPR (mm): 223 | OAL (mm): 293 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 | Max radial offset (mm): 1.40 | Insert: WDXT156012 | Stock: Yes
WDX480D4S40 DC (mm): 48.0 | LUX (mm): 197 | LPR (mm): 227 | OAL (mm): 297 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 | Max radial offset (mm): 1.30 | Insert: WDXT156012 | Stock: Yes
WDX490D4S40 DC (mm): 49.0 | LUX (mm): 201 | LPR (mm): 231 | OAL (mm): 301 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 | Max radial offset (mm): 1.20 | Insert: WDXT156012 | Stock: Yes
WDX500D4S40 DC (mm): 50.0 | LUX (mm): 205 | LPR (mm): 235 | OAL (mm): 305 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 | Max radial offset (mm): 1.10 | Insert: WDXT156012 | Stock: Yes
WDX510D4S40 DC (mm): 51.0 | LUX (mm): 209 | LPR (mm): 239 | OAL (mm): 309 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 | Max radial offset (mm): 1.00 | Insert: WDXT156012 | Stock: Yes
WDX520D4S40 DC (mm): 52.0 | LUX (mm): 213 | LPR (mm): 243 | OAL (mm): 313 | LS (mm): 70 | DCSFMS (mm): 50.5 | DCON (mm): 40 | Max radial offset (mm): 0.90 | Insert: WDXT156012 | Stock: Yes
WDX530D4S40 DC (mm): 53.0 | LUX (mm): 217 | LPR (mm): 247 | OAL (mm): 317 | LS (mm): 70 | DCSFMS (mm): 51.5 | DCON (mm): 40 | Max radial offset (mm): 0.80 | Insert: WDXT156012 | Stock: Yes
WDX540D4S40 DC (mm): 54.0 | LUX (mm): 221 | LPR (mm): 251 | OAL (mm): 321 | LS (mm): 70 | DCSFMS (mm): 52.5 | DCON (mm): 40 | Max radial offset (mm): 0.60 | Insert: WDXT156012 | Stock: Yes
WDX550D4S40 DC (mm): 55.0 | LUX (mm): 225 | LPR (mm): 255 | OAL (mm): 325 | LS (mm): 70 | DCSFMS (mm): 53.5 | DCON (mm): 40 | Max radial offset (mm): 0.50 | Insert: WDXT156012 | Stock: Yes
WDX560D4S40 DC (mm): 56.0 | LUX (mm): 232 | LPR (mm): 264 | OAL (mm): 334 | LS (mm): 70 | DCSFMS (mm): 54.0 | DCON (mm): 40 | Max radial offset (mm): 2.00 | Insert: WDXT186012 | Stock: Yes
WDX570D4S40 DC (mm): 57.0 | LUX (mm): 236 | LPR (mm): 268 | OAL (mm): 338 | LS (mm): 70 | DCSFMS (mm): 55.0 | DCON (mm): 40 | Max radial offset (mm): 1.80 | Insert: WDXT186012 | Stock: Yes
WDX580D4S40 DC (mm): 58.0 | LUX (mm): 240 | LPR (mm): 272 | OAL (mm): 342 | LS (mm): 70 | DCSFMS (mm): 56.0 | DCON (mm): 40 | Max radial offset (mm): 1.70 | Insert: WDXT186012 | Stock: Yes
WDX590D4S40 DC (mm): 59.0 | LUX (mm): 244 | LPR (mm): 276 | OAL (mm): 346 | LS (mm): 70 | DCSFMS (mm): 57.0 | DCON (mm): 40 | Max radial offset (mm): 1.60 | Insert: WDXT186012 | Stock: Yes
WDX600D4S40 DC (mm): 60.0 | LUX (mm): 248 | LPR (mm): 280 | OAL (mm): 350 | LS (mm): 70 | DCSFMS (mm): 58.0 | DCON (mm): 40 | Max radial offset (mm): 1.50 | Insert: WDXT186012 | Stock: Yes
WDX610D4S40 DC (mm): 61.0 | LUX (mm): 252 | LPR (mm): 284 | OAL (mm): 354 | LS (mm): 70 | DCSFMS (mm): 59.0 | DCON (mm): 40 | Max radial offset (mm): 1.40 | Insert: WDXT186012 | Stock: Yes
WDX620D4S40 DC (mm): 62.0 | LUX (mm): 256 | LPR (mm): 288 | OAL (mm): 358 | LS (mm): 70 | DCSFMS (mm): 60.0 | DCON (mm): 40 | Max radial offset (mm): 1.30 | Insert: WDXT186012 | Stock: Yes
WDX630D4S40 DC (mm): 63.0 | LUX (mm): 260 | LPR (mm): 292 | OAL (mm): 362 | LS (mm): 70 | DCSFMS (mm): 61.0 | DCON (mm): 40 | Max radial offset (mm): 1.20 | Insert: WDXT186012 | Stock: Yes
WDX130D5S20 DC (mm): 13.0 | LUX (mm): 68.0 | LPR (mm): 83.0 | OAL (mm): 127.0 | LS (mm): 44 | DCSFMS (mm): 28.0 | DCON (mm): 20.0 | Max radial offset (mm): 0.35 | Insert: WDXT042004 | Stock: Yes
WDX135D5S20 DC (mm): 13.5 | LUX (mm): 70.5 | LPR (mm): 85.5 | OAL (mm): 129.5 | LS (mm): 44 | DCSFMS (mm): 28.0 | DCON (mm): 20.0 | Max radial offset (mm): 0.30 | Insert: WDXT042004 | Stock: Yes
WDX140D5S20 DC (mm): 14.0 | LUX (mm): 73.0 | LPR (mm): 88.0 | OAL (mm): 132.0 | LS (mm): 44 | DCSFMS (mm): 28.0 | DCON (mm): 20.0 | Max radial offset (mm): 0.25 | Insert: WDXT042004 | Stock: Yes
WDX145D5S20 DC (mm): 14.5 | LUX (mm): 75.5 | LPR (mm): 90.5 | OAL (mm): 134.5 | LS (mm): 44 | DCSFMS (mm): 28.0 | DCON (mm): 20.0 | Max radial offset (mm): 0.20 | Insert: WDXT042004 | Stock: Yes
WDX150D5S20 DC (mm): 15.0 | LUX (mm): 78.0 | LPR (mm): 93.0 | OAL (mm): 137.0 | LS (mm): 44 | DCSFMS (mm): 28.0 | DCON (mm): 20.0 | Max radial offset (mm): 0.15 | Insert: WDXT042004 | Stock: Yes
WDX155D5S20 DC (mm): 15.5 | LUX (mm): 80.5 | LPR (mm): 95.5 | OAL (mm): 139.5 | LS (mm): 44 | DCSFMS (mm): 30.0 | DCON (mm): 20.0 | Max radial offset (mm): 0.40 | Insert: WDXT052504 | Stock: Yes
WDX160D5S20 DC (mm): 16.0 | LUX (mm): 83.0 | LPR (mm): 98.0 | OAL (mm): 142.0 | LS (mm): 44 | DCSFMS (mm): 30.0 | DCON (mm): 20.0 | Insert: WDXT052504 | Stock: Yes
WDX165D5S20 DC (mm): 16.5 | LUX (mm): 85.5 | LPR (mm): 100.5 | OAL (mm): 144.5 | LS (mm): 44 | DCSFMS (mm): 30.0 | DCON (mm): 20.0 | Max radial offset (mm): 0.35 | Insert: WDXT052504 | Stock: Yes
WDX170D5S20 DC (mm): 17.0 | LUX (mm): 88.0 | LPR (mm): 103.0 | OAL (mm): 147.0 | LS (mm): 44 | DCSFMS (mm): 30.0 | DCON (mm): 20.0 | Max radial offset (mm): 0.30 | Insert: WDXT052504 | Stock: Yes
WDX175D5S25 DC (mm): 17.5 | LUX (mm): 90.5 | LPR (mm): 105.5 | OAL (mm): 161.5 | LS (mm): 56 | DCSFMS (mm): 32.0 | DCON (mm): 25.0 | Max radial offset (mm): 0.25 | Insert: WDXT052504 | Stock: Yes
WDX180D5S25 DC (mm): 18.0 | LUX (mm): 93.0 | LPR (mm): 108.0 | OAL (mm): 164.0 | LS (mm): 56 | DCSFMS (mm): 32.0 | DCON (mm): 25.0 | Max radial offset (mm): 0.20 | Insert: WDXT052504 | Stock: Yes
WDX185D5S25 DC (mm): 18.5 | LUX (mm): 95.5 | LPR (mm): 110.5 | OAL (mm): 166.5 | LS (mm): 56 | DCSFMS (mm): 33.0 | DCON (mm): 25.0 | Max radial offset (mm): 0.50 | Insert: WDXT063006 | Stock: Yes
WDX190D5S25 DC (mm): 19.0 | LUX (mm): 98.0 | LPR (mm): 113.0 | OAL (mm): 169.0 | LS (mm): 56 | DCSFMS (mm): 33.0 | DCON (mm): 25.0 | Max radial offset (mm): 0.45 | Insert: WDXT063006 | Stock: Yes
WDX195D5S25 DC (mm): 19.5 | LUX (mm): 100.5 | LPR (mm): 115.5 | OAL (mm): 171.5 | LS (mm): 56 | DCSFMS (mm): 33.0 | DCON (mm): 25.0 | Max radial offset (mm): 0.40 | Insert: WDXT063006 | Stock: Yes
WDX200D5S25 DC (mm): 20.0 | LUX (mm): 103.0 | LPR (mm): 118.0 | OAL (mm): 174.0 | LS (mm): 56 | DCSFMS (mm): 33.0 | DCON (mm): 25.0 | Max radial offset (mm): 0.30 | Insert: WDXT063006 | Stock: Yes
WDX205D5S25 DC (mm): 20.5 | LUX (mm): 105.5 | LPR (mm): 120.5 | OAL (mm): 176.5 | LS (mm): 56 | DCSFMS (mm): 33.0 | DCON (mm): 25.0 | Insert: WDXT063006 | Stock: Yes
WDX210D5S25 DC (mm): 21.0 | LUX (mm): 108.0 | LPR (mm): 123.0 | OAL (mm): 179.0 | LS (mm): 56 | DCSFMS (mm): 33.0 | DCON (mm): 25.0 | Max radial offset (mm): 0.20 | Insert: WDXT063006 | Stock: Yes
WDX215D5S25 DC (mm): 21.5 | LUX (mm): 110.5 | LPR (mm): 125.5 | OAL (mm): 181.5 | LS (mm): 56 | DCSFMS (mm): 33.0 | DCON (mm): 25.0 | Max radial offset (mm): 0.15 | Insert: WDXT063006 | Stock: Yes
WDX220D5S25 DC (mm): 22.0 | LUX (mm): 113.0 | LPR (mm): 128.0 | OAL (mm): 184.0 | LS (mm): 56 | DCSFMS (mm): 33.0 | DCON (mm): 25.0 | Max radial offset (mm): 0.10 | Insert: WDXT063006 | Stock: Yes
WDX225D5S25 DC (mm): 22.5 | LUX (mm): 115.5 | LPR (mm): 130.5 | OAL (mm): 186.5 | LS (mm): 56 | DCSFMS (mm): 33.0 | DCON (mm): 25.0 | Max radial offset (mm): 0.05 | Insert: WDXT063006 | Stock: Yes
WDX230D5S25 DC (mm): 23.0 | LUX (mm): 118.0 | LPR (mm): 136.0 | OAL (mm): 192.0 | LS (mm): 56 | DCSFMS (mm): 37.0 | DCON (mm): 25.0 | Max radial offset (mm): 0.70 | Insert: WDXT073506 | Stock: Yes
WDX235D5S25 DC (mm): 23.5 | LUX (mm): 120.5 | LPR (mm): 138.5 | OAL (mm): 194.5 | LS (mm): 56 | DCSFMS (mm): 37.0 | DCON (mm): 25.0 | Insert: WDXT073506 | Stock: Yes
WDX240D5S25 DC (mm): 24.0 | LUX (mm): 123.0 | LPR (mm): 141.0 | OAL (mm): 197.0 | LS (mm): 56 | DCSFMS (mm): 37.0 | DCON (mm): 25.0 | Max radial offset (mm): 0.60 | Insert: WDXT073506 | Stock: Yes
WDX245D5S25 DC (mm): 24.5 | LUX (mm): 125.5 | LPR (mm): 143.5 | OAL (mm): 199.5 | LS (mm): 56 | DCSFMS (mm): 37.0 | DCON (mm): 25.0 | Max radial offset (mm): 0.50 | Insert: WDXT073506 | Stock: Yes
WDX250D5S25 DC (mm): 25.0 | LUX (mm): 128.0 | LPR (mm): 146.0 | OAL (mm): 202.0 | LS (mm): 56 | DCSFMS (mm): 37.0 | DCON (mm): 25.0 | Insert: WDXT073506 | Stock: Yes
WDX260D5S32 DC (mm): 26.0 | LUX (mm): 133.0 | LPR (mm): 153.0 | OAL (mm): 213.0 | LS (mm): 60 | DCSFMS (mm): 41.0 | DCON (mm): 32.0 | Max radial offset (mm): 0.40 | Insert: WDXT073506 | Stock: Yes
WDX270D5S32 DC (mm): 27.0 | LUX (mm): 138.0 | LPR (mm): 158.0 | OAL (mm): 218.0 | LS (mm): 60 | DCSFMS (mm): 41.0 | DCON (mm): 32.0 | Max radial offset (mm): 0.25 | Insert: WDXT073506 | Stock: Yes
WDX280D5S32 DC (mm): 28.0 | LUX (mm): 143.0 | LPR (mm): 163.0 | OAL (mm): 223.0 | LS (mm): 60 | DCSFMS (mm): 41.0 | DCON (mm): 32.0 | Max radial offset (mm): 0.15 | Insert: WDXT073506 | Stock: Yes
WDX290D5S32 DC (mm): 29.0 | LUX (mm): 149.0 | LPR (mm): 170.0 | OAL (mm): 230.0 | LS (mm): 60 | DCSFMS (mm): 50.0 | DCON (mm): 32.0 | Max radial offset (mm): 1.00 | Insert: WDXT094008 | Stock: Yes
WDX300D5S32 DC (mm): 30.0＊ | LUX (mm): 154.0 | LPR (mm): 178.0 | OAL (mm): 238.0 | LS (mm): 60 | DCSFMS (mm): 54.0 | DCON (mm): 32.0 | Max radial offset (mm): 0.90 | Insert: WDXT094008 | Stock: Yes
WDX310D5S32 DC (mm): 31.0＊ | LUX (mm): 159.0 | LPR (mm): 183.0 | OAL (mm): 243.0 | LS (mm): 60 | DCSFMS (mm): 54.0 | DCON (mm): 32.0 | Max radial offset (mm): 0.80 | Insert: WDXT094008 | Stock: Yes
WDX320D5S32 DC (mm): 32.0＊ | LUX (mm): 164.0 | LPR (mm): 188.0 | OAL (mm): 248.0 | LS (mm): 60 | DCSFMS (mm): 54.0 | DCON (mm): 32.0 | Max radial offset (mm): 0.70 | Insert: WDXT094008 | Stock: Yes
WDX300D5S40 DC (mm): 30.0＊ | LUX (mm): 154.0 | LPR (mm): 178.0 | OAL (mm): 248.0 | LS (mm): 70 | DCSFMS (mm): 54.0 | DCON (mm): 40.0 | Max radial offset (mm): 0.90 | Insert: WDXT094008 | Stock: Yes
WDX310D5S40 DC (mm): 31.0＊ | LUX (mm): 159.0 | LPR (mm): 183.0 | OAL (mm): 253.0 | LS (mm): 70 | DCSFMS (mm): 54.0 | DCON (mm): 40.0 | Max radial offset (mm): 0.80 | Insert: WDXT094008 | Stock: Yes
WDX320D5S40 DC (mm): 32.0＊ | LUX (mm): 164.0 | LPR (mm): 188.0 | OAL (mm): 258.0 | LS (mm): 70 | DCSFMS (mm): 54.0 | DCON (mm): 40.0 | Max radial offset (mm): 0.70 | Insert: WDXT094008 | Stock: Yes
WDX330D5S40 DC (mm): 33.0 | LUX (mm): 169.0 | LPR (mm): 193.0 | OAL (mm): 263.0 | LS (mm): 70 | DCSFMS (mm): 54.0 | DCON (mm): 40.0 | Max radial offset (mm): 0.55 | Insert: WDXT094008 | Stock: Yes
WDX340D5S40 DC (mm): 34.0 | LUX (mm): 174.0 | LPR (mm): 198.0 | OAL (mm): 268.0 | LS (mm): 70 | DCSFMS (mm): 54.0 | DCON (mm): 40.0 | Max radial offset (mm): 0.45 | Insert: WDXT094008 | Stock: Yes
WDX350D5S40 DC (mm): 35.0 | LUX (mm): 179.0 | LPR (mm): 203.0 | OAL (mm): 273.0 | LS (mm): 70 | DCSFMS (mm): 54.0 | DCON (mm): 40.0 | Max radial offset (mm): 0.35 | Insert: WDXT094008 | Stock: Yes
WDX360D5S40 DC (mm): 36.0 | LUX (mm): 184.0 | LPR (mm): 208.0 | OAL (mm): 278.0 | LS (mm): 70 | DCSFMS (mm): 54.0 | DCON (mm): 40.0 | Max radial offset (mm): 0.20 | Insert: WDXT094008 | Stock: Yes
WDX370D5S40 DC (mm): 37.0 | LUX (mm): 190.0 | LPR (mm): 220.0 | OAL (mm): 290.0 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40.0 | Max radial offset (mm): 1.00 | Insert: WDXT125012 | Stock: Yes
WDX380D5S40 DC (mm): 38.0 | LUX (mm): 195.0 | LPR (mm): 225.0 | OAL (mm): 295.0 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40.0 | Insert: WDXT125012 | Stock: Yes
WDX390D5S40 DC (mm): 39.0 | LUX (mm): 200.0 | LPR (mm): 230.0 | OAL (mm): 300.0 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40.0 | Max radial offset (mm): 0.90 | Insert: WDXT125012 | Stock: Yes
WDX400D5S40 DC (mm): 40.0 | LUX (mm): 205.0 | LPR (mm): 235.0 | OAL (mm): 305.0 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40.0 | Max radial offset (mm): 0.80 | Insert: WDXT125012 | Stock: Yes
WDX410D5S40 DC (mm): 41.0 | LUX (mm): 210.0 | LPR (mm): 240.0 | OAL (mm): 310.0 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40.0 | Max radial offset (mm): 0.70 | Insert: WDXT125012 | Stock: Yes
WDX420D5S40 DC (mm): 42.0 | LUX (mm): 215.0 | LPR (mm): 245.0 | OAL (mm): 315.0 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40.0 | Max radial offset (mm): 0.60 | Insert: WDXT125012 | Stock: Yes
WDX430D5S40 DC (mm): 43.0 | LUX (mm): 220.0 | LPR (mm): 250.0 | OAL (mm): 320.0 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40.0 | Max radial offset (mm): 0.50 | Insert: WDXT125012 | Stock: Yes
WDX440D5S40 DC (mm): 44.0 | LUX (mm): 225.0 | LPR (mm): 255.0 | OAL (mm): 325.0 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40.0 | Insert: WDXT125012 | Stock: Yes
WDX450D5S40 DC (mm): 45.0 | LUX (mm): 230.0 | LPR (mm): 260.0 | OAL (mm): 330.0 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40.0 | Max radial offset (mm): 0.40 | Insert: WDXT125012 | Stock: Yes
WDX460D5S40 DC (mm): 46.0 | LUX (mm): 235.0 | LPR (mm): 265.0 | OAL (mm): 335.0 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40.0 | Max radial offset (mm): 1.50 | Insert: WDXT156012 | Stock: Yes
WDX470D5S40 DC (mm): 47.0 | LUX (mm): 240.0 | LPR (mm): 270.0 | OAL (mm): 340.0 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40.0 | Max radial offset (mm): 1.40 | Insert: WDXT156012 | Stock: Yes
WDX480D5S40 DC (mm): 48.0 | LUX (mm): 245.0 | LPR (mm): 275.0 | OAL (mm): 345.0 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40.0 | Max radial offset (mm): 1.30 | Insert: WDXT156012 | Stock: Yes
WDX490D5S40 DC (mm): 49.0 | LUX (mm): 250.0 | LPR (mm): 280.0 | OAL (mm): 350.0 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40.0 | Max radial offset (mm): 1.20 | Insert: WDXT156012 | Stock: Yes
WDX500D5S40 DC (mm): 50.0 | LUX (mm): 255.0 | LPR (mm): 285.0 | OAL (mm): 355.0 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40.0 | Max radial offset (mm): 1.10 | Insert: WDXT156012 | Stock: Yes
WDX510D5S40 DC (mm): 51.0 | LUX (mm): 260.0 | LPR (mm): 290.0 | OAL (mm): 360.0 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40.0 | Max radial offset (mm): 1.00 | Insert: WDXT156012 | Stock: Yes
WDX520D5S40 DC (mm): 52.0 | LUX (mm): 265.0 | LPR (mm): 295.0 | OAL (mm): 365.0 | LS (mm): 70 | DCSFMS (mm): 50.5 | DCON (mm): 40.0 | Max radial offset (mm): 0.90 | Insert: WDXT156012 | Stock: Yes
WDX530D5S40 DC (mm): 53.0 | LUX (mm): 270.0 | LPR (mm): 300.0 | OAL (mm): 370.0 | LS (mm): 70 | DCSFMS (mm): 51.5 | DCON (mm): 40.0 | Max radial offset (mm): 0.80 | Insert: WDXT156012 | Stock: Yes
WDX540D5S40 DC (mm): 54.0 | LUX (mm): 275.0 | LPR (mm): 305.0 | OAL (mm): 375.0 | LS (mm): 70 | DCSFMS (mm): 52.5 | DCON (mm): 40.0 | Max radial offset (mm): 0.60 | Insert: WDXT156012 | Stock: Yes
WDX550D5S40 DC (mm): 55.0 | LUX (mm): 280.0 | LPR (mm): 310.0 | OAL (mm): 380.0 | LS (mm): 70 | DCSFMS (mm): 53.5 | DCON (mm): 40.0 | Max radial offset (mm): 0.50 | Insert: WDXT156012 | Stock: Yes
DrillsSumitomo Electric Hardmetal
281 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SumiDrill WDX Type Indexable Drill Holder (Internal Coolant)

Brand Sumitomo Electric Hardmetal·Drills

Available part numbers (281)

WDX130D2S20, WDX135D2S20, WDX140D2S20, WDX145D2S20, WDX150D2S20, WDX155D2S20, WDX160D2S20, WDX165D2S20, WDX170D2S20, WDX175D2S25 + 271 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WDX130D2S20DC (mm): 13.0 | LUX (mm): 29 | LPR (mm): 44 | OAL (mm): 88 | LS (mm): 44 | DCSFMS (mm): 28.0 | DCON (mm): 20 | Max radial offset (mm): 0.35 | Insert: WDXT042004 | Stock: Yes
WDX135D2S20DC (mm): 13.5 | LUX (mm): 30 | LPR (mm): 45 | OAL (mm): 89 | LS (mm): 44 | DCSFMS (mm): 28.0 | DCON (mm): 20 | Max radial offset (mm): 0.30 | Insert: WDXT042004 | Stock: Yes
WDX140D2S20DC (mm): 14.0 | LUX (mm): 31 | LPR (mm): 46 | OAL (mm): 90 | LS (mm): 44 | DCSFMS (mm): 28.0 | DCON (mm): 20 | Max radial offset (mm): 0.25 | Insert: WDXT042004 | Stock: Yes
WDX145D2S20DC (mm): 14.5 | LUX (mm): 32 | LPR (mm): 47 | OAL (mm): 91 | LS (mm): 44 | DCSFMS (mm): 28.0 | DCON (mm): 20 | Max radial offset (mm): 0.20 | Insert: WDXT042004 | Stock: Yes
WDX150D2S20DC (mm): 15.0 | LUX (mm): 33 | LPR (mm): 48 | OAL (mm): 92 | LS (mm): 44 | DCSFMS (mm): 28.0 | DCON (mm): 20 | Max radial offset (mm): 0.15 | Insert: WDXT042004 | Stock: Yes
WDX155D2S20DC (mm): 15.5 | LUX (mm): 34 | LPR (mm): 49 | OAL (mm): 93 | LS (mm): 44 | DCSFMS (mm): 30.0 | DCON (mm): 20 | Max radial offset (mm): 0.40 | Insert: WDXT052504 | Stock: Yes
WDX160D2S20DC (mm): 16.0 | LUX (mm): 35 | LPR (mm): 50 | OAL (mm): 94 | LS (mm): 44 | DCSFMS (mm): 30.0 | DCON (mm): 20 | Insert: WDXT052504 | Stock: Yes
WDX165D2S20DC (mm): 16.5 | LUX (mm): 36 | LPR (mm): 51 | OAL (mm): 95 | LS (mm): 44 | DCSFMS (mm): 30.0 | DCON (mm): 20 | Max radial offset (mm): 0.35 | Insert: WDXT052504 | Stock: Yes
WDX170D2S20DC (mm): 17.0 | LUX (mm): 37 | LPR (mm): 52 | OAL (mm): 96 | LS (mm): 44 | DCSFMS (mm): 30.0 | DCON (mm): 20 | Max radial offset (mm): 0.30 | Insert: WDXT052504 | Stock: Yes
WDX175D2S25DC (mm): 17.5 | LUX (mm): 38 | LPR (mm): 53 | OAL (mm): 109 | LS (mm): 56 | DCSFMS (mm): 32.0 | DCON (mm): 25 | Max radial offset (mm): 0.25 | Insert: WDXT052504 | Stock: Yes
WDX180D2S25DC (mm): 18.0 | LUX (mm): 39 | LPR (mm): 54 | OAL (mm): 110 | LS (mm): 56 | DCSFMS (mm): 32.0 | DCON (mm): 25 | Max radial offset (mm): 0.20 | Insert: WDXT052504 | Stock: Yes
WDX185D2S25DC (mm): 18.5 | LUX (mm): 40 | LPR (mm): 55 | OAL (mm): 111 | LS (mm): 56 | DCSFMS (mm): 33.0 | DCON (mm): 25 | Max radial offset (mm): 0.50 | Insert: WDXT063006 | Stock: Yes
WDX190D2S25DC (mm): 19.0 | LUX (mm): 41 | LPR (mm): 56 | OAL (mm): 112 | LS (mm): 56 | DCSFMS (mm): 33.0 | DCON (mm): 25 | Max radial offset (mm): 0.45 | Insert: WDXT063006 | Stock: Yes
WDX195D2S25DC (mm): 19.5 | LUX (mm): 42 | LPR (mm): 57 | OAL (mm): 113 | LS (mm): 56 | DCSFMS (mm): 33.0 | DCON (mm): 25 | Max radial offset (mm): 0.40 | Insert: WDXT063006 | Stock: Yes
WDX200D2S25DC (mm): 20.0 | LUX (mm): 43 | LPR (mm): 58 | OAL (mm): 114 | LS (mm): 56 | DCSFMS (mm): 33.0 | DCON (mm): 25 | Max radial offset (mm): 0.30 | Insert: WDXT063006 | Stock: Yes
WDX205D2S25DC (mm): 20.5 | LUX (mm): 44 | LPR (mm): 59 | OAL (mm): 115 | LS (mm): 56 | DCSFMS (mm): 33.0 | DCON (mm): 25 | Insert: WDXT063006 | Stock: Yes
WDX210D2S25DC (mm): 21.0 | LUX (mm): 45 | LPR (mm): 60 | OAL (mm): 116 | LS (mm): 56 | DCSFMS (mm): 33.0 | DCON (mm): 25 | Max radial offset (mm): 0.20 | Insert: WDXT063006 | Stock: Yes
WDX215D2S25DC (mm): 21.5 | LUX (mm): 46 | LPR (mm): 61 | OAL (mm): 117 | LS (mm): 56 | DCSFMS (mm): 33.0 | DCON (mm): 25 | Max radial offset (mm): 0.15 | Insert: WDXT063006 | Stock: Yes
WDX220D2S25DC (mm): 22.0 | LUX (mm): 47 | LPR (mm): 62 | OAL (mm): 118 | LS (mm): 56 | DCSFMS (mm): 33.0 | DCON (mm): 25 | Max radial offset (mm): 0.10 | Insert: WDXT063006 | Stock: Yes
WDX225D2S25DC (mm): 22.5 | LUX (mm): 48 | LPR (mm): 63 | OAL (mm): 119 | LS (mm): 56 | DCSFMS (mm): 33.0 | DCON (mm): 25 | Max radial offset (mm): 0.05 | Insert: WDXT063006 | Stock: Yes
WDX230D2S25DC (mm): 23.0 | LUX (mm): 49 | LPR (mm): 67 | OAL (mm): 123 | LS (mm): 56 | DCSFMS (mm): 37.0 | DCON (mm): 25 | Max radial offset (mm): 0.70 | Insert: WDXT073506 | Stock: Yes
WDX235D2S25DC (mm): 23.5 | LUX (mm): 50 | LPR (mm): 68 | OAL (mm): 124 | LS (mm): 56 | DCSFMS (mm): 37.0 | DCON (mm): 25 | Insert: WDXT073506 | Stock: Yes
WDX240D2S25DC (mm): 24.0 | LUX (mm): 51 | LPR (mm): 69 | OAL (mm): 125 | LS (mm): 56 | DCSFMS (mm): 37.0 | DCON (mm): 25 | Max radial offset (mm): 0.60 | Insert: WDXT073506 | Stock: Yes
WDX245D2S25DC (mm): 24.5 | LUX (mm): 52 | LPR (mm): 70 | OAL (mm): 126 | LS (mm): 56 | DCSFMS (mm): 37.0 | DCON (mm): 25 | Max radial offset (mm): 0.50 | Insert: WDXT073506 | Stock: Yes
WDX250D2S25DC (mm): 25.0 | LUX (mm): 53 | LPR (mm): 71 | OAL (mm): 127 | LS (mm): 56 | DCSFMS (mm): 37.0 | DCON (mm): 25 | Insert: WDXT073506 | Stock: Yes
WDX255D2S32DC (mm): 25.5 | LUX (mm): 54 | LPR (mm): 74 | OAL (mm): 134 | LS (mm): 60 | DCSFMS (mm): 41.0 | DCON (mm): 32 | Max radial offset (mm): 0.45 | Insert: WDXT073506 | Stock: Yes
WDX260D2S32DC (mm): 26.0 | LUX (mm): 55 | LPR (mm): 75 | OAL (mm): 135 | LS (mm): 60 | DCSFMS (mm): 41.0 | DCON (mm): 32 | Max radial offset (mm): 0.40 | Insert: WDXT073506 | Stock: Yes
WDX265D2S32DC (mm): 26.5 | LUX (mm): 56 | LPR (mm): 76 | OAL (mm): 136 | LS (mm): 60 | DCSFMS (mm): 41.0 | DCON (mm): 32 | Max radial offset (mm): 0.35 | Insert: WDXT073506 | Stock: Yes
WDX270D2S32DC (mm): 27.0 | LUX (mm): 57 | LPR (mm): 77 | OAL (mm): 137 | LS (mm): 60 | DCSFMS (mm): 41.0 | DCON (mm): 32 | Max radial offset (mm): 0.25 | Insert: WDXT073506 | Stock: Yes
WDX275D2S32DC (mm): 27.5 | LUX (mm): 58 | LPR (mm): 78 | OAL (mm): 138 | LS (mm): 60 | DCSFMS (mm): 41.0 | DCON (mm): 32 | Max radial offset (mm): 0.20 | Insert: WDXT073506 | Stock: Yes
WDX280D2S32DC (mm): 28.0 | LUX (mm): 59 | LPR (mm): 79 | OAL (mm): 139 | LS (mm): 60 | DCSFMS (mm): 41.0 | DCON (mm): 32 | Max radial offset (mm): 0.15 | Insert: WDXT073506 | Stock: Yes
WDX285D2S32DC (mm): 28.5 | LUX (mm): 60 | LPR (mm): 80 | OAL (mm): 140 | LS (mm): 60 | DCSFMS (mm): 41.0 | DCON (mm): 32 | Max radial offset (mm): 0.10 | Insert: WDXT073506 | Stock: Yes
WDX290D2S32DC (mm): 29.0 | LUX (mm): 62 | LPR (mm): 83 | OAL (mm): 143 | LS (mm): 60 | DCSFMS (mm): 50.0 | DCON (mm): 32 | Max radial offset (mm): 1.00 | Insert: WDXT094008 | Stock: Yes
WDX295D2S32DC (mm): 29.5 | LUX (mm): 63 | LPR (mm): 84 | OAL (mm): 144 | LS (mm): 60 | DCSFMS (mm): 50.0 | DCON (mm): 32 | Max radial offset (mm): 0.95 | Insert: WDXT094008 | Stock: Yes
WDX300D2S32DC (mm): 30.0 | LUX (mm): 64 | LPR (mm): 88 | OAL (mm): 148 | LS (mm): 60 | DCSFMS (mm): 54.0 | DCON (mm): 32 | Max radial offset (mm): 0.90 | Insert: WDXT094008 | Stock: Yes
WDX310D2S32DC (mm): 31.0 | LUX (mm): 66 | LPR (mm): 90 | OAL (mm): 150 | LS (mm): 60 | DCSFMS (mm): 54.0 | DCON (mm): 32 | Max radial offset (mm): 0.80 | Insert: WDXT094008 | Stock: Yes
WDX320D2S32DC (mm): 32.0 | LUX (mm): 68 | LPR (mm): 92 | OAL (mm): 152 | LS (mm): 60 | DCSFMS (mm): 54.0 | DCON (mm): 32 | Max radial offset (mm): 0.70 | Insert: WDXT094008 | Stock: Yes
WDX300D2S40DC (mm): 30.0 | LUX (mm): 64 | LPR (mm): 88 | OAL (mm): 158 | LS (mm): 70 | DCSFMS (mm): 54.0 | DCON (mm): 40 | Max radial offset (mm): 0.90 | Insert: WDXT094008 | Stock: Yes
WDX310D2S40DC (mm): 31.0 | LUX (mm): 66 | LPR (mm): 90 | OAL (mm): 160 | LS (mm): 70 | DCSFMS (mm): 54.0 | DCON (mm): 40 | Max radial offset (mm): 0.80 | Insert: WDXT094008 | Stock: Yes
WDX320D2S40DC (mm): 32.0 | LUX (mm): 68 | LPR (mm): 92 | OAL (mm): 162 | LS (mm): 70 | DCSFMS (mm): 54.0 | DCON (mm): 40 | Max radial offset (mm): 0.70 | Insert: WDXT094008 | Stock: Yes
WDX330D2S40DC (mm): 33.0 | LUX (mm): 70 | LPR (mm): 94 | OAL (mm): 164 | LS (mm): 70 | DCSFMS (mm): 54.0 | DCON (mm): 40 | Max radial offset (mm): 0.55 | Insert: WDXT094008 | Stock: Yes
WDX340D2S40DC (mm): 34.0 | LUX (mm): 72 | LPR (mm): 96 | OAL (mm): 166 | LS (mm): 70 | DCSFMS (mm): 54.0 | DCON (mm): 40 | Max radial offset (mm): 0.45 | Insert: WDXT094008 | Stock: Yes
WDX350D2S40DC (mm): 35.0 | LUX (mm): 74 | LPR (mm): 98 | OAL (mm): 168 | LS (mm): 70 | DCSFMS (mm): 54.0 | DCON (mm): 40 | Max radial offset (mm): 0.35 | Insert: WDXT094008 | Stock: Yes
WDX360D2S40DC (mm): 36.0 | LUX (mm): 76 | LPR (mm): 100 | OAL (mm): 170 | LS (mm): 70 | DCSFMS (mm): 54.0 | DCON (mm): 40 | Max radial offset (mm): 0.20 | Insert: WDXT094008 | Stock: Yes
WDX370D2S40DC (mm): 37.0 | LUX (mm): 79 | LPR (mm): 109 | OAL (mm): 179 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 | Max radial offset (mm): 1.00 | Insert: WDXT125012 | Stock: Yes
WDX380D2S40DC (mm): 38.0 | LUX (mm): 81 | LPR (mm): 111 | OAL (mm): 181 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 | Insert: WDXT125012 | Stock: Yes
WDX390D2S40DC (mm): 39.0 | LUX (mm): 83 | LPR (mm): 113 | OAL (mm): 183 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 | Max radial offset (mm): 0.90 | Insert: WDXT125012 | Stock: Yes
WDX400D2S40DC (mm): 40.0 | LUX (mm): 85 | LPR (mm): 115 | OAL (mm): 185 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 | Max radial offset (mm): 0.80 | Insert: WDXT125012 | Stock: Yes
WDX410D2S40DC (mm): 41.0 | LUX (mm): 87 | LPR (mm): 117 | OAL (mm): 187 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 | Max radial offset (mm): 0.70 | Insert: WDXT125012 | Stock: Yes
WDX420D2S40DC (mm): 42.0 | LUX (mm): 89 | LPR (mm): 119 | OAL (mm): 189 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 | Max radial offset (mm): 0.60 | Insert: WDXT125012 | Stock: Yes
WDX430D2S40DC (mm): 43.0 | LUX (mm): 91 | LPR (mm): 121 | OAL (mm): 191 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 | Max radial offset (mm): 0.50 | Insert: WDXT125012 | Stock: Yes
WDX440D2S40DC (mm): 44.0 | LUX (mm): 93 | LPR (mm): 123 | OAL (mm): 193 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 | Insert: WDXT125012 | Stock: Yes
WDX450D2S40DC (mm): 45.0 | LUX (mm): 95 | LPR (mm): 125 | OAL (mm): 195 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 | Max radial offset (mm): 0.40 | Insert: WDXT125012 | Stock: Yes
WDX460D2S40DC (mm): 46.0 | LUX (mm): 97 | LPR (mm): 127 | OAL (mm): 197 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 | Max radial offset (mm): 1.50 | Insert: WDXT156012 | Stock: Yes
WDX470D2S40DC (mm): 47.0 | LUX (mm): 99 | LPR (mm): 129 | OAL (mm): 199 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 | Max radial offset (mm): 1.40 | Insert: WDXT156012 | Stock: Yes
WDX480D2S40DC (mm): 48.0 | LUX (mm): 101 | LPR (mm): 131 | OAL (mm): 201 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 | Max radial offset (mm): 1.30 | Insert: WDXT156012 | Stock: Yes
WDX490D2S40DC (mm): 49.0 | LUX (mm): 103 | LPR (mm): 133 | OAL (mm): 203 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 | Max radial offset (mm): 1.20 | Insert: WDXT156012 | Stock: Yes
WDX500D2S40DC (mm): 50.0 | LUX (mm): 105 | LPR (mm): 135 | OAL (mm): 205 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 | Max radial offset (mm): 1.10 | Insert: WDXT156012 | Stock: Yes
WDX510D2S40DC (mm): 51.0 | LUX (mm): 107 | LPR (mm): 137 | OAL (mm): 207 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 | Max radial offset (mm): 1.00 | Insert: WDXT156012 | Stock: Yes
WDX520D2S40DC (mm): 52.0 | LUX (mm): 109 | LPR (mm): 139 | OAL (mm): 209 | LS (mm): 70 | DCSFMS (mm): 50.5 | DCON (mm): 40 | Max radial offset (mm): 0.90 | Insert: WDXT156012 | Stock: Yes
WDX530D2S40DC (mm): 53.0 | LUX (mm): 111 | LPR (mm): 141 | OAL (mm): 211 | LS (mm): 70 | DCSFMS (mm): 51.5 | DCON (mm): 40 | Max radial offset (mm): 0.80 | Insert: WDXT156012 | Stock: Yes
WDX540D2S40DC (mm): 54.0 | LUX (mm): 113 | LPR (mm): 143 | OAL (mm): 213 | LS (mm): 70 | DCSFMS (mm): 52.5 | DCON (mm): 40 | Max radial offset (mm): 0.60 | Insert: WDXT156012 | Stock: Yes
WDX550D2S40DC (mm): 55.0 | LUX (mm): 115 | LPR (mm): 145 | OAL (mm): 215 | LS (mm): 70 | DCSFMS (mm): 53.5 | DCON (mm): 40 | Max radial offset (mm): 0.50 | Insert: WDXT156012 | Stock: Yes
WDX560D2S40DC (mm): 56.0 | LUX (mm): 120 | LPR (mm): 152 | OAL (mm): 222 | LS (mm): 70 | DCSFMS (mm): 54.0 | DCON (mm): 40 | Max radial offset (mm): 2.00 | Insert: WDXT186012 | Stock: Yes
WDX570D2S40DC (mm): 57.0 | LUX (mm): 122 | LPR (mm): 154 | OAL (mm): 224 | LS (mm): 70 | DCSFMS (mm): 55.0 | DCON (mm): 40 | Max radial offset (mm): 1.80 | Insert: WDXT186012 | Stock: Yes
WDX580D2S40DC (mm): 58.0 | LUX (mm): 124 | LPR (mm): 156 | OAL (mm): 226 | LS (mm): 70 | DCSFMS (mm): 56.0 | DCON (mm): 40 | Max radial offset (mm): 1.70 | Insert: WDXT186012 | Stock: Yes
WDX590D2S40DC (mm): 59.0 | LUX (mm): 126 | LPR (mm): 158 | OAL (mm): 228 | LS (mm): 70 | DCSFMS (mm): 57.0 | DCON (mm): 40 | Max radial offset (mm): 1.60 | Insert: WDXT186012 | Stock: Yes
WDX600D2S40DC (mm): 60.0 | LUX (mm): 128 | LPR (mm): 160 | OAL (mm): 230 | LS (mm): 70 | DCSFMS (mm): 58.0 | DCON (mm): 40 | Max radial offset (mm): 1.50 | Insert: WDXT186012 | Stock: Yes
WDX610D2S40DC (mm): 61.0 | LUX (mm): 130 | LPR (mm): 162 | OAL (mm): 232 | LS (mm): 70 | DCSFMS (mm): 59.0 | DCON (mm): 40 | Max radial offset (mm): 1.40 | Insert: WDXT186012 | Stock: Yes
WDX620D2S40DC (mm): 62.0 | LUX (mm): 132 | LPR (mm): 164 | OAL (mm): 234 | LS (mm): 70 | DCSFMS (mm): 60.0 | DCON (mm): 40 | Max radial offset (mm): 1.30 | Insert: WDXT186012 | Stock: Yes
WDX630D2S40DC (mm): 63.0 | LUX (mm): 134 | LPR (mm): 166 | OAL (mm): 236 | LS (mm): 70 | DCSFMS (mm): 61.0 | DCON (mm): 40 | Max radial offset (mm): 1.20 | Insert: WDXT186012 | Stock: Yes
WDX640D2S40DC (mm): 64.0 | LUX (mm): 136 | LPR (mm): 168 | OAL (mm): 238 | LS (mm): 70 | DCSFMS (mm): 62.0 | DCON (mm): 40 | Max radial offset (mm): 1.00 | Insert: WDXT186012 | Stock: Yes
WDX650D2S40DC (mm): 65.0 | LUX (mm): 138 | LPR (mm): 170 | OAL (mm): 240 | LS (mm): 70 | DCSFMS (mm): 63.0 | DCON (mm): 40 | Max radial offset (mm): 0.90 | Insert: WDXT186012 | Stock: Yes
WDX660D2S40DC (mm): 66.0 | LUX (mm): 140 | LPR (mm): 172 | OAL (mm): 242 | LS (mm): 70 | DCSFMS (mm): 64.0 | DCON (mm): 40 | Max radial offset (mm): 0.70 | Insert: WDXT186012 | Stock: Yes
WDX670D2S40DC (mm): 67.0 | LUX (mm): 142 | LPR (mm): 174 | OAL (mm): 244 | LS (mm): 70 | DCSFMS (mm): 65.0 | DCON (mm): 40 | Max radial offset (mm): 0.60 | Insert: WDXT186012 | Stock: Yes
WDX680D2S40DC (mm): 68.0 | LUX (mm): 144 | LPR (mm): 176 | OAL (mm): 246 | LS (mm): 70 | DCSFMS (mm): 66.0 | DCON (mm): 40 | Max radial offset (mm): 0.50 | Insert: WDXT186012 | Stock: Yes
WDX130D3S20DC (mm): 13.0 | LUX (mm): 42.0 | LPR (mm): 57.0 | OAL (mm): 101.0 | LS (mm): 44 | DCSFMS (mm): 28.0 | DCON (mm): 20 | Max radial offset (mm): 0.35 | Insert: WDXT042004 | Stock: Yes
WDX135D3S20DC (mm): 13.5 | LUX (mm): 43.5 | LPR (mm): 58.5 | OAL (mm): 102.5 | LS (mm): 44 | DCSFMS (mm): 28.0 | DCON (mm): 20 | Max radial offset (mm): 0.30 | Insert: WDXT042004 | Stock: Yes
WDX140D3S20DC (mm): 14.0 | LUX (mm): 45.0 | LPR (mm): 60.0 | OAL (mm): 104.0 | LS (mm): 44 | DCSFMS (mm): 28.0 | DCON (mm): 20 | Max radial offset (mm): 0.25 | Insert: WDXT042004 | Stock: Yes
WDX145D3S20DC (mm): 14.5 | LUX (mm): 46.5 | LPR (mm): 61.5 | OAL (mm): 105.5 | LS (mm): 44 | DCSFMS (mm): 28.0 | DCON (mm): 20 | Max radial offset (mm): 0.20 | Insert: WDXT042004 | Stock: Yes
WDX150D3S20DC (mm): 15.0 | LUX (mm): 48.0 | LPR (mm): 63.0 | OAL (mm): 107.0 | LS (mm): 44 | DCSFMS (mm): 28.0 | DCON (mm): 20 | Max radial offset (mm): 0.15 | Insert: WDXT042004 | Stock: Yes
WDX155D3S20DC (mm): 15.5 | LUX (mm): 49.5 | LPR (mm): 64.5 | OAL (mm): 108.5 | LS (mm): 44 | DCSFMS (mm): 30.0 | DCON (mm): 20 | Max radial offset (mm): 0.40 | Insert: WDXT052504 | Stock: Yes
WDX160D3S20DC (mm): 16.0 | LUX (mm): 51.0 | LPR (mm): 66.0 | OAL (mm): 110.0 | LS (mm): 44 | DCSFMS (mm): 30.0 | DCON (mm): 20 | Insert: WDXT052504 | Stock: Yes
WDX165D3S20DC (mm): 16.5 | LUX (mm): 52.5 | LPR (mm): 67.5 | OAL (mm): 111.5 | LS (mm): 44 | DCSFMS (mm): 30.0 | DCON (mm): 20 | Max radial offset (mm): 0.35 | Insert: WDXT052504 | Stock: Yes
WDX170D3S20DC (mm): 17.0 | LUX (mm): 54.0 | LPR (mm): 69.0 | OAL (mm): 113.0 | LS (mm): 44 | DCSFMS (mm): 30.0 | DCON (mm): 20 | Max radial offset (mm): 0.30 | Insert: WDXT052504 | Stock: Yes
WDX175D3S25DC (mm): 17.5 | LUX (mm): 55.5 | LPR (mm): 70.5 | OAL (mm): 126.5 | LS (mm): 56 | DCSFMS (mm): 32.0 | DCON (mm): 25 | Max radial offset (mm): 0.25 | Insert: WDXT052504 | Stock: Yes
WDX180D3S25DC (mm): 18.0 | LUX (mm): 57.0 | LPR (mm): 72.0 | OAL (mm): 128.0 | LS (mm): 56 | DCSFMS (mm): 32.0 | DCON (mm): 25 | Max radial offset (mm): 0.20 | Insert: WDXT052504 | Stock: Yes
WDX185D3S25DC (mm): 18.5 | LUX (mm): 58.5 | LPR (mm): 73.5 | OAL (mm): 129.5 | LS (mm): 56 | DCSFMS (mm): 33.0 | DCON (mm): 25 | Max radial offset (mm): 0.50 | Insert: WDXT063006 | Stock: Yes
WDX190D3S25DC (mm): 19.0 | LUX (mm): 60.0 | LPR (mm): 75.0 | OAL (mm): 131.0 | LS (mm): 56 | DCSFMS (mm): 33.0 | DCON (mm): 25 | Max radial offset (mm): 0.45 | Insert: WDXT063006 | Stock: Yes
WDX195D3S25DC (mm): 19.5 | LUX (mm): 61.5 | LPR (mm): 76.5 | OAL (mm): 132.5 | LS (mm): 56 | DCSFMS (mm): 33.0 | DCON (mm): 25 | Max radial offset (mm): 0.40 | Insert: WDXT063006 | Stock: Yes
WDX200D3S25DC (mm): 20.0 | LUX (mm): 63.0 | LPR (mm): 78.0 | OAL (mm): 134.0 | LS (mm): 56 | DCSFMS (mm): 33.0 | DCON (mm): 25 | Max radial offset (mm): 0.30 | Insert: WDXT063006 | Stock: Yes
WDX205D3S25DC (mm): 20.5 | LUX (mm): 64.5 | LPR (mm): 79.5 | OAL (mm): 135.5 | LS (mm): 56 | DCSFMS (mm): 33.0 | DCON (mm): 25 | Insert: WDXT063006 | Stock: Yes
WDX210D3S25DC (mm): 21.0 | LUX (mm): 66.0 | LPR (mm): 81.0 | OAL (mm): 137.0 | LS (mm): 56 | DCSFMS (mm): 33.0 | DCON (mm): 25 | Max radial offset (mm): 0.20 | Insert: WDXT063006 | Stock: Yes
WDX215D3S25DC (mm): 21.5 | LUX (mm): 67.5 | LPR (mm): 82.5 | OAL (mm): 138.5 | LS (mm): 56 | DCSFMS (mm): 33.0 | DCON (mm): 25 | Max radial offset (mm): 0.15 | Insert: WDXT063006 | Stock: Yes
WDX220D3S25DC (mm): 22.0 | LUX (mm): 69.0 | LPR (mm): 84.0 | OAL (mm): 140.0 | LS (mm): 56 | DCSFMS (mm): 33.0 | DCON (mm): 25 | Max radial offset (mm): 0.10 | Insert: WDXT063006 | Stock: Yes
WDX225D3S25DC (mm): 22.5 | LUX (mm): 70.5 | LPR (mm): 85.5 | OAL (mm): 141.5 | LS (mm): 56 | DCSFMS (mm): 33.0 | DCON (mm): 25 | Max radial offset (mm): 0.05 | Insert: WDXT063006 | Stock: Yes
WDX230D3S25DC (mm): 23.0 | LUX (mm): 72.0 | LPR (mm): 90.0 | OAL (mm): 146.0 | LS (mm): 56 | DCSFMS (mm): 37.0 | DCON (mm): 25 | Max radial offset (mm): 0.70 | Insert: WDXT073506 | Stock: Yes
WDX235D3S25DC (mm): 23.5 | LUX (mm): 73.5 | LPR (mm): 91.5 | OAL (mm): 147.5 | LS (mm): 56 | DCSFMS (mm): 37.0 | DCON (mm): 25 | Insert: WDXT073506 | Stock: Yes
WDX240D3S25DC (mm): 24.0 | LUX (mm): 75.0 | LPR (mm): 93.0 | OAL (mm): 149.0 | LS (mm): 56 | DCSFMS (mm): 37.0 | DCON (mm): 25 | Max radial offset (mm): 0.60 | Insert: WDXT073506 | Stock: Yes
WDX245D3S25DC (mm): 24.5 | LUX (mm): 76.5 | LPR (mm): 94.5 | OAL (mm): 150.5 | LS (mm): 56 | DCSFMS (mm): 37.0 | DCON (mm): 25 | Max radial offset (mm): 0.50 | Insert: WDXT073506 | Stock: Yes
WDX250D3S25DC (mm): 25.0 | LUX (mm): 78.0 | LPR (mm): 96.0 | OAL (mm): 152.0 | LS (mm): 56 | DCSFMS (mm): 37.0 | DCON (mm): 25 | Insert: WDXT073506 | Stock: Yes
WDX255D3S32DC (mm): 25.5 | LUX (mm): 79.5 | LPR (mm): 99.5 | OAL (mm): 159.5 | LS (mm): 60 | DCSFMS (mm): 41.0 | DCON (mm): 32 | Max radial offset (mm): 0.45 | Insert: WDXT073506 | Stock: Yes
WDX260D3S32DC (mm): 26.0 | LUX (mm): 81.0 | LPR (mm): 101.0 | OAL (mm): 161.0 | LS (mm): 60 | DCSFMS (mm): 41.0 | DCON (mm): 32 | Max radial offset (mm): 0.40 | Insert: WDXT073506 | Stock: Yes
WDX265D3S32DC (mm): 26.5 | LUX (mm): 82.5 | LPR (mm): 102.5 | OAL (mm): 162.5 | LS (mm): 60 | DCSFMS (mm): 41.0 | DCON (mm): 32 | Max radial offset (mm): 0.35 | Insert: WDXT073506 | Stock: Yes
WDX270D3S32DC (mm): 27.0 | LUX (mm): 84.0 | LPR (mm): 104.0 | OAL (mm): 164.0 | LS (mm): 60 | DCSFMS (mm): 41.0 | DCON (mm): 32 | Max radial offset (mm): 0.25 | Insert: WDXT073506 | Stock: Yes
WDX275D3S32DC (mm): 27.5 | LUX (mm): 85.5 | LPR (mm): 105.5 | OAL (mm): 165.5 | LS (mm): 60 | DCSFMS (mm): 41.0 | DCON (mm): 32 | Max radial offset (mm): 0.20 | Insert: WDXT073506 | Stock: Yes
WDX280D3S32DC (mm): 28.0 | LUX (mm): 87.0 | LPR (mm): 107.0 | OAL (mm): 167.0 | LS (mm): 60 | DCSFMS (mm): 41.0 | DCON (mm): 32 | Max radial offset (mm): 0.15 | Insert: WDXT073506 | Stock: Yes
WDX285D3S32DC (mm): 28.5 | LUX (mm): 88.5 | LPR (mm): 108.5 | OAL (mm): 168.5 | LS (mm): 60 | DCSFMS (mm): 41.0 | DCON (mm): 32 | Max radial offset (mm): 0.10 | Insert: WDXT073506 | Stock: Yes
WDX290D3S32DC (mm): 29.0 | LUX (mm): 91.0 | LPR (mm): 112.0 | OAL (mm): 172.0 | LS (mm): 60 | DCSFMS (mm): 50.0 | DCON (mm): 32 | Max radial offset (mm): 1.00 | Insert: WDXT094008 | Stock: Yes
WDX295D3S32DC (mm): 29.5 | LUX (mm): 92.5 | LPR (mm): 113.5 | OAL (mm): 173.5 | LS (mm): 60 | DCSFMS (mm): 50.0 | DCON (mm): 32 | Max radial offset (mm): 0.95 | Insert: WDXT094008 | Stock: Yes
WDX300D3S32DC (mm): 30.0 | LUX (mm): 94.0 | LPR (mm): 118.0 | OAL (mm): 178.0 | LS (mm): 60 | DCSFMS (mm): 54.0 | DCON (mm): 32 | Max radial offset (mm): 0.90 | Insert: WDXT094008 | Stock: Yes
WDX310D3S32DC (mm): 31.0 | LUX (mm): 97.0 | LPR (mm): 121.0 | OAL (mm): 181.0 | LS (mm): 60 | DCSFMS (mm): 54.0 | DCON (mm): 32 | Max radial offset (mm): 0.80 | Insert: WDXT094008 | Stock: Yes
WDX320D3S32DC (mm): 32.0 | LUX (mm): 100.0 | LPR (mm): 124.0 | OAL (mm): 184.0 | LS (mm): 60 | DCSFMS (mm): 54.0 | DCON (mm): 32 | Max radial offset (mm): 0.70 | Insert: WDXT094008 | Stock: Yes
WDX300D3S40DC (mm): 30.0 | LUX (mm): 94.0 | LPR (mm): 118.0 | OAL (mm): 188.0 | LS (mm): 70 | DCSFMS (mm): 54.0 | DCON (mm): 40 | Max radial offset (mm): 0.90 | Insert: WDXT094008 | Stock: Yes
WDX310D3S40DC (mm): 31.0 | LUX (mm): 97.0 | LPR (mm): 121.0 | OAL (mm): 191.0 | LS (mm): 70 | DCSFMS (mm): 54.0 | DCON (mm): 40 | Max radial offset (mm): 0.80 | Insert: WDXT094008 | Stock: Yes
WDX320D3S40DC (mm): 32.0 | LUX (mm): 100.0 | LPR (mm): 124.0 | OAL (mm): 194.0 | LS (mm): 70 | DCSFMS (mm): 54.0 | DCON (mm): 40 | Max radial offset (mm): 0.70 | Insert: WDXT094008 | Stock: Yes
WDX330D3S40DC (mm): 33.0 | LUX (mm): 103.0 | LPR (mm): 127.0 | OAL (mm): 197.0 | LS (mm): 70 | DCSFMS (mm): 54.0 | DCON (mm): 40 | Max radial offset (mm): 0.55 | Insert: WDXT094008 | Stock: Yes
WDX340D3S40DC (mm): 34.0 | LUX (mm): 106.0 | LPR (mm): 130.0 | OAL (mm): 200.0 | LS (mm): 70 | DCSFMS (mm): 54.0 | DCON (mm): 40 | Max radial offset (mm): 0.45 | Insert: WDXT094008 | Stock: Yes
WDX350D3S40DC (mm): 35.0 | LUX (mm): 109.0 | LPR (mm): 133.0 | OAL (mm): 203.0 | LS (mm): 70 | DCSFMS (mm): 54.0 | DCON (mm): 40 | Max radial offset (mm): 0.35 | Insert: WDXT094008 | Stock: Yes
WDX360D3S40DC (mm): 36.0 | LUX (mm): 112.0 | LPR (mm): 136.0 | OAL (mm): 206.0 | LS (mm): 70 | DCSFMS (mm): 54.0 | DCON (mm): 40 | Max radial offset (mm): 0.20 | Insert: WDXT094008 | Stock: Yes
WDX370D3S40DC (mm): 37.0 | LUX (mm): 116.0 | LPR (mm): 146.0 | OAL (mm): 216.0 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 | Max radial offset (mm): 1.00 | Insert: WDXT125012 | Stock: Yes
WDX380D3S40DC (mm): 38.0 | LUX (mm): 119.0 | LPR (mm): 149.0 | OAL (mm): 219.0 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 | Insert: WDXT125012 | Stock: Yes
WDX390D3S40DC (mm): 39.0 | LUX (mm): 122.0 | LPR (mm): 152.0 | OAL (mm): 222.0 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 | Max radial offset (mm): 0.90 | Insert: WDXT125012 | Stock: Yes
WDX400D3S40DC (mm): 40.0 | LUX (mm): 125.0 | LPR (mm): 155.0 | OAL (mm): 225.0 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 | Max radial offset (mm): 0.80 | Insert: WDXT125012 | Stock: Yes
WDX410D3S40DC (mm): 41.0 | LUX (mm): 128.0 | LPR (mm): 158.0 | OAL (mm): 228.0 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 | Max radial offset (mm): 0.70 | Insert: WDXT125012 | Stock: Yes
WDX420D3S40DC (mm): 42.0 | LUX (mm): 131.0 | LPR (mm): 161.0 | OAL (mm): 231.0 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 | Max radial offset (mm): 0.60 | Insert: WDXT125012 | Stock: Yes
WDX430D3S40DC (mm): 43.0 | LUX (mm): 134.0 | LPR (mm): 164.0 | OAL (mm): 234.0 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 | Max radial offset (mm): 0.50 | Insert: WDXT125012 | Stock: Yes
WDX440D3S40DC (mm): 44.0 | LUX (mm): 137.0 | LPR (mm): 167.0 | OAL (mm): 237.0 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 | Insert: WDXT125012 | Stock: Yes
WDX450D3S40DC (mm): 45.0 | LUX (mm): 140.0 | LPR (mm): 170.0 | OAL (mm): 240.0 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 | Max radial offset (mm): 0.40 | Insert: WDXT125012 | Stock: Yes
WDX460D3S40DC (mm): 46.0 | LUX (mm): 143.0 | LPR (mm): 173.0 | OAL (mm): 243.0 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 1 | Insert: .50.40.30.20.10 WDXT.00 156012.90.80.60.50 | Stock: Yes
WDX470D3S40DC (mm): 47.0 | LUX (mm): 146.0 | LPR (mm): 176.0 | OAL (mm): 246.0 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 1 | Insert: .50.40.30.20.10 WDXT.00 156012.90.80.60.50 | Stock: Yes
WDX480D3S40DC (mm): 48.0 | LUX (mm): 149.0 | LPR (mm): 179.0 | OAL (mm): 249.0 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 1 | Insert: .50.40.30.20.10 WDXT.00 156012.90.80.60.50 | Stock: Yes
WDX490D3S40DC (mm): 49.0 | LUX (mm): 152.0 | LPR (mm): 182.0 | OAL (mm): 252.0 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 1 | Insert: .50.40.30.20.10 WDXT.00 156012.90.80.60.50 | Stock: Yes
WDX500D3S40DC (mm): 50.0 | LUX (mm): 155.0 | LPR (mm): 185.0 | OAL (mm): 255.0 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 1 | Insert: .50.40.30.20.10 WDXT.00 156012.90.80.60.50 | Stock: Yes
WDX510D3S40DC (mm): 51.0 | LUX (mm): 158.0 | LPR (mm): 188.0 | OAL (mm): 258.0 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 1 | Insert: .50.40.30.20.10 WDXT.00 156012.90.80.60.50 | Stock: Yes
WDX520D3S40DC (mm): 52.0 | LUX (mm): 161.0 | LPR (mm): 191.0 | OAL (mm): 261.0 | LS (mm): 70 | DCSFMS (mm): 50.5 | DCON (mm): 40 0 | Insert: .50.40.30.20.10 WDXT.00 156012.90.80.60.50 | Stock: Yes
WDX530D3S40DC (mm): 53.0 | LUX (mm): 164.0 | LPR (mm): 194.0 | OAL (mm): 264.0 | LS (mm): 70 | DCSFMS (mm): 51.5 | DCON (mm): 40 0 | Insert: .50.40.30.20.10 WDXT.00 156012.90.80.60.50 | Stock: Yes
WDX540D3S40DC (mm): 54.0 | LUX (mm): 167.0 | LPR (mm): 197.0 | OAL (mm): 267.0 | LS (mm): 70 | DCSFMS (mm): 52.5 | DCON (mm): 40 0 | Insert: .50.40.30.20.10 WDXT.00 156012.90.80.60.50 | Stock: Yes
WDX550D3S40DC (mm): 55.0 | LUX (mm): 170.0 | LPR (mm): 200.0 | OAL (mm): 270.0 | LS (mm): 70 | DCSFMS (mm): 53.5 | DCON (mm): 40 0 | Insert: .50.40.30.20.10 WDXT.00 156012.90.80.60.50 | Stock: Yes
WDX560D3S40DC (mm): 56.0 | LUX (mm): 176.0 | LPR (mm): 208.0 | OAL (mm): 278.0 | LS (mm): 70 | DCSFMS (mm): 54.0 | DCON (mm): 40 2 | Insert: .00.80.70.60.50.40WDXT.30186012.20.00.90.70.60.50 | Stock: Yes
WDX570D3S40DC (mm): 57.0 | LUX (mm): 179.0 | LPR (mm): 211.0 | OAL (mm): 281.0 | LS (mm): 70 | DCSFMS (mm): 55.0 | DCON (mm): 40 1 | Insert: .00.80.70.60.50.40WDXT.30186012.20.00.90.70.60.50 | Stock: Yes
WDX580D3S40DC (mm): 58.0 | LUX (mm): 182.0 | LPR (mm): 214.0 | OAL (mm): 284.0 | LS (mm): 70 | DCSFMS (mm): 56.0 | DCON (mm): 40 1 | Insert: .00.80.70.60.50.40WDXT.30186012.20.00.90.70.60.50 | Stock: Yes
WDX590D3S40DC (mm): 59.0 | LUX (mm): 185.0 | LPR (mm): 217.0 | OAL (mm): 287.0 | LS (mm): 70 | DCSFMS (mm): 57.0 | DCON (mm): 40 1 | Insert: .00.80.70.60.50.40WDXT.30186012.20.00.90.70.60.50 | Stock: Yes
WDX600D3S40DC (mm): 60.0 | LUX (mm): 188.0 | LPR (mm): 220.0 | OAL (mm): 290.0 | LS (mm): 70 | DCSFMS (mm): 58.0 | DCON (mm): 40 1 | Insert: .00.80.70.60.50.40WDXT.30186012.20.00.90.70.60.50 | Stock: Yes
WDX610D3S40DC (mm): 61.0 | LUX (mm): 191.0 | LPR (mm): 223.0 | OAL (mm): 293.0 | LS (mm): 70 | DCSFMS (mm): 59.0 | DCON (mm): 40 1 | Insert: .00.80.70.60.50.40WDXT.30186012.20.00.90.70.60.50 | Stock: Yes
WDX620D3S40DC (mm): 62.0 | LUX (mm): 194.0 | LPR (mm): 226.0 | OAL (mm): 296.0 | LS (mm): 70 | DCSFMS (mm): 60.0 | DCON (mm): 40 1 | Insert: .00.80.70.60.50.40WDXT.30186012.20.00.90.70.60.50 | Stock: Yes
WDX630D3S40DC (mm): 63.0 | LUX (mm): 197.0 | LPR (mm): 229.0 | OAL (mm): 299.0 | LS (mm): 70 | DCSFMS (mm): 61.0 | DCON (mm): 40 1 | Insert: .00.80.70.60.50.40WDXT.30186012.20.00.90.70.60.50 | Stock: Yes
WDX640D3S40DC (mm): 64.0 | LUX (mm): 200.0 | LPR (mm): 232.0 | OAL (mm): 302.0 | LS (mm): 70 | DCSFMS (mm): 62.0 | DCON (mm): 40 1 | Insert: .00.80.70.60.50.40WDXT.30186012.20.00.90.70.60.50 | Stock: Yes
WDX650D3S40DC (mm): 65.0 | LUX (mm): 203.0 | LPR (mm): 235.0 | OAL (mm): 305.0 | LS (mm): 70 | DCSFMS (mm): 63.0 | DCON (mm): 40 0 | Insert: .00.80.70.60.50.40WDXT.30186012.20.00.90.70.60.50 | Stock: Yes
WDX660D3S40DC (mm): 66.0 | LUX (mm): 206.0 | LPR (mm): 238.0 | OAL (mm): 308.0 | LS (mm): 70 | DCSFMS (mm): 64.0 | DCON (mm): 40 0 | Insert: .00.80.70.60.50.40WDXT.30186012.20.00.90.70.60.50 | Stock: Yes
WDX670D3S40DC (mm): 67.0 | LUX (mm): 209.0 | LPR (mm): 241.0 | OAL (mm): 311.0 | LS (mm): 70 | DCSFMS (mm): 65.0 | DCON (mm): 40 0 | Insert: .00.80.70.60.50.40WDXT.30186012.20.00.90.70.60.50 | Stock: Yes
WDX680D3S40DC (mm): 68.0 | LUX (mm): 212.0 | LPR (mm): 244.0 | OAL (mm): 314.0 | LS (mm): 70 | DCSFMS (mm): 66.0 | DCON (mm): 40 0 | Insert: .00.80.70.60.50.40WDXT.30186012.20.00.90.70.60.50 | Stock: Yes
WDX130D4S20DC (mm): 13.0 | LUX (mm): 55 | LPR (mm): 70 | OAL (mm): 114 | LS (mm): 44 | DCSFMS (mm): 28.0 | DCON (mm): 20 | Max radial offset (mm): 0.35 | Insert: WDXT042004 | Stock: Yes
WDX135D4S20DC (mm): 13.5 | LUX (mm): 57 | LPR (mm): 72 | OAL (mm): 116 | LS (mm): 44 | DCSFMS (mm): 28.0 | DCON (mm): 20 | Max radial offset (mm): 0.30 | Insert: WDXT042004 | Stock: Yes
WDX140D4S20DC (mm): 14.0 | LUX (mm): 59 | LPR (mm): 74 | OAL (mm): 118 | LS (mm): 44 | DCSFMS (mm): 28.0 | DCON (mm): 20 | Max radial offset (mm): 0.25 | Insert: WDXT042004 | Stock: Yes
WDX145D4S20DC (mm): 14.5 | LUX (mm): 61 | LPR (mm): 76 | OAL (mm): 120 | LS (mm): 44 | DCSFMS (mm): 28.0 | DCON (mm): 20 | Max radial offset (mm): 0.20 | Insert: WDXT042004 | Stock: Yes
WDX150D4S20DC (mm): 15.0 | LUX (mm): 63 | LPR (mm): 78 | OAL (mm): 122 | LS (mm): 44 | DCSFMS (mm): 28.0 | DCON (mm): 20 | Max radial offset (mm): 0.15 | Insert: WDXT042004 | Stock: Yes
WDX155D4S20DC (mm): 15.5 | LUX (mm): 65 | LPR (mm): 80 | OAL (mm): 124 | LS (mm): 44 | DCSFMS (mm): 30.0 | DCON (mm): 20 | Max radial offset (mm): 0.40 | Insert: WDXT052504 | Stock: Yes
WDX160D4S20DC (mm): 16.0 | LUX (mm): 67 | LPR (mm): 82 | OAL (mm): 126 | LS (mm): 44 | DCSFMS (mm): 30.0 | DCON (mm): 20 | Insert: WDXT052504 | Stock: Yes
WDX165D4S20DC (mm): 16.5 | LUX (mm): 69 | LPR (mm): 84 | OAL (mm): 128 | LS (mm): 44 | DCSFMS (mm): 30.0 | DCON (mm): 20 | Max radial offset (mm): 0.35 | Insert: WDXT052504 | Stock: Yes
WDX170D4S20DC (mm): 17.0 | LUX (mm): 71 | LPR (mm): 86 | OAL (mm): 130 | LS (mm): 44 | DCSFMS (mm): 30.0 | DCON (mm): 20 | Max radial offset (mm): 0.30 | Insert: WDXT052504 | Stock: Yes
WDX175D4S25DC (mm): 17.5 | LUX (mm): 73 | LPR (mm): 88 | OAL (mm): 144 | LS (mm): 56 | DCSFMS (mm): 32.0 | DCON (mm): 25 | Max radial offset (mm): 0.25 | Insert: WDXT052504 | Stock: Yes
WDX180D4S25DC (mm): 18.0 | LUX (mm): 75 | LPR (mm): 90 | OAL (mm): 146 | LS (mm): 56 | DCSFMS (mm): 32.0 | DCON (mm): 25 | Max radial offset (mm): 0.20 | Insert: WDXT052504 | Stock: Yes
WDX185D4S25DC (mm): 18.5 | LUX (mm): 77 | LPR (mm): 92 | OAL (mm): 148 | LS (mm): 56 | DCSFMS (mm): 33.0 | DCON (mm): 25 | Max radial offset (mm): 0.50 | Insert: WDXT063006 | Stock: Yes
WDX190D4S25DC (mm): 19.0 | LUX (mm): 79 | LPR (mm): 94 | OAL (mm): 150 | LS (mm): 56 | DCSFMS (mm): 33.0 | DCON (mm): 25 | Max radial offset (mm): 0.45 | Insert: WDXT063006 | Stock: Yes
WDX195D4S25DC (mm): 19.5 | LUX (mm): 81 | LPR (mm): 96 | OAL (mm): 152 | LS (mm): 56 | DCSFMS (mm): 33.0 | DCON (mm): 25 | Max radial offset (mm): 0.40 | Insert: WDXT063006 | Stock: Yes
WDX200D4S25DC (mm): 20.0 | LUX (mm): 83 | LPR (mm): 98 | OAL (mm): 154 | LS (mm): 56 | DCSFMS (mm): 33.0 | DCON (mm): 25 | Max radial offset (mm): 0.30 | Insert: WDXT063006 | Stock: Yes
WDX205D4S25DC (mm): 20.5 | LUX (mm): 85 | LPR (mm): 100 | OAL (mm): 156 | LS (mm): 56 | DCSFMS (mm): 33.0 | DCON (mm): 25 | Insert: WDXT063006 | Stock: Yes
WDX210D4S25DC (mm): 21.0 | LUX (mm): 87 | LPR (mm): 102 | OAL (mm): 158 | LS (mm): 56 | DCSFMS (mm): 33.0 | DCON (mm): 25 | Max radial offset (mm): 0.20 | Insert: WDXT063006 | Stock: Yes
WDX215D4S25DC (mm): 21.5 | LUX (mm): 89 | LPR (mm): 104 | OAL (mm): 160 | LS (mm): 56 | DCSFMS (mm): 33.0 | DCON (mm): 25 | Max radial offset (mm): 0.15 | Insert: WDXT063006 | Stock: Yes
WDX220D4S25DC (mm): 22.0 | LUX (mm): 91 | LPR (mm): 106 | OAL (mm): 162 | LS (mm): 56 | DCSFMS (mm): 33.0 | DCON (mm): 25 | Max radial offset (mm): 0.10 | Insert: WDXT063006 | Stock: Yes
WDX225D4S25DC (mm): 22.5 | LUX (mm): 93 | LPR (mm): 108 | OAL (mm): 164 | LS (mm): 56 | DCSFMS (mm): 33.0 | DCON (mm): 25 | Max radial offset (mm): 0.05 | Insert: WDXT063006 | Stock: Yes
WDX230D4S25DC (mm): 23.0 | LUX (mm): 95 | LPR (mm): 113 | OAL (mm): 169 | LS (mm): 56 | DCSFMS (mm): 37.0 | DCON (mm): 25 | Max radial offset (mm): 0.70 | Insert: WDXT073506 | Stock: Yes
WDX235D4S25DC (mm): 23.5 | LUX (mm): 97 | LPR (mm): 115 | OAL (mm): 171 | LS (mm): 56 | DCSFMS (mm): 37.0 | DCON (mm): 25 | Insert: WDXT073506 | Stock: Yes
WDX240D4S25DC (mm): 24.0 | LUX (mm): 99 | LPR (mm): 117 | OAL (mm): 173 | LS (mm): 56 | DCSFMS (mm): 37.0 | DCON (mm): 25 | Max radial offset (mm): 0.60 | Insert: WDXT073506 | Stock: Yes
WDX245D4S25DC (mm): 24.5 | LUX (mm): 101 | LPR (mm): 119 | OAL (mm): 175 | LS (mm): 56 | DCSFMS (mm): 37.0 | DCON (mm): 25 | Max radial offset (mm): 0.50 | Insert: WDXT073506 | Stock: Yes
WDX250D4S25DC (mm): 25.0 | LUX (mm): 103 | LPR (mm): 121 | OAL (mm): 177 | LS (mm): 56 | DCSFMS (mm): 37.0 | DCON (mm): 25 | Insert: WDXT073506 | Stock: Yes
WDX255D4S32DC (mm): 25.5 | LUX (mm): 105 | LPR (mm): 125 | OAL (mm): 185 | LS (mm): 60 | DCSFMS (mm): 41.0 | DCON (mm): 32 | Max radial offset (mm): 0.45 | Insert: WDXT073506 | Stock: Yes
WDX260D4S32DC (mm): 26.0 | LUX (mm): 107 | LPR (mm): 127 | OAL (mm): 187 | LS (mm): 60 | DCSFMS (mm): 41.0 | DCON (mm): 32 | Max radial offset (mm): 0.40 | Insert: WDXT073506 | Stock: Yes
WDX265D4S32DC (mm): 26.5 | LUX (mm): 109 | LPR (mm): 129 | OAL (mm): 189 | LS (mm): 60 | DCSFMS (mm): 41.0 | DCON (mm): 32 | Max radial offset (mm): 0.35 | Insert: WDXT073506 | Stock: Yes
WDX270D4S32DC (mm): 27.0 | LUX (mm): 111 | LPR (mm): 131 | OAL (mm): 191 | LS (mm): 60 | DCSFMS (mm): 41.0 | DCON (mm): 32 | Max radial offset (mm): 0.25 | Insert: WDXT073506 | Stock: Yes
WDX275D4S32DC (mm): 27.5 | LUX (mm): 113 | LPR (mm): 133 | OAL (mm): 193 | LS (mm): 60 | DCSFMS (mm): 41.0 | DCON (mm): 32 | Max radial offset (mm): 0.20 | Insert: WDXT073506 | Stock: Yes
WDX280D4S32DC (mm): 28.0 | LUX (mm): 115 | LPR (mm): 135 | OAL (mm): 195 | LS (mm): 60 | DCSFMS (mm): 41.0 | DCON (mm): 32 | Max radial offset (mm): 0.15 | Insert: WDXT073506 | Stock: Yes
WDX285D4S32DC (mm): 28.5 | LUX (mm): 117 | LPR (mm): 137 | OAL (mm): 197 | LS (mm): 60 | DCSFMS (mm): 41.0 | DCON (mm): 32 | Max radial offset (mm): 0.10 | Insert: WDXT073506 | Stock: Yes
WDX290D4S32DC (mm): 29.0 | LUX (mm): 120 | LPR (mm): 141 | OAL (mm): 201 | LS (mm): 60 | DCSFMS (mm): 50.0 | DCON (mm): 32 | Max radial offset (mm): 1.00 | Insert: WDXT094008 | Stock: Yes
WDX295D4S32DC (mm): 29.5 | LUX (mm): 122 | LPR (mm): 143 | OAL (mm): 203 | LS (mm): 60 | DCSFMS (mm): 50.0 | DCON (mm): 32 | Max radial offset (mm): 0.95 | Insert: WDXT094008 | Stock: Yes
WDX300D4S32DC (mm): 30.0 | LUX (mm): 124 | LPR (mm): 148 | OAL (mm): 208 | LS (mm): 60 | DCSFMS (mm): 54.0 | DCON (mm): 32 | Max radial offset (mm): 0.90 | Insert: WDXT094008 | Stock: Yes
WDX310D4S32DC (mm): 31.0 | LUX (mm): 128 | LPR (mm): 152 | OAL (mm): 212 | LS (mm): 60 | DCSFMS (mm): 54.0 | DCON (mm): 32 | Max radial offset (mm): 0.80 | Insert: WDXT094008 | Stock: Yes
WDX320D4S32DC (mm): 32.0 | LUX (mm): 132 | LPR (mm): 156 | OAL (mm): 216 | LS (mm): 60 | DCSFMS (mm): 54.0 | DCON (mm): 32 | Max radial offset (mm): 0.70 | Insert: WDXT094008 | Stock: Yes
WDX300D4S40DC (mm): 30.0 | LUX (mm): 124 | LPR (mm): 148 | OAL (mm): 218 | LS (mm): 70 | DCSFMS (mm): 54.0 | DCON (mm): 40 | Max radial offset (mm): 0.90 | Insert: WDXT094008 | Stock: Yes
WDX310D4S40DC (mm): 31.0 | LUX (mm): 128 | LPR (mm): 152 | OAL (mm): 222 | LS (mm): 70 | DCSFMS (mm): 54.0 | DCON (mm): 40 | Max radial offset (mm): 0.80 | Insert: WDXT094008 | Stock: Yes
WDX320D4S40DC (mm): 32.0 | LUX (mm): 132 | LPR (mm): 156 | OAL (mm): 226 | LS (mm): 70 | DCSFMS (mm): 54.0 | DCON (mm): 40 | Max radial offset (mm): 0.70 | Insert: WDXT094008 | Stock: Yes
WDX330D4S40DC (mm): 33.0 | LUX (mm): 136 | LPR (mm): 160 | OAL (mm): 230 | LS (mm): 70 | DCSFMS (mm): 54.0 | DCON (mm): 40 | Max radial offset (mm): 0.55 | Insert: WDXT094008 | Stock: Yes
WDX340D4S40DC (mm): 34.0 | LUX (mm): 140 | LPR (mm): 164 | OAL (mm): 234 | LS (mm): 70 | DCSFMS (mm): 54.0 | DCON (mm): 40 | Max radial offset (mm): 0.45 | Insert: WDXT094008 | Stock: Yes
WDX350D4S40DC (mm): 35.0 | LUX (mm): 144 | LPR (mm): 168 | OAL (mm): 238 | LS (mm): 70 | DCSFMS (mm): 54.0 | DCON (mm): 40 | Max radial offset (mm): 0.35 | Insert: WDXT094008 | Stock: Yes
WDX360D4S40DC (mm): 36.0 | LUX (mm): 148 | LPR (mm): 172 | OAL (mm): 242 | LS (mm): 70 | DCSFMS (mm): 54.0 | DCON (mm): 40 | Max radial offset (mm): 0.20 | Insert: WDXT094008 | Stock: Yes
WDX370D4S40DC (mm): 37.0 | LUX (mm): 153 | LPR (mm): 183 | OAL (mm): 253 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 | Max radial offset (mm): 1.00 | Insert: WDXT125012 | Stock: Yes
WDX380D4S40DC (mm): 38.0 | LUX (mm): 157 | LPR (mm): 187 | OAL (mm): 257 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 | Insert: WDXT125012 | Stock: Yes
WDX390D4S40DC (mm): 39.0 | LUX (mm): 161 | LPR (mm): 191 | OAL (mm): 261 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 | Max radial offset (mm): 0.90 | Insert: WDXT125012 | Stock: Yes
WDX400D4S40DC (mm): 40.0 | LUX (mm): 165 | LPR (mm): 195 | OAL (mm): 265 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 | Max radial offset (mm): 0.80 | Insert: WDXT125012 | Stock: Yes
WDX410D4S40DC (mm): 41.0 | LUX (mm): 169 | LPR (mm): 199 | OAL (mm): 269 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 | Max radial offset (mm): 0.70 | Insert: WDXT125012 | Stock: Yes
WDX420D4S40DC (mm): 42.0 | LUX (mm): 173 | LPR (mm): 203 | OAL (mm): 273 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 | Max radial offset (mm): 0.60 | Insert: WDXT125012 | Stock: Yes
WDX430D4S40DC (mm): 43.0 | LUX (mm): 177 | LPR (mm): 207 | OAL (mm): 277 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 | Max radial offset (mm): 0.50 | Insert: WDXT125012 | Stock: Yes
WDX440D4S40DC (mm): 44.0 | LUX (mm): 181 | LPR (mm): 211 | OAL (mm): 281 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 | Insert: WDXT125012 | Stock: Yes
WDX450D4S40DC (mm): 45.0 | LUX (mm): 185 | LPR (mm): 215 | OAL (mm): 285 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 | Max radial offset (mm): 0.40 | Insert: WDXT125012 | Stock: Yes
WDX460D4S40DC (mm): 46.0 | LUX (mm): 189 | LPR (mm): 219 | OAL (mm): 289 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 | Max radial offset (mm): 1.50 | Insert: WDXT156012 | Stock: Yes
WDX470D4S40DC (mm): 47.0 | LUX (mm): 193 | LPR (mm): 223 | OAL (mm): 293 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 | Max radial offset (mm): 1.40 | Insert: WDXT156012 | Stock: Yes
WDX480D4S40DC (mm): 48.0 | LUX (mm): 197 | LPR (mm): 227 | OAL (mm): 297 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 | Max radial offset (mm): 1.30 | Insert: WDXT156012 | Stock: Yes
WDX490D4S40DC (mm): 49.0 | LUX (mm): 201 | LPR (mm): 231 | OAL (mm): 301 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 | Max radial offset (mm): 1.20 | Insert: WDXT156012 | Stock: Yes
WDX500D4S40DC (mm): 50.0 | LUX (mm): 205 | LPR (mm): 235 | OAL (mm): 305 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 | Max radial offset (mm): 1.10 | Insert: WDXT156012 | Stock: Yes
WDX510D4S40DC (mm): 51.0 | LUX (mm): 209 | LPR (mm): 239 | OAL (mm): 309 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40 | Max radial offset (mm): 1.00 | Insert: WDXT156012 | Stock: Yes
WDX520D4S40DC (mm): 52.0 | LUX (mm): 213 | LPR (mm): 243 | OAL (mm): 313 | LS (mm): 70 | DCSFMS (mm): 50.5 | DCON (mm): 40 | Max radial offset (mm): 0.90 | Insert: WDXT156012 | Stock: Yes
WDX530D4S40DC (mm): 53.0 | LUX (mm): 217 | LPR (mm): 247 | OAL (mm): 317 | LS (mm): 70 | DCSFMS (mm): 51.5 | DCON (mm): 40 | Max radial offset (mm): 0.80 | Insert: WDXT156012 | Stock: Yes
WDX540D4S40DC (mm): 54.0 | LUX (mm): 221 | LPR (mm): 251 | OAL (mm): 321 | LS (mm): 70 | DCSFMS (mm): 52.5 | DCON (mm): 40 | Max radial offset (mm): 0.60 | Insert: WDXT156012 | Stock: Yes
WDX550D4S40DC (mm): 55.0 | LUX (mm): 225 | LPR (mm): 255 | OAL (mm): 325 | LS (mm): 70 | DCSFMS (mm): 53.5 | DCON (mm): 40 | Max radial offset (mm): 0.50 | Insert: WDXT156012 | Stock: Yes
WDX560D4S40DC (mm): 56.0 | LUX (mm): 232 | LPR (mm): 264 | OAL (mm): 334 | LS (mm): 70 | DCSFMS (mm): 54.0 | DCON (mm): 40 | Max radial offset (mm): 2.00 | Insert: WDXT186012 | Stock: Yes
WDX570D4S40DC (mm): 57.0 | LUX (mm): 236 | LPR (mm): 268 | OAL (mm): 338 | LS (mm): 70 | DCSFMS (mm): 55.0 | DCON (mm): 40 | Max radial offset (mm): 1.80 | Insert: WDXT186012 | Stock: Yes
WDX580D4S40DC (mm): 58.0 | LUX (mm): 240 | LPR (mm): 272 | OAL (mm): 342 | LS (mm): 70 | DCSFMS (mm): 56.0 | DCON (mm): 40 | Max radial offset (mm): 1.70 | Insert: WDXT186012 | Stock: Yes
WDX590D4S40DC (mm): 59.0 | LUX (mm): 244 | LPR (mm): 276 | OAL (mm): 346 | LS (mm): 70 | DCSFMS (mm): 57.0 | DCON (mm): 40 | Max radial offset (mm): 1.60 | Insert: WDXT186012 | Stock: Yes
WDX600D4S40DC (mm): 60.0 | LUX (mm): 248 | LPR (mm): 280 | OAL (mm): 350 | LS (mm): 70 | DCSFMS (mm): 58.0 | DCON (mm): 40 | Max radial offset (mm): 1.50 | Insert: WDXT186012 | Stock: Yes
WDX610D4S40DC (mm): 61.0 | LUX (mm): 252 | LPR (mm): 284 | OAL (mm): 354 | LS (mm): 70 | DCSFMS (mm): 59.0 | DCON (mm): 40 | Max radial offset (mm): 1.40 | Insert: WDXT186012 | Stock: Yes
WDX620D4S40DC (mm): 62.0 | LUX (mm): 256 | LPR (mm): 288 | OAL (mm): 358 | LS (mm): 70 | DCSFMS (mm): 60.0 | DCON (mm): 40 | Max radial offset (mm): 1.30 | Insert: WDXT186012 | Stock: Yes
WDX630D4S40DC (mm): 63.0 | LUX (mm): 260 | LPR (mm): 292 | OAL (mm): 362 | LS (mm): 70 | DCSFMS (mm): 61.0 | DCON (mm): 40 | Max radial offset (mm): 1.20 | Insert: WDXT186012 | Stock: Yes
WDX130D5S20DC (mm): 13.0 | LUX (mm): 68.0 | LPR (mm): 83.0 | OAL (mm): 127.0 | LS (mm): 44 | DCSFMS (mm): 28.0 | DCON (mm): 20.0 | Max radial offset (mm): 0.35 | Insert: WDXT042004 | Stock: Yes
WDX135D5S20DC (mm): 13.5 | LUX (mm): 70.5 | LPR (mm): 85.5 | OAL (mm): 129.5 | LS (mm): 44 | DCSFMS (mm): 28.0 | DCON (mm): 20.0 | Max radial offset (mm): 0.30 | Insert: WDXT042004 | Stock: Yes
WDX140D5S20DC (mm): 14.0 | LUX (mm): 73.0 | LPR (mm): 88.0 | OAL (mm): 132.0 | LS (mm): 44 | DCSFMS (mm): 28.0 | DCON (mm): 20.0 | Max radial offset (mm): 0.25 | Insert: WDXT042004 | Stock: Yes
WDX145D5S20DC (mm): 14.5 | LUX (mm): 75.5 | LPR (mm): 90.5 | OAL (mm): 134.5 | LS (mm): 44 | DCSFMS (mm): 28.0 | DCON (mm): 20.0 | Max radial offset (mm): 0.20 | Insert: WDXT042004 | Stock: Yes
WDX150D5S20DC (mm): 15.0 | LUX (mm): 78.0 | LPR (mm): 93.0 | OAL (mm): 137.0 | LS (mm): 44 | DCSFMS (mm): 28.0 | DCON (mm): 20.0 | Max radial offset (mm): 0.15 | Insert: WDXT042004 | Stock: Yes
WDX155D5S20DC (mm): 15.5 | LUX (mm): 80.5 | LPR (mm): 95.5 | OAL (mm): 139.5 | LS (mm): 44 | DCSFMS (mm): 30.0 | DCON (mm): 20.0 | Max radial offset (mm): 0.40 | Insert: WDXT052504 | Stock: Yes
WDX160D5S20DC (mm): 16.0 | LUX (mm): 83.0 | LPR (mm): 98.0 | OAL (mm): 142.0 | LS (mm): 44 | DCSFMS (mm): 30.0 | DCON (mm): 20.0 | Insert: WDXT052504 | Stock: Yes
WDX165D5S20DC (mm): 16.5 | LUX (mm): 85.5 | LPR (mm): 100.5 | OAL (mm): 144.5 | LS (mm): 44 | DCSFMS (mm): 30.0 | DCON (mm): 20.0 | Max radial offset (mm): 0.35 | Insert: WDXT052504 | Stock: Yes
WDX170D5S20DC (mm): 17.0 | LUX (mm): 88.0 | LPR (mm): 103.0 | OAL (mm): 147.0 | LS (mm): 44 | DCSFMS (mm): 30.0 | DCON (mm): 20.0 | Max radial offset (mm): 0.30 | Insert: WDXT052504 | Stock: Yes
WDX175D5S25DC (mm): 17.5 | LUX (mm): 90.5 | LPR (mm): 105.5 | OAL (mm): 161.5 | LS (mm): 56 | DCSFMS (mm): 32.0 | DCON (mm): 25.0 | Max radial offset (mm): 0.25 | Insert: WDXT052504 | Stock: Yes
WDX180D5S25DC (mm): 18.0 | LUX (mm): 93.0 | LPR (mm): 108.0 | OAL (mm): 164.0 | LS (mm): 56 | DCSFMS (mm): 32.0 | DCON (mm): 25.0 | Max radial offset (mm): 0.20 | Insert: WDXT052504 | Stock: Yes
WDX185D5S25DC (mm): 18.5 | LUX (mm): 95.5 | LPR (mm): 110.5 | OAL (mm): 166.5 | LS (mm): 56 | DCSFMS (mm): 33.0 | DCON (mm): 25.0 | Max radial offset (mm): 0.50 | Insert: WDXT063006 | Stock: Yes
WDX190D5S25DC (mm): 19.0 | LUX (mm): 98.0 | LPR (mm): 113.0 | OAL (mm): 169.0 | LS (mm): 56 | DCSFMS (mm): 33.0 | DCON (mm): 25.0 | Max radial offset (mm): 0.45 | Insert: WDXT063006 | Stock: Yes
WDX195D5S25DC (mm): 19.5 | LUX (mm): 100.5 | LPR (mm): 115.5 | OAL (mm): 171.5 | LS (mm): 56 | DCSFMS (mm): 33.0 | DCON (mm): 25.0 | Max radial offset (mm): 0.40 | Insert: WDXT063006 | Stock: Yes
WDX200D5S25DC (mm): 20.0 | LUX (mm): 103.0 | LPR (mm): 118.0 | OAL (mm): 174.0 | LS (mm): 56 | DCSFMS (mm): 33.0 | DCON (mm): 25.0 | Max radial offset (mm): 0.30 | Insert: WDXT063006 | Stock: Yes
WDX205D5S25DC (mm): 20.5 | LUX (mm): 105.5 | LPR (mm): 120.5 | OAL (mm): 176.5 | LS (mm): 56 | DCSFMS (mm): 33.0 | DCON (mm): 25.0 | Insert: WDXT063006 | Stock: Yes
WDX210D5S25DC (mm): 21.0 | LUX (mm): 108.0 | LPR (mm): 123.0 | OAL (mm): 179.0 | LS (mm): 56 | DCSFMS (mm): 33.0 | DCON (mm): 25.0 | Max radial offset (mm): 0.20 | Insert: WDXT063006 | Stock: Yes
WDX215D5S25DC (mm): 21.5 | LUX (mm): 110.5 | LPR (mm): 125.5 | OAL (mm): 181.5 | LS (mm): 56 | DCSFMS (mm): 33.0 | DCON (mm): 25.0 | Max radial offset (mm): 0.15 | Insert: WDXT063006 | Stock: Yes
WDX220D5S25DC (mm): 22.0 | LUX (mm): 113.0 | LPR (mm): 128.0 | OAL (mm): 184.0 | LS (mm): 56 | DCSFMS (mm): 33.0 | DCON (mm): 25.0 | Max radial offset (mm): 0.10 | Insert: WDXT063006 | Stock: Yes
WDX225D5S25DC (mm): 22.5 | LUX (mm): 115.5 | LPR (mm): 130.5 | OAL (mm): 186.5 | LS (mm): 56 | DCSFMS (mm): 33.0 | DCON (mm): 25.0 | Max radial offset (mm): 0.05 | Insert: WDXT063006 | Stock: Yes
WDX230D5S25DC (mm): 23.0 | LUX (mm): 118.0 | LPR (mm): 136.0 | OAL (mm): 192.0 | LS (mm): 56 | DCSFMS (mm): 37.0 | DCON (mm): 25.0 | Max radial offset (mm): 0.70 | Insert: WDXT073506 | Stock: Yes
WDX235D5S25DC (mm): 23.5 | LUX (mm): 120.5 | LPR (mm): 138.5 | OAL (mm): 194.5 | LS (mm): 56 | DCSFMS (mm): 37.0 | DCON (mm): 25.0 | Insert: WDXT073506 | Stock: Yes
WDX240D5S25DC (mm): 24.0 | LUX (mm): 123.0 | LPR (mm): 141.0 | OAL (mm): 197.0 | LS (mm): 56 | DCSFMS (mm): 37.0 | DCON (mm): 25.0 | Max radial offset (mm): 0.60 | Insert: WDXT073506 | Stock: Yes
WDX245D5S25DC (mm): 24.5 | LUX (mm): 125.5 | LPR (mm): 143.5 | OAL (mm): 199.5 | LS (mm): 56 | DCSFMS (mm): 37.0 | DCON (mm): 25.0 | Max radial offset (mm): 0.50 | Insert: WDXT073506 | Stock: Yes
WDX250D5S25DC (mm): 25.0 | LUX (mm): 128.0 | LPR (mm): 146.0 | OAL (mm): 202.0 | LS (mm): 56 | DCSFMS (mm): 37.0 | DCON (mm): 25.0 | Insert: WDXT073506 | Stock: Yes
WDX260D5S32DC (mm): 26.0 | LUX (mm): 133.0 | LPR (mm): 153.0 | OAL (mm): 213.0 | LS (mm): 60 | DCSFMS (mm): 41.0 | DCON (mm): 32.0 | Max radial offset (mm): 0.40 | Insert: WDXT073506 | Stock: Yes
WDX270D5S32DC (mm): 27.0 | LUX (mm): 138.0 | LPR (mm): 158.0 | OAL (mm): 218.0 | LS (mm): 60 | DCSFMS (mm): 41.0 | DCON (mm): 32.0 | Max radial offset (mm): 0.25 | Insert: WDXT073506 | Stock: Yes
WDX280D5S32DC (mm): 28.0 | LUX (mm): 143.0 | LPR (mm): 163.0 | OAL (mm): 223.0 | LS (mm): 60 | DCSFMS (mm): 41.0 | DCON (mm): 32.0 | Max radial offset (mm): 0.15 | Insert: WDXT073506 | Stock: Yes
WDX290D5S32DC (mm): 29.0 | LUX (mm): 149.0 | LPR (mm): 170.0 | OAL (mm): 230.0 | LS (mm): 60 | DCSFMS (mm): 50.0 | DCON (mm): 32.0 | Max radial offset (mm): 1.00 | Insert: WDXT094008 | Stock: Yes
WDX300D5S32DC (mm): 30.0＊ | LUX (mm): 154.0 | LPR (mm): 178.0 | OAL (mm): 238.0 | LS (mm): 60 | DCSFMS (mm): 54.0 | DCON (mm): 32.0 | Max radial offset (mm): 0.90 | Insert: WDXT094008 | Stock: Yes
WDX310D5S32DC (mm): 31.0＊ | LUX (mm): 159.0 | LPR (mm): 183.0 | OAL (mm): 243.0 | LS (mm): 60 | DCSFMS (mm): 54.0 | DCON (mm): 32.0 | Max radial offset (mm): 0.80 | Insert: WDXT094008 | Stock: Yes
WDX320D5S32DC (mm): 32.0＊ | LUX (mm): 164.0 | LPR (mm): 188.0 | OAL (mm): 248.0 | LS (mm): 60 | DCSFMS (mm): 54.0 | DCON (mm): 32.0 | Max radial offset (mm): 0.70 | Insert: WDXT094008 | Stock: Yes
WDX300D5S40DC (mm): 30.0＊ | LUX (mm): 154.0 | LPR (mm): 178.0 | OAL (mm): 248.0 | LS (mm): 70 | DCSFMS (mm): 54.0 | DCON (mm): 40.0 | Max radial offset (mm): 0.90 | Insert: WDXT094008 | Stock: Yes
WDX310D5S40DC (mm): 31.0＊ | LUX (mm): 159.0 | LPR (mm): 183.0 | OAL (mm): 253.0 | LS (mm): 70 | DCSFMS (mm): 54.0 | DCON (mm): 40.0 | Max radial offset (mm): 0.80 | Insert: WDXT094008 | Stock: Yes
WDX320D5S40DC (mm): 32.0＊ | LUX (mm): 164.0 | LPR (mm): 188.0 | OAL (mm): 258.0 | LS (mm): 70 | DCSFMS (mm): 54.0 | DCON (mm): 40.0 | Max radial offset (mm): 0.70 | Insert: WDXT094008 | Stock: Yes
WDX330D5S40DC (mm): 33.0 | LUX (mm): 169.0 | LPR (mm): 193.0 | OAL (mm): 263.0 | LS (mm): 70 | DCSFMS (mm): 54.0 | DCON (mm): 40.0 | Max radial offset (mm): 0.55 | Insert: WDXT094008 | Stock: Yes
WDX340D5S40DC (mm): 34.0 | LUX (mm): 174.0 | LPR (mm): 198.0 | OAL (mm): 268.0 | LS (mm): 70 | DCSFMS (mm): 54.0 | DCON (mm): 40.0 | Max radial offset (mm): 0.45 | Insert: WDXT094008 | Stock: Yes
WDX350D5S40DC (mm): 35.0 | LUX (mm): 179.0 | LPR (mm): 203.0 | OAL (mm): 273.0 | LS (mm): 70 | DCSFMS (mm): 54.0 | DCON (mm): 40.0 | Max radial offset (mm): 0.35 | Insert: WDXT094008 | Stock: Yes
WDX360D5S40DC (mm): 36.0 | LUX (mm): 184.0 | LPR (mm): 208.0 | OAL (mm): 278.0 | LS (mm): 70 | DCSFMS (mm): 54.0 | DCON (mm): 40.0 | Max radial offset (mm): 0.20 | Insert: WDXT094008 | Stock: Yes
WDX370D5S40DC (mm): 37.0 | LUX (mm): 190.0 | LPR (mm): 220.0 | OAL (mm): 290.0 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40.0 | Max radial offset (mm): 1.00 | Insert: WDXT125012 | Stock: Yes
WDX380D5S40DC (mm): 38.0 | LUX (mm): 195.0 | LPR (mm): 225.0 | OAL (mm): 295.0 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40.0 | Insert: WDXT125012 | Stock: Yes
WDX390D5S40DC (mm): 39.0 | LUX (mm): 200.0 | LPR (mm): 230.0 | OAL (mm): 300.0 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40.0 | Max radial offset (mm): 0.90 | Insert: WDXT125012 | Stock: Yes
WDX400D5S40DC (mm): 40.0 | LUX (mm): 205.0 | LPR (mm): 235.0 | OAL (mm): 305.0 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40.0 | Max radial offset (mm): 0.80 | Insert: WDXT125012 | Stock: Yes
WDX410D5S40DC (mm): 41.0 | LUX (mm): 210.0 | LPR (mm): 240.0 | OAL (mm): 310.0 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40.0 | Max radial offset (mm): 0.70 | Insert: WDXT125012 | Stock: Yes
WDX420D5S40DC (mm): 42.0 | LUX (mm): 215.0 | LPR (mm): 245.0 | OAL (mm): 315.0 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40.0 | Max radial offset (mm): 0.60 | Insert: WDXT125012 | Stock: Yes
WDX430D5S40DC (mm): 43.0 | LUX (mm): 220.0 | LPR (mm): 250.0 | OAL (mm): 320.0 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40.0 | Max radial offset (mm): 0.50 | Insert: WDXT125012 | Stock: Yes
WDX440D5S40DC (mm): 44.0 | LUX (mm): 225.0 | LPR (mm): 255.0 | OAL (mm): 325.0 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40.0 | Insert: WDXT125012 | Stock: Yes
WDX450D5S40DC (mm): 45.0 | LUX (mm): 230.0 | LPR (mm): 260.0 | OAL (mm): 330.0 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40.0 | Max radial offset (mm): 0.40 | Insert: WDXT125012 | Stock: Yes
WDX460D5S40DC (mm): 46.0 | LUX (mm): 235.0 | LPR (mm): 265.0 | OAL (mm): 335.0 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40.0 | Max radial offset (mm): 1.50 | Insert: WDXT156012 | Stock: Yes
WDX470D5S40DC (mm): 47.0 | LUX (mm): 240.0 | LPR (mm): 270.0 | OAL (mm): 340.0 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40.0 | Max radial offset (mm): 1.40 | Insert: WDXT156012 | Stock: Yes
WDX480D5S40DC (mm): 48.0 | LUX (mm): 245.0 | LPR (mm): 275.0 | OAL (mm): 345.0 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40.0 | Max radial offset (mm): 1.30 | Insert: WDXT156012 | Stock: Yes
WDX490D5S40DC (mm): 49.0 | LUX (mm): 250.0 | LPR (mm): 280.0 | OAL (mm): 350.0 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40.0 | Max radial offset (mm): 1.20 | Insert: WDXT156012 | Stock: Yes
WDX500D5S40DC (mm): 50.0 | LUX (mm): 255.0 | LPR (mm): 285.0 | OAL (mm): 355.0 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40.0 | Max radial offset (mm): 1.10 | Insert: WDXT156012 | Stock: Yes
WDX510D5S40DC (mm): 51.0 | LUX (mm): 260.0 | LPR (mm): 290.0 | OAL (mm): 360.0 | LS (mm): 70 | DCSFMS (mm): 49.5 | DCON (mm): 40.0 | Max radial offset (mm): 1.00 | Insert: WDXT156012 | Stock: Yes
WDX520D5S40DC (mm): 52.0 | LUX (mm): 265.0 | LPR (mm): 295.0 | OAL (mm): 365.0 | LS (mm): 70 | DCSFMS (mm): 50.5 | DCON (mm): 40.0 | Max radial offset (mm): 0.90 | Insert: WDXT156012 | Stock: Yes
WDX530D5S40DC (mm): 53.0 | LUX (mm): 270.0 | LPR (mm): 300.0 | OAL (mm): 370.0 | LS (mm): 70 | DCSFMS (mm): 51.5 | DCON (mm): 40.0 | Max radial offset (mm): 0.80 | Insert: WDXT156012 | Stock: Yes
WDX540D5S40DC (mm): 54.0 | LUX (mm): 275.0 | LPR (mm): 305.0 | OAL (mm): 375.0 | LS (mm): 70 | DCSFMS (mm): 52.5 | DCON (mm): 40.0 | Max radial offset (mm): 0.60 | Insert: WDXT156012 | Stock: Yes
WDX550D5S40DC (mm): 55.0 | LUX (mm): 280.0 | LPR (mm): 310.0 | OAL (mm): 380.0 | LS (mm): 70 | DCSFMS (mm): 53.5 | DCON (mm): 40.0 | Max radial offset (mm): 0.50 | Insert: WDXT156012 | Stock: Yes

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Cutting Tools →
