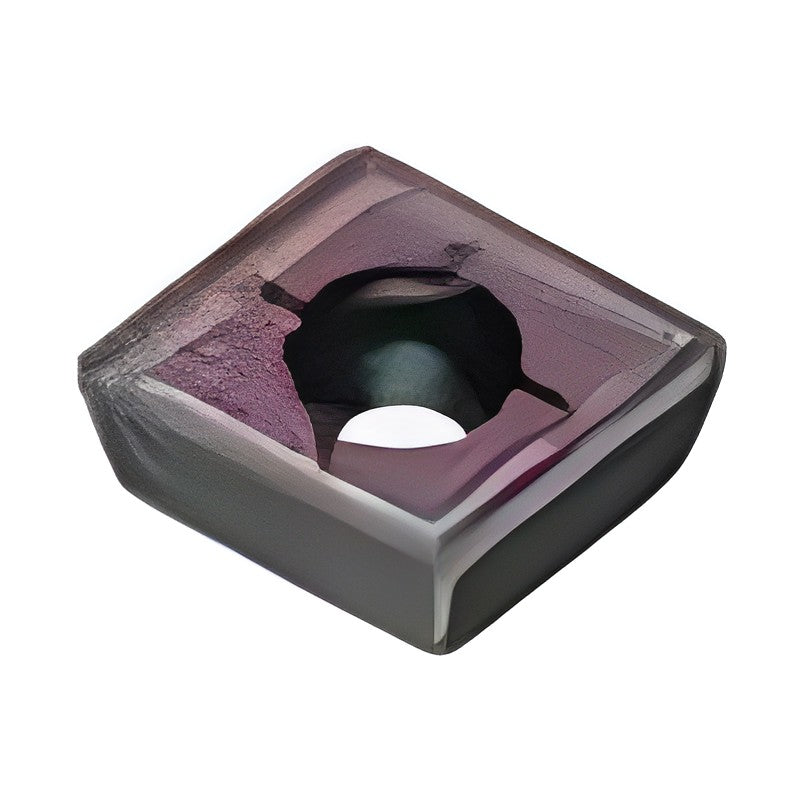

Sumitomo Electric Hardmetal SumiDrill WDX Type Insert (WDXT)

Sumitomo Electric Hardmetal SumiDrill WDX Type Insert (WDXT)

Four-corner insert used for both central and peripheral edges of the SumiDrill WDX drill, with four chip breaker types.

Key features

  • L breaker: low cutting force and chip control
  • G breaker: general purpose
  • H breaker: strengthened edge
  • M breaker: stainless steel
  • Grades ACP100, ACP300, ACS3000, ACM300, ACK300, DL1500
WDXT042004-L ACP100 W1 (mm): 4.2 | S (mm): 2.0 | RE1 (mm): 0.4 | RE2 (mm): 0.4 | Grade: ACP100 | Stock: Yes
WDXT042004-L ACP300 W1 (mm): 4.2 | S (mm): 2.0 | RE1 (mm): 0.4 | RE2 (mm): 0.4 | Grade: ACP300 | Stock: Yes
WDXT042004-L ACK300 W1 (mm): 4.2 | S (mm): 2.0 | RE1 (mm): 0.4 | RE2 (mm): 0.4 | Grade: ACK300 | Stock: Yes
WDXT042004-G ACP100 W1 (mm): 4.2 | S (mm): 2.0 | RE1 (mm): 0.4 | RE2 (mm): 0.4 | Grade: ACP100 | Stock: Yes
WDXT042004-G ACP300 W1 (mm): 4.2 | S (mm): 2.0 | RE1 (mm): 0.4 | RE2 (mm): 0.4 | Grade: ACP300 | Stock: Yes
WDXT042004-G ACK300 W1 (mm): 4.2 | S (mm): 2.0 | RE1 (mm): 0.4 | RE2 (mm): 0.4 | Grade: ACK300 | Stock: Yes
WDXT042004-G DL1500 W1 (mm): 4.2 | S (mm): 2.0 | RE1 (mm): 0.4 | RE2 (mm): 0.4 | Grade: DL1500 | Stock: Yes
WDXT042004-H ACP100 W1 (mm): 4.2 | S (mm): 2.0 | RE1 (mm): 0.4 | RE2 (mm): 0.4 | Grade: ACP100 | Stock: Yes
WDXT042004-H ACP300 W1 (mm): 4.2 | S (mm): 2.0 | RE1 (mm): 0.4 | RE2 (mm): 0.4 | Grade: ACP300 | Stock: Yes
WDXT042004-H ACK300 W1 (mm): 4.2 | S (mm): 2.0 | RE1 (mm): 0.4 | RE2 (mm): 0.4 | Grade: ACK300 | Stock: Yes
WDXT042004-M ACS3000 W1 (mm): 4.2 | S (mm): 2.0 | RE1 (mm): 0.4 | RE2 (mm): 0.8 | Grade: ACS3000 | Stock: Yes
WDXT042004-M ACM300 W1 (mm): 4.2 | S (mm): 2.0 | RE1 (mm): 0.4 | RE2 (mm): 0.8 | Grade: ACM300 | Stock: Phase-out (check availability)
WDXT052504-L ACP100 W1 (mm): 5.0 | S (mm): 2.5 | RE1 (mm): 0.4 | RE2 (mm): 0.4 | Grade: ACP100 | Stock: Yes
WDXT052504-L ACP300 W1 (mm): 5.0 | S (mm): 2.5 | RE1 (mm): 0.4 | RE2 (mm): 0.4 | Grade: ACP300 | Stock: Yes
WDXT052504-L ACK300 W1 (mm): 5.0 | S (mm): 2.5 | RE1 (mm): 0.4 | RE2 (mm): 0.4 | Grade: ACK300 | Stock: Yes
WDXT052504-G ACP100 W1 (mm): 5.0 | S (mm): 2.5 | RE1 (mm): 0.4 | RE2 (mm): 0.4 | Grade: ACP100 | Stock: Yes
WDXT052504-G ACP300 W1 (mm): 5.0 | S (mm): 2.5 | RE1 (mm): 0.4 | RE2 (mm): 0.4 | Grade: ACP300 | Stock: Yes
WDXT052504-G ACK300 W1 (mm): 5.0 | S (mm): 2.5 | RE1 (mm): 0.4 | RE2 (mm): 0.4 | Grade: ACK300 | Stock: Yes
WDXT052504-G DL1500 W1 (mm): 5.0 | S (mm): 2.5 | RE1 (mm): 0.4 | RE2 (mm): 0.4 | Grade: DL1500 | Stock: Yes
WDXT052504-H ACP100 W1 (mm): 5.0 | S (mm): 2.5 | RE1 (mm): 0.4 | RE2 (mm): 0.4 | Grade: ACP100 | Stock: Yes
WDXT052504-H ACP300 W1 (mm): 5.0 | S (mm): 2.5 | RE1 (mm): 0.4 | RE2 (mm): 0.4 | Grade: ACP300 | Stock: Yes
WDXT052504-H ACK300 W1 (mm): 5.0 | S (mm): 2.5 | RE1 (mm): 0.4 | RE2 (mm): 0.4 | Grade: ACK300 | Stock: Yes
WDXT052504-M ACS3000 W1 (mm): 5.0 | S (mm): 2.5 | RE1 (mm): 0.4 | RE2 (mm): 1.0 | Grade: ACS3000 | Stock: Yes
WDXT052504-M ACM300 W1 (mm): 5.0 | S (mm): 2.5 | RE1 (mm): 0.4 | RE2 (mm): 1.0 | Grade: ACM300 | Stock: Phase-out (check availability)
WDXT063006-L ACP100 W1 (mm): 6.0 | S (mm): 3.0 | RE1 (mm): 0.6 | RE2 (mm): 0.6 | Grade: ACP100 | Stock: Yes
WDXT063006-L ACP300 W1 (mm): 6.0 | S (mm): 3.0 | RE1 (mm): 0.6 | RE2 (mm): 0.6 | Grade: ACP300 | Stock: Yes
WDXT063006-L ACK300 W1 (mm): 6.0 | S (mm): 3.0 | RE1 (mm): 0.6 | RE2 (mm): 0.6 | Grade: ACK300 | Stock: Yes
WDXT063006-G ACP100 W1 (mm): 6.0 | S (mm): 3.0 | RE1 (mm): 0.6 | RE2 (mm): 0.6 | Grade: ACP100 | Stock: Yes
WDXT063006-G ACP300 W1 (mm): 6.0 | S (mm): 3.0 | RE1 (mm): 0.6 | RE2 (mm): 0.6 | Grade: ACP300 | Stock: Yes
WDXT063006-G ACK300 W1 (mm): 6.0 | S (mm): 3.0 | RE1 (mm): 0.6 | RE2 (mm): 0.6 | Grade: ACK300 | Stock: Yes
WDXT063006-G DL1500 W1 (mm): 6.0 | S (mm): 3.0 | RE1 (mm): 0.6 | RE2 (mm): 0.6 | Grade: DL1500 | Stock: Yes
WDXT063006-H ACP100 W1 (mm): 6.0 | S (mm): 3.0 | RE1 (mm): 0.6 | RE2 (mm): 0.6 | Grade: ACP100 | Stock: Yes
WDXT063006-H ACP300 W1 (mm): 6.0 | S (mm): 3.0 | RE1 (mm): 0.6 | RE2 (mm): 0.6 | Grade: ACP300 | Stock: Yes
WDXT063006-H ACK300 W1 (mm): 6.0 | S (mm): 3.0 | RE1 (mm): 0.6 | RE2 (mm): 0.6 | Grade: ACK300 | Stock: Yes
WDXT063006-M ACS3000 W1 (mm): 6.0 | S (mm): 3.0 | RE1 (mm): 0.6 | RE2 (mm): 1.4 | Grade: ACS3000 | Stock: Yes
WDXT063006-M ACM300 W1 (mm): 6.0 | S (mm): 3.0 | RE1 (mm): 0.6 | RE2 (mm): 1.4 | Grade: ACM300 | Stock: Phase-out (check availability)
WDXT073506-L ACP100 W1 (mm): 7.5 | S (mm): 3.5 | RE1 (mm): 0.6 | RE2 (mm): 0.6 | Grade: ACP100 | Stock: Yes
WDXT073506-L ACP300 W1 (mm): 7.5 | S (mm): 3.5 | RE1 (mm): 0.6 | RE2 (mm): 0.6 | Grade: ACP300 | Stock: Yes
WDXT073506-L ACK300 W1 (mm): 7.5 | S (mm): 3.5 | RE1 (mm): 0.6 | RE2 (mm): 0.6 | Grade: ACK300 | Stock: Yes
WDXT073506-G ACP100 W1 (mm): 7.5 | S (mm): 3.5 | RE1 (mm): 0.6 | RE2 (mm): 0.6 | Grade: ACP100 | Stock: Yes
WDXT073506-G ACP300 W1 (mm): 7.5 | S (mm): 3.5 | RE1 (mm): 0.6 | RE2 (mm): 0.6 | Grade: ACP300 | Stock: Yes
WDXT073506-G ACK300 W1 (mm): 7.5 | S (mm): 3.5 | RE1 (mm): 0.6 | RE2 (mm): 0.6 | Grade: ACK300 | Stock: Yes
WDXT073506-G DL1500 W1 (mm): 7.5 | S (mm): 3.5 | RE1 (mm): 0.6 | RE2 (mm): 0.6 | Grade: DL1500 | Stock: Yes
WDXT073506-H ACP100 W1 (mm): 7.5 | S (mm): 3.5 | RE1 (mm): 0.6 | RE2 (mm): 0.6 | Grade: ACP100 | Stock: Yes
WDXT073506-H ACP300 W1 (mm): 7.5 | S (mm): 3.5 | RE1 (mm): 0.6 | RE2 (mm): 0.6 | Grade: ACP300 | Stock: Yes
WDXT073506-H ACK300 W1 (mm): 7.5 | S (mm): 3.5 | RE1 (mm): 0.6 | RE2 (mm): 0.6 | Grade: ACK300 | Stock: Yes
WDXT073506-M ACS3000 W1 (mm): 7.5 | S (mm): 3.5 | RE1 (mm): 0.6 | RE2 (mm): 1.6 | Grade: ACS3000 | Stock: Yes
WDXT073506-M ACM300 W1 (mm): 7.5 | S (mm): 3.5 | RE1 (mm): 0.6 | RE2 (mm): 1.6 | Grade: ACM300 | Stock: Phase-out (check availability)
WDXT094008-L ACP100 W1 (mm): 9.6 | S (mm): 4.0 | RE1 (mm): 0.8 | RE2 (mm): 0.8 | Grade: ACP100 | Stock: Yes
WDXT094008-L ACP300 W1 (mm): 9.6 | S (mm): 4.0 | RE1 (mm): 0.8 | RE2 (mm): 0.8 | Grade: ACP300 | Stock: Yes
WDXT094008-L ACK300 W1 (mm): 9.6 | S (mm): 4.0 | RE1 (mm): 0.8 | RE2 (mm): 0.8 | Grade: ACK300 | Stock: Yes
WDXT094008-G ACP100 W1 (mm): 9.6 | S (mm): 4.0 | RE1 (mm): 0.8 | RE2 (mm): 0.8 | Grade: ACP100 | Stock: Yes
WDXT094008-G ACP300 W1 (mm): 9.6 | S (mm): 4.0 | RE1 (mm): 0.8 | RE2 (mm): 0.8 | Grade: ACP300 | Stock: Yes
WDXT094008-G ACK300 W1 (mm): 9.6 | S (mm): 4.0 | RE1 (mm): 0.8 | RE2 (mm): 0.8 | Grade: ACK300 | Stock: Yes
WDXT094008-G DL1500 W1 (mm): 9.6 | S (mm): 4.0 | RE1 (mm): 0.8 | RE2 (mm): 0.8 | Grade: DL1500 | Stock: Yes
WDXT094008-H ACP100 W1 (mm): 9.6 | S (mm): 4.0 | RE1 (mm): 0.8 | RE2 (mm): 0.8 | Grade: ACP100 | Stock: Yes
WDXT094008-H ACP300 W1 (mm): 9.6 | S (mm): 4.0 | RE1 (mm): 0.8 | RE2 (mm): 0.8 | Grade: ACP300 | Stock: Yes
WDXT094008-H ACK300 W1 (mm): 9.6 | S (mm): 4.0 | RE1 (mm): 0.8 | RE2 (mm): 0.8 | Grade: ACK300 | Stock: Yes
WDXT094008-M ACS3000 W1 (mm): 9.6 | S (mm): 4.0 | RE1 (mm): 0.8 | RE2 (mm): 2.4 | Grade: ACS3000 | Stock: Yes
WDXT094008-M ACM300 W1 (mm): 9.6 | S (mm): 4.0 | RE1 (mm): 0.8 | RE2 (mm): 2.4 | Grade: ACM300 | Stock: Phase-out (check availability)
WDXT125012-L ACP100 W1 (mm): 12.4 | S (mm): 5.0 | RE1 (mm): 1.2 | RE2 (mm): 1.2 | Grade: ACP100 | Stock: Yes
WDXT125012-L ACP300 W1 (mm): 12.4 | S (mm): 5.0 | RE1 (mm): 1.2 | RE2 (mm): 1.2 | Grade: ACP300 | Stock: Yes
WDXT125012-L ACK300 W1 (mm): 12.4 | S (mm): 5.0 | RE1 (mm): 1.2 | RE2 (mm): 1.2 | Grade: ACK300 | Stock: Yes
WDXT125012-G ACP100 W1 (mm): 12.4 | S (mm): 5.0 | RE1 (mm): 1.2 | RE2 (mm): 1.2 | Grade: ACP100 | Stock: Yes
WDXT125012-G ACP300 W1 (mm): 12.4 | S (mm): 5.0 | RE1 (mm): 1.2 | RE2 (mm): 1.2 | Grade: ACP300 | Stock: Yes
WDXT125012-G ACK300 W1 (mm): 12.4 | S (mm): 5.0 | RE1 (mm): 1.2 | RE2 (mm): 1.2 | Grade: ACK300 | Stock: Yes
WDXT125012-G DL1500 W1 (mm): 12.4 | S (mm): 5.0 | RE1 (mm): 1.2 | RE2 (mm): 1.2 | Grade: DL1500 | Stock: Yes
WDXT125012-H ACP100 W1 (mm): 12.4 | S (mm): 5.0 | RE1 (mm): 1.2 | RE2 (mm): 1.2 | Grade: ACP100 | Stock: Yes
WDXT125012-H ACP300 W1 (mm): 12.4 | S (mm): 5.0 | RE1 (mm): 1.2 | RE2 (mm): 1.2 | Grade: ACP300 | Stock: Yes
WDXT125012-H ACK300 W1 (mm): 12.4 | S (mm): 5.0 | RE1 (mm): 1.2 | RE2 (mm): 1.2 | Grade: ACK300 | Stock: Yes
WDXT125012-M ACS3000 W1 (mm): 12.4 | S (mm): 5.0 | RE1 (mm): 1.2 | RE2 (mm): 3.2 | Grade: ACS3000 | Stock: Yes
WDXT125012-M ACM300 W1 (mm): 12.4 | S (mm): 5.0 | RE1 (mm): 1.2 | RE2 (mm): 3.2 | Grade: ACM300 | Stock: Phase-out (check availability)
WDXT156012-L ACP100 W1 (mm): 15.2 | S (mm): 6.0 | RE1 (mm): 1.2 | RE2 (mm): 1.2 | Grade: ACP100 | Stock: Yes
WDXT156012-L ACP300 W1 (mm): 15.2 | S (mm): 6.0 | RE1 (mm): 1.2 | RE2 (mm): 1.2 | Grade: ACP300 | Stock: Yes
WDXT156012-L ACK300 W1 (mm): 15.2 | S (mm): 6.0 | RE1 (mm): 1.2 | RE2 (mm): 1.2 | Grade: ACK300 | Stock: Yes
WDXT156012-G ACP100 W1 (mm): 15.2 | S (mm): 6.0 | RE1 (mm): 1.2 | RE2 (mm): 1.2 | Grade: ACP100 | Stock: Yes
WDXT156012-G ACP300 W1 (mm): 15.2 | S (mm): 6.0 | RE1 (mm): 1.2 | RE2 (mm): 1.2 | Grade: ACP300 | Stock: Yes
WDXT156012-G ACK300 W1 (mm): 15.2 | S (mm): 6.0 | RE1 (mm): 1.2 | RE2 (mm): 1.2 | Grade: ACK300 | Stock: Yes
WDXT156012-G DL1500 W1 (mm): 15.2 | S (mm): 6.0 | RE1 (mm): 1.2 | RE2 (mm): 1.2 | Grade: DL1500 | Stock: Yes
WDXT156012-H ACP100 W1 (mm): 15.2 | S (mm): 6.0 | RE1 (mm): 1.2 | RE2 (mm): 1.2 | Grade: ACP100 | Stock: Yes
WDXT156012-H ACP300 W1 (mm): 15.2 | S (mm): 6.0 | RE1 (mm): 1.2 | RE2 (mm): 1.2 | Grade: ACP300 | Stock: Yes
WDXT156012-H ACK300 W1 (mm): 15.2 | S (mm): 6.0 | RE1 (mm): 1.2 | RE2 (mm): 1.2 | Grade: ACK300 | Stock: Yes
WDXT186012-L ACP100 W1 (mm): 18.0 | S (mm): 6.0 | RE1 (mm): 1.2 | RE2 (mm): 1.2 | Grade: ACP100 | Stock: Yes
WDXT186012-L ACP300 W1 (mm): 18.0 | S (mm): 6.0 | RE1 (mm): 1.2 | RE2 (mm): 1.2 | Grade: ACP300 | Stock: Yes
WDXT186012-L ACK300 W1 (mm): 18.0 | S (mm): 6.0 | RE1 (mm): 1.2 | RE2 (mm): 1.2 | Grade: ACK300 | Stock: Yes
WDXT186012-G ACP100 W1 (mm): 18.0 | S (mm): 6.0 | RE1 (mm): 1.2 | RE2 (mm): 1.2 | Grade: ACP100 | Stock: Yes
WDXT186012-G ACP300 W1 (mm): 18.0 | S (mm): 6.0 | RE1 (mm): 1.2 | RE2 (mm): 1.2 | Grade: ACP300 | Stock: Yes
WDXT186012-G ACK300 W1 (mm): 18.0 | S (mm): 6.0 | RE1 (mm): 1.2 | RE2 (mm): 1.2 | Grade: ACK300 | Stock: Yes
WDXT186012-H ACP100 W1 (mm): 18.0 | S (mm): 6.0 | RE1 (mm): 1.2 | RE2 (mm): 1.2 | Grade: ACP100 | Stock: Yes
WDXT186012-H ACP300 W1 (mm): 18.0 | S (mm): 6.0 | RE1 (mm): 1.2 | RE2 (mm): 1.2 | Grade: ACP300 | Stock: Yes
WDXT186012-H ACK300 W1 (mm): 18.0 | S (mm): 6.0 | RE1 (mm): 1.2 | RE2 (mm): 1.2 | Grade: ACK300 | Stock: Yes
