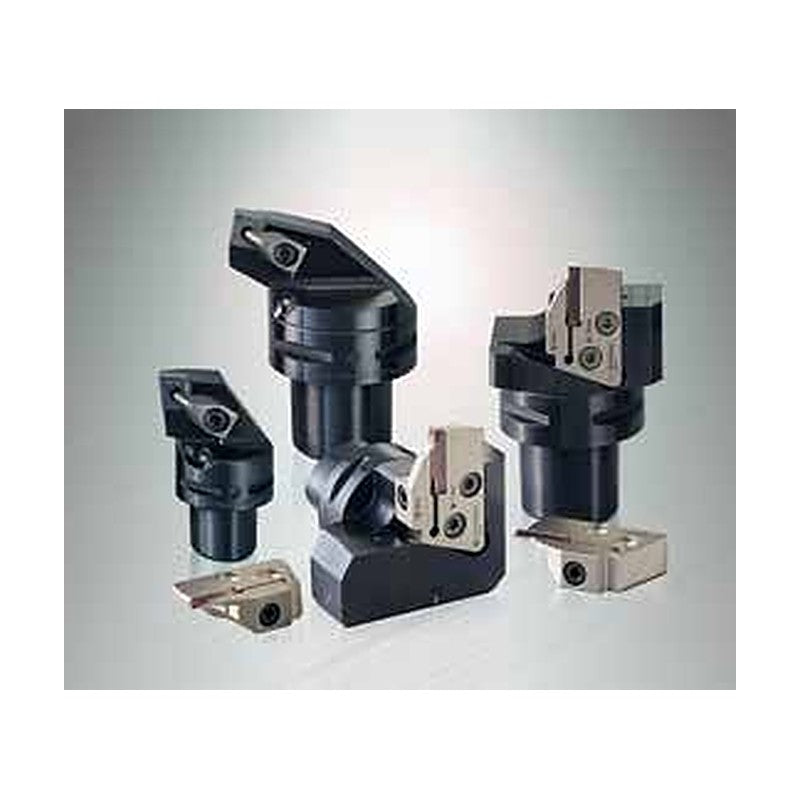

Sumitomo Electric Hardmetal SumiPolygon PSC Boring Holder

Sumitomo Electric Hardmetal SumiPolygon PSC Boring Holder

SumiPolygon PSC internal turning (boring) holder with double clamp or lever lock.

Key features

  • Polygon taper coupling (ISO 26623-1)
  • Index accuracy +/-2 micron

Specifications

Mounting dia DCSFMS (mm) 40
PSC40 PCLN R 17080-09-NP Min machining dia DMIN (mm): 32 | WF (mm): 17 | Length LF (mm): 80 | Mounting dia DCSFMS (mm): 40 | Stock: Yes
PSC40 PCLN L 17080-09-NP Min machining dia DMIN (mm): 32 | WF (mm): 17 | Length LF (mm): 80 | Mounting dia DCSFMS (mm): 40 | Stock: Yes
PSC40 DDUN R 20050-15-NP Min machining dia DMIN (mm): 40 | WF (mm): 20 | Length LF (mm): 50 | Mounting dia DCSFMS (mm): 40 | Stock: Yes
PSC40 DDUN L 20050-15-NP Min machining dia DMIN (mm): 40 | WF (mm): 20 | Length LF (mm): 50 | Mounting dia DCSFMS (mm): 40 | Stock: Yes
PSC40 DDUN R 20070-15-NP Min machining dia DMIN (mm): 40 | WF (mm): 20 | Length LF (mm): 70 | Mounting dia DCSFMS (mm): 40 | Stock: Yes
PSC40 DDUN L 20070-15-NP Min machining dia DMIN (mm): 40 | WF (mm): 20 | Length LF (mm): 70 | Mounting dia DCSFMS (mm): 40 | Stock: Yes
PSC40 DDUN R 27090-15-NP Min machining dia DMIN (mm): 54 | WF (mm): 27 | Length LF (mm): 90 | Mounting dia DCSFMS (mm): 40 | Stock: Yes
PSC40 DDUN L 27090-15-NP Min machining dia DMIN (mm): 54 | WF (mm): 27 | Length LF (mm): 90 | Mounting dia DCSFMS (mm): 40 | Stock: Yes
PSC40 PDUN R 17080-11-NP Min machining dia DMIN (mm): 32 | WF (mm): 17 | Length LF (mm): 80 | Mounting dia DCSFMS (mm): 40 | Stock: Yes
PSC40 PDUN L 17080-11-NP Min machining dia DMIN (mm): 32 | WF (mm): 17 | Length LF (mm): 80 | Mounting dia DCSFMS (mm): 40 | Stock: Yes
PSC40 PTFN R 16050-16-NP Min machining dia DMIN (mm): 32 | WF (mm): 16 | Length LF (mm): 50 | Mounting dia DCSFMS (mm): 40 | Stock: Yes
PSC40 PTFN L 16050-16-NP Min machining dia DMIN (mm): 32 | WF (mm): 16 | Length LF (mm): 50 | Mounting dia DCSFMS (mm): 40 | Stock: Yes
Boring BarsSumitomo Electric Hardmetal
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SumiPolygon PSC Boring Holder

Brand Sumitomo Electric Hardmetal·Boring Bars

Available part numbers (12)

PSC40 PCLN R 17080-09-NP, PSC40 PCLN L 17080-09-NP, PSC40 DDUN R 20050-15-NP, PSC40 DDUN L 20050-15-NP, PSC40 DDUN R 20070-15-NP, PSC40 DDUN L 20070-15-NP, PSC40 DDUN R 27090-15-NP, PSC40 DDUN L 27090-15-NP, PSC40 PDUN R 17080-11-NP, PSC40 PDUN L 17080-11-NP + 2 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PSC40 PCLN R 17080-09-NPMin machining dia DMIN (mm): 32 | WF (mm): 17 | Length LF (mm): 80 | Mounting dia DCSFMS (mm): 40 | Stock: Yes
PSC40 PCLN L 17080-09-NPMin machining dia DMIN (mm): 32 | WF (mm): 17 | Length LF (mm): 80 | Mounting dia DCSFMS (mm): 40 | Stock: Yes
PSC40 DDUN R 20050-15-NPMin machining dia DMIN (mm): 40 | WF (mm): 20 | Length LF (mm): 50 | Mounting dia DCSFMS (mm): 40 | Stock: Yes
PSC40 DDUN L 20050-15-NPMin machining dia DMIN (mm): 40 | WF (mm): 20 | Length LF (mm): 50 | Mounting dia DCSFMS (mm): 40 | Stock: Yes
PSC40 DDUN R 20070-15-NPMin machining dia DMIN (mm): 40 | WF (mm): 20 | Length LF (mm): 70 | Mounting dia DCSFMS (mm): 40 | Stock: Yes
PSC40 DDUN L 20070-15-NPMin machining dia DMIN (mm): 40 | WF (mm): 20 | Length LF (mm): 70 | Mounting dia DCSFMS (mm): 40 | Stock: Yes
PSC40 DDUN R 27090-15-NPMin machining dia DMIN (mm): 54 | WF (mm): 27 | Length LF (mm): 90 | Mounting dia DCSFMS (mm): 40 | Stock: Yes
PSC40 DDUN L 27090-15-NPMin machining dia DMIN (mm): 54 | WF (mm): 27 | Length LF (mm): 90 | Mounting dia DCSFMS (mm): 40 | Stock: Yes
PSC40 PDUN R 17080-11-NPMin machining dia DMIN (mm): 32 | WF (mm): 17 | Length LF (mm): 80 | Mounting dia DCSFMS (mm): 40 | Stock: Yes
PSC40 PDUN L 17080-11-NPMin machining dia DMIN (mm): 32 | WF (mm): 17 | Length LF (mm): 80 | Mounting dia DCSFMS (mm): 40 | Stock: Yes
PSC40 PTFN R 16050-16-NPMin machining dia DMIN (mm): 32 | WF (mm): 16 | Length LF (mm): 50 | Mounting dia DCSFMS (mm): 40 | Stock: Yes
PSC40 PTFN L 16050-16-NPMin machining dia DMIN (mm): 32 | WF (mm): 16 | Length LF (mm): 50 | Mounting dia DCSFMS (mm): 40 | Stock: Yes
