• Sumitomo Electric Hardmetal SumiPolygon PSC Shank Adapter and Boring Bar Sleeve
1 1

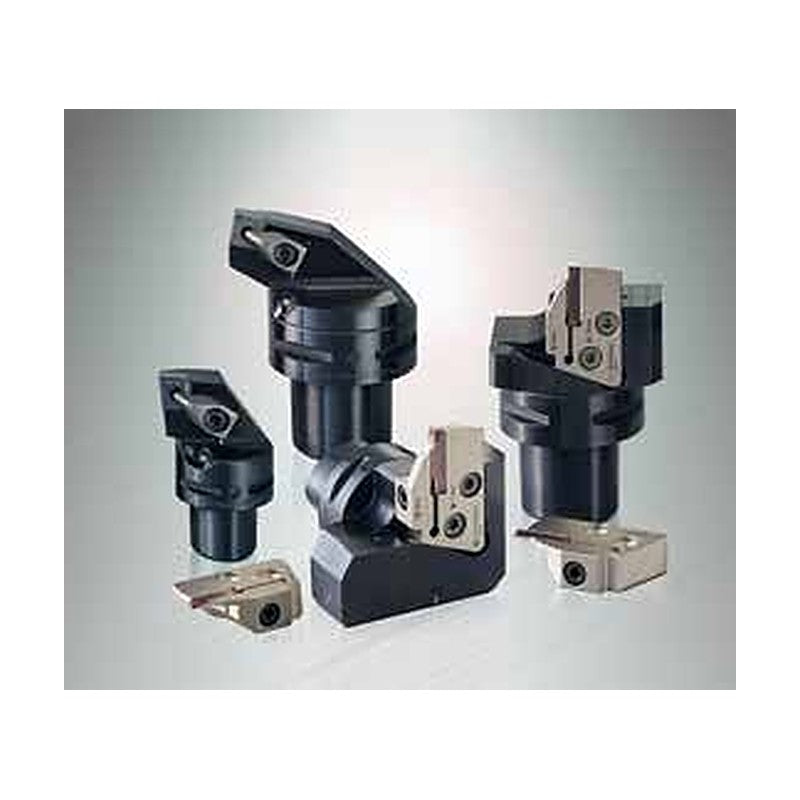

Sumitomo Electric Hardmetal SumiPolygon PSC Shank Adapter and Boring Bar Sleeve

Sumitomo Electric Hardmetal SumiPolygon PSC Shank Adapter and Boring Bar Sleeve

SumiPolygon PSC adapter for square-shank tools and sleeves for round-shank boring bars.

Key features

  • Polygon taper coupling (ISO 26623-1)
PSC50 S2020 R-90 LSCX (mm): 60 | Length LF (mm): 90 | Mounting dia DCSFMS (mm): 50 | Stock: Yes
PSC50 S2020 L-90 LSCX (mm): 60 | Length LF (mm): 90 | Mounting dia DCSFMS (mm): 50 | Stock: Yes
PSC63 S2525 R-100 LSCX (mm): 70 | Length LF (mm): 100 | Mounting dia DCSFMS (mm): 63 | Stock: Yes
PSC63 S2525 L-100 LSCX (mm): 70 | Length LF (mm): 100 | Mounting dia DCSFMS (mm): 63 | Stock: Yes
PSC40 C08-65 Body dia BD (mm): 28 | Length LF2 (mm): 65 | Shank dia DCB (mm): 8 | Screw CRKS: M6 | Mounting dia DCSFMS (mm): 40 | Stock: Yes
PSC40 C10-70 Body dia BD (mm): 35 | Length LF2 (mm): 70 | Shank dia DCB (mm): 10 | Screw CRKS: M8 | Mounting dia DCSFMS (mm): 40 | Stock: Yes
PSC40 C12-70 Body dia BD (mm): 42 | Length LF2 (mm): 70 | Shank dia DCB (mm): 12 | Screw CRKS: M10 | Mounting dia DCSFMS (mm): 40 | Stock: Yes
PSC40 C16-75 Body dia BD (mm): 48 | Length LF2 (mm): 75 | Shank dia DCB (mm): 16 | Screw CRKS: M10 | Mounting dia DCSFMS (mm): 40 | Stock: Yes
PSC40 C20-75 Body dia BD (mm): 52 | Length LF2 (mm): 75 | Shank dia DCB (mm): 20 | Screw CRKS: M10 | Mounting dia DCSFMS (mm): 40 | Stock: Yes
PSC40 C25-83 Body dia BD (mm): 62 | Length LF2 (mm): 83 | Shank dia DCB (mm): 25 | Screw CRKS: M10 | Mounting dia DCSFMS (mm): 40 | Stock: Yes
PSC40 C32-87 Body dia BD (mm): 62 | Length LF2 (mm): 87 | Shank dia DCB (mm): 32 | Screw CRKS: M10 | Mounting dia DCSFMS (mm): 40 | Stock: Yes
PSC50 C08-65 Body dia BD (mm): 28 | Length LF2 (mm): 65 | Shank dia DCB (mm): 8 | Screw CRKS: M6 | Mounting dia DCSFMS (mm): 50 | Stock: Yes
PSC50 C10-70 Body dia BD (mm): 35 | Length LF2 (mm): 70 | Shank dia DCB (mm): 10 | Screw CRKS: M8 | Mounting dia DCSFMS (mm): 50 | Stock: Yes
PSC50 C12-70 Body dia BD (mm): 42 | Length LF2 (mm): 70 | Shank dia DCB (mm): 12 | Screw CRKS: M10 | Mounting dia DCSFMS (mm): 50 | Stock: Yes
PSC50 C16-75 Body dia BD (mm): 48 | Length LF2 (mm): 75 | Shank dia DCB (mm): 16 | Screw CRKS: M10 | Mounting dia DCSFMS (mm): 50 | Stock: Yes
PSC50 C20-75 Body dia BD (mm): 52 | Length LF2 (mm): 75 | Shank dia DCB (mm): 20 | Screw CRKS: M10 | Mounting dia DCSFMS (mm): 50 | Stock: Yes
PSC50 C25-83 Body dia BD (mm): 62 | Length LF2 (mm): 83 | Shank dia DCB (mm): 25 | Screw CRKS: M10 | Mounting dia DCSFMS (mm): 50 | Stock: Yes
PSC50 C32-87 Body dia BD (mm): 62 | Length LF2 (mm): 87 | Shank dia DCB (mm): 32 | Screw CRKS: M10 | Mounting dia DCSFMS (mm): 50 | Stock: Yes
PSC63 C12-70 Body dia BD (mm): 42 | Length LF2 (mm): 70 | Shank dia DCB (mm): 12 | Screw CRKS: M10 | Mounting dia DCSFMS (mm): 63 | Stock: Yes
PSC63 C16-75 Body dia BD (mm): 48 | Length LF2 (mm): 75 | Shank dia DCB (mm): 16 | Screw CRKS: M10 | Mounting dia DCSFMS (mm): 63 | Stock: Yes
PSC63 C20-75 Body dia BD (mm): 52 | Length LF2 (mm): 75 | Shank dia DCB (mm): 20 | Screw CRKS: M10 | Mounting dia DCSFMS (mm): 63 | Stock: Yes
Tool Holder AdaptersSumitomo Electric Hardmetal
21 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SumiPolygon PSC Shank Adapter and Boring Bar Sleeve

Brand Sumitomo Electric Hardmetal·Tool Holder Adapters

Available part numbers (21)

PSC50 S2020 R-90, PSC50 S2020 L-90, PSC63 S2525 R-100, PSC63 S2525 L-100, PSC40 C08-65, PSC40 C10-70, PSC40 C12-70, PSC40 C16-75, PSC40 C20-75, PSC40 C25-83 + 11 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PSC50 S2020 R-90LSCX (mm): 60 | Length LF (mm): 90 | Mounting dia DCSFMS (mm): 50 | Stock: Yes
PSC50 S2020 L-90LSCX (mm): 60 | Length LF (mm): 90 | Mounting dia DCSFMS (mm): 50 | Stock: Yes
PSC63 S2525 R-100LSCX (mm): 70 | Length LF (mm): 100 | Mounting dia DCSFMS (mm): 63 | Stock: Yes
PSC63 S2525 L-100LSCX (mm): 70 | Length LF (mm): 100 | Mounting dia DCSFMS (mm): 63 | Stock: Yes
PSC40 C08-65Body dia BD (mm): 28 | Length LF2 (mm): 65 | Shank dia DCB (mm): 8 | Screw CRKS: M6 | Mounting dia DCSFMS (mm): 40 | Stock: Yes
PSC40 C10-70Body dia BD (mm): 35 | Length LF2 (mm): 70 | Shank dia DCB (mm): 10 | Screw CRKS: M8 | Mounting dia DCSFMS (mm): 40 | Stock: Yes
PSC40 C12-70Body dia BD (mm): 42 | Length LF2 (mm): 70 | Shank dia DCB (mm): 12 | Screw CRKS: M10 | Mounting dia DCSFMS (mm): 40 | Stock: Yes
PSC40 C16-75Body dia BD (mm): 48 | Length LF2 (mm): 75 | Shank dia DCB (mm): 16 | Screw CRKS: M10 | Mounting dia DCSFMS (mm): 40 | Stock: Yes
PSC40 C20-75Body dia BD (mm): 52 | Length LF2 (mm): 75 | Shank dia DCB (mm): 20 | Screw CRKS: M10 | Mounting dia DCSFMS (mm): 40 | Stock: Yes
PSC40 C25-83Body dia BD (mm): 62 | Length LF2 (mm): 83 | Shank dia DCB (mm): 25 | Screw CRKS: M10 | Mounting dia DCSFMS (mm): 40 | Stock: Yes
PSC40 C32-87Body dia BD (mm): 62 | Length LF2 (mm): 87 | Shank dia DCB (mm): 32 | Screw CRKS: M10 | Mounting dia DCSFMS (mm): 40 | Stock: Yes
PSC50 C08-65Body dia BD (mm): 28 | Length LF2 (mm): 65 | Shank dia DCB (mm): 8 | Screw CRKS: M6 | Mounting dia DCSFMS (mm): 50 | Stock: Yes
PSC50 C10-70Body dia BD (mm): 35 | Length LF2 (mm): 70 | Shank dia DCB (mm): 10 | Screw CRKS: M8 | Mounting dia DCSFMS (mm): 50 | Stock: Yes
PSC50 C12-70Body dia BD (mm): 42 | Length LF2 (mm): 70 | Shank dia DCB (mm): 12 | Screw CRKS: M10 | Mounting dia DCSFMS (mm): 50 | Stock: Yes
PSC50 C16-75Body dia BD (mm): 48 | Length LF2 (mm): 75 | Shank dia DCB (mm): 16 | Screw CRKS: M10 | Mounting dia DCSFMS (mm): 50 | Stock: Yes
PSC50 C20-75Body dia BD (mm): 52 | Length LF2 (mm): 75 | Shank dia DCB (mm): 20 | Screw CRKS: M10 | Mounting dia DCSFMS (mm): 50 | Stock: Yes
PSC50 C25-83Body dia BD (mm): 62 | Length LF2 (mm): 83 | Shank dia DCB (mm): 25 | Screw CRKS: M10 | Mounting dia DCSFMS (mm): 50 | Stock: Yes
PSC50 C32-87Body dia BD (mm): 62 | Length LF2 (mm): 87 | Shank dia DCB (mm): 32 | Screw CRKS: M10 | Mounting dia DCSFMS (mm): 50 | Stock: Yes
PSC63 C12-70Body dia BD (mm): 42 | Length LF2 (mm): 70 | Shank dia DCB (mm): 12 | Screw CRKS: M10 | Mounting dia DCSFMS (mm): 63 | Stock: Yes
PSC63 C16-75Body dia BD (mm): 48 | Length LF2 (mm): 75 | Shank dia DCB (mm): 16 | Screw CRKS: M10 | Mounting dia DCSFMS (mm): 63 | Stock: Yes
PSC63 C20-75Body dia BD (mm): 52 | Length LF2 (mm): 75 | Shank dia DCB (mm): 20 | Screw CRKS: M10 | Mounting dia DCSFMS (mm): 63 | Stock: Yes
