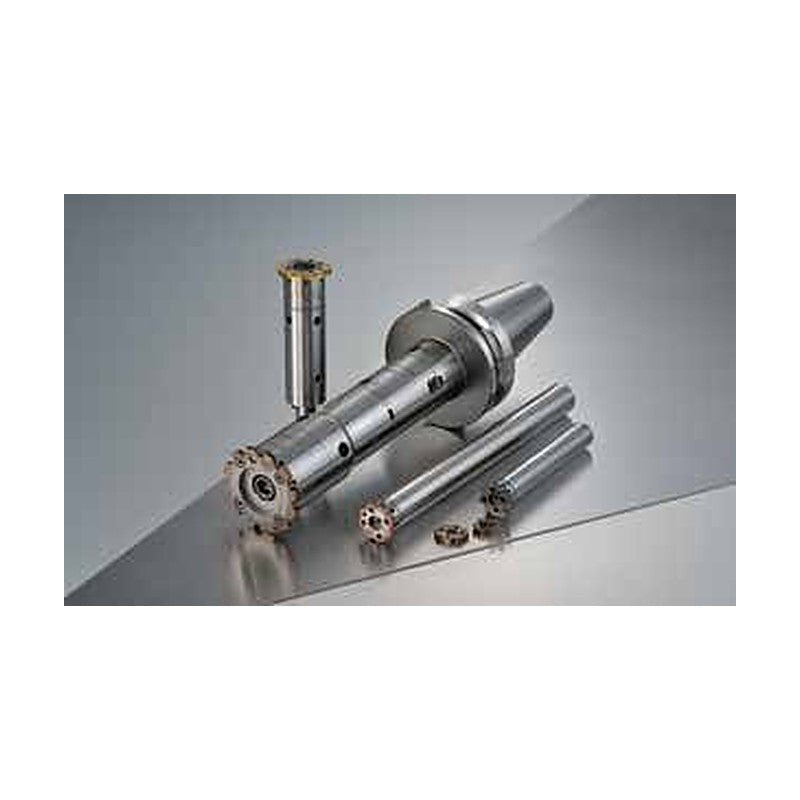

Sumitomo Electric Hardmetal SumiReamer SR Type Head SRKG/SRKB

Reamer head for SumiReamer SR type inserts for diameters 35.601 to 140.6 mm, SRKG for through holes and SRKB for blind holes.

SRKG44-32-18-030		DF (mm): 32 \| DCON (mm): 18 \| LFS (mm): 30 \| LS (mm): 30 \| DC range (mm): ø35.601~ø43.600
SRKG52-39-20-035		DF (mm): 39 \| DCON (mm): 20 \| LFS (mm): 35 \| LS (mm): 30 \| DC range (mm): ø43.601~ø51.600
SRKG61-46-25-040		DF (mm): 46 \| DCON (mm): 25 \| LFS (mm): 40 \| LS (mm): 35 \| DC range (mm): ø51.601~ø60.600
SRKG81-56-32-050		DF (mm): 56 \| DCON (mm): 32 \| LFS (mm): 50 \| LS (mm): 40 \| DC range (mm): ø60.601~ø80.600
SRKG101-76-40-060		DF (mm): 76 \| DCON (mm): 40 \| LFS (mm): 60 \| LS (mm): 50 \| DC range (mm): ø80.601~ø100.600
SRKG121-76-40-060		DF (mm): 76 \| DCON (mm): 40 \| LFS (mm): 60 \| LS (mm): 50 \| DC range (mm): ø100.601~ø120.600
SRKG141-76-40-060		DF (mm): 76 \| DCON (mm): 40 \| LFS (mm): 60 \| LS (mm): 50 \| DC range (mm): ø120.601~ø140.600
SRKB44-32-18-030		DF (mm): 32 \| DCON (mm): 18 \| LFS (mm): 30 \| LS (mm): 30 \| DC range (mm): ø35.601~ø43.600
SRKB52-39-20-035		DF (mm): 39 \| DCON (mm): 20 \| LFS (mm): 35 \| LS (mm): 30 \| DC range (mm): ø43.601~ø51.600
SRKB61-46-25-040		DF (mm): 46 \| DCON (mm): 25 \| LFS (mm): 40 \| LS (mm): 35 \| DC range (mm): ø51.601~ø60.600
SRKB81-56-32-050		DF (mm): 56 \| DCON (mm): 32 \| LFS (mm): 50 \| LS (mm): 40 \| DC range (mm): ø60.601~ø80.600
SRKB101-76-40-060		DF (mm): 76 \| DCON (mm): 40 \| LFS (mm): 60 \| LS (mm): 50 \| DC range (mm): ø80.601~ø100.600
SRKB121-76-40-060		DF (mm): 76 \| DCON (mm): 40 \| LFS (mm): 60 \| LS (mm): 50 \| DC range (mm): ø100.601~ø120.600
SRKB141-76-40-060		DF (mm): 76 \| DCON (mm): 40 \| LFS (mm): 60 \| LS (mm): 50 \| DC range (mm): ø120.601~ø140.600

ReamersSumitomo Electric Hardmetal

14 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SumiReamer SR Type Head SRKG/SRKB

Brand Sumitomo Electric Hardmetal·Reamers

Available part numbers (14)

SRKG44-32-18-030, SRKG52-39-20-035, SRKG61-46-25-040, SRKG81-56-32-050, SRKG101-76-40-060, SRKG121-76-40-060, SRKG141-76-40-060, SRKB44-32-18-030, SRKB52-39-20-035, SRKB61-46-25-040 + 4 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

	Product code	Spec
	SRKG44-32-18-030	DF (mm): 32 \| DCON (mm): 18 \| LFS (mm): 30 \| LS (mm): 30 \| DC range (mm): ø35.601~ø43.600
	SRKG52-39-20-035	DF (mm): 39 \| DCON (mm): 20 \| LFS (mm): 35 \| LS (mm): 30 \| DC range (mm): ø43.601~ø51.600
	SRKG61-46-25-040	DF (mm): 46 \| DCON (mm): 25 \| LFS (mm): 40 \| LS (mm): 35 \| DC range (mm): ø51.601~ø60.600
	SRKG81-56-32-050	DF (mm): 56 \| DCON (mm): 32 \| LFS (mm): 50 \| LS (mm): 40 \| DC range (mm): ø60.601~ø80.600
	SRKG101-76-40-060	DF (mm): 76 \| DCON (mm): 40 \| LFS (mm): 60 \| LS (mm): 50 \| DC range (mm): ø80.601~ø100.600
	SRKG121-76-40-060	DF (mm): 76 \| DCON (mm): 40 \| LFS (mm): 60 \| LS (mm): 50 \| DC range (mm): ø100.601~ø120.600
	SRKG141-76-40-060	DF (mm): 76 \| DCON (mm): 40 \| LFS (mm): 60 \| LS (mm): 50 \| DC range (mm): ø120.601~ø140.600
	SRKB44-32-18-030	DF (mm): 32 \| DCON (mm): 18 \| LFS (mm): 30 \| LS (mm): 30 \| DC range (mm): ø35.601~ø43.600
	SRKB52-39-20-035	DF (mm): 39 \| DCON (mm): 20 \| LFS (mm): 35 \| LS (mm): 30 \| DC range (mm): ø43.601~ø51.600
	SRKB61-46-25-040	DF (mm): 46 \| DCON (mm): 25 \| LFS (mm): 40 \| LS (mm): 35 \| DC range (mm): ø51.601~ø60.600
	SRKB81-56-32-050	DF (mm): 56 \| DCON (mm): 32 \| LFS (mm): 50 \| LS (mm): 40 \| DC range (mm): ø60.601~ø80.600
	SRKB101-76-40-060	DF (mm): 76 \| DCON (mm): 40 \| LFS (mm): 60 \| LS (mm): 50 \| DC range (mm): ø80.601~ø100.600
	SRKB121-76-40-060	DF (mm): 76 \| DCON (mm): 40 \| LFS (mm): 60 \| LS (mm): 50 \| DC range (mm): ø100.601~ø120.600
	SRKB141-76-40-060	DF (mm): 76 \| DCON (mm): 40 \| LFS (mm): 60 \| LS (mm): 50 \| DC range (mm): ø120.601~ø140.600
