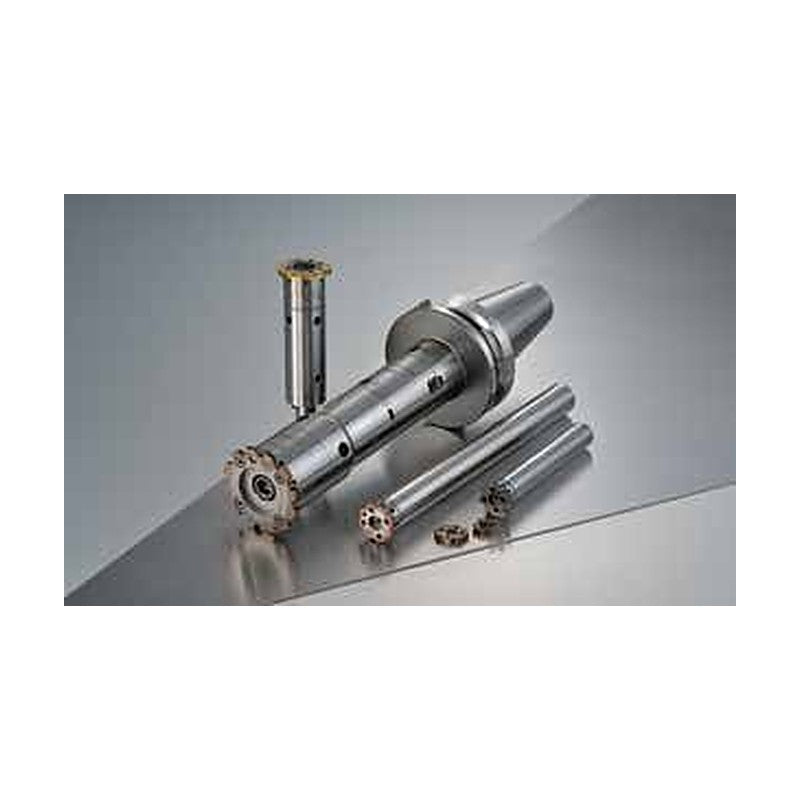

Sumitomo Electric Hardmetal SumiReamer SR Type Holder SRD/SRB

Sumitomo Electric Hardmetal SumiReamer SR Type Holder SRD/SRB

Shank holder for SumiReamer SR type inserts, SRD for through holes and SRB for blind holes, with steel or carbide shank.

Key features

  • Steel shank and carbide shank (HM) versions
  • SRD through-hole and SRB blind-hole types
SRD16-10-100 Shank: Steel | DCON (mm): 10 | LF (mm): 100 | LUX (mm): 60 | DC range (mm): ø11.900~ø15.600 | Stock: Yes
SRD19-12-115 Shank: Steel | DCON (mm): 12 | LF (mm): 115 | LUX (mm): 70 | DC range (mm): ø15.601~ø18.600 | Stock: Yes
SRD24-16-128 Shank: Steel | DCON (mm): 16 | LF (mm): 128 | LUX (mm): 80 | DC range (mm): ø18.601~ø23.600 | Stock: Yes
SRD29-20-145 Shank: Steel | DCON (mm): 20 | LF (mm): 145 | LUX (mm): 95 | DC range (mm): ø23.601~ø28.600 | Stock: Yes
SRD36-25-170 Shank: Steel | DCON (mm): 25 | LF (mm): 170 | LUX (mm): 110 | DC range (mm): ø28.601~ø35.600 | Stock: Yes
SRB16-10-100 Shank: Steel | DCON (mm): 10 | LF (mm): 100 | LUX (mm): 60 | DC range (mm): ø11.900~ø15.600 | Stock: Yes
SRB19-12-115 Shank: Steel | DCON (mm): 12 | LF (mm): 115 | LUX (mm): 70 | DC range (mm): ø15.601~ø18.600 | Stock: Yes
SRB24-16-128 Shank: Steel | DCON (mm): 16 | LF (mm): 128 | LUX (mm): 80 | DC range (mm): ø18.601~ø23.600 | Stock: Yes
SRB29-20-145 Shank: Steel | DCON (mm): 20 | LF (mm): 145 | LUX (mm): 95 | DC range (mm): ø23.601~ø28.600 | Stock: Yes
SRB36-25-170 Shank: Steel | DCON (mm): 25 | LF (mm): 170 | LUX (mm): 110 | DC range (mm): ø28.601~ø35.600 | Stock: Yes
SRD16-10-160HM Shank: Carbide | DCON (mm): 10 | LF (mm): 160 | LUX (mm): 120 | DC range (mm): ø11.900~ø15.600
SRD19-12-185HM Shank: Carbide | DCON (mm): 12 | LF (mm): 185 | LUX (mm): 140 | DC range (mm): ø15.601~ø18.600
SRD24-16-208HM Shank: Carbide | DCON (mm): 16 | LF (mm): 208 | LUX (mm): 160 | DC range (mm): ø18.601~ø23.600
SRD29-20-240HM Shank: Carbide | DCON (mm): 20 | LF (mm): 240 | LUX (mm): 190 | DC range (mm): ø23.601~ø28.600
SRD36-25-274HM Shank: Carbide | DCON (mm): 25 | LF (mm): 274 | LUX (mm): 214 | DC range (mm): ø28.601~ø35.600
SRB16-10-160HM Shank: Carbide | DCON (mm): 10 | LF (mm): 160 | LUX (mm): 120 | DC range (mm): ø11.900~ø15.600
SRB19-12-185HM Shank: Carbide | DCON (mm): 12 | LF (mm): 185 | LUX (mm): 140 | DC range (mm): ø15.601~ø18.600
SRB24-16-208HM Shank: Carbide | DCON (mm): 16 | LF (mm): 208 | LUX (mm): 160 | DC range (mm): ø18.601~ø23.600
SRB29-20-240HM Shank: Carbide | DCON (mm): 20 | LF (mm): 240 | LUX (mm): 190 | DC range (mm): ø23.601~ø28.600
SRB36-25-274HM Shank: Carbide | DCON (mm): 25 | LF (mm): 274 | LUX (mm): 214 | DC range (mm): ø28.601~ø35.600
