• Sumitomo Electric Hardmetal SumiReamer SR Type Shank SRA (with Runout Adjustment)
1 1

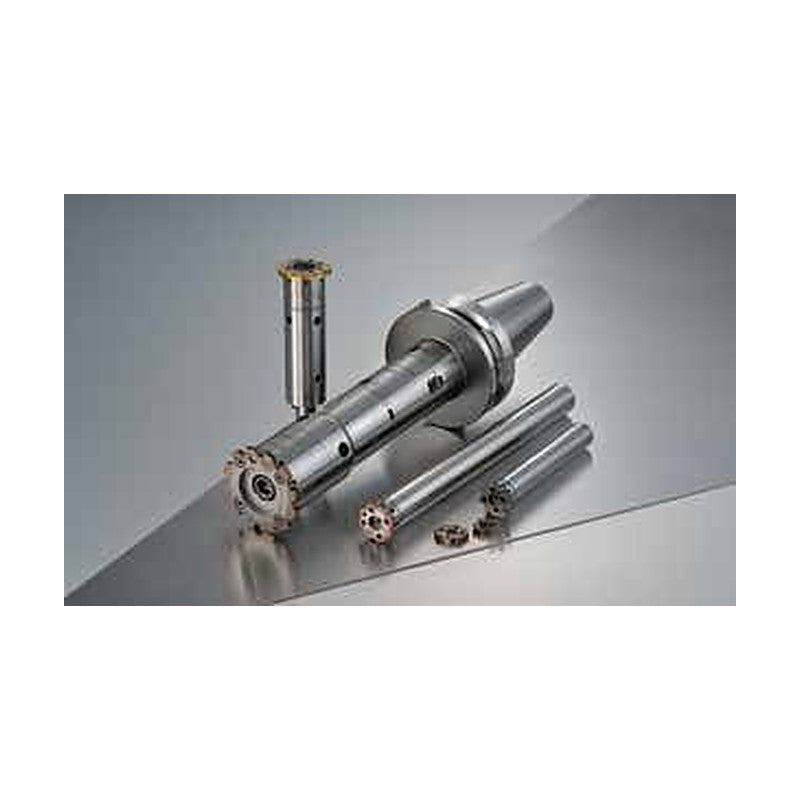

Sumitomo Electric Hardmetal SumiReamer SR Type Shank SRA (with Runout Adjustment)

Sumitomo Electric Hardmetal SumiReamer SR Type Shank SRA (with Runout Adjustment)

Shank with runout adjustment mechanism for SumiReamer SR type heads, in BM, ZS, WD and WN shank styles.

SRA44-32-BM32-055 DF (mm): 32 | DCON: BM-32 | LF (mm): 55 | LS (mm): 8.5 | Fig: 1
SRA44-32-BM32-080 DF (mm): 32 | DCON: BM-32 | LF (mm): 80 | LS (mm): 8.5 | Fig: 1
SRA52-39-BM40-060 DF (mm): 39 | DCON: BM-40 | LF (mm): 60 | LS (mm): 26.0 | Fig: 1
SRA52-39-BM40-100 DF (mm): 39 | DCON: BM-40 | LF (mm): 100 | LS (mm): 26.0 | Fig: 1
SRA61-46-BM50-070 DF (mm): 46 | DCON: BM-50 | LF (mm): 70 | LS (mm): 31.0 | Fig: 1
SRA61-46-BM50-120 DF (mm): 46 | DCON: BM-50 | LF (mm): 120 | LS (mm): 31.0 | Fig: 1
SRA81-56-BM50-080 DF (mm): 56 | DCON: BM-50 | LF (mm): 80 | LS (mm): 31.0 | Fig: 1
SRA81-56-BM50-140 DF (mm): 56 | DCON: BM-50 | LF (mm): 140 | LS (mm): 31.0 | Fig: 1
SRA101-76-BM63-100 DF (mm): 76 | DCON: BM-63 | LF (mm): 100 | LS (mm): 38.0 | Fig: 1
SRA101-76-BM63-160 DF (mm): 76 | DCON: BM-63 | LF (mm): 160 | LS (mm): 38.0 | Fig: 1
SRA44-32-ZS20-080 DF (mm): 32 | DCON: ZS-20 | LF (mm): 80 | LS (mm): 50.0 | Fig: 2
SRA52-39-ZS25-100 DF (mm): 39 | DCON: ZS-25 | LF (mm): 100 | LS (mm): 56.0 | Fig: 2
SRA61-46-ZS32-120 DF (mm): 46 | DCON: ZS-32 | LF (mm): 120 | LS (mm): 60.0 | Fig: 2
SRA81-56-ZS40-080 DF (mm): 56 | DCON: ZS-40 | LF (mm): 80 | LS (mm): 70.0 | Fig: 2
SRA81-56-ZS40-140 DF (mm): 56 | DCON: ZS-40 | LF (mm): 140 | LS (mm): 70.0 | Fig: 2
SRA101-76-ZS40-100 DF (mm): 76 | DCON: ZS-40 | LF (mm): 100 | LS (mm): 70.0 | Fig: 2
SRA101-76-ZS40-160 DF (mm): 76 | DCON: ZS-40 | LF (mm): 160 | LS (mm): 70.0 | Fig: 2
SRA44-32-WD20-080 DF (mm): 32 | DCON: WD-20 | LF (mm): 80 | LS (mm): 50.0 | Fig: 3
SRA52-39-WD25-100 DF (mm): 39 | DCON: WD-25 | LF (mm): 100 | LS (mm): 56.0 | Fig: 3
SRA61-46-WD32-120 DF (mm): 46 | DCON: WD-32 | LF (mm): 120 | LS (mm): 60.0 | Fig: 3
SRA81-56-WD40-080 DF (mm): 56 | DCON: WD-40 | LF (mm): 80 | LS (mm): 70.0 | Fig: 3
SRA81-56-WD40-140 DF (mm): 56 | DCON: WD-40 | LF (mm): 140 | LS (mm): 70.0 | Fig: 3
SRA101-76-WD40-100 DF (mm): 76 | DCON: WD-40 | LF (mm): 100 | LS (mm): 70.0 | Fig: 3
SRA101-76-WD40-160 DF (mm): 76 | DCON: WD-40 | LF (mm): 160 | LS (mm): 70.0 | Fig: 3
SRA44-32-WN20-080 DF (mm): 32 | DCON: WN-20 | LF (mm): 80 | LS (mm): 50.0 | Fig: 4
SRA52-39-WN25-100 DF (mm): 39 | DCON: WN-25 | LF (mm): 100 | LS (mm): 56.0 | Fig: 4
SRA61-46-WN32-120 DF (mm): 46 | DCON: WN-32 | LF (mm): 120 | LS (mm): 60.0 | Fig: 4
SRA81-56-WN40-080 DF (mm): 56 | DCON: WN-40 | LF (mm): 80 | LS (mm): 70.0 | Fig: 4
SRA81-56-WN40-140 DF (mm): 56 | DCON: WN-40 | LF (mm): 140 | LS (mm): 70.0 | Fig: 4
SRA101-76-WN40-100 DF (mm): 76 | DCON: WN-40 | LF (mm): 100 | LS (mm): 70.0 | Fig: 4
SRA101-76-WN40-160 DF (mm): 76 | DCON: WN-40 | LF (mm): 160 | LS (mm): 70.0 | Fig: 4
ReamersSumitomo Electric Hardmetal
31 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SumiReamer SR Type Shank SRA (with Runout Adjustment)

Brand Sumitomo Electric Hardmetal·Reamers

Available part numbers (31)

SRA44-32-BM32-055, SRA44-32-BM32-080, SRA52-39-BM40-060, SRA52-39-BM40-100, SRA61-46-BM50-070, SRA61-46-BM50-120, SRA81-56-BM50-080, SRA81-56-BM50-140, SRA101-76-BM63-100, SRA101-76-BM63-160 + 21 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SRA44-32-BM32-055DF (mm): 32 | DCON: BM-32 | LF (mm): 55 | LS (mm): 8.5 | Fig: 1
SRA44-32-BM32-080DF (mm): 32 | DCON: BM-32 | LF (mm): 80 | LS (mm): 8.5 | Fig: 1
SRA52-39-BM40-060DF (mm): 39 | DCON: BM-40 | LF (mm): 60 | LS (mm): 26.0 | Fig: 1
SRA52-39-BM40-100DF (mm): 39 | DCON: BM-40 | LF (mm): 100 | LS (mm): 26.0 | Fig: 1
SRA61-46-BM50-070DF (mm): 46 | DCON: BM-50 | LF (mm): 70 | LS (mm): 31.0 | Fig: 1
SRA61-46-BM50-120DF (mm): 46 | DCON: BM-50 | LF (mm): 120 | LS (mm): 31.0 | Fig: 1
SRA81-56-BM50-080DF (mm): 56 | DCON: BM-50 | LF (mm): 80 | LS (mm): 31.0 | Fig: 1
SRA81-56-BM50-140DF (mm): 56 | DCON: BM-50 | LF (mm): 140 | LS (mm): 31.0 | Fig: 1
SRA101-76-BM63-100DF (mm): 76 | DCON: BM-63 | LF (mm): 100 | LS (mm): 38.0 | Fig: 1
SRA101-76-BM63-160DF (mm): 76 | DCON: BM-63 | LF (mm): 160 | LS (mm): 38.0 | Fig: 1
SRA44-32-ZS20-080DF (mm): 32 | DCON: ZS-20 | LF (mm): 80 | LS (mm): 50.0 | Fig: 2
SRA52-39-ZS25-100DF (mm): 39 | DCON: ZS-25 | LF (mm): 100 | LS (mm): 56.0 | Fig: 2
SRA61-46-ZS32-120DF (mm): 46 | DCON: ZS-32 | LF (mm): 120 | LS (mm): 60.0 | Fig: 2
SRA81-56-ZS40-080DF (mm): 56 | DCON: ZS-40 | LF (mm): 80 | LS (mm): 70.0 | Fig: 2
SRA81-56-ZS40-140DF (mm): 56 | DCON: ZS-40 | LF (mm): 140 | LS (mm): 70.0 | Fig: 2
SRA101-76-ZS40-100DF (mm): 76 | DCON: ZS-40 | LF (mm): 100 | LS (mm): 70.0 | Fig: 2
SRA101-76-ZS40-160DF (mm): 76 | DCON: ZS-40 | LF (mm): 160 | LS (mm): 70.0 | Fig: 2
SRA44-32-WD20-080DF (mm): 32 | DCON: WD-20 | LF (mm): 80 | LS (mm): 50.0 | Fig: 3
SRA52-39-WD25-100DF (mm): 39 | DCON: WD-25 | LF (mm): 100 | LS (mm): 56.0 | Fig: 3
SRA61-46-WD32-120DF (mm): 46 | DCON: WD-32 | LF (mm): 120 | LS (mm): 60.0 | Fig: 3
SRA81-56-WD40-080DF (mm): 56 | DCON: WD-40 | LF (mm): 80 | LS (mm): 70.0 | Fig: 3
SRA81-56-WD40-140DF (mm): 56 | DCON: WD-40 | LF (mm): 140 | LS (mm): 70.0 | Fig: 3
SRA101-76-WD40-100DF (mm): 76 | DCON: WD-40 | LF (mm): 100 | LS (mm): 70.0 | Fig: 3
SRA101-76-WD40-160DF (mm): 76 | DCON: WD-40 | LF (mm): 160 | LS (mm): 70.0 | Fig: 3
SRA44-32-WN20-080DF (mm): 32 | DCON: WN-20 | LF (mm): 80 | LS (mm): 50.0 | Fig: 4
SRA52-39-WN25-100DF (mm): 39 | DCON: WN-25 | LF (mm): 100 | LS (mm): 56.0 | Fig: 4
SRA61-46-WN32-120DF (mm): 46 | DCON: WN-32 | LF (mm): 120 | LS (mm): 60.0 | Fig: 4
SRA81-56-WN40-080DF (mm): 56 | DCON: WN-40 | LF (mm): 80 | LS (mm): 70.0 | Fig: 4
SRA81-56-WN40-140DF (mm): 56 | DCON: WN-40 | LF (mm): 140 | LS (mm): 70.0 | Fig: 4
SRA101-76-WN40-100DF (mm): 76 | DCON: WN-40 | LF (mm): 100 | LS (mm): 70.0 | Fig: 4
SRA101-76-WN40-160DF (mm): 76 | DCON: WN-40 | LF (mm): 160 | LS (mm): 70.0 | Fig: 4

Need a different model, or a part not listed here? Send us your parts list →
