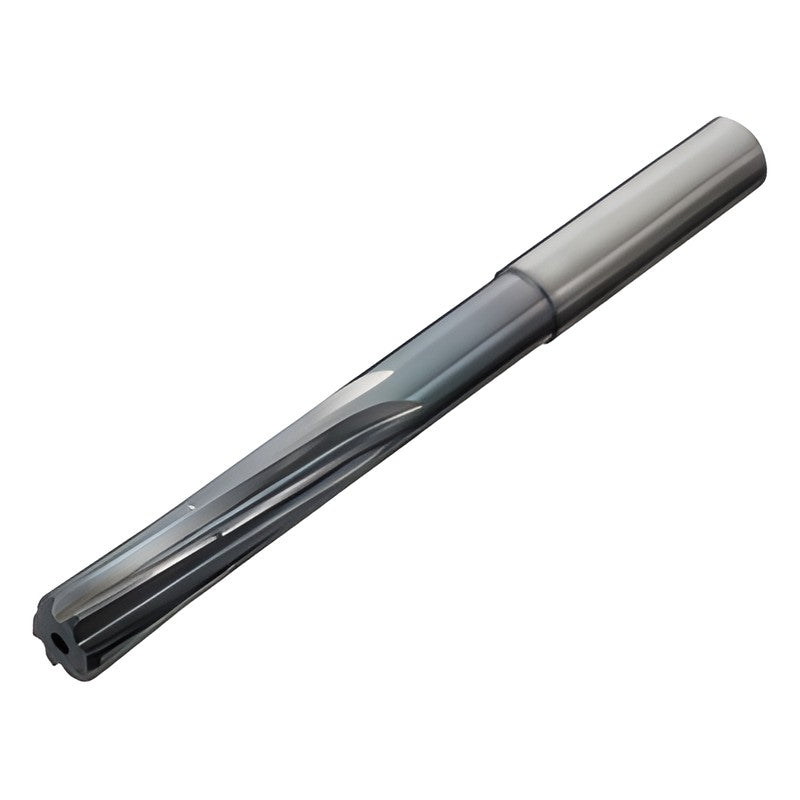

• Sumitomo Electric Hardmetal SumiReamer SSR Type Solid Carbide Reamer (Blind Hole, 0.01 mm Steps)
1 1

Sumitomo Electric Hardmetal SumiReamer SSR Type Solid Carbide Reamer (Blind Hole, 0.01 mm Steps)

Sumitomo Electric Hardmetal SumiReamer SSR Type Solid Carbide Reamer (Blind Hole, 0.01 mm Steps)

Solid carbide reamer for blind holes, available in 0.01 mm diameter steps from 2.97 to 12.00 mm.

Key features

  • Center coolant for blind holes
  • Long-life reamer coating

Specifications

DC tolerance (mm) +0.005/0
Grade ACR40
SSR02970JS DC (mm): 2.97 | OAL (mm): 68 | DCON (mm): 4 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR02980JS DC (mm): 2.98 | OAL (mm): 68 | DCON (mm): 4 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR02990JS DC (mm): 2.99 | OAL (mm): 68 | DCON (mm): 4 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR03000JS DC (mm): 3.00 | OAL (mm): 68 | DCON (mm): 4 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR03010JS DC (mm): 3.01 | OAL (mm): 68 | DCON (mm): 4 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR03020JS DC (mm): 3.02 | OAL (mm): 68 | DCON (mm): 4 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR03030JS DC (mm): 3.03 | OAL (mm): 68 | DCON (mm): 4 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR03970JS DC (mm): 3.97 | OAL (mm): 76 | DCON (mm): 5 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR03980JS DC (mm): 3.98 | OAL (mm): 76 | DCON (mm): 5 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR03990JS DC (mm): 3.99 | OAL (mm): 76 | DCON (mm): 5 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR04000JS DC (mm): 4.00 | OAL (mm): 76 | DCON (mm): 5 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR04010JS DC (mm): 4.01 | OAL (mm): 76 | DCON (mm): 5 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR04020JS DC (mm): 4.02 | OAL (mm): 76 | DCON (mm): 5 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR04030JS DC (mm): 4.03 | OAL (mm): 76 | DCON (mm): 5 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR04970JS DC (mm): 4.97 | OAL (mm): 76 | DCON (mm): 6 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR04980JS DC (mm): 4.98 | OAL (mm): 76 | DCON (mm): 6 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR04990JS DC (mm): 4.99 | OAL (mm): 76 | DCON (mm): 6 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR05000JS DC (mm): 5.00 | OAL (mm): 76 | DCON (mm): 6 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR05010JS DC (mm): 5.01 | OAL (mm): 76 | DCON (mm): 6 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR05020JS DC (mm): 5.02 | OAL (mm): 76 | DCON (mm): 6 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR05030JS DC (mm): 5.03 | OAL (mm): 76 | DCON (mm): 6 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR05970JS DC (mm): 5.97 | OAL (mm): 76 | DCON (mm): 7 | LPR (mm): 40 | LH (mm): 16 | PL (mm): 1.0 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR05980JS DC (mm): 5.98 | OAL (mm): 76 | DCON (mm): 7 | LPR (mm): 40 | LH (mm): 16 | PL (mm): 1.0 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR05990JS DC (mm): 5.99 | OAL (mm): 76 | DCON (mm): 7 | LPR (mm): 40 | LH (mm): 16 | PL (mm): 1.0 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR06000JS DC (mm): 6.00 | OAL (mm): 76 | DCON (mm): 7 | LPR (mm): 40 | LH (mm): 16 | PL (mm): 1.0 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR06010JS DC (mm): 6.01 | OAL (mm): 76 | DCON (mm): 7 | LPR (mm): 40 | LH (mm): 16 | PL (mm): 1.0 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR06020JS DC (mm): 6.02 | OAL (mm): 76 | DCON (mm): 7 | LPR (mm): 40 | LH (mm): 16 | PL (mm): 1.0 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR06030JS DC (mm): 6.03 | OAL (mm): 76 | DCON (mm): 7 | LPR (mm): 40 | LH (mm): 16 | PL (mm): 1.0 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR06970JS DC (mm): 6.97 | OAL (mm): 101 | DCON (mm): 8 | LPR (mm): 65 | LH (mm): 16 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 1 | Stock: Yes
SSR06980JS DC (mm): 6.98 | OAL (mm): 101 | DCON (mm): 8 | LPR (mm): 65 | LH (mm): 16 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 1 | Stock: Yes
SSR06990JS DC (mm): 6.99 | OAL (mm): 101 | DCON (mm): 8 | LPR (mm): 65 | LH (mm): 16 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 1 | Stock: Yes
SSR07000JS DC (mm): 7.00 | OAL (mm): 101 | DCON (mm): 8 | LPR (mm): 65 | LH (mm): 16 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 1 | Stock: Yes
SSR07010JS DC (mm): 7.01 | OAL (mm): 101 | DCON (mm): 8 | LPR (mm): 65 | LH (mm): 16 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 1 | Stock: Yes
SSR07020JS DC (mm): 7.02 | OAL (mm): 101 | DCON (mm): 8 | LPR (mm): 65 | LH (mm): 16 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 1 | Stock: Yes
SSR07030JS DC (mm): 7.03 | OAL (mm): 101 | DCON (mm): 8 | LPR (mm): 65 | LH (mm): 16 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 1 | Stock: Yes
SSR07970JS DC (mm): 7.97 | OAL (mm): 101 | DCON (mm): 9 | LPR (mm): 65 | LH (mm): 19 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 1 | Stock: Yes
SSR07980JS DC (mm): 7.98 | OAL (mm): 101 | DCON (mm): 9 | LPR (mm): 65 | LH (mm): 19 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 1 | Stock: Yes
SSR07990JS DC (mm): 7.99 | OAL (mm): 101 | DCON (mm): 9 | LPR (mm): 65 | LH (mm): 19 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 1 | Stock: Yes
SSR08000JS DC (mm): 8.00 | OAL (mm): 101 | DCON (mm): 9 | LPR (mm): 65 | LH (mm): 19 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 1 | Stock: Yes
SSR08010JS DC (mm): 8.01 | OAL (mm): 101 | DCON (mm): 9 | LPR (mm): 65 | LH (mm): 19 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 1 | Stock: Yes
SSR08020JS DC (mm): 8.02 | OAL (mm): 101 | DCON (mm): 9 | LPR (mm): 65 | LH (mm): 19 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 1 | Stock: Yes
SSR08030JS DC (mm): 8.03 | OAL (mm): 101 | DCON (mm): 9 | LPR (mm): 65 | LH (mm): 19 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 1 | Stock: Yes
SSR08970JS DC (mm): 8.97 | OAL (mm): 101 | DCON (mm): 10 | LPR (mm): 65 | LH (mm): 19 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 1 | Stock: Yes
SSR08980JS DC (mm): 8.98 | OAL (mm): 101 | DCON (mm): 10 | LPR (mm): 65 | LH (mm): 19 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 1 | Stock: Yes
SSR08990JS DC (mm): 8.99 | OAL (mm): 101 | DCON (mm): 10 | LPR (mm): 65 | LH (mm): 19 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 1 | Stock: Yes
SSR09000JS DC (mm): 9.00 | OAL (mm): 101 | DCON (mm): 10 | LPR (mm): 65 | LH (mm): 19 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 1 | Stock: Yes
SSR09010JS DC (mm): 9.01 | OAL (mm): 101 | DCON (mm): 10 | LPR (mm): 65 | LH (mm): 19 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 1 | Stock: Yes
SSR09020JS DC (mm): 9.02 | OAL (mm): 101 | DCON (mm): 10 | LPR (mm): 65 | LH (mm): 19 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 1 | Stock: Yes
SSR09030JS DC (mm): 9.03 | OAL (mm): 101 | DCON (mm): 10 | LPR (mm): 65 | LH (mm): 19 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 1 | Stock: Yes
SSR09970JS DC (mm): 9.97 | OAL (mm): 130 | DCON (mm): 11 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 1 | Stock: Yes
SSR09980JS DC (mm): 9.98 | OAL (mm): 130 | DCON (mm): 11 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 1 | Stock: Yes
SSR09990JS DC (mm): 9.99 | OAL (mm): 130 | DCON (mm): 11 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 1 | Stock: Yes
SSR10000JS DC (mm): 10.00 | OAL (mm): 130 | DCON (mm): 11 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 1 | Stock: Yes
SSR10010JS DC (mm): 10.01 | OAL (mm): 130 | DCON (mm): 11 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 1 | Stock: Yes
SSR10020JS DC (mm): 10.02 | OAL (mm): 130 | DCON (mm): 11 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 1 | Stock: Yes
SSR10030JS DC (mm): 10.03 | OAL (mm): 130 | DCON (mm): 11 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 1 | Stock: Yes
SSR10970JS DC (mm): 10.97 | OAL (mm): 130 | DCON (mm): 12 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 1 | Stock: Yes
SSR10980JS DC (mm): 10.98 | OAL (mm): 130 | DCON (mm): 12 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 1 | Stock: Yes
SSR10990JS DC (mm): 10.99 | OAL (mm): 130 | DCON (mm): 12 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 1 | Stock: Yes
SSR11000JS DC (mm): 11.00 | OAL (mm): 130 | DCON (mm): 12 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 1 | Stock: Yes
SSR11010JS DC (mm): 11.01 | OAL (mm): 130 | DCON (mm): 12 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 1 | Stock: Yes
SSR11020JS DC (mm): 11.02 | OAL (mm): 130 | DCON (mm): 12 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 1 | Stock: Yes
SSR11030JS DC (mm): 11.03 | OAL (mm): 130 | DCON (mm): 12 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 1 | Stock: Yes
SSR11970JS DC (mm): 11.97 | OAL (mm): 130 | DCON (mm): 13 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 1 | Stock: Yes
SSR11980JS DC (mm): 11.98 | OAL (mm): 130 | DCON (mm): 13 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 1 | Stock: Yes
SSR11990JS DC (mm): 11.99 | OAL (mm): 130 | DCON (mm): 13 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 1 | Stock: Yes
SSR12000JS DC (mm): 12.00 | OAL (mm): 130 | DCON (mm): 13 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 1 | Stock: Yes
ReamersSumitomo Electric Hardmetal
67 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SumiReamer SSR Type Solid Carbide Reamer (Blind Hole, 0.01 mm Steps)

Brand Sumitomo Electric Hardmetal·Reamers

Available part numbers (67)

SSR02970JS, SSR02980JS, SSR02990JS, SSR03000JS, SSR03010JS, SSR03020JS, SSR03030JS, SSR03970JS, SSR03980JS, SSR03990JS + 57 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SSR02970JSDC (mm): 2.97 | OAL (mm): 68 | DCON (mm): 4 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR02980JSDC (mm): 2.98 | OAL (mm): 68 | DCON (mm): 4 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR02990JSDC (mm): 2.99 | OAL (mm): 68 | DCON (mm): 4 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR03000JSDC (mm): 3.00 | OAL (mm): 68 | DCON (mm): 4 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR03010JSDC (mm): 3.01 | OAL (mm): 68 | DCON (mm): 4 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR03020JSDC (mm): 3.02 | OAL (mm): 68 | DCON (mm): 4 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR03030JSDC (mm): 3.03 | OAL (mm): 68 | DCON (mm): 4 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR03970JSDC (mm): 3.97 | OAL (mm): 76 | DCON (mm): 5 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR03980JSDC (mm): 3.98 | OAL (mm): 76 | DCON (mm): 5 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR03990JSDC (mm): 3.99 | OAL (mm): 76 | DCON (mm): 5 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR04000JSDC (mm): 4.00 | OAL (mm): 76 | DCON (mm): 5 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR04010JSDC (mm): 4.01 | OAL (mm): 76 | DCON (mm): 5 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR04020JSDC (mm): 4.02 | OAL (mm): 76 | DCON (mm): 5 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR04030JSDC (mm): 4.03 | OAL (mm): 76 | DCON (mm): 5 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR04970JSDC (mm): 4.97 | OAL (mm): 76 | DCON (mm): 6 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR04980JSDC (mm): 4.98 | OAL (mm): 76 | DCON (mm): 6 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR04990JSDC (mm): 4.99 | OAL (mm): 76 | DCON (mm): 6 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR05000JSDC (mm): 5.00 | OAL (mm): 76 | DCON (mm): 6 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR05010JSDC (mm): 5.01 | OAL (mm): 76 | DCON (mm): 6 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR05020JSDC (mm): 5.02 | OAL (mm): 76 | DCON (mm): 6 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR05030JSDC (mm): 5.03 | OAL (mm): 76 | DCON (mm): 6 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR05970JSDC (mm): 5.97 | OAL (mm): 76 | DCON (mm): 7 | LPR (mm): 40 | LH (mm): 16 | PL (mm): 1.0 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR05980JSDC (mm): 5.98 | OAL (mm): 76 | DCON (mm): 7 | LPR (mm): 40 | LH (mm): 16 | PL (mm): 1.0 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR05990JSDC (mm): 5.99 | OAL (mm): 76 | DCON (mm): 7 | LPR (mm): 40 | LH (mm): 16 | PL (mm): 1.0 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR06000JSDC (mm): 6.00 | OAL (mm): 76 | DCON (mm): 7 | LPR (mm): 40 | LH (mm): 16 | PL (mm): 1.0 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR06010JSDC (mm): 6.01 | OAL (mm): 76 | DCON (mm): 7 | LPR (mm): 40 | LH (mm): 16 | PL (mm): 1.0 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR06020JSDC (mm): 6.02 | OAL (mm): 76 | DCON (mm): 7 | LPR (mm): 40 | LH (mm): 16 | PL (mm): 1.0 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR06030JSDC (mm): 6.03 | OAL (mm): 76 | DCON (mm): 7 | LPR (mm): 40 | LH (mm): 16 | PL (mm): 1.0 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR06970JSDC (mm): 6.97 | OAL (mm): 101 | DCON (mm): 8 | LPR (mm): 65 | LH (mm): 16 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 1 | Stock: Yes
SSR06980JSDC (mm): 6.98 | OAL (mm): 101 | DCON (mm): 8 | LPR (mm): 65 | LH (mm): 16 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 1 | Stock: Yes
SSR06990JSDC (mm): 6.99 | OAL (mm): 101 | DCON (mm): 8 | LPR (mm): 65 | LH (mm): 16 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 1 | Stock: Yes
SSR07000JSDC (mm): 7.00 | OAL (mm): 101 | DCON (mm): 8 | LPR (mm): 65 | LH (mm): 16 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 1 | Stock: Yes
SSR07010JSDC (mm): 7.01 | OAL (mm): 101 | DCON (mm): 8 | LPR (mm): 65 | LH (mm): 16 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 1 | Stock: Yes
SSR07020JSDC (mm): 7.02 | OAL (mm): 101 | DCON (mm): 8 | LPR (mm): 65 | LH (mm): 16 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 1 | Stock: Yes
SSR07030JSDC (mm): 7.03 | OAL (mm): 101 | DCON (mm): 8 | LPR (mm): 65 | LH (mm): 16 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 1 | Stock: Yes
SSR07970JSDC (mm): 7.97 | OAL (mm): 101 | DCON (mm): 9 | LPR (mm): 65 | LH (mm): 19 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 1 | Stock: Yes
SSR07980JSDC (mm): 7.98 | OAL (mm): 101 | DCON (mm): 9 | LPR (mm): 65 | LH (mm): 19 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 1 | Stock: Yes
SSR07990JSDC (mm): 7.99 | OAL (mm): 101 | DCON (mm): 9 | LPR (mm): 65 | LH (mm): 19 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 1 | Stock: Yes
SSR08000JSDC (mm): 8.00 | OAL (mm): 101 | DCON (mm): 9 | LPR (mm): 65 | LH (mm): 19 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 1 | Stock: Yes
SSR08010JSDC (mm): 8.01 | OAL (mm): 101 | DCON (mm): 9 | LPR (mm): 65 | LH (mm): 19 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 1 | Stock: Yes
SSR08020JSDC (mm): 8.02 | OAL (mm): 101 | DCON (mm): 9 | LPR (mm): 65 | LH (mm): 19 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 1 | Stock: Yes
SSR08030JSDC (mm): 8.03 | OAL (mm): 101 | DCON (mm): 9 | LPR (mm): 65 | LH (mm): 19 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 1 | Stock: Yes
SSR08970JSDC (mm): 8.97 | OAL (mm): 101 | DCON (mm): 10 | LPR (mm): 65 | LH (mm): 19 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 1 | Stock: Yes
SSR08980JSDC (mm): 8.98 | OAL (mm): 101 | DCON (mm): 10 | LPR (mm): 65 | LH (mm): 19 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 1 | Stock: Yes
SSR08990JSDC (mm): 8.99 | OAL (mm): 101 | DCON (mm): 10 | LPR (mm): 65 | LH (mm): 19 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 1 | Stock: Yes
SSR09000JSDC (mm): 9.00 | OAL (mm): 101 | DCON (mm): 10 | LPR (mm): 65 | LH (mm): 19 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 1 | Stock: Yes
SSR09010JSDC (mm): 9.01 | OAL (mm): 101 | DCON (mm): 10 | LPR (mm): 65 | LH (mm): 19 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 1 | Stock: Yes
SSR09020JSDC (mm): 9.02 | OAL (mm): 101 | DCON (mm): 10 | LPR (mm): 65 | LH (mm): 19 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 1 | Stock: Yes
SSR09030JSDC (mm): 9.03 | OAL (mm): 101 | DCON (mm): 10 | LPR (mm): 65 | LH (mm): 19 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 1 | Stock: Yes
SSR09970JSDC (mm): 9.97 | OAL (mm): 130 | DCON (mm): 11 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 1 | Stock: Yes
SSR09980JSDC (mm): 9.98 | OAL (mm): 130 | DCON (mm): 11 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 1 | Stock: Yes
SSR09990JSDC (mm): 9.99 | OAL (mm): 130 | DCON (mm): 11 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 1 | Stock: Yes
SSR10000JSDC (mm): 10.00 | OAL (mm): 130 | DCON (mm): 11 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 1 | Stock: Yes
SSR10010JSDC (mm): 10.01 | OAL (mm): 130 | DCON (mm): 11 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 1 | Stock: Yes
SSR10020JSDC (mm): 10.02 | OAL (mm): 130 | DCON (mm): 11 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 1 | Stock: Yes
SSR10030JSDC (mm): 10.03 | OAL (mm): 130 | DCON (mm): 11 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 1 | Stock: Yes
SSR10970JSDC (mm): 10.97 | OAL (mm): 130 | DCON (mm): 12 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 1 | Stock: Yes
SSR10980JSDC (mm): 10.98 | OAL (mm): 130 | DCON (mm): 12 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 1 | Stock: Yes
SSR10990JSDC (mm): 10.99 | OAL (mm): 130 | DCON (mm): 12 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 1 | Stock: Yes
SSR11000JSDC (mm): 11.00 | OAL (mm): 130 | DCON (mm): 12 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 1 | Stock: Yes
SSR11010JSDC (mm): 11.01 | OAL (mm): 130 | DCON (mm): 12 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 1 | Stock: Yes
SSR11020JSDC (mm): 11.02 | OAL (mm): 130 | DCON (mm): 12 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 1 | Stock: Yes
SSR11030JSDC (mm): 11.03 | OAL (mm): 130 | DCON (mm): 12 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 1 | Stock: Yes
SSR11970JSDC (mm): 11.97 | OAL (mm): 130 | DCON (mm): 13 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 1 | Stock: Yes
SSR11980JSDC (mm): 11.98 | OAL (mm): 130 | DCON (mm): 13 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 1 | Stock: Yes
SSR11990JSDC (mm): 11.99 | OAL (mm): 130 | DCON (mm): 13 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 1 | Stock: Yes
SSR12000JSDC (mm): 12.00 | OAL (mm): 130 | DCON (mm): 13 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 1 | Stock: Yes
