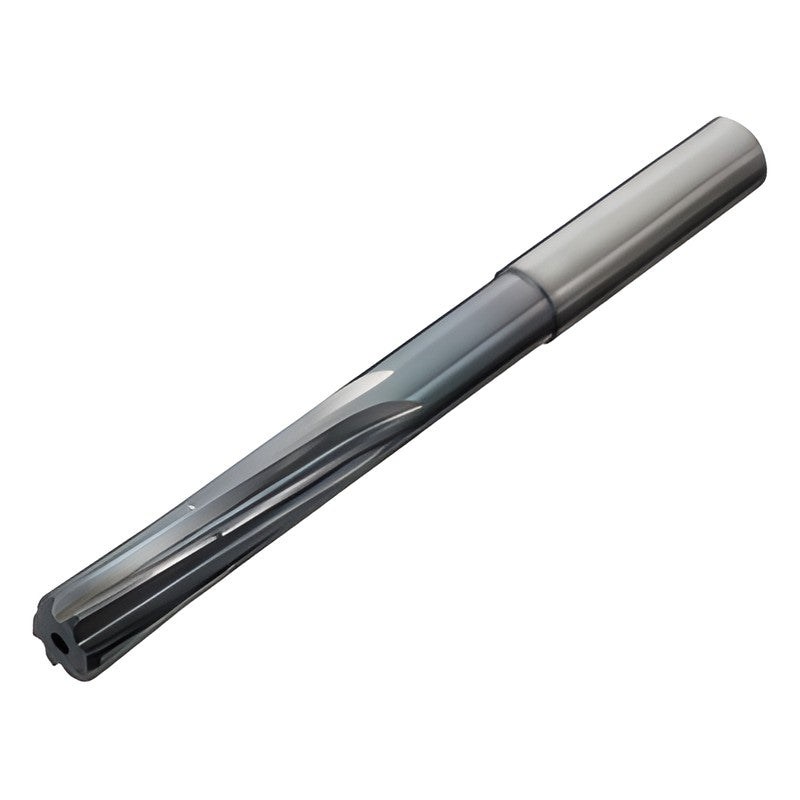

Sumitomo Electric Hardmetal SumiReamer SSR Type Solid Carbide Reamer for H7 Holes (Blind Hole)

Sumitomo Electric Hardmetal SumiReamer SSR Type Solid Carbide Reamer for H7 Holes (Blind Hole)

Solid carbide reamer with reamer-specific coating and center coolant for H7 tolerance blind holes.

Key features

  • Center coolant for blind holes
  • Long-life reamer coating

Specifications

Hole tolerance H7
Grade ACR40
SSR03000H7S DC (mm): 3.0 | OAL (mm): 68 | DCON (mm): 4 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | Number of flutes: 4 | Stock: Yes
SSR03500H7S DC (mm): 3.5 | OAL (mm): 68 | DCON (mm): 4 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | Number of flutes: 4 | Stock: Yes
SSR04000H7S DC (mm): 4.0 | OAL (mm): 76 | DCON (mm): 5 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | Number of flutes: 4 | Stock: Yes
SSR04500H7S DC (mm): 4.5 | OAL (mm): 76 | DCON (mm): 5 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | Number of flutes: 4 | Stock: Yes
SSR05000H7S DC (mm): 5.0 | OAL (mm): 76 | DCON (mm): 6 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | Number of flutes: 4 | Stock: Yes
SSR05500H7S DC (mm): 5.5 | OAL (mm): 76 | DCON (mm): 6 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | Number of flutes: 4 | Stock: Yes
SSR06000H7S DC (mm): 6.0 | OAL (mm): 76 | DCON (mm): 7 | LPR (mm): 40 | LH (mm): 16 | PL (mm): 1.0 | Number of flutes: 4 | Stock: Yes
SSR06500H7S DC (mm): 6.5 | OAL (mm): 76 | DCON (mm): 7 | LPR (mm): 40 | LH (mm): 16 | PL (mm): 1.0 | Number of flutes: 4 | Stock: Yes
SSR07000H7S DC (mm): 7.0 | OAL (mm): 101 | DCON (mm): 8 | LPR (mm): 65 | LH (mm): 16 | PL (mm): 1.0 | Number of flutes: 6 | Stock: Yes
SSR07500H7S DC (mm): 7.5 | OAL (mm): 101 | DCON (mm): 8 | LPR (mm): 65 | LH (mm): 16 | PL (mm): 1.0 | Number of flutes: 6 | Stock: Yes
SSR08000H7S DC (mm): 8.0 | OAL (mm): 101 | DCON (mm): 9 | LPR (mm): 65 | LH (mm): 19 | PL (mm): 1.0 | Number of flutes: 6 | Stock: Yes
SSR08500H7S DC (mm): 8.5 | OAL (mm): 101 | DCON (mm): 9 | LPR (mm): 65 | LH (mm): 19 | PL (mm): 1.0 | Number of flutes: 6 | Stock: Yes
SSR09000H7S DC (mm): 9.0 | OAL (mm): 101 | DCON (mm): 10 | LPR (mm): 65 | LH (mm): 19 | PL (mm): 1.0 | Number of flutes: 6 | Stock: Yes
SSR09500H7S DC (mm): 9.5 | OAL (mm): 101 | DCON (mm): 10 | LPR (mm): 65 | LH (mm): 19 | PL (mm): 1.0 | Number of flutes: 6 | Stock: Yes
SSR10000H7S DC (mm): 10.0 | OAL (mm): 130 | DCON (mm): 11 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Stock: Yes
SSR10500H7S DC (mm): 10.5 | OAL (mm): 130 | DCON (mm): 11 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Stock: Yes
SSR11000H7S DC (mm): 11.0 | OAL (mm): 130 | DCON (mm): 12 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Stock: Yes
SSR11500H7S DC (mm): 11.5 | OAL (mm): 130 | DCON (mm): 12 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Stock: Yes
SSR12000H7S DC (mm): 12.0 | OAL (mm): 130 | DCON (mm): 13 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Stock: Yes
ReamersSumitomo Electric Hardmetal
19 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SumiReamer SSR Type Solid Carbide Reamer for H7 Holes (Blind Hole)

Brand Sumitomo Electric Hardmetal·Reamers

Available part numbers (19)

SSR03000H7S, SSR03500H7S, SSR04000H7S, SSR04500H7S, SSR05000H7S, SSR05500H7S, SSR06000H7S, SSR06500H7S, SSR07000H7S, SSR07500H7S + 9 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SSR03000H7SDC (mm): 3.0 | OAL (mm): 68 | DCON (mm): 4 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | Number of flutes: 4 | Stock: Yes
SSR03500H7SDC (mm): 3.5 | OAL (mm): 68 | DCON (mm): 4 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | Number of flutes: 4 | Stock: Yes
SSR04000H7SDC (mm): 4.0 | OAL (mm): 76 | DCON (mm): 5 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | Number of flutes: 4 | Stock: Yes
SSR04500H7SDC (mm): 4.5 | OAL (mm): 76 | DCON (mm): 5 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | Number of flutes: 4 | Stock: Yes
SSR05000H7SDC (mm): 5.0 | OAL (mm): 76 | DCON (mm): 6 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | Number of flutes: 4 | Stock: Yes
SSR05500H7SDC (mm): 5.5 | OAL (mm): 76 | DCON (mm): 6 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | Number of flutes: 4 | Stock: Yes
SSR06000H7SDC (mm): 6.0 | OAL (mm): 76 | DCON (mm): 7 | LPR (mm): 40 | LH (mm): 16 | PL (mm): 1.0 | Number of flutes: 4 | Stock: Yes
SSR06500H7SDC (mm): 6.5 | OAL (mm): 76 | DCON (mm): 7 | LPR (mm): 40 | LH (mm): 16 | PL (mm): 1.0 | Number of flutes: 4 | Stock: Yes
SSR07000H7SDC (mm): 7.0 | OAL (mm): 101 | DCON (mm): 8 | LPR (mm): 65 | LH (mm): 16 | PL (mm): 1.0 | Number of flutes: 6 | Stock: Yes
SSR07500H7SDC (mm): 7.5 | OAL (mm): 101 | DCON (mm): 8 | LPR (mm): 65 | LH (mm): 16 | PL (mm): 1.0 | Number of flutes: 6 | Stock: Yes
SSR08000H7SDC (mm): 8.0 | OAL (mm): 101 | DCON (mm): 9 | LPR (mm): 65 | LH (mm): 19 | PL (mm): 1.0 | Number of flutes: 6 | Stock: Yes
SSR08500H7SDC (mm): 8.5 | OAL (mm): 101 | DCON (mm): 9 | LPR (mm): 65 | LH (mm): 19 | PL (mm): 1.0 | Number of flutes: 6 | Stock: Yes
SSR09000H7SDC (mm): 9.0 | OAL (mm): 101 | DCON (mm): 10 | LPR (mm): 65 | LH (mm): 19 | PL (mm): 1.0 | Number of flutes: 6 | Stock: Yes
SSR09500H7SDC (mm): 9.5 | OAL (mm): 101 | DCON (mm): 10 | LPR (mm): 65 | LH (mm): 19 | PL (mm): 1.0 | Number of flutes: 6 | Stock: Yes
SSR10000H7SDC (mm): 10.0 | OAL (mm): 130 | DCON (mm): 11 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Stock: Yes
SSR10500H7SDC (mm): 10.5 | OAL (mm): 130 | DCON (mm): 11 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Stock: Yes
SSR11000H7SDC (mm): 11.0 | OAL (mm): 130 | DCON (mm): 12 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Stock: Yes
SSR11500H7SDC (mm): 11.5 | OAL (mm): 130 | DCON (mm): 12 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Stock: Yes
SSR12000H7SDC (mm): 12.0 | OAL (mm): 130 | DCON (mm): 13 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Stock: Yes
