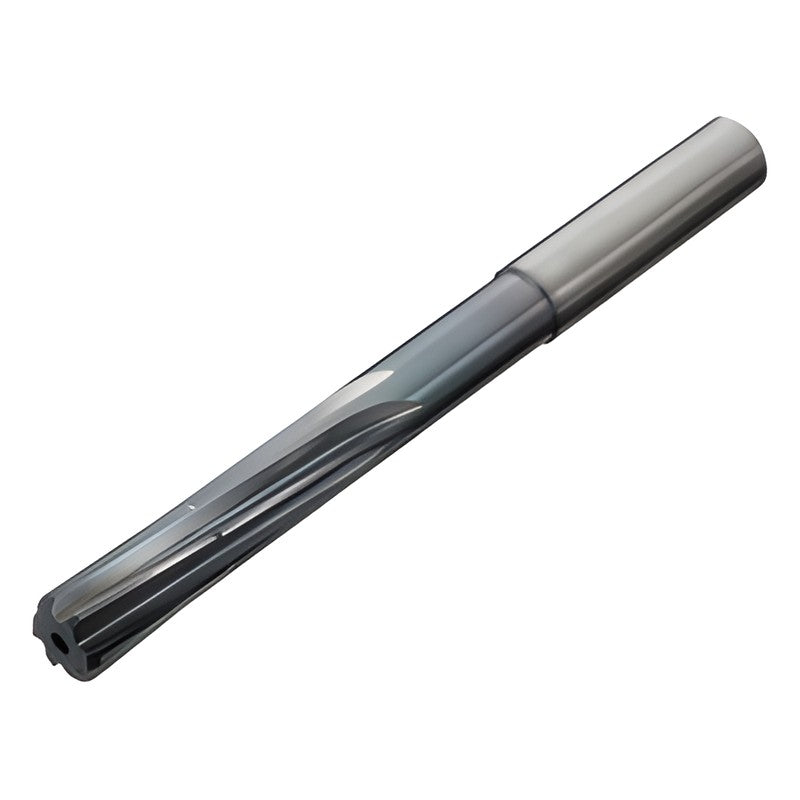

• Sumitomo Electric Hardmetal SumiReamer SSR Type Solid Carbide Reamer (Through Hole, 0.01 mm Steps)
1 1

Sumitomo Electric Hardmetal SumiReamer SSR Type Solid Carbide Reamer (Through Hole, 0.01 mm Steps)

Sumitomo Electric Hardmetal SumiReamer SSR Type Solid Carbide Reamer (Through Hole, 0.01 mm Steps)

Solid carbide reamer for through holes, available in 0.01 mm diameter steps from 2.97 to 12.00 mm.

Key features

  • Left-hand helix flutes for through holes
  • Long-life reamer coating
  • Internal coolant

Specifications

DC tolerance (mm) +0.005/0
Grade ACR40
SSR02970JT DC (mm): 2.97 | OAL (mm): 68 | DCON (mm): 4 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | L (mm): 0.7 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR02980JT DC (mm): 2.98 | OAL (mm): 68 | DCON (mm): 4 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | L (mm): 0.7 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR02990JT DC (mm): 2.99 | OAL (mm): 68 | DCON (mm): 4 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | L (mm): 0.7 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR03000JT DC (mm): 3.00 | OAL (mm): 68 | DCON (mm): 4 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | L (mm): 0.7 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR03010JT DC (mm): 3.01 | OAL (mm): 68 | DCON (mm): 4 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | L (mm): 0.8 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR03020JT DC (mm): 3.02 | OAL (mm): 68 | DCON (mm): 4 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | L (mm): 0.8 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR03030JT DC (mm): 3.03 | OAL (mm): 68 | DCON (mm): 4 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | L (mm): 0.8 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR03970JT DC (mm): 3.97 | OAL (mm): 76 | DCON (mm): 5 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | L (mm): 1.0 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR03980JT DC (mm): 3.98 | OAL (mm): 76 | DCON (mm): 5 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | L (mm): 1.0 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR03990JT DC (mm): 3.99 | OAL (mm): 76 | DCON (mm): 5 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | L (mm): 1.0 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR04000JT DC (mm): 4.00 | OAL (mm): 76 | DCON (mm): 5 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | L (mm): 1.0 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR04010JT DC (mm): 4.01 | OAL (mm): 76 | DCON (mm): 5 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | L (mm): 1.0 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR04020JT DC (mm): 4.02 | OAL (mm): 76 | DCON (mm): 5 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | L (mm): 1.0 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR04030JT DC (mm): 4.03 | OAL (mm): 76 | DCON (mm): 5 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | L (mm): 1.0 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR04970JT DC (mm): 4.97 | OAL (mm): 76 | DCON (mm): 6 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | L (mm): 1.3 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR04980JT DC (mm): 4.98 | OAL (mm): 76 | DCON (mm): 6 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | L (mm): 1.3 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR04990JT DC (mm): 4.99 | OAL (mm): 76 | DCON (mm): 6 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | L (mm): 1.3 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR05000JT DC (mm): 5.00 | OAL (mm): 76 | DCON (mm): 6 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | L (mm): 1.3 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR05010JT DC (mm): 5.01 | OAL (mm): 76 | DCON (mm): 6 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | L (mm): 1.3 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR05020JT DC (mm): 5.02 | OAL (mm): 76 | DCON (mm): 6 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | L (mm): 1.3 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR05030JT DC (mm): 5.03 | OAL (mm): 76 | DCON (mm): 6 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | L (mm): 1.3 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR05970JT DC (mm): 5.97 | OAL (mm): 76 | DCON (mm): 7 | LPR (mm): 40 | LH (mm): 16 | PL (mm): 1.0 | Number of flutes: 4 | Fig: 2 | Stock: Yes
SSR05980JT DC (mm): 5.98 | OAL (mm): 76 | DCON (mm): 7 | LPR (mm): 40 | LH (mm): 16 | PL (mm): 1.0 | Number of flutes: 4 | Fig: 2 | Stock: Yes
SSR05990JT DC (mm): 5.99 | OAL (mm): 76 | DCON (mm): 7 | LPR (mm): 40 | LH (mm): 16 | PL (mm): 1.0 | Number of flutes: 4 | Fig: 2 | Stock: Yes
SSR06000JT DC (mm): 6.00 | OAL (mm): 76 | DCON (mm): 7 | LPR (mm): 40 | LH (mm): 16 | PL (mm): 1.0 | Number of flutes: 4 | Fig: 2 | Stock: Yes
SSR06010JT DC (mm): 6.01 | OAL (mm): 76 | DCON (mm): 7 | LPR (mm): 40 | LH (mm): 16 | PL (mm): 1.0 | Number of flutes: 4 | Fig: 2 | Stock: Yes
SSR06020JT DC (mm): 6.02 | OAL (mm): 76 | DCON (mm): 7 | LPR (mm): 40 | LH (mm): 16 | PL (mm): 1.0 | Number of flutes: 4 | Fig: 2 | Stock: Yes
SSR06030JT DC (mm): 6.03 | OAL (mm): 76 | DCON (mm): 7 | LPR (mm): 40 | LH (mm): 16 | PL (mm): 1.0 | Number of flutes: 4 | Fig: 2 | Stock: Yes
SSR06970JT DC (mm): 6.97 | OAL (mm): 101 | DCON (mm): 8 | LPR (mm): 65 | LH (mm): 16 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 2 | Stock: Yes
SSR06980JT DC (mm): 6.98 | OAL (mm): 101 | DCON (mm): 8 | LPR (mm): 65 | LH (mm): 16 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 2 | Stock: Yes
SSR06990JT DC (mm): 6.99 | OAL (mm): 101 | DCON (mm): 8 | LPR (mm): 65 | LH (mm): 16 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 2 | Stock: Yes
SSR07000JT DC (mm): 7.00 | OAL (mm): 101 | DCON (mm): 8 | LPR (mm): 65 | LH (mm): 16 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 2 | Stock: Yes
SSR07010JT DC (mm): 7.01 | OAL (mm): 101 | DCON (mm): 8 | LPR (mm): 65 | LH (mm): 16 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 2 | Stock: Yes
SSR07020JT DC (mm): 7.02 | OAL (mm): 101 | DCON (mm): 8 | LPR (mm): 65 | LH (mm): 16 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 2 | Stock: Yes
SSR07030JT DC (mm): 7.03 | OAL (mm): 101 | DCON (mm): 8 | LPR (mm): 65 | LH (mm): 16 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 2 | Stock: Yes
SSR07970JT DC (mm): 7.97 | OAL (mm): 101 | DCON (mm): 9 | LPR (mm): 65 | LH (mm): 19 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 2 | Stock: Yes
SSR07980JT DC (mm): 7.98 | OAL (mm): 101 | DCON (mm): 9 | LPR (mm): 65 | LH (mm): 19 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 2 | Stock: Yes
SSR07990JT DC (mm): 7.99 | OAL (mm): 101 | DCON (mm): 9 | LPR (mm): 65 | LH (mm): 19 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 2 | Stock: Yes
SSR08000JT DC (mm): 8.00 | OAL (mm): 101 | DCON (mm): 9 | LPR (mm): 65 | LH (mm): 19 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 2 | Stock: Yes
SSR08010JT DC (mm): 8.01 | OAL (mm): 101 | DCON (mm): 9 | LPR (mm): 65 | LH (mm): 19 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 2 | Stock: Yes
SSR08020JT DC (mm): 8.02 | OAL (mm): 101 | DCON (mm): 9 | LPR (mm): 65 | LH (mm): 19 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 2 | Stock: Yes
SSR08030JT DC (mm): 8.03 | OAL (mm): 101 | DCON (mm): 9 | LPR (mm): 65 | LH (mm): 19 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 2 | Stock: Yes
SSR08970JT DC (mm): 8.97 | OAL (mm): 101 | DCON (mm): 10 | LPR (mm): 65 | LH (mm): 19 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 2 | Stock: Yes
SSR08980JT DC (mm): 8.98 | OAL (mm): 101 | DCON (mm): 10 | LPR (mm): 65 | LH (mm): 19 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 2 | Stock: Yes
SSR08990JT DC (mm): 8.99 | OAL (mm): 101 | DCON (mm): 10 | LPR (mm): 65 | LH (mm): 19 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 2 | Stock: Yes
SSR09000JT DC (mm): 9.00 | OAL (mm): 101 | DCON (mm): 10 | LPR (mm): 65 | LH (mm): 19 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 2 | Stock: Yes
SSR09010JT DC (mm): 9.01 | OAL (mm): 101 | DCON (mm): 10 | LPR (mm): 65 | LH (mm): 19 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 2 | Stock: Yes
SSR09020JT DC (mm): 9.02 | OAL (mm): 101 | DCON (mm): 10 | LPR (mm): 65 | LH (mm): 19 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 2 | Stock: Yes
SSR09030JT DC (mm): 9.03 | OAL (mm): 101 | DCON (mm): 10 | LPR (mm): 65 | LH (mm): 19 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 2 | Stock: Yes
SSR09970JT DC (mm): 9.97 | OAL (mm): 130 | DCON (mm): 11 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 2 | Stock: Yes
SSR09980JT DC (mm): 9.98 | OAL (mm): 130 | DCON (mm): 11 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 2 | Stock: Yes
SSR09990JT DC (mm): 9.99 | OAL (mm): 130 | DCON (mm): 11 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 2 | Stock: Yes
SSR10000JT DC (mm): 10.00 | OAL (mm): 130 | DCON (mm): 11 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 2 | Stock: Yes
SSR10010JT DC (mm): 10.01 | OAL (mm): 130 | DCON (mm): 11 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 2 | Stock: Yes
SSR10020JT DC (mm): 10.02 | OAL (mm): 130 | DCON (mm): 11 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 2 | Stock: Yes
SSR10030JT DC (mm): 10.03 | OAL (mm): 130 | DCON (mm): 11 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 2 | Stock: Yes
SSR10970JT DC (mm): 10.97 | OAL (mm): 130 | DCON (mm): 12 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 2 | Stock: Yes
SSR10980JT DC (mm): 10.98 | OAL (mm): 130 | DCON (mm): 12 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 2 | Stock: Yes
SSR10990JT DC (mm): 10.99 | OAL (mm): 130 | DCON (mm): 12 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 2 | Stock: Yes
SSR11000JT DC (mm): 11.00 | OAL (mm): 130 | DCON (mm): 12 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 2 | Stock: Yes
SSR11010JT DC (mm): 11.01 | OAL (mm): 130 | DCON (mm): 12 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 2 | Stock: Yes
SSR11020JT DC (mm): 11.02 | OAL (mm): 130 | DCON (mm): 12 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 2 | Stock: Yes
SSR11030JT DC (mm): 11.03 | OAL (mm): 130 | DCON (mm): 12 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 2 | Stock: Yes
SSR11970JT DC (mm): 11.97 | OAL (mm): 130 | DCON (mm): 13 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 2 | Stock: Yes
SSR11980JT DC (mm): 11.98 | OAL (mm): 130 | DCON (mm): 13 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 2 | Stock: Yes
SSR11990JT DC (mm): 11.99 | OAL (mm): 130 | DCON (mm): 13 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 2 | Stock: Yes
SSR12000JT DC (mm): 12.00 | OAL (mm): 130 | DCON (mm): 13 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 2 | Stock: Yes
ReamersSumitomo Electric Hardmetal
67 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SumiReamer SSR Type Solid Carbide Reamer (Through Hole, 0.01 mm Steps)

Brand Sumitomo Electric Hardmetal·Reamers

Available part numbers (67)

SSR02970JT, SSR02980JT, SSR02990JT, SSR03000JT, SSR03010JT, SSR03020JT, SSR03030JT, SSR03970JT, SSR03980JT, SSR03990JT + 57 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SSR02970JTDC (mm): 2.97 | OAL (mm): 68 | DCON (mm): 4 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | L (mm): 0.7 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR02980JTDC (mm): 2.98 | OAL (mm): 68 | DCON (mm): 4 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | L (mm): 0.7 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR02990JTDC (mm): 2.99 | OAL (mm): 68 | DCON (mm): 4 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | L (mm): 0.7 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR03000JTDC (mm): 3.00 | OAL (mm): 68 | DCON (mm): 4 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | L (mm): 0.7 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR03010JTDC (mm): 3.01 | OAL (mm): 68 | DCON (mm): 4 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | L (mm): 0.8 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR03020JTDC (mm): 3.02 | OAL (mm): 68 | DCON (mm): 4 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | L (mm): 0.8 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR03030JTDC (mm): 3.03 | OAL (mm): 68 | DCON (mm): 4 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | L (mm): 0.8 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR03970JTDC (mm): 3.97 | OAL (mm): 76 | DCON (mm): 5 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | L (mm): 1.0 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR03980JTDC (mm): 3.98 | OAL (mm): 76 | DCON (mm): 5 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | L (mm): 1.0 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR03990JTDC (mm): 3.99 | OAL (mm): 76 | DCON (mm): 5 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | L (mm): 1.0 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR04000JTDC (mm): 4.00 | OAL (mm): 76 | DCON (mm): 5 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | L (mm): 1.0 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR04010JTDC (mm): 4.01 | OAL (mm): 76 | DCON (mm): 5 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | L (mm): 1.0 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR04020JTDC (mm): 4.02 | OAL (mm): 76 | DCON (mm): 5 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | L (mm): 1.0 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR04030JTDC (mm): 4.03 | OAL (mm): 76 | DCON (mm): 5 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | L (mm): 1.0 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR04970JTDC (mm): 4.97 | OAL (mm): 76 | DCON (mm): 6 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | L (mm): 1.3 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR04980JTDC (mm): 4.98 | OAL (mm): 76 | DCON (mm): 6 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | L (mm): 1.3 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR04990JTDC (mm): 4.99 | OAL (mm): 76 | DCON (mm): 6 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | L (mm): 1.3 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR05000JTDC (mm): 5.00 | OAL (mm): 76 | DCON (mm): 6 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | L (mm): 1.3 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR05010JTDC (mm): 5.01 | OAL (mm): 76 | DCON (mm): 6 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | L (mm): 1.3 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR05020JTDC (mm): 5.02 | OAL (mm): 76 | DCON (mm): 6 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | L (mm): 1.3 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR05030JTDC (mm): 5.03 | OAL (mm): 76 | DCON (mm): 6 | LPR (mm): 40 | LH (mm): 12 | PL (mm): 0.5 | L (mm): 1.3 | Number of flutes: 4 | Fig: 1 | Stock: Yes
SSR05970JTDC (mm): 5.97 | OAL (mm): 76 | DCON (mm): 7 | LPR (mm): 40 | LH (mm): 16 | PL (mm): 1.0 | Number of flutes: 4 | Fig: 2 | Stock: Yes
SSR05980JTDC (mm): 5.98 | OAL (mm): 76 | DCON (mm): 7 | LPR (mm): 40 | LH (mm): 16 | PL (mm): 1.0 | Number of flutes: 4 | Fig: 2 | Stock: Yes
SSR05990JTDC (mm): 5.99 | OAL (mm): 76 | DCON (mm): 7 | LPR (mm): 40 | LH (mm): 16 | PL (mm): 1.0 | Number of flutes: 4 | Fig: 2 | Stock: Yes
SSR06000JTDC (mm): 6.00 | OAL (mm): 76 | DCON (mm): 7 | LPR (mm): 40 | LH (mm): 16 | PL (mm): 1.0 | Number of flutes: 4 | Fig: 2 | Stock: Yes
SSR06010JTDC (mm): 6.01 | OAL (mm): 76 | DCON (mm): 7 | LPR (mm): 40 | LH (mm): 16 | PL (mm): 1.0 | Number of flutes: 4 | Fig: 2 | Stock: Yes
SSR06020JTDC (mm): 6.02 | OAL (mm): 76 | DCON (mm): 7 | LPR (mm): 40 | LH (mm): 16 | PL (mm): 1.0 | Number of flutes: 4 | Fig: 2 | Stock: Yes
SSR06030JTDC (mm): 6.03 | OAL (mm): 76 | DCON (mm): 7 | LPR (mm): 40 | LH (mm): 16 | PL (mm): 1.0 | Number of flutes: 4 | Fig: 2 | Stock: Yes
SSR06970JTDC (mm): 6.97 | OAL (mm): 101 | DCON (mm): 8 | LPR (mm): 65 | LH (mm): 16 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 2 | Stock: Yes
SSR06980JTDC (mm): 6.98 | OAL (mm): 101 | DCON (mm): 8 | LPR (mm): 65 | LH (mm): 16 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 2 | Stock: Yes
SSR06990JTDC (mm): 6.99 | OAL (mm): 101 | DCON (mm): 8 | LPR (mm): 65 | LH (mm): 16 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 2 | Stock: Yes
SSR07000JTDC (mm): 7.00 | OAL (mm): 101 | DCON (mm): 8 | LPR (mm): 65 | LH (mm): 16 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 2 | Stock: Yes
SSR07010JTDC (mm): 7.01 | OAL (mm): 101 | DCON (mm): 8 | LPR (mm): 65 | LH (mm): 16 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 2 | Stock: Yes
SSR07020JTDC (mm): 7.02 | OAL (mm): 101 | DCON (mm): 8 | LPR (mm): 65 | LH (mm): 16 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 2 | Stock: Yes
SSR07030JTDC (mm): 7.03 | OAL (mm): 101 | DCON (mm): 8 | LPR (mm): 65 | LH (mm): 16 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 2 | Stock: Yes
SSR07970JTDC (mm): 7.97 | OAL (mm): 101 | DCON (mm): 9 | LPR (mm): 65 | LH (mm): 19 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 2 | Stock: Yes
SSR07980JTDC (mm): 7.98 | OAL (mm): 101 | DCON (mm): 9 | LPR (mm): 65 | LH (mm): 19 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 2 | Stock: Yes
SSR07990JTDC (mm): 7.99 | OAL (mm): 101 | DCON (mm): 9 | LPR (mm): 65 | LH (mm): 19 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 2 | Stock: Yes
SSR08000JTDC (mm): 8.00 | OAL (mm): 101 | DCON (mm): 9 | LPR (mm): 65 | LH (mm): 19 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 2 | Stock: Yes
SSR08010JTDC (mm): 8.01 | OAL (mm): 101 | DCON (mm): 9 | LPR (mm): 65 | LH (mm): 19 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 2 | Stock: Yes
SSR08020JTDC (mm): 8.02 | OAL (mm): 101 | DCON (mm): 9 | LPR (mm): 65 | LH (mm): 19 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 2 | Stock: Yes
SSR08030JTDC (mm): 8.03 | OAL (mm): 101 | DCON (mm): 9 | LPR (mm): 65 | LH (mm): 19 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 2 | Stock: Yes
SSR08970JTDC (mm): 8.97 | OAL (mm): 101 | DCON (mm): 10 | LPR (mm): 65 | LH (mm): 19 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 2 | Stock: Yes
SSR08980JTDC (mm): 8.98 | OAL (mm): 101 | DCON (mm): 10 | LPR (mm): 65 | LH (mm): 19 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 2 | Stock: Yes
SSR08990JTDC (mm): 8.99 | OAL (mm): 101 | DCON (mm): 10 | LPR (mm): 65 | LH (mm): 19 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 2 | Stock: Yes
SSR09000JTDC (mm): 9.00 | OAL (mm): 101 | DCON (mm): 10 | LPR (mm): 65 | LH (mm): 19 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 2 | Stock: Yes
SSR09010JTDC (mm): 9.01 | OAL (mm): 101 | DCON (mm): 10 | LPR (mm): 65 | LH (mm): 19 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 2 | Stock: Yes
SSR09020JTDC (mm): 9.02 | OAL (mm): 101 | DCON (mm): 10 | LPR (mm): 65 | LH (mm): 19 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 2 | Stock: Yes
SSR09030JTDC (mm): 9.03 | OAL (mm): 101 | DCON (mm): 10 | LPR (mm): 65 | LH (mm): 19 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 2 | Stock: Yes
SSR09970JTDC (mm): 9.97 | OAL (mm): 130 | DCON (mm): 11 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 2 | Stock: Yes
SSR09980JTDC (mm): 9.98 | OAL (mm): 130 | DCON (mm): 11 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 2 | Stock: Yes
SSR09990JTDC (mm): 9.99 | OAL (mm): 130 | DCON (mm): 11 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 2 | Stock: Yes
SSR10000JTDC (mm): 10.00 | OAL (mm): 130 | DCON (mm): 11 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 2 | Stock: Yes
SSR10010JTDC (mm): 10.01 | OAL (mm): 130 | DCON (mm): 11 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 2 | Stock: Yes
SSR10020JTDC (mm): 10.02 | OAL (mm): 130 | DCON (mm): 11 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 2 | Stock: Yes
SSR10030JTDC (mm): 10.03 | OAL (mm): 130 | DCON (mm): 11 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 2 | Stock: Yes
SSR10970JTDC (mm): 10.97 | OAL (mm): 130 | DCON (mm): 12 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 2 | Stock: Yes
SSR10980JTDC (mm): 10.98 | OAL (mm): 130 | DCON (mm): 12 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 2 | Stock: Yes
SSR10990JTDC (mm): 10.99 | OAL (mm): 130 | DCON (mm): 12 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 2 | Stock: Yes
SSR11000JTDC (mm): 11.00 | OAL (mm): 130 | DCON (mm): 12 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 2 | Stock: Yes
SSR11010JTDC (mm): 11.01 | OAL (mm): 130 | DCON (mm): 12 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 2 | Stock: Yes
SSR11020JTDC (mm): 11.02 | OAL (mm): 130 | DCON (mm): 12 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 2 | Stock: Yes
SSR11030JTDC (mm): 11.03 | OAL (mm): 130 | DCON (mm): 12 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 2 | Stock: Yes
SSR11970JTDC (mm): 11.97 | OAL (mm): 130 | DCON (mm): 13 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 2 | Stock: Yes
SSR11980JTDC (mm): 11.98 | OAL (mm): 130 | DCON (mm): 13 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 2 | Stock: Yes
SSR11990JTDC (mm): 11.99 | OAL (mm): 130 | DCON (mm): 13 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 2 | Stock: Yes
SSR12000JTDC (mm): 12.00 | OAL (mm): 130 | DCON (mm): 13 | LPR (mm): 85 | LH (mm): 22 | PL (mm): 1.0 | Number of flutes: 6 | Fig: 2 | Stock: Yes
