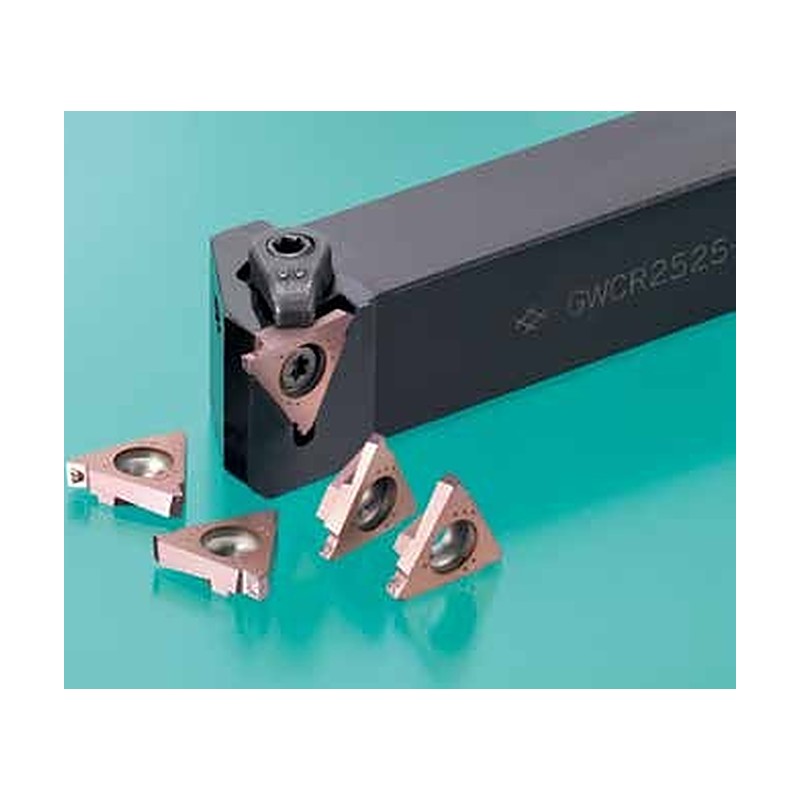

Sumitomo Electric Hardmetal SumiTurn B-Groove TGA BF Grooving Insert

Sumitomo Electric Hardmetal SumiTurn B-Groove TGA BF Grooving Insert

SumiTurn B-Groove TGA BF grooving insert with chip breaker for GWC type holders.

Key features

  • Chip breaker for improved chip control in grooving
  • Grade AC530U
  • For GWC series holders

Specifications

Inscribed circle IC (mm) 12.70
Thickness S (mm) 4.76
TGA R4140BF01 AC530U Cutting width CW (mm): 1.40 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.7 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | E2 (mm): 0.300 | Grade: AC530U | Stock: Yes
TGA L4140BF01 AC530U Cutting width CW (mm): 1.40 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.7 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | E2 (mm): 0.300 | Grade: AC530U | Stock: Yes
TGA R4165BF01 AC530U Cutting width CW (mm): 1.65 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | E2 (mm): 0.175 | Grade: AC530U | Stock: Yes
TGA L4165BF01 AC530U Cutting width CW (mm): 1.65 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | E2 (mm): 0.175 | Grade: AC530U | Stock: Yes
TGA R4190BF01 AC530U Cutting width CW (mm): 1.90 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4190BF01 AC530U Cutting width CW (mm): 1.90 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4220BF01 AC530U Cutting width CW (mm): 2.20 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4220BF01 AC530U Cutting width CW (mm): 2.20 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4270BF02 AC530U Cutting width CW (mm): 2.70 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4270BF02 AC530U Cutting width CW (mm): 2.70 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4320BF02 AC530U Cutting width CW (mm): 3.20 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4320BF02 AC530U Cutting width CW (mm): 3.20 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4420BF02 AC530U Cutting width CW (mm): 4.20 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4420BF02 AC530U Cutting width CW (mm): 4.20 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4150BF AC530U Cutting width CW (mm): 1.50 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | E2 (mm): 0.250 | Grade: AC530U | Stock: Yes
TGA L4150BF AC530U Cutting width CW (mm): 1.50 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | E2 (mm): 0.250 | Grade: AC530U | Stock: Yes
TGA R4165BF AC530U Cutting width CW (mm): 1.65 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | E2 (mm): 0.175 | Grade: AC530U | Stock: Yes
TGA L4165BF AC530U Cutting width CW (mm): 1.65 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | E2 (mm): 0.175 | Grade: AC530U | Stock: Yes
TGA R4175BF AC530U Cutting width CW (mm): 1.75 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | E2 (mm): 0.125 | Grade: AC530U | Stock: Yes
TGA L4175BF AC530U Cutting width CW (mm): 1.75 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | E2 (mm): 0.125 | Grade: AC530U | Stock: Yes
TGA R4185BF AC530U Cutting width CW (mm): 1.85 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | E2 (mm): 0.075 | Grade: AC530U | Stock: Yes
TGA L4185BF AC530U Cutting width CW (mm): 1.85 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | E2 (mm): 0.075 | Grade: AC530U | Stock: Yes
TGA R4200BF AC530U Cutting width CW (mm): 2.00 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4200BF AC530U Cutting width CW (mm): 2.00 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4220BF AC530U Cutting width CW (mm): 2.20 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4220BF AC530U Cutting width CW (mm): 2.20 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4230BF AC530U Cutting width CW (mm): 2.30 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4230BF AC530U Cutting width CW (mm): 2.30 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4250BF AC530U Cutting width CW (mm): 2.50 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4250BF AC530U Cutting width CW (mm): 2.50 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4265BF AC530U Cutting width CW (mm): 2.65 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4265BF AC530U Cutting width CW (mm): 2.65 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4270BF AC530U Cutting width CW (mm): 2.70 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4270BF AC530U Cutting width CW (mm): 2.70 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4280BF AC530U Cutting width CW (mm): 2.80 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4280BF AC530U Cutting width CW (mm): 2.80 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4300BF AC530U Cutting width CW (mm): 3.00 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4300BF AC530U Cutting width CW (mm): 3.00 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4320BF AC530U Cutting width CW (mm): 3.20 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4320BF AC530U Cutting width CW (mm): 3.20 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4330BF AC530U Cutting width CW (mm): 3.30 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4330BF AC530U Cutting width CW (mm): 3.30 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4350BF AC530U Cutting width CW (mm): 3.50 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4350BF AC530U Cutting width CW (mm): 3.50 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4370BF AC530U Cutting width CW (mm): 3.70 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4370BF AC530U Cutting width CW (mm): 3.70 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4390BF AC530U Cutting width CW (mm): 3.90 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4390BF AC530U Cutting width CW (mm): 3.90 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4400BF AC530U Cutting width CW (mm): 4.00 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4400BF AC530U Cutting width CW (mm): 4.00 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4410BF AC530U Cutting width CW (mm): 4.10 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4410BF AC530U Cutting width CW (mm): 4.10 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4420BF AC530U Cutting width CW (mm): 4.20 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4420BF AC530U Cutting width CW (mm): 4.20 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4430BF AC530U Cutting width CW (mm): 4.30 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4430BF AC530U Cutting width CW (mm): 4.30 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4440BF AC530U Cutting width CW (mm): 4.40 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4440BF AC530U Cutting width CW (mm): 4.40 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4450BF AC530U Cutting width CW (mm): 4.50 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4450BF AC530U Cutting width CW (mm): 4.50 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
Grooving InsertsSumitomo Electric Hardmetal
60 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SumiTurn B-Groove TGA BF Grooving Insert

Brand Sumitomo Electric Hardmetal·Grooving Inserts

Available part numbers (60)

TGA R4140BF01 AC530U, TGA L4140BF01 AC530U, TGA R4165BF01 AC530U, TGA L4165BF01 AC530U, TGA R4190BF01 AC530U, TGA L4190BF01 AC530U, TGA R4220BF01 AC530U, TGA L4220BF01 AC530U, TGA R4270BF02 AC530U, TGA L4270BF02 AC530U + 50 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TGA R4140BF01 AC530UCutting width CW (mm): 1.40 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.7 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | E2 (mm): 0.300 | Grade: AC530U | Stock: Yes
TGA L4140BF01 AC530UCutting width CW (mm): 1.40 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.7 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | E2 (mm): 0.300 | Grade: AC530U | Stock: Yes
TGA R4165BF01 AC530UCutting width CW (mm): 1.65 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | E2 (mm): 0.175 | Grade: AC530U | Stock: Yes
TGA L4165BF01 AC530UCutting width CW (mm): 1.65 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | E2 (mm): 0.175 | Grade: AC530U | Stock: Yes
TGA R4190BF01 AC530UCutting width CW (mm): 1.90 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4190BF01 AC530UCutting width CW (mm): 1.90 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4220BF01 AC530UCutting width CW (mm): 2.20 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4220BF01 AC530UCutting width CW (mm): 2.20 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4270BF02 AC530UCutting width CW (mm): 2.70 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4270BF02 AC530UCutting width CW (mm): 2.70 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4320BF02 AC530UCutting width CW (mm): 3.20 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4320BF02 AC530UCutting width CW (mm): 3.20 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4420BF02 AC530UCutting width CW (mm): 4.20 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4420BF02 AC530UCutting width CW (mm): 4.20 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4150BF AC530UCutting width CW (mm): 1.50 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | E2 (mm): 0.250 | Grade: AC530U | Stock: Yes
TGA L4150BF AC530UCutting width CW (mm): 1.50 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | E2 (mm): 0.250 | Grade: AC530U | Stock: Yes
TGA R4165BF AC530UCutting width CW (mm): 1.65 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | E2 (mm): 0.175 | Grade: AC530U | Stock: Yes
TGA L4165BF AC530UCutting width CW (mm): 1.65 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | E2 (mm): 0.175 | Grade: AC530U | Stock: Yes
TGA R4175BF AC530UCutting width CW (mm): 1.75 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | E2 (mm): 0.125 | Grade: AC530U | Stock: Yes
TGA L4175BF AC530UCutting width CW (mm): 1.75 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | E2 (mm): 0.125 | Grade: AC530U | Stock: Yes
TGA R4185BF AC530UCutting width CW (mm): 1.85 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | E2 (mm): 0.075 | Grade: AC530U | Stock: Yes
TGA L4185BF AC530UCutting width CW (mm): 1.85 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | E2 (mm): 0.075 | Grade: AC530U | Stock: Yes
TGA R4200BF AC530UCutting width CW (mm): 2.00 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4200BF AC530UCutting width CW (mm): 2.00 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4220BF AC530UCutting width CW (mm): 2.20 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4220BF AC530UCutting width CW (mm): 2.20 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4230BF AC530UCutting width CW (mm): 2.30 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4230BF AC530UCutting width CW (mm): 2.30 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4250BF AC530UCutting width CW (mm): 2.50 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4250BF AC530UCutting width CW (mm): 2.50 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4265BF AC530UCutting width CW (mm): 2.65 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4265BF AC530UCutting width CW (mm): 2.65 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4270BF AC530UCutting width CW (mm): 2.70 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4270BF AC530UCutting width CW (mm): 2.70 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4280BF AC530UCutting width CW (mm): 2.80 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4280BF AC530UCutting width CW (mm): 2.80 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4300BF AC530UCutting width CW (mm): 3.00 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4300BF AC530UCutting width CW (mm): 3.00 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4320BF AC530UCutting width CW (mm): 3.20 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4320BF AC530UCutting width CW (mm): 3.20 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4330BF AC530UCutting width CW (mm): 3.30 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4330BF AC530UCutting width CW (mm): 3.30 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4350BF AC530UCutting width CW (mm): 3.50 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4350BF AC530UCutting width CW (mm): 3.50 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4370BF AC530UCutting width CW (mm): 3.70 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4370BF AC530UCutting width CW (mm): 3.70 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4390BF AC530UCutting width CW (mm): 3.90 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4390BF AC530UCutting width CW (mm): 3.90 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4400BF AC530UCutting width CW (mm): 4.00 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4400BF AC530UCutting width CW (mm): 4.00 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4410BF AC530UCutting width CW (mm): 4.10 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4410BF AC530UCutting width CW (mm): 4.10 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4420BF AC530UCutting width CW (mm): 4.20 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4420BF AC530UCutting width CW (mm): 4.20 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4430BF AC530UCutting width CW (mm): 4.30 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4430BF AC530UCutting width CW (mm): 4.30 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4440BF AC530UCutting width CW (mm): 4.40 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4440BF AC530UCutting width CW (mm): 4.40 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4450BF AC530UCutting width CW (mm): 4.50 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4450BF AC530UCutting width CW (mm): 4.50 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
