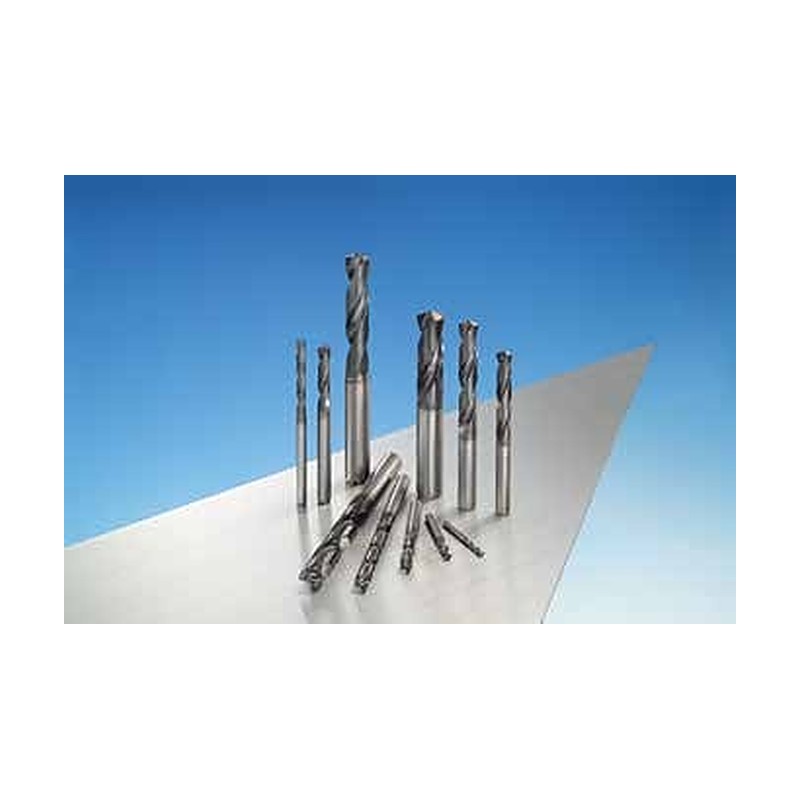

Sumitomo Electric Hardmetal Super Multi Drill GS Type (External Coolant)

Sumitomo Electric Hardmetal Super Multi Drill GS Type (External Coolant)

Solid carbide drill with J-flute and DEX coating for a wide range of materials, external coolant, 2D and 4D.

Key features

  • J-flute for chip control and evacuation
  • DEX coating
  • Low cutting noise, stable on small machines
  • MQL capable
  • Grade ACX70
  • Hole depth 2D and 4D

Specifications

Coolant External
Point angle 135 deg
Grade ACX70
MDW0100GS2 DC (mm): 1.0 | L/D: 2 | LU (mm): 4.7 | LCF (mm): 6.2 | OAL (mm): 45.2 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDW0100GS4 DC (mm): 1.0 | L/D: 4 | LU (mm): 10.7 | LCF (mm): 12.2 | OAL (mm): 49.2 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDW0110GS2 DC (mm): 1.1 | L/D: 2 | LU (mm): 4.6 | LCF (mm): 6.2 | OAL (mm): 45.2 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDW0110GS4 DC (mm): 1.1 | L/D: 4 | LU (mm): 10.6 | LCF (mm): 12.2 | OAL (mm): 49.2 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDW0120GS2 DC (mm): 1.2 | L/D: 2 | LU (mm): 4.4 | LCF (mm): 6.2 | OAL (mm): 45.2 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDW0120GS4 DC (mm): 1.2 | L/D: 4 | LU (mm): 10.4 | LCF (mm): 12.2 | OAL (mm): 49.2 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDW0130GS2 DC (mm): 1.3 | L/D: 2 | LU (mm): 4.4 | LCF (mm): 6.3 | OAL (mm): 45.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDW0130GS4 DC (mm): 1.3 | L/D: 4 | LU (mm): 10.4 | LCF (mm): 12.3 | OAL (mm): 49.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDW0140GS2 DC (mm): 1.4 | L/D: 2 | LU (mm): 4.2 | LCF (mm): 6.3 | OAL (mm): 45.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDW0140GS4 DC (mm): 1.4 | L/D: 4 | LU (mm): 10.2 | LCF (mm): 12.3 | OAL (mm): 49.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDW0150GS2 DC (mm): 1.5 | L/D: 2 | LU (mm): 4.1 | LCF (mm): 6.3 | OAL (mm): 45.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDW0150GS4 DC (mm): 1.5 | L/D: 4 | LU (mm): 10.1 | LCF (mm): 12.3 | OAL (mm): 49.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDW0160GS2 DC (mm): 1.6 | L/D: 2 | LU (mm): 5.9 | LCF (mm): 8.3 | OAL (mm): 45.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDW0160GS4 DC (mm): 1.6 | L/D: 4 | LU (mm): 12.9 | LCF (mm): 15.3 | OAL (mm): 49.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDW0170GS2 DC (mm): 1.7 | L/D: 2 | LU (mm): 5.9 | LCF (mm): 8.4 | OAL (mm): 45.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0170GS4 DC (mm): 1.7 | L/D: 4 | LU (mm): 12.9 | LCF (mm): 15.4 | OAL (mm): 49.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0180GS2 DC (mm): 1.8 | L/D: 2 | LU (mm): 5.7 | LCF (mm): 8.4 | OAL (mm): 45.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0180GS4 DC (mm): 1.8 | L/D: 4 | LU (mm): 12.7 | LCF (mm): 15.4 | OAL (mm): 49.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0190GS2 DC (mm): 1.9 | L/D: 2 | LU (mm): 5.6 | LCF (mm): 8.4 | OAL (mm): 45.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0190GS4 DC (mm): 1.9 | L/D: 4 | LU (mm): 12.6 | LCF (mm): 15.4 | OAL (mm): 49.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0200GS2 DC (mm): 2.0 | L/D: 2 | LU (mm): 5.4 | LCF (mm): 8.4 | OAL (mm): 45.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0200GS4 DC (mm): 2.0 | L/D: 4 | LU (mm): 12.4 | LCF (mm): 15.4 | OAL (mm): 49.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0210GS2 DC (mm): 2.1 | L/D: 2 | LU (mm): 7.3 | LCF (mm): 10.4 | OAL (mm): 45.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0210GS4 DC (mm): 2.1 | L/D: 4 | LU (mm): 14.3 | LCF (mm): 17.4 | OAL (mm): 49.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0220GS2 DC (mm): 2.2 | L/D: 2 | LU (mm): 7.2 | LCF (mm): 10.5 | OAL (mm): 45.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0220GS4 DC (mm): 2.2 | L/D: 4 | LU (mm): 14.2 | LCF (mm): 17.5 | OAL (mm): 49.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0230GS2 DC (mm): 2.3 | L/D: 2 | LU (mm): 7.1 | LCF (mm): 10.5 | OAL (mm): 45.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0230GS4 DC (mm): 2.3 | L/D: 4 | LU (mm): 14.1 | LCF (mm): 17.5 | OAL (mm): 49.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0240GS2 DC (mm): 2.4 | L/D: 2 | LU (mm): 6.9 | LCF (mm): 10.5 | OAL (mm): 45.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0240GS4 DC (mm): 2.4 | L/D: 4 | LU (mm): 13.9 | LCF (mm): 17.5 | OAL (mm): 49.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0250GS2 DC (mm): 2.5 | L/D: 2 | LU (mm): 6.8 | LCF (mm): 10.5 | OAL (mm): 45.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0250GS4 DC (mm): 2.5 | L/D: 4 | LU (mm): 13.8 | LCF (mm): 17.5 | OAL (mm): 49.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0260GS2 DC (mm): 2.6 | L/D: 2 | LU (mm): 9.6 | LCF (mm): 13.5 | OAL (mm): 45.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0260GS4 DC (mm): 2.6 | L/D: 4 | LU (mm): 15.6 | LCF (mm): 19.5 | OAL (mm): 49.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0270GS2 DC (mm): 2.7 | L/D: 2 | LU (mm): 9.6 | LCF (mm): 13.6 | OAL (mm): 45.6 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDW0270GS4 DC (mm): 2.7 | L/D: 4 | LU (mm): 15.6 | LCF (mm): 19.6 | OAL (mm): 49.6 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDW0280GS2 DC (mm): 2.8 | L/D: 2 | LU (mm): 9.4 | LCF (mm): 13.6 | OAL (mm): 45.6 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDW0280GS4 DC (mm): 2.8 | L/D: 4 | LU (mm): 15.4 | LCF (mm): 19.6 | OAL (mm): 49.6 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDW0290GS2 DC (mm): 2.9 | L/D: 2 | LU (mm): 9.3 | LCF (mm): 13.6 | OAL (mm): 45.6 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDW0290GS4 DC (mm): 2.9 | L/D: 4 | LU (mm): 15.3 | LCF (mm): 19.6 | OAL (mm): 49.6 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDW0300GS2 DC (mm): 3.0 | L/D: 2 | LU (mm): 9.1 | LCF (mm): 13.6 | OAL (mm): 45.6 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDW0300GS4 DC (mm): 3.0 | L/D: 4 | LU (mm): 15.1 | LCF (mm): 19.6 | OAL (mm): 49.6 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDW0310GS2 DC (mm): 3.1 | L/D: 2 | LU (mm): 15.0 | LCF (mm): 19.6 | OAL (mm): 54.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDW0310GS4 DC (mm): 3.1 | L/D: 4 | LU (mm): 20.0 | LCF (mm): 24.6 | OAL (mm): 60.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDW0320GS2 DC (mm): 3.2 | L/D: 2 | LU (mm): 14.9 | LCF (mm): 19.7 | OAL (mm): 54.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0320GS4 DC (mm): 3.2 | L/D: 4 | LU (mm): 19.9 | LCF (mm): 24.7 | OAL (mm): 60.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0330GS2 DC (mm): 3.3 | L/D: 2 | LU (mm): 14.8 | LCF (mm): 19.7 | OAL (mm): 54.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0330GS4 DC (mm): 3.3 | L/D: 4 | LU (mm): 19.8 | LCF (mm): 24.7 | OAL (mm): 60.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0340GS2 DC (mm): 3.4 | L/D: 2 | LU (mm): 14.6 | LCF (mm): 19.7 | OAL (mm): 54.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0340GS4 DC (mm): 3.4 | L/D: 4 | LU (mm): 19.6 | LCF (mm): 24.7 | OAL (mm): 60.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0350GS2 DC (mm): 3.5 | L/D: 2 | LU (mm): 14.5 | LCF (mm): 19.7 | OAL (mm): 54.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0350GS4 DC (mm): 3.5 | L/D: 4 | LU (mm): 19.5 | LCF (mm): 24.7 | OAL (mm): 60.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0360GS2 DC (mm): 3.6 | L/D: 2 | LU (mm): 16.3 | LCF (mm): 21.7 | OAL (mm): 54.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0360GS4 DC (mm): 3.6 | L/D: 4 | LU (mm): 22.3 | LCF (mm): 27.7 | OAL (mm): 60.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0370GS2 DC (mm): 3.7 | L/D: 2 | LU (mm): 16.3 | LCF (mm): 21.8 | OAL (mm): 54.8 | PL (mm): 0.8 | DCON (mm): 4.0 | Stock: Yes
MDW0370GS4 DC (mm): 3.7 | L/D: 4 | LU (mm): 22.3 | LCF (mm): 27.8 | OAL (mm): 60.8 | PL (mm): 0.8 | DCON (mm): 4.0 | Stock: Yes
MDW0380GS2 DC (mm): 3.8 | L/D: 2 | LU (mm): 16.1 | LCF (mm): 21.8 | OAL (mm): 54.8 | PL (mm): 0.8 | DCON (mm): 4.0 | Stock: Yes
MDW0380GS4 DC (mm): 3.8 | L/D: 4 | LU (mm): 22.1 | LCF (mm): 27.8 | OAL (mm): 60.8 | PL (mm): 0.8 | DCON (mm): 4.0 | Stock: Yes
MDW0390GS2 DC (mm): 3.9 | L/D: 2 | LU (mm): 16.0 | LCF (mm): 21.8 | OAL (mm): 54.8 | PL (mm): 0.8 | DCON (mm): 4.0 | Stock: Yes
MDW0390GS4 DC (mm): 3.9 | L/D: 4 | LU (mm): 22.0 | LCF (mm): 27.8 | OAL (mm): 60.8 | PL (mm): 0.8 | DCON (mm): 4.0 | Stock: Yes
MDW0400GS2 DC (mm): 4.0 | L/D: 2 | LU (mm): 15.8 | LCF (mm): 21.8 | OAL (mm): 54.8 | PL (mm): 0.8 | DCON (mm): 4.0 | Stock: Yes
MDW0400GS4 DC (mm): 4.0 | L/D: 4 | LU (mm): 21.8 | LCF (mm): 27.8 | OAL (mm): 60.8 | PL (mm): 0.8 | DCON (mm): 4.0 | Stock: Yes
MDW0410GS2 DC (mm): 4.1 | L/D: 2 | LU (mm): 17.7 | LCF (mm): 23.8 | OAL (mm): 61.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDW0410GS4 DC (mm): 4.1 | L/D: 4 | LU (mm): 25.7 | LCF (mm): 31.8 | OAL (mm): 76.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDW0420GS2 DC (mm): 4.2 | L/D: 2 | LU (mm): 17.6 | LCF (mm): 23.9 | OAL (mm): 61.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0420GS4 DC (mm): 4.2 | L/D: 4 | LU (mm): 25.6 | LCF (mm): 31.9 | OAL (mm): 76.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0430GS2 DC (mm): 4.3 | L/D: 2 | LU (mm): 17.5 | LCF (mm): 23.9 | OAL (mm): 61.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0430GS4 DC (mm): 4.3 | L/D: 4 | LU (mm): 25.5 | LCF (mm): 31.9 | OAL (mm): 76.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0440GS2 DC (mm): 4.4 | L/D: 2 | LU (mm): 17.3 | LCF (mm): 23.9 | OAL (mm): 61.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0440GS4 DC (mm): 4.4 | L/D: 4 | LU (mm): 25.3 | LCF (mm): 31.9 | OAL (mm): 76.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0450GS2 DC (mm): 4.5 | L/D: 2 | LU (mm): 17.2 | LCF (mm): 23.9 | OAL (mm): 61.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0450GS4 DC (mm): 4.5 | L/D: 4 | LU (mm): 25.2 | LCF (mm): 31.9 | OAL (mm): 76.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0460GS2 DC (mm): 4.6 | L/D: 2 | LU (mm): 19.1 | LCF (mm): 26.0 | OAL (mm): 62.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Yes
MDW0460GS4 DC (mm): 4.6 | L/D: 4 | LU (mm): 32.1 | LCF (mm): 39.0 | OAL (mm): 77.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Yes
MDW0470GS2 DC (mm): 4.7 | L/D: 2 | LU (mm): 19.0 | LCF (mm): 26.0 | OAL (mm): 62.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Yes
MDW0470GS4 DC (mm): 4.7 | L/D: 4 | LU (mm): 32.0 | LCF (mm): 39.0 | OAL (mm): 77.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Yes
MDW0480GS2 DC (mm): 4.8 | L/D: 2 | LU (mm): 18.8 | LCF (mm): 26.0 | OAL (mm): 62.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Yes
MDW0480GS4 DC (mm): 4.8 | L/D: 4 | LU (mm): 31.8 | LCF (mm): 39.0 | OAL (mm): 77.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Yes
MDW0490GS2 DC (mm): 4.9 | L/D: 2 | LU (mm): 18.7 | LCF (mm): 26.0 | OAL (mm): 62.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Yes
MDW0490GS4 DC (mm): 4.9 | L/D: 4 | LU (mm): 31.7 | LCF (mm): 39.0 | OAL (mm): 77.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Yes
MDW0500GS2 DC (mm): 5.0 | L/D: 2 | LU (mm): 18.5 | LCF (mm): 26.0 | OAL (mm): 62.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Yes
MDW0500GS4 DC (mm): 5.0 | L/D: 4 | LU (mm): 31.5 | LCF (mm): 39.0 | OAL (mm): 77.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Yes
MDW0510GS2 DC (mm): 5.1 | L/D: 2 | LU (mm): 18.5 | LCF (mm): 26.1 | OAL (mm): 66.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0510GS4 DC (mm): 5.1 | L/D: 4 | LU (mm): 32.5 | LCF (mm): 40.1 | OAL (mm): 82.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0520GS2 DC (mm): 5.2 | L/D: 2 | LU (mm): 18.3 | LCF (mm): 26.1 | OAL (mm): 66.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0520GS4 DC (mm): 5.2 | L/D: 4 | LU (mm): 32.3 | LCF (mm): 40.1 | OAL (mm): 82.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0530GS2 DC (mm): 5.3 | L/D: 2 | LU (mm): 18.2 | LCF (mm): 26.1 | OAL (mm): 66.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0530GS4 DC (mm): 5.3 | L/D: 4 | LU (mm): 32.2 | LCF (mm): 40.1 | OAL (mm): 82.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0540GS2 DC (mm): 5.4 | L/D: 2 | LU (mm): 18.0 | LCF (mm): 26.1 | OAL (mm): 66.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0540GS4 DC (mm): 5.4 | L/D: 4 | LU (mm): 32.0 | LCF (mm): 40.1 | OAL (mm): 82.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0550GS2 DC (mm): 5.5 | L/D: 2 | LU (mm): 17.9 | LCF (mm): 26.1 | OAL (mm): 66.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0550GS4 DC (mm): 5.5 | L/D: 4 | LU (mm): 31.9 | LCF (mm): 40.1 | OAL (mm): 82.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0560GS2 DC (mm): 5.6 | L/D: 2 | LU (mm): 19.8 | LCF (mm): 28.2 | OAL (mm): 66.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Yes
MDW0560GS4 DC (mm): 5.6 | L/D: 4 | LU (mm): 33.8 | LCF (mm): 42.2 | OAL (mm): 82.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Yes
MDW0570GS2 DC (mm): 5.7 | L/D: 2 | LU (mm): 19.7 | LCF (mm): 28.2 | OAL (mm): 66.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Yes
MDW0570GS4 DC (mm): 5.7 | L/D: 4 | LU (mm): 33.7 | LCF (mm): 42.2 | OAL (mm): 82.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Yes
MDW0580GS2 DC (mm): 5.8 | L/D: 2 | LU (mm): 19.5 | LCF (mm): 28.2 | OAL (mm): 66.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Yes
MDW0580GS4 DC (mm): 5.8 | L/D: 4 | LU (mm): 33.5 | LCF (mm): 42.2 | OAL (mm): 82.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Yes
MDW0590GS2 DC (mm): 5.9 | L/D: 2 | LU (mm): 19.4 | LCF (mm): 28.2 | OAL (mm): 66.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Yes
MDW0590GS4 DC (mm): 5.9 | L/D: 4 | LU (mm): 33.4 | LCF (mm): 42.2 | OAL (mm): 82.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Yes
MDW0600GS2 DC (mm): 6.0 | L/D: 2 | LU (mm): 19.2 | LCF (mm): 28.2 | OAL (mm): 66.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Yes
MDW0600GS4 DC (mm): 6.0 | L/D: 4 | LU (mm): 33.2 | LCF (mm): 42.2 | OAL (mm): 82.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Yes
MDW0610GS2 DC (mm): 6.1 | L/D: 2 | LU (mm): 23.2 | LCF (mm): 32.3 | OAL (mm): 74.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0610GS4 DC (mm): 6.1 | L/D: 4 | LU (mm): 34.2 | LCF (mm): 43.3 | OAL (mm): 84.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0620GS2 DC (mm): 6.2 | L/D: 2 | LU (mm): 23.0 | LCF (mm): 32.3 | OAL (mm): 74.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0620GS4 DC (mm): 6.2 | L/D: 4 | LU (mm): 34.0 | LCF (mm): 43.3 | OAL (mm): 84.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0630GS2 DC (mm): 6.3 | L/D: 2 | LU (mm): 22.9 | LCF (mm): 32.3 | OAL (mm): 74.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0630GS4 DC (mm): 6.3 | L/D: 4 | LU (mm): 33.9 | LCF (mm): 43.3 | OAL (mm): 84.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0640GS2 DC (mm): 6.4 | L/D: 2 | LU (mm): 22.7 | LCF (mm): 32.3 | OAL (mm): 74.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0640GS4 DC (mm): 6.4 | L/D: 4 | LU (mm): 33.7 | LCF (mm): 43.3 | OAL (mm): 84.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0650GS2 DC (mm): 6.5 | L/D: 2 | LU (mm): 22.6 | LCF (mm): 32.3 | OAL (mm): 74.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0650GS4 DC (mm): 6.5 | L/D: 4 | LU (mm): 33.6 | LCF (mm): 43.3 | OAL (mm): 84.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0660GS2 DC (mm): 6.6 | L/D: 2 | LU (mm): 24.5 | LCF (mm): 34.4 | OAL (mm): 74.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Yes
MDW0660GS4 DC (mm): 6.6 | L/D: 4 | LU (mm): 34.5 | LCF (mm): 44.4 | OAL (mm): 84.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Yes
MDW0670GS2 DC (mm): 6.7 | L/D: 2 | LU (mm): 24.4 | LCF (mm): 34.4 | OAL (mm): 74.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Yes
MDW0670GS4 DC (mm): 6.7 | L/D: 4 | LU (mm): 34.4 | LCF (mm): 44.4 | OAL (mm): 84.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Yes
MDW0680GS2 DC (mm): 6.8 | L/D: 2 | LU (mm): 24.2 | LCF (mm): 34.4 | OAL (mm): 74.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Yes
MDW0680GS4 DC (mm): 6.8 | L/D: 4 | LU (mm): 34.2 | LCF (mm): 44.4 | OAL (mm): 84.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Yes
MDW0690GS2 DC (mm): 6.9 | L/D: 2 | LU (mm): 24.1 | LCF (mm): 34.4 | OAL (mm): 74.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Yes
MDW0690GS4 DC (mm): 6.9 | L/D: 4 | LU (mm): 34.1 | LCF (mm): 44.4 | OAL (mm): 84.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Yes
MDW0700GS2 DC (mm): 7.0 | L/D: 2 | LU (mm): 23.9 | LCF (mm): 34.4 | OAL (mm): 74.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Yes
MDW0700GS4 DC (mm): 7.0 | L/D: 4 | LU (mm): 33.9 | LCF (mm): 44.4 | OAL (mm): 84.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Yes
MDW0710GS2 DC (mm): 7.1 | L/D: 2 | LU (mm): 23.9 | LCF (mm): 34.5 | OAL (mm): 79.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDW0710GS4 DC (mm): 7.1 | L/D: 4 | LU (mm): 35.9 | LCF (mm): 46.5 | OAL (mm): 91.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDW0720GS2 DC (mm): 7.2 | L/D: 2 | LU (mm): 23.7 | LCF (mm): 34.5 | OAL (mm): 79.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDW0720GS4 DC (mm): 7.2 | L/D: 4 | LU (mm): 35.7 | LCF (mm): 46.5 | OAL (mm): 91.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDW0730GS2 DC (mm): 7.3 | L/D: 2 | LU (mm): 23.6 | LCF (mm): 34.5 | OAL (mm): 79.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDW0730GS4 DC (mm): 7.3 | L/D: 4 | LU (mm): 35.6 | LCF (mm): 46.5 | OAL (mm): 91.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDW0740GS2 DC (mm): 7.4 | L/D: 2 | LU (mm): 23.4 | LCF (mm): 34.5 | OAL (mm): 79.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDW0740GS4 DC (mm): 7.4 | L/D: 4 | LU (mm): 35.4 | LCF (mm): 46.5 | OAL (mm): 91.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDW0750GS2 DC (mm): 7.5 | L/D: 2 | LU (mm): 23.4 | LCF (mm): 34.6 | OAL (mm): 79.6 | PL (mm): 1.6 | DCON (mm): 8.0 | Stock: Yes
MDW0750GS4 DC (mm): 7.5 | L/D: 4 | LU (mm): 35.4 | LCF (mm): 46.6 | OAL (mm): 91.6 | PL (mm): 1.6 | DCON (mm): 8.0 | Stock: Yes
MDW0760GS2 DC (mm): 7.6 | L/D: 2 | LU (mm): 26.2 | LCF (mm): 37.6 | OAL (mm): 79.6 | PL (mm): 1.6 | DCON (mm): 8.0 | Stock: Yes
MDW0760GS4 DC (mm): 7.6 | L/D: 4 | LU (mm): 38.2 | LCF (mm): 49.6 | OAL (mm): 91.6 | PL (mm): 1.6 | DCON (mm): 8.0 | Stock: Yes
MDW0770GS2 DC (mm): 7.7 | L/D: 2 | LU (mm): 26.1 | LCF (mm): 37.6 | OAL (mm): 79.6 | PL (mm): 1.6 | DCON (mm): 8.0 | Stock: Yes
MDW0770GS4 DC (mm): 7.7 | L/D: 4 | LU (mm): 38.1 | LCF (mm): 49.6 | OAL (mm): 91.6 | PL (mm): 1.6 | DCON (mm): 8.0 | Stock: Yes
MDW0780GS2 DC (mm): 7.8 | L/D: 2 | LU (mm): 25.9 | LCF (mm): 37.6 | OAL (mm): 79.6 | PL (mm): 1.6 | DCON (mm): 8.0 | Stock: Yes
MDW0780GS4 DC (mm): 7.8 | L/D: 4 | LU (mm): 37.9 | LCF (mm): 49.6 | OAL (mm): 91.6 | PL (mm): 1.6 | DCON (mm): 8.0 | Stock: Yes
MDW0790GS2 DC (mm): 7.9 | L/D: 2 | LU (mm): 25.8 | LCF (mm): 37.6 | OAL (mm): 79.6 | PL (mm): 1.6 | DCON (mm): 8.0 | Stock: Yes
MDW0790GS4 DC (mm): 7.9 | L/D: 4 | LU (mm): 37.8 | LCF (mm): 49.6 | OAL (mm): 91.6 | PL (mm): 1.6 | DCON (mm): 8.0 | Stock: Yes
MDW0800GS2 DC (mm): 8.0 | L/D: 2 | LU (mm): 25.7 | LCF (mm): 37.7 | OAL (mm): 79.7 | PL (mm): 1.7 | DCON (mm): 8.0 | Stock: Yes
MDW0800GS4 DC (mm): 8.0 | L/D: 4 | LU (mm): 37.7 | LCF (mm): 49.7 | OAL (mm): 91.7 | PL (mm): 1.7 | DCON (mm): 8.0 | Stock: Yes
MDW0810GS2 DC (mm): 8.1 | L/D: 2 | LU (mm): 25.6 | LCF (mm): 37.7 | OAL (mm): 83.7 | PL (mm): 1.7 | DCON (mm): 9.0 | Stock: Yes
MDW0810GS4 DC (mm): 8.1 | L/D: 4 | LU (mm): 42.6 | LCF (mm): 54.7 | OAL (mm): 99.7 | PL (mm): 1.7 | DCON (mm): 9.0 | Stock: Yes
MDW0820GS2 DC (mm): 8.2 | L/D: 2 | LU (mm): 25.4 | LCF (mm): 37.7 | OAL (mm): 83.7 | PL (mm): 1.7 | DCON (mm): 9.0 | Stock: Yes
MDW0820GS4 DC (mm): 8.2 | L/D: 4 | LU (mm): 42.4 | LCF (mm): 54.7 | OAL (mm): 99.7 | PL (mm): 1.7 | DCON (mm): 9.0 | Stock: Yes
MDW0830GS2 DC (mm): 8.3 | L/D: 2 | LU (mm): 25.3 | LCF (mm): 37.7 | OAL (mm): 83.7 | PL (mm): 1.7 | DCON (mm): 9.0 | Stock: Yes
MDW0830GS4 DC (mm): 8.3 | L/D: 4 | LU (mm): 42.3 | LCF (mm): 54.7 | OAL (mm): 99.7 | PL (mm): 1.7 | DCON (mm): 9.0 | Stock: Yes
MDW0840GS2 DC (mm): 8.4 | L/D: 2 | LU (mm): 25.1 | LCF (mm): 37.7 | OAL (mm): 83.7 | PL (mm): 1.7 | DCON (mm): 9.0 | Stock: Yes
MDW0840GS4 DC (mm): 8.4 | L/D: 4 | LU (mm): 42.1 | LCF (mm): 54.7 | OAL (mm): 99.7 | PL (mm): 1.7 | DCON (mm): 9.0 | Stock: Yes
MDW0850GS2 DC (mm): 8.5 | L/D: 2 | LU (mm): 25.1 | LCF (mm): 37.8 | OAL (mm): 83.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Yes
MDW0850GS4 DC (mm): 8.5 | L/D: 4 | LU (mm): 42.1 | LCF (mm): 54.8 | OAL (mm): 99.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Yes
MDW0860GS2 DC (mm): 8.6 | L/D: 2 | LU (mm): 26.9 | LCF (mm): 39.8 | OAL (mm): 83.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Yes
MDW0860GS4 DC (mm): 8.6 | L/D: 4 | LU (mm): 43.9 | LCF (mm): 56.8 | OAL (mm): 99.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Yes
MDW0870GS2 DC (mm): 8.7 | L/D: 2 | LU (mm): 26.8 | LCF (mm): 39.8 | OAL (mm): 83.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Yes
MDW0870GS4 DC (mm): 8.7 | L/D: 4 | LU (mm): 43.8 | LCF (mm): 56.8 | OAL (mm): 99.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Yes
MDW0880GS2 DC (mm): 8.8 | L/D: 2 | LU (mm): 26.6 | LCF (mm): 39.8 | OAL (mm): 83.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Yes
MDW0880GS4 DC (mm): 8.8 | L/D: 4 | LU (mm): 43.6 | LCF (mm): 56.8 | OAL (mm): 99.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Yes
MDW0890GS2 DC (mm): 8.9 | L/D: 2 | LU (mm): 26.5 | LCF (mm): 39.8 | OAL (mm): 83.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Yes
MDW0890GS4 DC (mm): 8.9 | L/D: 4 | LU (mm): 43.5 | LCF (mm): 56.8 | OAL (mm): 99.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Yes
MDW0900GS2 DC (mm): 9.0 | L/D: 2 | LU (mm): 26.4 | LCF (mm): 39.9 | OAL (mm): 83.9 | PL (mm): 1.9 | DCON (mm): 9.0 | Stock: Yes
MDW0900GS4 DC (mm): 9.0 | L/D: 4 | LU (mm): 43.4 | LCF (mm): 56.9 | OAL (mm): 99.9 | PL (mm): 1.9 | DCON (mm): 9.0 | Stock: Yes
MDW0910GS2 DC (mm): 9.1 | L/D: 2 | LU (mm): 26.3 | LCF (mm): 39.9 | OAL (mm): 88.9 | PL (mm): 1.9 | DCON (mm): 10.0 | Stock: Yes
MDW0910GS4 DC (mm): 9.1 | L/D: 4 | LU (mm): 46.3 | LCF (mm): 59.9 | OAL (mm): 106.9 | PL (mm): 1.9 | DCON (mm): 10.0 | Stock: Yes
MDW0920GS2 DC (mm): 9.2 | L/D: 2 | LU (mm): 26.1 | LCF (mm): 39.9 | OAL (mm): 88.9 | PL (mm): 1.9 | DCON (mm): 10.0 | Stock: Yes
MDW0920GS4 DC (mm): 9.2 | L/D: 4 | LU (mm): 46.1 | LCF (mm): 59.9 | OAL (mm): 106.9 | PL (mm): 1.9 | DCON (mm): 10.0 | Stock: Yes
MDW0930GS2 DC (mm): 9.3 | L/D: 2 | LU (mm): 26.0 | LCF (mm): 39.9 | OAL (mm): 88.9 | PL (mm): 1.9 | DCON (mm): 10.0 | Stock: Yes
MDW0930GS4 DC (mm): 9.3 | L/D: 4 | LU (mm): 46.0 | LCF (mm): 59.9 | OAL (mm): 106.9 | PL (mm): 1.9 | DCON (mm): 10.0 | Stock: Yes
MDW0940GS2 DC (mm): 9.4 | L/D: 2 | LU (mm): 25.8 | LCF (mm): 39.9 | OAL (mm): 88.9 | PL (mm): 1.9 | DCON (mm): 10.0 | Stock: Yes
MDW0940GS4 DC (mm): 9.4 | L/D: 4 | LU (mm): 45.8 | LCF (mm): 59.9 | OAL (mm): 106.9 | PL (mm): 1.9 | DCON (mm): 10.0 | Stock: Yes
MDW0950GS2 DC (mm): 9.5 | L/D: 2 | LU (mm): 25.8 | LCF (mm): 40.0 | OAL (mm): 89.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Yes
MDW0950GS4 DC (mm): 9.5 | L/D: 4 | LU (mm): 45.8 | LCF (mm): 60.0 | OAL (mm): 107.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Yes
MDW0960GS2 DC (mm): 9.6 | L/D: 2 | LU (mm): 28.6 | LCF (mm): 43.0 | OAL (mm): 89.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Yes
MDW0960GS4 DC (mm): 9.6 | L/D: 4 | LU (mm): 47.6 | LCF (mm): 62.0 | OAL (mm): 107.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Yes
MDW0970GS2 DC (mm): 9.7 | L/D: 2 | LU (mm): 28.5 | LCF (mm): 43.0 | OAL (mm): 89.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Yes
MDW0970GS4 DC (mm): 9.7 | L/D: 4 | LU (mm): 47.5 | LCF (mm): 62.0 | OAL (mm): 107.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Yes
MDW0980GS2 DC (mm): 9.8 | L/D: 2 | LU (mm): 28.3 | LCF (mm): 43.0 | OAL (mm): 89.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Yes
MDW0980GS4 DC (mm): 9.8 | L/D: 4 | LU (mm): 47.3 | LCF (mm): 62.0 | OAL (mm): 107.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Yes
MDW0990GS2 DC (mm): 9.9 | L/D: 2 | LU (mm): 28.2 | LCF (mm): 43.0 | OAL (mm): 89.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Yes
MDW0990GS4 DC (mm): 9.9 | L/D: 4 | LU (mm): 47.2 | LCF (mm): 62.0 | OAL (mm): 107.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Yes
MDW1000GS2 DC (mm): 10.0 | L/D: 2 | LU (mm): 28.1 | LCF (mm): 43.1 | OAL (mm): 89.1 | PL (mm): 2.1 | DCON (mm): 10.0 | Stock: Yes
MDW1000GS4 DC (mm): 10.0 | L/D: 4 | LU (mm): 47.1 | LCF (mm): 62.1 | OAL (mm): 107.1 | PL (mm): 2.1 | DCON (mm): 10.0 | Stock: Yes
MDW1010GS2 DC (mm): 10.1 | L/D: 2 | LU (mm): 28.0 | LCF (mm): 43.1 | OAL (mm): 95.1 | PL (mm): 2.1 | DCON (mm): 11.0 | Stock: Yes
MDW1010GS4 DC (mm): 10.1 | L/D: 4 | LU (mm): 53.0 | LCF (mm): 68.1 | OAL (mm): 116.1 | PL (mm): 2.1 | DCON (mm): 11.0 | Stock: Yes
MDW1020GS2 DC (mm): 10.2 | L/D: 2 | LU (mm): 27.8 | LCF (mm): 43.1 | OAL (mm): 95.1 | PL (mm): 2.1 | DCON (mm): 11.0 | Stock: Yes
MDW1020GS4 DC (mm): 10.2 | L/D: 4 | LU (mm): 52.8 | LCF (mm): 68.1 | OAL (mm): 116.1 | PL (mm): 2.1 | DCON (mm): 11.0 | Stock: Yes
MDW1030GS2 DC (mm): 10.3 | L/D: 2 | LU (mm): 27.7 | LCF (mm): 43.1 | OAL (mm): 95.1 | PL (mm): 2.1 | DCON (mm): 11.0 | Stock: Yes
MDW1030GS4 DC (mm): 10.3 | L/D: 4 | LU (mm): 52.7 | LCF (mm): 68.1 | OAL (mm): 116.1 | PL (mm): 2.1 | DCON (mm): 11.0 | Stock: Yes
MDW1040GS2 DC (mm): 10.4 | L/D: 2 | LU (mm): 27.6 | LCF (mm): 43.2 | OAL (mm): 95.2 | PL (mm): 2.2 | DCON (mm): 11.0 | Stock: Yes
MDW1040GS4 DC (mm): 10.4 | L/D: 4 | LU (mm): 52.6 | LCF (mm): 68.2 | OAL (mm): 116.2 | PL (mm): 2.2 | DCON (mm): 11.0 | Stock: Yes
MDW1050GS2 DC (mm): 10.5 | L/D: 2 | LU (mm): 27.5 | LCF (mm): 43.2 | OAL (mm): 95.2 | PL (mm): 2.2 | DCON (mm): 11.0 | Stock: Yes
MDW1050GS4 DC (mm): 10.5 | L/D: 4 | LU (mm): 52.5 | LCF (mm): 68.2 | OAL (mm): 116.2 | PL (mm): 2.2 | DCON (mm): 11.0 | Stock: Yes
MDW1060GS2 DC (mm): 10.6 | L/D: 2 | LU (mm): 31.3 | LCF (mm): 47.2 | OAL (mm): 95.2 | PL (mm): 2.2 | DCON (mm): 11.0 | Stock: Yes
MDW1060GS4 DC (mm): 10.6 | L/D: 4 | LU (mm): 54.3 | LCF (mm): 70.2 | OAL (mm): 116.2 | PL (mm): 2.2 | DCON (mm): 11.0 | Stock: Yes
MDW1070GS2 DC (mm): 10.7 | L/D: 2 | LU (mm): 31.2 | LCF (mm): 47.2 | OAL (mm): 95.2 | PL (mm): 2.2 | DCON (mm): 11.0 | Stock: Yes
MDW1070GS4 DC (mm): 10.7 | L/D: 4 | LU (mm): 54.2 | LCF (mm): 70.2 | OAL (mm): 116.2 | PL (mm): 2.2 | DCON (mm): 11.0 | Stock: Yes
MDW1080GS2 DC (mm): 10.8 | L/D: 2 | LU (mm): 31.0 | LCF (mm): 47.2 | OAL (mm): 95.2 | PL (mm): 2.2 | DCON (mm): 11.0 | Stock: Yes
MDW1080GS4 DC (mm): 10.8 | L/D: 4 | LU (mm): 54.0 | LCF (mm): 70.2 | OAL (mm): 116.2 | PL (mm): 2.2 | DCON (mm): 11.0 | Stock: Yes
MDW1090GS2 DC (mm): 10.9 | L/D: 2 | LU (mm): 31.0 | LCF (mm): 47.3 | OAL (mm): 95.3 | PL (mm): 2.3 | DCON (mm): 11.0 | Stock: Yes
MDW1090GS4 DC (mm): 10.9 | L/D: 4 | LU (mm): 54.0 | LCF (mm): 70.3 | OAL (mm): 116.3 | PL (mm): 2.3 | DCON (mm): 11.0 | Stock: Yes
MDW1100GS2 DC (mm): 11.0 | L/D: 2 | LU (mm): 30.8 | LCF (mm): 47.3 | OAL (mm): 95.3 | PL (mm): 2.3 | DCON (mm): 11.0 | Stock: Yes
MDW1100GS4 DC (mm): 11.0 | L/D: 4 | LU (mm): 53.8 | LCF (mm): 70.3 | OAL (mm): 116.3 | PL (mm): 2.3 | DCON (mm): 11.0 | Stock: Yes
MDW1110GS2 DC (mm): 11.1 | L/D: 2 | LU (mm): 30.7 | LCF (mm): 47.3 | OAL (mm): 102.3 | PL (mm): 2.3 | DCON (mm): 12.0 | Stock: Yes
MDW1110GS4 DC (mm): 11.1 | L/D: 4 | LU (mm): 56.7 | LCF (mm): 73.3 | OAL (mm): 123.3 | PL (mm): 2.3 | DCON (mm): 12.0 | Stock: Yes
MDW1120GS2 DC (mm): 11.2 | L/D: 2 | LU (mm): 30.5 | LCF (mm): 47.3 | OAL (mm): 102.3 | PL (mm): 2.3 | DCON (mm): 12.0 | Stock: Yes
MDW1120GS4 DC (mm): 11.2 | L/D: 4 | LU (mm): 56.5 | LCF (mm): 73.3 | OAL (mm): 123.3 | PL (mm): 2.3 | DCON (mm): 12.0 | Stock: Yes
MDW1130GS2 DC (mm): 11.3 | L/D: 2 | LU (mm): 30.4 | LCF (mm): 47.3 | OAL (mm): 102.3 | PL (mm): 2.3 | DCON (mm): 12.0 | Stock: Yes
MDW1130GS4 DC (mm): 11.3 | L/D: 4 | LU (mm): 56.4 | LCF (mm): 73.3 | OAL (mm): 123.3 | PL (mm): 2.3 | DCON (mm): 12.0 | Stock: Yes
MDW1140GS2 DC (mm): 11.4 | L/D: 2 | LU (mm): 30.3 | LCF (mm): 47.4 | OAL (mm): 102.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Yes
MDW1140GS4 DC (mm): 11.4 | L/D: 4 | LU (mm): 56.3 | LCF (mm): 73.4 | OAL (mm): 123.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Yes
MDW1150GS2 DC (mm): 11.5 | L/D: 2 | LU (mm): 30.2 | LCF (mm): 47.4 | OAL (mm): 102.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Yes
MDW1150GS4 DC (mm): 11.5 | L/D: 4 | LU (mm): 56.2 | LCF (mm): 73.4 | OAL (mm): 123.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Yes
MDW1160GS2 DC (mm): 11.6 | L/D: 2 | LU (mm): 32.0 | LCF (mm): 49.4 | OAL (mm): 102.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Yes
MDW1160GS4 DC (mm): 11.6 | L/D: 4 | LU (mm): 58.0 | LCF (mm): 75.4 | OAL (mm): 123.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Yes
MDW1170GS2 DC (mm): 11.7 | L/D: 2 | LU (mm): 31.9 | LCF (mm): 49.4 | OAL (mm): 102.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Yes
MDW1170GS4 DC (mm): 11.7 | L/D: 4 | LU (mm): 57.9 | LCF (mm): 75.4 | OAL (mm): 123.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Yes
MDW1180GS2 DC (mm): 11.8 | L/D: 2 | LU (mm): 31.7 | LCF (mm): 49.4 | OAL (mm): 102.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Yes
MDW1180GS4 DC (mm): 11.8 | L/D: 4 | LU (mm): 57.7 | LCF (mm): 75.4 | OAL (mm): 123.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Yes
MDW1190GS2 DC (mm): 11.9 | L/D: 2 | LU (mm): 31.7 | LCF (mm): 49.5 | OAL (mm): 102.5 | PL (mm): 2.5 | DCON (mm): 12.0 | Stock: Yes
MDW1190GS4 DC (mm): 11.9 | L/D: 4 | LU (mm): 57.7 | LCF (mm): 75.5 | OAL (mm): 123.5 | PL (mm): 2.5 | DCON (mm): 12.0 | Stock: Yes
MDW1200GS2 DC (mm): 12.0 | L/D: 2 | LU (mm): 31.5 | LCF (mm): 49.5 | OAL (mm): 102.5 | PL (mm): 2.5 | DCON (mm): 12.0 | Stock: Yes
MDW1200GS4 DC (mm): 12.0 | L/D: 4 | LU (mm): 57.5 | LCF (mm): 75.5 | OAL (mm): 123.5 | PL (mm): 2.5 | DCON (mm): 12.0 | Stock: Yes
MDW1210GS2 DC (mm): 12.1 | L/D: 2 | LU (mm): 31.4 | LCF (mm): 49.5 | OAL (mm): 102.5 | PL (mm): 2.5 | DCON (mm): 13.0 | Stock: Made to order
MDW1210GS4 DC (mm): 12.1 | L/D: 4 | LU (mm): 60.4 | LCF (mm): 78.5 | OAL (mm): 139.5 | PL (mm): 2.5 | DCON (mm): 13.0 | Stock: Made to order
MDW1220GS2 DC (mm): 12.2 | L/D: 2 | LU (mm): 31.2 | LCF (mm): 49.5 | OAL (mm): 102.5 | PL (mm): 2.5 | DCON (mm): 13.0 | Stock: Made to order
MDW1220GS4 DC (mm): 12.2 | L/D: 4 | LU (mm): 60.2 | LCF (mm): 78.5 | OAL (mm): 139.5 | PL (mm): 2.5 | DCON (mm): 13.0 | Stock: Made to order
MDW1230GS2 DC (mm): 12.3 | L/D: 2 | LU (mm): 31.1 | LCF (mm): 49.5 | OAL (mm): 102.5 | PL (mm): 2.5 | DCON (mm): 13.0 | Stock: Made to order
MDW1230GS4 DC (mm): 12.3 | L/D: 4 | LU (mm): 60.1 | LCF (mm): 78.5 | OAL (mm): 139.5 | PL (mm): 2.5 | DCON (mm): 13.0 | Stock: Made to order
MDW1240GS2 DC (mm): 12.4 | L/D: 2 | LU (mm): 31.0 | LCF (mm): 49.6 | OAL (mm): 102.6 | PL (mm): 2.6 | DCON (mm): 13.0 | Stock: Made to order
MDW1240GS4 DC (mm): 12.4 | L/D: 4 | LU (mm): 60.0 | LCF (mm): 78.6 | OAL (mm): 139.6 | PL (mm): 2.5 | DCON (mm): 13.0 | Stock: Made to order
MDW1250GS2 DC (mm): 12.5 | L/D: 2 | LU (mm): 30.9 | LCF (mm): 49.6 | OAL (mm): 102.6 | PL (mm): 2.6 | DCON (mm): 13.0 | Stock: Made to order
MDW1250GS4 DC (mm): 12.5 | L/D: 4 | LU (mm): 59.9 | LCF (mm): 78.6 | OAL (mm): 139.6 | PL (mm): 2.6 | DCON (mm): 13.0 | Stock: Made to order
MDW1260GS2 DC (mm): 12.6 | L/D: 2 | LU (mm): 32.7 | LCF (mm): 51.6 | OAL (mm): 102.6 | PL (mm): 2.6 | DCON (mm): 13.0 | Stock: Made to order
MDW1260GS4 DC (mm): 12.6 | L/D: 4 | LU (mm): 61.7 | LCF (mm): 80.6 | OAL (mm): 139.6 | PL (mm): 2.6 | DCON (mm): 13.0 | Stock: Made to order
MDW1270GS2 DC (mm): 12.7 | L/D: 2 | LU (mm): 32.6 | LCF (mm): 51.6 | OAL (mm): 102.6 | PL (mm): 2.6 | DCON (mm): 13.0 | Stock: Made to order
MDW1270GS4 DC (mm): 12.7 | L/D: 4 | LU (mm): 61.6 | LCF (mm): 80.6 | OAL (mm): 139.6 | PL (mm): 2.6 | DCON (mm): 13.0 | Stock: Made to order
MDW1280GS2 DC (mm): 12.8 | L/D: 2 | LU (mm): 32.4 | LCF (mm): 51.6 | OAL (mm): 102.6 | PL (mm): 2.6 | DCON (mm): 13.0 | Stock: Made to order
MDW1280GS4 DC (mm): 12.8 | L/D: 4 | LU (mm): 61.4 | LCF (mm): 80.6 | OAL (mm): 139.6 | PL (mm): 2.6 | DCON (mm): 13.0 | Stock: Made to order
MDW1290GS2 DC (mm): 12.9 | L/D: 2 | LU (mm): 32.4 | LCF (mm): 51.7 | OAL (mm): 102.7 | PL (mm): 2.7 | DCON (mm): 13.0 | Stock: Made to order
MDW1290GS4 DC (mm): 12.9 | L/D: 4 | LU (mm): 61.4 | LCF (mm): 80.7 | OAL (mm): 139.7 | PL (mm): 2.7 | DCON (mm): 13.0 | Stock: Made to order
MDW1300GS2 DC (mm): 13.0 | L/D: 2 | LU (mm): 32.2 | LCF (mm): 51.7 | OAL (mm): 102.7 | PL (mm): 2.7 | DCON (mm): 13.0 | Stock: Made to order
MDW1300GS4 DC (mm): 13.0 | L/D: 4 | LU (mm): 61.2 | LCF (mm): 80.7 | OAL (mm): 139.7 | PL (mm): 2.7 | DCON (mm): 13.0 | Stock: Made to order
MDW1310GS2 DC (mm): 13.1 | L/D: 2 | LU (mm): 33.1 | LCF (mm): 52.7 | OAL (mm): 107.7 | PL (mm): 2.7 | DCON (mm): 14.0 | Stock: Made to order
MDW1310GS4 DC (mm): 13.1 | L/D: 4 | LU (mm): 67.1 | LCF (mm): 86.7 | OAL (mm): 149.7 | PL (mm): 2.7 | DCON (mm): 14.0 | Stock: Made to order
MDW1320GS2 DC (mm): 13.2 | L/D: 2 | LU (mm): 32.9 | LCF (mm): 52.7 | OAL (mm): 107.7 | PL (mm): 2.7 | DCON (mm): 14.0 | Stock: Made to order
MDW1320GS4 DC (mm): 13.2 | L/D: 4 | LU (mm): 66.9 | LCF (mm): 86.7 | OAL (mm): 149.7 | PL (mm): 2.7 | DCON (mm): 14.0 | Stock: Made to order
MDW1330GS2 DC (mm): 13.3 | L/D: 2 | LU (mm): 32.9 | LCF (mm): 52.8 | OAL (mm): 107.8 | PL (mm): 2.8 | DCON (mm): 14.0 | Stock: Made to order
MDW1330GS4 DC (mm): 13.3 | L/D: 4 | LU (mm): 66.9 | LCF (mm): 86.8 | OAL (mm): 149.8 | PL (mm): 2.8 | DCON (mm): 14.0 | Stock: Made to order
MDW1340GS2 DC (mm): 13.4 | L/D: 2 | LU (mm): 32.7 | LCF (mm): 52.8 | OAL (mm): 107.8 | PL (mm): 2.8 | DCON (mm): 14.0 | Stock: Made to order
MDW1340GS4 DC (mm): 13.4 | L/D: 4 | LU (mm): 66.7 | LCF (mm): 86.8 | OAL (mm): 149.8 | PL (mm): 2.8 | DCON (mm): 14.0 | Stock: Made to order
MDW1350GS2 DC (mm): 13.5 | L/D: 2 | LU (mm): 32.6 | LCF (mm): 52.8 | OAL (mm): 107.8 | PL (mm): 2.8 | DCON (mm): 14.0 | Stock: Made to order
MDW1350GS4 DC (mm): 13.5 | L/D: 4 | LU (mm): 66.6 | LCF (mm): 86.8 | OAL (mm): 149.8 | PL (mm): 2.8 | DCON (mm): 14.0 | Stock: Made to order
MDW1360GS2 DC (mm): 13.6 | L/D: 2 | LU (mm): 34.4 | LCF (mm): 54.8 | OAL (mm): 107.8 | PL (mm): 2.8 | DCON (mm): 14.0 | Stock: Made to order
MDW1360GS4 DC (mm): 13.6 | L/D: 4 | LU (mm): 68.4 | LCF (mm): 88.8 | OAL (mm): 149.8 | PL (mm): 2.8 | DCON (mm): 14.0 | Stock: Made to order
MDW1370GS2 DC (mm): 13.7 | L/D: 2 | LU (mm): 34.3 | LCF (mm): 54.8 | OAL (mm): 107.8 | PL (mm): 2.8 | DCON (mm): 14.0 | Stock: Made to order
MDW1370GS4 DC (mm): 13.7 | L/D: 4 | LU (mm): 68.3 | LCF (mm): 88.8 | OAL (mm): 149.8 | PL (mm): 2.8 | DCON (mm): 14.0 | Stock: Made to order
MDW1380GS2 DC (mm): 13.8 | L/D: 2 | LU (mm): 34.2 | LCF (mm): 54.9 | OAL (mm): 107.9 | PL (mm): 2.9 | DCON (mm): 14.0 | Stock: Made to order
MDW1380GS4 DC (mm): 13.8 | L/D: 4 | LU (mm): 68.2 | LCF (mm): 88.9 | OAL (mm): 149.9 | PL (mm): 2.9 | DCON (mm): 14.0 | Stock: Made to order
MDW1390GS2 DC (mm): 13.9 | L/D: 2 | LU (mm): 34.1 | LCF (mm): 54.9 | OAL (mm): 107.9 | PL (mm): 2.9 | DCON (mm): 14.0 | Stock: Made to order
MDW1390GS4 DC (mm): 13.9 | L/D: 4 | LU (mm): 68.1 | LCF (mm): 88.9 | OAL (mm): 149.9 | PL (mm): 2.9 | DCON (mm): 14.0 | Stock: Made to order
MDW1400GS2 DC (mm): 14.0 | L/D: 2 | LU (mm): 33.9 | LCF (mm): 54.9 | OAL (mm): 107.9 | PL (mm): 2.9 | DCON (mm): 14.0 | Stock: Made to order
MDW1400GS4 DC (mm): 14.0 | L/D: 4 | LU (mm): 67.9 | LCF (mm): 88.9 | OAL (mm): 149.9 | PL (mm): 2.9 | DCON (mm): 14.0 | Stock: Made to order
MDW1410GS2 DC (mm): 14.1 | L/D: 2 | LU (mm): 33.8 | LCF (mm): 54.9 | OAL (mm): 110.9 | PL (mm): 2.9 | DCON (mm): 15.0 | Stock: Made to order
MDW1410GS4 DC (mm): 14.1 | L/D: 4 | LU (mm): 70.8 | LCF (mm): 91.9 | OAL (mm): 155.9 | PL (mm): 2.9 | DCON (mm): 15.0 | Stock: Made to order
MDW1420GS2 DC (mm): 14.2 | L/D: 2 | LU (mm): 33.6 | LCF (mm): 54.9 | OAL (mm): 110.9 | PL (mm): 2.9 | DCON (mm): 15.0 | Stock: Made to order
MDW1420GS4 DC (mm): 14.2 | L/D: 4 | LU (mm): 70.6 | LCF (mm): 91.9 | OAL (mm): 155.9 | PL (mm): 2.9 | DCON (mm): 15.0 | Stock: Made to order
MDW1430GS2 DC (mm): 14.3 | L/D: 2 | LU (mm): 33.6 | LCF (mm): 55.0 | OAL (mm): 111.0 | PL (mm): 3.0 | DCON (mm): 15.0 | Stock: Made to order
MDW1430GS4 DC (mm): 14.3 | L/D: 4 | LU (mm): 70.6 | LCF (mm): 92.0 | OAL (mm): 156.0 | PL (mm): 3.0 | DCON (mm): 15.0 | Stock: Made to order
MDW1440GS2 DC (mm): 14.4 | L/D: 2 | LU (mm): 33.4 | LCF (mm): 55.0 | OAL (mm): 111.0 | PL (mm): 3.0 | DCON (mm): 15.0 | Stock: Made to order
MDW1440GS4 DC (mm): 14.4 | L/D: 4 | LU (mm): 70.4 | LCF (mm): 92.0 | OAL (mm): 156.0 | PL (mm): 3.0 | DCON (mm): 15.0 | Stock: Made to order
MDW1450GS2 DC (mm): 14.5 | L/D: 2 | LU (mm): 33.3 | LCF (mm): 55.0 | OAL (mm): 111.0 | PL (mm): 3.0 | DCON (mm): 15.0 | Stock: Made to order
MDW1450GS4 DC (mm): 14.5 | L/D: 4 | LU (mm): 70.3 | LCF (mm): 92.0 | OAL (mm): 156.0 | PL (mm): 3.0 | DCON (mm): 15.0 | Stock: Made to order
MDW1460GS2 DC (mm): 14.6 | L/D: 2 | LU (mm): 34.1 | LCF (mm): 56.0 | OAL (mm): 111.0 | PL (mm): 3.0 | DCON (mm): 15.0 | Stock: Made to order
MDW1460GS4 DC (mm): 14.6 | L/D: 4 | LU (mm): 72.1 | LCF (mm): 94.0 | OAL (mm): 156.0 | PL (mm): 3.0 | DCON (mm): 15.0 | Stock: Made to order
MDW1470GS2 DC (mm): 14.7 | L/D: 2 | LU (mm): 34.0 | LCF (mm): 56.0 | OAL (mm): 111.0 | PL (mm): 3.0 | DCON (mm): 15.0 | Stock: Made to order
MDW1470GS4 DC (mm): 14.7 | L/D: 4 | LU (mm): 72.0 | LCF (mm): 94.0 | OAL (mm): 156.0 | PL (mm): 3.0 | DCON (mm): 15.0 | Stock: Made to order
MDW1480GS2 DC (mm): 14.8 | L/D: 2 | LU (mm): 33.9 | LCF (mm): 56.1 | OAL (mm): 111.1 | PL (mm): 3.1 | DCON (mm): 15.0 | Stock: Made to order
MDW1480GS4 DC (mm): 14.8 | L/D: 4 | LU (mm): 71.9 | LCF (mm): 94.1 | OAL (mm): 156.1 | PL (mm): 3.1 | DCON (mm): 15.0 | Stock: Made to order
MDW1490GS2 DC (mm): 14.9 | L/D: 2 | LU (mm): 33.8 | LCF (mm): 56.1 | OAL (mm): 111.1 | PL (mm): 3.1 | DCON (mm): 15.0 | Stock: Made to order
MDW1490GS4 DC (mm): 14.9 | L/D: 4 | LU (mm): 71.8 | LCF (mm): 94.1 | OAL (mm): 156.1 | PL (mm): 3.1 | DCON (mm): 15.0 | Stock: Made to order
MDW1500GS2 DC (mm): 15.0 | L/D: 2 | LU (mm): 33.6 | LCF (mm): 56.1 | OAL (mm): 111.1 | PL (mm): 3.1 | DCON (mm): 15.0 | Stock: Made to order
MDW1500GS4 DC (mm): 15.0 | L/D: 4 | LU (mm): 71.6 | LCF (mm): 94.1 | OAL (mm): 156.1 | PL (mm): 3.1 | DCON (mm): 15.0 | Stock: Made to order
MDW1510GS2 DC (mm): 15.1 | L/D: 2 | LU (mm): 33.5 | LCF (mm): 56.1 | OAL (mm): 115.1 | PL (mm): 3.1 | DCON (mm): 16.0 | Stock: Made to order
MDW1510GS4 DC (mm): 15.1 | L/D: 4 | LU (mm): 74.5 | LCF (mm): 97.1 | OAL (mm): 163.1 | PL (mm): 3.1 | DCON (mm): 16.0 | Stock: Made to order
MDW1520GS2 DC (mm): 15.2 | L/D: 2 | LU (mm): 33.3 | LCF (mm): 56.1 | OAL (mm): 115.1 | PL (mm): 3.1 | DCON (mm): 16.0 | Stock: Made to order
MDW1520GS4 DC (mm): 15.2 | L/D: 4 | LU (mm): 74.3 | LCF (mm): 97.1 | OAL (mm): 163.1 | PL (mm): 3.1 | DCON (mm): 16.0 | Stock: Made to order
MDW1530GS2 DC (mm): 15.3 | L/D: 2 | LU (mm): 33.3 | LCF (mm): 56.2 | OAL (mm): 115.2 | PL (mm): 3.2 | DCON (mm): 16.0 | Stock: Made to order
MDW1530GS4 DC (mm): 15.3 | L/D: 4 | LU (mm): 74.3 | LCF (mm): 97.2 | OAL (mm): 163.2 | PL (mm): 3.2 | DCON (mm): 16.0 | Stock: Made to order
MDW1540GS2 DC (mm): 15.4 | L/D: 2 | LU (mm): 33.1 | LCF (mm): 56.2 | OAL (mm): 115.2 | PL (mm): 3.2 | DCON (mm): 16.0 | Stock: Made to order
MDW1540GS4 DC (mm): 15.4 | L/D: 4 | LU (mm): 74.1 | LCF (mm): 97.2 | OAL (mm): 163.2 | PL (mm): 3.2 | DCON (mm): 16.0 | Stock: Made to order
MDW1550GS2 DC (mm): 15.5 | L/D: 2 | LU (mm): 33.0 | LCF (mm): 56.2 | OAL (mm): 115.2 | PL (mm): 3.2 | DCON (mm): 16.0 | Stock: Made to order
MDW1550GS4 DC (mm): 15.5 | L/D: 4 | LU (mm): 74.0 | LCF (mm): 97.2 | OAL (mm): 163.2 | PL (mm): 3.2 | DCON (mm): 16.0 | Stock: Made to order
MDW1560GS2 DC (mm): 15.6 | L/D: 2 | LU (mm): 34.8 | LCF (mm): 58.2 | OAL (mm): 115.2 | PL (mm): 3.2 | DCON (mm): 16.0 | Stock: Made to order
MDW1560GS4 DC (mm): 15.6 | L/D: 4 | LU (mm): 75.8 | LCF (mm): 99.2 | OAL (mm): 163.2 | PL (mm): 3.2 | DCON (mm): 16.0 | Stock: Made to order
MDW1570GS2 DC (mm): 15.7 | L/D: 2 | LU (mm): 34.7 | LCF (mm): 58.2 | OAL (mm): 115.2 | PL (mm): 3.2 | DCON (mm): 16.0 | Stock: Made to order
MDW1570GS4 DC (mm): 15.7 | L/D: 4 | LU (mm): 75.7 | LCF (mm): 99.2 | OAL (mm): 163.2 | PL (mm): 3.2 | DCON (mm): 16.0 | Stock: Made to order
MDW1580GS2 DC (mm): 15.8 | L/D: 2 | LU (mm): 34.6 | LCF (mm): 58.3 | OAL (mm): 115.3 | PL (mm): 3.3 | DCON (mm): 16.0 | Stock: Made to order
MDW1580GS4 DC (mm): 15.8 | L/D: 4 | LU (mm): 75.6 | LCF (mm): 99.3 | OAL (mm): 163.3 | PL (mm): 3.3 | DCON (mm): 16.0 | Stock: Made to order
MDW1590GS2 DC (mm): 15.9 | L/D: 2 | LU (mm): 34.5 | LCF (mm): 58.3 | OAL (mm): 115.3 | PL (mm): 3.3 | DCON (mm): 16.0 | Stock: Made to order
MDW1590GS4 DC (mm): 15.9 | L/D: 4 | LU (mm): 75.5 | LCF (mm): 99.3 | OAL (mm): 163.3 | PL (mm): 3.3 | DCON (mm): 16.0 | Stock: Made to order
MDW1600GS2 DC (mm): 16.0 | L/D: 2 | LU (mm): 34.3 | LCF (mm): 58.3 | OAL (mm): 115.3 | PL (mm): 3.3 | DCON (mm): 16.0 | Stock: Made to order
MDW1600GS4 DC (mm): 16.0 | L/D: 4 | LU (mm): 75.3 | LCF (mm): 99.3 | OAL (mm): 163.3 | PL (mm): 3.3 | DCON (mm): 16.0 | Stock: Made to order
MDW1610GS2 DC (mm): 16.1 | L/D: 2 | LU (mm): 35.2 | LCF (mm): 59.3 | OAL (mm): 119.3 | PL (mm): 3.3 | DCON (mm): 17.0 | Stock: Made to order
MDW1610GS4 DC (mm): 16.1 | L/D: 4 | LU (mm): 77.2 | LCF (mm): 101.3 | OAL (mm): 170.3 | PL (mm): 3.3 | DCON (mm): 17.0 | Stock: Made to order
MDW1620GS2 DC (mm): 16.2 | L/D: 2 | LU (mm): 35.1 | LCF (mm): 59.4 | OAL (mm): 119.4 | PL (mm): 3.4 | DCON (mm): 17.0 | Stock: Made to order
MDW1620GS4 DC (mm): 16.2 | L/D: 4 | LU (mm): 77.1 | LCF (mm): 101.4 | OAL (mm): 170.4 | PL (mm): 3.4 | DCON (mm): 17.0 | Stock: Made to order
MDW1630GS2 DC (mm): 16.3 | L/D: 2 | LU (mm): 35.0 | LCF (mm): 59.4 | OAL (mm): 119.4 | PL (mm): 3.4 | DCON (mm): 17.0 | Stock: Made to order
MDW1630GS4 DC (mm): 16.3 | L/D: 4 | LU (mm): 77.0 | LCF (mm): 101.4 | OAL (mm): 170.4 | PL (mm): 3.4 | DCON (mm): 17.0 | Stock: Made to order
MDW1640GS2 DC (mm): 16.4 | L/D: 2 | LU (mm): 34.8 | LCF (mm): 59.4 | OAL (mm): 119.4 | PL (mm): 3.4 | DCON (mm): 17.0 | Stock: Made to order
MDW1640GS4 DC (mm): 16.4 | L/D: 4 | LU (mm): 76.8 | LCF (mm): 101.4 | OAL (mm): 170.4 | PL (mm): 3.4 | DCON (mm): 17.0 | Stock: Made to order
MDW1650GS2 DC (mm): 16.5 | L/D: 2 | LU (mm): 34.7 | LCF (mm): 59.4 | OAL (mm): 119.4 | PL (mm): 3.4 | DCON (mm): 17.0 | Stock: Made to order
MDW1650GS4 DC (mm): 16.5 | L/D: 4 | LU (mm): 76.7 | LCF (mm): 101.4 | OAL (mm): 170.4 | PL (mm): 3.4 | DCON (mm): 17.0 | Stock: Made to order
MDW1660GS2 DC (mm): 16.6 | L/D: 2 | LU (mm): 35.5 | LCF (mm): 60.4 | OAL (mm): 119.4 | PL (mm): 3.4 | DCON (mm): 17.0 | Stock: Made to order
MDW1660GS4 DC (mm): 16.6 | L/D: 4 | LU (mm): 76.5 | LCF (mm): 101.4 | OAL (mm): 170.4 | PL (mm): 3.4 | DCON (mm): 17.0 | Stock: Made to order
MDW1670GS2 DC (mm): 16.7 | L/D: 2 | LU (mm): 35.5 | LCF (mm): 60.5 | OAL (mm): 119.5 | PL (mm): 3.5 | DCON (mm): 17.0 | Stock: Made to order
MDW1670GS4 DC (mm): 16.7 | L/D: 4 | LU (mm): 76.5 | LCF (mm): 101.5 | OAL (mm): 170.5 | PL (mm): 3.5 | DCON (mm): 17.0 | Stock: Made to order
MDW1680GS2 DC (mm): 16.8 | L/D: 2 | LU (mm): 35.3 | LCF (mm): 60.5 | OAL (mm): 119.5 | PL (mm): 3.5 | DCON (mm): 17.0 | Stock: Made to order
MDW1680GS4 DC (mm): 16.8 | L/D: 4 | LU (mm): 76.3 | LCF (mm): 101.5 | OAL (mm): 170.5 | PL (mm): 3.5 | DCON (mm): 17.0 | Stock: Made to order
MDW1690GS2 DC (mm): 16.9 | L/D: 2 | LU (mm): 35.2 | LCF (mm): 60.5 | OAL (mm): 119.5 | PL (mm): 3.5 | DCON (mm): 17.0 | Stock: Made to order
MDW1690GS4 DC (mm): 16.9 | L/D: 4 | LU (mm): 76.2 | LCF (mm): 101.5 | OAL (mm): 170.5 | PL (mm): 3.5 | DCON (mm): 17.0 | Stock: Made to order
MDW1700GS2 DC (mm): 17.0 | L/D: 2 | LU (mm): 35.0 | LCF (mm): 60.5 | OAL (mm): 119.5 | PL (mm): 3.5 | DCON (mm): 17.0 | Stock: Made to order
MDW1700GS4 DC (mm): 17.0 | L/D: 4 | LU (mm): 76.0 | LCF (mm): 101.5 | OAL (mm): 170.5 | PL (mm): 3.5 | DCON (mm): 17.0 | Stock: Made to order
MDW1710GS2 DC (mm): 17.1 | L/D: 2 | LU (mm): 35.9 | LCF (mm): 61.5 | OAL (mm): 123.5 | PL (mm): 3.5 | DCON (mm): 18.0 | Stock: Made to order
MDW1710GS4 DC (mm): 17.1 | L/D: 4 | LU (mm): 77.9 | LCF (mm): 103.5 | OAL (mm): 170.5 | PL (mm): 3.5 | DCON (mm): 18.0 | Stock: Made to order
MDW1720GS2 DC (mm): 17.2 | L/D: 2 | LU (mm): 35.8 | LCF (mm): 61.6 | OAL (mm): 123.6 | PL (mm): 3.6 | DCON (mm): 18.0 | Stock: Made to order
MDW1720GS4 DC (mm): 17.2 | L/D: 4 | LU (mm): 77.8 | LCF (mm): 103.6 | OAL (mm): 170.6 | PL (mm): 3.6 | DCON (mm): 18.0 | Stock: Made to order
MDW1730GS2 DC (mm): 17.3 | L/D: 2 | LU (mm): 35.7 | LCF (mm): 61.6 | OAL (mm): 123.6 | PL (mm): 3.6 | DCON (mm): 18.0 | Stock: Made to order
MDW1730GS4 DC (mm): 17.3 | L/D: 4 | LU (mm): 77.7 | LCF (mm): 103.6 | OAL (mm): 170.6 | PL (mm): 3.6 | DCON (mm): 18.0 | Stock: Made to order
MDW1740GS2 DC (mm): 17.4 | L/D: 2 | LU (mm): 35.5 | LCF (mm): 61.6 | OAL (mm): 123.6 | PL (mm): 3.6 | DCON (mm): 18.0 | Stock: Made to order
MDW1740GS4 DC (mm): 17.4 | L/D: 4 | LU (mm): 77.5 | LCF (mm): 103.6 | OAL (mm): 170.6 | PL (mm): 3.6 | DCON (mm): 18.0 | Stock: Made to order
MDW1750GS2 DC (mm): 17.5 | L/D: 2 | LU (mm): 35.4 | LCF (mm): 61.6 | OAL (mm): 123.6 | PL (mm): 3.6 | DCON (mm): 18.0 | Stock: Made to order
MDW1750GS4 DC (mm): 17.5 | L/D: 4 | LU (mm): 77.4 | LCF (mm): 103.6 | OAL (mm): 170.6 | PL (mm): 3.6 | DCON (mm): 18.0 | Stock: Made to order
MDW1760GS2 DC (mm): 17.6 | L/D: 2 | LU (mm): 36.2 | LCF (mm): 62.6 | OAL (mm): 123.6 | PL (mm): 3.6 | DCON (mm): 18.0 | Stock: Made to order
MDW1760GS4 DC (mm): 17.6 | L/D: 4 | LU (mm): 79.2 | LCF (mm): 105.6 | OAL (mm): 170.6 | PL (mm): 3.6 | DCON (mm): 18.0 | Stock: Made to order
MDW1770GS2 DC (mm): 17.7 | L/D: 2 | LU (mm): 36.2 | LCF (mm): 62.7 | OAL (mm): 123.7 | PL (mm): 3.7 | DCON (mm): 18.0 | Stock: Made to order
MDW1770GS4 DC (mm): 17.7 | L/D: 4 | LU (mm): 79.2 | LCF (mm): 105.7 | OAL (mm): 170.7 | PL (mm): 3.7 | DCON (mm): 18.0 | Stock: Made to order
MDW1780GS2 DC (mm): 17.8 | L/D: 2 | LU (mm): 36.0 | LCF (mm): 62.7 | OAL (mm): 123.7 | PL (mm): 3.7 | DCON (mm): 18.0 | Stock: Made to order
MDW1780GS4 DC (mm): 17.8 | L/D: 4 | LU (mm): 79.0 | LCF (mm): 105.7 | OAL (mm): 170.7 | PL (mm): 3.7 | DCON (mm): 18.0 | Stock: Made to order
MDW1790GS2 DC (mm): 17.9 | L/D: 2 | LU (mm): 35.9 | LCF (mm): 62.7 | OAL (mm): 123.7 | PL (mm): 3.7 | DCON (mm): 18.0 | Stock: Made to order
MDW1790GS4 DC (mm): 17.9 | L/D: 4 | LU (mm): 78.9 | LCF (mm): 105.7 | OAL (mm): 170.7 | PL (mm): 3.7 | DCON (mm): 18.0 | Stock: Made to order
MDW1800GS2 DC (mm): 18.0 | L/D: 2 | LU (mm): 35.7 | LCF (mm): 62.7 | OAL (mm): 123.7 | PL (mm): 3.7 | DCON (mm): 18.0 | Stock: Made to order
MDW1800GS4 DC (mm): 18.0 | L/D: 4 | LU (mm): 78.7 | LCF (mm): 105.7 | OAL (mm): 170.7 | PL (mm): 3.7 | DCON (mm): 18.0 | Stock: Made to order
MDW1810GS2 DC (mm): 18.1 | L/D: 2 | LU (mm): 35.6 | LCF (mm): 62.7 | OAL (mm): 126.7 | PL (mm): 3.7 | DCON (mm): 19.0 | Stock: Made to order
MDW1810GS4 DC (mm): 18.1 | L/D: 4 | LU (mm): 80.6 | LCF (mm): 107.7 | OAL (mm): 182.7 | PL (mm): 3.7 | DCON (mm): 19.0 | Stock: Made to order
MDW1820GS2 DC (mm): 18.2 | L/D: 2 | LU (mm): 35.5 | LCF (mm): 62.8 | OAL (mm): 126.8 | PL (mm): 3.8 | DCON (mm): 19.0 | Stock: Made to order
MDW1820GS4 DC (mm): 18.2 | L/D: 4 | LU (mm): 80.5 | LCF (mm): 107.8 | OAL (mm): 182.8 | PL (mm): 3.8 | DCON (mm): 19.0 | Stock: Made to order
MDW1830GS2 DC (mm): 18.3 | L/D: 2 | LU (mm): 35.4 | LCF (mm): 62.8 | OAL (mm): 126.8 | PL (mm): 3.8 | DCON (mm): 19.0 | Stock: Made to order
MDW1830GS4 DC (mm): 18.3 | L/D: 4 | LU (mm): 80.4 | LCF (mm): 107.8 | OAL (mm): 182.8 | PL (mm): 3.8 | DCON (mm): 19.0 | Stock: Made to order
MDW1840GS2 DC (mm): 18.4 | L/D: 2 | LU (mm): 35.2 | LCF (mm): 62.8 | OAL (mm): 126.8 | PL (mm): 3.8 | DCON (mm): 19.0 | Stock: Made to order
MDW1840GS4 DC (mm): 18.4 | L/D: 4 | LU (mm): 80.2 | LCF (mm): 107.8 | OAL (mm): 182.8 | PL (mm): 3.8 | DCON (mm): 19.0 | Stock: Made to order
MDW1850GS2 DC (mm): 18.5 | L/D: 2 | LU (mm): 35.1 | LCF (mm): 62.8 | OAL (mm): 126.8 | PL (mm): 3.8 | DCON (mm): 19.0 | Stock: Made to order
MDW1850GS4 DC (mm): 18.5 | L/D: 4 | LU (mm): 80.1 | LCF (mm): 107.8 | OAL (mm): 182.8 | PL (mm): 3.8 | DCON (mm): 19.0 | Stock: Made to order
MDW1860GS2 DC (mm): 18.6 | L/D: 2 | LU (mm): 36.0 | LCF (mm): 63.9 | OAL (mm): 126.9 | PL (mm): 3.9 | DCON (mm): 19.0 | Stock: Made to order
MDW1860GS4 DC (mm): 18.6 | L/D: 4 | LU (mm): 82.0 | LCF (mm): 109.9 | OAL (mm): 182.9 | PL (mm): 3.9 | DCON (mm): 19.0 | Stock: Made to order
MDW1870GS2 DC (mm): 18.7 | L/D: 2 | LU (mm): 35.9 | LCF (mm): 63.9 | OAL (mm): 126.9 | PL (mm): 3.9 | DCON (mm): 19.0 | Stock: Made to order
MDW1870GS4 DC (mm): 18.7 | L/D: 4 | LU (mm): 81.9 | LCF (mm): 109.9 | OAL (mm): 182.9 | PL (mm): 3.9 | DCON (mm): 19.0 | Stock: Made to order
MDW1880GS2 DC (mm): 18.8 | L/D: 2 | LU (mm): 35.7 | LCF (mm): 63.9 | OAL (mm): 126.9 | PL (mm): 3.9 | DCON (mm): 19.0 | Stock: Made to order
MDW1880GS4 DC (mm): 18.8 | L/D: 4 | LU (mm): 81.7 | LCF (mm): 109.9 | OAL (mm): 182.9 | PL (mm): 3.9 | DCON (mm): 19.0 | Stock: Made to order
MDW1890GS2 DC (mm): 18.9 | L/D: 2 | LU (mm): 35.6 | LCF (mm): 63.9 | OAL (mm): 126.9 | PL (mm): 3.9 | DCON (mm): 19.0 | Stock: Made to order
MDW1890GS4 DC (mm): 18.9 | L/D: 4 | LU (mm): 81.6 | LCF (mm): 109.9 | OAL (mm): 182.9 | PL (mm): 3.9 | DCON (mm): 19.0 | Stock: Made to order
MDW1900GS2 DC (mm): 19.0 | L/D: 2 | LU (mm): 35.4 | LCF (mm): 63.9 | OAL (mm): 126.9 | PL (mm): 3.9 | DCON (mm): 19.0 | Stock: Made to order
MDW1900GS4 DC (mm): 19.0 | L/D: 4 | LU (mm): 81.4 | LCF (mm): 109.9 | OAL (mm): 182.9 | PL (mm): 3.9 | DCON (mm): 19.0 | Stock: Made to order
MDW1910GS2 DC (mm): 19.1 | L/D: 2 | LU (mm): 36.4 | LCF (mm): 65.0 | OAL (mm): 131.0 | PL (mm): 4.0 | DCON (mm): 20.0 | Stock: Made to order
MDW1910GS4 DC (mm): 19.1 | L/D: 4 | LU (mm): 85.4 | LCF (mm): 114.0 | OAL (mm): 183.0 | PL (mm): 4.0 | DCON (mm): 20.0 | Stock: Made to order
MDW1920GS2 DC (mm): 19.2 | L/D: 2 | LU (mm): 36.2 | LCF (mm): 65.0 | OAL (mm): 131.0 | PL (mm): 4.0 | DCON (mm): 20.0 | Stock: Made to order
MDW1920GS4 DC (mm): 19.2 | L/D: 4 | LU (mm): 85.2 | LCF (mm): 114.0 | OAL (mm): 183.0 | PL (mm): 4.0 | DCON (mm): 20.0 | Stock: Made to order
MDW1930GS2 DC (mm): 19.3 | L/D: 2 | LU (mm): 36.1 | LCF (mm): 65.0 | OAL (mm): 131.0 | PL (mm): 4.0 | DCON (mm): 20.0 | Stock: Made to order
MDW1930GS4 DC (mm): 19.3 | L/D: 4 | LU (mm): 85.1 | LCF (mm): 114.0 | OAL (mm): 183.0 | PL (mm): 4.0 | DCON (mm): 20.0 | Stock: Made to order
MDW1940GS2 DC (mm): 19.4 | L/D: 2 | LU (mm): 35.9 | LCF (mm): 65.0 | OAL (mm): 131.0 | PL (mm): 4.0 | DCON (mm): 20.0 | Stock: Made to order
MDW1940GS4 DC (mm): 19.4 | L/D: 4 | LU (mm): 84.9 | LCF (mm): 114.0 | OAL (mm): 183.0 | PL (mm): 4.0 | DCON (mm): 20.0 | Stock: Made to order
MDW1950GS2 DC (mm): 19.5 | L/D: 2 | LU (mm): 35.8 | LCF (mm): 65.0 | OAL (mm): 131.0 | PL (mm): 4.0 | DCON (mm): 20.0 | Stock: Made to order
MDW1950GS4 DC (mm): 19.5 | L/D: 4 | LU (mm): 84.8 | LCF (mm): 114.0 | OAL (mm): 183.0 | PL (mm): 4.0 | DCON (mm): 20.0 | Stock: Made to order
MDW1960GS2 DC (mm): 19.6 | L/D: 2 | LU (mm): 36.7 | LCF (mm): 66.1 | OAL (mm): 131.1 | PL (mm): 4.1 | DCON (mm): 20.0 | Stock: Made to order
MDW1960GS4 DC (mm): 19.6 | L/D: 4 | LU (mm): 88.7 | LCF (mm): 118.1 | OAL (mm): 183.1 | PL (mm): 4.1 | DCON (mm): 20.0 | Stock: Made to order
MDW1970GS2 DC (mm): 19.7 | L/D: 2 | LU (mm): 36.6 | LCF (mm): 66.1 | OAL (mm): 131.1 | PL (mm): 4.1 | DCON (mm): 20.0 | Stock: Made to order
MDW1970GS4 DC (mm): 19.7 | L/D: 4 | LU (mm): 88.6 | LCF (mm): 118.1 | OAL (mm): 183.1 | PL (mm): 4.1 | DCON (mm): 20.0 | Stock: Made to order
MDW1980GS2 DC (mm): 19.8 | L/D: 2 | LU (mm): 36.4 | LCF (mm): 66.1 | OAL (mm): 131.1 | PL (mm): 4.1 | DCON (mm): 20.0 | Stock: Made to order
MDW1980GS4 DC (mm): 19.8 | L/D: 4 | LU (mm): 88.4 | LCF (mm): 118.1 | OAL (mm): 183.1 | PL (mm): 4.1 | DCON (mm): 20.0 | Stock: Made to order
MDW1990GS2 DC (mm): 19.9 | L/D: 2 | LU (mm): 36.3 | LCF (mm): 66.1 | OAL (mm): 131.1 | PL (mm): 4.1 | DCON (mm): 20.0 | Stock: Made to order
MDW1990GS4 DC (mm): 19.9 | L/D: 4 | LU (mm): 88.3 | LCF (mm): 118.1 | OAL (mm): 183.1 | PL (mm): 4.1 | DCON (mm): 20.0 | Stock: Made to order
MDW2000GS2 DC (mm): 20.0 | L/D: 2 | LU (mm): 36.1 | LCF (mm): 66.1 | OAL (mm): 131.1 | PL (mm): 4.1 | DCON (mm): 20.0 | Stock: Made to order
MDW2000GS4 DC (mm): 20.0 | L/D: 4 | LU (mm): 88.1 | LCF (mm): 118.1 | OAL (mm): 183.1 | PL (mm): 4.1 | DCON (mm): 20.0 | Stock: Made to order
DrillsSumitomo Electric Hardmetal
382 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal Super Multi Drill GS Type (External Coolant)

Brand Sumitomo Electric Hardmetal·Drills

Available part numbers (382)

MDW0100GS2, MDW0100GS4, MDW0110GS2, MDW0110GS4, MDW0120GS2, MDW0120GS4, MDW0130GS2, MDW0130GS4, MDW0140GS2, MDW0140GS4 + 372 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MDW0100GS2DC (mm): 1.0 | L/D: 2 | LU (mm): 4.7 | LCF (mm): 6.2 | OAL (mm): 45.2 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDW0100GS4DC (mm): 1.0 | L/D: 4 | LU (mm): 10.7 | LCF (mm): 12.2 | OAL (mm): 49.2 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDW0110GS2DC (mm): 1.1 | L/D: 2 | LU (mm): 4.6 | LCF (mm): 6.2 | OAL (mm): 45.2 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDW0110GS4DC (mm): 1.1 | L/D: 4 | LU (mm): 10.6 | LCF (mm): 12.2 | OAL (mm): 49.2 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDW0120GS2DC (mm): 1.2 | L/D: 2 | LU (mm): 4.4 | LCF (mm): 6.2 | OAL (mm): 45.2 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDW0120GS4DC (mm): 1.2 | L/D: 4 | LU (mm): 10.4 | LCF (mm): 12.2 | OAL (mm): 49.2 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDW0130GS2DC (mm): 1.3 | L/D: 2 | LU (mm): 4.4 | LCF (mm): 6.3 | OAL (mm): 45.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDW0130GS4DC (mm): 1.3 | L/D: 4 | LU (mm): 10.4 | LCF (mm): 12.3 | OAL (mm): 49.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDW0140GS2DC (mm): 1.4 | L/D: 2 | LU (mm): 4.2 | LCF (mm): 6.3 | OAL (mm): 45.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDW0140GS4DC (mm): 1.4 | L/D: 4 | LU (mm): 10.2 | LCF (mm): 12.3 | OAL (mm): 49.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDW0150GS2DC (mm): 1.5 | L/D: 2 | LU (mm): 4.1 | LCF (mm): 6.3 | OAL (mm): 45.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDW0150GS4DC (mm): 1.5 | L/D: 4 | LU (mm): 10.1 | LCF (mm): 12.3 | OAL (mm): 49.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDW0160GS2DC (mm): 1.6 | L/D: 2 | LU (mm): 5.9 | LCF (mm): 8.3 | OAL (mm): 45.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDW0160GS4DC (mm): 1.6 | L/D: 4 | LU (mm): 12.9 | LCF (mm): 15.3 | OAL (mm): 49.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDW0170GS2DC (mm): 1.7 | L/D: 2 | LU (mm): 5.9 | LCF (mm): 8.4 | OAL (mm): 45.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0170GS4DC (mm): 1.7 | L/D: 4 | LU (mm): 12.9 | LCF (mm): 15.4 | OAL (mm): 49.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0180GS2DC (mm): 1.8 | L/D: 2 | LU (mm): 5.7 | LCF (mm): 8.4 | OAL (mm): 45.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0180GS4DC (mm): 1.8 | L/D: 4 | LU (mm): 12.7 | LCF (mm): 15.4 | OAL (mm): 49.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0190GS2DC (mm): 1.9 | L/D: 2 | LU (mm): 5.6 | LCF (mm): 8.4 | OAL (mm): 45.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0190GS4DC (mm): 1.9 | L/D: 4 | LU (mm): 12.6 | LCF (mm): 15.4 | OAL (mm): 49.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0200GS2DC (mm): 2.0 | L/D: 2 | LU (mm): 5.4 | LCF (mm): 8.4 | OAL (mm): 45.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0200GS4DC (mm): 2.0 | L/D: 4 | LU (mm): 12.4 | LCF (mm): 15.4 | OAL (mm): 49.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0210GS2DC (mm): 2.1 | L/D: 2 | LU (mm): 7.3 | LCF (mm): 10.4 | OAL (mm): 45.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0210GS4DC (mm): 2.1 | L/D: 4 | LU (mm): 14.3 | LCF (mm): 17.4 | OAL (mm): 49.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0220GS2DC (mm): 2.2 | L/D: 2 | LU (mm): 7.2 | LCF (mm): 10.5 | OAL (mm): 45.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0220GS4DC (mm): 2.2 | L/D: 4 | LU (mm): 14.2 | LCF (mm): 17.5 | OAL (mm): 49.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0230GS2DC (mm): 2.3 | L/D: 2 | LU (mm): 7.1 | LCF (mm): 10.5 | OAL (mm): 45.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0230GS4DC (mm): 2.3 | L/D: 4 | LU (mm): 14.1 | LCF (mm): 17.5 | OAL (mm): 49.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0240GS2DC (mm): 2.4 | L/D: 2 | LU (mm): 6.9 | LCF (mm): 10.5 | OAL (mm): 45.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0240GS4DC (mm): 2.4 | L/D: 4 | LU (mm): 13.9 | LCF (mm): 17.5 | OAL (mm): 49.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0250GS2DC (mm): 2.5 | L/D: 2 | LU (mm): 6.8 | LCF (mm): 10.5 | OAL (mm): 45.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0250GS4DC (mm): 2.5 | L/D: 4 | LU (mm): 13.8 | LCF (mm): 17.5 | OAL (mm): 49.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0260GS2DC (mm): 2.6 | L/D: 2 | LU (mm): 9.6 | LCF (mm): 13.5 | OAL (mm): 45.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0260GS4DC (mm): 2.6 | L/D: 4 | LU (mm): 15.6 | LCF (mm): 19.5 | OAL (mm): 49.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0270GS2DC (mm): 2.7 | L/D: 2 | LU (mm): 9.6 | LCF (mm): 13.6 | OAL (mm): 45.6 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDW0270GS4DC (mm): 2.7 | L/D: 4 | LU (mm): 15.6 | LCF (mm): 19.6 | OAL (mm): 49.6 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDW0280GS2DC (mm): 2.8 | L/D: 2 | LU (mm): 9.4 | LCF (mm): 13.6 | OAL (mm): 45.6 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDW0280GS4DC (mm): 2.8 | L/D: 4 | LU (mm): 15.4 | LCF (mm): 19.6 | OAL (mm): 49.6 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDW0290GS2DC (mm): 2.9 | L/D: 2 | LU (mm): 9.3 | LCF (mm): 13.6 | OAL (mm): 45.6 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDW0290GS4DC (mm): 2.9 | L/D: 4 | LU (mm): 15.3 | LCF (mm): 19.6 | OAL (mm): 49.6 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDW0300GS2DC (mm): 3.0 | L/D: 2 | LU (mm): 9.1 | LCF (mm): 13.6 | OAL (mm): 45.6 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDW0300GS4DC (mm): 3.0 | L/D: 4 | LU (mm): 15.1 | LCF (mm): 19.6 | OAL (mm): 49.6 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDW0310GS2DC (mm): 3.1 | L/D: 2 | LU (mm): 15.0 | LCF (mm): 19.6 | OAL (mm): 54.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDW0310GS4DC (mm): 3.1 | L/D: 4 | LU (mm): 20.0 | LCF (mm): 24.6 | OAL (mm): 60.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDW0320GS2DC (mm): 3.2 | L/D: 2 | LU (mm): 14.9 | LCF (mm): 19.7 | OAL (mm): 54.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0320GS4DC (mm): 3.2 | L/D: 4 | LU (mm): 19.9 | LCF (mm): 24.7 | OAL (mm): 60.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0330GS2DC (mm): 3.3 | L/D: 2 | LU (mm): 14.8 | LCF (mm): 19.7 | OAL (mm): 54.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0330GS4DC (mm): 3.3 | L/D: 4 | LU (mm): 19.8 | LCF (mm): 24.7 | OAL (mm): 60.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0340GS2DC (mm): 3.4 | L/D: 2 | LU (mm): 14.6 | LCF (mm): 19.7 | OAL (mm): 54.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0340GS4DC (mm): 3.4 | L/D: 4 | LU (mm): 19.6 | LCF (mm): 24.7 | OAL (mm): 60.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0350GS2DC (mm): 3.5 | L/D: 2 | LU (mm): 14.5 | LCF (mm): 19.7 | OAL (mm): 54.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0350GS4DC (mm): 3.5 | L/D: 4 | LU (mm): 19.5 | LCF (mm): 24.7 | OAL (mm): 60.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0360GS2DC (mm): 3.6 | L/D: 2 | LU (mm): 16.3 | LCF (mm): 21.7 | OAL (mm): 54.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0360GS4DC (mm): 3.6 | L/D: 4 | LU (mm): 22.3 | LCF (mm): 27.7 | OAL (mm): 60.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0370GS2DC (mm): 3.7 | L/D: 2 | LU (mm): 16.3 | LCF (mm): 21.8 | OAL (mm): 54.8 | PL (mm): 0.8 | DCON (mm): 4.0 | Stock: Yes
MDW0370GS4DC (mm): 3.7 | L/D: 4 | LU (mm): 22.3 | LCF (mm): 27.8 | OAL (mm): 60.8 | PL (mm): 0.8 | DCON (mm): 4.0 | Stock: Yes
MDW0380GS2DC (mm): 3.8 | L/D: 2 | LU (mm): 16.1 | LCF (mm): 21.8 | OAL (mm): 54.8 | PL (mm): 0.8 | DCON (mm): 4.0 | Stock: Yes
MDW0380GS4DC (mm): 3.8 | L/D: 4 | LU (mm): 22.1 | LCF (mm): 27.8 | OAL (mm): 60.8 | PL (mm): 0.8 | DCON (mm): 4.0 | Stock: Yes
MDW0390GS2DC (mm): 3.9 | L/D: 2 | LU (mm): 16.0 | LCF (mm): 21.8 | OAL (mm): 54.8 | PL (mm): 0.8 | DCON (mm): 4.0 | Stock: Yes
MDW0390GS4DC (mm): 3.9 | L/D: 4 | LU (mm): 22.0 | LCF (mm): 27.8 | OAL (mm): 60.8 | PL (mm): 0.8 | DCON (mm): 4.0 | Stock: Yes
MDW0400GS2DC (mm): 4.0 | L/D: 2 | LU (mm): 15.8 | LCF (mm): 21.8 | OAL (mm): 54.8 | PL (mm): 0.8 | DCON (mm): 4.0 | Stock: Yes
MDW0400GS4DC (mm): 4.0 | L/D: 4 | LU (mm): 21.8 | LCF (mm): 27.8 | OAL (mm): 60.8 | PL (mm): 0.8 | DCON (mm): 4.0 | Stock: Yes
MDW0410GS2DC (mm): 4.1 | L/D: 2 | LU (mm): 17.7 | LCF (mm): 23.8 | OAL (mm): 61.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDW0410GS4DC (mm): 4.1 | L/D: 4 | LU (mm): 25.7 | LCF (mm): 31.8 | OAL (mm): 76.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDW0420GS2DC (mm): 4.2 | L/D: 2 | LU (mm): 17.6 | LCF (mm): 23.9 | OAL (mm): 61.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0420GS4DC (mm): 4.2 | L/D: 4 | LU (mm): 25.6 | LCF (mm): 31.9 | OAL (mm): 76.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0430GS2DC (mm): 4.3 | L/D: 2 | LU (mm): 17.5 | LCF (mm): 23.9 | OAL (mm): 61.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0430GS4DC (mm): 4.3 | L/D: 4 | LU (mm): 25.5 | LCF (mm): 31.9 | OAL (mm): 76.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0440GS2DC (mm): 4.4 | L/D: 2 | LU (mm): 17.3 | LCF (mm): 23.9 | OAL (mm): 61.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0440GS4DC (mm): 4.4 | L/D: 4 | LU (mm): 25.3 | LCF (mm): 31.9 | OAL (mm): 76.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0450GS2DC (mm): 4.5 | L/D: 2 | LU (mm): 17.2 | LCF (mm): 23.9 | OAL (mm): 61.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0450GS4DC (mm): 4.5 | L/D: 4 | LU (mm): 25.2 | LCF (mm): 31.9 | OAL (mm): 76.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0460GS2DC (mm): 4.6 | L/D: 2 | LU (mm): 19.1 | LCF (mm): 26.0 | OAL (mm): 62.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Yes
MDW0460GS4DC (mm): 4.6 | L/D: 4 | LU (mm): 32.1 | LCF (mm): 39.0 | OAL (mm): 77.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Yes
MDW0470GS2DC (mm): 4.7 | L/D: 2 | LU (mm): 19.0 | LCF (mm): 26.0 | OAL (mm): 62.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Yes
MDW0470GS4DC (mm): 4.7 | L/D: 4 | LU (mm): 32.0 | LCF (mm): 39.0 | OAL (mm): 77.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Yes
MDW0480GS2DC (mm): 4.8 | L/D: 2 | LU (mm): 18.8 | LCF (mm): 26.0 | OAL (mm): 62.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Yes
MDW0480GS4DC (mm): 4.8 | L/D: 4 | LU (mm): 31.8 | LCF (mm): 39.0 | OAL (mm): 77.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Yes
MDW0490GS2DC (mm): 4.9 | L/D: 2 | LU (mm): 18.7 | LCF (mm): 26.0 | OAL (mm): 62.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Yes
MDW0490GS4DC (mm): 4.9 | L/D: 4 | LU (mm): 31.7 | LCF (mm): 39.0 | OAL (mm): 77.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Yes
MDW0500GS2DC (mm): 5.0 | L/D: 2 | LU (mm): 18.5 | LCF (mm): 26.0 | OAL (mm): 62.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Yes
MDW0500GS4DC (mm): 5.0 | L/D: 4 | LU (mm): 31.5 | LCF (mm): 39.0 | OAL (mm): 77.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Yes
MDW0510GS2DC (mm): 5.1 | L/D: 2 | LU (mm): 18.5 | LCF (mm): 26.1 | OAL (mm): 66.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0510GS4DC (mm): 5.1 | L/D: 4 | LU (mm): 32.5 | LCF (mm): 40.1 | OAL (mm): 82.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0520GS2DC (mm): 5.2 | L/D: 2 | LU (mm): 18.3 | LCF (mm): 26.1 | OAL (mm): 66.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0520GS4DC (mm): 5.2 | L/D: 4 | LU (mm): 32.3 | LCF (mm): 40.1 | OAL (mm): 82.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0530GS2DC (mm): 5.3 | L/D: 2 | LU (mm): 18.2 | LCF (mm): 26.1 | OAL (mm): 66.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0530GS4DC (mm): 5.3 | L/D: 4 | LU (mm): 32.2 | LCF (mm): 40.1 | OAL (mm): 82.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0540GS2DC (mm): 5.4 | L/D: 2 | LU (mm): 18.0 | LCF (mm): 26.1 | OAL (mm): 66.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0540GS4DC (mm): 5.4 | L/D: 4 | LU (mm): 32.0 | LCF (mm): 40.1 | OAL (mm): 82.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0550GS2DC (mm): 5.5 | L/D: 2 | LU (mm): 17.9 | LCF (mm): 26.1 | OAL (mm): 66.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0550GS4DC (mm): 5.5 | L/D: 4 | LU (mm): 31.9 | LCF (mm): 40.1 | OAL (mm): 82.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0560GS2DC (mm): 5.6 | L/D: 2 | LU (mm): 19.8 | LCF (mm): 28.2 | OAL (mm): 66.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Yes
MDW0560GS4DC (mm): 5.6 | L/D: 4 | LU (mm): 33.8 | LCF (mm): 42.2 | OAL (mm): 82.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Yes
MDW0570GS2DC (mm): 5.7 | L/D: 2 | LU (mm): 19.7 | LCF (mm): 28.2 | OAL (mm): 66.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Yes
MDW0570GS4DC (mm): 5.7 | L/D: 4 | LU (mm): 33.7 | LCF (mm): 42.2 | OAL (mm): 82.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Yes
MDW0580GS2DC (mm): 5.8 | L/D: 2 | LU (mm): 19.5 | LCF (mm): 28.2 | OAL (mm): 66.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Yes
MDW0580GS4DC (mm): 5.8 | L/D: 4 | LU (mm): 33.5 | LCF (mm): 42.2 | OAL (mm): 82.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Yes
MDW0590GS2DC (mm): 5.9 | L/D: 2 | LU (mm): 19.4 | LCF (mm): 28.2 | OAL (mm): 66.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Yes
MDW0590GS4DC (mm): 5.9 | L/D: 4 | LU (mm): 33.4 | LCF (mm): 42.2 | OAL (mm): 82.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Yes
MDW0600GS2DC (mm): 6.0 | L/D: 2 | LU (mm): 19.2 | LCF (mm): 28.2 | OAL (mm): 66.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Yes
MDW0600GS4DC (mm): 6.0 | L/D: 4 | LU (mm): 33.2 | LCF (mm): 42.2 | OAL (mm): 82.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Yes
MDW0610GS2DC (mm): 6.1 | L/D: 2 | LU (mm): 23.2 | LCF (mm): 32.3 | OAL (mm): 74.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0610GS4DC (mm): 6.1 | L/D: 4 | LU (mm): 34.2 | LCF (mm): 43.3 | OAL (mm): 84.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0620GS2DC (mm): 6.2 | L/D: 2 | LU (mm): 23.0 | LCF (mm): 32.3 | OAL (mm): 74.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0620GS4DC (mm): 6.2 | L/D: 4 | LU (mm): 34.0 | LCF (mm): 43.3 | OAL (mm): 84.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0630GS2DC (mm): 6.3 | L/D: 2 | LU (mm): 22.9 | LCF (mm): 32.3 | OAL (mm): 74.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0630GS4DC (mm): 6.3 | L/D: 4 | LU (mm): 33.9 | LCF (mm): 43.3 | OAL (mm): 84.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0640GS2DC (mm): 6.4 | L/D: 2 | LU (mm): 22.7 | LCF (mm): 32.3 | OAL (mm): 74.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0640GS4DC (mm): 6.4 | L/D: 4 | LU (mm): 33.7 | LCF (mm): 43.3 | OAL (mm): 84.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0650GS2DC (mm): 6.5 | L/D: 2 | LU (mm): 22.6 | LCF (mm): 32.3 | OAL (mm): 74.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0650GS4DC (mm): 6.5 | L/D: 4 | LU (mm): 33.6 | LCF (mm): 43.3 | OAL (mm): 84.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0660GS2DC (mm): 6.6 | L/D: 2 | LU (mm): 24.5 | LCF (mm): 34.4 | OAL (mm): 74.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Yes
MDW0660GS4DC (mm): 6.6 | L/D: 4 | LU (mm): 34.5 | LCF (mm): 44.4 | OAL (mm): 84.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Yes
MDW0670GS2DC (mm): 6.7 | L/D: 2 | LU (mm): 24.4 | LCF (mm): 34.4 | OAL (mm): 74.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Yes
MDW0670GS4DC (mm): 6.7 | L/D: 4 | LU (mm): 34.4 | LCF (mm): 44.4 | OAL (mm): 84.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Yes
MDW0680GS2DC (mm): 6.8 | L/D: 2 | LU (mm): 24.2 | LCF (mm): 34.4 | OAL (mm): 74.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Yes
MDW0680GS4DC (mm): 6.8 | L/D: 4 | LU (mm): 34.2 | LCF (mm): 44.4 | OAL (mm): 84.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Yes
MDW0690GS2DC (mm): 6.9 | L/D: 2 | LU (mm): 24.1 | LCF (mm): 34.4 | OAL (mm): 74.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Yes
MDW0690GS4DC (mm): 6.9 | L/D: 4 | LU (mm): 34.1 | LCF (mm): 44.4 | OAL (mm): 84.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Yes
MDW0700GS2DC (mm): 7.0 | L/D: 2 | LU (mm): 23.9 | LCF (mm): 34.4 | OAL (mm): 74.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Yes
MDW0700GS4DC (mm): 7.0 | L/D: 4 | LU (mm): 33.9 | LCF (mm): 44.4 | OAL (mm): 84.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Yes
MDW0710GS2DC (mm): 7.1 | L/D: 2 | LU (mm): 23.9 | LCF (mm): 34.5 | OAL (mm): 79.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDW0710GS4DC (mm): 7.1 | L/D: 4 | LU (mm): 35.9 | LCF (mm): 46.5 | OAL (mm): 91.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDW0720GS2DC (mm): 7.2 | L/D: 2 | LU (mm): 23.7 | LCF (mm): 34.5 | OAL (mm): 79.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDW0720GS4DC (mm): 7.2 | L/D: 4 | LU (mm): 35.7 | LCF (mm): 46.5 | OAL (mm): 91.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDW0730GS2DC (mm): 7.3 | L/D: 2 | LU (mm): 23.6 | LCF (mm): 34.5 | OAL (mm): 79.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDW0730GS4DC (mm): 7.3 | L/D: 4 | LU (mm): 35.6 | LCF (mm): 46.5 | OAL (mm): 91.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDW0740GS2DC (mm): 7.4 | L/D: 2 | LU (mm): 23.4 | LCF (mm): 34.5 | OAL (mm): 79.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDW0740GS4DC (mm): 7.4 | L/D: 4 | LU (mm): 35.4 | LCF (mm): 46.5 | OAL (mm): 91.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDW0750GS2DC (mm): 7.5 | L/D: 2 | LU (mm): 23.4 | LCF (mm): 34.6 | OAL (mm): 79.6 | PL (mm): 1.6 | DCON (mm): 8.0 | Stock: Yes
MDW0750GS4DC (mm): 7.5 | L/D: 4 | LU (mm): 35.4 | LCF (mm): 46.6 | OAL (mm): 91.6 | PL (mm): 1.6 | DCON (mm): 8.0 | Stock: Yes
MDW0760GS2DC (mm): 7.6 | L/D: 2 | LU (mm): 26.2 | LCF (mm): 37.6 | OAL (mm): 79.6 | PL (mm): 1.6 | DCON (mm): 8.0 | Stock: Yes
MDW0760GS4DC (mm): 7.6 | L/D: 4 | LU (mm): 38.2 | LCF (mm): 49.6 | OAL (mm): 91.6 | PL (mm): 1.6 | DCON (mm): 8.0 | Stock: Yes
MDW0770GS2DC (mm): 7.7 | L/D: 2 | LU (mm): 26.1 | LCF (mm): 37.6 | OAL (mm): 79.6 | PL (mm): 1.6 | DCON (mm): 8.0 | Stock: Yes
MDW0770GS4DC (mm): 7.7 | L/D: 4 | LU (mm): 38.1 | LCF (mm): 49.6 | OAL (mm): 91.6 | PL (mm): 1.6 | DCON (mm): 8.0 | Stock: Yes
MDW0780GS2DC (mm): 7.8 | L/D: 2 | LU (mm): 25.9 | LCF (mm): 37.6 | OAL (mm): 79.6 | PL (mm): 1.6 | DCON (mm): 8.0 | Stock: Yes
MDW0780GS4DC (mm): 7.8 | L/D: 4 | LU (mm): 37.9 | LCF (mm): 49.6 | OAL (mm): 91.6 | PL (mm): 1.6 | DCON (mm): 8.0 | Stock: Yes
MDW0790GS2DC (mm): 7.9 | L/D: 2 | LU (mm): 25.8 | LCF (mm): 37.6 | OAL (mm): 79.6 | PL (mm): 1.6 | DCON (mm): 8.0 | Stock: Yes
MDW0790GS4DC (mm): 7.9 | L/D: 4 | LU (mm): 37.8 | LCF (mm): 49.6 | OAL (mm): 91.6 | PL (mm): 1.6 | DCON (mm): 8.0 | Stock: Yes
MDW0800GS2DC (mm): 8.0 | L/D: 2 | LU (mm): 25.7 | LCF (mm): 37.7 | OAL (mm): 79.7 | PL (mm): 1.7 | DCON (mm): 8.0 | Stock: Yes
MDW0800GS4DC (mm): 8.0 | L/D: 4 | LU (mm): 37.7 | LCF (mm): 49.7 | OAL (mm): 91.7 | PL (mm): 1.7 | DCON (mm): 8.0 | Stock: Yes
MDW0810GS2DC (mm): 8.1 | L/D: 2 | LU (mm): 25.6 | LCF (mm): 37.7 | OAL (mm): 83.7 | PL (mm): 1.7 | DCON (mm): 9.0 | Stock: Yes
MDW0810GS4DC (mm): 8.1 | L/D: 4 | LU (mm): 42.6 | LCF (mm): 54.7 | OAL (mm): 99.7 | PL (mm): 1.7 | DCON (mm): 9.0 | Stock: Yes
MDW0820GS2DC (mm): 8.2 | L/D: 2 | LU (mm): 25.4 | LCF (mm): 37.7 | OAL (mm): 83.7 | PL (mm): 1.7 | DCON (mm): 9.0 | Stock: Yes
MDW0820GS4DC (mm): 8.2 | L/D: 4 | LU (mm): 42.4 | LCF (mm): 54.7 | OAL (mm): 99.7 | PL (mm): 1.7 | DCON (mm): 9.0 | Stock: Yes
MDW0830GS2DC (mm): 8.3 | L/D: 2 | LU (mm): 25.3 | LCF (mm): 37.7 | OAL (mm): 83.7 | PL (mm): 1.7 | DCON (mm): 9.0 | Stock: Yes
MDW0830GS4DC (mm): 8.3 | L/D: 4 | LU (mm): 42.3 | LCF (mm): 54.7 | OAL (mm): 99.7 | PL (mm): 1.7 | DCON (mm): 9.0 | Stock: Yes
MDW0840GS2DC (mm): 8.4 | L/D: 2 | LU (mm): 25.1 | LCF (mm): 37.7 | OAL (mm): 83.7 | PL (mm): 1.7 | DCON (mm): 9.0 | Stock: Yes
MDW0840GS4DC (mm): 8.4 | L/D: 4 | LU (mm): 42.1 | LCF (mm): 54.7 | OAL (mm): 99.7 | PL (mm): 1.7 | DCON (mm): 9.0 | Stock: Yes
MDW0850GS2DC (mm): 8.5 | L/D: 2 | LU (mm): 25.1 | LCF (mm): 37.8 | OAL (mm): 83.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Yes
MDW0850GS4DC (mm): 8.5 | L/D: 4 | LU (mm): 42.1 | LCF (mm): 54.8 | OAL (mm): 99.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Yes
MDW0860GS2DC (mm): 8.6 | L/D: 2 | LU (mm): 26.9 | LCF (mm): 39.8 | OAL (mm): 83.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Yes
MDW0860GS4DC (mm): 8.6 | L/D: 4 | LU (mm): 43.9 | LCF (mm): 56.8 | OAL (mm): 99.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Yes
MDW0870GS2DC (mm): 8.7 | L/D: 2 | LU (mm): 26.8 | LCF (mm): 39.8 | OAL (mm): 83.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Yes
MDW0870GS4DC (mm): 8.7 | L/D: 4 | LU (mm): 43.8 | LCF (mm): 56.8 | OAL (mm): 99.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Yes
MDW0880GS2DC (mm): 8.8 | L/D: 2 | LU (mm): 26.6 | LCF (mm): 39.8 | OAL (mm): 83.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Yes
MDW0880GS4DC (mm): 8.8 | L/D: 4 | LU (mm): 43.6 | LCF (mm): 56.8 | OAL (mm): 99.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Yes
MDW0890GS2DC (mm): 8.9 | L/D: 2 | LU (mm): 26.5 | LCF (mm): 39.8 | OAL (mm): 83.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Yes
MDW0890GS4DC (mm): 8.9 | L/D: 4 | LU (mm): 43.5 | LCF (mm): 56.8 | OAL (mm): 99.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Yes
MDW0900GS2DC (mm): 9.0 | L/D: 2 | LU (mm): 26.4 | LCF (mm): 39.9 | OAL (mm): 83.9 | PL (mm): 1.9 | DCON (mm): 9.0 | Stock: Yes
MDW0900GS4DC (mm): 9.0 | L/D: 4 | LU (mm): 43.4 | LCF (mm): 56.9 | OAL (mm): 99.9 | PL (mm): 1.9 | DCON (mm): 9.0 | Stock: Yes
MDW0910GS2DC (mm): 9.1 | L/D: 2 | LU (mm): 26.3 | LCF (mm): 39.9 | OAL (mm): 88.9 | PL (mm): 1.9 | DCON (mm): 10.0 | Stock: Yes
MDW0910GS4DC (mm): 9.1 | L/D: 4 | LU (mm): 46.3 | LCF (mm): 59.9 | OAL (mm): 106.9 | PL (mm): 1.9 | DCON (mm): 10.0 | Stock: Yes
MDW0920GS2DC (mm): 9.2 | L/D: 2 | LU (mm): 26.1 | LCF (mm): 39.9 | OAL (mm): 88.9 | PL (mm): 1.9 | DCON (mm): 10.0 | Stock: Yes
MDW0920GS4DC (mm): 9.2 | L/D: 4 | LU (mm): 46.1 | LCF (mm): 59.9 | OAL (mm): 106.9 | PL (mm): 1.9 | DCON (mm): 10.0 | Stock: Yes
MDW0930GS2DC (mm): 9.3 | L/D: 2 | LU (mm): 26.0 | LCF (mm): 39.9 | OAL (mm): 88.9 | PL (mm): 1.9 | DCON (mm): 10.0 | Stock: Yes
MDW0930GS4DC (mm): 9.3 | L/D: 4 | LU (mm): 46.0 | LCF (mm): 59.9 | OAL (mm): 106.9 | PL (mm): 1.9 | DCON (mm): 10.0 | Stock: Yes
MDW0940GS2DC (mm): 9.4 | L/D: 2 | LU (mm): 25.8 | LCF (mm): 39.9 | OAL (mm): 88.9 | PL (mm): 1.9 | DCON (mm): 10.0 | Stock: Yes
MDW0940GS4DC (mm): 9.4 | L/D: 4 | LU (mm): 45.8 | LCF (mm): 59.9 | OAL (mm): 106.9 | PL (mm): 1.9 | DCON (mm): 10.0 | Stock: Yes
MDW0950GS2DC (mm): 9.5 | L/D: 2 | LU (mm): 25.8 | LCF (mm): 40.0 | OAL (mm): 89.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Yes
MDW0950GS4DC (mm): 9.5 | L/D: 4 | LU (mm): 45.8 | LCF (mm): 60.0 | OAL (mm): 107.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Yes
MDW0960GS2DC (mm): 9.6 | L/D: 2 | LU (mm): 28.6 | LCF (mm): 43.0 | OAL (mm): 89.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Yes
MDW0960GS4DC (mm): 9.6 | L/D: 4 | LU (mm): 47.6 | LCF (mm): 62.0 | OAL (mm): 107.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Yes
MDW0970GS2DC (mm): 9.7 | L/D: 2 | LU (mm): 28.5 | LCF (mm): 43.0 | OAL (mm): 89.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Yes
MDW0970GS4DC (mm): 9.7 | L/D: 4 | LU (mm): 47.5 | LCF (mm): 62.0 | OAL (mm): 107.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Yes
MDW0980GS2DC (mm): 9.8 | L/D: 2 | LU (mm): 28.3 | LCF (mm): 43.0 | OAL (mm): 89.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Yes
MDW0980GS4DC (mm): 9.8 | L/D: 4 | LU (mm): 47.3 | LCF (mm): 62.0 | OAL (mm): 107.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Yes
MDW0990GS2DC (mm): 9.9 | L/D: 2 | LU (mm): 28.2 | LCF (mm): 43.0 | OAL (mm): 89.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Yes
MDW0990GS4DC (mm): 9.9 | L/D: 4 | LU (mm): 47.2 | LCF (mm): 62.0 | OAL (mm): 107.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Yes
MDW1000GS2DC (mm): 10.0 | L/D: 2 | LU (mm): 28.1 | LCF (mm): 43.1 | OAL (mm): 89.1 | PL (mm): 2.1 | DCON (mm): 10.0 | Stock: Yes
MDW1000GS4DC (mm): 10.0 | L/D: 4 | LU (mm): 47.1 | LCF (mm): 62.1 | OAL (mm): 107.1 | PL (mm): 2.1 | DCON (mm): 10.0 | Stock: Yes
MDW1010GS2DC (mm): 10.1 | L/D: 2 | LU (mm): 28.0 | LCF (mm): 43.1 | OAL (mm): 95.1 | PL (mm): 2.1 | DCON (mm): 11.0 | Stock: Yes
MDW1010GS4DC (mm): 10.1 | L/D: 4 | LU (mm): 53.0 | LCF (mm): 68.1 | OAL (mm): 116.1 | PL (mm): 2.1 | DCON (mm): 11.0 | Stock: Yes
MDW1020GS2DC (mm): 10.2 | L/D: 2 | LU (mm): 27.8 | LCF (mm): 43.1 | OAL (mm): 95.1 | PL (mm): 2.1 | DCON (mm): 11.0 | Stock: Yes
MDW1020GS4DC (mm): 10.2 | L/D: 4 | LU (mm): 52.8 | LCF (mm): 68.1 | OAL (mm): 116.1 | PL (mm): 2.1 | DCON (mm): 11.0 | Stock: Yes
MDW1030GS2DC (mm): 10.3 | L/D: 2 | LU (mm): 27.7 | LCF (mm): 43.1 | OAL (mm): 95.1 | PL (mm): 2.1 | DCON (mm): 11.0 | Stock: Yes
MDW1030GS4DC (mm): 10.3 | L/D: 4 | LU (mm): 52.7 | LCF (mm): 68.1 | OAL (mm): 116.1 | PL (mm): 2.1 | DCON (mm): 11.0 | Stock: Yes
MDW1040GS2DC (mm): 10.4 | L/D: 2 | LU (mm): 27.6 | LCF (mm): 43.2 | OAL (mm): 95.2 | PL (mm): 2.2 | DCON (mm): 11.0 | Stock: Yes
MDW1040GS4DC (mm): 10.4 | L/D: 4 | LU (mm): 52.6 | LCF (mm): 68.2 | OAL (mm): 116.2 | PL (mm): 2.2 | DCON (mm): 11.0 | Stock: Yes
MDW1050GS2DC (mm): 10.5 | L/D: 2 | LU (mm): 27.5 | LCF (mm): 43.2 | OAL (mm): 95.2 | PL (mm): 2.2 | DCON (mm): 11.0 | Stock: Yes
MDW1050GS4DC (mm): 10.5 | L/D: 4 | LU (mm): 52.5 | LCF (mm): 68.2 | OAL (mm): 116.2 | PL (mm): 2.2 | DCON (mm): 11.0 | Stock: Yes
MDW1060GS2DC (mm): 10.6 | L/D: 2 | LU (mm): 31.3 | LCF (mm): 47.2 | OAL (mm): 95.2 | PL (mm): 2.2 | DCON (mm): 11.0 | Stock: Yes
MDW1060GS4DC (mm): 10.6 | L/D: 4 | LU (mm): 54.3 | LCF (mm): 70.2 | OAL (mm): 116.2 | PL (mm): 2.2 | DCON (mm): 11.0 | Stock: Yes
MDW1070GS2DC (mm): 10.7 | L/D: 2 | LU (mm): 31.2 | LCF (mm): 47.2 | OAL (mm): 95.2 | PL (mm): 2.2 | DCON (mm): 11.0 | Stock: Yes
MDW1070GS4DC (mm): 10.7 | L/D: 4 | LU (mm): 54.2 | LCF (mm): 70.2 | OAL (mm): 116.2 | PL (mm): 2.2 | DCON (mm): 11.0 | Stock: Yes
MDW1080GS2DC (mm): 10.8 | L/D: 2 | LU (mm): 31.0 | LCF (mm): 47.2 | OAL (mm): 95.2 | PL (mm): 2.2 | DCON (mm): 11.0 | Stock: Yes
MDW1080GS4DC (mm): 10.8 | L/D: 4 | LU (mm): 54.0 | LCF (mm): 70.2 | OAL (mm): 116.2 | PL (mm): 2.2 | DCON (mm): 11.0 | Stock: Yes
MDW1090GS2DC (mm): 10.9 | L/D: 2 | LU (mm): 31.0 | LCF (mm): 47.3 | OAL (mm): 95.3 | PL (mm): 2.3 | DCON (mm): 11.0 | Stock: Yes
MDW1090GS4DC (mm): 10.9 | L/D: 4 | LU (mm): 54.0 | LCF (mm): 70.3 | OAL (mm): 116.3 | PL (mm): 2.3 | DCON (mm): 11.0 | Stock: Yes
MDW1100GS2DC (mm): 11.0 | L/D: 2 | LU (mm): 30.8 | LCF (mm): 47.3 | OAL (mm): 95.3 | PL (mm): 2.3 | DCON (mm): 11.0 | Stock: Yes
MDW1100GS4DC (mm): 11.0 | L/D: 4 | LU (mm): 53.8 | LCF (mm): 70.3 | OAL (mm): 116.3 | PL (mm): 2.3 | DCON (mm): 11.0 | Stock: Yes
MDW1110GS2DC (mm): 11.1 | L/D: 2 | LU (mm): 30.7 | LCF (mm): 47.3 | OAL (mm): 102.3 | PL (mm): 2.3 | DCON (mm): 12.0 | Stock: Yes
MDW1110GS4DC (mm): 11.1 | L/D: 4 | LU (mm): 56.7 | LCF (mm): 73.3 | OAL (mm): 123.3 | PL (mm): 2.3 | DCON (mm): 12.0 | Stock: Yes
MDW1120GS2DC (mm): 11.2 | L/D: 2 | LU (mm): 30.5 | LCF (mm): 47.3 | OAL (mm): 102.3 | PL (mm): 2.3 | DCON (mm): 12.0 | Stock: Yes
MDW1120GS4DC (mm): 11.2 | L/D: 4 | LU (mm): 56.5 | LCF (mm): 73.3 | OAL (mm): 123.3 | PL (mm): 2.3 | DCON (mm): 12.0 | Stock: Yes
MDW1130GS2DC (mm): 11.3 | L/D: 2 | LU (mm): 30.4 | LCF (mm): 47.3 | OAL (mm): 102.3 | PL (mm): 2.3 | DCON (mm): 12.0 | Stock: Yes
MDW1130GS4DC (mm): 11.3 | L/D: 4 | LU (mm): 56.4 | LCF (mm): 73.3 | OAL (mm): 123.3 | PL (mm): 2.3 | DCON (mm): 12.0 | Stock: Yes
MDW1140GS2DC (mm): 11.4 | L/D: 2 | LU (mm): 30.3 | LCF (mm): 47.4 | OAL (mm): 102.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Yes
MDW1140GS4DC (mm): 11.4 | L/D: 4 | LU (mm): 56.3 | LCF (mm): 73.4 | OAL (mm): 123.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Yes
MDW1150GS2DC (mm): 11.5 | L/D: 2 | LU (mm): 30.2 | LCF (mm): 47.4 | OAL (mm): 102.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Yes
MDW1150GS4DC (mm): 11.5 | L/D: 4 | LU (mm): 56.2 | LCF (mm): 73.4 | OAL (mm): 123.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Yes
MDW1160GS2DC (mm): 11.6 | L/D: 2 | LU (mm): 32.0 | LCF (mm): 49.4 | OAL (mm): 102.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Yes
MDW1160GS4DC (mm): 11.6 | L/D: 4 | LU (mm): 58.0 | LCF (mm): 75.4 | OAL (mm): 123.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Yes
MDW1170GS2DC (mm): 11.7 | L/D: 2 | LU (mm): 31.9 | LCF (mm): 49.4 | OAL (mm): 102.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Yes
MDW1170GS4DC (mm): 11.7 | L/D: 4 | LU (mm): 57.9 | LCF (mm): 75.4 | OAL (mm): 123.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Yes
MDW1180GS2DC (mm): 11.8 | L/D: 2 | LU (mm): 31.7 | LCF (mm): 49.4 | OAL (mm): 102.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Yes
MDW1180GS4DC (mm): 11.8 | L/D: 4 | LU (mm): 57.7 | LCF (mm): 75.4 | OAL (mm): 123.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Yes
MDW1190GS2DC (mm): 11.9 | L/D: 2 | LU (mm): 31.7 | LCF (mm): 49.5 | OAL (mm): 102.5 | PL (mm): 2.5 | DCON (mm): 12.0 | Stock: Yes
MDW1190GS4DC (mm): 11.9 | L/D: 4 | LU (mm): 57.7 | LCF (mm): 75.5 | OAL (mm): 123.5 | PL (mm): 2.5 | DCON (mm): 12.0 | Stock: Yes
MDW1200GS2DC (mm): 12.0 | L/D: 2 | LU (mm): 31.5 | LCF (mm): 49.5 | OAL (mm): 102.5 | PL (mm): 2.5 | DCON (mm): 12.0 | Stock: Yes
MDW1200GS4DC (mm): 12.0 | L/D: 4 | LU (mm): 57.5 | LCF (mm): 75.5 | OAL (mm): 123.5 | PL (mm): 2.5 | DCON (mm): 12.0 | Stock: Yes
MDW1210GS2DC (mm): 12.1 | L/D: 2 | LU (mm): 31.4 | LCF (mm): 49.5 | OAL (mm): 102.5 | PL (mm): 2.5 | DCON (mm): 13.0 | Stock: Made to order
MDW1210GS4DC (mm): 12.1 | L/D: 4 | LU (mm): 60.4 | LCF (mm): 78.5 | OAL (mm): 139.5 | PL (mm): 2.5 | DCON (mm): 13.0 | Stock: Made to order
MDW1220GS2DC (mm): 12.2 | L/D: 2 | LU (mm): 31.2 | LCF (mm): 49.5 | OAL (mm): 102.5 | PL (mm): 2.5 | DCON (mm): 13.0 | Stock: Made to order
MDW1220GS4DC (mm): 12.2 | L/D: 4 | LU (mm): 60.2 | LCF (mm): 78.5 | OAL (mm): 139.5 | PL (mm): 2.5 | DCON (mm): 13.0 | Stock: Made to order
MDW1230GS2DC (mm): 12.3 | L/D: 2 | LU (mm): 31.1 | LCF (mm): 49.5 | OAL (mm): 102.5 | PL (mm): 2.5 | DCON (mm): 13.0 | Stock: Made to order
MDW1230GS4DC (mm): 12.3 | L/D: 4 | LU (mm): 60.1 | LCF (mm): 78.5 | OAL (mm): 139.5 | PL (mm): 2.5 | DCON (mm): 13.0 | Stock: Made to order
MDW1240GS2DC (mm): 12.4 | L/D: 2 | LU (mm): 31.0 | LCF (mm): 49.6 | OAL (mm): 102.6 | PL (mm): 2.6 | DCON (mm): 13.0 | Stock: Made to order
MDW1240GS4DC (mm): 12.4 | L/D: 4 | LU (mm): 60.0 | LCF (mm): 78.6 | OAL (mm): 139.6 | PL (mm): 2.5 | DCON (mm): 13.0 | Stock: Made to order
MDW1250GS2DC (mm): 12.5 | L/D: 2 | LU (mm): 30.9 | LCF (mm): 49.6 | OAL (mm): 102.6 | PL (mm): 2.6 | DCON (mm): 13.0 | Stock: Made to order
MDW1250GS4DC (mm): 12.5 | L/D: 4 | LU (mm): 59.9 | LCF (mm): 78.6 | OAL (mm): 139.6 | PL (mm): 2.6 | DCON (mm): 13.0 | Stock: Made to order
MDW1260GS2DC (mm): 12.6 | L/D: 2 | LU (mm): 32.7 | LCF (mm): 51.6 | OAL (mm): 102.6 | PL (mm): 2.6 | DCON (mm): 13.0 | Stock: Made to order
MDW1260GS4DC (mm): 12.6 | L/D: 4 | LU (mm): 61.7 | LCF (mm): 80.6 | OAL (mm): 139.6 | PL (mm): 2.6 | DCON (mm): 13.0 | Stock: Made to order
MDW1270GS2DC (mm): 12.7 | L/D: 2 | LU (mm): 32.6 | LCF (mm): 51.6 | OAL (mm): 102.6 | PL (mm): 2.6 | DCON (mm): 13.0 | Stock: Made to order
MDW1270GS4DC (mm): 12.7 | L/D: 4 | LU (mm): 61.6 | LCF (mm): 80.6 | OAL (mm): 139.6 | PL (mm): 2.6 | DCON (mm): 13.0 | Stock: Made to order
MDW1280GS2DC (mm): 12.8 | L/D: 2 | LU (mm): 32.4 | LCF (mm): 51.6 | OAL (mm): 102.6 | PL (mm): 2.6 | DCON (mm): 13.0 | Stock: Made to order
MDW1280GS4DC (mm): 12.8 | L/D: 4 | LU (mm): 61.4 | LCF (mm): 80.6 | OAL (mm): 139.6 | PL (mm): 2.6 | DCON (mm): 13.0 | Stock: Made to order
MDW1290GS2DC (mm): 12.9 | L/D: 2 | LU (mm): 32.4 | LCF (mm): 51.7 | OAL (mm): 102.7 | PL (mm): 2.7 | DCON (mm): 13.0 | Stock: Made to order
MDW1290GS4DC (mm): 12.9 | L/D: 4 | LU (mm): 61.4 | LCF (mm): 80.7 | OAL (mm): 139.7 | PL (mm): 2.7 | DCON (mm): 13.0 | Stock: Made to order
MDW1300GS2DC (mm): 13.0 | L/D: 2 | LU (mm): 32.2 | LCF (mm): 51.7 | OAL (mm): 102.7 | PL (mm): 2.7 | DCON (mm): 13.0 | Stock: Made to order
MDW1300GS4DC (mm): 13.0 | L/D: 4 | LU (mm): 61.2 | LCF (mm): 80.7 | OAL (mm): 139.7 | PL (mm): 2.7 | DCON (mm): 13.0 | Stock: Made to order
MDW1310GS2DC (mm): 13.1 | L/D: 2 | LU (mm): 33.1 | LCF (mm): 52.7 | OAL (mm): 107.7 | PL (mm): 2.7 | DCON (mm): 14.0 | Stock: Made to order
MDW1310GS4DC (mm): 13.1 | L/D: 4 | LU (mm): 67.1 | LCF (mm): 86.7 | OAL (mm): 149.7 | PL (mm): 2.7 | DCON (mm): 14.0 | Stock: Made to order
MDW1320GS2DC (mm): 13.2 | L/D: 2 | LU (mm): 32.9 | LCF (mm): 52.7 | OAL (mm): 107.7 | PL (mm): 2.7 | DCON (mm): 14.0 | Stock: Made to order
MDW1320GS4DC (mm): 13.2 | L/D: 4 | LU (mm): 66.9 | LCF (mm): 86.7 | OAL (mm): 149.7 | PL (mm): 2.7 | DCON (mm): 14.0 | Stock: Made to order
MDW1330GS2DC (mm): 13.3 | L/D: 2 | LU (mm): 32.9 | LCF (mm): 52.8 | OAL (mm): 107.8 | PL (mm): 2.8 | DCON (mm): 14.0 | Stock: Made to order
MDW1330GS4DC (mm): 13.3 | L/D: 4 | LU (mm): 66.9 | LCF (mm): 86.8 | OAL (mm): 149.8 | PL (mm): 2.8 | DCON (mm): 14.0 | Stock: Made to order
MDW1340GS2DC (mm): 13.4 | L/D: 2 | LU (mm): 32.7 | LCF (mm): 52.8 | OAL (mm): 107.8 | PL (mm): 2.8 | DCON (mm): 14.0 | Stock: Made to order
MDW1340GS4DC (mm): 13.4 | L/D: 4 | LU (mm): 66.7 | LCF (mm): 86.8 | OAL (mm): 149.8 | PL (mm): 2.8 | DCON (mm): 14.0 | Stock: Made to order
MDW1350GS2DC (mm): 13.5 | L/D: 2 | LU (mm): 32.6 | LCF (mm): 52.8 | OAL (mm): 107.8 | PL (mm): 2.8 | DCON (mm): 14.0 | Stock: Made to order
MDW1350GS4DC (mm): 13.5 | L/D: 4 | LU (mm): 66.6 | LCF (mm): 86.8 | OAL (mm): 149.8 | PL (mm): 2.8 | DCON (mm): 14.0 | Stock: Made to order
MDW1360GS2DC (mm): 13.6 | L/D: 2 | LU (mm): 34.4 | LCF (mm): 54.8 | OAL (mm): 107.8 | PL (mm): 2.8 | DCON (mm): 14.0 | Stock: Made to order
MDW1360GS4DC (mm): 13.6 | L/D: 4 | LU (mm): 68.4 | LCF (mm): 88.8 | OAL (mm): 149.8 | PL (mm): 2.8 | DCON (mm): 14.0 | Stock: Made to order
MDW1370GS2DC (mm): 13.7 | L/D: 2 | LU (mm): 34.3 | LCF (mm): 54.8 | OAL (mm): 107.8 | PL (mm): 2.8 | DCON (mm): 14.0 | Stock: Made to order
MDW1370GS4DC (mm): 13.7 | L/D: 4 | LU (mm): 68.3 | LCF (mm): 88.8 | OAL (mm): 149.8 | PL (mm): 2.8 | DCON (mm): 14.0 | Stock: Made to order
MDW1380GS2DC (mm): 13.8 | L/D: 2 | LU (mm): 34.2 | LCF (mm): 54.9 | OAL (mm): 107.9 | PL (mm): 2.9 | DCON (mm): 14.0 | Stock: Made to order
MDW1380GS4DC (mm): 13.8 | L/D: 4 | LU (mm): 68.2 | LCF (mm): 88.9 | OAL (mm): 149.9 | PL (mm): 2.9 | DCON (mm): 14.0 | Stock: Made to order
MDW1390GS2DC (mm): 13.9 | L/D: 2 | LU (mm): 34.1 | LCF (mm): 54.9 | OAL (mm): 107.9 | PL (mm): 2.9 | DCON (mm): 14.0 | Stock: Made to order
MDW1390GS4DC (mm): 13.9 | L/D: 4 | LU (mm): 68.1 | LCF (mm): 88.9 | OAL (mm): 149.9 | PL (mm): 2.9 | DCON (mm): 14.0 | Stock: Made to order
MDW1400GS2DC (mm): 14.0 | L/D: 2 | LU (mm): 33.9 | LCF (mm): 54.9 | OAL (mm): 107.9 | PL (mm): 2.9 | DCON (mm): 14.0 | Stock: Made to order
MDW1400GS4DC (mm): 14.0 | L/D: 4 | LU (mm): 67.9 | LCF (mm): 88.9 | OAL (mm): 149.9 | PL (mm): 2.9 | DCON (mm): 14.0 | Stock: Made to order
MDW1410GS2DC (mm): 14.1 | L/D: 2 | LU (mm): 33.8 | LCF (mm): 54.9 | OAL (mm): 110.9 | PL (mm): 2.9 | DCON (mm): 15.0 | Stock: Made to order
MDW1410GS4DC (mm): 14.1 | L/D: 4 | LU (mm): 70.8 | LCF (mm): 91.9 | OAL (mm): 155.9 | PL (mm): 2.9 | DCON (mm): 15.0 | Stock: Made to order
MDW1420GS2DC (mm): 14.2 | L/D: 2 | LU (mm): 33.6 | LCF (mm): 54.9 | OAL (mm): 110.9 | PL (mm): 2.9 | DCON (mm): 15.0 | Stock: Made to order
MDW1420GS4DC (mm): 14.2 | L/D: 4 | LU (mm): 70.6 | LCF (mm): 91.9 | OAL (mm): 155.9 | PL (mm): 2.9 | DCON (mm): 15.0 | Stock: Made to order
MDW1430GS2DC (mm): 14.3 | L/D: 2 | LU (mm): 33.6 | LCF (mm): 55.0 | OAL (mm): 111.0 | PL (mm): 3.0 | DCON (mm): 15.0 | Stock: Made to order
MDW1430GS4DC (mm): 14.3 | L/D: 4 | LU (mm): 70.6 | LCF (mm): 92.0 | OAL (mm): 156.0 | PL (mm): 3.0 | DCON (mm): 15.0 | Stock: Made to order
MDW1440GS2DC (mm): 14.4 | L/D: 2 | LU (mm): 33.4 | LCF (mm): 55.0 | OAL (mm): 111.0 | PL (mm): 3.0 | DCON (mm): 15.0 | Stock: Made to order
MDW1440GS4DC (mm): 14.4 | L/D: 4 | LU (mm): 70.4 | LCF (mm): 92.0 | OAL (mm): 156.0 | PL (mm): 3.0 | DCON (mm): 15.0 | Stock: Made to order
MDW1450GS2DC (mm): 14.5 | L/D: 2 | LU (mm): 33.3 | LCF (mm): 55.0 | OAL (mm): 111.0 | PL (mm): 3.0 | DCON (mm): 15.0 | Stock: Made to order
MDW1450GS4DC (mm): 14.5 | L/D: 4 | LU (mm): 70.3 | LCF (mm): 92.0 | OAL (mm): 156.0 | PL (mm): 3.0 | DCON (mm): 15.0 | Stock: Made to order
MDW1460GS2DC (mm): 14.6 | L/D: 2 | LU (mm): 34.1 | LCF (mm): 56.0 | OAL (mm): 111.0 | PL (mm): 3.0 | DCON (mm): 15.0 | Stock: Made to order
MDW1460GS4DC (mm): 14.6 | L/D: 4 | LU (mm): 72.1 | LCF (mm): 94.0 | OAL (mm): 156.0 | PL (mm): 3.0 | DCON (mm): 15.0 | Stock: Made to order
MDW1470GS2DC (mm): 14.7 | L/D: 2 | LU (mm): 34.0 | LCF (mm): 56.0 | OAL (mm): 111.0 | PL (mm): 3.0 | DCON (mm): 15.0 | Stock: Made to order
MDW1470GS4DC (mm): 14.7 | L/D: 4 | LU (mm): 72.0 | LCF (mm): 94.0 | OAL (mm): 156.0 | PL (mm): 3.0 | DCON (mm): 15.0 | Stock: Made to order
MDW1480GS2DC (mm): 14.8 | L/D: 2 | LU (mm): 33.9 | LCF (mm): 56.1 | OAL (mm): 111.1 | PL (mm): 3.1 | DCON (mm): 15.0 | Stock: Made to order
MDW1480GS4DC (mm): 14.8 | L/D: 4 | LU (mm): 71.9 | LCF (mm): 94.1 | OAL (mm): 156.1 | PL (mm): 3.1 | DCON (mm): 15.0 | Stock: Made to order
MDW1490GS2DC (mm): 14.9 | L/D: 2 | LU (mm): 33.8 | LCF (mm): 56.1 | OAL (mm): 111.1 | PL (mm): 3.1 | DCON (mm): 15.0 | Stock: Made to order
MDW1490GS4DC (mm): 14.9 | L/D: 4 | LU (mm): 71.8 | LCF (mm): 94.1 | OAL (mm): 156.1 | PL (mm): 3.1 | DCON (mm): 15.0 | Stock: Made to order
MDW1500GS2DC (mm): 15.0 | L/D: 2 | LU (mm): 33.6 | LCF (mm): 56.1 | OAL (mm): 111.1 | PL (mm): 3.1 | DCON (mm): 15.0 | Stock: Made to order
MDW1500GS4DC (mm): 15.0 | L/D: 4 | LU (mm): 71.6 | LCF (mm): 94.1 | OAL (mm): 156.1 | PL (mm): 3.1 | DCON (mm): 15.0 | Stock: Made to order
MDW1510GS2DC (mm): 15.1 | L/D: 2 | LU (mm): 33.5 | LCF (mm): 56.1 | OAL (mm): 115.1 | PL (mm): 3.1 | DCON (mm): 16.0 | Stock: Made to order
MDW1510GS4DC (mm): 15.1 | L/D: 4 | LU (mm): 74.5 | LCF (mm): 97.1 | OAL (mm): 163.1 | PL (mm): 3.1 | DCON (mm): 16.0 | Stock: Made to order
MDW1520GS2DC (mm): 15.2 | L/D: 2 | LU (mm): 33.3 | LCF (mm): 56.1 | OAL (mm): 115.1 | PL (mm): 3.1 | DCON (mm): 16.0 | Stock: Made to order
MDW1520GS4DC (mm): 15.2 | L/D: 4 | LU (mm): 74.3 | LCF (mm): 97.1 | OAL (mm): 163.1 | PL (mm): 3.1 | DCON (mm): 16.0 | Stock: Made to order
MDW1530GS2DC (mm): 15.3 | L/D: 2 | LU (mm): 33.3 | LCF (mm): 56.2 | OAL (mm): 115.2 | PL (mm): 3.2 | DCON (mm): 16.0 | Stock: Made to order
MDW1530GS4DC (mm): 15.3 | L/D: 4 | LU (mm): 74.3 | LCF (mm): 97.2 | OAL (mm): 163.2 | PL (mm): 3.2 | DCON (mm): 16.0 | Stock: Made to order
MDW1540GS2DC (mm): 15.4 | L/D: 2 | LU (mm): 33.1 | LCF (mm): 56.2 | OAL (mm): 115.2 | PL (mm): 3.2 | DCON (mm): 16.0 | Stock: Made to order
MDW1540GS4DC (mm): 15.4 | L/D: 4 | LU (mm): 74.1 | LCF (mm): 97.2 | OAL (mm): 163.2 | PL (mm): 3.2 | DCON (mm): 16.0 | Stock: Made to order
MDW1550GS2DC (mm): 15.5 | L/D: 2 | LU (mm): 33.0 | LCF (mm): 56.2 | OAL (mm): 115.2 | PL (mm): 3.2 | DCON (mm): 16.0 | Stock: Made to order
MDW1550GS4DC (mm): 15.5 | L/D: 4 | LU (mm): 74.0 | LCF (mm): 97.2 | OAL (mm): 163.2 | PL (mm): 3.2 | DCON (mm): 16.0 | Stock: Made to order
MDW1560GS2DC (mm): 15.6 | L/D: 2 | LU (mm): 34.8 | LCF (mm): 58.2 | OAL (mm): 115.2 | PL (mm): 3.2 | DCON (mm): 16.0 | Stock: Made to order
MDW1560GS4DC (mm): 15.6 | L/D: 4 | LU (mm): 75.8 | LCF (mm): 99.2 | OAL (mm): 163.2 | PL (mm): 3.2 | DCON (mm): 16.0 | Stock: Made to order
MDW1570GS2DC (mm): 15.7 | L/D: 2 | LU (mm): 34.7 | LCF (mm): 58.2 | OAL (mm): 115.2 | PL (mm): 3.2 | DCON (mm): 16.0 | Stock: Made to order
MDW1570GS4DC (mm): 15.7 | L/D: 4 | LU (mm): 75.7 | LCF (mm): 99.2 | OAL (mm): 163.2 | PL (mm): 3.2 | DCON (mm): 16.0 | Stock: Made to order
MDW1580GS2DC (mm): 15.8 | L/D: 2 | LU (mm): 34.6 | LCF (mm): 58.3 | OAL (mm): 115.3 | PL (mm): 3.3 | DCON (mm): 16.0 | Stock: Made to order
MDW1580GS4DC (mm): 15.8 | L/D: 4 | LU (mm): 75.6 | LCF (mm): 99.3 | OAL (mm): 163.3 | PL (mm): 3.3 | DCON (mm): 16.0 | Stock: Made to order
MDW1590GS2DC (mm): 15.9 | L/D: 2 | LU (mm): 34.5 | LCF (mm): 58.3 | OAL (mm): 115.3 | PL (mm): 3.3 | DCON (mm): 16.0 | Stock: Made to order
MDW1590GS4DC (mm): 15.9 | L/D: 4 | LU (mm): 75.5 | LCF (mm): 99.3 | OAL (mm): 163.3 | PL (mm): 3.3 | DCON (mm): 16.0 | Stock: Made to order
MDW1600GS2DC (mm): 16.0 | L/D: 2 | LU (mm): 34.3 | LCF (mm): 58.3 | OAL (mm): 115.3 | PL (mm): 3.3 | DCON (mm): 16.0 | Stock: Made to order
MDW1600GS4DC (mm): 16.0 | L/D: 4 | LU (mm): 75.3 | LCF (mm): 99.3 | OAL (mm): 163.3 | PL (mm): 3.3 | DCON (mm): 16.0 | Stock: Made to order
MDW1610GS2DC (mm): 16.1 | L/D: 2 | LU (mm): 35.2 | LCF (mm): 59.3 | OAL (mm): 119.3 | PL (mm): 3.3 | DCON (mm): 17.0 | Stock: Made to order
MDW1610GS4DC (mm): 16.1 | L/D: 4 | LU (mm): 77.2 | LCF (mm): 101.3 | OAL (mm): 170.3 | PL (mm): 3.3 | DCON (mm): 17.0 | Stock: Made to order
MDW1620GS2DC (mm): 16.2 | L/D: 2 | LU (mm): 35.1 | LCF (mm): 59.4 | OAL (mm): 119.4 | PL (mm): 3.4 | DCON (mm): 17.0 | Stock: Made to order
MDW1620GS4DC (mm): 16.2 | L/D: 4 | LU (mm): 77.1 | LCF (mm): 101.4 | OAL (mm): 170.4 | PL (mm): 3.4 | DCON (mm): 17.0 | Stock: Made to order
MDW1630GS2DC (mm): 16.3 | L/D: 2 | LU (mm): 35.0 | LCF (mm): 59.4 | OAL (mm): 119.4 | PL (mm): 3.4 | DCON (mm): 17.0 | Stock: Made to order
MDW1630GS4DC (mm): 16.3 | L/D: 4 | LU (mm): 77.0 | LCF (mm): 101.4 | OAL (mm): 170.4 | PL (mm): 3.4 | DCON (mm): 17.0 | Stock: Made to order
MDW1640GS2DC (mm): 16.4 | L/D: 2 | LU (mm): 34.8 | LCF (mm): 59.4 | OAL (mm): 119.4 | PL (mm): 3.4 | DCON (mm): 17.0 | Stock: Made to order
MDW1640GS4DC (mm): 16.4 | L/D: 4 | LU (mm): 76.8 | LCF (mm): 101.4 | OAL (mm): 170.4 | PL (mm): 3.4 | DCON (mm): 17.0 | Stock: Made to order
MDW1650GS2DC (mm): 16.5 | L/D: 2 | LU (mm): 34.7 | LCF (mm): 59.4 | OAL (mm): 119.4 | PL (mm): 3.4 | DCON (mm): 17.0 | Stock: Made to order
MDW1650GS4DC (mm): 16.5 | L/D: 4 | LU (mm): 76.7 | LCF (mm): 101.4 | OAL (mm): 170.4 | PL (mm): 3.4 | DCON (mm): 17.0 | Stock: Made to order
MDW1660GS2DC (mm): 16.6 | L/D: 2 | LU (mm): 35.5 | LCF (mm): 60.4 | OAL (mm): 119.4 | PL (mm): 3.4 | DCON (mm): 17.0 | Stock: Made to order
MDW1660GS4DC (mm): 16.6 | L/D: 4 | LU (mm): 76.5 | LCF (mm): 101.4 | OAL (mm): 170.4 | PL (mm): 3.4 | DCON (mm): 17.0 | Stock: Made to order
MDW1670GS2DC (mm): 16.7 | L/D: 2 | LU (mm): 35.5 | LCF (mm): 60.5 | OAL (mm): 119.5 | PL (mm): 3.5 | DCON (mm): 17.0 | Stock: Made to order
MDW1670GS4DC (mm): 16.7 | L/D: 4 | LU (mm): 76.5 | LCF (mm): 101.5 | OAL (mm): 170.5 | PL (mm): 3.5 | DCON (mm): 17.0 | Stock: Made to order
MDW1680GS2DC (mm): 16.8 | L/D: 2 | LU (mm): 35.3 | LCF (mm): 60.5 | OAL (mm): 119.5 | PL (mm): 3.5 | DCON (mm): 17.0 | Stock: Made to order
MDW1680GS4DC (mm): 16.8 | L/D: 4 | LU (mm): 76.3 | LCF (mm): 101.5 | OAL (mm): 170.5 | PL (mm): 3.5 | DCON (mm): 17.0 | Stock: Made to order
MDW1690GS2DC (mm): 16.9 | L/D: 2 | LU (mm): 35.2 | LCF (mm): 60.5 | OAL (mm): 119.5 | PL (mm): 3.5 | DCON (mm): 17.0 | Stock: Made to order
MDW1690GS4DC (mm): 16.9 | L/D: 4 | LU (mm): 76.2 | LCF (mm): 101.5 | OAL (mm): 170.5 | PL (mm): 3.5 | DCON (mm): 17.0 | Stock: Made to order
MDW1700GS2DC (mm): 17.0 | L/D: 2 | LU (mm): 35.0 | LCF (mm): 60.5 | OAL (mm): 119.5 | PL (mm): 3.5 | DCON (mm): 17.0 | Stock: Made to order
MDW1700GS4DC (mm): 17.0 | L/D: 4 | LU (mm): 76.0 | LCF (mm): 101.5 | OAL (mm): 170.5 | PL (mm): 3.5 | DCON (mm): 17.0 | Stock: Made to order
MDW1710GS2DC (mm): 17.1 | L/D: 2 | LU (mm): 35.9 | LCF (mm): 61.5 | OAL (mm): 123.5 | PL (mm): 3.5 | DCON (mm): 18.0 | Stock: Made to order
MDW1710GS4DC (mm): 17.1 | L/D: 4 | LU (mm): 77.9 | LCF (mm): 103.5 | OAL (mm): 170.5 | PL (mm): 3.5 | DCON (mm): 18.0 | Stock: Made to order
MDW1720GS2DC (mm): 17.2 | L/D: 2 | LU (mm): 35.8 | LCF (mm): 61.6 | OAL (mm): 123.6 | PL (mm): 3.6 | DCON (mm): 18.0 | Stock: Made to order
MDW1720GS4DC (mm): 17.2 | L/D: 4 | LU (mm): 77.8 | LCF (mm): 103.6 | OAL (mm): 170.6 | PL (mm): 3.6 | DCON (mm): 18.0 | Stock: Made to order
MDW1730GS2DC (mm): 17.3 | L/D: 2 | LU (mm): 35.7 | LCF (mm): 61.6 | OAL (mm): 123.6 | PL (mm): 3.6 | DCON (mm): 18.0 | Stock: Made to order
MDW1730GS4DC (mm): 17.3 | L/D: 4 | LU (mm): 77.7 | LCF (mm): 103.6 | OAL (mm): 170.6 | PL (mm): 3.6 | DCON (mm): 18.0 | Stock: Made to order
MDW1740GS2DC (mm): 17.4 | L/D: 2 | LU (mm): 35.5 | LCF (mm): 61.6 | OAL (mm): 123.6 | PL (mm): 3.6 | DCON (mm): 18.0 | Stock: Made to order
MDW1740GS4DC (mm): 17.4 | L/D: 4 | LU (mm): 77.5 | LCF (mm): 103.6 | OAL (mm): 170.6 | PL (mm): 3.6 | DCON (mm): 18.0 | Stock: Made to order
MDW1750GS2DC (mm): 17.5 | L/D: 2 | LU (mm): 35.4 | LCF (mm): 61.6 | OAL (mm): 123.6 | PL (mm): 3.6 | DCON (mm): 18.0 | Stock: Made to order
MDW1750GS4DC (mm): 17.5 | L/D: 4 | LU (mm): 77.4 | LCF (mm): 103.6 | OAL (mm): 170.6 | PL (mm): 3.6 | DCON (mm): 18.0 | Stock: Made to order
MDW1760GS2DC (mm): 17.6 | L/D: 2 | LU (mm): 36.2 | LCF (mm): 62.6 | OAL (mm): 123.6 | PL (mm): 3.6 | DCON (mm): 18.0 | Stock: Made to order
MDW1760GS4DC (mm): 17.6 | L/D: 4 | LU (mm): 79.2 | LCF (mm): 105.6 | OAL (mm): 170.6 | PL (mm): 3.6 | DCON (mm): 18.0 | Stock: Made to order
MDW1770GS2DC (mm): 17.7 | L/D: 2 | LU (mm): 36.2 | LCF (mm): 62.7 | OAL (mm): 123.7 | PL (mm): 3.7 | DCON (mm): 18.0 | Stock: Made to order
MDW1770GS4DC (mm): 17.7 | L/D: 4 | LU (mm): 79.2 | LCF (mm): 105.7 | OAL (mm): 170.7 | PL (mm): 3.7 | DCON (mm): 18.0 | Stock: Made to order
MDW1780GS2DC (mm): 17.8 | L/D: 2 | LU (mm): 36.0 | LCF (mm): 62.7 | OAL (mm): 123.7 | PL (mm): 3.7 | DCON (mm): 18.0 | Stock: Made to order
MDW1780GS4DC (mm): 17.8 | L/D: 4 | LU (mm): 79.0 | LCF (mm): 105.7 | OAL (mm): 170.7 | PL (mm): 3.7 | DCON (mm): 18.0 | Stock: Made to order
MDW1790GS2DC (mm): 17.9 | L/D: 2 | LU (mm): 35.9 | LCF (mm): 62.7 | OAL (mm): 123.7 | PL (mm): 3.7 | DCON (mm): 18.0 | Stock: Made to order
MDW1790GS4DC (mm): 17.9 | L/D: 4 | LU (mm): 78.9 | LCF (mm): 105.7 | OAL (mm): 170.7 | PL (mm): 3.7 | DCON (mm): 18.0 | Stock: Made to order
MDW1800GS2DC (mm): 18.0 | L/D: 2 | LU (mm): 35.7 | LCF (mm): 62.7 | OAL (mm): 123.7 | PL (mm): 3.7 | DCON (mm): 18.0 | Stock: Made to order
MDW1800GS4DC (mm): 18.0 | L/D: 4 | LU (mm): 78.7 | LCF (mm): 105.7 | OAL (mm): 170.7 | PL (mm): 3.7 | DCON (mm): 18.0 | Stock: Made to order
MDW1810GS2DC (mm): 18.1 | L/D: 2 | LU (mm): 35.6 | LCF (mm): 62.7 | OAL (mm): 126.7 | PL (mm): 3.7 | DCON (mm): 19.0 | Stock: Made to order
MDW1810GS4DC (mm): 18.1 | L/D: 4 | LU (mm): 80.6 | LCF (mm): 107.7 | OAL (mm): 182.7 | PL (mm): 3.7 | DCON (mm): 19.0 | Stock: Made to order
MDW1820GS2DC (mm): 18.2 | L/D: 2 | LU (mm): 35.5 | LCF (mm): 62.8 | OAL (mm): 126.8 | PL (mm): 3.8 | DCON (mm): 19.0 | Stock: Made to order
MDW1820GS4DC (mm): 18.2 | L/D: 4 | LU (mm): 80.5 | LCF (mm): 107.8 | OAL (mm): 182.8 | PL (mm): 3.8 | DCON (mm): 19.0 | Stock: Made to order
MDW1830GS2DC (mm): 18.3 | L/D: 2 | LU (mm): 35.4 | LCF (mm): 62.8 | OAL (mm): 126.8 | PL (mm): 3.8 | DCON (mm): 19.0 | Stock: Made to order
MDW1830GS4DC (mm): 18.3 | L/D: 4 | LU (mm): 80.4 | LCF (mm): 107.8 | OAL (mm): 182.8 | PL (mm): 3.8 | DCON (mm): 19.0 | Stock: Made to order
MDW1840GS2DC (mm): 18.4 | L/D: 2 | LU (mm): 35.2 | LCF (mm): 62.8 | OAL (mm): 126.8 | PL (mm): 3.8 | DCON (mm): 19.0 | Stock: Made to order
MDW1840GS4DC (mm): 18.4 | L/D: 4 | LU (mm): 80.2 | LCF (mm): 107.8 | OAL (mm): 182.8 | PL (mm): 3.8 | DCON (mm): 19.0 | Stock: Made to order
MDW1850GS2DC (mm): 18.5 | L/D: 2 | LU (mm): 35.1 | LCF (mm): 62.8 | OAL (mm): 126.8 | PL (mm): 3.8 | DCON (mm): 19.0 | Stock: Made to order
MDW1850GS4DC (mm): 18.5 | L/D: 4 | LU (mm): 80.1 | LCF (mm): 107.8 | OAL (mm): 182.8 | PL (mm): 3.8 | DCON (mm): 19.0 | Stock: Made to order
MDW1860GS2DC (mm): 18.6 | L/D: 2 | LU (mm): 36.0 | LCF (mm): 63.9 | OAL (mm): 126.9 | PL (mm): 3.9 | DCON (mm): 19.0 | Stock: Made to order
MDW1860GS4DC (mm): 18.6 | L/D: 4 | LU (mm): 82.0 | LCF (mm): 109.9 | OAL (mm): 182.9 | PL (mm): 3.9 | DCON (mm): 19.0 | Stock: Made to order
MDW1870GS2DC (mm): 18.7 | L/D: 2 | LU (mm): 35.9 | LCF (mm): 63.9 | OAL (mm): 126.9 | PL (mm): 3.9 | DCON (mm): 19.0 | Stock: Made to order
MDW1870GS4DC (mm): 18.7 | L/D: 4 | LU (mm): 81.9 | LCF (mm): 109.9 | OAL (mm): 182.9 | PL (mm): 3.9 | DCON (mm): 19.0 | Stock: Made to order
MDW1880GS2DC (mm): 18.8 | L/D: 2 | LU (mm): 35.7 | LCF (mm): 63.9 | OAL (mm): 126.9 | PL (mm): 3.9 | DCON (mm): 19.0 | Stock: Made to order
MDW1880GS4DC (mm): 18.8 | L/D: 4 | LU (mm): 81.7 | LCF (mm): 109.9 | OAL (mm): 182.9 | PL (mm): 3.9 | DCON (mm): 19.0 | Stock: Made to order
MDW1890GS2DC (mm): 18.9 | L/D: 2 | LU (mm): 35.6 | LCF (mm): 63.9 | OAL (mm): 126.9 | PL (mm): 3.9 | DCON (mm): 19.0 | Stock: Made to order
MDW1890GS4DC (mm): 18.9 | L/D: 4 | LU (mm): 81.6 | LCF (mm): 109.9 | OAL (mm): 182.9 | PL (mm): 3.9 | DCON (mm): 19.0 | Stock: Made to order
MDW1900GS2DC (mm): 19.0 | L/D: 2 | LU (mm): 35.4 | LCF (mm): 63.9 | OAL (mm): 126.9 | PL (mm): 3.9 | DCON (mm): 19.0 | Stock: Made to order
MDW1900GS4DC (mm): 19.0 | L/D: 4 | LU (mm): 81.4 | LCF (mm): 109.9 | OAL (mm): 182.9 | PL (mm): 3.9 | DCON (mm): 19.0 | Stock: Made to order
MDW1910GS2DC (mm): 19.1 | L/D: 2 | LU (mm): 36.4 | LCF (mm): 65.0 | OAL (mm): 131.0 | PL (mm): 4.0 | DCON (mm): 20.0 | Stock: Made to order
MDW1910GS4DC (mm): 19.1 | L/D: 4 | LU (mm): 85.4 | LCF (mm): 114.0 | OAL (mm): 183.0 | PL (mm): 4.0 | DCON (mm): 20.0 | Stock: Made to order
MDW1920GS2DC (mm): 19.2 | L/D: 2 | LU (mm): 36.2 | LCF (mm): 65.0 | OAL (mm): 131.0 | PL (mm): 4.0 | DCON (mm): 20.0 | Stock: Made to order
MDW1920GS4DC (mm): 19.2 | L/D: 4 | LU (mm): 85.2 | LCF (mm): 114.0 | OAL (mm): 183.0 | PL (mm): 4.0 | DCON (mm): 20.0 | Stock: Made to order
MDW1930GS2DC (mm): 19.3 | L/D: 2 | LU (mm): 36.1 | LCF (mm): 65.0 | OAL (mm): 131.0 | PL (mm): 4.0 | DCON (mm): 20.0 | Stock: Made to order
MDW1930GS4DC (mm): 19.3 | L/D: 4 | LU (mm): 85.1 | LCF (mm): 114.0 | OAL (mm): 183.0 | PL (mm): 4.0 | DCON (mm): 20.0 | Stock: Made to order
MDW1940GS2DC (mm): 19.4 | L/D: 2 | LU (mm): 35.9 | LCF (mm): 65.0 | OAL (mm): 131.0 | PL (mm): 4.0 | DCON (mm): 20.0 | Stock: Made to order
MDW1940GS4DC (mm): 19.4 | L/D: 4 | LU (mm): 84.9 | LCF (mm): 114.0 | OAL (mm): 183.0 | PL (mm): 4.0 | DCON (mm): 20.0 | Stock: Made to order
MDW1950GS2DC (mm): 19.5 | L/D: 2 | LU (mm): 35.8 | LCF (mm): 65.0 | OAL (mm): 131.0 | PL (mm): 4.0 | DCON (mm): 20.0 | Stock: Made to order
MDW1950GS4DC (mm): 19.5 | L/D: 4 | LU (mm): 84.8 | LCF (mm): 114.0 | OAL (mm): 183.0 | PL (mm): 4.0 | DCON (mm): 20.0 | Stock: Made to order
MDW1960GS2DC (mm): 19.6 | L/D: 2 | LU (mm): 36.7 | LCF (mm): 66.1 | OAL (mm): 131.1 | PL (mm): 4.1 | DCON (mm): 20.0 | Stock: Made to order
MDW1960GS4DC (mm): 19.6 | L/D: 4 | LU (mm): 88.7 | LCF (mm): 118.1 | OAL (mm): 183.1 | PL (mm): 4.1 | DCON (mm): 20.0 | Stock: Made to order
MDW1970GS2DC (mm): 19.7 | L/D: 2 | LU (mm): 36.6 | LCF (mm): 66.1 | OAL (mm): 131.1 | PL (mm): 4.1 | DCON (mm): 20.0 | Stock: Made to order
MDW1970GS4DC (mm): 19.7 | L/D: 4 | LU (mm): 88.6 | LCF (mm): 118.1 | OAL (mm): 183.1 | PL (mm): 4.1 | DCON (mm): 20.0 | Stock: Made to order
MDW1980GS2DC (mm): 19.8 | L/D: 2 | LU (mm): 36.4 | LCF (mm): 66.1 | OAL (mm): 131.1 | PL (mm): 4.1 | DCON (mm): 20.0 | Stock: Made to order
MDW1980GS4DC (mm): 19.8 | L/D: 4 | LU (mm): 88.4 | LCF (mm): 118.1 | OAL (mm): 183.1 | PL (mm): 4.1 | DCON (mm): 20.0 | Stock: Made to order
MDW1990GS2DC (mm): 19.9 | L/D: 2 | LU (mm): 36.3 | LCF (mm): 66.1 | OAL (mm): 131.1 | PL (mm): 4.1 | DCON (mm): 20.0 | Stock: Made to order
MDW1990GS4DC (mm): 19.9 | L/D: 4 | LU (mm): 88.3 | LCF (mm): 118.1 | OAL (mm): 183.1 | PL (mm): 4.1 | DCON (mm): 20.0 | Stock: Made to order
MDW2000GS2DC (mm): 20.0 | L/D: 2 | LU (mm): 36.1 | LCF (mm): 66.1 | OAL (mm): 131.1 | PL (mm): 4.1 | DCON (mm): 20.0 | Stock: Made to order
MDW2000GS4DC (mm): 20.0 | L/D: 4 | LU (mm): 88.1 | LCF (mm): 118.1 | OAL (mm): 183.1 | PL (mm): 4.1 | DCON (mm): 20.0 | Stock: Made to order

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Cutting Tools →
