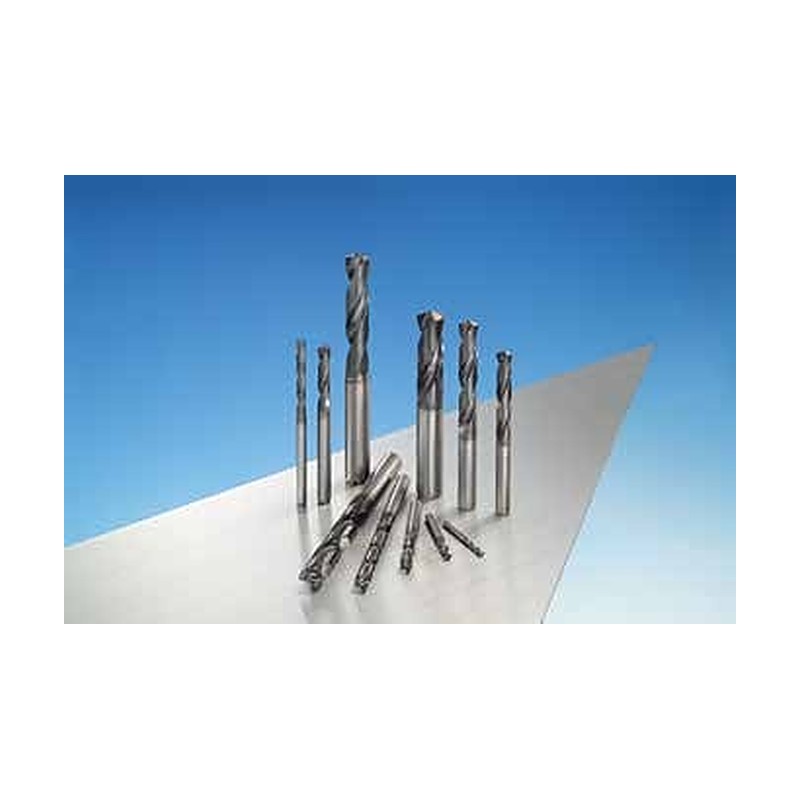

Sumitomo Electric Hardmetal Super Multi Drill HGS Type (Internal Coolant)

Sumitomo Electric Hardmetal Super Multi Drill HGS Type (Internal Coolant)

Through-coolant solid carbide drill with J-flute and DEX coating, double margin for deep holes, 3D, 5D and 8D.

Key features

  • J-flute for chip control and evacuation
  • DEX coating
  • Low cutting noise, stable on small machines
  • MQL capable
  • Grade ACX70
  • Double margin (except 1.5-2.4 mm)

Specifications

Coolant Internal
Point angle 135 deg
Grade ACX70
MDW0150HGS3 DC (mm): 1.5 | L/D: 3 | LU (mm): 8.1 | LCF (mm): 10.3 | OAL (mm): 63.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDW0150HGS5 DC (mm): 1.5 | L/D: 5 | LU (mm): 12.1 | LCF (mm): 14.3 | OAL (mm): 70.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDW0150HGS8 DC (mm): 1.5 | L/D: 8 | LU (mm): 16.6 | LCF (mm): 18.8 | OAL (mm): 76.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDW0160HGS3 DC (mm): 1.6 | L/D: 3 | LU (mm): 10.4 | LCF (mm): 12.8 | OAL (mm): 63.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDW0160HGS5 DC (mm): 1.6 | L/D: 5 | LU (mm): 16.9 | LCF (mm): 19.3 | OAL (mm): 70.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDW0160HGS8 DC (mm): 1.6 | L/D: 8 | LU (mm): 21.9 | LCF (mm): 24.3 | OAL (mm): 76.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDW0170HGS3 DC (mm): 1.7 | L/D: 3 | LU (mm): 10.4 | LCF (mm): 12.9 | OAL (mm): 63.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0170HGS5 DC (mm): 1.7 | L/D: 5 | LU (mm): 16.9 | LCF (mm): 19.4 | OAL (mm): 70.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0170HGS8 DC (mm): 1.7 | L/D: 8 | LU (mm): 21.9 | LCF (mm): 24.4 | OAL (mm): 76.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0180HGS3 DC (mm): 1.8 | L/D: 3 | LU (mm): 10.2 | LCF (mm): 12.9 | OAL (mm): 63.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0180HGS5 DC (mm): 1.8 | L/D: 5 | LU (mm): 16.7 | LCF (mm): 19.4 | OAL (mm): 70.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0180HGS8 DC (mm): 1.8 | L/D: 8 | LU (mm): 21.7 | LCF (mm): 24.4 | OAL (mm): 76.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0190HGS3 DC (mm): 1.9 | L/D: 3 | LU (mm): 10.1 | LCF (mm): 12.9 | OAL (mm): 63.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0190HGS5 DC (mm): 1.9 | L/D: 5 | LU (mm): 16.6 | LCF (mm): 19.4 | OAL (mm): 70.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0190HGS8 DC (mm): 1.9 | L/D: 8 | LU (mm): 21.6 | LCF (mm): 24.4 | OAL (mm): 76.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0200HGS3 DC (mm): 2.0 | L/D: 3 | LU (mm): 9.9 | LCF (mm): 12.9 | OAL (mm): 63.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0200HGS5 DC (mm): 2.0 | L/D: 5 | LU (mm): 16.4 | LCF (mm): 19.4 | OAL (mm): 70.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0200HGS8 DC (mm): 2.0 | L/D: 8 | LU (mm): 21.4 | LCF (mm): 24.4 | OAL (mm): 76.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0210HGS3 DC (mm): 2.1 | L/D: 3 | LU (mm): 12.3 | LCF (mm): 15.4 | OAL (mm): 68.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0210HGS5 DC (mm): 2.1 | L/D: 5 | LU (mm): 21.3 | LCF (mm): 24.4 | OAL (mm): 78.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0210HGS8 DC (mm): 2.1 | L/D: 8 | LU (mm): 24.8 | LCF (mm): 27.9 | OAL (mm): 81.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0220HGS3 DC (mm): 2.2 | L/D: 3 | LU (mm): 12.2 | LCF (mm): 15.5 | OAL (mm): 68.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0220HGS5 DC (mm): 2.2 | L/D: 5 | LU (mm): 21.2 | LCF (mm): 24.5 | OAL (mm): 78.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0220HGS8 DC (mm): 2.2 | L/D: 8 | LU (mm): 24.7 | LCF (mm): 28.0 | OAL (mm): 81.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0230HGS3 DC (mm): 2.3 | L/D: 3 | LU (mm): 12.1 | LCF (mm): 15.5 | OAL (mm): 68.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0230HGS5 DC (mm): 2.3 | L/D: 5 | LU (mm): 21.1 | LCF (mm): 24.5 | OAL (mm): 78.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0230HGS8 DC (mm): 2.3 | L/D: 8 | LU (mm): 24.6 | LCF (mm): 28.0 | OAL (mm): 81.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0240HGS3 DC (mm): 2.4 | L/D: 3 | LU (mm): 11.9 | LCF (mm): 15.5 | OAL (mm): 68.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0240HGS5 DC (mm): 2.4 | L/D: 5 | LU (mm): 20.9 | LCF (mm): 24.5 | OAL (mm): 78.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0240HGS8 DC (mm): 2.4 | L/D: 8 | LU (mm): 24.4 | LCF (mm): 28.0 | OAL (mm): 81.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0250HGS3 DC (mm): 2.5 | L/D: 3 | LU (mm): 11.8 | LCF (mm): 15.5 | OAL (mm): 68.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0250HGS5 DC (mm): 2.5 | L/D: 5 | LU (mm): 20.8 | LCF (mm): 24.5 | OAL (mm): 78.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0250HGS8 DC (mm): 2.5 | L/D: 8 | LU (mm): 24.3 | LCF (mm): 28.0 | OAL (mm): 81.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0260HGS3 DC (mm): 2.6 | L/D: 3 | LU (mm): 14.1 | LCF (mm): 18.0 | OAL (mm): 68.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0260HGS5 DC (mm): 2.6 | L/D: 5 | LU (mm): 24.6 | LCF (mm): 28.5 | OAL (mm): 78.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0260HGS8 DC (mm): 2.6 | L/D: 8 | LU (mm): 29.6 | LCF (mm): 33.5 | OAL (mm): 81.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0270HGS3 DC (mm): 2.7 | L/D: 3 | LU (mm): 14.1 | LCF (mm): 18.1 | OAL (mm): 68.6 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDW0270HGS5 DC (mm): 2.7 | L/D: 5 | LU (mm): 24.6 | LCF (mm): 28.6 | OAL (mm): 78.6 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDW0270HGS8 DC (mm): 2.7 | L/D: 8 | LU (mm): 29.6 | LCF (mm): 33.6 | OAL (mm): 81.6 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDW0280HGS3 DC (mm): 2.8 | L/D: 3 | LU (mm): 13.9 | LCF (mm): 18.1 | OAL (mm): 68.6 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDW0280HGS5 DC (mm): 2.8 | L/D: 5 | LU (mm): 24.4 | LCF (mm): 28.6 | OAL (mm): 78.6 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDW0280HGS8 DC (mm): 2.8 | L/D: 8 | LU (mm): 29.4 | LCF (mm): 33.6 | OAL (mm): 81.6 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDW0290HGS3 DC (mm): 2.9 | L/D: 3 | LU (mm): 13.8 | LCF (mm): 18.1 | OAL (mm): 68.6 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDW0290HGS5 DC (mm): 2.9 | L/D: 5 | LU (mm): 24.3 | LCF (mm): 28.6 | OAL (mm): 78.6 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDW0290HGS8 DC (mm): 2.9 | L/D: 8 | LU (mm): 29.3 | LCF (mm): 33.6 | OAL (mm): 81.6 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDW0300HGS3 DC (mm): 3.0 | L/D: 3 | LU (mm): 13.6 | LCF (mm): 18.1 | OAL (mm): 68.6 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDW0300HGS5 DC (mm): 3.0 | L/D: 5 | LU (mm): 24.1 | LCF (mm): 28.6 | OAL (mm): 78.6 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDW0300HGS8 DC (mm): 3.0 | L/D: 8 | LU (mm): 29.1 | LCF (mm): 33.6 | OAL (mm): 81.6 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDW0310HGS3 DC (mm): 3.1 | L/D: 3 | LU (mm): 16.0 | LCF (mm): 20.6 | OAL (mm): 72.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDW0310HGS5 DC (mm): 3.1 | L/D: 5 | LU (mm): 28.0 | LCF (mm): 32.6 | OAL (mm): 86.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDW0310HGS8 DC (mm): 3.1 | L/D: 8 | LU (mm): 34.5 | LCF (mm): 39.1 | OAL (mm): 92.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDW0320HGS3 DC (mm): 3.2 | L/D: 3 | LU (mm): 15.9 | LCF (mm): 20.7 | OAL (mm): 72.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0320HGS5 DC (mm): 3.2 | L/D: 5 | LU (mm): 27.9 | LCF (mm): 32.7 | OAL (mm): 86.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0320HGS8 DC (mm): 3.2 | L/D: 8 | LU (mm): 34.4 | LCF (mm): 39.2 | OAL (mm): 92.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0330HGS3 DC (mm): 3.3 | L/D: 3 | LU (mm): 15.8 | LCF (mm): 20.7 | OAL (mm): 72.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0330HGS5 DC (mm): 3.3 | L/D: 5 | LU (mm): 27.8 | LCF (mm): 32.7 | OAL (mm): 86.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0330HGS8 DC (mm): 3.3 | L/D: 8 | LU (mm): 34.3 | LCF (mm): 39.2 | OAL (mm): 92.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0340HGS3 DC (mm): 3.4 | L/D: 3 | LU (mm): 15.6 | LCF (mm): 20.7 | OAL (mm): 72.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0340HGS5 DC (mm): 3.4 | L/D: 5 | LU (mm): 27.6 | LCF (mm): 32.7 | OAL (mm): 86.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0340HGS8 DC (mm): 3.4 | L/D: 8 | LU (mm): 34.1 | LCF (mm): 39.2 | OAL (mm): 92.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0350HGS3 DC (mm): 3.5 | L/D: 3 | LU (mm): 15.5 | LCF (mm): 20.7 | OAL (mm): 72.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0350HGS5 DC (mm): 3.5 | L/D: 5 | LU (mm): 27.5 | LCF (mm): 32.7 | OAL (mm): 86.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0350HGS8 DC (mm): 3.5 | L/D: 8 | LU (mm): 34.0 | LCF (mm): 39.2 | OAL (mm): 92.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0360HGS3 DC (mm): 3.6 | L/D: 3 | LU (mm): 17.8 | LCF (mm): 23.2 | OAL (mm): 72.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0360HGS5 DC (mm): 3.6 | L/D: 5 | LU (mm): 31.3 | LCF (mm): 36.7 | OAL (mm): 86.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0360HGS8 DC (mm): 3.6 | L/D: 8 | LU (mm): 39.3 | LCF (mm): 44.7 | OAL (mm): 92.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0370HGS3 DC (mm): 3.7 | L/D: 3 | LU (mm): 17.8 | LCF (mm): 23.3 | OAL (mm): 72.8 | PL (mm): 0.8 | DCON (mm): 4.0 | Stock: Yes
MDW0370HGS5 DC (mm): 3.7 | L/D: 5 | LU (mm): 31.3 | LCF (mm): 36.8 | OAL (mm): 86.8 | PL (mm): 0.8 | DCON (mm): 4.0 | Stock: Yes
MDW0370HGS8 DC (mm): 3.7 | L/D: 8 | LU (mm): 39.3 | LCF (mm): 44.8 | OAL (mm): 92.8 | PL (mm): 0.8 | DCON (mm): 4.0 | Stock: Yes
MDW0380HGS3 DC (mm): 3.8 | L/D: 3 | LU (mm): 17.6 | LCF (mm): 23.3 | OAL (mm): 72.8 | PL (mm): 0.8 | DCON (mm): 4.0 | Stock: Yes
MDW0380HGS5 DC (mm): 3.8 | L/D: 5 | LU (mm): 31.1 | LCF (mm): 36.8 | OAL (mm): 86.8 | PL (mm): 0.8 | DCON (mm): 4.0 | Stock: Yes
MDW0380HGS8 DC (mm): 3.8 | L/D: 8 | LU (mm): 39.1 | LCF (mm): 44.8 | OAL (mm): 92.8 | PL (mm): 0.8 | DCON (mm): 4.0 | Stock: Yes
MDW0390HGS3 DC (mm): 3.9 | L/D: 3 | LU (mm): 17.5 | LCF (mm): 23.3 | OAL (mm): 72.8 | PL (mm): 0.8 | DCON (mm): 4.0 | Stock: Yes
MDW0390HGS5 DC (mm): 3.9 | L/D: 5 | LU (mm): 31.0 | LCF (mm): 36.8 | OAL (mm): 86.8 | PL (mm): 0.8 | DCON (mm): 4.0 | Stock: Yes
MDW0390HGS8 DC (mm): 3.9 | L/D: 8 | LU (mm): 39.0 | LCF (mm): 44.8 | OAL (mm): 92.8 | PL (mm): 0.8 | DCON (mm): 4.0 | Stock: Yes
MDW0400HGS3 DC (mm): 4.0 | L/D: 3 | LU (mm): 17.3 | LCF (mm): 23.3 | OAL (mm): 72.8 | PL (mm): 0.8 | DCON (mm): 4.0 | Stock: Yes
MDW0400HGS5 DC (mm): 4.0 | L/D: 5 | LU (mm): 30.8 | LCF (mm): 36.8 | OAL (mm): 86.8 | PL (mm): 0.8 | DCON (mm): 4.0 | Stock: Yes
MDW0400HGS8 DC (mm): 4.0 | L/D: 8 | LU (mm): 38.8 | LCF (mm): 44.8 | OAL (mm): 92.8 | PL (mm): 0.8 | DCON (mm): 4.0 | Stock: Yes
MDW0410HGS3 DC (mm): 4.1 | L/D: 3 | LU (mm): 19.7 | LCF (mm): 25.8 | OAL (mm): 80.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDW0410HGS5 DC (mm): 4.1 | L/D: 5 | LU (mm): 34.7 | LCF (mm): 40.8 | OAL (mm): 98.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDW0410HGS8 DC (mm): 4.1 | L/D: 8 | LU (mm): 44.2 | LCF (mm): 50.3 | OAL (mm): 105.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDW0420HGS3 DC (mm): 4.2 | L/D: 3 | LU (mm): 19.6 | LCF (mm): 25.9 | OAL (mm): 80.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0420HGS5 DC (mm): 4.2 | L/D: 5 | LU (mm): 34.6 | LCF (mm): 40.9 | OAL (mm): 98.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0420HGS8 DC (mm): 4.2 | L/D: 8 | LU (mm): 44.1 | LCF (mm): 50.4 | OAL (mm): 105.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0430HGS3 DC (mm): 4.3 | L/D: 3 | LU (mm): 19.5 | LCF (mm): 25.9 | OAL (mm): 80.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0430HGS5 DC (mm): 4.3 | L/D: 5 | LU (mm): 34.5 | LCF (mm): 40.9 | OAL (mm): 98.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0430HGS8 DC (mm): 4.3 | L/D: 8 | LU (mm): 44.0 | LCF (mm): 50.4 | OAL (mm): 105.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0440HGS3 DC (mm): 4.4 | L/D: 3 | LU (mm): 19.3 | LCF (mm): 25.9 | OAL (mm): 80.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0440HGS5 DC (mm): 4.4 | L/D: 5 | LU (mm): 34.3 | LCF (mm): 40.9 | OAL (mm): 98.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0440HGS8 DC (mm): 4.4 | L/D: 8 | LU (mm): 43.8 | LCF (mm): 50.4 | OAL (mm): 105.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0450HGS3 DC (mm): 4.5 | L/D: 3 | LU (mm): 19.2 | LCF (mm): 25.9 | OAL (mm): 80.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0450HGS5 DC (mm): 4.5 | L/D: 5 | LU (mm): 34.2 | LCF (mm): 40.9 | OAL (mm): 98.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0450HGS8 DC (mm): 4.5 | L/D: 8 | LU (mm): 43.7 | LCF (mm): 50.4 | OAL (mm): 105.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0460HGS3 DC (mm): 4.6 | L/D: 3 | LU (mm): 21.6 | LCF (mm): 28.5 | OAL (mm): 81.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Yes
MDW0460HGS5 DC (mm): 4.6 | L/D: 5 | LU (mm): 38.1 | LCF (mm): 45.0 | OAL (mm): 99.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Yes
MDW0460HGS8 DC (mm): 4.6 | L/D: 8 | LU (mm): 49.1 | LCF (mm): 56.0 | OAL (mm): 106.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Yes
MDW0470HGS3 DC (mm): 4.7 | L/D: 3 | LU (mm): 21.5 | LCF (mm): 28.5 | OAL (mm): 81.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Yes
MDW0470HGS5 DC (mm): 4.7 | L/D: 5 | LU (mm): 38.0 | LCF (mm): 45.0 | OAL (mm): 99.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Yes
MDW0470HGS8 DC (mm): 4.7 | L/D: 8 | LU (mm): 49.0 | LCF (mm): 56.0 | OAL (mm): 106.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Yes
MDW0480HGS3 DC (mm): 4.8 | L/D: 3 | LU (mm): 21.3 | LCF (mm): 28.5 | OAL (mm): 81.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Yes
MDW0480HGS5 DC (mm): 4.8 | L/D: 5 | LU (mm): 37.8 | LCF (mm): 45.0 | OAL (mm): 99.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Yes
MDW0480HGS8 DC (mm): 4.8 | L/D: 8 | LU (mm): 48.8 | LCF (mm): 56.0 | OAL (mm): 106.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Yes
MDW0490HGS3 DC (mm): 4.9 | L/D: 3 | LU (mm): 21.2 | LCF (mm): 28.5 | OAL (mm): 81.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Yes
MDW0490HGS5 DC (mm): 4.9 | L/D: 5 | LU (mm): 37.7 | LCF (mm): 45.0 | OAL (mm): 99.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Yes
MDW0490HGS8 DC (mm): 4.9 | L/D: 8 | LU (mm): 48.7 | LCF (mm): 56.0 | OAL (mm): 106.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Yes
MDW0500HGS3 DC (mm): 5.0 | L/D: 3 | LU (mm): 21.0 | LCF (mm): 28.5 | OAL (mm): 81.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Yes
MDW0500HGS5 DC (mm): 5.0 | L/D: 5 | LU (mm): 37.5 | LCF (mm): 45.0 | OAL (mm): 99.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Yes
MDW0500HGS8 DC (mm): 5.0 | L/D: 8 | LU (mm): 48.5 | LCF (mm): 56.0 | OAL (mm): 106.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Yes
MDW0510HGS3 DC (mm): 5.1 | L/D: 3 | LU (mm): 21.0 | LCF (mm): 28.6 | OAL (mm): 83.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0510HGS5 DC (mm): 5.1 | L/D: 5 | LU (mm): 37.5 | LCF (mm): 45.1 | OAL (mm): 101.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0510HGS8 DC (mm): 5.1 | L/D: 8 | LU (mm): 54.0 | LCF (mm): 61.6 | OAL (mm): 119.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0520HGS3 DC (mm): 5.2 | L/D: 3 | LU (mm): 20.8 | LCF (mm): 28.6 | OAL (mm): 83.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0520HGS5 DC (mm): 5.2 | L/D: 5 | LU (mm): 37.3 | LCF (mm): 45.1 | OAL (mm): 101.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0520HGS8 DC (mm): 5.2 | L/D: 8 | LU (mm): 53.8 | LCF (mm): 61.6 | OAL (mm): 119.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0530HGS3 DC (mm): 5.3 | L/D: 3 | LU (mm): 20.7 | LCF (mm): 28.6 | OAL (mm): 83.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0530HGS5 DC (mm): 5.3 | L/D: 5 | LU (mm): 37.2 | LCF (mm): 45.1 | OAL (mm): 101.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0530HGS8 DC (mm): 5.3 | L/D: 8 | LU (mm): 53.7 | LCF (mm): 61.6 | OAL (mm): 119.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0540HGS3 DC (mm): 5.4 | L/D: 3 | LU (mm): 20.5 | LCF (mm): 28.6 | OAL (mm): 83.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0540HGS5 DC (mm): 5.4 | L/D: 5 | LU (mm): 37.0 | LCF (mm): 45.1 | OAL (mm): 101.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0540HGS8 DC (mm): 5.4 | L/D: 8 | LU (mm): 53.5 | LCF (mm): 61.6 | OAL (mm): 119.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0550HGS3 DC (mm): 5.5 | L/D: 3 | LU (mm): 20.4 | LCF (mm): 28.6 | OAL (mm): 83.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0550HGS5 DC (mm): 5.5 | L/D: 5 | LU (mm): 36.9 | LCF (mm): 45.1 | OAL (mm): 101.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0550HGS8 DC (mm): 5.5 | L/D: 8 | LU (mm): 53.4 | LCF (mm): 61.6 | OAL (mm): 119.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0560HGS3 DC (mm): 5.6 | L/D: 3 | LU (mm): 22.8 | LCF (mm): 31.2 | OAL (mm): 83.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Yes
MDW0560HGS5 DC (mm): 5.6 | L/D: 5 | LU (mm): 40.8 | LCF (mm): 49.2 | OAL (mm): 101.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Yes
MDW0560HGS8 DC (mm): 5.6 | L/D: 8 | LU (mm): 58.8 | LCF (mm): 67.2 | OAL (mm): 119.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Yes
MDW0570HGS3 DC (mm): 5.7 | L/D: 3 | LU (mm): 22.7 | LCF (mm): 31.2 | OAL (mm): 83.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Yes
MDW0570HGS5 DC (mm): 5.7 | L/D: 5 | LU (mm): 40.7 | LCF (mm): 49.2 | OAL (mm): 101.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Yes
MDW0570HGS8 DC (mm): 5.7 | L/D: 8 | LU (mm): 58.7 | LCF (mm): 67.2 | OAL (mm): 119.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Yes
MDW0580HGS3 DC (mm): 5.8 | L/D: 3 | LU (mm): 22.5 | LCF (mm): 31.2 | OAL (mm): 83.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Yes
MDW0580HGS5 DC (mm): 5.8 | L/D: 5 | LU (mm): 40.5 | LCF (mm): 49.2 | OAL (mm): 101.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Yes
MDW0580HGS8 DC (mm): 5.8 | L/D: 8 | LU (mm): 58.5 | LCF (mm): 67.2 | OAL (mm): 119.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Yes
MDW0590HGS3 DC (mm): 5.9 | L/D: 3 | LU (mm): 22.4 | LCF (mm): 31.2 | OAL (mm): 83.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Yes
MDW0590HGS5 DC (mm): 5.9 | L/D: 5 | LU (mm): 40.4 | LCF (mm): 49.2 | OAL (mm): 101.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Yes
MDW0590HGS8 DC (mm): 5.9 | L/D: 8 | LU (mm): 58.4 | LCF (mm): 67.2 | OAL (mm): 119.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Yes
MDW0600HGS3 DC (mm): 6.0 | L/D: 3 | LU (mm): 22.2 | LCF (mm): 31.2 | OAL (mm): 83.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Yes
MDW0600HGS5 DC (mm): 6.0 | L/D: 5 | LU (mm): 40.2 | LCF (mm): 49.2 | OAL (mm): 101.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Yes
MDW0600HGS8 DC (mm): 6.0 | L/D: 8 | LU (mm): 58.2 | LCF (mm): 67.2 | OAL (mm): 119.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Yes
MDW0610HGS3 DC (mm): 6.1 | L/D: 3 | LU (mm): 24.7 | LCF (mm): 33.8 | OAL (mm): 89.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0610HGS5 DC (mm): 6.1 | L/D: 5 | LU (mm): 44.2 | LCF (mm): 53.3 | OAL (mm): 110.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0610HGS8 DC (mm): 6.1 | L/D: 8 | LU (mm): 63.7 | LCF (mm): 72.8 | OAL (mm): 131.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0620HGS3 DC (mm): 6.2 | L/D: 3 | LU (mm): 24.5 | LCF (mm): 33.8 | OAL (mm): 89.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0620HGS5 DC (mm): 6.2 | L/D: 5 | LU (mm): 44.0 | LCF (mm): 53.3 | OAL (mm): 110.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0620HGS8 DC (mm): 6.2 | L/D: 8 | LU (mm): 63.5 | LCF (mm): 72.8 | OAL (mm): 131.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0630HGS3 DC (mm): 6.3 | L/D: 3 | LU (mm): 24.4 | LCF (mm): 33.8 | OAL (mm): 89.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0630HGS5 DC (mm): 6.3 | L/D: 5 | LU (mm): 43.9 | LCF (mm): 53.3 | OAL (mm): 110.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0630HGS8 DC (mm): 6.3 | L/D: 8 | LU (mm): 63.4 | LCF (mm): 72.8 | OAL (mm): 131.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0640HGS3 DC (mm): 6.4 | L/D: 3 | LU (mm): 24.2 | LCF (mm): 33.8 | OAL (mm): 89.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0640HGS5 DC (mm): 6.4 | L/D: 5 | LU (mm): 43.7 | LCF (mm): 53.3 | OAL (mm): 110.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0640HGS8 DC (mm): 6.4 | L/D: 8 | LU (mm): 63.2 | LCF (mm): 72.8 | OAL (mm): 131.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0650HGS3 DC (mm): 6.5 | L/D: 3 | LU (mm): 24.1 | LCF (mm): 33.8 | OAL (mm): 89.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0650HGS5 DC (mm): 6.5 | L/D: 5 | LU (mm): 43.6 | LCF (mm): 53.3 | OAL (mm): 110.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0650HGS8 DC (mm): 6.5 | L/D: 8 | LU (mm): 63.1 | LCF (mm): 72.8 | OAL (mm): 131.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0660HGS3 DC (mm): 6.6 | L/D: 3 | LU (mm): 26.5 | LCF (mm): 36.4 | OAL (mm): 89.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Yes
MDW0660HGS5 DC (mm): 6.6 | L/D: 5 | LU (mm): 47.5 | LCF (mm): 57.4 | OAL (mm): 110.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Yes
MDW0660HGS8 DC (mm): 6.6 | L/D: 8 | LU (mm): 68.5 | LCF (mm): 78.4 | OAL (mm): 131.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Yes
MDW0670HGS3 DC (mm): 6.7 | L/D: 3 | LU (mm): 26.4 | LCF (mm): 36.4 | OAL (mm): 89.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Yes
MDW0670HGS5 DC (mm): 6.7 | L/D: 5 | LU (mm): 47.4 | LCF (mm): 57.4 | OAL (mm): 110.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Yes
MDW0670HGS8 DC (mm): 6.7 | L/D: 8 | LU (mm): 68.4 | LCF (mm): 78.4 | OAL (mm): 131.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Yes
MDW0680HGS3 DC (mm): 6.8 | L/D: 3 | LU (mm): 26.2 | LCF (mm): 36.4 | OAL (mm): 89.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Yes
MDW0680HGS5 DC (mm): 6.8 | L/D: 5 | LU (mm): 47.2 | LCF (mm): 57.4 | OAL (mm): 110.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Yes
MDW0680HGS8 DC (mm): 6.8 | L/D: 8 | LU (mm): 68.2 | LCF (mm): 78.4 | OAL (mm): 131.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Yes
MDW0690HGS3 DC (mm): 6.9 | L/D: 3 | LU (mm): 26.1 | LCF (mm): 36.4 | OAL (mm): 89.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Yes
MDW0690HGS5 DC (mm): 6.9 | L/D: 5 | LU (mm): 47.1 | LCF (mm): 57.4 | OAL (mm): 110.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Yes
MDW0690HGS8 DC (mm): 6.9 | L/D: 8 | LU (mm): 68.1 | LCF (mm): 78.4 | OAL (mm): 131.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Yes
MDW0700HGS3 DC (mm): 7.0 | L/D: 3 | LU (mm): 25.9 | LCF (mm): 36.4 | OAL (mm): 89.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Yes
MDW0700HGS5 DC (mm): 7.0 | L/D: 5 | LU (mm): 46.9 | LCF (mm): 57.4 | OAL (mm): 110.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Yes
MDW0700HGS8 DC (mm): 7.0 | L/D: 8 | LU (mm): 67.9 | LCF (mm): 78.4 | OAL (mm): 131.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Yes
MDW0710HGS3 DC (mm): 7.1 | L/D: 3 | LU (mm): 28.4 | LCF (mm): 39.0 | OAL (mm): 95.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDW0710HGS5 DC (mm): 7.1 | L/D: 5 | LU (mm): 50.9 | LCF (mm): 61.5 | OAL (mm): 119.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDW0710HGS8 DC (mm): 7.1 | L/D: 8 | LU (mm): 73.4 | LCF (mm): 84.0 | OAL (mm): 143.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDW0720HGS3 DC (mm): 7.2 | L/D: 3 | LU (mm): 28.2 | LCF (mm): 39.0 | OAL (mm): 95.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDW0720HGS5 DC (mm): 7.2 | L/D: 5 | LU (mm): 50.7 | LCF (mm): 61.5 | OAL (mm): 119.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDW0720HGS8 DC (mm): 7.2 | L/D: 8 | LU (mm): 73.2 | LCF (mm): 84.0 | OAL (mm): 143.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDW0730HGS3 DC (mm): 7.3 | L/D: 3 | LU (mm): 28.1 | LCF (mm): 39.0 | OAL (mm): 95.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDW0730HGS5 DC (mm): 7.3 | L/D: 5 | LU (mm): 50.6 | LCF (mm): 61.5 | OAL (mm): 119.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDW0730HGS8 DC (mm): 7.3 | L/D: 8 | LU (mm): 73.1 | LCF (mm): 84.0 | OAL (mm): 143.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDW0740HGS3 DC (mm): 7.4 | L/D: 3 | LU (mm): 27.9 | LCF (mm): 39.0 | OAL (mm): 95.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDW0740HGS5 DC (mm): 7.4 | L/D: 5 | LU (mm): 50.4 | LCF (mm): 61.5 | OAL (mm): 119.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDW0740HGS8 DC (mm): 7.4 | L/D: 8 | LU (mm): 72.9 | LCF (mm): 84.0 | OAL (mm): 143.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDW0750HGS3 DC (mm): 7.5 | L/D: 3 | LU (mm): 27.9 | LCF (mm): 39.1 | OAL (mm): 95.6 | PL (mm): 1.6 | DCON (mm): 8.0 | Stock: Yes
MDW0750HGS5 DC (mm): 7.5 | L/D: 5 | LU (mm): 50.4 | LCF (mm): 61.6 | OAL (mm): 119.6 | PL (mm): 1.6 | DCON (mm): 8.0 | Stock: Yes
MDW0750HGS8 DC (mm): 7.5 | L/D: 8 | LU (mm): 72.9 | LCF (mm): 84.1 | OAL (mm): 143.6 | PL (mm): 1.6 | DCON (mm): 8.0 | Stock: Yes
MDW0760HGS3 DC (mm): 7.6 | L/D: 3 | LU (mm): 30.2 | LCF (mm): 41.6 | OAL (mm): 95.6 | PL (mm): 1.6 | DCON (mm): 8.0 | Stock: Yes
MDW0760HGS5 DC (mm): 7.6 | L/D: 5 | LU (mm): 54.2 | LCF (mm): 65.6 | OAL (mm): 119.6 | PL (mm): 1.6 | DCON (mm): 8.0 | Stock: Yes
MDW0760HGS8 DC (mm): 7.6 | L/D: 8 | LU (mm): 78.2 | LCF (mm): 89.6 | OAL (mm): 143.6 | PL (mm): 1.6 | DCON (mm): 8.0 | Stock: Yes
MDW0770HGS3 DC (mm): 7.7 | L/D: 3 | LU (mm): 30.1 | LCF (mm): 41.6 | OAL (mm): 95.6 | PL (mm): 1.6 | DCON (mm): 8.0 | Stock: Yes
MDW0770HGS5 DC (mm): 7.7 | L/D: 5 | LU (mm): 54.1 | LCF (mm): 65.6 | OAL (mm): 119.6 | PL (mm): 1.6 | DCON (mm): 8.0 | Stock: Yes
MDW0770HGS8 DC (mm): 7.7 | L/D: 8 | LU (mm): 78.1 | LCF (mm): 89.6 | OAL (mm): 143.6 | PL (mm): 1.6 | DCON (mm): 8.0 | Stock: Yes
MDW0780HGS3 DC (mm): 7.8 | L/D: 3 | LU (mm): 29.9 | LCF (mm): 41.6 | OAL (mm): 95.6 | PL (mm): 1.6 | DCON (mm): 8.0 | Stock: Yes
MDW0780HGS5 DC (mm): 7.8 | L/D: 5 | LU (mm): 53.9 | LCF (mm): 65.6 | OAL (mm): 119.6 | PL (mm): 1.6 | DCON (mm): 8.0 | Stock: Yes
MDW0780HGS8 DC (mm): 7.8 | L/D: 8 | LU (mm): 77.9 | LCF (mm): 89.6 | OAL (mm): 143.6 | PL (mm): 1.6 | DCON (mm): 8.0 | Stock: Yes
MDW0790HGS3 DC (mm): 7.9 | L/D: 3 | LU (mm): 29.8 | LCF (mm): 41.6 | OAL (mm): 95.6 | PL (mm): 1.6 | DCON (mm): 8.0 | Stock: Yes
MDW0790HGS5 DC (mm): 7.9 | L/D: 5 | LU (mm): 53.8 | LCF (mm): 65.6 | OAL (mm): 119.6 | PL (mm): 1.6 | DCON (mm): 8.0 | Stock: Yes
MDW0790HGS8 DC (mm): 7.9 | L/D: 8 | LU (mm): 77.8 | LCF (mm): 89.6 | OAL (mm): 143.6 | PL (mm): 1.6 | DCON (mm): 8.0 | Stock: Yes
MDW0800HGS3 DC (mm): 8.0 | L/D: 3 | LU (mm): 29.7 | LCF (mm): 41.7 | OAL (mm): 95.7 | PL (mm): 1.7 | DCON (mm): 8.0 | Stock: Yes
MDW0800HGS5 DC (mm): 8.0 | L/D: 5 | LU (mm): 53.7 | LCF (mm): 65.7 | OAL (mm): 119.7 | PL (mm): 1.7 | DCON (mm): 8.0 | Stock: Yes
MDW0800HGS8 DC (mm): 8.0 | L/D: 8 | LU (mm): 77.7 | LCF (mm): 89.7 | OAL (mm): 143.7 | PL (mm): 1.7 | DCON (mm): 8.0 | Stock: Yes
MDW0810HGS3 DC (mm): 8.1 | L/D: 3 | LU (mm): 32.1 | LCF (mm): 44.2 | OAL (mm): 101.7 | PL (mm): 1.7 | DCON (mm): 9.0 | Stock: Yes
MDW0810HGS5 DC (mm): 8.1 | L/D: 5 | LU (mm): 57.6 | LCF (mm): 69.7 | OAL (mm): 128.7 | PL (mm): 1.7 | DCON (mm): 9.0 | Stock: Yes
MDW0810HGS8 DC (mm): 8.1 | L/D: 8 | LU (mm): 83.1 | LCF (mm): 95.2 | OAL (mm): 155.7 | PL (mm): 1.7 | DCON (mm): 9.0 | Stock: Yes
MDW0820HGS3 DC (mm): 8.2 | L/D: 3 | LU (mm): 31.9 | LCF (mm): 44.2 | OAL (mm): 101.7 | PL (mm): 1.7 | DCON (mm): 9.0 | Stock: Yes
MDW0820HGS5 DC (mm): 8.2 | L/D: 5 | LU (mm): 57.4 | LCF (mm): 69.7 | OAL (mm): 128.7 | PL (mm): 1.7 | DCON (mm): 9.0 | Stock: Yes
MDW0820HGS8 DC (mm): 8.2 | L/D: 8 | LU (mm): 82.9 | LCF (mm): 95.2 | OAL (mm): 155.7 | PL (mm): 1.7 | DCON (mm): 9.0 | Stock: Yes
MDW0830HGS3 DC (mm): 8.3 | L/D: 3 | LU (mm): 31.8 | LCF (mm): 44.2 | OAL (mm): 101.7 | PL (mm): 1.7 | DCON (mm): 9.0 | Stock: Yes
MDW0830HGS5 DC (mm): 8.3 | L/D: 5 | LU (mm): 57.3 | LCF (mm): 69.7 | OAL (mm): 128.7 | PL (mm): 1.7 | DCON (mm): 9.0 | Stock: Yes
MDW0830HGS8 DC (mm): 8.3 | L/D: 8 | LU (mm): 82.8 | LCF (mm): 95.2 | OAL (mm): 155.7 | PL (mm): 1.7 | DCON (mm): 9.0 | Stock: Yes
MDW0840HGS3 DC (mm): 8.4 | L/D: 3 | LU (mm): 31.6 | LCF (mm): 44.2 | OAL (mm): 101.7 | PL (mm): 1.7 | DCON (mm): 9.0 | Stock: Yes
MDW0840HGS5 DC (mm): 8.4 | L/D: 5 | LU (mm): 57.1 | LCF (mm): 69.7 | OAL (mm): 128.7 | PL (mm): 1.7 | DCON (mm): 9.0 | Stock: Yes
MDW0840HGS8 DC (mm): 8.4 | L/D: 8 | LU (mm): 82.6 | LCF (mm): 95.2 | OAL (mm): 155.7 | PL (mm): 1.7 | DCON (mm): 9.0 | Stock: Yes
MDW0850HGS3 DC (mm): 8.5 | L/D: 3 | LU (mm): 31.6 | LCF (mm): 44.3 | OAL (mm): 101.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Yes
MDW0850HGS5 DC (mm): 8.5 | L/D: 5 | LU (mm): 57.1 | LCF (mm): 69.8 | OAL (mm): 128.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Yes
MDW0850HGS8 DC (mm): 8.5 | L/D: 8 | LU (mm): 82.6 | LCF (mm): 95.3 | OAL (mm): 155.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Yes
MDW0860HGS3 DC (mm): 8.6 | L/D: 3 | LU (mm): 33.9 | LCF (mm): 46.8 | OAL (mm): 101.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Yes
MDW0860HGS5 DC (mm): 8.6 | L/D: 5 | LU (mm): 60.9 | LCF (mm): 73.8 | OAL (mm): 128.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Yes
MDW0860HGS8 DC (mm): 8.6 | L/D: 8 | LU (mm): 87.9 | LCF (mm): 100.8 | OAL (mm): 155.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Yes
MDW0870HGS3 DC (mm): 8.7 | L/D: 3 | LU (mm): 33.8 | LCF (mm): 46.8 | OAL (mm): 101.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Yes
MDW0870HGS5 DC (mm): 8.7 | L/D: 5 | LU (mm): 60.8 | LCF (mm): 73.8 | OAL (mm): 128.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Yes
MDW0870HGS8 DC (mm): 8.7 | L/D: 8 | LU (mm): 87.8 | LCF (mm): 100.8 | OAL (mm): 155.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Yes
MDW0880HGS3 DC (mm): 8.8 | L/D: 3 | LU (mm): 33.6 | LCF (mm): 46.8 | OAL (mm): 101.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Yes
MDW0880HGS5 DC (mm): 8.8 | L/D: 5 | LU (mm): 60.6 | LCF (mm): 73.8 | OAL (mm): 128.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Yes
MDW0880HGS8 DC (mm): 8.8 | L/D: 8 | LU (mm): 87.6 | LCF (mm): 100.8 | OAL (mm): 155.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Yes
MDW0890HGS3 DC (mm): 8.9 | L/D: 3 | LU (mm): 33.5 | LCF (mm): 46.8 | OAL (mm): 101.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Yes
MDW0890HGS5 DC (mm): 8.9 | L/D: 5 | LU (mm): 60.5 | LCF (mm): 73.8 | OAL (mm): 128.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Yes
MDW0890HGS8 DC (mm): 8.9 | L/D: 8 | LU (mm): 87.5 | LCF (mm): 100.8 | OAL (mm): 155.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Yes
MDW0900HGS3 DC (mm): 9.0 | L/D: 3 | LU (mm): 33.4 | LCF (mm): 46.9 | OAL (mm): 101.9 | PL (mm): 1.9 | DCON (mm): 9.0 | Stock: Yes
MDW0900HGS5 DC (mm): 9.0 | L/D: 5 | LU (mm): 60.4 | LCF (mm): 73.9 | OAL (mm): 128.9 | PL (mm): 1.9 | DCON (mm): 9.0 | Stock: Yes
MDW0900HGS8 DC (mm): 9.0 | L/D: 8 | LU (mm): 87.4 | LCF (mm): 100.9 | OAL (mm): 155.9 | PL (mm): 1.9 | DCON (mm): 9.0 | Stock: Yes
MDW0910HGS3 DC (mm): 9.1 | L/D: 3 | LU (mm): 35.8 | LCF (mm): 49.4 | OAL (mm): 107.9 | PL (mm): 1.9 | DCON (mm): 10.0 | Stock: Yes
MDW0910HGS5 DC (mm): 9.1 | L/D: 5 | LU (mm): 64.3 | LCF (mm): 77.9 | OAL (mm): 137.9 | PL (mm): 1.9 | DCON (mm): 10.0 | Stock: Yes
MDW0910HGS8 DC (mm): 9.1 | L/D: 8 | LU (mm): 92.8 | LCF (mm): 106.4 | OAL (mm): 167.9 | PL (mm): 1.9 | DCON (mm): 10.0 | Stock: Yes
MDW0920HGS3 DC (mm): 9.2 | L/D: 3 | LU (mm): 35.6 | LCF (mm): 49.4 | OAL (mm): 107.9 | PL (mm): 1.9 | DCON (mm): 10.0 | Stock: Yes
MDW0920HGS5 DC (mm): 9.2 | L/D: 5 | LU (mm): 64.1 | LCF (mm): 77.9 | OAL (mm): 137.9 | PL (mm): 1.9 | DCON (mm): 10.0 | Stock: Yes
MDW0920HGS8 DC (mm): 9.2 | L/D: 8 | LU (mm): 92.6 | LCF (mm): 106.4 | OAL (mm): 167.9 | PL (mm): 1.9 | DCON (mm): 10.0 | Stock: Yes
MDW0930HGS3 DC (mm): 9.3 | L/D: 3 | LU (mm): 35.5 | LCF (mm): 49.4 | OAL (mm): 107.9 | PL (mm): 1.9 | DCON (mm): 10.0 | Stock: Yes
MDW0930HGS5 DC (mm): 9.3 | L/D: 5 | LU (mm): 64.0 | LCF (mm): 77.9 | OAL (mm): 137.9 | PL (mm): 1.9 | DCON (mm): 10.0 | Stock: Yes
MDW0930HGS8 DC (mm): 9.3 | L/D: 8 | LU (mm): 92.5 | LCF (mm): 106.4 | OAL (mm): 167.9 | PL (mm): 1.9 | DCON (mm): 10.0 | Stock: Yes
MDW0940HGS3 DC (mm): 9.4 | L/D: 3 | LU (mm): 35.3 | LCF (mm): 49.4 | OAL (mm): 107.9 | PL (mm): 1.9 | DCON (mm): 10.0 | Stock: Yes
MDW0940HGS5 DC (mm): 9.4 | L/D: 5 | LU (mm): 63.8 | LCF (mm): 77.9 | OAL (mm): 137.9 | PL (mm): 1.9 | DCON (mm): 10.0 | Stock: Yes
MDW0940HGS8 DC (mm): 9.4 | L/D: 8 | LU (mm): 92.3 | LCF (mm): 106.4 | OAL (mm): 167.9 | PL (mm): 1.9 | DCON (mm): 10.0 | Stock: Yes
MDW0950HGS3 DC (mm): 9.5 | L/D: 3 | LU (mm): 35.3 | LCF (mm): 49.5 | OAL (mm): 108.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Yes
MDW0950HGS5 DC (mm): 9.5 | L/D: 5 | LU (mm): 63.8 | LCF (mm): 78.0 | OAL (mm): 138.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Yes
MDW0950HGS8 DC (mm): 9.5 | L/D: 8 | LU (mm): 92.3 | LCF (mm): 106.5 | OAL (mm): 168.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Yes
MDW0960HGS3 DC (mm): 9.6 | L/D: 3 | LU (mm): 37.6 | LCF (mm): 52.0 | OAL (mm): 108.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Yes
MDW0960HGS5 DC (mm): 9.6 | L/D: 5 | LU (mm): 67.6 | LCF (mm): 82.0 | OAL (mm): 138.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Yes
MDW0960HGS8 DC (mm): 9.6 | L/D: 8 | LU (mm): 97.6 | LCF (mm): 112.0 | OAL (mm): 168.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Yes
MDW0970HGS3 DC (mm): 9.7 | L/D: 3 | LU (mm): 37.5 | LCF (mm): 52.0 | OAL (mm): 108.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Yes
MDW0970HGS5 DC (mm): 9.7 | L/D: 5 | LU (mm): 67.5 | LCF (mm): 82.0 | OAL (mm): 138.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Yes
MDW0970HGS8 DC (mm): 9.7 | L/D: 8 | LU (mm): 97.5 | LCF (mm): 112.0 | OAL (mm): 168.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Yes
MDW0980HGS3 DC (mm): 9.8 | L/D: 3 | LU (mm): 37.3 | LCF (mm): 52.0 | OAL (mm): 108.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Yes
MDW0980HGS5 DC (mm): 9.8 | L/D: 5 | LU (mm): 67.3 | LCF (mm): 82.0 | OAL (mm): 138.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Yes
MDW0980HGS8 DC (mm): 9.8 | L/D: 8 | LU (mm): 97.3 | LCF (mm): 112.0 | OAL (mm): 168.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Yes
MDW0990HGS3 DC (mm): 9.9 | L/D: 3 | LU (mm): 37.2 | LCF (mm): 52.0 | OAL (mm): 108.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Yes
MDW0990HGS5 DC (mm): 9.9 | L/D: 5 | LU (mm): 67.2 | LCF (mm): 82.0 | OAL (mm): 138.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Yes
MDW0990HGS8 DC (mm): 9.9 | L/D: 8 | LU (mm): 97.2 | LCF (mm): 112.0 | OAL (mm): 168.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Yes
MDW1000HGS3 DC (mm): 10.0 | L/D: 3 | LU (mm): 37.1 | LCF (mm): 52.1 | OAL (mm): 108.1 | PL (mm): 2.1 | DCON (mm): 10.0 | Stock: Yes
MDW1000HGS5 DC (mm): 10.0 | L/D: 5 | LU (mm): 67.1 | LCF (mm): 82.1 | OAL (mm): 138.1 | PL (mm): 2.1 | DCON (mm): 10.0 | Stock: Yes
MDW1000HGS8 DC (mm): 10.0 | L/D: 8 | LU (mm): 97.1 | LCF (mm): 112.1 | OAL (mm): 168.1 | PL (mm): 2.1 | DCON (mm): 10.0 | Stock: Yes
MDW1010HGS3 DC (mm): 10.1 | L/D: 3 | LU (mm): 39.5 | LCF (mm): 54.6 | OAL (mm): 118.1 | PL (mm): 2.1 | DCON (mm): 11.0 | Stock: Yes
MDW1010HGS5 DC (mm): 10.1 | L/D: 5 | LU (mm): 71.0 | LCF (mm): 86.1 | OAL (mm): 151.1 | PL (mm): 2.1 | DCON (mm): 11.0 | Stock: Yes
MDW1010HGS8 DC (mm): 10.1 | L/D: 8 | LU (mm): 102.5 | LCF (mm): 117.6 | OAL (mm): 184.1 | PL (mm): 2.1 | DCON (mm): 11.0 | Stock: Yes
MDW1020HGS3 DC (mm): 10.2 | L/D: 3 | LU (mm): 39.3 | LCF (mm): 54.6 | OAL (mm): 118.1 | PL (mm): 2.1 | DCON (mm): 11.0 | Stock: Yes
MDW1020HGS5 DC (mm): 10.2 | L/D: 5 | LU (mm): 70.8 | LCF (mm): 86.1 | OAL (mm): 151.1 | PL (mm): 2.1 | DCON (mm): 11.0 | Stock: Yes
MDW1020HGS8 DC (mm): 10.2 | L/D: 8 | LU (mm): 102.3 | LCF (mm): 117.6 | OAL (mm): 184.1 | PL (mm): 2.1 | DCON (mm): 11.0 | Stock: Yes
MDW1030HGS3 DC (mm): 10.3 | L/D: 3 | LU (mm): 39.2 | LCF (mm): 54.6 | OAL (mm): 118.1 | PL (mm): 2.1 | DCON (mm): 11.0 | Stock: Yes
MDW1030HGS5 DC (mm): 10.3 | L/D: 5 | LU (mm): 70.7 | LCF (mm): 86.1 | OAL (mm): 151.1 | PL (mm): 2.1 | DCON (mm): 11.0 | Stock: Yes
MDW1030HGS8 DC (mm): 10.3 | L/D: 8 | LU (mm): 102.2 | LCF (mm): 117.6 | OAL (mm): 184.1 | PL (mm): 2.1 | DCON (mm): 11.0 | Stock: Yes
MDW1040HGS3 DC (mm): 10.4 | L/D: 3 | LU (mm): 39.1 | LCF (mm): 54.7 | OAL (mm): 118.2 | PL (mm): 2.2 | DCON (mm): 11.0 | Stock: Yes
MDW1040HGS5 DC (mm): 10.4 | L/D: 5 | LU (mm): 70.6 | LCF (mm): 86.2 | OAL (mm): 151.2 | PL (mm): 2.2 | DCON (mm): 11.0 | Stock: Yes
MDW1040HGS8 DC (mm): 10.4 | L/D: 8 | LU (mm): 102.1 | LCF (mm): 117.7 | OAL (mm): 184.2 | PL (mm): 2.2 | DCON (mm): 11.0 | Stock: Yes
MDW1050HGS3 DC (mm): 10.5 | L/D: 3 | LU (mm): 39.0 | LCF (mm): 54.7 | OAL (mm): 118.2 | PL (mm): 2.2 | DCON (mm): 11.0 | Stock: Yes
MDW1050HGS5 DC (mm): 10.5 | L/D: 5 | LU (mm): 70.5 | LCF (mm): 86.2 | OAL (mm): 151.2 | PL (mm): 2.2 | DCON (mm): 11.0 | Stock: Yes
MDW1050HGS8 DC (mm): 10.5 | L/D: 8 | LU (mm): 102.0 | LCF (mm): 117.7 | OAL (mm): 184.2 | PL (mm): 2.2 | DCON (mm): 11.0 | Stock: Yes
MDW1060HGS3 DC (mm): 10.6 | L/D: 3 | LU (mm): 41.3 | LCF (mm): 57.2 | OAL (mm): 118.2 | PL (mm): 2.2 | DCON (mm): 11.0 | Stock: Yes
MDW1060HGS5 DC (mm): 10.6 | L/D: 5 | LU (mm): 74.3 | LCF (mm): 90.2 | OAL (mm): 151.2 | PL (mm): 2.2 | DCON (mm): 11.0 | Stock: Yes
MDW1060HGS8 DC (mm): 10.6 | L/D: 8 | LU (mm): 107.3 | LCF (mm): 123.2 | OAL (mm): 184.2 | PL (mm): 2.2 | DCON (mm): 11.0 | Stock: Yes
MDW1070HGS3 DC (mm): 10.7 | L/D: 3 | LU (mm): 41.2 | LCF (mm): 57.2 | OAL (mm): 118.2 | PL (mm): 2.2 | DCON (mm): 11.0 | Stock: Yes
MDW1070HGS5 DC (mm): 10.7 | L/D: 5 | LU (mm): 74.2 | LCF (mm): 90.2 | OAL (mm): 151.2 | PL (mm): 2.2 | DCON (mm): 11.0 | Stock: Yes
MDW1070HGS8 DC (mm): 10.7 | L/D: 8 | LU (mm): 107.2 | LCF (mm): 123.2 | OAL (mm): 184.2 | PL (mm): 2.2 | DCON (mm): 11.0 | Stock: Yes
MDW1080HGS3 DC (mm): 10.8 | L/D: 3 | LU (mm): 41.0 | LCF (mm): 57.2 | OAL (mm): 118.2 | PL (mm): 2.2 | DCON (mm): 11.0 | Stock: Yes
MDW1080HGS5 DC (mm): 10.8 | L/D: 5 | LU (mm): 74.0 | LCF (mm): 90.2 | OAL (mm): 151.2 | PL (mm): 2.2 | DCON (mm): 11.0 | Stock: Yes
MDW1080HGS8 DC (mm): 10.8 | L/D: 8 | LU (mm): 107.0 | LCF (mm): 123.2 | OAL (mm): 184.2 | PL (mm): 2.2 | DCON (mm): 11.0 | Stock: Yes
MDW1090HGS3 DC (mm): 10.9 | L/D: 3 | LU (mm): 41.0 | LCF (mm): 57.3 | OAL (mm): 118.3 | PL (mm): 2.3 | DCON (mm): 11.0 | Stock: Yes
MDW1090HGS5 DC (mm): 10.9 | L/D: 5 | LU (mm): 74.0 | LCF (mm): 90.3 | OAL (mm): 151.3 | PL (mm): 2.3 | DCON (mm): 11.0 | Stock: Yes
MDW1090HGS8 DC (mm): 10.9 | L/D: 8 | LU (mm): 107.0 | LCF (mm): 123.3 | OAL (mm): 184.3 | PL (mm): 2.3 | DCON (mm): 11.0 | Stock: Yes
MDW1100HGS3 DC (mm): 11.0 | L/D: 3 | LU (mm): 40.8 | LCF (mm): 57.3 | OAL (mm): 118.3 | PL (mm): 2.3 | DCON (mm): 11.0 | Stock: Yes
MDW1100HGS5 DC (mm): 11.0 | L/D: 5 | LU (mm): 73.8 | LCF (mm): 90.3 | OAL (mm): 151.3 | PL (mm): 2.3 | DCON (mm): 11.0 | Stock: Yes
MDW1100HGS8 DC (mm): 11.0 | L/D: 8 | LU (mm): 106.8 | LCF (mm): 123.3 | OAL (mm): 184.3 | PL (mm): 2.3 | DCON (mm): 11.0 | Stock: Yes
MDW1110HGS3 DC (mm): 11.1 | L/D: 3 | LU (mm): 43.2 | LCF (mm): 59.8 | OAL (mm): 124.3 | PL (mm): 2.3 | DCON (mm): 12.0 | Stock: Yes
MDW1110HGS5 DC (mm): 11.1 | L/D: 5 | LU (mm): 77.7 | LCF (mm): 94.3 | OAL (mm): 160.3 | PL (mm): 2.3 | DCON (mm): 12.0 | Stock: Yes
MDW1110HGS8 DC (mm): 11.1 | L/D: 8 | LU (mm): 112.2 | LCF (mm): 128.8 | OAL (mm): 196.3 | PL (mm): 2.3 | DCON (mm): 12.0 | Stock: Yes
MDW1120HGS3 DC (mm): 11.2 | L/D: 3 | LU (mm): 43.0 | LCF (mm): 59.8 | OAL (mm): 124.3 | PL (mm): 2.3 | DCON (mm): 12.0 | Stock: Yes
MDW1120HGS5 DC (mm): 11.2 | L/D: 5 | LU (mm): 77.5 | LCF (mm): 94.3 | OAL (mm): 160.3 | PL (mm): 2.3 | DCON (mm): 12.0 | Stock: Yes
MDW1120HGS8 DC (mm): 11.2 | L/D: 8 | LU (mm): 112.0 | LCF (mm): 128.8 | OAL (mm): 196.3 | PL (mm): 2.3 | DCON (mm): 12.0 | Stock: Yes
MDW1130HGS3 DC (mm): 11.3 | L/D: 3 | LU (mm): 42.9 | LCF (mm): 59.8 | OAL (mm): 124.3 | PL (mm): 2.3 | DCON (mm): 12.0 | Stock: Yes
MDW1130HGS5 DC (mm): 11.3 | L/D: 5 | LU (mm): 77.4 | LCF (mm): 94.3 | OAL (mm): 160.3 | PL (mm): 2.3 | DCON (mm): 12.0 | Stock: Yes
MDW1130HGS8 DC (mm): 11.3 | L/D: 8 | LU (mm): 111.9 | LCF (mm): 128.8 | OAL (mm): 196.3 | PL (mm): 2.3 | DCON (mm): 12.0 | Stock: Yes
MDW1140HGS3 DC (mm): 11.4 | L/D: 3 | LU (mm): 42.8 | LCF (mm): 59.9 | OAL (mm): 124.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Yes
MDW1140HGS5 DC (mm): 11.4 | L/D: 5 | LU (mm): 77.3 | LCF (mm): 94.4 | OAL (mm): 160.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Yes
MDW1140HGS8 DC (mm): 11.4 | L/D: 8 | LU (mm): 111.8 | LCF (mm): 128.9 | OAL (mm): 196.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Yes
MDW1150HGS3 DC (mm): 11.5 | L/D: 3 | LU (mm): 42.7 | LCF (mm): 59.9 | OAL (mm): 124.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Yes
MDW1150HGS5 DC (mm): 11.5 | L/D: 5 | LU (mm): 77.2 | LCF (mm): 94.4 | OAL (mm): 160.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Yes
MDW1150HGS8 DC (mm): 11.5 | L/D: 8 | LU (mm): 111.7 | LCF (mm): 128.9 | OAL (mm): 196.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Yes
MDW1160HGS3 DC (mm): 11.6 | L/D: 3 | LU (mm): 45.0 | LCF (mm): 62.4 | OAL (mm): 124.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Yes
MDW1160HGS5 DC (mm): 11.6 | L/D: 5 | LU (mm): 81.0 | LCF (mm): 98.4 | OAL (mm): 160.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Yes
MDW1160HGS8 DC (mm): 11.6 | L/D: 8 | LU (mm): 117.0 | LCF (mm): 134.4 | OAL (mm): 196.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Yes
MDW1170HGS3 DC (mm): 11.7 | L/D: 3 | LU (mm): 44.9 | LCF (mm): 62.4 | OAL (mm): 124.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Yes
MDW1170HGS5 DC (mm): 11.7 | L/D: 5 | LU (mm): 80.9 | LCF (mm): 98.4 | OAL (mm): 160.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Yes
MDW1170HGS8 DC (mm): 11.7 | L/D: 8 | LU (mm): 116.9 | LCF (mm): 134.4 | OAL (mm): 196.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Yes
MDW1180HGS3 DC (mm): 11.8 | L/D: 3 | LU (mm): 44.7 | LCF (mm): 62.4 | OAL (mm): 124.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Yes
MDW1180HGS5 DC (mm): 11.8 | L/D: 5 | LU (mm): 80.7 | LCF (mm): 98.4 | OAL (mm): 160.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Yes
MDW1180HGS8 DC (mm): 11.8 | L/D: 8 | LU (mm): 116.7 | LCF (mm): 134.4 | OAL (mm): 196.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Yes
MDW1190HGS3 DC (mm): 11.9 | L/D: 3 | LU (mm): 44.7 | LCF (mm): 62.5 | OAL (mm): 124.5 | PL (mm): 2.5 | DCON (mm): 12.0 | Stock: Yes
MDW1190HGS5 DC (mm): 11.9 | L/D: 5 | LU (mm): 80.7 | LCF (mm): 98.5 | OAL (mm): 160.5 | PL (mm): 2.5 | DCON (mm): 12.0 | Stock: Yes
MDW1190HGS8 DC (mm): 11.9 | L/D: 8 | LU (mm): 116.7 | LCF (mm): 134.5 | OAL (mm): 196.5 | PL (mm): 2.5 | DCON (mm): 12.0 | Stock: Yes
MDW1200HGS3 DC (mm): 12.0 | L/D: 3 | LU (mm): 44.5 | LCF (mm): 62.5 | OAL (mm): 124.5 | PL (mm): 2.5 | DCON (mm): 12.0 | Stock: Yes
MDW1200HGS5 DC (mm): 12.0 | L/D: 5 | LU (mm): 80.5 | LCF (mm): 98.5 | OAL (mm): 160.5 | PL (mm): 2.5 | DCON (mm): 12.0 | Stock: Yes
MDW1200HGS8 DC (mm): 12.0 | L/D: 8 | LU (mm): 116.5 | LCF (mm): 134.5 | OAL (mm): 196.5 | PL (mm): 2.5 | DCON (mm): 12.0 | Stock: Yes
MDW1210HGS3 DC (mm): 12.1 | L/D: 3 | LU (mm): 46.9 | LCF (mm): 65.0 | OAL (mm): 130.5 | PL (mm): 2.5 | DCON (mm): 13.0 | Stock: Yes
MDW1210HGS5 DC (mm): 12.1 | L/D: 5 | LU (mm): 84.4 | LCF (mm): 102.5 | OAL (mm): 169.5 | PL (mm): 2.5 | DCON (mm): 13.0 | Stock: Yes
MDW1210HGS8 DC (mm): 12.1 | L/D: 8 | LU (mm): 121.9 | LCF (mm): 140.0 | OAL (mm): 208.5 | PL (mm): 2.5 | DCON (mm): 13.0 | Stock: Made to order
MDW1220HGS3 DC (mm): 12.2 | L/D: 3 | LU (mm): 46.7 | LCF (mm): 65.0 | OAL (mm): 130.5 | PL (mm): 2.5 | DCON (mm): 13.0 | Stock: Yes
MDW1220HGS5 DC (mm): 12.2 | L/D: 5 | LU (mm): 84.2 | LCF (mm): 102.5 | OAL (mm): 169.5 | PL (mm): 2.5 | DCON (mm): 13.0 | Stock: Yes
MDW1220HGS8 DC (mm): 12.2 | L/D: 8 | LU (mm): 121.7 | LCF (mm): 140.0 | OAL (mm): 208.5 | PL (mm): 2.5 | DCON (mm): 13.0 | Stock: Made to order
MDW1230HGS3 DC (mm): 12.3 | L/D: 3 | LU (mm): 46.6 | LCF (mm): 65.0 | OAL (mm): 130.5 | PL (mm): 2.5 | DCON (mm): 13.0 | Stock: Yes
MDW1230HGS5 DC (mm): 12.3 | L/D: 5 | LU (mm): 84.1 | LCF (mm): 102.5 | OAL (mm): 169.5 | PL (mm): 2.5 | DCON (mm): 13.0 | Stock: Yes
MDW1230HGS8 DC (mm): 12.3 | L/D: 8 | LU (mm): 121.6 | LCF (mm): 140.0 | OAL (mm): 208.5 | PL (mm): 2.5 | DCON (mm): 13.0 | Stock: Made to order
MDW1240HGS3 DC (mm): 12.4 | L/D: 3 | LU (mm): 46.5 | LCF (mm): 65.1 | OAL (mm): 130.6 | PL (mm): 2.6 | DCON (mm): 13.0 | Stock: Yes
MDW1240HGS5 DC (mm): 12.4 | L/D: 5 | LU (mm): 84.0 | LCF (mm): 102.6 | OAL (mm): 169.6 | PL (mm): 2.6 | DCON (mm): 13.0 | Stock: Yes
MDW1240HGS8 DC (mm): 12.4 | L/D: 8 | LU (mm): 121.5 | LCF (mm): 140.1 | OAL (mm): 208.6 | PL (mm): 2.6 | DCON (mm): 13.0 | Stock: Made to order
MDW1250HGS3 DC (mm): 12.5 | L/D: 3 | LU (mm): 46.4 | LCF (mm): 65.1 | OAL (mm): 130.6 | PL (mm): 2.6 | DCON (mm): 13.0 | Stock: Yes
MDW1250HGS5 DC (mm): 12.5 | L/D: 5 | LU (mm): 83.9 | LCF (mm): 102.6 | OAL (mm): 169.6 | PL (mm): 2.6 | DCON (mm): 13.0 | Stock: Yes
MDW1250HGS8 DC (mm): 12.5 | L/D: 8 | LU (mm): 121.4 | LCF (mm): 140.1 | OAL (mm): 208.6 | PL (mm): 2.6 | DCON (mm): 13.0 | Stock: Yes
MDW1260HGS3 DC (mm): 12.6 | L/D: 3 | LU (mm): 48.7 | LCF (mm): 67.6 | OAL (mm): 130.6 | PL (mm): 2.6 | DCON (mm): 13.0 | Stock: Yes
MDW1260HGS5 DC (mm): 12.6 | L/D: 5 | LU (mm): 87.7 | LCF (mm): 106.6 | OAL (mm): 169.6 | PL (mm): 2.6 | DCON (mm): 13.0 | Stock: Yes
MDW1260HGS8 DC (mm): 12.6 | L/D: 8 | LU (mm): 126.7 | LCF (mm): 145.6 | OAL (mm): 208.6 | PL (mm): 2.6 | DCON (mm): 13.0 | Stock: Made to order
MDW1270HGS3 DC (mm): 12.7 | L/D: 3 | LU (mm): 48.6 | LCF (mm): 67.6 | OAL (mm): 130.6 | PL (mm): 2.6 | DCON (mm): 13.0 | Stock: Yes
MDW1270HGS5 DC (mm): 12.7 | L/D: 5 | LU (mm): 87.6 | LCF (mm): 106.6 | OAL (mm): 169.6 | PL (mm): 2.6 | DCON (mm): 13.0 | Stock: Yes
MDW1270HGS8 DC (mm): 12.7 | L/D: 8 | LU (mm): 126.6 | LCF (mm): 145.6 | OAL (mm): 208.6 | PL (mm): 2.6 | DCON (mm): 13.0 | Stock: Made to order
MDW1280HGS3 DC (mm): 12.8 | L/D: 3 | LU (mm): 48.4 | LCF (mm): 67.6 | OAL (mm): 130.6 | PL (mm): 2.6 | DCON (mm): 13.0 | Stock: Yes
MDW1280HGS5 DC (mm): 12.8 | L/D: 5 | LU (mm): 87.4 | LCF (mm): 106.6 | OAL (mm): 169.6 | PL (mm): 2.6 | DCON (mm): 13.0 | Stock: Yes
MDW1280HGS8 DC (mm): 12.8 | L/D: 8 | LU (mm): 126.4 | LCF (mm): 145.6 | OAL (mm): 208.6 | PL (mm): 2.6 | DCON (mm): 13.0 | Stock: Made to order
MDW1290HGS3 DC (mm): 12.9 | L/D: 3 | LU (mm): 48.4 | LCF (mm): 67.7 | OAL (mm): 130.7 | PL (mm): 2.7 | DCON (mm): 13.0 | Stock: Yes
MDW1290HGS5 DC (mm): 12.9 | L/D: 5 | LU (mm): 87.4 | LCF (mm): 106.7 | OAL (mm): 169.7 | PL (mm): 2.7 | DCON (mm): 13.0 | Stock: Yes
MDW1290HGS8 DC (mm): 12.9 | L/D: 8 | LU (mm): 126.4 | LCF (mm): 145.7 | OAL (mm): 208.7 | PL (mm): 2.7 | DCON (mm): 13.0 | Stock: Made to order
MDW1300HGS3 DC (mm): 13.0 | L/D: 3 | LU (mm): 48.2 | LCF (mm): 67.7 | OAL (mm): 130.7 | PL (mm): 2.7 | DCON (mm): 13.0 | Stock: Yes
MDW1300HGS5 DC (mm): 13.0 | L/D: 5 | LU (mm): 87.2 | LCF (mm): 106.7 | OAL (mm): 169.7 | PL (mm): 2.7 | DCON (mm): 13.0 | Stock: Yes
MDW1300HGS8 DC (mm): 13.0 | L/D: 8 | LU (mm): 126.2 | LCF (mm): 145.7 | OAL (mm): 208.7 | PL (mm): 2.7 | DCON (mm): 13.0 | Stock: Yes
MDW1310HGS3 DC (mm): 13.1 | L/D: 3 | LU (mm): 50.6 | LCF (mm): 70.2 | OAL (mm): 136.7 | PL (mm): 2.7 | DCON (mm): 14.0 | Stock: Yes
MDW1310HGS5 DC (mm): 13.1 | L/D: 5 | LU (mm): 91.1 | LCF (mm): 110.7 | OAL (mm): 178.7 | PL (mm): 2.7 | DCON (mm): 14.0 | Stock: Yes
MDW1310HGS8 DC (mm): 13.1 | L/D: 8 | LU (mm): 131.6 | LCF (mm): 151.2 | OAL (mm): 220.7 | PL (mm): 2.7 | DCON (mm): 14.0 | Stock: Made to order
MDW1320HGS3 DC (mm): 13.2 | L/D: 3 | LU (mm): 50.4 | LCF (mm): 70.2 | OAL (mm): 136.7 | PL (mm): 2.7 | DCON (mm): 14.0 | Stock: Yes
MDW1320HGS5 DC (mm): 13.2 | L/D: 5 | LU (mm): 90.9 | LCF (mm): 110.7 | OAL (mm): 178.7 | PL (mm): 2.7 | DCON (mm): 14.0 | Stock: Yes
MDW1320HGS8 DC (mm): 13.2 | L/D: 8 | LU (mm): 131.4 | LCF (mm): 151.2 | OAL (mm): 220.7 | PL (mm): 2.7 | DCON (mm): 14.0 | Stock: Made to order
MDW1330HGS3 DC (mm): 13.3 | L/D: 3 | LU (mm): 50.4 | LCF (mm): 70.3 | OAL (mm): 136.8 | PL (mm): 2.8 | DCON (mm): 14.0 | Stock: Yes
MDW1330HGS5 DC (mm): 13.3 | L/D: 5 | LU (mm): 90.9 | LCF (mm): 110.8 | OAL (mm): 178.8 | PL (mm): 2.8 | DCON (mm): 14.0 | Stock: Yes
MDW1330HGS8 DC (mm): 13.3 | L/D: 8 | LU (mm): 131.4 | LCF (mm): 151.3 | OAL (mm): 220.8 | PL (mm): 2.8 | DCON (mm): 14.0 | Stock: Made to order
MDW1340HGS3 DC (mm): 13.4 | L/D: 3 | LU (mm): 50.2 | LCF (mm): 70.3 | OAL (mm): 136.8 | PL (mm): 2.8 | DCON (mm): 14.0 | Stock: Yes
MDW1340HGS5 DC (mm): 13.4 | L/D: 5 | LU (mm): 90.7 | LCF (mm): 110.8 | OAL (mm): 178.8 | PL (mm): 2.8 | DCON (mm): 14.0 | Stock: Yes
MDW1340HGS8 DC (mm): 13.4 | L/D: 8 | LU (mm): 131.2 | LCF (mm): 151.3 | OAL (mm): 220.8 | PL (mm): 2.8 | DCON (mm): 14.0 | Stock: Made to order
MDW1350HGS3 DC (mm): 13.5 | L/D: 3 | LU (mm): 50.1 | LCF (mm): 70.3 | OAL (mm): 136.8 | PL (mm): 2.8 | DCON (mm): 14.0 | Stock: Yes
MDW1350HGS5 DC (mm): 13.5 | L/D: 5 | LU (mm): 90.6 | LCF (mm): 110.8 | OAL (mm): 178.8 | PL (mm): 2.8 | DCON (mm): 14.0 | Stock: Yes
MDW1350HGS8 DC (mm): 13.5 | L/D: 8 | LU (mm): 131.1 | LCF (mm): 151.3 | OAL (mm): 220.8 | PL (mm): 2.8 | DCON (mm): 14.0 | Stock: Yes
MDW1360HGS3 DC (mm): 13.6 | L/D: 3 | LU (mm): 52.4 | LCF (mm): 72.8 | OAL (mm): 136.8 | PL (mm): 2.8 | DCON (mm): 14.0 | Stock: Yes
MDW1360HGS5 DC (mm): 13.6 | L/D: 5 | LU (mm): 94.4 | LCF (mm): 114.8 | OAL (mm): 178.8 | PL (mm): 2.8 | DCON (mm): 14.0 | Stock: Yes
MDW1360HGS8 DC (mm): 13.6 | L/D: 8 | LU (mm): 136.4 | LCF (mm): 156.8 | OAL (mm): 220.8 | PL (mm): 2.8 | DCON (mm): 14.0 | Stock: Made to order
MDW1370HGS3 DC (mm): 13.7 | L/D: 3 | LU (mm): 52.3 | LCF (mm): 72.8 | OAL (mm): 136.8 | PL (mm): 2.8 | DCON (mm): 14.0 | Stock: Yes
MDW1370HGS5 DC (mm): 13.7 | L/D: 5 | LU (mm): 94.3 | LCF (mm): 114.8 | OAL (mm): 178.8 | PL (mm): 2.8 | DCON (mm): 14.0 | Stock: Yes
MDW1370HGS8 DC (mm): 13.7 | L/D: 8 | LU (mm): 136.3 | LCF (mm): 156.8 | OAL (mm): 220.8 | PL (mm): 2.8 | DCON (mm): 14.0 | Stock: Made to order
MDW1380HGS3 DC (mm): 13.8 | L/D: 3 | LU (mm): 52.2 | LCF (mm): 72.9 | OAL (mm): 136.9 | PL (mm): 2.9 | DCON (mm): 14.0 | Stock: Yes
MDW1380HGS5 DC (mm): 13.8 | L/D: 5 | LU (mm): 94.2 | LCF (mm): 114.9 | OAL (mm): 178.9 | PL (mm): 2.9 | DCON (mm): 14.0 | Stock: Yes
MDW1380HGS8 DC (mm): 13.8 | L/D: 8 | LU (mm): 136.2 | LCF (mm): 156.9 | OAL (mm): 220.9 | PL (mm): 2.9 | DCON (mm): 14.0 | Stock: Made to order
MDW1390HGS3 DC (mm): 13.9 | L/D: 3 | LU (mm): 52.1 | LCF (mm): 72.9 | OAL (mm): 136.9 | PL (mm): 2.9 | DCON (mm): 14.0 | Stock: Yes
MDW1390HGS5 DC (mm): 13.9 | L/D: 5 | LU (mm): 94.1 | LCF (mm): 114.9 | OAL (mm): 178.9 | PL (mm): 2.9 | DCON (mm): 14.0 | Stock: Yes
MDW1390HGS8 DC (mm): 13.9 | L/D: 8 | LU (mm): 136.1 | LCF (mm): 156.9 | OAL (mm): 220.9 | PL (mm): 2.9 | DCON (mm): 14.0 | Stock: Made to order
MDW1400HGS3 DC (mm): 14.0 | L/D: 3 | LU (mm): 51.9 | LCF (mm): 72.9 | OAL (mm): 136.9 | PL (mm): 2.9 | DCON (mm): 14.0 | Stock: Yes
MDW1400HGS5 DC (mm): 14.0 | L/D: 5 | LU (mm): 93.9 | LCF (mm): 114.9 | OAL (mm): 178.9 | PL (mm): 2.9 | DCON (mm): 14.0 | Stock: Yes
MDW1400HGS8 DC (mm): 14.0 | L/D: 8 | LU (mm): 135.9 | LCF (mm): 156.9 | OAL (mm): 220.9 | PL (mm): 2.9 | DCON (mm): 14.0 | Stock: Yes
MDW1410HGS3 DC (mm): 14.1 | L/D: 3 | LU (mm): 54.3 | LCF (mm): 75.4 | OAL (mm): 142.9 | PL (mm): 2.9 | DCON (mm): 15.0 | Stock: Yes
MDW1410HGS5 DC (mm): 14.1 | L/D: 5 | LU (mm): 97.8 | LCF (mm): 118.9 | OAL (mm): 187.9 | PL (mm): 2.9 | DCON (mm): 15.0 | Stock: Yes
MDW1410HGS8 DC (mm): 14.1 | L/D: 8 | LU (mm): 141.3 | LCF (mm): 162.4 | OAL (mm): 232.9 | PL (mm): 2.9 | DCON (mm): 15.0 | Stock: Made to order
MDW1420HGS3 DC (mm): 14.2 | L/D: 3 | LU (mm): 54.1 | LCF (mm): 75.4 | OAL (mm): 142.9 | PL (mm): 2.9 | DCON (mm): 15.0 | Stock: Yes
MDW1420HGS5 DC (mm): 14.2 | L/D: 5 | LU (mm): 97.6 | LCF (mm): 118.9 | OAL (mm): 187.9 | PL (mm): 2.9 | DCON (mm): 15.0 | Stock: Yes
MDW1420HGS8 DC (mm): 14.2 | L/D: 8 | LU (mm): 141.1 | LCF (mm): 162.4 | OAL (mm): 232.9 | PL (mm): 2.9 | DCON (mm): 15.0 | Stock: Made to order
MDW1430HGS3 DC (mm): 14.3 | L/D: 3 | LU (mm): 54.1 | LCF (mm): 75.5 | OAL (mm): 143.0 | PL (mm): 3.0 | DCON (mm): 15.0 | Stock: Yes
MDW1430HGS5 DC (mm): 14.3 | L/D: 5 | LU (mm): 97.6 | LCF (mm): 119.0 | OAL (mm): 188.0 | PL (mm): 3.0 | DCON (mm): 15.0 | Stock: Yes
MDW1430HGS8 DC (mm): 14.3 | L/D: 8 | LU (mm): 141.1 | LCF (mm): 162.5 | OAL (mm): 233.0 | PL (mm): 3.0 | DCON (mm): 15.0 | Stock: Made to order
MDW1440HGS3 DC (mm): 14.4 | L/D: 3 | LU (mm): 53.9 | LCF (mm): 75.5 | OAL (mm): 143.0 | PL (mm): 3.0 | DCON (mm): 15.0 | Stock: Yes
MDW1440HGS5 DC (mm): 14.4 | L/D: 5 | LU (mm): 97.4 | LCF (mm): 119.0 | OAL (mm): 188.0 | PL (mm): 3.0 | DCON (mm): 15.0 | Stock: Yes
MDW1440HGS8 DC (mm): 14.4 | L/D: 8 | LU (mm): 140.9 | LCF (mm): 162.5 | OAL (mm): 233.0 | PL (mm): 3.0 | DCON (mm): 15.0 | Stock: Made to order
MDW1450HGS3 DC (mm): 14.5 | L/D: 3 | LU (mm): 53.8 | LCF (mm): 75.5 | OAL (mm): 143.0 | PL (mm): 3.0 | DCON (mm): 15.0 | Stock: Yes
MDW1450HGS5 DC (mm): 14.5 | L/D: 5 | LU (mm): 97.3 | LCF (mm): 119.0 | OAL (mm): 188.0 | PL (mm): 3.0 | DCON (mm): 15.0 | Stock: Yes
MDW1450HGS8 DC (mm): 14.5 | L/D: 8 | LU (mm): 140.8 | LCF (mm): 162.5 | OAL (mm): 233.0 | PL (mm): 3.0 | DCON (mm): 15.0 | Stock: Yes
MDW1460HGS3 DC (mm): 14.6 | L/D: 3 | LU (mm): 56.1 | LCF (mm): 78.0 | OAL (mm): 143.0 | PL (mm): 3.0 | DCON (mm): 15.0 | Stock: Yes
MDW1460HGS5 DC (mm): 14.6 | L/D: 5 | LU (mm): 101.1 | LCF (mm): 123.0 | OAL (mm): 188.0 | PL (mm): 3.0 | DCON (mm): 15.0 | Stock: Yes
MDW1460HGS8 DC (mm): 14.6 | L/D: 8 | LU (mm): 146.1 | LCF (mm): 168.0 | OAL (mm): 233.0 | PL (mm): 3.0 | DCON (mm): 15.0 | Stock: Made to order
MDW1470HGS3 DC (mm): 14.7 | L/D: 3 | LU (mm): 56.0 | LCF (mm): 78.0 | OAL (mm): 143.0 | PL (mm): 3.0 | DCON (mm): 15.0 | Stock: Yes
MDW1470HGS5 DC (mm): 14.7 | L/D: 5 | LU (mm): 101.0 | LCF (mm): 123.0 | OAL (mm): 188.0 | PL (mm): 3.0 | DCON (mm): 15.0 | Stock: Yes
MDW1470HGS8 DC (mm): 14.7 | L/D: 8 | LU (mm): 146.0 | LCF (mm): 168.0 | OAL (mm): 233.0 | PL (mm): 3.0 | DCON (mm): 15.0 | Stock: Made to order
MDW1480HGS3 DC (mm): 14.8 | L/D: 3 | LU (mm): 55.9 | LCF (mm): 78.1 | OAL (mm): 143.1 | PL (mm): 3.1 | DCON (mm): 15.0 | Stock: Yes
MDW1480HGS5 DC (mm): 14.8 | L/D: 5 | LU (mm): 100.9 | LCF (mm): 123.1 | OAL (mm): 188.1 | PL (mm): 3.1 | DCON (mm): 15.0 | Stock: Yes
MDW1480HGS8 DC (mm): 14.8 | L/D: 8 | LU (mm): 145.9 | LCF (mm): 168.1 | OAL (mm): 233.1 | PL (mm): 3.1 | DCON (mm): 15.0 | Stock: Made to order
MDW1490HGS3 DC (mm): 14.9 | L/D: 3 | LU (mm): 55.8 | LCF (mm): 78.1 | OAL (mm): 143.1 | PL (mm): 3.1 | DCON (mm): 15.0 | Stock: Yes
MDW1490HGS5 DC (mm): 14.9 | L/D: 5 | LU (mm): 100.8 | LCF (mm): 123.1 | OAL (mm): 188.1 | PL (mm): 3.1 | DCON (mm): 15.0 | Stock: Yes
MDW1490HGS8 DC (mm): 14.9 | L/D: 8 | LU (mm): 145.8 | LCF (mm): 168.1 | OAL (mm): 233.1 | PL (mm): 3.1 | DCON (mm): 15.0 | Stock: Made to order
MDW1500HGS3 DC (mm): 15.0 | L/D: 3 | LU (mm): 55.6 | LCF (mm): 78.1 | OAL (mm): 143.1 | PL (mm): 3.1 | DCON (mm): 15.0 | Stock: Yes
MDW1500HGS5 DC (mm): 15.0 | L/D: 5 | LU (mm): 100.6 | LCF (mm): 123.1 | OAL (mm): 188.1 | PL (mm): 3.1 | DCON (mm): 15.0 | Stock: Yes
MDW1500HGS8 DC (mm): 15.0 | L/D: 8 | LU (mm): 145.6 | LCF (mm): 168.1 | OAL (mm): 233.1 | PL (mm): 3.1 | DCON (mm): 15.0 | Stock: Yes
MDW1510HGS3 DC (mm): 15.1 | L/D: 3 | LU (mm): 58.0 | LCF (mm): 80.6 | OAL (mm): 149.1 | PL (mm): 3.1 | DCON (mm): 16.0 | Stock: Yes
MDW1510HGS5 DC (mm): 15.1 | L/D: 5 | LU (mm): 104.5 | LCF (mm): 127.1 | OAL (mm): 197.1 | PL (mm): 3.1 | DCON (mm): 16.0 | Stock: Yes
MDW1510HGS8 DC (mm): 15.1 | L/D: 8 | LU (mm): 151.0 | LCF (mm): 173.6 | OAL (mm): 245.1 | PL (mm): 3.1 | DCON (mm): 16.0 | Stock: Made to order
MDW1520HGS3 DC (mm): 15.2 | L/D: 3 | LU (mm): 57.8 | LCF (mm): 80.6 | OAL (mm): 149.1 | PL (mm): 3.1 | DCON (mm): 16.0 | Stock: Yes
MDW1520HGS5 DC (mm): 15.2 | L/D: 5 | LU (mm): 104.3 | LCF (mm): 127.1 | OAL (mm): 197.1 | PL (mm): 3.1 | DCON (mm): 16.0 | Stock: Yes
MDW1520HGS8 DC (mm): 15.2 | L/D: 8 | LU (mm): 150.8 | LCF (mm): 173.6 | OAL (mm): 245.1 | PL (mm): 3.1 | DCON (mm): 16.0 | Stock: Made to order
MDW1530HGS3 DC (mm): 15.3 | L/D: 3 | LU (mm): 57.8 | LCF (mm): 80.7 | OAL (mm): 149.2 | PL (mm): 3.2 | DCON (mm): 16.0 | Stock: Yes
MDW1530HGS5 DC (mm): 15.3 | L/D: 5 | LU (mm): 104.3 | LCF (mm): 127.2 | OAL (mm): 197.2 | PL (mm): 3.2 | DCON (mm): 16.0 | Stock: Yes
MDW1530HGS8 DC (mm): 15.3 | L/D: 8 | LU (mm): 150.8 | LCF (mm): 173.7 | OAL (mm): 245.2 | PL (mm): 3.2 | DCON (mm): 16.0 | Stock: Made to order
MDW1540HGS3 DC (mm): 15.4 | L/D: 3 | LU (mm): 57.6 | LCF (mm): 80.7 | OAL (mm): 149.2 | PL (mm): 3.2 | DCON (mm): 16.0 | Stock: Yes
MDW1540HGS5 DC (mm): 15.4 | L/D: 5 | LU (mm): 104.1 | LCF (mm): 127.2 | OAL (mm): 197.2 | PL (mm): 3.2 | DCON (mm): 16.0 | Stock: Yes
MDW1540HGS8 DC (mm): 15.4 | L/D: 8 | LU (mm): 150.6 | LCF (mm): 173.7 | OAL (mm): 245.2 | PL (mm): 3.2 | DCON (mm): 16.0 | Stock: Made to order
MDW1550HGS3 DC (mm): 15.5 | L/D: 3 | LU (mm): 57.5 | LCF (mm): 80.7 | OAL (mm): 149.2 | PL (mm): 3.2 | DCON (mm): 16.0 | Stock: Yes
MDW1550HGS5 DC (mm): 15.5 | L/D: 5 | LU (mm): 104.0 | LCF (mm): 127.2 | OAL (mm): 197.2 | PL (mm): 3.2 | DCON (mm): 16.0 | Stock: Yes
MDW1550HGS8 DC (mm): 15.5 | L/D: 8 | LU (mm): 150.5 | LCF (mm): 173.7 | OAL (mm): 245.2 | PL (mm): 3.2 | DCON (mm): 16.0 | Stock: Yes
MDW1560HGS3 DC (mm): 15.6 | L/D: 3 | LU (mm): 59.8 | LCF (mm): 83.2 | OAL (mm): 149.2 | PL (mm): 3.2 | DCON (mm): 16.0 | Stock: Yes
MDW1560HGS5 DC (mm): 15.6 | L/D: 5 | LU (mm): 107.8 | LCF (mm): 131.2 | OAL (mm): 197.2 | PL (mm): 3.2 | DCON (mm): 16.0 | Stock: Yes
MDW1560HGS8 DC (mm): 15.6 | L/D: 8 | LU (mm): 155.8 | LCF (mm): 179.2 | OAL (mm): 245.2 | PL (mm): 3.2 | DCON (mm): 16.0 | Stock: Made to order
MDW1570HGS3 DC (mm): 15.7 | L/D: 3 | LU (mm): 59.7 | LCF (mm): 83.2 | OAL (mm): 149.2 | PL (mm): 3.2 | DCON (mm): 16.0 | Stock: Yes
MDW1570HGS5 DC (mm): 15.7 | L/D: 5 | LU (mm): 107.7 | LCF (mm): 131.2 | OAL (mm): 197.2 | PL (mm): 3.2 | DCON (mm): 16.0 | Stock: Yes
MDW1570HGS8 DC (mm): 15.7 | L/D: 8 | LU (mm): 155.7 | LCF (mm): 179.2 | OAL (mm): 245.2 | PL (mm): 3.2 | DCON (mm): 16.0 | Stock: Made to order
MDW1580HGS3 DC (mm): 15.8 | L/D: 3 | LU (mm): 59.6 | LCF (mm): 83.3 | OAL (mm): 149.3 | PL (mm): 3.3 | DCON (mm): 16.0 | Stock: Yes
MDW1580HGS5 DC (mm): 15.8 | L/D: 5 | LU (mm): 107.6 | LCF (mm): 131.3 | OAL (mm): 197.3 | PL (mm): 3.3 | DCON (mm): 16.0 | Stock: Yes
MDW1580HGS8 DC (mm): 15.8 | L/D: 8 | LU (mm): 155.6 | LCF (mm): 179.3 | OAL (mm): 245.3 | PL (mm): 3.3 | DCON (mm): 16.0 | Stock: Made to order
MDW1590HGS3 DC (mm): 15.9 | L/D: 3 | LU (mm): 59.5 | LCF (mm): 83.3 | OAL (mm): 149.3 | PL (mm): 3.3 | DCON (mm): 16.0 | Stock: Yes
MDW1590HGS5 DC (mm): 15.9 | L/D: 5 | LU (mm): 107.5 | LCF (mm): 131.3 | OAL (mm): 197.3 | PL (mm): 3.3 | DCON (mm): 16.0 | Stock: Yes
MDW1590HGS8 DC (mm): 15.9 | L/D: 8 | LU (mm): 155.5 | LCF (mm): 179.3 | OAL (mm): 245.3 | PL (mm): 3.3 | DCON (mm): 16.0 | Stock: Made to order
MDW1600HGS3 DC (mm): 16.0 | L/D: 3 | LU (mm): 59.3 | LCF (mm): 83.3 | OAL (mm): 149.3 | PL (mm): 3.3 | DCON (mm): 16.0 | Stock: Yes
MDW1600HGS5 DC (mm): 16.0 | L/D: 5 | LU (mm): 107.3 | LCF (mm): 131.3 | OAL (mm): 197.3 | PL (mm): 3.3 | DCON (mm): 16.0 | Stock: Yes
MDW1600HGS8 DC (mm): 16.0 | L/D: 8 | LU (mm): 155.3 | LCF (mm): 179.3 | OAL (mm): 245.3 | PL (mm): 3.3 | DCON (mm): 16.0 | Stock: Yes
MDW1610HGS3 DC (mm): 16.1 | L/D: 3 | LU (mm): 61.7 | LCF (mm): 85.8 | OAL (mm): 155.3 | PL (mm): 3.3 | DCON (mm): 17.0 | Stock: Made to order
MDW1610HGS5 DC (mm): 16.1 | L/D: 5 | LU (mm): 111.2 | LCF (mm): 135.3 | OAL (mm): 206.3 | PL (mm): 3.3 | DCON (mm): 17.0 | Stock: Made to order
MDW1620HGS3 DC (mm): 16.2 | L/D: 3 | LU (mm): 61.6 | LCF (mm): 85.9 | OAL (mm): 155.4 | PL (mm): 3.4 | DCON (mm): 17.0 | Stock: Made to order
MDW1620HGS5 DC (mm): 16.2 | L/D: 5 | LU (mm): 111.1 | LCF (mm): 135.4 | OAL (mm): 206.4 | PL (mm): 3.4 | DCON (mm): 17.0 | Stock: Made to order
MDW1630HGS3 DC (mm): 16.3 | L/D: 3 | LU (mm): 61.5 | LCF (mm): 85.9 | OAL (mm): 155.4 | PL (mm): 3.4 | DCON (mm): 17.0 | Stock: Made to order
MDW1630HGS5 DC (mm): 16.3 | L/D: 5 | LU (mm): 111.0 | LCF (mm): 135.4 | OAL (mm): 206.4 | PL (mm): 3.4 | DCON (mm): 17.0 | Stock: Made to order
MDW1640HGS3 DC (mm): 16.4 | L/D: 3 | LU (mm): 61.3 | LCF (mm): 85.9 | OAL (mm): 155.4 | PL (mm): 3.4 | DCON (mm): 17.0 | Stock: Made to order
MDW1640HGS5 DC (mm): 16.4 | L/D: 5 | LU (mm): 110.8 | LCF (mm): 135.4 | OAL (mm): 206.4 | PL (mm): 3.4 | DCON (mm): 17.0 | Stock: Made to order
MDW1650HGS3 DC (mm): 16.5 | L/D: 3 | LU (mm): 61.2 | LCF (mm): 85.9 | OAL (mm): 155.4 | PL (mm): 3.4 | DCON (mm): 17.0 | Stock: Yes
MDW1650HGS5 DC (mm): 16.5 | L/D: 5 | LU (mm): 110.7 | LCF (mm): 135.4 | OAL (mm): 206.4 | PL (mm): 3.4 | DCON (mm): 17.0 | Stock: Yes
MDW1660HGS3 DC (mm): 16.6 | L/D: 3 | LU (mm): 63.5 | LCF (mm): 88.4 | OAL (mm): 155.4 | PL (mm): 3.4 | DCON (mm): 17.0 | Stock: Made to order
MDW1660HGS5 DC (mm): 16.6 | L/D: 5 | LU (mm): 114.5 | LCF (mm): 139.4 | OAL (mm): 206.4 | PL (mm): 3.4 | DCON (mm): 17.0 | Stock: Made to order
MDW1670HGS3 DC (mm): 16.7 | L/D: 3 | LU (mm): 63.5 | LCF (mm): 88.5 | OAL (mm): 155.5 | PL (mm): 3.5 | DCON (mm): 17.0 | Stock: Made to order
MDW1670HGS5 DC (mm): 16.7 | L/D: 5 | LU (mm): 114.5 | LCF (mm): 139.5 | OAL (mm): 206.5 | PL (mm): 3.5 | DCON (mm): 17.0 | Stock: Made to order
MDW1680HGS3 DC (mm): 16.8 | L/D: 3 | LU (mm): 63.3 | LCF (mm): 88.5 | OAL (mm): 155.5 | PL (mm): 3.5 | DCON (mm): 17.0 | Stock: Made to order
MDW1680HGS5 DC (mm): 16.8 | L/D: 5 | LU (mm): 114.3 | LCF (mm): 139.5 | OAL (mm): 206.5 | PL (mm): 3.5 | DCON (mm): 17.0 | Stock: Made to order
MDW1690HGS3 DC (mm): 16.9 | L/D: 3 | LU (mm): 63.2 | LCF (mm): 88.5 | OAL (mm): 155.5 | PL (mm): 3.5 | DCON (mm): 17.0 | Stock: Made to order
MDW1690HGS5 DC (mm): 16.9 | L/D: 5 | LU (mm): 114.2 | LCF (mm): 139.5 | OAL (mm): 206.5 | PL (mm): 3.5 | DCON (mm): 17.0 | Stock: Made to order
MDW1700HGS3 DC (mm): 17.0 | L/D: 3 | LU (mm): 63.0 | LCF (mm): 88.5 | OAL (mm): 155.5 | PL (mm): 3.5 | DCON (mm): 17.0 | Stock: Yes
MDW1700HGS5 DC (mm): 17.0 | L/D: 5 | LU (mm): 114.0 | LCF (mm): 139.5 | OAL (mm): 206.5 | PL (mm): 3.5 | DCON (mm): 17.0 | Stock: Yes
MDW1710HGS3 DC (mm): 17.1 | L/D: 3 | LU (mm): 65.4 | LCF (mm): 91.0 | OAL (mm): 161.5 | PL (mm): 3.5 | DCON (mm): 18.0 | Stock: Made to order
MDW1710HGS5 DC (mm): 17.1 | L/D: 5 | LU (mm): 117.9 | LCF (mm): 143.5 | OAL (mm): 217.5 | PL (mm): 3.5 | DCON (mm): 18.0 | Stock: Made to order
MDW1720HGS3 DC (mm): 17.2 | L/D: 3 | LU (mm): 65.3 | LCF (mm): 91.1 | OAL (mm): 161.6 | PL (mm): 3.6 | DCON (mm): 18.0 | Stock: Made to order
MDW1720HGS5 DC (mm): 17.2 | L/D: 5 | LU (mm): 117.8 | LCF (mm): 143.6 | OAL (mm): 217.6 | PL (mm): 3.6 | DCON (mm): 18.0 | Stock: Made to order
MDW1730HGS3 DC (mm): 17.3 | L/D: 3 | LU (mm): 65.2 | LCF (mm): 91.1 | OAL (mm): 161.6 | PL (mm): 3.6 | DCON (mm): 18.0 | Stock: Made to order
MDW1730HGS5 DC (mm): 17.3 | L/D: 5 | LU (mm): 117.7 | LCF (mm): 143.6 | OAL (mm): 217.6 | PL (mm): 3.6 | DCON (mm): 18.0 | Stock: Made to order
MDW1740HGS3 DC (mm): 17.4 | L/D: 3 | LU (mm): 65.0 | LCF (mm): 91.1 | OAL (mm): 161.6 | PL (mm): 3.6 | DCON (mm): 18.0 | Stock: Made to order
MDW1740HGS5 DC (mm): 17.4 | L/D: 5 | LU (mm): 117.5 | LCF (mm): 143.6 | OAL (mm): 217.6 | PL (mm): 3.6 | DCON (mm): 18.0 | Stock: Made to order
MDW1750HGS3 DC (mm): 17.5 | L/D: 3 | LU (mm): 64.9 | LCF (mm): 91.1 | OAL (mm): 161.6 | PL (mm): 3.6 | DCON (mm): 18.0 | Stock: Yes
MDW1750HGS5 DC (mm): 17.5 | L/D: 5 | LU (mm): 117.4 | LCF (mm): 143.6 | OAL (mm): 217.6 | PL (mm): 3.6 | DCON (mm): 18.0 | Stock: Yes
MDW1760HGS3 DC (mm): 17.6 | L/D: 3 | LU (mm): 67.2 | LCF (mm): 93.6 | OAL (mm): 161.6 | PL (mm): 3.6 | DCON (mm): 18.0 | Stock: Made to order
MDW1760HGS5 DC (mm): 17.6 | L/D: 5 | LU (mm): 121.2 | LCF (mm): 147.6 | OAL (mm): 217.6 | PL (mm): 3.6 | DCON (mm): 18.0 | Stock: Made to order
MDW1770HGS3 DC (mm): 17.7 | L/D: 3 | LU (mm): 67.2 | LCF (mm): 93.7 | OAL (mm): 161.7 | PL (mm): 3.7 | DCON (mm): 18.0 | Stock: Made to order
MDW1770HGS5 DC (mm): 17.7 | L/D: 5 | LU (mm): 121.2 | LCF (mm): 147.7 | OAL (mm): 217.7 | PL (mm): 3.7 | DCON (mm): 18.0 | Stock: Made to order
MDW1780HGS3 DC (mm): 17.8 | L/D: 3 | LU (mm): 67.0 | LCF (mm): 93.7 | OAL (mm): 161.7 | PL (mm): 3.7 | DCON (mm): 18.0 | Stock: Made to order
MDW1780HGS5 DC (mm): 17.8 | L/D: 5 | LU (mm): 121.0 | LCF (mm): 147.7 | OAL (mm): 217.7 | PL (mm): 3.7 | DCON (mm): 18.0 | Stock: Made to order
MDW1790HGS3 DC (mm): 17.9 | L/D: 3 | LU (mm): 66.9 | LCF (mm): 93.7 | OAL (mm): 161.7 | PL (mm): 3.7 | DCON (mm): 18.0 | Stock: Made to order
MDW1790HGS5 DC (mm): 17.9 | L/D: 5 | LU (mm): 120.9 | LCF (mm): 147.7 | OAL (mm): 217.7 | PL (mm): 3.7 | DCON (mm): 18.0 | Stock: Made to order
MDW1800HGS3 DC (mm): 18.0 | L/D: 3 | LU (mm): 66.7 | LCF (mm): 93.7 | OAL (mm): 161.7 | PL (mm): 3.7 | DCON (mm): 18.0 | Stock: Yes
MDW1800HGS5 DC (mm): 18.0 | L/D: 5 | LU (mm): 120.7 | LCF (mm): 147.7 | OAL (mm): 217.7 | PL (mm): 3.7 | DCON (mm): 18.0 | Stock: Yes
MDW1810HGS3 DC (mm): 18.1 | L/D: 3 | LU (mm): 69.1 | LCF (mm): 96.2 | OAL (mm): 167.7 | PL (mm): 3.7 | DCON (mm): 19.0 | Stock: Made to order
MDW1810HGS5 DC (mm): 18.1 | L/D: 5 | LU (mm): 124.6 | LCF (mm): 151.7 | OAL (mm): 224.7 | PL (mm): 3.7 | DCON (mm): 19.0 | Stock: Made to order
MDW1820HGS3 DC (mm): 18.2 | L/D: 3 | LU (mm): 69.0 | LCF (mm): 96.3 | OAL (mm): 167.8 | PL (mm): 3.8 | DCON (mm): 19.0 | Stock: Made to order
MDW1820HGS5 DC (mm): 18.2 | L/D: 5 | LU (mm): 124.5 | LCF (mm): 151.8 | OAL (mm): 224.8 | PL (mm): 3.8 | DCON (mm): 19.0 | Stock: Made to order
MDW1830HGS3 DC (mm): 18.3 | L/D: 3 | LU (mm): 68.9 | LCF (mm): 96.3 | OAL (mm): 167.8 | PL (mm): 3.8 | DCON (mm): 19.0 | Stock: Made to order
MDW1830HGS5 DC (mm): 18.3 | L/D: 5 | LU (mm): 124.4 | LCF (mm): 151.8 | OAL (mm): 224.8 | PL (mm): 3.8 | DCON (mm): 19.0 | Stock: Made to order
MDW1840HGS3 DC (mm): 18.4 | L/D: 3 | LU (mm): 68.7 | LCF (mm): 96.3 | OAL (mm): 167.8 | PL (mm): 3.8 | DCON (mm): 19.0 | Stock: Made to order
MDW1840HGS5 DC (mm): 18.4 | L/D: 5 | LU (mm): 124.2 | LCF (mm): 151.8 | OAL (mm): 224.8 | PL (mm): 3.8 | DCON (mm): 19.0 | Stock: Made to order
MDW1850HGS3 DC (mm): 18.5 | L/D: 3 | LU (mm): 68.6 | LCF (mm): 96.3 | OAL (mm): 167.8 | PL (mm): 3.8 | DCON (mm): 19.0 | Stock: Yes
MDW1850HGS5 DC (mm): 18.5 | L/D: 5 | LU (mm): 124.1 | LCF (mm): 151.8 | OAL (mm): 224.8 | PL (mm): 3.8 | DCON (mm): 19.0 | Stock: Yes
MDW1860HGS3 DC (mm): 18.6 | L/D: 3 | LU (mm): 71.0 | LCF (mm): 98.9 | OAL (mm): 167.9 | PL (mm): 3.9 | DCON (mm): 19.0 | Stock: Made to order
MDW1860HGS5 DC (mm): 18.6 | L/D: 5 | LU (mm): 128.0 | LCF (mm): 155.9 | OAL (mm): 224.9 | PL (mm): 3.9 | DCON (mm): 19.0 | Stock: Made to order
MDW1870HGS3 DC (mm): 18.7 | L/D: 3 | LU (mm): 70.9 | LCF (mm): 98.9 | OAL (mm): 167.9 | PL (mm): 3.9 | DCON (mm): 19.0 | Stock: Made to order
MDW1870HGS5 DC (mm): 18.7 | L/D: 5 | LU (mm): 127.9 | LCF (mm): 155.9 | OAL (mm): 224.9 | PL (mm): 3.9 | DCON (mm): 19.0 | Stock: Made to order
MDW1880HGS3 DC (mm): 18.8 | L/D: 3 | LU (mm): 70.7 | LCF (mm): 98.9 | OAL (mm): 167.9 | PL (mm): 3.9 | DCON (mm): 19.0 | Stock: Made to order
MDW1880HGS5 DC (mm): 18.8 | L/D: 5 | LU (mm): 127.7 | LCF (mm): 155.9 | OAL (mm): 224.9 | PL (mm): 3.9 | DCON (mm): 19.0 | Stock: Made to order
MDW1890HGS3 DC (mm): 18.9 | L/D: 3 | LU (mm): 70.6 | LCF (mm): 98.9 | OAL (mm): 167.9 | PL (mm): 3.9 | DCON (mm): 19.0 | Stock: Made to order
MDW1890HGS5 DC (mm): 18.9 | L/D: 5 | LU (mm): 127.6 | LCF (mm): 155.9 | OAL (mm): 224.9 | PL (mm): 3.9 | DCON (mm): 19.0 | Stock: Made to order
MDW1900HGS3 DC (mm): 19.0 | L/D: 3 | LU (mm): 70.4 | LCF (mm): 98.9 | OAL (mm): 167.9 | PL (mm): 3.9 | DCON (mm): 19.0 | Stock: Yes
MDW1900HGS5 DC (mm): 19.0 | L/D: 5 | LU (mm): 127.4 | LCF (mm): 155.9 | OAL (mm): 224.9 | PL (mm): 3.9 | DCON (mm): 19.0 | Stock: Yes
MDW1910HGS3 DC (mm): 19.1 | L/D: 3 | LU (mm): 72.9 | LCF (mm): 101.5 | OAL (mm): 174.0 | PL (mm): 4.0 | DCON (mm): 20.0 | Stock: Made to order
MDW1910HGS5 DC (mm): 19.1 | L/D: 5 | LU (mm): 131.4 | LCF (mm): 160.0 | OAL (mm): 234.0 | PL (mm): 4.0 | DCON (mm): 20.0 | Stock: Made to order
MDW1920HGS3 DC (mm): 19.2 | L/D: 3 | LU (mm): 72.7 | LCF (mm): 101.5 | OAL (mm): 174.0 | PL (mm): 4.0 | DCON (mm): 20.0 | Stock: Made to order
MDW1920HGS5 DC (mm): 19.2 | L/D: 5 | LU (mm): 131.2 | LCF (mm): 160.0 | OAL (mm): 234.0 | PL (mm): 4.0 | DCON (mm): 20.0 | Stock: Made to order
MDW1930HGS3 DC (mm): 19.3 | L/D: 3 | LU (mm): 72.6 | LCF (mm): 101.5 | OAL (mm): 174.0 | PL (mm): 4.0 | DCON (mm): 20.0 | Stock: Made to order
MDW1930HGS5 DC (mm): 19.3 | L/D: 5 | LU (mm): 131.1 | LCF (mm): 160.0 | OAL (mm): 234.0 | PL (mm): 4.0 | DCON (mm): 20.0 | Stock: Made to order
MDW1940HGS3 DC (mm): 19.4 | L/D: 3 | LU (mm): 72.4 | LCF (mm): 101.5 | OAL (mm): 174.0 | PL (mm): 4.0 | DCON (mm): 20.0 | Stock: Made to order
MDW1940HGS5 DC (mm): 19.4 | L/D: 5 | LU (mm): 130.9 | LCF (mm): 160.0 | OAL (mm): 234.0 | PL (mm): 4.0 | DCON (mm): 20.0 | Stock: Made to order
MDW1950HGS3 DC (mm): 19.5 | L/D: 3 | LU (mm): 72.3 | LCF (mm): 101.5 | OAL (mm): 174.0 | PL (mm): 4.0 | DCON (mm): 20.0 | Stock: Yes
MDW1950HGS5 DC (mm): 19.5 | L/D: 5 | LU (mm): 130.8 | LCF (mm): 160.0 | OAL (mm): 234.0 | PL (mm): 4.0 | DCON (mm): 20.0 | Stock: Yes
MDW1960HGS3 DC (mm): 19.6 | L/D: 3 | LU (mm): 74.7 | LCF (mm): 104.1 | OAL (mm): 174.1 | PL (mm): 4.1 | DCON (mm): 20.0 | Stock: Made to order
MDW1960HGS5 DC (mm): 19.6 | L/D: 5 | LU (mm): 134.7 | LCF (mm): 164.1 | OAL (mm): 234.1 | PL (mm): 4.1 | DCON (mm): 20.0 | Stock: Made to order
MDW1970HGS3 DC (mm): 19.7 | L/D: 3 | LU (mm): 74.6 | LCF (mm): 104.1 | OAL (mm): 174.1 | PL (mm): 4.1 | DCON (mm): 20.0 | Stock: Made to order
MDW1970HGS5 DC (mm): 19.7 | L/D: 5 | LU (mm): 134.6 | LCF (mm): 164.1 | OAL (mm): 234.1 | PL (mm): 4.1 | DCON (mm): 20.0 | Stock: Made to order
MDW1980HGS3 DC (mm): 19.8 | L/D: 3 | LU (mm): 74.4 | LCF (mm): 104.1 | OAL (mm): 174.1 | PL (mm): 4.1 | DCON (mm): 20.0 | Stock: Made to order
MDW1980HGS5 DC (mm): 19.8 | L/D: 5 | LU (mm): 134.4 | LCF (mm): 164.1 | OAL (mm): 234.1 | PL (mm): 4.1 | DCON (mm): 20.0 | Stock: Made to order
MDW1990HGS3 DC (mm): 19.9 | L/D: 3 | LU (mm): 74.3 | LCF (mm): 104.1 | OAL (mm): 174.1 | PL (mm): 4.1 | DCON (mm): 20.0 | Stock: Made to order
MDW1990HGS5 DC (mm): 19.9 | L/D: 5 | LU (mm): 134.3 | LCF (mm): 164.1 | OAL (mm): 234.1 | PL (mm): 4.1 | DCON (mm): 20.0 | Stock: Made to order
MDW2000HGS3 DC (mm): 20.0 | L/D: 3 | LU (mm): 74.1 | LCF (mm): 104.1 | OAL (mm): 174.1 | PL (mm): 4.1 | DCON (mm): 20.0 | Stock: Yes
MDW2000HGS5 DC (mm): 20.0 | L/D: 5 | LU (mm): 134.1 | LCF (mm): 164.1 | OAL (mm): 234.1 | PL (mm): 4.1 | DCON (mm): 20.0 | Stock: Yes
DrillsSumitomo Electric Hardmetal
518 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal Super Multi Drill HGS Type (Internal Coolant)

Brand Sumitomo Electric Hardmetal·Drills

Available part numbers (518)

MDW0150HGS3, MDW0150HGS5, MDW0150HGS8, MDW0160HGS3, MDW0160HGS5, MDW0160HGS8, MDW0170HGS3, MDW0170HGS5, MDW0170HGS8, MDW0180HGS3 + 508 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MDW0150HGS3DC (mm): 1.5 | L/D: 3 | LU (mm): 8.1 | LCF (mm): 10.3 | OAL (mm): 63.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDW0150HGS5DC (mm): 1.5 | L/D: 5 | LU (mm): 12.1 | LCF (mm): 14.3 | OAL (mm): 70.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDW0150HGS8DC (mm): 1.5 | L/D: 8 | LU (mm): 16.6 | LCF (mm): 18.8 | OAL (mm): 76.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDW0160HGS3DC (mm): 1.6 | L/D: 3 | LU (mm): 10.4 | LCF (mm): 12.8 | OAL (mm): 63.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDW0160HGS5DC (mm): 1.6 | L/D: 5 | LU (mm): 16.9 | LCF (mm): 19.3 | OAL (mm): 70.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDW0160HGS8DC (mm): 1.6 | L/D: 8 | LU (mm): 21.9 | LCF (mm): 24.3 | OAL (mm): 76.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDW0170HGS3DC (mm): 1.7 | L/D: 3 | LU (mm): 10.4 | LCF (mm): 12.9 | OAL (mm): 63.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0170HGS5DC (mm): 1.7 | L/D: 5 | LU (mm): 16.9 | LCF (mm): 19.4 | OAL (mm): 70.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0170HGS8DC (mm): 1.7 | L/D: 8 | LU (mm): 21.9 | LCF (mm): 24.4 | OAL (mm): 76.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0180HGS3DC (mm): 1.8 | L/D: 3 | LU (mm): 10.2 | LCF (mm): 12.9 | OAL (mm): 63.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0180HGS5DC (mm): 1.8 | L/D: 5 | LU (mm): 16.7 | LCF (mm): 19.4 | OAL (mm): 70.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0180HGS8DC (mm): 1.8 | L/D: 8 | LU (mm): 21.7 | LCF (mm): 24.4 | OAL (mm): 76.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0190HGS3DC (mm): 1.9 | L/D: 3 | LU (mm): 10.1 | LCF (mm): 12.9 | OAL (mm): 63.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0190HGS5DC (mm): 1.9 | L/D: 5 | LU (mm): 16.6 | LCF (mm): 19.4 | OAL (mm): 70.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0190HGS8DC (mm): 1.9 | L/D: 8 | LU (mm): 21.6 | LCF (mm): 24.4 | OAL (mm): 76.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0200HGS3DC (mm): 2.0 | L/D: 3 | LU (mm): 9.9 | LCF (mm): 12.9 | OAL (mm): 63.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0200HGS5DC (mm): 2.0 | L/D: 5 | LU (mm): 16.4 | LCF (mm): 19.4 | OAL (mm): 70.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0200HGS8DC (mm): 2.0 | L/D: 8 | LU (mm): 21.4 | LCF (mm): 24.4 | OAL (mm): 76.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0210HGS3DC (mm): 2.1 | L/D: 3 | LU (mm): 12.3 | LCF (mm): 15.4 | OAL (mm): 68.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0210HGS5DC (mm): 2.1 | L/D: 5 | LU (mm): 21.3 | LCF (mm): 24.4 | OAL (mm): 78.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0210HGS8DC (mm): 2.1 | L/D: 8 | LU (mm): 24.8 | LCF (mm): 27.9 | OAL (mm): 81.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0220HGS3DC (mm): 2.2 | L/D: 3 | LU (mm): 12.2 | LCF (mm): 15.5 | OAL (mm): 68.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0220HGS5DC (mm): 2.2 | L/D: 5 | LU (mm): 21.2 | LCF (mm): 24.5 | OAL (mm): 78.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0220HGS8DC (mm): 2.2 | L/D: 8 | LU (mm): 24.7 | LCF (mm): 28.0 | OAL (mm): 81.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0230HGS3DC (mm): 2.3 | L/D: 3 | LU (mm): 12.1 | LCF (mm): 15.5 | OAL (mm): 68.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0230HGS5DC (mm): 2.3 | L/D: 5 | LU (mm): 21.1 | LCF (mm): 24.5 | OAL (mm): 78.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0230HGS8DC (mm): 2.3 | L/D: 8 | LU (mm): 24.6 | LCF (mm): 28.0 | OAL (mm): 81.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0240HGS3DC (mm): 2.4 | L/D: 3 | LU (mm): 11.9 | LCF (mm): 15.5 | OAL (mm): 68.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0240HGS5DC (mm): 2.4 | L/D: 5 | LU (mm): 20.9 | LCF (mm): 24.5 | OAL (mm): 78.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0240HGS8DC (mm): 2.4 | L/D: 8 | LU (mm): 24.4 | LCF (mm): 28.0 | OAL (mm): 81.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0250HGS3DC (mm): 2.5 | L/D: 3 | LU (mm): 11.8 | LCF (mm): 15.5 | OAL (mm): 68.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0250HGS5DC (mm): 2.5 | L/D: 5 | LU (mm): 20.8 | LCF (mm): 24.5 | OAL (mm): 78.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0250HGS8DC (mm): 2.5 | L/D: 8 | LU (mm): 24.3 | LCF (mm): 28.0 | OAL (mm): 81.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0260HGS3DC (mm): 2.6 | L/D: 3 | LU (mm): 14.1 | LCF (mm): 18.0 | OAL (mm): 68.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0260HGS5DC (mm): 2.6 | L/D: 5 | LU (mm): 24.6 | LCF (mm): 28.5 | OAL (mm): 78.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0260HGS8DC (mm): 2.6 | L/D: 8 | LU (mm): 29.6 | LCF (mm): 33.5 | OAL (mm): 81.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0270HGS3DC (mm): 2.7 | L/D: 3 | LU (mm): 14.1 | LCF (mm): 18.1 | OAL (mm): 68.6 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDW0270HGS5DC (mm): 2.7 | L/D: 5 | LU (mm): 24.6 | LCF (mm): 28.6 | OAL (mm): 78.6 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDW0270HGS8DC (mm): 2.7 | L/D: 8 | LU (mm): 29.6 | LCF (mm): 33.6 | OAL (mm): 81.6 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDW0280HGS3DC (mm): 2.8 | L/D: 3 | LU (mm): 13.9 | LCF (mm): 18.1 | OAL (mm): 68.6 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDW0280HGS5DC (mm): 2.8 | L/D: 5 | LU (mm): 24.4 | LCF (mm): 28.6 | OAL (mm): 78.6 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDW0280HGS8DC (mm): 2.8 | L/D: 8 | LU (mm): 29.4 | LCF (mm): 33.6 | OAL (mm): 81.6 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDW0290HGS3DC (mm): 2.9 | L/D: 3 | LU (mm): 13.8 | LCF (mm): 18.1 | OAL (mm): 68.6 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDW0290HGS5DC (mm): 2.9 | L/D: 5 | LU (mm): 24.3 | LCF (mm): 28.6 | OAL (mm): 78.6 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDW0290HGS8DC (mm): 2.9 | L/D: 8 | LU (mm): 29.3 | LCF (mm): 33.6 | OAL (mm): 81.6 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDW0300HGS3DC (mm): 3.0 | L/D: 3 | LU (mm): 13.6 | LCF (mm): 18.1 | OAL (mm): 68.6 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDW0300HGS5DC (mm): 3.0 | L/D: 5 | LU (mm): 24.1 | LCF (mm): 28.6 | OAL (mm): 78.6 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDW0300HGS8DC (mm): 3.0 | L/D: 8 | LU (mm): 29.1 | LCF (mm): 33.6 | OAL (mm): 81.6 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDW0310HGS3DC (mm): 3.1 | L/D: 3 | LU (mm): 16.0 | LCF (mm): 20.6 | OAL (mm): 72.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDW0310HGS5DC (mm): 3.1 | L/D: 5 | LU (mm): 28.0 | LCF (mm): 32.6 | OAL (mm): 86.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDW0310HGS8DC (mm): 3.1 | L/D: 8 | LU (mm): 34.5 | LCF (mm): 39.1 | OAL (mm): 92.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDW0320HGS3DC (mm): 3.2 | L/D: 3 | LU (mm): 15.9 | LCF (mm): 20.7 | OAL (mm): 72.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0320HGS5DC (mm): 3.2 | L/D: 5 | LU (mm): 27.9 | LCF (mm): 32.7 | OAL (mm): 86.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0320HGS8DC (mm): 3.2 | L/D: 8 | LU (mm): 34.4 | LCF (mm): 39.2 | OAL (mm): 92.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0330HGS3DC (mm): 3.3 | L/D: 3 | LU (mm): 15.8 | LCF (mm): 20.7 | OAL (mm): 72.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0330HGS5DC (mm): 3.3 | L/D: 5 | LU (mm): 27.8 | LCF (mm): 32.7 | OAL (mm): 86.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0330HGS8DC (mm): 3.3 | L/D: 8 | LU (mm): 34.3 | LCF (mm): 39.2 | OAL (mm): 92.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0340HGS3DC (mm): 3.4 | L/D: 3 | LU (mm): 15.6 | LCF (mm): 20.7 | OAL (mm): 72.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0340HGS5DC (mm): 3.4 | L/D: 5 | LU (mm): 27.6 | LCF (mm): 32.7 | OAL (mm): 86.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0340HGS8DC (mm): 3.4 | L/D: 8 | LU (mm): 34.1 | LCF (mm): 39.2 | OAL (mm): 92.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0350HGS3DC (mm): 3.5 | L/D: 3 | LU (mm): 15.5 | LCF (mm): 20.7 | OAL (mm): 72.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0350HGS5DC (mm): 3.5 | L/D: 5 | LU (mm): 27.5 | LCF (mm): 32.7 | OAL (mm): 86.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0350HGS8DC (mm): 3.5 | L/D: 8 | LU (mm): 34.0 | LCF (mm): 39.2 | OAL (mm): 92.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0360HGS3DC (mm): 3.6 | L/D: 3 | LU (mm): 17.8 | LCF (mm): 23.2 | OAL (mm): 72.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0360HGS5DC (mm): 3.6 | L/D: 5 | LU (mm): 31.3 | LCF (mm): 36.7 | OAL (mm): 86.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0360HGS8DC (mm): 3.6 | L/D: 8 | LU (mm): 39.3 | LCF (mm): 44.7 | OAL (mm): 92.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0370HGS3DC (mm): 3.7 | L/D: 3 | LU (mm): 17.8 | LCF (mm): 23.3 | OAL (mm): 72.8 | PL (mm): 0.8 | DCON (mm): 4.0 | Stock: Yes
MDW0370HGS5DC (mm): 3.7 | L/D: 5 | LU (mm): 31.3 | LCF (mm): 36.8 | OAL (mm): 86.8 | PL (mm): 0.8 | DCON (mm): 4.0 | Stock: Yes
MDW0370HGS8DC (mm): 3.7 | L/D: 8 | LU (mm): 39.3 | LCF (mm): 44.8 | OAL (mm): 92.8 | PL (mm): 0.8 | DCON (mm): 4.0 | Stock: Yes
MDW0380HGS3DC (mm): 3.8 | L/D: 3 | LU (mm): 17.6 | LCF (mm): 23.3 | OAL (mm): 72.8 | PL (mm): 0.8 | DCON (mm): 4.0 | Stock: Yes
MDW0380HGS5DC (mm): 3.8 | L/D: 5 | LU (mm): 31.1 | LCF (mm): 36.8 | OAL (mm): 86.8 | PL (mm): 0.8 | DCON (mm): 4.0 | Stock: Yes
MDW0380HGS8DC (mm): 3.8 | L/D: 8 | LU (mm): 39.1 | LCF (mm): 44.8 | OAL (mm): 92.8 | PL (mm): 0.8 | DCON (mm): 4.0 | Stock: Yes
MDW0390HGS3DC (mm): 3.9 | L/D: 3 | LU (mm): 17.5 | LCF (mm): 23.3 | OAL (mm): 72.8 | PL (mm): 0.8 | DCON (mm): 4.0 | Stock: Yes
MDW0390HGS5DC (mm): 3.9 | L/D: 5 | LU (mm): 31.0 | LCF (mm): 36.8 | OAL (mm): 86.8 | PL (mm): 0.8 | DCON (mm): 4.0 | Stock: Yes
MDW0390HGS8DC (mm): 3.9 | L/D: 8 | LU (mm): 39.0 | LCF (mm): 44.8 | OAL (mm): 92.8 | PL (mm): 0.8 | DCON (mm): 4.0 | Stock: Yes
MDW0400HGS3DC (mm): 4.0 | L/D: 3 | LU (mm): 17.3 | LCF (mm): 23.3 | OAL (mm): 72.8 | PL (mm): 0.8 | DCON (mm): 4.0 | Stock: Yes
MDW0400HGS5DC (mm): 4.0 | L/D: 5 | LU (mm): 30.8 | LCF (mm): 36.8 | OAL (mm): 86.8 | PL (mm): 0.8 | DCON (mm): 4.0 | Stock: Yes
MDW0400HGS8DC (mm): 4.0 | L/D: 8 | LU (mm): 38.8 | LCF (mm): 44.8 | OAL (mm): 92.8 | PL (mm): 0.8 | DCON (mm): 4.0 | Stock: Yes
MDW0410HGS3DC (mm): 4.1 | L/D: 3 | LU (mm): 19.7 | LCF (mm): 25.8 | OAL (mm): 80.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDW0410HGS5DC (mm): 4.1 | L/D: 5 | LU (mm): 34.7 | LCF (mm): 40.8 | OAL (mm): 98.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDW0410HGS8DC (mm): 4.1 | L/D: 8 | LU (mm): 44.2 | LCF (mm): 50.3 | OAL (mm): 105.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDW0420HGS3DC (mm): 4.2 | L/D: 3 | LU (mm): 19.6 | LCF (mm): 25.9 | OAL (mm): 80.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0420HGS5DC (mm): 4.2 | L/D: 5 | LU (mm): 34.6 | LCF (mm): 40.9 | OAL (mm): 98.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0420HGS8DC (mm): 4.2 | L/D: 8 | LU (mm): 44.1 | LCF (mm): 50.4 | OAL (mm): 105.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0430HGS3DC (mm): 4.3 | L/D: 3 | LU (mm): 19.5 | LCF (mm): 25.9 | OAL (mm): 80.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0430HGS5DC (mm): 4.3 | L/D: 5 | LU (mm): 34.5 | LCF (mm): 40.9 | OAL (mm): 98.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0430HGS8DC (mm): 4.3 | L/D: 8 | LU (mm): 44.0 | LCF (mm): 50.4 | OAL (mm): 105.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0440HGS3DC (mm): 4.4 | L/D: 3 | LU (mm): 19.3 | LCF (mm): 25.9 | OAL (mm): 80.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0440HGS5DC (mm): 4.4 | L/D: 5 | LU (mm): 34.3 | LCF (mm): 40.9 | OAL (mm): 98.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0440HGS8DC (mm): 4.4 | L/D: 8 | LU (mm): 43.8 | LCF (mm): 50.4 | OAL (mm): 105.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0450HGS3DC (mm): 4.5 | L/D: 3 | LU (mm): 19.2 | LCF (mm): 25.9 | OAL (mm): 80.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0450HGS5DC (mm): 4.5 | L/D: 5 | LU (mm): 34.2 | LCF (mm): 40.9 | OAL (mm): 98.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0450HGS8DC (mm): 4.5 | L/D: 8 | LU (mm): 43.7 | LCF (mm): 50.4 | OAL (mm): 105.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0460HGS3DC (mm): 4.6 | L/D: 3 | LU (mm): 21.6 | LCF (mm): 28.5 | OAL (mm): 81.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Yes
MDW0460HGS5DC (mm): 4.6 | L/D: 5 | LU (mm): 38.1 | LCF (mm): 45.0 | OAL (mm): 99.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Yes
MDW0460HGS8DC (mm): 4.6 | L/D: 8 | LU (mm): 49.1 | LCF (mm): 56.0 | OAL (mm): 106.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Yes
MDW0470HGS3DC (mm): 4.7 | L/D: 3 | LU (mm): 21.5 | LCF (mm): 28.5 | OAL (mm): 81.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Yes
MDW0470HGS5DC (mm): 4.7 | L/D: 5 | LU (mm): 38.0 | LCF (mm): 45.0 | OAL (mm): 99.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Yes
MDW0470HGS8DC (mm): 4.7 | L/D: 8 | LU (mm): 49.0 | LCF (mm): 56.0 | OAL (mm): 106.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Yes
MDW0480HGS3DC (mm): 4.8 | L/D: 3 | LU (mm): 21.3 | LCF (mm): 28.5 | OAL (mm): 81.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Yes
MDW0480HGS5DC (mm): 4.8 | L/D: 5 | LU (mm): 37.8 | LCF (mm): 45.0 | OAL (mm): 99.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Yes
MDW0480HGS8DC (mm): 4.8 | L/D: 8 | LU (mm): 48.8 | LCF (mm): 56.0 | OAL (mm): 106.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Yes
MDW0490HGS3DC (mm): 4.9 | L/D: 3 | LU (mm): 21.2 | LCF (mm): 28.5 | OAL (mm): 81.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Yes
MDW0490HGS5DC (mm): 4.9 | L/D: 5 | LU (mm): 37.7 | LCF (mm): 45.0 | OAL (mm): 99.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Yes
MDW0490HGS8DC (mm): 4.9 | L/D: 8 | LU (mm): 48.7 | LCF (mm): 56.0 | OAL (mm): 106.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Yes
MDW0500HGS3DC (mm): 5.0 | L/D: 3 | LU (mm): 21.0 | LCF (mm): 28.5 | OAL (mm): 81.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Yes
MDW0500HGS5DC (mm): 5.0 | L/D: 5 | LU (mm): 37.5 | LCF (mm): 45.0 | OAL (mm): 99.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Yes
MDW0500HGS8DC (mm): 5.0 | L/D: 8 | LU (mm): 48.5 | LCF (mm): 56.0 | OAL (mm): 106.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Yes
MDW0510HGS3DC (mm): 5.1 | L/D: 3 | LU (mm): 21.0 | LCF (mm): 28.6 | OAL (mm): 83.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0510HGS5DC (mm): 5.1 | L/D: 5 | LU (mm): 37.5 | LCF (mm): 45.1 | OAL (mm): 101.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0510HGS8DC (mm): 5.1 | L/D: 8 | LU (mm): 54.0 | LCF (mm): 61.6 | OAL (mm): 119.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0520HGS3DC (mm): 5.2 | L/D: 3 | LU (mm): 20.8 | LCF (mm): 28.6 | OAL (mm): 83.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0520HGS5DC (mm): 5.2 | L/D: 5 | LU (mm): 37.3 | LCF (mm): 45.1 | OAL (mm): 101.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0520HGS8DC (mm): 5.2 | L/D: 8 | LU (mm): 53.8 | LCF (mm): 61.6 | OAL (mm): 119.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0530HGS3DC (mm): 5.3 | L/D: 3 | LU (mm): 20.7 | LCF (mm): 28.6 | OAL (mm): 83.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0530HGS5DC (mm): 5.3 | L/D: 5 | LU (mm): 37.2 | LCF (mm): 45.1 | OAL (mm): 101.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0530HGS8DC (mm): 5.3 | L/D: 8 | LU (mm): 53.7 | LCF (mm): 61.6 | OAL (mm): 119.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0540HGS3DC (mm): 5.4 | L/D: 3 | LU (mm): 20.5 | LCF (mm): 28.6 | OAL (mm): 83.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0540HGS5DC (mm): 5.4 | L/D: 5 | LU (mm): 37.0 | LCF (mm): 45.1 | OAL (mm): 101.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0540HGS8DC (mm): 5.4 | L/D: 8 | LU (mm): 53.5 | LCF (mm): 61.6 | OAL (mm): 119.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0550HGS3DC (mm): 5.5 | L/D: 3 | LU (mm): 20.4 | LCF (mm): 28.6 | OAL (mm): 83.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0550HGS5DC (mm): 5.5 | L/D: 5 | LU (mm): 36.9 | LCF (mm): 45.1 | OAL (mm): 101.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0550HGS8DC (mm): 5.5 | L/D: 8 | LU (mm): 53.4 | LCF (mm): 61.6 | OAL (mm): 119.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0560HGS3DC (mm): 5.6 | L/D: 3 | LU (mm): 22.8 | LCF (mm): 31.2 | OAL (mm): 83.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Yes
MDW0560HGS5DC (mm): 5.6 | L/D: 5 | LU (mm): 40.8 | LCF (mm): 49.2 | OAL (mm): 101.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Yes
MDW0560HGS8DC (mm): 5.6 | L/D: 8 | LU (mm): 58.8 | LCF (mm): 67.2 | OAL (mm): 119.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Yes
MDW0570HGS3DC (mm): 5.7 | L/D: 3 | LU (mm): 22.7 | LCF (mm): 31.2 | OAL (mm): 83.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Yes
MDW0570HGS5DC (mm): 5.7 | L/D: 5 | LU (mm): 40.7 | LCF (mm): 49.2 | OAL (mm): 101.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Yes
MDW0570HGS8DC (mm): 5.7 | L/D: 8 | LU (mm): 58.7 | LCF (mm): 67.2 | OAL (mm): 119.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Yes
MDW0580HGS3DC (mm): 5.8 | L/D: 3 | LU (mm): 22.5 | LCF (mm): 31.2 | OAL (mm): 83.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Yes
MDW0580HGS5DC (mm): 5.8 | L/D: 5 | LU (mm): 40.5 | LCF (mm): 49.2 | OAL (mm): 101.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Yes
MDW0580HGS8DC (mm): 5.8 | L/D: 8 | LU (mm): 58.5 | LCF (mm): 67.2 | OAL (mm): 119.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Yes
MDW0590HGS3DC (mm): 5.9 | L/D: 3 | LU (mm): 22.4 | LCF (mm): 31.2 | OAL (mm): 83.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Yes
MDW0590HGS5DC (mm): 5.9 | L/D: 5 | LU (mm): 40.4 | LCF (mm): 49.2 | OAL (mm): 101.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Yes
MDW0590HGS8DC (mm): 5.9 | L/D: 8 | LU (mm): 58.4 | LCF (mm): 67.2 | OAL (mm): 119.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Yes
MDW0600HGS3DC (mm): 6.0 | L/D: 3 | LU (mm): 22.2 | LCF (mm): 31.2 | OAL (mm): 83.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Yes
MDW0600HGS5DC (mm): 6.0 | L/D: 5 | LU (mm): 40.2 | LCF (mm): 49.2 | OAL (mm): 101.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Yes
MDW0600HGS8DC (mm): 6.0 | L/D: 8 | LU (mm): 58.2 | LCF (mm): 67.2 | OAL (mm): 119.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Yes
MDW0610HGS3DC (mm): 6.1 | L/D: 3 | LU (mm): 24.7 | LCF (mm): 33.8 | OAL (mm): 89.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0610HGS5DC (mm): 6.1 | L/D: 5 | LU (mm): 44.2 | LCF (mm): 53.3 | OAL (mm): 110.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0610HGS8DC (mm): 6.1 | L/D: 8 | LU (mm): 63.7 | LCF (mm): 72.8 | OAL (mm): 131.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0620HGS3DC (mm): 6.2 | L/D: 3 | LU (mm): 24.5 | LCF (mm): 33.8 | OAL (mm): 89.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0620HGS5DC (mm): 6.2 | L/D: 5 | LU (mm): 44.0 | LCF (mm): 53.3 | OAL (mm): 110.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0620HGS8DC (mm): 6.2 | L/D: 8 | LU (mm): 63.5 | LCF (mm): 72.8 | OAL (mm): 131.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0630HGS3DC (mm): 6.3 | L/D: 3 | LU (mm): 24.4 | LCF (mm): 33.8 | OAL (mm): 89.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0630HGS5DC (mm): 6.3 | L/D: 5 | LU (mm): 43.9 | LCF (mm): 53.3 | OAL (mm): 110.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0630HGS8DC (mm): 6.3 | L/D: 8 | LU (mm): 63.4 | LCF (mm): 72.8 | OAL (mm): 131.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0640HGS3DC (mm): 6.4 | L/D: 3 | LU (mm): 24.2 | LCF (mm): 33.8 | OAL (mm): 89.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0640HGS5DC (mm): 6.4 | L/D: 5 | LU (mm): 43.7 | LCF (mm): 53.3 | OAL (mm): 110.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0640HGS8DC (mm): 6.4 | L/D: 8 | LU (mm): 63.2 | LCF (mm): 72.8 | OAL (mm): 131.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0650HGS3DC (mm): 6.5 | L/D: 3 | LU (mm): 24.1 | LCF (mm): 33.8 | OAL (mm): 89.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0650HGS5DC (mm): 6.5 | L/D: 5 | LU (mm): 43.6 | LCF (mm): 53.3 | OAL (mm): 110.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0650HGS8DC (mm): 6.5 | L/D: 8 | LU (mm): 63.1 | LCF (mm): 72.8 | OAL (mm): 131.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0660HGS3DC (mm): 6.6 | L/D: 3 | LU (mm): 26.5 | LCF (mm): 36.4 | OAL (mm): 89.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Yes
MDW0660HGS5DC (mm): 6.6 | L/D: 5 | LU (mm): 47.5 | LCF (mm): 57.4 | OAL (mm): 110.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Yes
MDW0660HGS8DC (mm): 6.6 | L/D: 8 | LU (mm): 68.5 | LCF (mm): 78.4 | OAL (mm): 131.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Yes
MDW0670HGS3DC (mm): 6.7 | L/D: 3 | LU (mm): 26.4 | LCF (mm): 36.4 | OAL (mm): 89.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Yes
MDW0670HGS5DC (mm): 6.7 | L/D: 5 | LU (mm): 47.4 | LCF (mm): 57.4 | OAL (mm): 110.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Yes
MDW0670HGS8DC (mm): 6.7 | L/D: 8 | LU (mm): 68.4 | LCF (mm): 78.4 | OAL (mm): 131.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Yes
MDW0680HGS3DC (mm): 6.8 | L/D: 3 | LU (mm): 26.2 | LCF (mm): 36.4 | OAL (mm): 89.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Yes
MDW0680HGS5DC (mm): 6.8 | L/D: 5 | LU (mm): 47.2 | LCF (mm): 57.4 | OAL (mm): 110.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Yes
MDW0680HGS8DC (mm): 6.8 | L/D: 8 | LU (mm): 68.2 | LCF (mm): 78.4 | OAL (mm): 131.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Yes
MDW0690HGS3DC (mm): 6.9 | L/D: 3 | LU (mm): 26.1 | LCF (mm): 36.4 | OAL (mm): 89.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Yes
MDW0690HGS5DC (mm): 6.9 | L/D: 5 | LU (mm): 47.1 | LCF (mm): 57.4 | OAL (mm): 110.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Yes
MDW0690HGS8DC (mm): 6.9 | L/D: 8 | LU (mm): 68.1 | LCF (mm): 78.4 | OAL (mm): 131.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Yes
MDW0700HGS3DC (mm): 7.0 | L/D: 3 | LU (mm): 25.9 | LCF (mm): 36.4 | OAL (mm): 89.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Yes
MDW0700HGS5DC (mm): 7.0 | L/D: 5 | LU (mm): 46.9 | LCF (mm): 57.4 | OAL (mm): 110.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Yes
MDW0700HGS8DC (mm): 7.0 | L/D: 8 | LU (mm): 67.9 | LCF (mm): 78.4 | OAL (mm): 131.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Yes
MDW0710HGS3DC (mm): 7.1 | L/D: 3 | LU (mm): 28.4 | LCF (mm): 39.0 | OAL (mm): 95.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDW0710HGS5DC (mm): 7.1 | L/D: 5 | LU (mm): 50.9 | LCF (mm): 61.5 | OAL (mm): 119.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDW0710HGS8DC (mm): 7.1 | L/D: 8 | LU (mm): 73.4 | LCF (mm): 84.0 | OAL (mm): 143.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDW0720HGS3DC (mm): 7.2 | L/D: 3 | LU (mm): 28.2 | LCF (mm): 39.0 | OAL (mm): 95.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDW0720HGS5DC (mm): 7.2 | L/D: 5 | LU (mm): 50.7 | LCF (mm): 61.5 | OAL (mm): 119.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDW0720HGS8DC (mm): 7.2 | L/D: 8 | LU (mm): 73.2 | LCF (mm): 84.0 | OAL (mm): 143.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDW0730HGS3DC (mm): 7.3 | L/D: 3 | LU (mm): 28.1 | LCF (mm): 39.0 | OAL (mm): 95.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDW0730HGS5DC (mm): 7.3 | L/D: 5 | LU (mm): 50.6 | LCF (mm): 61.5 | OAL (mm): 119.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDW0730HGS8DC (mm): 7.3 | L/D: 8 | LU (mm): 73.1 | LCF (mm): 84.0 | OAL (mm): 143.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDW0740HGS3DC (mm): 7.4 | L/D: 3 | LU (mm): 27.9 | LCF (mm): 39.0 | OAL (mm): 95.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDW0740HGS5DC (mm): 7.4 | L/D: 5 | LU (mm): 50.4 | LCF (mm): 61.5 | OAL (mm): 119.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDW0740HGS8DC (mm): 7.4 | L/D: 8 | LU (mm): 72.9 | LCF (mm): 84.0 | OAL (mm): 143.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDW0750HGS3DC (mm): 7.5 | L/D: 3 | LU (mm): 27.9 | LCF (mm): 39.1 | OAL (mm): 95.6 | PL (mm): 1.6 | DCON (mm): 8.0 | Stock: Yes
MDW0750HGS5DC (mm): 7.5 | L/D: 5 | LU (mm): 50.4 | LCF (mm): 61.6 | OAL (mm): 119.6 | PL (mm): 1.6 | DCON (mm): 8.0 | Stock: Yes
MDW0750HGS8DC (mm): 7.5 | L/D: 8 | LU (mm): 72.9 | LCF (mm): 84.1 | OAL (mm): 143.6 | PL (mm): 1.6 | DCON (mm): 8.0 | Stock: Yes
MDW0760HGS3DC (mm): 7.6 | L/D: 3 | LU (mm): 30.2 | LCF (mm): 41.6 | OAL (mm): 95.6 | PL (mm): 1.6 | DCON (mm): 8.0 | Stock: Yes
MDW0760HGS5DC (mm): 7.6 | L/D: 5 | LU (mm): 54.2 | LCF (mm): 65.6 | OAL (mm): 119.6 | PL (mm): 1.6 | DCON (mm): 8.0 | Stock: Yes
MDW0760HGS8DC (mm): 7.6 | L/D: 8 | LU (mm): 78.2 | LCF (mm): 89.6 | OAL (mm): 143.6 | PL (mm): 1.6 | DCON (mm): 8.0 | Stock: Yes
MDW0770HGS3DC (mm): 7.7 | L/D: 3 | LU (mm): 30.1 | LCF (mm): 41.6 | OAL (mm): 95.6 | PL (mm): 1.6 | DCON (mm): 8.0 | Stock: Yes
MDW0770HGS5DC (mm): 7.7 | L/D: 5 | LU (mm): 54.1 | LCF (mm): 65.6 | OAL (mm): 119.6 | PL (mm): 1.6 | DCON (mm): 8.0 | Stock: Yes
MDW0770HGS8DC (mm): 7.7 | L/D: 8 | LU (mm): 78.1 | LCF (mm): 89.6 | OAL (mm): 143.6 | PL (mm): 1.6 | DCON (mm): 8.0 | Stock: Yes
MDW0780HGS3DC (mm): 7.8 | L/D: 3 | LU (mm): 29.9 | LCF (mm): 41.6 | OAL (mm): 95.6 | PL (mm): 1.6 | DCON (mm): 8.0 | Stock: Yes
MDW0780HGS5DC (mm): 7.8 | L/D: 5 | LU (mm): 53.9 | LCF (mm): 65.6 | OAL (mm): 119.6 | PL (mm): 1.6 | DCON (mm): 8.0 | Stock: Yes
MDW0780HGS8DC (mm): 7.8 | L/D: 8 | LU (mm): 77.9 | LCF (mm): 89.6 | OAL (mm): 143.6 | PL (mm): 1.6 | DCON (mm): 8.0 | Stock: Yes
MDW0790HGS3DC (mm): 7.9 | L/D: 3 | LU (mm): 29.8 | LCF (mm): 41.6 | OAL (mm): 95.6 | PL (mm): 1.6 | DCON (mm): 8.0 | Stock: Yes
MDW0790HGS5DC (mm): 7.9 | L/D: 5 | LU (mm): 53.8 | LCF (mm): 65.6 | OAL (mm): 119.6 | PL (mm): 1.6 | DCON (mm): 8.0 | Stock: Yes
MDW0790HGS8DC (mm): 7.9 | L/D: 8 | LU (mm): 77.8 | LCF (mm): 89.6 | OAL (mm): 143.6 | PL (mm): 1.6 | DCON (mm): 8.0 | Stock: Yes
MDW0800HGS3DC (mm): 8.0 | L/D: 3 | LU (mm): 29.7 | LCF (mm): 41.7 | OAL (mm): 95.7 | PL (mm): 1.7 | DCON (mm): 8.0 | Stock: Yes
MDW0800HGS5DC (mm): 8.0 | L/D: 5 | LU (mm): 53.7 | LCF (mm): 65.7 | OAL (mm): 119.7 | PL (mm): 1.7 | DCON (mm): 8.0 | Stock: Yes
MDW0800HGS8DC (mm): 8.0 | L/D: 8 | LU (mm): 77.7 | LCF (mm): 89.7 | OAL (mm): 143.7 | PL (mm): 1.7 | DCON (mm): 8.0 | Stock: Yes
MDW0810HGS3DC (mm): 8.1 | L/D: 3 | LU (mm): 32.1 | LCF (mm): 44.2 | OAL (mm): 101.7 | PL (mm): 1.7 | DCON (mm): 9.0 | Stock: Yes
MDW0810HGS5DC (mm): 8.1 | L/D: 5 | LU (mm): 57.6 | LCF (mm): 69.7 | OAL (mm): 128.7 | PL (mm): 1.7 | DCON (mm): 9.0 | Stock: Yes
MDW0810HGS8DC (mm): 8.1 | L/D: 8 | LU (mm): 83.1 | LCF (mm): 95.2 | OAL (mm): 155.7 | PL (mm): 1.7 | DCON (mm): 9.0 | Stock: Yes
MDW0820HGS3DC (mm): 8.2 | L/D: 3 | LU (mm): 31.9 | LCF (mm): 44.2 | OAL (mm): 101.7 | PL (mm): 1.7 | DCON (mm): 9.0 | Stock: Yes
MDW0820HGS5DC (mm): 8.2 | L/D: 5 | LU (mm): 57.4 | LCF (mm): 69.7 | OAL (mm): 128.7 | PL (mm): 1.7 | DCON (mm): 9.0 | Stock: Yes
MDW0820HGS8DC (mm): 8.2 | L/D: 8 | LU (mm): 82.9 | LCF (mm): 95.2 | OAL (mm): 155.7 | PL (mm): 1.7 | DCON (mm): 9.0 | Stock: Yes
MDW0830HGS3DC (mm): 8.3 | L/D: 3 | LU (mm): 31.8 | LCF (mm): 44.2 | OAL (mm): 101.7 | PL (mm): 1.7 | DCON (mm): 9.0 | Stock: Yes
MDW0830HGS5DC (mm): 8.3 | L/D: 5 | LU (mm): 57.3 | LCF (mm): 69.7 | OAL (mm): 128.7 | PL (mm): 1.7 | DCON (mm): 9.0 | Stock: Yes
MDW0830HGS8DC (mm): 8.3 | L/D: 8 | LU (mm): 82.8 | LCF (mm): 95.2 | OAL (mm): 155.7 | PL (mm): 1.7 | DCON (mm): 9.0 | Stock: Yes
MDW0840HGS3DC (mm): 8.4 | L/D: 3 | LU (mm): 31.6 | LCF (mm): 44.2 | OAL (mm): 101.7 | PL (mm): 1.7 | DCON (mm): 9.0 | Stock: Yes
MDW0840HGS5DC (mm): 8.4 | L/D: 5 | LU (mm): 57.1 | LCF (mm): 69.7 | OAL (mm): 128.7 | PL (mm): 1.7 | DCON (mm): 9.0 | Stock: Yes
MDW0840HGS8DC (mm): 8.4 | L/D: 8 | LU (mm): 82.6 | LCF (mm): 95.2 | OAL (mm): 155.7 | PL (mm): 1.7 | DCON (mm): 9.0 | Stock: Yes
MDW0850HGS3DC (mm): 8.5 | L/D: 3 | LU (mm): 31.6 | LCF (mm): 44.3 | OAL (mm): 101.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Yes
MDW0850HGS5DC (mm): 8.5 | L/D: 5 | LU (mm): 57.1 | LCF (mm): 69.8 | OAL (mm): 128.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Yes
MDW0850HGS8DC (mm): 8.5 | L/D: 8 | LU (mm): 82.6 | LCF (mm): 95.3 | OAL (mm): 155.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Yes
MDW0860HGS3DC (mm): 8.6 | L/D: 3 | LU (mm): 33.9 | LCF (mm): 46.8 | OAL (mm): 101.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Yes
MDW0860HGS5DC (mm): 8.6 | L/D: 5 | LU (mm): 60.9 | LCF (mm): 73.8 | OAL (mm): 128.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Yes
MDW0860HGS8DC (mm): 8.6 | L/D: 8 | LU (mm): 87.9 | LCF (mm): 100.8 | OAL (mm): 155.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Yes
MDW0870HGS3DC (mm): 8.7 | L/D: 3 | LU (mm): 33.8 | LCF (mm): 46.8 | OAL (mm): 101.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Yes
MDW0870HGS5DC (mm): 8.7 | L/D: 5 | LU (mm): 60.8 | LCF (mm): 73.8 | OAL (mm): 128.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Yes
MDW0870HGS8DC (mm): 8.7 | L/D: 8 | LU (mm): 87.8 | LCF (mm): 100.8 | OAL (mm): 155.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Yes
MDW0880HGS3DC (mm): 8.8 | L/D: 3 | LU (mm): 33.6 | LCF (mm): 46.8 | OAL (mm): 101.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Yes
MDW0880HGS5DC (mm): 8.8 | L/D: 5 | LU (mm): 60.6 | LCF (mm): 73.8 | OAL (mm): 128.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Yes
MDW0880HGS8DC (mm): 8.8 | L/D: 8 | LU (mm): 87.6 | LCF (mm): 100.8 | OAL (mm): 155.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Yes
MDW0890HGS3DC (mm): 8.9 | L/D: 3 | LU (mm): 33.5 | LCF (mm): 46.8 | OAL (mm): 101.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Yes
MDW0890HGS5DC (mm): 8.9 | L/D: 5 | LU (mm): 60.5 | LCF (mm): 73.8 | OAL (mm): 128.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Yes
MDW0890HGS8DC (mm): 8.9 | L/D: 8 | LU (mm): 87.5 | LCF (mm): 100.8 | OAL (mm): 155.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Yes
MDW0900HGS3DC (mm): 9.0 | L/D: 3 | LU (mm): 33.4 | LCF (mm): 46.9 | OAL (mm): 101.9 | PL (mm): 1.9 | DCON (mm): 9.0 | Stock: Yes
MDW0900HGS5DC (mm): 9.0 | L/D: 5 | LU (mm): 60.4 | LCF (mm): 73.9 | OAL (mm): 128.9 | PL (mm): 1.9 | DCON (mm): 9.0 | Stock: Yes
MDW0900HGS8DC (mm): 9.0 | L/D: 8 | LU (mm): 87.4 | LCF (mm): 100.9 | OAL (mm): 155.9 | PL (mm): 1.9 | DCON (mm): 9.0 | Stock: Yes
MDW0910HGS3DC (mm): 9.1 | L/D: 3 | LU (mm): 35.8 | LCF (mm): 49.4 | OAL (mm): 107.9 | PL (mm): 1.9 | DCON (mm): 10.0 | Stock: Yes
MDW0910HGS5DC (mm): 9.1 | L/D: 5 | LU (mm): 64.3 | LCF (mm): 77.9 | OAL (mm): 137.9 | PL (mm): 1.9 | DCON (mm): 10.0 | Stock: Yes
MDW0910HGS8DC (mm): 9.1 | L/D: 8 | LU (mm): 92.8 | LCF (mm): 106.4 | OAL (mm): 167.9 | PL (mm): 1.9 | DCON (mm): 10.0 | Stock: Yes
MDW0920HGS3DC (mm): 9.2 | L/D: 3 | LU (mm): 35.6 | LCF (mm): 49.4 | OAL (mm): 107.9 | PL (mm): 1.9 | DCON (mm): 10.0 | Stock: Yes
MDW0920HGS5DC (mm): 9.2 | L/D: 5 | LU (mm): 64.1 | LCF (mm): 77.9 | OAL (mm): 137.9 | PL (mm): 1.9 | DCON (mm): 10.0 | Stock: Yes
MDW0920HGS8DC (mm): 9.2 | L/D: 8 | LU (mm): 92.6 | LCF (mm): 106.4 | OAL (mm): 167.9 | PL (mm): 1.9 | DCON (mm): 10.0 | Stock: Yes
MDW0930HGS3DC (mm): 9.3 | L/D: 3 | LU (mm): 35.5 | LCF (mm): 49.4 | OAL (mm): 107.9 | PL (mm): 1.9 | DCON (mm): 10.0 | Stock: Yes
MDW0930HGS5DC (mm): 9.3 | L/D: 5 | LU (mm): 64.0 | LCF (mm): 77.9 | OAL (mm): 137.9 | PL (mm): 1.9 | DCON (mm): 10.0 | Stock: Yes
MDW0930HGS8DC (mm): 9.3 | L/D: 8 | LU (mm): 92.5 | LCF (mm): 106.4 | OAL (mm): 167.9 | PL (mm): 1.9 | DCON (mm): 10.0 | Stock: Yes
MDW0940HGS3DC (mm): 9.4 | L/D: 3 | LU (mm): 35.3 | LCF (mm): 49.4 | OAL (mm): 107.9 | PL (mm): 1.9 | DCON (mm): 10.0 | Stock: Yes
MDW0940HGS5DC (mm): 9.4 | L/D: 5 | LU (mm): 63.8 | LCF (mm): 77.9 | OAL (mm): 137.9 | PL (mm): 1.9 | DCON (mm): 10.0 | Stock: Yes
MDW0940HGS8DC (mm): 9.4 | L/D: 8 | LU (mm): 92.3 | LCF (mm): 106.4 | OAL (mm): 167.9 | PL (mm): 1.9 | DCON (mm): 10.0 | Stock: Yes
MDW0950HGS3DC (mm): 9.5 | L/D: 3 | LU (mm): 35.3 | LCF (mm): 49.5 | OAL (mm): 108.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Yes
MDW0950HGS5DC (mm): 9.5 | L/D: 5 | LU (mm): 63.8 | LCF (mm): 78.0 | OAL (mm): 138.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Yes
MDW0950HGS8DC (mm): 9.5 | L/D: 8 | LU (mm): 92.3 | LCF (mm): 106.5 | OAL (mm): 168.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Yes
MDW0960HGS3DC (mm): 9.6 | L/D: 3 | LU (mm): 37.6 | LCF (mm): 52.0 | OAL (mm): 108.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Yes
MDW0960HGS5DC (mm): 9.6 | L/D: 5 | LU (mm): 67.6 | LCF (mm): 82.0 | OAL (mm): 138.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Yes
MDW0960HGS8DC (mm): 9.6 | L/D: 8 | LU (mm): 97.6 | LCF (mm): 112.0 | OAL (mm): 168.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Yes
MDW0970HGS3DC (mm): 9.7 | L/D: 3 | LU (mm): 37.5 | LCF (mm): 52.0 | OAL (mm): 108.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Yes
MDW0970HGS5DC (mm): 9.7 | L/D: 5 | LU (mm): 67.5 | LCF (mm): 82.0 | OAL (mm): 138.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Yes
MDW0970HGS8DC (mm): 9.7 | L/D: 8 | LU (mm): 97.5 | LCF (mm): 112.0 | OAL (mm): 168.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Yes
MDW0980HGS3DC (mm): 9.8 | L/D: 3 | LU (mm): 37.3 | LCF (mm): 52.0 | OAL (mm): 108.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Yes
MDW0980HGS5DC (mm): 9.8 | L/D: 5 | LU (mm): 67.3 | LCF (mm): 82.0 | OAL (mm): 138.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Yes
MDW0980HGS8DC (mm): 9.8 | L/D: 8 | LU (mm): 97.3 | LCF (mm): 112.0 | OAL (mm): 168.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Yes
MDW0990HGS3DC (mm): 9.9 | L/D: 3 | LU (mm): 37.2 | LCF (mm): 52.0 | OAL (mm): 108.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Yes
MDW0990HGS5DC (mm): 9.9 | L/D: 5 | LU (mm): 67.2 | LCF (mm): 82.0 | OAL (mm): 138.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Yes
MDW0990HGS8DC (mm): 9.9 | L/D: 8 | LU (mm): 97.2 | LCF (mm): 112.0 | OAL (mm): 168.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Yes
MDW1000HGS3DC (mm): 10.0 | L/D: 3 | LU (mm): 37.1 | LCF (mm): 52.1 | OAL (mm): 108.1 | PL (mm): 2.1 | DCON (mm): 10.0 | Stock: Yes
MDW1000HGS5DC (mm): 10.0 | L/D: 5 | LU (mm): 67.1 | LCF (mm): 82.1 | OAL (mm): 138.1 | PL (mm): 2.1 | DCON (mm): 10.0 | Stock: Yes
MDW1000HGS8DC (mm): 10.0 | L/D: 8 | LU (mm): 97.1 | LCF (mm): 112.1 | OAL (mm): 168.1 | PL (mm): 2.1 | DCON (mm): 10.0 | Stock: Yes
MDW1010HGS3DC (mm): 10.1 | L/D: 3 | LU (mm): 39.5 | LCF (mm): 54.6 | OAL (mm): 118.1 | PL (mm): 2.1 | DCON (mm): 11.0 | Stock: Yes
MDW1010HGS5DC (mm): 10.1 | L/D: 5 | LU (mm): 71.0 | LCF (mm): 86.1 | OAL (mm): 151.1 | PL (mm): 2.1 | DCON (mm): 11.0 | Stock: Yes
MDW1010HGS8DC (mm): 10.1 | L/D: 8 | LU (mm): 102.5 | LCF (mm): 117.6 | OAL (mm): 184.1 | PL (mm): 2.1 | DCON (mm): 11.0 | Stock: Yes
MDW1020HGS3DC (mm): 10.2 | L/D: 3 | LU (mm): 39.3 | LCF (mm): 54.6 | OAL (mm): 118.1 | PL (mm): 2.1 | DCON (mm): 11.0 | Stock: Yes
MDW1020HGS5DC (mm): 10.2 | L/D: 5 | LU (mm): 70.8 | LCF (mm): 86.1 | OAL (mm): 151.1 | PL (mm): 2.1 | DCON (mm): 11.0 | Stock: Yes
MDW1020HGS8DC (mm): 10.2 | L/D: 8 | LU (mm): 102.3 | LCF (mm): 117.6 | OAL (mm): 184.1 | PL (mm): 2.1 | DCON (mm): 11.0 | Stock: Yes
MDW1030HGS3DC (mm): 10.3 | L/D: 3 | LU (mm): 39.2 | LCF (mm): 54.6 | OAL (mm): 118.1 | PL (mm): 2.1 | DCON (mm): 11.0 | Stock: Yes
MDW1030HGS5DC (mm): 10.3 | L/D: 5 | LU (mm): 70.7 | LCF (mm): 86.1 | OAL (mm): 151.1 | PL (mm): 2.1 | DCON (mm): 11.0 | Stock: Yes
MDW1030HGS8DC (mm): 10.3 | L/D: 8 | LU (mm): 102.2 | LCF (mm): 117.6 | OAL (mm): 184.1 | PL (mm): 2.1 | DCON (mm): 11.0 | Stock: Yes
MDW1040HGS3DC (mm): 10.4 | L/D: 3 | LU (mm): 39.1 | LCF (mm): 54.7 | OAL (mm): 118.2 | PL (mm): 2.2 | DCON (mm): 11.0 | Stock: Yes
MDW1040HGS5DC (mm): 10.4 | L/D: 5 | LU (mm): 70.6 | LCF (mm): 86.2 | OAL (mm): 151.2 | PL (mm): 2.2 | DCON (mm): 11.0 | Stock: Yes
MDW1040HGS8DC (mm): 10.4 | L/D: 8 | LU (mm): 102.1 | LCF (mm): 117.7 | OAL (mm): 184.2 | PL (mm): 2.2 | DCON (mm): 11.0 | Stock: Yes
MDW1050HGS3DC (mm): 10.5 | L/D: 3 | LU (mm): 39.0 | LCF (mm): 54.7 | OAL (mm): 118.2 | PL (mm): 2.2 | DCON (mm): 11.0 | Stock: Yes
MDW1050HGS5DC (mm): 10.5 | L/D: 5 | LU (mm): 70.5 | LCF (mm): 86.2 | OAL (mm): 151.2 | PL (mm): 2.2 | DCON (mm): 11.0 | Stock: Yes
MDW1050HGS8DC (mm): 10.5 | L/D: 8 | LU (mm): 102.0 | LCF (mm): 117.7 | OAL (mm): 184.2 | PL (mm): 2.2 | DCON (mm): 11.0 | Stock: Yes
MDW1060HGS3DC (mm): 10.6 | L/D: 3 | LU (mm): 41.3 | LCF (mm): 57.2 | OAL (mm): 118.2 | PL (mm): 2.2 | DCON (mm): 11.0 | Stock: Yes
MDW1060HGS5DC (mm): 10.6 | L/D: 5 | LU (mm): 74.3 | LCF (mm): 90.2 | OAL (mm): 151.2 | PL (mm): 2.2 | DCON (mm): 11.0 | Stock: Yes
MDW1060HGS8DC (mm): 10.6 | L/D: 8 | LU (mm): 107.3 | LCF (mm): 123.2 | OAL (mm): 184.2 | PL (mm): 2.2 | DCON (mm): 11.0 | Stock: Yes
MDW1070HGS3DC (mm): 10.7 | L/D: 3 | LU (mm): 41.2 | LCF (mm): 57.2 | OAL (mm): 118.2 | PL (mm): 2.2 | DCON (mm): 11.0 | Stock: Yes
MDW1070HGS5DC (mm): 10.7 | L/D: 5 | LU (mm): 74.2 | LCF (mm): 90.2 | OAL (mm): 151.2 | PL (mm): 2.2 | DCON (mm): 11.0 | Stock: Yes
MDW1070HGS8DC (mm): 10.7 | L/D: 8 | LU (mm): 107.2 | LCF (mm): 123.2 | OAL (mm): 184.2 | PL (mm): 2.2 | DCON (mm): 11.0 | Stock: Yes
MDW1080HGS3DC (mm): 10.8 | L/D: 3 | LU (mm): 41.0 | LCF (mm): 57.2 | OAL (mm): 118.2 | PL (mm): 2.2 | DCON (mm): 11.0 | Stock: Yes
MDW1080HGS5DC (mm): 10.8 | L/D: 5 | LU (mm): 74.0 | LCF (mm): 90.2 | OAL (mm): 151.2 | PL (mm): 2.2 | DCON (mm): 11.0 | Stock: Yes
MDW1080HGS8DC (mm): 10.8 | L/D: 8 | LU (mm): 107.0 | LCF (mm): 123.2 | OAL (mm): 184.2 | PL (mm): 2.2 | DCON (mm): 11.0 | Stock: Yes
MDW1090HGS3DC (mm): 10.9 | L/D: 3 | LU (mm): 41.0 | LCF (mm): 57.3 | OAL (mm): 118.3 | PL (mm): 2.3 | DCON (mm): 11.0 | Stock: Yes
MDW1090HGS5DC (mm): 10.9 | L/D: 5 | LU (mm): 74.0 | LCF (mm): 90.3 | OAL (mm): 151.3 | PL (mm): 2.3 | DCON (mm): 11.0 | Stock: Yes
MDW1090HGS8DC (mm): 10.9 | L/D: 8 | LU (mm): 107.0 | LCF (mm): 123.3 | OAL (mm): 184.3 | PL (mm): 2.3 | DCON (mm): 11.0 | Stock: Yes
MDW1100HGS3DC (mm): 11.0 | L/D: 3 | LU (mm): 40.8 | LCF (mm): 57.3 | OAL (mm): 118.3 | PL (mm): 2.3 | DCON (mm): 11.0 | Stock: Yes
MDW1100HGS5DC (mm): 11.0 | L/D: 5 | LU (mm): 73.8 | LCF (mm): 90.3 | OAL (mm): 151.3 | PL (mm): 2.3 | DCON (mm): 11.0 | Stock: Yes
MDW1100HGS8DC (mm): 11.0 | L/D: 8 | LU (mm): 106.8 | LCF (mm): 123.3 | OAL (mm): 184.3 | PL (mm): 2.3 | DCON (mm): 11.0 | Stock: Yes
MDW1110HGS3DC (mm): 11.1 | L/D: 3 | LU (mm): 43.2 | LCF (mm): 59.8 | OAL (mm): 124.3 | PL (mm): 2.3 | DCON (mm): 12.0 | Stock: Yes
MDW1110HGS5DC (mm): 11.1 | L/D: 5 | LU (mm): 77.7 | LCF (mm): 94.3 | OAL (mm): 160.3 | PL (mm): 2.3 | DCON (mm): 12.0 | Stock: Yes
MDW1110HGS8DC (mm): 11.1 | L/D: 8 | LU (mm): 112.2 | LCF (mm): 128.8 | OAL (mm): 196.3 | PL (mm): 2.3 | DCON (mm): 12.0 | Stock: Yes
MDW1120HGS3DC (mm): 11.2 | L/D: 3 | LU (mm): 43.0 | LCF (mm): 59.8 | OAL (mm): 124.3 | PL (mm): 2.3 | DCON (mm): 12.0 | Stock: Yes
MDW1120HGS5DC (mm): 11.2 | L/D: 5 | LU (mm): 77.5 | LCF (mm): 94.3 | OAL (mm): 160.3 | PL (mm): 2.3 | DCON (mm): 12.0 | Stock: Yes
MDW1120HGS8DC (mm): 11.2 | L/D: 8 | LU (mm): 112.0 | LCF (mm): 128.8 | OAL (mm): 196.3 | PL (mm): 2.3 | DCON (mm): 12.0 | Stock: Yes
MDW1130HGS3DC (mm): 11.3 | L/D: 3 | LU (mm): 42.9 | LCF (mm): 59.8 | OAL (mm): 124.3 | PL (mm): 2.3 | DCON (mm): 12.0 | Stock: Yes
MDW1130HGS5DC (mm): 11.3 | L/D: 5 | LU (mm): 77.4 | LCF (mm): 94.3 | OAL (mm): 160.3 | PL (mm): 2.3 | DCON (mm): 12.0 | Stock: Yes
MDW1130HGS8DC (mm): 11.3 | L/D: 8 | LU (mm): 111.9 | LCF (mm): 128.8 | OAL (mm): 196.3 | PL (mm): 2.3 | DCON (mm): 12.0 | Stock: Yes
MDW1140HGS3DC (mm): 11.4 | L/D: 3 | LU (mm): 42.8 | LCF (mm): 59.9 | OAL (mm): 124.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Yes
MDW1140HGS5DC (mm): 11.4 | L/D: 5 | LU (mm): 77.3 | LCF (mm): 94.4 | OAL (mm): 160.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Yes
MDW1140HGS8DC (mm): 11.4 | L/D: 8 | LU (mm): 111.8 | LCF (mm): 128.9 | OAL (mm): 196.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Yes
MDW1150HGS3DC (mm): 11.5 | L/D: 3 | LU (mm): 42.7 | LCF (mm): 59.9 | OAL (mm): 124.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Yes
MDW1150HGS5DC (mm): 11.5 | L/D: 5 | LU (mm): 77.2 | LCF (mm): 94.4 | OAL (mm): 160.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Yes
MDW1150HGS8DC (mm): 11.5 | L/D: 8 | LU (mm): 111.7 | LCF (mm): 128.9 | OAL (mm): 196.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Yes
MDW1160HGS3DC (mm): 11.6 | L/D: 3 | LU (mm): 45.0 | LCF (mm): 62.4 | OAL (mm): 124.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Yes
MDW1160HGS5DC (mm): 11.6 | L/D: 5 | LU (mm): 81.0 | LCF (mm): 98.4 | OAL (mm): 160.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Yes
MDW1160HGS8DC (mm): 11.6 | L/D: 8 | LU (mm): 117.0 | LCF (mm): 134.4 | OAL (mm): 196.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Yes
MDW1170HGS3DC (mm): 11.7 | L/D: 3 | LU (mm): 44.9 | LCF (mm): 62.4 | OAL (mm): 124.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Yes
MDW1170HGS5DC (mm): 11.7 | L/D: 5 | LU (mm): 80.9 | LCF (mm): 98.4 | OAL (mm): 160.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Yes
MDW1170HGS8DC (mm): 11.7 | L/D: 8 | LU (mm): 116.9 | LCF (mm): 134.4 | OAL (mm): 196.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Yes
MDW1180HGS3DC (mm): 11.8 | L/D: 3 | LU (mm): 44.7 | LCF (mm): 62.4 | OAL (mm): 124.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Yes
MDW1180HGS5DC (mm): 11.8 | L/D: 5 | LU (mm): 80.7 | LCF (mm): 98.4 | OAL (mm): 160.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Yes
MDW1180HGS8DC (mm): 11.8 | L/D: 8 | LU (mm): 116.7 | LCF (mm): 134.4 | OAL (mm): 196.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Yes
MDW1190HGS3DC (mm): 11.9 | L/D: 3 | LU (mm): 44.7 | LCF (mm): 62.5 | OAL (mm): 124.5 | PL (mm): 2.5 | DCON (mm): 12.0 | Stock: Yes
MDW1190HGS5DC (mm): 11.9 | L/D: 5 | LU (mm): 80.7 | LCF (mm): 98.5 | OAL (mm): 160.5 | PL (mm): 2.5 | DCON (mm): 12.0 | Stock: Yes
MDW1190HGS8DC (mm): 11.9 | L/D: 8 | LU (mm): 116.7 | LCF (mm): 134.5 | OAL (mm): 196.5 | PL (mm): 2.5 | DCON (mm): 12.0 | Stock: Yes
MDW1200HGS3DC (mm): 12.0 | L/D: 3 | LU (mm): 44.5 | LCF (mm): 62.5 | OAL (mm): 124.5 | PL (mm): 2.5 | DCON (mm): 12.0 | Stock: Yes
MDW1200HGS5DC (mm): 12.0 | L/D: 5 | LU (mm): 80.5 | LCF (mm): 98.5 | OAL (mm): 160.5 | PL (mm): 2.5 | DCON (mm): 12.0 | Stock: Yes
MDW1200HGS8DC (mm): 12.0 | L/D: 8 | LU (mm): 116.5 | LCF (mm): 134.5 | OAL (mm): 196.5 | PL (mm): 2.5 | DCON (mm): 12.0 | Stock: Yes
MDW1210HGS3DC (mm): 12.1 | L/D: 3 | LU (mm): 46.9 | LCF (mm): 65.0 | OAL (mm): 130.5 | PL (mm): 2.5 | DCON (mm): 13.0 | Stock: Yes
MDW1210HGS5DC (mm): 12.1 | L/D: 5 | LU (mm): 84.4 | LCF (mm): 102.5 | OAL (mm): 169.5 | PL (mm): 2.5 | DCON (mm): 13.0 | Stock: Yes
MDW1210HGS8DC (mm): 12.1 | L/D: 8 | LU (mm): 121.9 | LCF (mm): 140.0 | OAL (mm): 208.5 | PL (mm): 2.5 | DCON (mm): 13.0 | Stock: Made to order
MDW1220HGS3DC (mm): 12.2 | L/D: 3 | LU (mm): 46.7 | LCF (mm): 65.0 | OAL (mm): 130.5 | PL (mm): 2.5 | DCON (mm): 13.0 | Stock: Yes
MDW1220HGS5DC (mm): 12.2 | L/D: 5 | LU (mm): 84.2 | LCF (mm): 102.5 | OAL (mm): 169.5 | PL (mm): 2.5 | DCON (mm): 13.0 | Stock: Yes
MDW1220HGS8DC (mm): 12.2 | L/D: 8 | LU (mm): 121.7 | LCF (mm): 140.0 | OAL (mm): 208.5 | PL (mm): 2.5 | DCON (mm): 13.0 | Stock: Made to order
MDW1230HGS3DC (mm): 12.3 | L/D: 3 | LU (mm): 46.6 | LCF (mm): 65.0 | OAL (mm): 130.5 | PL (mm): 2.5 | DCON (mm): 13.0 | Stock: Yes
MDW1230HGS5DC (mm): 12.3 | L/D: 5 | LU (mm): 84.1 | LCF (mm): 102.5 | OAL (mm): 169.5 | PL (mm): 2.5 | DCON (mm): 13.0 | Stock: Yes
MDW1230HGS8DC (mm): 12.3 | L/D: 8 | LU (mm): 121.6 | LCF (mm): 140.0 | OAL (mm): 208.5 | PL (mm): 2.5 | DCON (mm): 13.0 | Stock: Made to order
MDW1240HGS3DC (mm): 12.4 | L/D: 3 | LU (mm): 46.5 | LCF (mm): 65.1 | OAL (mm): 130.6 | PL (mm): 2.6 | DCON (mm): 13.0 | Stock: Yes
MDW1240HGS5DC (mm): 12.4 | L/D: 5 | LU (mm): 84.0 | LCF (mm): 102.6 | OAL (mm): 169.6 | PL (mm): 2.6 | DCON (mm): 13.0 | Stock: Yes
MDW1240HGS8DC (mm): 12.4 | L/D: 8 | LU (mm): 121.5 | LCF (mm): 140.1 | OAL (mm): 208.6 | PL (mm): 2.6 | DCON (mm): 13.0 | Stock: Made to order
MDW1250HGS3DC (mm): 12.5 | L/D: 3 | LU (mm): 46.4 | LCF (mm): 65.1 | OAL (mm): 130.6 | PL (mm): 2.6 | DCON (mm): 13.0 | Stock: Yes
MDW1250HGS5DC (mm): 12.5 | L/D: 5 | LU (mm): 83.9 | LCF (mm): 102.6 | OAL (mm): 169.6 | PL (mm): 2.6 | DCON (mm): 13.0 | Stock: Yes
MDW1250HGS8DC (mm): 12.5 | L/D: 8 | LU (mm): 121.4 | LCF (mm): 140.1 | OAL (mm): 208.6 | PL (mm): 2.6 | DCON (mm): 13.0 | Stock: Yes
MDW1260HGS3DC (mm): 12.6 | L/D: 3 | LU (mm): 48.7 | LCF (mm): 67.6 | OAL (mm): 130.6 | PL (mm): 2.6 | DCON (mm): 13.0 | Stock: Yes
MDW1260HGS5DC (mm): 12.6 | L/D: 5 | LU (mm): 87.7 | LCF (mm): 106.6 | OAL (mm): 169.6 | PL (mm): 2.6 | DCON (mm): 13.0 | Stock: Yes
MDW1260HGS8DC (mm): 12.6 | L/D: 8 | LU (mm): 126.7 | LCF (mm): 145.6 | OAL (mm): 208.6 | PL (mm): 2.6 | DCON (mm): 13.0 | Stock: Made to order
MDW1270HGS3DC (mm): 12.7 | L/D: 3 | LU (mm): 48.6 | LCF (mm): 67.6 | OAL (mm): 130.6 | PL (mm): 2.6 | DCON (mm): 13.0 | Stock: Yes
MDW1270HGS5DC (mm): 12.7 | L/D: 5 | LU (mm): 87.6 | LCF (mm): 106.6 | OAL (mm): 169.6 | PL (mm): 2.6 | DCON (mm): 13.0 | Stock: Yes
MDW1270HGS8DC (mm): 12.7 | L/D: 8 | LU (mm): 126.6 | LCF (mm): 145.6 | OAL (mm): 208.6 | PL (mm): 2.6 | DCON (mm): 13.0 | Stock: Made to order
MDW1280HGS3DC (mm): 12.8 | L/D: 3 | LU (mm): 48.4 | LCF (mm): 67.6 | OAL (mm): 130.6 | PL (mm): 2.6 | DCON (mm): 13.0 | Stock: Yes
MDW1280HGS5DC (mm): 12.8 | L/D: 5 | LU (mm): 87.4 | LCF (mm): 106.6 | OAL (mm): 169.6 | PL (mm): 2.6 | DCON (mm): 13.0 | Stock: Yes
MDW1280HGS8DC (mm): 12.8 | L/D: 8 | LU (mm): 126.4 | LCF (mm): 145.6 | OAL (mm): 208.6 | PL (mm): 2.6 | DCON (mm): 13.0 | Stock: Made to order
MDW1290HGS3DC (mm): 12.9 | L/D: 3 | LU (mm): 48.4 | LCF (mm): 67.7 | OAL (mm): 130.7 | PL (mm): 2.7 | DCON (mm): 13.0 | Stock: Yes
MDW1290HGS5DC (mm): 12.9 | L/D: 5 | LU (mm): 87.4 | LCF (mm): 106.7 | OAL (mm): 169.7 | PL (mm): 2.7 | DCON (mm): 13.0 | Stock: Yes
MDW1290HGS8DC (mm): 12.9 | L/D: 8 | LU (mm): 126.4 | LCF (mm): 145.7 | OAL (mm): 208.7 | PL (mm): 2.7 | DCON (mm): 13.0 | Stock: Made to order
MDW1300HGS3DC (mm): 13.0 | L/D: 3 | LU (mm): 48.2 | LCF (mm): 67.7 | OAL (mm): 130.7 | PL (mm): 2.7 | DCON (mm): 13.0 | Stock: Yes
MDW1300HGS5DC (mm): 13.0 | L/D: 5 | LU (mm): 87.2 | LCF (mm): 106.7 | OAL (mm): 169.7 | PL (mm): 2.7 | DCON (mm): 13.0 | Stock: Yes
MDW1300HGS8DC (mm): 13.0 | L/D: 8 | LU (mm): 126.2 | LCF (mm): 145.7 | OAL (mm): 208.7 | PL (mm): 2.7 | DCON (mm): 13.0 | Stock: Yes
MDW1310HGS3DC (mm): 13.1 | L/D: 3 | LU (mm): 50.6 | LCF (mm): 70.2 | OAL (mm): 136.7 | PL (mm): 2.7 | DCON (mm): 14.0 | Stock: Yes
MDW1310HGS5DC (mm): 13.1 | L/D: 5 | LU (mm): 91.1 | LCF (mm): 110.7 | OAL (mm): 178.7 | PL (mm): 2.7 | DCON (mm): 14.0 | Stock: Yes
MDW1310HGS8DC (mm): 13.1 | L/D: 8 | LU (mm): 131.6 | LCF (mm): 151.2 | OAL (mm): 220.7 | PL (mm): 2.7 | DCON (mm): 14.0 | Stock: Made to order
MDW1320HGS3DC (mm): 13.2 | L/D: 3 | LU (mm): 50.4 | LCF (mm): 70.2 | OAL (mm): 136.7 | PL (mm): 2.7 | DCON (mm): 14.0 | Stock: Yes
MDW1320HGS5DC (mm): 13.2 | L/D: 5 | LU (mm): 90.9 | LCF (mm): 110.7 | OAL (mm): 178.7 | PL (mm): 2.7 | DCON (mm): 14.0 | Stock: Yes
MDW1320HGS8DC (mm): 13.2 | L/D: 8 | LU (mm): 131.4 | LCF (mm): 151.2 | OAL (mm): 220.7 | PL (mm): 2.7 | DCON (mm): 14.0 | Stock: Made to order
MDW1330HGS3DC (mm): 13.3 | L/D: 3 | LU (mm): 50.4 | LCF (mm): 70.3 | OAL (mm): 136.8 | PL (mm): 2.8 | DCON (mm): 14.0 | Stock: Yes
MDW1330HGS5DC (mm): 13.3 | L/D: 5 | LU (mm): 90.9 | LCF (mm): 110.8 | OAL (mm): 178.8 | PL (mm): 2.8 | DCON (mm): 14.0 | Stock: Yes
MDW1330HGS8DC (mm): 13.3 | L/D: 8 | LU (mm): 131.4 | LCF (mm): 151.3 | OAL (mm): 220.8 | PL (mm): 2.8 | DCON (mm): 14.0 | Stock: Made to order
MDW1340HGS3DC (mm): 13.4 | L/D: 3 | LU (mm): 50.2 | LCF (mm): 70.3 | OAL (mm): 136.8 | PL (mm): 2.8 | DCON (mm): 14.0 | Stock: Yes
MDW1340HGS5DC (mm): 13.4 | L/D: 5 | LU (mm): 90.7 | LCF (mm): 110.8 | OAL (mm): 178.8 | PL (mm): 2.8 | DCON (mm): 14.0 | Stock: Yes
MDW1340HGS8DC (mm): 13.4 | L/D: 8 | LU (mm): 131.2 | LCF (mm): 151.3 | OAL (mm): 220.8 | PL (mm): 2.8 | DCON (mm): 14.0 | Stock: Made to order
MDW1350HGS3DC (mm): 13.5 | L/D: 3 | LU (mm): 50.1 | LCF (mm): 70.3 | OAL (mm): 136.8 | PL (mm): 2.8 | DCON (mm): 14.0 | Stock: Yes
MDW1350HGS5DC (mm): 13.5 | L/D: 5 | LU (mm): 90.6 | LCF (mm): 110.8 | OAL (mm): 178.8 | PL (mm): 2.8 | DCON (mm): 14.0 | Stock: Yes
MDW1350HGS8DC (mm): 13.5 | L/D: 8 | LU (mm): 131.1 | LCF (mm): 151.3 | OAL (mm): 220.8 | PL (mm): 2.8 | DCON (mm): 14.0 | Stock: Yes
MDW1360HGS3DC (mm): 13.6 | L/D: 3 | LU (mm): 52.4 | LCF (mm): 72.8 | OAL (mm): 136.8 | PL (mm): 2.8 | DCON (mm): 14.0 | Stock: Yes
MDW1360HGS5DC (mm): 13.6 | L/D: 5 | LU (mm): 94.4 | LCF (mm): 114.8 | OAL (mm): 178.8 | PL (mm): 2.8 | DCON (mm): 14.0 | Stock: Yes
MDW1360HGS8DC (mm): 13.6 | L/D: 8 | LU (mm): 136.4 | LCF (mm): 156.8 | OAL (mm): 220.8 | PL (mm): 2.8 | DCON (mm): 14.0 | Stock: Made to order
MDW1370HGS3DC (mm): 13.7 | L/D: 3 | LU (mm): 52.3 | LCF (mm): 72.8 | OAL (mm): 136.8 | PL (mm): 2.8 | DCON (mm): 14.0 | Stock: Yes
MDW1370HGS5DC (mm): 13.7 | L/D: 5 | LU (mm): 94.3 | LCF (mm): 114.8 | OAL (mm): 178.8 | PL (mm): 2.8 | DCON (mm): 14.0 | Stock: Yes
MDW1370HGS8DC (mm): 13.7 | L/D: 8 | LU (mm): 136.3 | LCF (mm): 156.8 | OAL (mm): 220.8 | PL (mm): 2.8 | DCON (mm): 14.0 | Stock: Made to order
MDW1380HGS3DC (mm): 13.8 | L/D: 3 | LU (mm): 52.2 | LCF (mm): 72.9 | OAL (mm): 136.9 | PL (mm): 2.9 | DCON (mm): 14.0 | Stock: Yes
MDW1380HGS5DC (mm): 13.8 | L/D: 5 | LU (mm): 94.2 | LCF (mm): 114.9 | OAL (mm): 178.9 | PL (mm): 2.9 | DCON (mm): 14.0 | Stock: Yes
MDW1380HGS8DC (mm): 13.8 | L/D: 8 | LU (mm): 136.2 | LCF (mm): 156.9 | OAL (mm): 220.9 | PL (mm): 2.9 | DCON (mm): 14.0 | Stock: Made to order
MDW1390HGS3DC (mm): 13.9 | L/D: 3 | LU (mm): 52.1 | LCF (mm): 72.9 | OAL (mm): 136.9 | PL (mm): 2.9 | DCON (mm): 14.0 | Stock: Yes
MDW1390HGS5DC (mm): 13.9 | L/D: 5 | LU (mm): 94.1 | LCF (mm): 114.9 | OAL (mm): 178.9 | PL (mm): 2.9 | DCON (mm): 14.0 | Stock: Yes
MDW1390HGS8DC (mm): 13.9 | L/D: 8 | LU (mm): 136.1 | LCF (mm): 156.9 | OAL (mm): 220.9 | PL (mm): 2.9 | DCON (mm): 14.0 | Stock: Made to order
MDW1400HGS3DC (mm): 14.0 | L/D: 3 | LU (mm): 51.9 | LCF (mm): 72.9 | OAL (mm): 136.9 | PL (mm): 2.9 | DCON (mm): 14.0 | Stock: Yes
MDW1400HGS5DC (mm): 14.0 | L/D: 5 | LU (mm): 93.9 | LCF (mm): 114.9 | OAL (mm): 178.9 | PL (mm): 2.9 | DCON (mm): 14.0 | Stock: Yes
MDW1400HGS8DC (mm): 14.0 | L/D: 8 | LU (mm): 135.9 | LCF (mm): 156.9 | OAL (mm): 220.9 | PL (mm): 2.9 | DCON (mm): 14.0 | Stock: Yes
MDW1410HGS3DC (mm): 14.1 | L/D: 3 | LU (mm): 54.3 | LCF (mm): 75.4 | OAL (mm): 142.9 | PL (mm): 2.9 | DCON (mm): 15.0 | Stock: Yes
MDW1410HGS5DC (mm): 14.1 | L/D: 5 | LU (mm): 97.8 | LCF (mm): 118.9 | OAL (mm): 187.9 | PL (mm): 2.9 | DCON (mm): 15.0 | Stock: Yes
MDW1410HGS8DC (mm): 14.1 | L/D: 8 | LU (mm): 141.3 | LCF (mm): 162.4 | OAL (mm): 232.9 | PL (mm): 2.9 | DCON (mm): 15.0 | Stock: Made to order
MDW1420HGS3DC (mm): 14.2 | L/D: 3 | LU (mm): 54.1 | LCF (mm): 75.4 | OAL (mm): 142.9 | PL (mm): 2.9 | DCON (mm): 15.0 | Stock: Yes
MDW1420HGS5DC (mm): 14.2 | L/D: 5 | LU (mm): 97.6 | LCF (mm): 118.9 | OAL (mm): 187.9 | PL (mm): 2.9 | DCON (mm): 15.0 | Stock: Yes
MDW1420HGS8DC (mm): 14.2 | L/D: 8 | LU (mm): 141.1 | LCF (mm): 162.4 | OAL (mm): 232.9 | PL (mm): 2.9 | DCON (mm): 15.0 | Stock: Made to order
MDW1430HGS3DC (mm): 14.3 | L/D: 3 | LU (mm): 54.1 | LCF (mm): 75.5 | OAL (mm): 143.0 | PL (mm): 3.0 | DCON (mm): 15.0 | Stock: Yes
MDW1430HGS5DC (mm): 14.3 | L/D: 5 | LU (mm): 97.6 | LCF (mm): 119.0 | OAL (mm): 188.0 | PL (mm): 3.0 | DCON (mm): 15.0 | Stock: Yes
MDW1430HGS8DC (mm): 14.3 | L/D: 8 | LU (mm): 141.1 | LCF (mm): 162.5 | OAL (mm): 233.0 | PL (mm): 3.0 | DCON (mm): 15.0 | Stock: Made to order
MDW1440HGS3DC (mm): 14.4 | L/D: 3 | LU (mm): 53.9 | LCF (mm): 75.5 | OAL (mm): 143.0 | PL (mm): 3.0 | DCON (mm): 15.0 | Stock: Yes
MDW1440HGS5DC (mm): 14.4 | L/D: 5 | LU (mm): 97.4 | LCF (mm): 119.0 | OAL (mm): 188.0 | PL (mm): 3.0 | DCON (mm): 15.0 | Stock: Yes
MDW1440HGS8DC (mm): 14.4 | L/D: 8 | LU (mm): 140.9 | LCF (mm): 162.5 | OAL (mm): 233.0 | PL (mm): 3.0 | DCON (mm): 15.0 | Stock: Made to order
MDW1450HGS3DC (mm): 14.5 | L/D: 3 | LU (mm): 53.8 | LCF (mm): 75.5 | OAL (mm): 143.0 | PL (mm): 3.0 | DCON (mm): 15.0 | Stock: Yes
MDW1450HGS5DC (mm): 14.5 | L/D: 5 | LU (mm): 97.3 | LCF (mm): 119.0 | OAL (mm): 188.0 | PL (mm): 3.0 | DCON (mm): 15.0 | Stock: Yes
MDW1450HGS8DC (mm): 14.5 | L/D: 8 | LU (mm): 140.8 | LCF (mm): 162.5 | OAL (mm): 233.0 | PL (mm): 3.0 | DCON (mm): 15.0 | Stock: Yes
MDW1460HGS3DC (mm): 14.6 | L/D: 3 | LU (mm): 56.1 | LCF (mm): 78.0 | OAL (mm): 143.0 | PL (mm): 3.0 | DCON (mm): 15.0 | Stock: Yes
MDW1460HGS5DC (mm): 14.6 | L/D: 5 | LU (mm): 101.1 | LCF (mm): 123.0 | OAL (mm): 188.0 | PL (mm): 3.0 | DCON (mm): 15.0 | Stock: Yes
MDW1460HGS8DC (mm): 14.6 | L/D: 8 | LU (mm): 146.1 | LCF (mm): 168.0 | OAL (mm): 233.0 | PL (mm): 3.0 | DCON (mm): 15.0 | Stock: Made to order
MDW1470HGS3DC (mm): 14.7 | L/D: 3 | LU (mm): 56.0 | LCF (mm): 78.0 | OAL (mm): 143.0 | PL (mm): 3.0 | DCON (mm): 15.0 | Stock: Yes
MDW1470HGS5DC (mm): 14.7 | L/D: 5 | LU (mm): 101.0 | LCF (mm): 123.0 | OAL (mm): 188.0 | PL (mm): 3.0 | DCON (mm): 15.0 | Stock: Yes
MDW1470HGS8DC (mm): 14.7 | L/D: 8 | LU (mm): 146.0 | LCF (mm): 168.0 | OAL (mm): 233.0 | PL (mm): 3.0 | DCON (mm): 15.0 | Stock: Made to order
MDW1480HGS3DC (mm): 14.8 | L/D: 3 | LU (mm): 55.9 | LCF (mm): 78.1 | OAL (mm): 143.1 | PL (mm): 3.1 | DCON (mm): 15.0 | Stock: Yes
MDW1480HGS5DC (mm): 14.8 | L/D: 5 | LU (mm): 100.9 | LCF (mm): 123.1 | OAL (mm): 188.1 | PL (mm): 3.1 | DCON (mm): 15.0 | Stock: Yes
MDW1480HGS8DC (mm): 14.8 | L/D: 8 | LU (mm): 145.9 | LCF (mm): 168.1 | OAL (mm): 233.1 | PL (mm): 3.1 | DCON (mm): 15.0 | Stock: Made to order
MDW1490HGS3DC (mm): 14.9 | L/D: 3 | LU (mm): 55.8 | LCF (mm): 78.1 | OAL (mm): 143.1 | PL (mm): 3.1 | DCON (mm): 15.0 | Stock: Yes
MDW1490HGS5DC (mm): 14.9 | L/D: 5 | LU (mm): 100.8 | LCF (mm): 123.1 | OAL (mm): 188.1 | PL (mm): 3.1 | DCON (mm): 15.0 | Stock: Yes
MDW1490HGS8DC (mm): 14.9 | L/D: 8 | LU (mm): 145.8 | LCF (mm): 168.1 | OAL (mm): 233.1 | PL (mm): 3.1 | DCON (mm): 15.0 | Stock: Made to order
MDW1500HGS3DC (mm): 15.0 | L/D: 3 | LU (mm): 55.6 | LCF (mm): 78.1 | OAL (mm): 143.1 | PL (mm): 3.1 | DCON (mm): 15.0 | Stock: Yes
MDW1500HGS5DC (mm): 15.0 | L/D: 5 | LU (mm): 100.6 | LCF (mm): 123.1 | OAL (mm): 188.1 | PL (mm): 3.1 | DCON (mm): 15.0 | Stock: Yes
MDW1500HGS8DC (mm): 15.0 | L/D: 8 | LU (mm): 145.6 | LCF (mm): 168.1 | OAL (mm): 233.1 | PL (mm): 3.1 | DCON (mm): 15.0 | Stock: Yes
MDW1510HGS3DC (mm): 15.1 | L/D: 3 | LU (mm): 58.0 | LCF (mm): 80.6 | OAL (mm): 149.1 | PL (mm): 3.1 | DCON (mm): 16.0 | Stock: Yes
MDW1510HGS5DC (mm): 15.1 | L/D: 5 | LU (mm): 104.5 | LCF (mm): 127.1 | OAL (mm): 197.1 | PL (mm): 3.1 | DCON (mm): 16.0 | Stock: Yes
MDW1510HGS8DC (mm): 15.1 | L/D: 8 | LU (mm): 151.0 | LCF (mm): 173.6 | OAL (mm): 245.1 | PL (mm): 3.1 | DCON (mm): 16.0 | Stock: Made to order
MDW1520HGS3DC (mm): 15.2 | L/D: 3 | LU (mm): 57.8 | LCF (mm): 80.6 | OAL (mm): 149.1 | PL (mm): 3.1 | DCON (mm): 16.0 | Stock: Yes
MDW1520HGS5DC (mm): 15.2 | L/D: 5 | LU (mm): 104.3 | LCF (mm): 127.1 | OAL (mm): 197.1 | PL (mm): 3.1 | DCON (mm): 16.0 | Stock: Yes
MDW1520HGS8DC (mm): 15.2 | L/D: 8 | LU (mm): 150.8 | LCF (mm): 173.6 | OAL (mm): 245.1 | PL (mm): 3.1 | DCON (mm): 16.0 | Stock: Made to order
MDW1530HGS3DC (mm): 15.3 | L/D: 3 | LU (mm): 57.8 | LCF (mm): 80.7 | OAL (mm): 149.2 | PL (mm): 3.2 | DCON (mm): 16.0 | Stock: Yes
MDW1530HGS5DC (mm): 15.3 | L/D: 5 | LU (mm): 104.3 | LCF (mm): 127.2 | OAL (mm): 197.2 | PL (mm): 3.2 | DCON (mm): 16.0 | Stock: Yes
MDW1530HGS8DC (mm): 15.3 | L/D: 8 | LU (mm): 150.8 | LCF (mm): 173.7 | OAL (mm): 245.2 | PL (mm): 3.2 | DCON (mm): 16.0 | Stock: Made to order
MDW1540HGS3DC (mm): 15.4 | L/D: 3 | LU (mm): 57.6 | LCF (mm): 80.7 | OAL (mm): 149.2 | PL (mm): 3.2 | DCON (mm): 16.0 | Stock: Yes
MDW1540HGS5DC (mm): 15.4 | L/D: 5 | LU (mm): 104.1 | LCF (mm): 127.2 | OAL (mm): 197.2 | PL (mm): 3.2 | DCON (mm): 16.0 | Stock: Yes
MDW1540HGS8DC (mm): 15.4 | L/D: 8 | LU (mm): 150.6 | LCF (mm): 173.7 | OAL (mm): 245.2 | PL (mm): 3.2 | DCON (mm): 16.0 | Stock: Made to order
MDW1550HGS3DC (mm): 15.5 | L/D: 3 | LU (mm): 57.5 | LCF (mm): 80.7 | OAL (mm): 149.2 | PL (mm): 3.2 | DCON (mm): 16.0 | Stock: Yes
MDW1550HGS5DC (mm): 15.5 | L/D: 5 | LU (mm): 104.0 | LCF (mm): 127.2 | OAL (mm): 197.2 | PL (mm): 3.2 | DCON (mm): 16.0 | Stock: Yes
MDW1550HGS8DC (mm): 15.5 | L/D: 8 | LU (mm): 150.5 | LCF (mm): 173.7 | OAL (mm): 245.2 | PL (mm): 3.2 | DCON (mm): 16.0 | Stock: Yes
MDW1560HGS3DC (mm): 15.6 | L/D: 3 | LU (mm): 59.8 | LCF (mm): 83.2 | OAL (mm): 149.2 | PL (mm): 3.2 | DCON (mm): 16.0 | Stock: Yes
MDW1560HGS5DC (mm): 15.6 | L/D: 5 | LU (mm): 107.8 | LCF (mm): 131.2 | OAL (mm): 197.2 | PL (mm): 3.2 | DCON (mm): 16.0 | Stock: Yes
MDW1560HGS8DC (mm): 15.6 | L/D: 8 | LU (mm): 155.8 | LCF (mm): 179.2 | OAL (mm): 245.2 | PL (mm): 3.2 | DCON (mm): 16.0 | Stock: Made to order
MDW1570HGS3DC (mm): 15.7 | L/D: 3 | LU (mm): 59.7 | LCF (mm): 83.2 | OAL (mm): 149.2 | PL (mm): 3.2 | DCON (mm): 16.0 | Stock: Yes
MDW1570HGS5DC (mm): 15.7 | L/D: 5 | LU (mm): 107.7 | LCF (mm): 131.2 | OAL (mm): 197.2 | PL (mm): 3.2 | DCON (mm): 16.0 | Stock: Yes
MDW1570HGS8DC (mm): 15.7 | L/D: 8 | LU (mm): 155.7 | LCF (mm): 179.2 | OAL (mm): 245.2 | PL (mm): 3.2 | DCON (mm): 16.0 | Stock: Made to order
MDW1580HGS3DC (mm): 15.8 | L/D: 3 | LU (mm): 59.6 | LCF (mm): 83.3 | OAL (mm): 149.3 | PL (mm): 3.3 | DCON (mm): 16.0 | Stock: Yes
MDW1580HGS5DC (mm): 15.8 | L/D: 5 | LU (mm): 107.6 | LCF (mm): 131.3 | OAL (mm): 197.3 | PL (mm): 3.3 | DCON (mm): 16.0 | Stock: Yes
MDW1580HGS8DC (mm): 15.8 | L/D: 8 | LU (mm): 155.6 | LCF (mm): 179.3 | OAL (mm): 245.3 | PL (mm): 3.3 | DCON (mm): 16.0 | Stock: Made to order
MDW1590HGS3DC (mm): 15.9 | L/D: 3 | LU (mm): 59.5 | LCF (mm): 83.3 | OAL (mm): 149.3 | PL (mm): 3.3 | DCON (mm): 16.0 | Stock: Yes
MDW1590HGS5DC (mm): 15.9 | L/D: 5 | LU (mm): 107.5 | LCF (mm): 131.3 | OAL (mm): 197.3 | PL (mm): 3.3 | DCON (mm): 16.0 | Stock: Yes
MDW1590HGS8DC (mm): 15.9 | L/D: 8 | LU (mm): 155.5 | LCF (mm): 179.3 | OAL (mm): 245.3 | PL (mm): 3.3 | DCON (mm): 16.0 | Stock: Made to order
MDW1600HGS3DC (mm): 16.0 | L/D: 3 | LU (mm): 59.3 | LCF (mm): 83.3 | OAL (mm): 149.3 | PL (mm): 3.3 | DCON (mm): 16.0 | Stock: Yes
MDW1600HGS5DC (mm): 16.0 | L/D: 5 | LU (mm): 107.3 | LCF (mm): 131.3 | OAL (mm): 197.3 | PL (mm): 3.3 | DCON (mm): 16.0 | Stock: Yes
MDW1600HGS8DC (mm): 16.0 | L/D: 8 | LU (mm): 155.3 | LCF (mm): 179.3 | OAL (mm): 245.3 | PL (mm): 3.3 | DCON (mm): 16.0 | Stock: Yes
MDW1610HGS3DC (mm): 16.1 | L/D: 3 | LU (mm): 61.7 | LCF (mm): 85.8 | OAL (mm): 155.3 | PL (mm): 3.3 | DCON (mm): 17.0 | Stock: Made to order
MDW1610HGS5DC (mm): 16.1 | L/D: 5 | LU (mm): 111.2 | LCF (mm): 135.3 | OAL (mm): 206.3 | PL (mm): 3.3 | DCON (mm): 17.0 | Stock: Made to order
MDW1620HGS3DC (mm): 16.2 | L/D: 3 | LU (mm): 61.6 | LCF (mm): 85.9 | OAL (mm): 155.4 | PL (mm): 3.4 | DCON (mm): 17.0 | Stock: Made to order
MDW1620HGS5DC (mm): 16.2 | L/D: 5 | LU (mm): 111.1 | LCF (mm): 135.4 | OAL (mm): 206.4 | PL (mm): 3.4 | DCON (mm): 17.0 | Stock: Made to order
MDW1630HGS3DC (mm): 16.3 | L/D: 3 | LU (mm): 61.5 | LCF (mm): 85.9 | OAL (mm): 155.4 | PL (mm): 3.4 | DCON (mm): 17.0 | Stock: Made to order
MDW1630HGS5DC (mm): 16.3 | L/D: 5 | LU (mm): 111.0 | LCF (mm): 135.4 | OAL (mm): 206.4 | PL (mm): 3.4 | DCON (mm): 17.0 | Stock: Made to order
MDW1640HGS3DC (mm): 16.4 | L/D: 3 | LU (mm): 61.3 | LCF (mm): 85.9 | OAL (mm): 155.4 | PL (mm): 3.4 | DCON (mm): 17.0 | Stock: Made to order
MDW1640HGS5DC (mm): 16.4 | L/D: 5 | LU (mm): 110.8 | LCF (mm): 135.4 | OAL (mm): 206.4 | PL (mm): 3.4 | DCON (mm): 17.0 | Stock: Made to order
MDW1650HGS3DC (mm): 16.5 | L/D: 3 | LU (mm): 61.2 | LCF (mm): 85.9 | OAL (mm): 155.4 | PL (mm): 3.4 | DCON (mm): 17.0 | Stock: Yes
MDW1650HGS5DC (mm): 16.5 | L/D: 5 | LU (mm): 110.7 | LCF (mm): 135.4 | OAL (mm): 206.4 | PL (mm): 3.4 | DCON (mm): 17.0 | Stock: Yes
MDW1660HGS3DC (mm): 16.6 | L/D: 3 | LU (mm): 63.5 | LCF (mm): 88.4 | OAL (mm): 155.4 | PL (mm): 3.4 | DCON (mm): 17.0 | Stock: Made to order
MDW1660HGS5DC (mm): 16.6 | L/D: 5 | LU (mm): 114.5 | LCF (mm): 139.4 | OAL (mm): 206.4 | PL (mm): 3.4 | DCON (mm): 17.0 | Stock: Made to order
MDW1670HGS3DC (mm): 16.7 | L/D: 3 | LU (mm): 63.5 | LCF (mm): 88.5 | OAL (mm): 155.5 | PL (mm): 3.5 | DCON (mm): 17.0 | Stock: Made to order
MDW1670HGS5DC (mm): 16.7 | L/D: 5 | LU (mm): 114.5 | LCF (mm): 139.5 | OAL (mm): 206.5 | PL (mm): 3.5 | DCON (mm): 17.0 | Stock: Made to order
MDW1680HGS3DC (mm): 16.8 | L/D: 3 | LU (mm): 63.3 | LCF (mm): 88.5 | OAL (mm): 155.5 | PL (mm): 3.5 | DCON (mm): 17.0 | Stock: Made to order
MDW1680HGS5DC (mm): 16.8 | L/D: 5 | LU (mm): 114.3 | LCF (mm): 139.5 | OAL (mm): 206.5 | PL (mm): 3.5 | DCON (mm): 17.0 | Stock: Made to order
MDW1690HGS3DC (mm): 16.9 | L/D: 3 | LU (mm): 63.2 | LCF (mm): 88.5 | OAL (mm): 155.5 | PL (mm): 3.5 | DCON (mm): 17.0 | Stock: Made to order
MDW1690HGS5DC (mm): 16.9 | L/D: 5 | LU (mm): 114.2 | LCF (mm): 139.5 | OAL (mm): 206.5 | PL (mm): 3.5 | DCON (mm): 17.0 | Stock: Made to order
MDW1700HGS3DC (mm): 17.0 | L/D: 3 | LU (mm): 63.0 | LCF (mm): 88.5 | OAL (mm): 155.5 | PL (mm): 3.5 | DCON (mm): 17.0 | Stock: Yes
MDW1700HGS5DC (mm): 17.0 | L/D: 5 | LU (mm): 114.0 | LCF (mm): 139.5 | OAL (mm): 206.5 | PL (mm): 3.5 | DCON (mm): 17.0 | Stock: Yes
MDW1710HGS3DC (mm): 17.1 | L/D: 3 | LU (mm): 65.4 | LCF (mm): 91.0 | OAL (mm): 161.5 | PL (mm): 3.5 | DCON (mm): 18.0 | Stock: Made to order
MDW1710HGS5DC (mm): 17.1 | L/D: 5 | LU (mm): 117.9 | LCF (mm): 143.5 | OAL (mm): 217.5 | PL (mm): 3.5 | DCON (mm): 18.0 | Stock: Made to order
MDW1720HGS3DC (mm): 17.2 | L/D: 3 | LU (mm): 65.3 | LCF (mm): 91.1 | OAL (mm): 161.6 | PL (mm): 3.6 | DCON (mm): 18.0 | Stock: Made to order
MDW1720HGS5DC (mm): 17.2 | L/D: 5 | LU (mm): 117.8 | LCF (mm): 143.6 | OAL (mm): 217.6 | PL (mm): 3.6 | DCON (mm): 18.0 | Stock: Made to order
MDW1730HGS3DC (mm): 17.3 | L/D: 3 | LU (mm): 65.2 | LCF (mm): 91.1 | OAL (mm): 161.6 | PL (mm): 3.6 | DCON (mm): 18.0 | Stock: Made to order
MDW1730HGS5DC (mm): 17.3 | L/D: 5 | LU (mm): 117.7 | LCF (mm): 143.6 | OAL (mm): 217.6 | PL (mm): 3.6 | DCON (mm): 18.0 | Stock: Made to order
MDW1740HGS3DC (mm): 17.4 | L/D: 3 | LU (mm): 65.0 | LCF (mm): 91.1 | OAL (mm): 161.6 | PL (mm): 3.6 | DCON (mm): 18.0 | Stock: Made to order
MDW1740HGS5DC (mm): 17.4 | L/D: 5 | LU (mm): 117.5 | LCF (mm): 143.6 | OAL (mm): 217.6 | PL (mm): 3.6 | DCON (mm): 18.0 | Stock: Made to order
MDW1750HGS3DC (mm): 17.5 | L/D: 3 | LU (mm): 64.9 | LCF (mm): 91.1 | OAL (mm): 161.6 | PL (mm): 3.6 | DCON (mm): 18.0 | Stock: Yes
MDW1750HGS5DC (mm): 17.5 | L/D: 5 | LU (mm): 117.4 | LCF (mm): 143.6 | OAL (mm): 217.6 | PL (mm): 3.6 | DCON (mm): 18.0 | Stock: Yes
MDW1760HGS3DC (mm): 17.6 | L/D: 3 | LU (mm): 67.2 | LCF (mm): 93.6 | OAL (mm): 161.6 | PL (mm): 3.6 | DCON (mm): 18.0 | Stock: Made to order
MDW1760HGS5DC (mm): 17.6 | L/D: 5 | LU (mm): 121.2 | LCF (mm): 147.6 | OAL (mm): 217.6 | PL (mm): 3.6 | DCON (mm): 18.0 | Stock: Made to order
MDW1770HGS3DC (mm): 17.7 | L/D: 3 | LU (mm): 67.2 | LCF (mm): 93.7 | OAL (mm): 161.7 | PL (mm): 3.7 | DCON (mm): 18.0 | Stock: Made to order
MDW1770HGS5DC (mm): 17.7 | L/D: 5 | LU (mm): 121.2 | LCF (mm): 147.7 | OAL (mm): 217.7 | PL (mm): 3.7 | DCON (mm): 18.0 | Stock: Made to order
MDW1780HGS3DC (mm): 17.8 | L/D: 3 | LU (mm): 67.0 | LCF (mm): 93.7 | OAL (mm): 161.7 | PL (mm): 3.7 | DCON (mm): 18.0 | Stock: Made to order
MDW1780HGS5DC (mm): 17.8 | L/D: 5 | LU (mm): 121.0 | LCF (mm): 147.7 | OAL (mm): 217.7 | PL (mm): 3.7 | DCON (mm): 18.0 | Stock: Made to order
MDW1790HGS3DC (mm): 17.9 | L/D: 3 | LU (mm): 66.9 | LCF (mm): 93.7 | OAL (mm): 161.7 | PL (mm): 3.7 | DCON (mm): 18.0 | Stock: Made to order
MDW1790HGS5DC (mm): 17.9 | L/D: 5 | LU (mm): 120.9 | LCF (mm): 147.7 | OAL (mm): 217.7 | PL (mm): 3.7 | DCON (mm): 18.0 | Stock: Made to order
MDW1800HGS3DC (mm): 18.0 | L/D: 3 | LU (mm): 66.7 | LCF (mm): 93.7 | OAL (mm): 161.7 | PL (mm): 3.7 | DCON (mm): 18.0 | Stock: Yes
MDW1800HGS5DC (mm): 18.0 | L/D: 5 | LU (mm): 120.7 | LCF (mm): 147.7 | OAL (mm): 217.7 | PL (mm): 3.7 | DCON (mm): 18.0 | Stock: Yes
MDW1810HGS3DC (mm): 18.1 | L/D: 3 | LU (mm): 69.1 | LCF (mm): 96.2 | OAL (mm): 167.7 | PL (mm): 3.7 | DCON (mm): 19.0 | Stock: Made to order
MDW1810HGS5DC (mm): 18.1 | L/D: 5 | LU (mm): 124.6 | LCF (mm): 151.7 | OAL (mm): 224.7 | PL (mm): 3.7 | DCON (mm): 19.0 | Stock: Made to order
MDW1820HGS3DC (mm): 18.2 | L/D: 3 | LU (mm): 69.0 | LCF (mm): 96.3 | OAL (mm): 167.8 | PL (mm): 3.8 | DCON (mm): 19.0 | Stock: Made to order
MDW1820HGS5DC (mm): 18.2 | L/D: 5 | LU (mm): 124.5 | LCF (mm): 151.8 | OAL (mm): 224.8 | PL (mm): 3.8 | DCON (mm): 19.0 | Stock: Made to order
MDW1830HGS3DC (mm): 18.3 | L/D: 3 | LU (mm): 68.9 | LCF (mm): 96.3 | OAL (mm): 167.8 | PL (mm): 3.8 | DCON (mm): 19.0 | Stock: Made to order
MDW1830HGS5DC (mm): 18.3 | L/D: 5 | LU (mm): 124.4 | LCF (mm): 151.8 | OAL (mm): 224.8 | PL (mm): 3.8 | DCON (mm): 19.0 | Stock: Made to order
MDW1840HGS3DC (mm): 18.4 | L/D: 3 | LU (mm): 68.7 | LCF (mm): 96.3 | OAL (mm): 167.8 | PL (mm): 3.8 | DCON (mm): 19.0 | Stock: Made to order
MDW1840HGS5DC (mm): 18.4 | L/D: 5 | LU (mm): 124.2 | LCF (mm): 151.8 | OAL (mm): 224.8 | PL (mm): 3.8 | DCON (mm): 19.0 | Stock: Made to order
MDW1850HGS3DC (mm): 18.5 | L/D: 3 | LU (mm): 68.6 | LCF (mm): 96.3 | OAL (mm): 167.8 | PL (mm): 3.8 | DCON (mm): 19.0 | Stock: Yes
MDW1850HGS5DC (mm): 18.5 | L/D: 5 | LU (mm): 124.1 | LCF (mm): 151.8 | OAL (mm): 224.8 | PL (mm): 3.8 | DCON (mm): 19.0 | Stock: Yes
MDW1860HGS3DC (mm): 18.6 | L/D: 3 | LU (mm): 71.0 | LCF (mm): 98.9 | OAL (mm): 167.9 | PL (mm): 3.9 | DCON (mm): 19.0 | Stock: Made to order
MDW1860HGS5DC (mm): 18.6 | L/D: 5 | LU (mm): 128.0 | LCF (mm): 155.9 | OAL (mm): 224.9 | PL (mm): 3.9 | DCON (mm): 19.0 | Stock: Made to order
MDW1870HGS3DC (mm): 18.7 | L/D: 3 | LU (mm): 70.9 | LCF (mm): 98.9 | OAL (mm): 167.9 | PL (mm): 3.9 | DCON (mm): 19.0 | Stock: Made to order
MDW1870HGS5DC (mm): 18.7 | L/D: 5 | LU (mm): 127.9 | LCF (mm): 155.9 | OAL (mm): 224.9 | PL (mm): 3.9 | DCON (mm): 19.0 | Stock: Made to order
MDW1880HGS3DC (mm): 18.8 | L/D: 3 | LU (mm): 70.7 | LCF (mm): 98.9 | OAL (mm): 167.9 | PL (mm): 3.9 | DCON (mm): 19.0 | Stock: Made to order
MDW1880HGS5DC (mm): 18.8 | L/D: 5 | LU (mm): 127.7 | LCF (mm): 155.9 | OAL (mm): 224.9 | PL (mm): 3.9 | DCON (mm): 19.0 | Stock: Made to order
MDW1890HGS3DC (mm): 18.9 | L/D: 3 | LU (mm): 70.6 | LCF (mm): 98.9 | OAL (mm): 167.9 | PL (mm): 3.9 | DCON (mm): 19.0 | Stock: Made to order
MDW1890HGS5DC (mm): 18.9 | L/D: 5 | LU (mm): 127.6 | LCF (mm): 155.9 | OAL (mm): 224.9 | PL (mm): 3.9 | DCON (mm): 19.0 | Stock: Made to order
MDW1900HGS3DC (mm): 19.0 | L/D: 3 | LU (mm): 70.4 | LCF (mm): 98.9 | OAL (mm): 167.9 | PL (mm): 3.9 | DCON (mm): 19.0 | Stock: Yes
MDW1900HGS5DC (mm): 19.0 | L/D: 5 | LU (mm): 127.4 | LCF (mm): 155.9 | OAL (mm): 224.9 | PL (mm): 3.9 | DCON (mm): 19.0 | Stock: Yes
MDW1910HGS3DC (mm): 19.1 | L/D: 3 | LU (mm): 72.9 | LCF (mm): 101.5 | OAL (mm): 174.0 | PL (mm): 4.0 | DCON (mm): 20.0 | Stock: Made to order
MDW1910HGS5DC (mm): 19.1 | L/D: 5 | LU (mm): 131.4 | LCF (mm): 160.0 | OAL (mm): 234.0 | PL (mm): 4.0 | DCON (mm): 20.0 | Stock: Made to order
MDW1920HGS3DC (mm): 19.2 | L/D: 3 | LU (mm): 72.7 | LCF (mm): 101.5 | OAL (mm): 174.0 | PL (mm): 4.0 | DCON (mm): 20.0 | Stock: Made to order
MDW1920HGS5DC (mm): 19.2 | L/D: 5 | LU (mm): 131.2 | LCF (mm): 160.0 | OAL (mm): 234.0 | PL (mm): 4.0 | DCON (mm): 20.0 | Stock: Made to order
MDW1930HGS3DC (mm): 19.3 | L/D: 3 | LU (mm): 72.6 | LCF (mm): 101.5 | OAL (mm): 174.0 | PL (mm): 4.0 | DCON (mm): 20.0 | Stock: Made to order
MDW1930HGS5DC (mm): 19.3 | L/D: 5 | LU (mm): 131.1 | LCF (mm): 160.0 | OAL (mm): 234.0 | PL (mm): 4.0 | DCON (mm): 20.0 | Stock: Made to order
MDW1940HGS3DC (mm): 19.4 | L/D: 3 | LU (mm): 72.4 | LCF (mm): 101.5 | OAL (mm): 174.0 | PL (mm): 4.0 | DCON (mm): 20.0 | Stock: Made to order
MDW1940HGS5DC (mm): 19.4 | L/D: 5 | LU (mm): 130.9 | LCF (mm): 160.0 | OAL (mm): 234.0 | PL (mm): 4.0 | DCON (mm): 20.0 | Stock: Made to order
MDW1950HGS3DC (mm): 19.5 | L/D: 3 | LU (mm): 72.3 | LCF (mm): 101.5 | OAL (mm): 174.0 | PL (mm): 4.0 | DCON (mm): 20.0 | Stock: Yes
MDW1950HGS5DC (mm): 19.5 | L/D: 5 | LU (mm): 130.8 | LCF (mm): 160.0 | OAL (mm): 234.0 | PL (mm): 4.0 | DCON (mm): 20.0 | Stock: Yes
MDW1960HGS3DC (mm): 19.6 | L/D: 3 | LU (mm): 74.7 | LCF (mm): 104.1 | OAL (mm): 174.1 | PL (mm): 4.1 | DCON (mm): 20.0 | Stock: Made to order
MDW1960HGS5DC (mm): 19.6 | L/D: 5 | LU (mm): 134.7 | LCF (mm): 164.1 | OAL (mm): 234.1 | PL (mm): 4.1 | DCON (mm): 20.0 | Stock: Made to order
MDW1970HGS3DC (mm): 19.7 | L/D: 3 | LU (mm): 74.6 | LCF (mm): 104.1 | OAL (mm): 174.1 | PL (mm): 4.1 | DCON (mm): 20.0 | Stock: Made to order
MDW1970HGS5DC (mm): 19.7 | L/D: 5 | LU (mm): 134.6 | LCF (mm): 164.1 | OAL (mm): 234.1 | PL (mm): 4.1 | DCON (mm): 20.0 | Stock: Made to order
MDW1980HGS3DC (mm): 19.8 | L/D: 3 | LU (mm): 74.4 | LCF (mm): 104.1 | OAL (mm): 174.1 | PL (mm): 4.1 | DCON (mm): 20.0 | Stock: Made to order
MDW1980HGS5DC (mm): 19.8 | L/D: 5 | LU (mm): 134.4 | LCF (mm): 164.1 | OAL (mm): 234.1 | PL (mm): 4.1 | DCON (mm): 20.0 | Stock: Made to order
MDW1990HGS3DC (mm): 19.9 | L/D: 3 | LU (mm): 74.3 | LCF (mm): 104.1 | OAL (mm): 174.1 | PL (mm): 4.1 | DCON (mm): 20.0 | Stock: Made to order
MDW1990HGS5DC (mm): 19.9 | L/D: 5 | LU (mm): 134.3 | LCF (mm): 164.1 | OAL (mm): 234.1 | PL (mm): 4.1 | DCON (mm): 20.0 | Stock: Made to order
MDW2000HGS3DC (mm): 20.0 | L/D: 3 | LU (mm): 74.1 | LCF (mm): 104.1 | OAL (mm): 174.1 | PL (mm): 4.1 | DCON (mm): 20.0 | Stock: Yes
MDW2000HGS5DC (mm): 20.0 | L/D: 5 | LU (mm): 134.1 | LCF (mm): 164.1 | OAL (mm): 234.1 | PL (mm): 4.1 | DCON (mm): 20.0 | Stock: Yes

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Cutting Tools →
