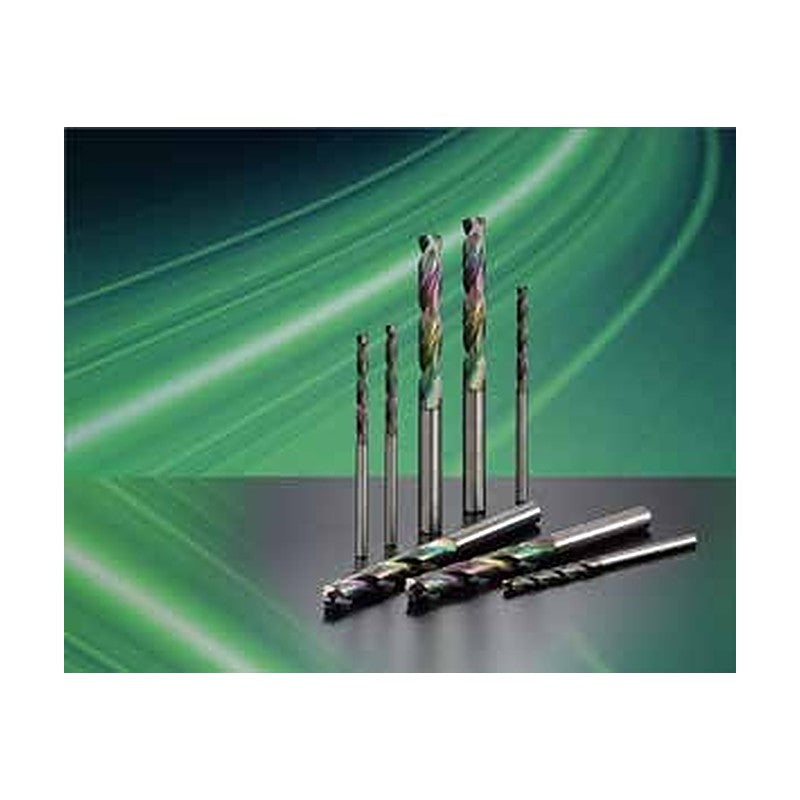

Sumitomo Electric Hardmetal Super Multi Drill NHGS Type (Internal Coolant)

Sumitomo Electric Hardmetal Super Multi Drill NHGS Type (Internal Coolant)

Solid carbide drill for aluminum alloys with Aurora Coat (DLC) and low-resistance WL thinning for high-efficiency hole making.

Key features

  • Aurora Coat (DLC)
  • WL (wide L) thinning lowers cutting resistance
  • WW (wide W) margin for hole quality
  • Hole depth 3D, 5D and 10D
  • Grade DL1300

Specifications

Coolant Internal
Point angle 135 deg
Grade DL1300
MDW0300NHGS3 DC (mm): 3.0 | L/D: 3 | LU (mm): 13.6 | LCF (mm): 18.1 | OAL (mm): 68.6 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDW0300NHGS5 DC (mm): 3.0 | L/D: 5 | LU (mm): 24.1 | LCF (mm): 28.6 | OAL (mm): 78.6 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDW0300NHGS10 DC (mm): 3.0 | L/D: 10 | LU (mm): 38.1 | LCF (mm): 42.6 | OAL (mm): 92.6 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDW0310NHGS3 DC (mm): 3.1 | L/D: 3 | LU (mm): 16.0 | LCF (mm): 20.6 | OAL (mm): 72.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Made to order
MDW0310NHGS5 DC (mm): 3.1 | L/D: 5 | LU (mm): 28.0 | LCF (mm): 32.6 | OAL (mm): 86.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDW0310NHGS10 DC (mm): 3.1 | L/D: 10 | LU (mm): 45.0 | LCF (mm): 49.6 | OAL (mm): 106.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Made to order
MDW0320NHGS3 DC (mm): 3.2 | L/D: 3 | LU (mm): 15.9 | LCF (mm): 20.7 | OAL (mm): 72.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0320NHGS5 DC (mm): 3.2 | L/D: 5 | LU (mm): 27.9 | LCF (mm): 32.7 | OAL (mm): 86.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0320NHGS10 DC (mm): 3.2 | L/D: 10 | LU (mm): 44.9 | LCF (mm): 49.7 | OAL (mm): 106.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0330NHGS3 DC (mm): 3.3 | L/D: 3 | LU (mm): 15.8 | LCF (mm): 20.7 | OAL (mm): 72.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0330NHGS5 DC (mm): 3.3 | L/D: 5 | LU (mm): 27.8 | LCF (mm): 32.7 | OAL (mm): 86.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0330NHGS10 DC (mm): 3.3 | L/D: 10 | LU (mm): 44.8 | LCF (mm): 49.7 | OAL (mm): 106.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Made to order
MDW0340NHGS3 DC (mm): 3.4 | L/D: 3 | LU (mm): 15.6 | LCF (mm): 20.7 | OAL (mm): 72.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Made to order
MDW0340NHGS5 DC (mm): 3.4 | L/D: 5 | LU (mm): 27.6 | LCF (mm): 32.7 | OAL (mm): 86.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0340NHGS10 DC (mm): 3.4 | L/D: 10 | LU (mm): 44.6 | LCF (mm): 49.7 | OAL (mm): 106.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0350NHGS3 DC (mm): 3.5 | L/D: 3 | LU (mm): 15.5 | LCF (mm): 20.7 | OAL (mm): 72.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0350NHGS5 DC (mm): 3.5 | L/D: 5 | LU (mm): 27.5 | LCF (mm): 32.7 | OAL (mm): 86.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0350NHGS10 DC (mm): 3.5 | L/D: 10 | LU (mm): 44.5 | LCF (mm): 49.7 | OAL (mm): 106.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0360NHGS3 DC (mm): 3.6 | L/D: 3 | LU (mm): 17.8 | LCF (mm): 23.2 | OAL (mm): 72.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Made to order
MDW0360NHGS5 DC (mm): 3.6 | L/D: 5 | LU (mm): 31.3 | LCF (mm): 36.7 | OAL (mm): 86.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0360NHGS10 DC (mm): 3.6 | L/D: 10 | LU (mm): 51.3 | LCF (mm): 56.7 | OAL (mm): 106.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0365NHGS3 DC (mm): 3.65 | L/D: 3 | LU (mm): 17.8 | LCF (mm): 23.3 | OAL (mm): 72.8 | PL (mm): 0.8 | DCON (mm): 4.0 | Stock: Yes
MDW0365NHGS5 DC (mm): 3.65 | L/D: 5 | LU (mm): 31.3 | LCF (mm): 36.8 | OAL (mm): 86.8 | PL (mm): 0.8 | DCON (mm): 4.0 | Stock: Yes
MDW0365NHGS10 DC (mm): 3.65 | L/D: 10 | LU (mm): 51.3 | LCF (mm): 56.8 | OAL (mm): 106.8 | PL (mm): 0.8 | DCON (mm): 4.0 | Stock: Made to order
MDW0366NHGS3 DC (mm): 3.66 | L/D: 3 | LU (mm): 17.8 | LCF (mm): 23.3 | OAL (mm): 72.8 | PL (mm): 0.8 | DCON (mm): 4.0 | Stock: Made to order
MDW0366NHGS5 DC (mm): 3.66 | L/D: 5 | LU (mm): 31.3 | LCF (mm): 36.8 | OAL (mm): 86.8 | PL (mm): 0.8 | DCON (mm): 4.0 | Stock: Yes
MDW0366NHGS10 DC (mm): 3.66 | L/D: 10 | LU (mm): 51.3 | LCF (mm): 56.8 | OAL (mm): 106.8 | PL (mm): 0.8 | DCON (mm): 4.0 | Stock: Made to order
MDW0370NHGS3 DC (mm): 3.7 | L/D: 3 | LU (mm): 17.8 | LCF (mm): 23.3 | OAL (mm): 72.8 | PL (mm): 0.8 | DCON (mm): 4.0 | Stock: Made to order
MDW0370NHGS5 DC (mm): 3.7 | L/D: 5 | LU (mm): 31.3 | LCF (mm): 36.8 | OAL (mm): 86.8 | PL (mm): 0.8 | DCON (mm): 4.0 | Stock: Yes
MDW0370NHGS10 DC (mm): 3.7 | L/D: 10 | LU (mm): 51.3 | LCF (mm): 56.8 | OAL (mm): 106.8 | PL (mm): 0.8 | DCON (mm): 4.0 | Stock: Made to order
MDW0380NHGS3 DC (mm): 3.8 | L/D: 3 | LU (mm): 17.6 | LCF (mm): 23.3 | OAL (mm): 72.8 | PL (mm): 0.8 | DCON (mm): 4.0 | Stock: Made to order
MDW0380NHGS5 DC (mm): 3.8 | L/D: 5 | LU (mm): 31.1 | LCF (mm): 36.8 | OAL (mm): 86.8 | PL (mm): 0.8 | DCON (mm): 4.0 | Stock: Yes
MDW0380NHGS10 DC (mm): 3.8 | L/D: 10 | LU (mm): 51.1 | LCF (mm): 56.8 | OAL (mm): 106.8 | PL (mm): 0.8 | DCON (mm): 4.0 | Stock: Made to order
MDW0390NHGS3 DC (mm): 3.9 | L/D: 3 | LU (mm): 17.5 | LCF (mm): 23.3 | OAL (mm): 72.8 | PL (mm): 0.8 | DCON (mm): 4.0 | Stock: Made to order
MDW0390NHGS5 DC (mm): 3.9 | L/D: 5 | LU (mm): 31.0 | LCF (mm): 36.8 | OAL (mm): 86.8 | PL (mm): 0.8 | DCON (mm): 4.0 | Stock: Yes
MDW0390NHGS10 DC (mm): 3.9 | L/D: 10 | LU (mm): 51.0 | LCF (mm): 56.8 | OAL (mm): 106.8 | PL (mm): 0.8 | DCON (mm): 4.0 | Stock: Yes
MDW0400NHGS3 DC (mm): 4.0 | L/D: 3 | LU (mm): 17.3 | LCF (mm): 23.3 | OAL (mm): 72.8 | PL (mm): 0.8 | DCON (mm): 4.0 | Stock: Yes
MDW0400NHGS5 DC (mm): 4.0 | L/D: 5 | LU (mm): 30.8 | LCF (mm): 36.8 | OAL (mm): 86.8 | PL (mm): 0.8 | DCON (mm): 4.0 | Stock: Yes
MDW0400NHGS10 DC (mm): 4.0 | L/D: 10 | LU (mm): 50.8 | LCF (mm): 56.8 | OAL (mm): 106.8 | PL (mm): 0.8 | DCON (mm): 4.0 | Stock: Yes
MDW0410NHGS3 DC (mm): 4.1 | L/D: 3 | LU (mm): 19.7 | LCF (mm): 25.8 | OAL (mm): 80.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDW0410NHGS5 DC (mm): 4.1 | L/D: 5 | LU (mm): 34.7 | LCF (mm): 40.8 | OAL (mm): 98.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDW0410NHGS10 DC (mm): 4.1 | L/D: 10 | LU (mm): 57.7 | LCF (mm): 63.8 | OAL (mm): 121.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Made to order
MDW0420NHGS3 DC (mm): 4.2 | L/D: 3 | LU (mm): 19.6 | LCF (mm): 25.9 | OAL (mm): 80.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0420NHGS5 DC (mm): 4.2 | L/D: 5 | LU (mm): 34.6 | LCF (mm): 40.9 | OAL (mm): 98.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0420NHGS10 DC (mm): 4.2 | L/D: 10 | LU (mm): 57.6 | LCF (mm): 63.9 | OAL (mm): 121.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Made to order
MDW0430NHGS3 DC (mm): 4.3 | L/D: 3 | LU (mm): 19.5 | LCF (mm): 25.9 | OAL (mm): 80.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Made to order
MDW0430NHGS5 DC (mm): 4.3 | L/D: 5 | LU (mm): 34.5 | LCF (mm): 40.9 | OAL (mm): 98.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0430NHGS10 DC (mm): 4.3 | L/D: 10 | LU (mm): 57.5 | LCF (mm): 63.9 | OAL (mm): 121.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Made to order
MDW0440NHGS3 DC (mm): 4.4 | L/D: 3 | LU (mm): 19.3 | LCF (mm): 25.9 | OAL (mm): 80.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Made to order
MDW0440NHGS5 DC (mm): 4.4 | L/D: 5 | LU (mm): 34.3 | LCF (mm): 40.9 | OAL (mm): 98.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0440NHGS10 DC (mm): 4.4 | L/D: 10 | LU (mm): 57.3 | LCF (mm): 63.9 | OAL (mm): 121.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Made to order
MDW0450NHGS3 DC (mm): 4.5 | L/D: 3 | LU (mm): 19.2 | LCF (mm): 25.9 | OAL (mm): 80.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0450NHGS5 DC (mm): 4.5 | L/D: 5 | LU (mm): 34.2 | LCF (mm): 40.9 | OAL (mm): 98.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0450NHGS10 DC (mm): 4.5 | L/D: 10 | LU (mm): 57.2 | LCF (mm): 63.9 | OAL (mm): 121.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0460NHGS3 DC (mm): 4.6 | L/D: 3 | LU (mm): 21.6 | LCF (mm): 28.5 | OAL (mm): 81.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Yes
MDW0460NHGS5 DC (mm): 4.6 | L/D: 5 | LU (mm): 38.1 | LCF (mm): 45.0 | OAL (mm): 99.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Yes
MDW0460NHGS10 DC (mm): 4.6 | L/D: 10 | LU (mm): 64.1 | LCF (mm): 71.0 | OAL (mm): 122.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Made to order
MDW0470NHGS3 DC (mm): 4.7 | L/D: 3 | LU (mm): 21.5 | LCF (mm): 28.5 | OAL (mm): 81.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Made to order
MDW0470NHGS5 DC (mm): 4.7 | L/D: 5 | LU (mm): 38.0 | LCF (mm): 45.0 | OAL (mm): 99.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Yes
MDW0470NHGS10 DC (mm): 4.7 | L/D: 10 | LU (mm): 64.0 | LCF (mm): 71.0 | OAL (mm): 122.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Made to order
MDW0480NHGS3 DC (mm): 4.8 | L/D: 3 | LU (mm): 21.3 | LCF (mm): 28.5 | OAL (mm): 81.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Made to order
MDW0480NHGS5 DC (mm): 4.8 | L/D: 5 | LU (mm): 37.8 | LCF (mm): 45.0 | OAL (mm): 99.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Yes
MDW0480NHGS10 DC (mm): 4.8 | L/D: 10 | LU (mm): 63.8 | LCF (mm): 71.0 | OAL (mm): 122.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Made to order
MDW0490NHGS3 DC (mm): 4.9 | L/D: 3 | LU (mm): 21.2 | LCF (mm): 28.5 | OAL (mm): 81.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Made to order
MDW0490NHGS5 DC (mm): 4.9 | L/D: 5 | LU (mm): 37.7 | LCF (mm): 45.0 | OAL (mm): 99.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Yes
MDW0490NHGS10 DC (mm): 4.9 | L/D: 10 | LU (mm): 63.7 | LCF (mm): 71.0 | OAL (mm): 122.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Yes
MDW0500NHGS3 DC (mm): 5.0 | L/D: 3 | LU (mm): 21.0 | LCF (mm): 28.5 | OAL (mm): 81.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Yes
MDW0500NHGS5 DC (mm): 5.0 | L/D: 5 | LU (mm): 37.5 | LCF (mm): 45.0 | OAL (mm): 99.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Yes
MDW0500NHGS10 DC (mm): 5.0 | L/D: 10 | LU (mm): 63.5 | LCF (mm): 71.0 | OAL (mm): 122.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Yes
MDW0510NHGS3 DC (mm): 5.1 | L/D: 3 | LU (mm): 21.0 | LCF (mm): 28.6 | OAL (mm): 83.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Made to order
MDW0510NHGS5 DC (mm): 5.1 | L/D: 5 | LU (mm): 37.5 | LCF (mm): 45.1 | OAL (mm): 101.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0510NHGS10 DC (mm): 5.1 | L/D: 10 | LU (mm): 70.5 | LCF (mm): 78.1 | OAL (mm): 137.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0520NHGS3 DC (mm): 5.2 | L/D: 3 | LU (mm): 20.8 | LCF (mm): 28.6 | OAL (mm): 83.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0520NHGS5 DC (mm): 5.2 | L/D: 5 | LU (mm): 37.3 | LCF (mm): 45.1 | OAL (mm): 101.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0520NHGS10 DC (mm): 5.2 | L/D: 10 | LU (mm): 70.3 | LCF (mm): 78.1 | OAL (mm): 137.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Made to order
MDW0530NHGS3 DC (mm): 5.3 | L/D: 3 | LU (mm): 20.7 | LCF (mm): 28.6 | OAL (mm): 83.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0530NHGS5 DC (mm): 5.3 | L/D: 5 | LU (mm): 37.2 | LCF (mm): 45.1 | OAL (mm): 101.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0530NHGS10 DC (mm): 5.3 | L/D: 10 | LU (mm): 70.2 | LCF (mm): 78.1 | OAL (mm): 137.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Made to order
MDW0540NHGS3 DC (mm): 5.4 | L/D: 3 | LU (mm): 20.5 | LCF (mm): 28.6 | OAL (mm): 83.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Made to order
MDW0540NHGS5 DC (mm): 5.4 | L/D: 5 | LU (mm): 37.0 | LCF (mm): 45.1 | OAL (mm): 101.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0540NHGS10 DC (mm): 5.4 | L/D: 10 | LU (mm): 70.0 | LCF (mm): 78.1 | OAL (mm): 137.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Made to order
MDW0550NHGS3 DC (mm): 5.5 | L/D: 3 | LU (mm): 20.4 | LCF (mm): 28.6 | OAL (mm): 83.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0550NHGS5 DC (mm): 5.5 | L/D: 5 | LU (mm): 36.9 | LCF (mm): 45.1 | OAL (mm): 101.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0550NHGS10 DC (mm): 5.5 | L/D: 10 | LU (mm): 69.9 | LCF (mm): 78.1 | OAL (mm): 137.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0560NHGS3 DC (mm): 5.6 | L/D: 3 | LU (mm): 22.8 | LCF (mm): 31.2 | OAL (mm): 83.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Made to order
MDW0560NHGS5 DC (mm): 5.6 | L/D: 5 | LU (mm): 40.8 | LCF (mm): 49.2 | OAL (mm): 101.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Yes
MDW0560NHGS10 DC (mm): 5.6 | L/D: 10 | LU (mm): 76.8 | LCF (mm): 85.2 | OAL (mm): 137.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Made to order
MDW0570NHGS3 DC (mm): 5.7 | L/D: 3 | LU (mm): 22.7 | LCF (mm): 31.2 | OAL (mm): 83.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Made to order
MDW0570NHGS5 DC (mm): 5.7 | L/D: 5 | LU (mm): 40.7 | LCF (mm): 49.2 | OAL (mm): 101.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Yes
MDW0570NHGS10 DC (mm): 5.7 | L/D: 10 | LU (mm): 76.7 | LCF (mm): 85.2 | OAL (mm): 137.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Made to order
MDW0580NHGS3 DC (mm): 5.8 | L/D: 3 | LU (mm): 22.5 | LCF (mm): 31.2 | OAL (mm): 83.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Made to order
MDW0580NHGS5 DC (mm): 5.8 | L/D: 5 | LU (mm): 40.5 | LCF (mm): 49.2 | OAL (mm): 101.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Yes
MDW0580NHGS10 DC (mm): 5.8 | L/D: 10 | LU (mm): 76.5 | LCF (mm): 85.2 | OAL (mm): 137.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Made to order
MDW0590NHGS3 DC (mm): 5.9 | L/D: 3 | LU (mm): 22.4 | LCF (mm): 31.2 | OAL (mm): 83.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Yes
MDW0590NHGS5 DC (mm): 5.9 | L/D: 5 | LU (mm): 40.4 | LCF (mm): 49.2 | OAL (mm): 101.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Yes
MDW0590NHGS10 DC (mm): 5.9 | L/D: 10 | LU (mm): 76.4 | LCF (mm): 85.2 | OAL (mm): 137.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Made to order
MDW0600NHGS3 DC (mm): 6.0 | L/D: 3 | LU (mm): 22.2 | LCF (mm): 31.2 | OAL (mm): 83.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Yes
MDW0600NHGS5 DC (mm): 6.0 | L/D: 5 | LU (mm): 40.2 | LCF (mm): 49.2 | OAL (mm): 101.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Yes
MDW0600NHGS10 DC (mm): 6.0 | L/D: 10 | LU (mm): 76.2 | LCF (mm): 85.2 | OAL (mm): 137.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Yes
MDW0610NHGS3 DC (mm): 6.1 | L/D: 3 | LU (mm): 24.7 | LCF (mm): 33.8 | OAL (mm): 89.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Made to order
MDW0610NHGS5 DC (mm): 6.1 | L/D: 5 | LU (mm): 44.2 | LCF (mm): 53.3 | OAL (mm): 110.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0610NHGS10 DC (mm): 6.1 | L/D: 10 | LU (mm): 83.2 | LCF (mm): 92.3 | OAL (mm): 152.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0620NHGS3 DC (mm): 6.2 | L/D: 3 | LU (mm): 24.5 | LCF (mm): 33.8 | OAL (mm): 89.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Made to order
MDW0620NHGS5 DC (mm): 6.2 | L/D: 5 | LU (mm): 44.0 | LCF (mm): 53.3 | OAL (mm): 110.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0620NHGS10 DC (mm): 6.2 | L/D: 10 | LU (mm): 83.0 | LCF (mm): 92.3 | OAL (mm): 152.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Made to order
MDW0630NHGS3 DC (mm): 6.3 | L/D: 3 | LU (mm): 24.4 | LCF (mm): 33.8 | OAL (mm): 89.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Made to order
MDW0630NHGS5 DC (mm): 6.3 | L/D: 5 | LU (mm): 43.9 | LCF (mm): 53.3 | OAL (mm): 110.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0630NHGS10 DC (mm): 6.3 | L/D: 10 | LU (mm): 82.9 | LCF (mm): 92.3 | OAL (mm): 152.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Made to order
MDW0640NHGS3 DC (mm): 6.4 | L/D: 3 | LU (mm): 24.2 | LCF (mm): 33.8 | OAL (mm): 89.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Made to order
MDW0640NHGS5 DC (mm): 6.4 | L/D: 5 | LU (mm): 43.7 | LCF (mm): 53.3 | OAL (mm): 110.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0640NHGS10 DC (mm): 6.4 | L/D: 10 | LU (mm): 82.7 | LCF (mm): 92.3 | OAL (mm): 152.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Made to order
MDW0650NHGS3 DC (mm): 6.5 | L/D: 3 | LU (mm): 24.1 | LCF (mm): 33.8 | OAL (mm): 89.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0650NHGS5 DC (mm): 6.5 | L/D: 5 | LU (mm): 43.6 | LCF (mm): 53.3 | OAL (mm): 110.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0650NHGS10 DC (mm): 6.5 | L/D: 10 | LU (mm): 82.6 | LCF (mm): 92.3 | OAL (mm): 152.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0660NHGS3 DC (mm): 6.6 | L/D: 3 | LU (mm): 26.5 | LCF (mm): 36.4 | OAL (mm): 89.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Made to order
MDW0660NHGS5 DC (mm): 6.6 | L/D: 5 | LU (mm): 47.5 | LCF (mm): 57.4 | OAL (mm): 110.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Yes
MDW0660NHGS10 DC (mm): 6.6 | L/D: 10 | LU (mm): 89.5 | LCF (mm): 99.4 | OAL (mm): 152.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Made to order
MDW0670NHGS3 DC (mm): 6.7 | L/D: 3 | LU (mm): 26.4 | LCF (mm): 36.4 | OAL (mm): 89.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Yes
MDW0670NHGS5 DC (mm): 6.7 | L/D: 5 | LU (mm): 47.4 | LCF (mm): 57.4 | OAL (mm): 110.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Yes
MDW0670NHGS10 DC (mm): 6.7 | L/D: 10 | LU (mm): 89.4 | LCF (mm): 99.4 | OAL (mm): 152.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Yes
MDW0680NHGS3 DC (mm): 6.8 | L/D: 3 | LU (mm): 26.2 | LCF (mm): 36.4 | OAL (mm): 89.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Yes
MDW0680NHGS5 DC (mm): 6.8 | L/D: 5 | LU (mm): 47.2 | LCF (mm): 57.4 | OAL (mm): 110.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Yes
MDW0680NHGS10 DC (mm): 6.8 | L/D: 10 | LU (mm): 89.2 | LCF (mm): 99.4 | OAL (mm): 152.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Yes
MDW0690NHGS3 DC (mm): 6.9 | L/D: 3 | LU (mm): 26.1 | LCF (mm): 36.4 | OAL (mm): 89.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Made to order
MDW0690NHGS5 DC (mm): 6.9 | L/D: 5 | LU (mm): 47.1 | LCF (mm): 57.4 | OAL (mm): 110.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Yes
MDW0690NHGS10 DC (mm): 6.9 | L/D: 10 | LU (mm): 89.1 | LCF (mm): 99.4 | OAL (mm): 152.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Made to order
MDW0700NHGS3 DC (mm): 7.0 | L/D: 3 | LU (mm): 25.9 | LCF (mm): 36.4 | OAL (mm): 89.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Yes
MDW0700NHGS5 DC (mm): 7.0 | L/D: 5 | LU (mm): 46.9 | LCF (mm): 57.4 | OAL (mm): 110.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Yes
MDW0700NHGS10 DC (mm): 7.0 | L/D: 10 | LU (mm): 88.9 | LCF (mm): 99.4 | OAL (mm): 152.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Yes
MDW0710NHGS3 DC (mm): 7.1 | L/D: 3 | LU (mm): 28.4 | LCF (mm): 39.0 | OAL (mm): 95.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Made to order
MDW0710NHGS5 DC (mm): 7.1 | L/D: 5 | LU (mm): 50.9 | LCF (mm): 61.5 | OAL (mm): 119.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDW0710NHGS10 DC (mm): 7.1 | L/D: 10 | LU (mm): 95.9 | LCF (mm): 106.5 | OAL (mm): 167.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Made to order
MDW0720NHGS3 DC (mm): 7.2 | L/D: 3 | LU (mm): 28.2 | LCF (mm): 39.0 | OAL (mm): 95.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Made to order
MDW0720NHGS5 DC (mm): 7.2 | L/D: 5 | LU (mm): 50.7 | LCF (mm): 61.5 | OAL (mm): 119.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDW0720NHGS10 DC (mm): 7.2 | L/D: 10 | LU (mm): 95.7 | LCF (mm): 106.5 | OAL (mm): 167.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDW0730NHGS3 DC (mm): 7.3 | L/D: 3 | LU (mm): 28.1 | LCF (mm): 39.0 | OAL (mm): 95.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Made to order
MDW0730NHGS5 DC (mm): 7.3 | L/D: 5 | LU (mm): 50.6 | LCF (mm): 61.5 | OAL (mm): 119.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDW0730NHGS10 DC (mm): 7.3 | L/D: 10 | LU (mm): 95.6 | LCF (mm): 106.5 | OAL (mm): 167.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Made to order
MDW0735NHGS3 DC (mm): 7.35 | L/D: 3 | LU (mm): 28.0 | LCF (mm): 39.0 | OAL (mm): 95.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDW0735NHGS5 DC (mm): 7.35 | L/D: 5 | LU (mm): 50.5 | LCF (mm): 61.5 | OAL (mm): 119.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDW0735NHGS10 DC (mm): 7.35 | L/D: 10 | LU (mm): 95.5 | LCF (mm): 106.5 | OAL (mm): 167.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Made to order
MDW0740NHGS3 DC (mm): 7.4 | L/D: 3 | LU (mm): 27.9 | LCF (mm): 39.0 | OAL (mm): 95.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDW0740NHGS5 DC (mm): 7.4 | L/D: 5 | LU (mm): 50.4 | LCF (mm): 61.5 | OAL (mm): 119.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDW0740NHGS10 DC (mm): 7.4 | L/D: 10 | LU (mm): 95.4 | LCF (mm): 106.5 | OAL (mm): 167.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Made to order
MDW0750NHGS3 DC (mm): 7.5 | L/D: 3 | LU (mm): 27.9 | LCF (mm): 39.1 | OAL (mm): 95.6 | PL (mm): 1.6 | DCON (mm): 8.0 | Stock: Yes
MDW0750NHGS5 DC (mm): 7.5 | L/D: 5 | LU (mm): 50.4 | LCF (mm): 61.6 | OAL (mm): 119.6 | PL (mm): 1.6 | DCON (mm): 8.0 | Stock: Yes
MDW0750NHGS10 DC (mm): 7.5 | L/D: 10 | LU (mm): 95.4 | LCF (mm): 106.6 | OAL (mm): 167.6 | PL (mm): 1.6 | DCON (mm): 8.0 | Stock: Yes
MDW0760NHGS3 DC (mm): 7.6 | L/D: 3 | LU (mm): 30.2 | LCF (mm): 41.6 | OAL (mm): 95.6 | PL (mm): 1.6 | DCON (mm): 8.0 | Stock: Made to order
MDW0760NHGS5 DC (mm): 7.6 | L/D: 5 | LU (mm): 54.2 | LCF (mm): 65.6 | OAL (mm): 119.6 | PL (mm): 1.6 | DCON (mm): 8.0 | Stock: Yes
MDW0760NHGS10 DC (mm): 7.6 | L/D: 10 | LU (mm): 102.2 | LCF (mm): 113.6 | OAL (mm): 167.6 | PL (mm): 1.6 | DCON (mm): 8.0 | Stock: Made to order
MDW0770NHGS3 DC (mm): 7.7 | L/D: 3 | LU (mm): 30.1 | LCF (mm): 41.6 | OAL (mm): 95.6 | PL (mm): 1.6 | DCON (mm): 8.0 | Stock: Made to order
MDW0770NHGS5 DC (mm): 7.7 | L/D: 5 | LU (mm): 54.1 | LCF (mm): 65.6 | OAL (mm): 119.6 | PL (mm): 1.6 | DCON (mm): 8.0 | Stock: Yes
MDW0770NHGS10 DC (mm): 7.7 | L/D: 10 | LU (mm): 102.1 | LCF (mm): 113.6 | OAL (mm): 167.6 | PL (mm): 1.6 | DCON (mm): 8.0 | Stock: Made to order
MDW0780NHGS3 DC (mm): 7.8 | L/D: 3 | LU (mm): 29.9 | LCF (mm): 41.6 | OAL (mm): 95.6 | PL (mm): 1.6 | DCON (mm): 8.0 | Stock: Yes
MDW0780NHGS5 DC (mm): 7.8 | L/D: 5 | LU (mm): 53.9 | LCF (mm): 65.6 | OAL (mm): 119.6 | PL (mm): 1.6 | DCON (mm): 8.0 | Stock: Yes
MDW0780NHGS10 DC (mm): 7.8 | L/D: 10 | LU (mm): 101.9 | LCF (mm): 113.6 | OAL (mm): 167.6 | PL (mm): 1.6 | DCON (mm): 8.0 | Stock: Yes
MDW0790NHGS3 DC (mm): 7.9 | L/D: 3 | LU (mm): 29.8 | LCF (mm): 41.6 | OAL (mm): 95.6 | PL (mm): 1.6 | DCON (mm): 8.0 | Stock: Made to order
MDW0790NHGS5 DC (mm): 7.9 | L/D: 5 | LU (mm): 53.8 | LCF (mm): 65.6 | OAL (mm): 119.6 | PL (mm): 1.6 | DCON (mm): 8.0 | Stock: Yes
MDW0790NHGS10 DC (mm): 7.9 | L/D: 10 | LU (mm): 101.8 | LCF (mm): 113.6 | OAL (mm): 167.6 | PL (mm): 1.6 | DCON (mm): 8.0 | Stock: Made to order
MDW0800NHGS3 DC (mm): 8.0 | L/D: 3 | LU (mm): 29.7 | LCF (mm): 41.7 | OAL (mm): 95.7 | PL (mm): 1.7 | DCON (mm): 8.0 | Stock: Yes
MDW0800NHGS5 DC (mm): 8.0 | L/D: 5 | LU (mm): 53.7 | LCF (mm): 65.7 | OAL (mm): 119.7 | PL (mm): 1.7 | DCON (mm): 8.0 | Stock: Yes
MDW0800NHGS10 DC (mm): 8.0 | L/D: 10 | LU (mm): 101.7 | LCF (mm): 113.7 | OAL (mm): 167.7 | PL (mm): 1.7 | DCON (mm): 8.0 | Stock: Yes
MDW0810NHGS3 DC (mm): 8.1 | L/D: 3 | LU (mm): 32.1 | LCF (mm): 44.2 | OAL (mm): 101.7 | PL (mm): 1.7 | DCON (mm): 9.0 | Stock: Made to order
MDW0810NHGS5 DC (mm): 8.1 | L/D: 5 | LU (mm): 57.6 | LCF (mm): 69.7 | OAL (mm): 128.7 | PL (mm): 1.7 | DCON (mm): 9.0 | Stock: Yes
MDW0810NHGS10 DC (mm): 8.1 | L/D: 10 | LU (mm): 108.6 | LCF (mm): 120.7 | OAL (mm): 182.7 | PL (mm): 1.7 | DCON (mm): 9.0 | Stock: Made to order
MDW0820NHGS3 DC (mm): 8.2 | L/D: 3 | LU (mm): 31.9 | LCF (mm): 44.2 | OAL (mm): 101.7 | PL (mm): 1.7 | DCON (mm): 9.0 | Stock: Made to order
MDW0820NHGS5 DC (mm): 8.2 | L/D: 5 | LU (mm): 57.4 | LCF (mm): 69.7 | OAL (mm): 128.7 | PL (mm): 1.7 | DCON (mm): 9.0 | Stock: Yes
MDW0820NHGS10 DC (mm): 8.2 | L/D: 10 | LU (mm): 108.4 | LCF (mm): 120.7 | OAL (mm): 182.7 | PL (mm): 1.7 | DCON (mm): 9.0 | Stock: Made to order
MDW0830NHGS3 DC (mm): 8.3 | L/D: 3 | LU (mm): 31.8 | LCF (mm): 44.2 | OAL (mm): 101.7 | PL (mm): 1.7 | DCON (mm): 9.0 | Stock: Made to order
MDW0830NHGS5 DC (mm): 8.3 | L/D: 5 | LU (mm): 57.3 | LCF (mm): 69.7 | OAL (mm): 128.7 | PL (mm): 1.7 | DCON (mm): 9.0 | Stock: Yes
MDW0830NHGS10 DC (mm): 8.3 | L/D: 10 | LU (mm): 108.3 | LCF (mm): 120.7 | OAL (mm): 182.7 | PL (mm): 1.7 | DCON (mm): 9.0 | Stock: Made to order
MDW0840NHGS3 DC (mm): 8.4 | L/D: 3 | LU (mm): 31.6 | LCF (mm): 44.2 | OAL (mm): 101.7 | PL (mm): 1.7 | DCON (mm): 9.0 | Stock: Made to order
MDW0840NHGS5 DC (mm): 8.4 | L/D: 5 | LU (mm): 57.1 | LCF (mm): 69.7 | OAL (mm): 128.7 | PL (mm): 1.7 | DCON (mm): 9.0 | Stock: Yes
MDW0840NHGS10 DC (mm): 8.4 | L/D: 10 | LU (mm): 108.1 | LCF (mm): 120.7 | OAL (mm): 182.7 | PL (mm): 1.7 | DCON (mm): 9.0 | Stock: Made to order
MDW0850NHGS3 DC (mm): 8.5 | L/D: 3 | LU (mm): 31.6 | LCF (mm): 44.3 | OAL (mm): 101.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Yes
MDW0850NHGS5 DC (mm): 8.5 | L/D: 5 | LU (mm): 57.1 | LCF (mm): 69.8 | OAL (mm): 128.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Yes
MDW0850NHGS10 DC (mm): 8.5 | L/D: 10 | LU (mm): 108.1 | LCF (mm): 120.8 | OAL (mm): 182.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Yes
MDW0860NHGS3 DC (mm): 8.6 | L/D: 3 | LU (mm): 33.9 | LCF (mm): 46.8 | OAL (mm): 101.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Yes
MDW0860NHGS5 DC (mm): 8.6 | L/D: 5 | LU (mm): 60.9 | LCF (mm): 73.8 | OAL (mm): 128.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Yes
MDW0860NHGS10 DC (mm): 8.6 | L/D: 10 | LU (mm): 114.9 | LCF (mm): 127.8 | OAL (mm): 182.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Made to order
MDW0870NHGS3 DC (mm): 8.7 | L/D: 3 | LU (mm): 33.8 | LCF (mm): 46.8 | OAL (mm): 101.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Made to order
MDW0870NHGS5 DC (mm): 8.7 | L/D: 5 | LU (mm): 60.8 | LCF (mm): 73.8 | OAL (mm): 128.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Yes
MDW0870NHGS10 DC (mm): 8.7 | L/D: 10 | LU (mm): 114.8 | LCF (mm): 127.8 | OAL (mm): 182.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Made to order
MDW0880NHGS3 DC (mm): 8.8 | L/D: 3 | LU (mm): 33.6 | LCF (mm): 46.8 | OAL (mm): 101.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Yes
MDW0880NHGS5 DC (mm): 8.8 | L/D: 5 | LU (mm): 60.6 | LCF (mm): 73.8 | OAL (mm): 128.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Yes
MDW0880NHGS10 DC (mm): 8.8 | L/D: 10 | LU (mm): 114.6 | LCF (mm): 127.8 | OAL (mm): 182.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Made to order
MDW0890NHGS3 DC (mm): 8.9 | L/D: 3 | LU (mm): 33.5 | LCF (mm): 46.8 | OAL (mm): 101.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Made to order
MDW0890NHGS5 DC (mm): 8.9 | L/D: 5 | LU (mm): 60.5 | LCF (mm): 73.8 | OAL (mm): 128.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Yes
MDW0890NHGS10 DC (mm): 8.9 | L/D: 10 | LU (mm): 114.5 | LCF (mm): 127.8 | OAL (mm): 182.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Made to order
MDW0900NHGS3 DC (mm): 9.0 | L/D: 3 | LU (mm): 33.4 | LCF (mm): 46.9 | OAL (mm): 101.9 | PL (mm): 1.9 | DCON (mm): 9.0 | Stock: Yes
MDW0900NHGS5 DC (mm): 9.0 | L/D: 5 | LU (mm): 60.4 | LCF (mm): 73.9 | OAL (mm): 128.9 | PL (mm): 1.9 | DCON (mm): 9.0 | Stock: Yes
MDW0900NHGS10 DC (mm): 9.0 | L/D: 10 | LU (mm): 114.4 | LCF (mm): 127.9 | OAL (mm): 182.9 | PL (mm): 1.9 | DCON (mm): 9.0 | Stock: Yes
MDW0910NHGS3 DC (mm): 9.1 | L/D: 3 | LU (mm): 35.8 | LCF (mm): 49.4 | OAL (mm): 107.9 | PL (mm): 1.9 | DCON (mm): 10.0 | Stock: Made to order
MDW0910NHGS5 DC (mm): 9.1 | L/D: 5 | LU (mm): 64.3 | LCF (mm): 77.9 | OAL (mm): 137.9 | PL (mm): 1.9 | DCON (mm): 10.0 | Stock: Yes
MDW0910NHGS10 DC (mm): 9.1 | L/D: 10 | LU (mm): 121.3 | LCF (mm): 134.9 | OAL (mm): 197.9 | PL (mm): 1.9 | DCON (mm): 10.0 | Stock: Made to order
MDW0920NHGS3 DC (mm): 9.2 | L/D: 3 | LU (mm): 35.6 | LCF (mm): 49.4 | OAL (mm): 107.9 | PL (mm): 1.9 | DCON (mm): 10.0 | Stock: Made to order
MDW0920NHGS5 DC (mm): 9.2 | L/D: 5 | LU (mm): 64.1 | LCF (mm): 77.9 | OAL (mm): 137.9 | PL (mm): 1.9 | DCON (mm): 10.0 | Stock: Yes
MDW0920NHGS10 DC (mm): 9.2 | L/D: 10 | LU (mm): 121.1 | LCF (mm): 134.9 | OAL (mm): 197.9 | PL (mm): 1.9 | DCON (mm): 10.0 | Stock: Made to order
MDW0921NHGS3 DC (mm): 9.21 | L/D: 3 | LU (mm): 35.6 | LCF (mm): 49.4 | OAL (mm): 107.9 | PL (mm): 1.9 | DCON (mm): 10.0 | Stock: Yes
MDW0921NHGS5 DC (mm): 9.21 | L/D: 5 | LU (mm): 64.1 | LCF (mm): 77.9 | OAL (mm): 137.9 | PL (mm): 1.9 | DCON (mm): 10.0 | Stock: Yes
MDW0921NHGS10 DC (mm): 9.21 | L/D: 10 | LU (mm): 121.1 | LCF (mm): 134.9 | OAL (mm): 197.9 | PL (mm): 1.9 | DCON (mm): 10.0 | Stock: Made to order
MDW0930NHGS3 DC (mm): 9.3 | L/D: 3 | LU (mm): 35.5 | LCF (mm): 49.4 | OAL (mm): 107.9 | PL (mm): 1.9 | DCON (mm): 10.0 | Stock: Made to order
MDW0930NHGS5 DC (mm): 9.3 | L/D: 5 | LU (mm): 64.0 | LCF (mm): 77.9 | OAL (mm): 137.9 | PL (mm): 1.9 | DCON (mm): 10.0 | Stock: Yes
MDW0930NHGS10 DC (mm): 9.3 | L/D: 10 | LU (mm): 121.0 | LCF (mm): 134.9 | OAL (mm): 197.9 | PL (mm): 1.9 | DCON (mm): 10.0 | Stock: Made to order
MDW0940NHGS3 DC (mm): 9.4 | L/D: 3 | LU (mm): 35.3 | LCF (mm): 49.4 | OAL (mm): 107.9 | PL (mm): 1.9 | DCON (mm): 10.0 | Stock: Yes
MDW0940NHGS5 DC (mm): 9.4 | L/D: 5 | LU (mm): 63.8 | LCF (mm): 77.9 | OAL (mm): 137.9 | PL (mm): 1.9 | DCON (mm): 10.0 | Stock: Yes
MDW0940NHGS10 DC (mm): 9.4 | L/D: 10 | LU (mm): 120.8 | LCF (mm): 134.9 | OAL (mm): 197.9 | PL (mm): 1.9 | DCON (mm): 10.0 | Stock: Made to order
MDW0950NHGS3 DC (mm): 9.5 | L/D: 3 | LU (mm): 35.3 | LCF (mm): 49.5 | OAL (mm): 108.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Yes
MDW0950NHGS5 DC (mm): 9.5 | L/D: 5 | LU (mm): 63.8 | LCF (mm): 78.0 | OAL (mm): 138.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Yes
MDW0950NHGS10 DC (mm): 9.5 | L/D: 10 | LU (mm): 120.8 | LCF (mm): 135.0 | OAL (mm): 198.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Yes
MDW0960NHGS3 DC (mm): 9.6 | L/D: 3 | LU (mm): 37.6 | LCF (mm): 52.0 | OAL (mm): 108.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Made to order
MDW0960NHGS5 DC (mm): 9.6 | L/D: 5 | LU (mm): 67.6 | LCF (mm): 82.0 | OAL (mm): 138.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Yes
MDW0960NHGS10 DC (mm): 9.6 | L/D: 10 | LU (mm): 127.6 | LCF (mm): 142.0 | OAL (mm): 198.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Made to order
MDW0970NHGS3 DC (mm): 9.7 | L/D: 3 | LU (mm): 37.5 | LCF (mm): 52.0 | OAL (mm): 108.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Made to order
MDW0970NHGS5 DC (mm): 9.7 | L/D: 5 | LU (mm): 67.5 | LCF (mm): 82.0 | OAL (mm): 138.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Yes
MDW0970NHGS10 DC (mm): 9.7 | L/D: 10 | LU (mm): 127.5 | LCF (mm): 142.0 | OAL (mm): 198.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Made to order
MDW0980NHGS3 DC (mm): 9.8 | L/D: 3 | LU (mm): 37.3 | LCF (mm): 52.0 | OAL (mm): 108.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Made to order
MDW0980NHGS5 DC (mm): 9.8 | L/D: 5 | LU (mm): 67.3 | LCF (mm): 82.0 | OAL (mm): 138.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Yes
MDW0980NHGS10 DC (mm): 9.8 | L/D: 10 | LU (mm): 127.3 | LCF (mm): 142.0 | OAL (mm): 198.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Yes
MDW0990NHGS3 DC (mm): 9.9 | L/D: 3 | LU (mm): 37.2 | LCF (mm): 52.0 | OAL (mm): 108.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Made to order
MDW0990NHGS5 DC (mm): 9.9 | L/D: 5 | LU (mm): 67.2 | LCF (mm): 82.0 | OAL (mm): 138.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Yes
MDW0990NHGS10 DC (mm): 9.9 | L/D: 10 | LU (mm): 127.2 | LCF (mm): 142.0 | OAL (mm): 198.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Made to order
MDW1000NHGS3 DC (mm): 10.0 | L/D: 3 | LU (mm): 37.1 | LCF (mm): 52.1 | OAL (mm): 108.1 | PL (mm): 2.1 | DCON (mm): 10.0 | Stock: Yes
MDW1000NHGS5 DC (mm): 10.0 | L/D: 5 | LU (mm): 67.1 | LCF (mm): 82.1 | OAL (mm): 138.1 | PL (mm): 2.1 | DCON (mm): 10.0 | Stock: Yes
MDW1000NHGS10 DC (mm): 10.0 | L/D: 10 | LU (mm): 127.1 | LCF (mm): 142.1 | OAL (mm): 198.1 | PL (mm): 2.1 | DCON (mm): 10.0 | Stock: Yes
MDW1010NHGS3 DC (mm): 10.1 | L/D: 3 | LU (mm): 39.5 | LCF (mm): 54.6 | OAL (mm): 118.1 | PL (mm): 2.1 | DCON (mm): 11.0 | Stock: Yes
MDW1010NHGS5 DC (mm): 10.1 | L/D: 5 | LU (mm): 71.0 | LCF (mm): 86.1 | OAL (mm): 151.1 | PL (mm): 2.1 | DCON (mm): 11.0 | Stock: Made to order
MDW1010NHGS10 DC (mm): 10.1 | L/D: 10 | LU (mm): 134.0 | LCF (mm): 149.1 | OAL (mm): 217.1 | PL (mm): 2.1 | DCON (mm): 11.0 | Stock: Made to order
MDW1020NHGS3 DC (mm): 10.2 | L/D: 3 | LU (mm): 39.3 | LCF (mm): 54.6 | OAL (mm): 118.1 | PL (mm): 2.1 | DCON (mm): 11.0 | Stock: Made to order
MDW1020NHGS5 DC (mm): 10.2 | L/D: 5 | LU (mm): 70.8 | LCF (mm): 86.1 | OAL (mm): 151.1 | PL (mm): 2.1 | DCON (mm): 11.0 | Stock: Made to order
MDW1020NHGS10 DC (mm): 10.2 | L/D: 10 | LU (mm): 133.8 | LCF (mm): 149.1 | OAL (mm): 217.1 | PL (mm): 2.1 | DCON (mm): 11.0 | Stock: Made to order
MDW1030NHGS3 DC (mm): 10.3 | L/D: 3 | LU (mm): 39.2 | LCF (mm): 54.6 | OAL (mm): 118.1 | PL (mm): 2.1 | DCON (mm): 11.0 | Stock: Yes
MDW1030NHGS5 DC (mm): 10.3 | L/D: 5 | LU (mm): 70.7 | LCF (mm): 86.1 | OAL (mm): 151.1 | PL (mm): 2.1 | DCON (mm): 11.0 | Stock: Yes
MDW1030NHGS10 DC (mm): 10.3 | L/D: 10 | LU (mm): 133.7 | LCF (mm): 149.1 | OAL (mm): 217.1 | PL (mm): 2.1 | DCON (mm): 11.0 | Stock: Made to order
MDW1040NHGS3 DC (mm): 10.4 | L/D: 3 | LU (mm): 39.1 | LCF (mm): 54.7 | OAL (mm): 118.2 | PL (mm): 2.2 | DCON (mm): 11.0 | Stock: Made to order
MDW1040NHGS5 DC (mm): 10.4 | L/D: 5 | LU (mm): 70.6 | LCF (mm): 86.2 | OAL (mm): 151.2 | PL (mm): 2.2 | DCON (mm): 11.0 | Stock: Yes
MDW1040NHGS10 DC (mm): 10.4 | L/D: 10 | LU (mm): 133.6 | LCF (mm): 149.2 | OAL (mm): 217.2 | PL (mm): 2.2 | DCON (mm): 11.0 | Stock: Made to order
MDW1050NHGS3 DC (mm): 10.5 | L/D: 3 | LU (mm): 39.0 | LCF (mm): 54.7 | OAL (mm): 118.2 | PL (mm): 2.2 | DCON (mm): 11.0 | Stock: Yes
MDW1050NHGS5 DC (mm): 10.5 | L/D: 5 | LU (mm): 70.5 | LCF (mm): 86.2 | OAL (mm): 151.2 | PL (mm): 2.2 | DCON (mm): 11.0 | Stock: Yes
MDW1050NHGS10 DC (mm): 10.5 | L/D: 10 | LU (mm): 133.5 | LCF (mm): 149.2 | OAL (mm): 217.2 | PL (mm): 2.2 | DCON (mm): 11.0 | Stock: Yes
MDW1060NHGS3 DC (mm): 10.6 | L/D: 3 | LU (mm): 41.3 | LCF (mm): 57.2 | OAL (mm): 118.2 | PL (mm): 2.2 | DCON (mm): 11.0 | Stock: Yes
MDW1060NHGS5 DC (mm): 10.6 | L/D: 5 | LU (mm): 74.3 | LCF (mm): 90.2 | OAL (mm): 151.2 | PL (mm): 2.2 | DCON (mm): 11.0 | Stock: Yes
MDW1060NHGS10 DC (mm): 10.6 | L/D: 10 | LU (mm): 140.3 | LCF (mm): 156.2 | OAL (mm): 217.2 | PL (mm): 2.2 | DCON (mm): 11.0 | Stock: Made to order
MDW1070NHGS3 DC (mm): 10.7 | L/D: 3 | LU (mm): 41.2 | LCF (mm): 57.2 | OAL (mm): 118.2 | PL (mm): 2.2 | DCON (mm): 11.0 | Stock: Made to order
MDW1070NHGS5 DC (mm): 10.7 | L/D: 5 | LU (mm): 74.2 | LCF (mm): 90.2 | OAL (mm): 151.2 | PL (mm): 2.2 | DCON (mm): 11.0 | Stock: Made to order
MDW1070NHGS10 DC (mm): 10.7 | L/D: 10 | LU (mm): 140.2 | LCF (mm): 156.2 | OAL (mm): 217.2 | PL (mm): 2.2 | DCON (mm): 11.0 | Stock: Made to order
MDW1080NHGS3 DC (mm): 10.8 | L/D: 3 | LU (mm): 41.0 | LCF (mm): 57.2 | OAL (mm): 118.2 | PL (mm): 2.2 | DCON (mm): 11.0 | Stock: Made to order
MDW1080NHGS5 DC (mm): 10.8 | L/D: 5 | LU (mm): 74.0 | LCF (mm): 90.2 | OAL (mm): 151.2 | PL (mm): 2.2 | DCON (mm): 11.0 | Stock: Made to order
MDW1080NHGS10 DC (mm): 10.8 | L/D: 10 | LU (mm): 140.0 | LCF (mm): 156.2 | OAL (mm): 217.2 | PL (mm): 2.2 | DCON (mm): 11.0 | Stock: Made to order
MDW1090NHGS3 DC (mm): 10.9 | L/D: 3 | LU (mm): 41.0 | LCF (mm): 57.3 | OAL (mm): 118.3 | PL (mm): 2.3 | DCON (mm): 11.0 | Stock: Made to order
MDW1090NHGS5 DC (mm): 10.9 | L/D: 5 | LU (mm): 74.0 | LCF (mm): 90.3 | OAL (mm): 151.3 | PL (mm): 2.3 | DCON (mm): 11.0 | Stock: Made to order
MDW1090NHGS10 DC (mm): 10.9 | L/D: 10 | LU (mm): 140.0 | LCF (mm): 156.3 | OAL (mm): 217.3 | PL (mm): 2.3 | DCON (mm): 11.0 | Stock: Made to order
MDW1100NHGS3 DC (mm): 11.0 | L/D: 3 | LU (mm): 40.8 | LCF (mm): 57.3 | OAL (mm): 118.3 | PL (mm): 2.3 | DCON (mm): 11.0 | Stock: Yes
MDW1100NHGS5 DC (mm): 11.0 | L/D: 5 | LU (mm): 73.8 | LCF (mm): 90.3 | OAL (mm): 151.3 | PL (mm): 2.3 | DCON (mm): 11.0 | Stock: Yes
MDW1100NHGS10 DC (mm): 11.0 | L/D: 10 | LU (mm): 139.8 | LCF (mm): 156.3 | OAL (mm): 217.3 | PL (mm): 2.3 | DCON (mm): 11.0 | Stock: Yes
MDW1108NHGS3 DC (mm): 11.08 | L/D: 3 | LU (mm): 43.2 | LCF (mm): 59.8 | OAL (mm): 124.3 | PL (mm): 2.3 | DCON (mm): 12.0 | Stock: Yes
MDW1108NHGS5 DC (mm): 11.08 | L/D: 5 | LU (mm): 77.7 | LCF (mm): 94.3 | OAL (mm): 160.3 | PL (mm): 2.3 | DCON (mm): 12.0 | Stock: Yes
MDW1108NHGS10 DC (mm): 11.08 | L/D: 10 | LU (mm): 146.7 | LCF (mm): 163.3 | OAL (mm): 232.3 | PL (mm): 2.3 | DCON (mm): 12.0 | Stock: Made to order
MDW1110NHGS3 DC (mm): 11.1 | L/D: 3 | LU (mm): 43.2 | LCF (mm): 59.8 | OAL (mm): 124.3 | PL (mm): 2.3 | DCON (mm): 12.0 | Stock: Yes
MDW1110NHGS5 DC (mm): 11.1 | L/D: 5 | LU (mm): 77.7 | LCF (mm): 94.3 | OAL (mm): 160.3 | PL (mm): 2.3 | DCON (mm): 12.0 | Stock: Yes
MDW1110NHGS10 DC (mm): 11.1 | L/D: 10 | LU (mm): 146.7 | LCF (mm): 163.3 | OAL (mm): 232.3 | PL (mm): 2.3 | DCON (mm): 12.0 | Stock: Made to order
MDW1120NHGS3 DC (mm): 11.2 | L/D: 3 | LU (mm): 43.0 | LCF (mm): 59.8 | OAL (mm): 124.3 | PL (mm): 2.3 | DCON (mm): 12.0 | Stock: Yes
MDW1120NHGS5 DC (mm): 11.2 | L/D: 5 | LU (mm): 77.5 | LCF (mm): 94.3 | OAL (mm): 160.3 | PL (mm): 2.3 | DCON (mm): 12.0 | Stock: Yes
MDW1120NHGS10 DC (mm): 11.2 | L/D: 10 | LU (mm): 146.5 | LCF (mm): 163.3 | OAL (mm): 232.3 | PL (mm): 2.3 | DCON (mm): 12.0 | Stock: Made to order
MDW1130NHGS3 DC (mm): 11.3 | L/D: 3 | LU (mm): 42.9 | LCF (mm): 59.8 | OAL (mm): 124.3 | PL (mm): 2.3 | DCON (mm): 12.0 | Stock: Made to order
MDW1130NHGS5 DC (mm): 11.3 | L/D: 5 | LU (mm): 77.4 | LCF (mm): 94.3 | OAL (mm): 160.3 | PL (mm): 2.3 | DCON (mm): 12.0 | Stock: Made to order
MDW1130NHGS10 DC (mm): 11.3 | L/D: 10 | LU (mm): 146.4 | LCF (mm): 163.3 | OAL (mm): 232.3 | PL (mm): 2.3 | DCON (mm): 12.0 | Stock: Made to order
MDW1140NHGS3 DC (mm): 11.4 | L/D: 3 | LU (mm): 42.8 | LCF (mm): 59.9 | OAL (mm): 124.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Yes
MDW1140NHGS5 DC (mm): 11.4 | L/D: 5 | LU (mm): 77.3 | LCF (mm): 94.4 | OAL (mm): 160.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Yes
MDW1140NHGS10 DC (mm): 11.4 | L/D: 10 | LU (mm): 146.3 | LCF (mm): 163.4 | OAL (mm): 232.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Made to order
MDW1150NHGS3 DC (mm): 11.5 | L/D: 3 | LU (mm): 42.7 | LCF (mm): 59.9 | OAL (mm): 124.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Yes
MDW1150NHGS5 DC (mm): 11.5 | L/D: 5 | LU (mm): 77.2 | LCF (mm): 94.4 | OAL (mm): 160.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Yes
MDW1150NHGS10 DC (mm): 11.5 | L/D: 10 | LU (mm): 146.2 | LCF (mm): 163.4 | OAL (mm): 232.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Yes
MDW1160NHGS3 DC (mm): 11.6 | L/D: 3 | LU (mm): 45.0 | LCF (mm): 62.4 | OAL (mm): 124.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Made to order
MDW1160NHGS5 DC (mm): 11.6 | L/D: 5 | LU (mm): 81.0 | LCF (mm): 98.4 | OAL (mm): 160.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Made to order
MDW1160NHGS10 DC (mm): 11.6 | L/D: 10 | LU (mm): 153.0 | LCF (mm): 170.4 | OAL (mm): 232.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Made to order
MDW1170NHGS3 DC (mm): 11.7 | L/D: 3 | LU (mm): 44.9 | LCF (mm): 62.4 | OAL (mm): 124.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Made to order
MDW1170NHGS5 DC (mm): 11.7 | L/D: 5 | LU (mm): 80.9 | LCF (mm): 98.4 | OAL (mm): 160.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Made to order
MDW1170NHGS10 DC (mm): 11.7 | L/D: 10 | LU (mm): 152.9 | LCF (mm): 170.4 | OAL (mm): 232.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Made to order
MDW1180NHGS3 DC (mm): 11.8 | L/D: 3 | LU (mm): 44.7 | LCF (mm): 62.4 | OAL (mm): 124.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Made to order
MDW1180NHGS5 DC (mm): 11.8 | L/D: 5 | LU (mm): 80.7 | LCF (mm): 98.4 | OAL (mm): 160.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Made to order
MDW1180NHGS10 DC (mm): 11.8 | L/D: 10 | LU (mm): 152.7 | LCF (mm): 170.4 | OAL (mm): 232.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Made to order
MDW1190NHGS3 DC (mm): 11.9 | L/D: 3 | LU (mm): 44.7 | LCF (mm): 62.5 | OAL (mm): 124.5 | PL (mm): 2.5 | DCON (mm): 12.0 | Stock: Made to order
MDW1190NHGS5 DC (mm): 11.9 | L/D: 5 | LU (mm): 80.7 | LCF (mm): 98.5 | OAL (mm): 160.5 | PL (mm): 2.5 | DCON (mm): 12.0 | Stock: Made to order
MDW1190NHGS10 DC (mm): 11.9 | L/D: 10 | LU (mm): 152.7 | LCF (mm): 170.5 | OAL (mm): 232.5 | PL (mm): 2.5 | DCON (mm): 12.0 | Stock: Made to order
MDW1200NHGS3 DC (mm): 12.0 | L/D: 3 | LU (mm): 44.5 | LCF (mm): 62.5 | OAL (mm): 124.5 | PL (mm): 2.5 | DCON (mm): 12.0 | Stock: Yes
MDW1200NHGS5 DC (mm): 12.0 | L/D: 5 | LU (mm): 80.5 | LCF (mm): 98.5 | OAL (mm): 160.5 | PL (mm): 2.5 | DCON (mm): 12.0 | Stock: Yes
MDW1200NHGS10 DC (mm): 12.0 | L/D: 10 | LU (mm): 152.5 | LCF (mm): 170.5 | OAL (mm): 232.5 | PL (mm): 2.5 | DCON (mm): 12.0 | Stock: Yes
MDW1210NHGS3 DC (mm): 12.1 | L/D: 3 | LU (mm): 46.9 | LCF (mm): 65.0 | OAL (mm): 130.5 | PL (mm): 2.5 | DCON (mm): 13.0 | Stock: Yes
MDW1210NHGS5 DC (mm): 12.1 | L/D: 5 | LU (mm): 84.4 | LCF (mm): 102.5 | OAL (mm): 169.5 | PL (mm): 2.5 | DCON (mm): 13.0 | Stock: Yes
MDW1210NHGS10 DC (mm): 12.1 | L/D: 10 | LU (mm): 159.4 | LCF (mm): 177.5 | OAL (mm): 247.5 | PL (mm): 2.5 | DCON (mm): 13.0 | Stock: Made to order
MDW1220NHGS3 DC (mm): 12.2 | L/D: 3 | LU (mm): 46.7 | LCF (mm): 65.0 | OAL (mm): 130.5 | PL (mm): 2.5 | DCON (mm): 13.0 | Stock: Made to order
MDW1220NHGS5 DC (mm): 12.2 | L/D: 5 | LU (mm): 84.2 | LCF (mm): 102.5 | OAL (mm): 169.5 | PL (mm): 2.5 | DCON (mm): 13.0 | Stock: Made to order
MDW1220NHGS10 DC (mm): 12.2 | L/D: 10 | LU (mm): 159.2 | LCF (mm): 177.5 | OAL (mm): 247.5 | PL (mm): 2.5 | DCON (mm): 13.0 | Stock: Made to order
MDW1230NHGS3 DC (mm): 12.3 | L/D: 3 | LU (mm): 46.6 | LCF (mm): 65.0 | OAL (mm): 130.5 | PL (mm): 2.5 | DCON (mm): 13.0 | Stock: Yes
MDW1230NHGS5 DC (mm): 12.3 | L/D: 5 | LU (mm): 84.1 | LCF (mm): 102.5 | OAL (mm): 169.5 | PL (mm): 2.5 | DCON (mm): 13.0 | Stock: Yes
MDW1230NHGS10 DC (mm): 12.3 | L/D: 10 | LU (mm): 159.1 | LCF (mm): 177.5 | OAL (mm): 247.5 | PL (mm): 2.5 | DCON (mm): 13.0 | Stock: Made to order
MDW1240NHGS3 DC (mm): 12.4 | L/D: 3 | LU (mm): 46.5 | LCF (mm): 65.1 | OAL (mm): 130.6 | PL (mm): 2.6 | DCON (mm): 13.0 | Stock: Made to order
MDW1240NHGS5 DC (mm): 12.4 | L/D: 5 | LU (mm): 84.0 | LCF (mm): 102.6 | OAL (mm): 169.6 | PL (mm): 2.6 | DCON (mm): 13.0 | Stock: Made to order
MDW1240NHGS10 DC (mm): 12.4 | L/D: 10 | LU (mm): 159.0 | LCF (mm): 177.6 | OAL (mm): 247.6 | PL (mm): 2.6 | DCON (mm): 13.0 | Stock: Made to order
MDW1250NHGS3 DC (mm): 12.5 | L/D: 3 | LU (mm): 46.4 | LCF (mm): 65.1 | OAL (mm): 130.6 | PL (mm): 2.6 | DCON (mm): 13.0 | Stock: Yes
MDW1250NHGS5 DC (mm): 12.5 | L/D: 5 | LU (mm): 83.9 | LCF (mm): 102.6 | OAL (mm): 169.6 | PL (mm): 2.6 | DCON (mm): 13.0 | Stock: Yes
MDW1250NHGS10 DC (mm): 12.5 | L/D: 10 | LU (mm): 158.9 | LCF (mm): 177.6 | OAL (mm): 247.6 | PL (mm): 2.6 | DCON (mm): 13.0 | Stock: Yes
MDW1260NHGS3 DC (mm): 12.6 | L/D: 3 | LU (mm): 48.7 | LCF (mm): 67.6 | OAL (mm): 130.6 | PL (mm): 2.6 | DCON (mm): 13.0 | Stock: Made to order
MDW1260NHGS5 DC (mm): 12.6 | L/D: 5 | LU (mm): 87.7 | LCF (mm): 106.6 | OAL (mm): 169.6 | PL (mm): 2.6 | DCON (mm): 13.0 | Stock: Made to order
MDW1260NHGS10 DC (mm): 12.6 | L/D: 10 | LU (mm): 165.7 | LCF (mm): 184.6 | OAL (mm): 247.6 | PL (mm): 2.6 | DCON (mm): 13.0 | Stock: Made to order
MDW1270NHGS3 DC (mm): 12.7 | L/D: 3 | LU (mm): 48.6 | LCF (mm): 67.6 | OAL (mm): 130.6 | PL (mm): 2.6 | DCON (mm): 13.0 | Stock: Made to order
MDW1270NHGS5 DC (mm): 12.7 | L/D: 5 | LU (mm): 87.6 | LCF (mm): 106.6 | OAL (mm): 169.6 | PL (mm): 2.6 | DCON (mm): 13.0 | Stock: Made to order
MDW1270NHGS10 DC (mm): 12.7 | L/D: 10 | LU (mm): 165.6 | LCF (mm): 184.6 | OAL (mm): 247.6 | PL (mm): 2.6 | DCON (mm): 13.0 | Stock: Made to order
MDW1280NHGS3 DC (mm): 12.8 | L/D: 3 | LU (mm): 48.4 | LCF (mm): 67.6 | OAL (mm): 130.6 | PL (mm): 2.6 | DCON (mm): 13.0 | Stock: Made to order
MDW1280NHGS5 DC (mm): 12.8 | L/D: 5 | LU (mm): 87.4 | LCF (mm): 106.6 | OAL (mm): 169.6 | PL (mm): 2.6 | DCON (mm): 13.0 | Stock: Made to order
MDW1280NHGS10 DC (mm): 12.8 | L/D: 10 | LU (mm): 165.4 | LCF (mm): 184.6 | OAL (mm): 247.6 | PL (mm): 2.6 | DCON (mm): 13.0 | Stock: Made to order
MDW1290NHGS3 DC (mm): 12.9 | L/D: 3 | LU (mm): 48.4 | LCF (mm): 67.7 | OAL (mm): 130.7 | PL (mm): 2.7 | DCON (mm): 13.0 | Stock: Made to order
MDW1290NHGS5 DC (mm): 12.9 | L/D: 5 | LU (mm): 87.4 | LCF (mm): 106.7 | OAL (mm): 169.7 | PL (mm): 2.7 | DCON (mm): 13.0 | Stock: Made to order
MDW1290NHGS10 DC (mm): 12.9 | L/D: 10 | LU (mm): 165.4 | LCF (mm): 184.7 | OAL (mm): 247.7 | PL (mm): 2.7 | DCON (mm): 13.0 | Stock: Made to order
MDW1296NHGS3 DC (mm): 12.96 | L/D: 3 | LU (mm): 48.3 | LCF (mm): 67.7 | OAL (mm): 130.7 | PL (mm): 2.7 | DCON (mm): 13.0 | Stock: Yes
MDW1296NHGS5 DC (mm): 12.96 | L/D: 5 | LU (mm): 87.3 | LCF (mm): 106.7 | OAL (mm): 169.7 | PL (mm): 2.7 | DCON (mm): 13.0 | Stock: Yes
MDW1296NHGS10 DC (mm): 12.96 | L/D: 10 | LU (mm): 165.3 | LCF (mm): 184.7 | OAL (mm): 247.7 | PL (mm): 2.7 | DCON (mm): 13.0 | Stock: Made to order
MDW1300NHGS3 DC (mm): 13.0 | L/D: 3 | LU (mm): 48.2 | LCF (mm): 67.7 | OAL (mm): 130.7 | PL (mm): 2.7 | DCON (mm): 13.0 | Stock: Yes
MDW1300NHGS5 DC (mm): 13.0 | L/D: 5 | LU (mm): 87.2 | LCF (mm): 106.7 | OAL (mm): 169.7 | PL (mm): 2.7 | DCON (mm): 13.0 | Stock: Yes
MDW1300NHGS10 DC (mm): 13.0 | L/D: 10 | LU (mm): 165.2 | LCF (mm): 184.7 | OAL (mm): 247.7 | PL (mm): 2.7 | DCON (mm): 13.0 | Stock: Yes
MDW1310NHGS3 DC (mm): 13.1 | L/D: 3 | LU (mm): 50.6 | LCF (mm): 70.2 | OAL (mm): 136.7 | PL (mm): 2.7 | DCON (mm): 14.0 | Stock: Made to order
MDW1310NHGS5 DC (mm): 13.1 | L/D: 5 | LU (mm): 91.1 | LCF (mm): 110.7 | OAL (mm): 178.7 | PL (mm): 2.7 | DCON (mm): 14.0 | Stock: Made to order
MDW1310NHGS10 DC (mm): 13.1 | L/D: 10 | LU (mm): 172.1 | LCF (mm): 191.7 | OAL (mm): 262.7 | PL (mm): 2.7 | DCON (mm): 14.0 | Stock: Made to order
MDW1320NHGS3 DC (mm): 13.2 | L/D: 3 | LU (mm): 50.4 | LCF (mm): 70.2 | OAL (mm): 136.7 | PL (mm): 2.7 | DCON (mm): 14.0 | Stock: Made to order
MDW1320NHGS5 DC (mm): 13.2 | L/D: 5 | LU (mm): 90.9 | LCF (mm): 110.7 | OAL (mm): 178.7 | PL (mm): 2.7 | DCON (mm): 14.0 | Stock: Made to order
MDW1320NHGS10 DC (mm): 13.2 | L/D: 10 | LU (mm): 171.9 | LCF (mm): 191.7 | OAL (mm): 262.7 | PL (mm): 2.7 | DCON (mm): 14.0 | Stock: Made to order
MDW1330NHGS3 DC (mm): 13.3 | L/D: 3 | LU (mm): 50.4 | LCF (mm): 70.3 | OAL (mm): 136.8 | PL (mm): 2.8 | DCON (mm): 14.0 | Stock: Made to order
MDW1330NHGS5 DC (mm): 13.3 | L/D: 5 | LU (mm): 90.9 | LCF (mm): 110.8 | OAL (mm): 178.8 | PL (mm): 2.8 | DCON (mm): 14.0 | Stock: Made to order
MDW1330NHGS10 DC (mm): 13.3 | L/D: 10 | LU (mm): 171.9 | LCF (mm): 191.8 | OAL (mm): 262.8 | PL (mm): 2.8 | DCON (mm): 14.0 | Stock: Made to order
MDW1340NHGS3 DC (mm): 13.4 | L/D: 3 | LU (mm): 50.2 | LCF (mm): 70.3 | OAL (mm): 136.8 | PL (mm): 2.8 | DCON (mm): 14.0 | Stock: Made to order
MDW1340NHGS5 DC (mm): 13.4 | L/D: 5 | LU (mm): 90.7 | LCF (mm): 110.8 | OAL (mm): 178.8 | PL (mm): 2.8 | DCON (mm): 14.0 | Stock: Made to order
MDW1340NHGS10 DC (mm): 13.4 | L/D: 10 | LU (mm): 171.7 | LCF (mm): 191.8 | OAL (mm): 262.8 | PL (mm): 2.8 | DCON (mm): 14.0 | Stock: Made to order
MDW1350NHGS3 DC (mm): 13.5 | L/D: 3 | LU (mm): 50.1 | LCF (mm): 70.3 | OAL (mm): 136.8 | PL (mm): 2.8 | DCON (mm): 14.0 | Stock: Yes
MDW1350NHGS5 DC (mm): 13.5 | L/D: 5 | LU (mm): 90.6 | LCF (mm): 110.8 | OAL (mm): 178.8 | PL (mm): 2.8 | DCON (mm): 14.0 | Stock: Yes
MDW1350NHGS10 DC (mm): 13.5 | L/D: 10 | LU (mm): 171.6 | LCF (mm): 191.8 | OAL (mm): 262.8 | PL (mm): 2.8 | DCON (mm): 14.0 | Stock: Made to order
MDW1360NHGS3 DC (mm): 13.6 | L/D: 3 | LU (mm): 52.4 | LCF (mm): 72.8 | OAL (mm): 136.8 | PL (mm): 2.8 | DCON (mm): 14.0 | Stock: Made to order
MDW1360NHGS5 DC (mm): 13.6 | L/D: 5 | LU (mm): 94.4 | LCF (mm): 114.8 | OAL (mm): 178.8 | PL (mm): 2.8 | DCON (mm): 14.0 | Stock: Made to order
MDW1360NHGS10 DC (mm): 13.6 | L/D: 10 | LU (mm): 178.4 | LCF (mm): 198.8 | OAL (mm): 262.8 | PL (mm): 2.8 | DCON (mm): 14.0 | Stock: Made to order
MDW1370NHGS3 DC (mm): 13.7 | L/D: 3 | LU (mm): 52.3 | LCF (mm): 72.8 | OAL (mm): 136.8 | PL (mm): 2.8 | DCON (mm): 14.0 | Stock: Made to order
MDW1370NHGS5 DC (mm): 13.7 | L/D: 5 | LU (mm): 94.3 | LCF (mm): 114.8 | OAL (mm): 178.8 | PL (mm): 2.8 | DCON (mm): 14.0 | Stock: Made to order
MDW1370NHGS10 DC (mm): 13.7 | L/D: 10 | LU (mm): 178.3 | LCF (mm): 198.8 | OAL (mm): 262.8 | PL (mm): 2.8 | DCON (mm): 14.0 | Stock: Made to order
MDW1380NHGS3 DC (mm): 13.8 | L/D: 3 | LU (mm): 52.2 | LCF (mm): 72.9 | OAL (mm): 136.9 | PL (mm): 2.9 | DCON (mm): 14.0 | Stock: Made to order
MDW1380NHGS5 DC (mm): 13.8 | L/D: 5 | LU (mm): 94.2 | LCF (mm): 114.9 | OAL (mm): 178.9 | PL (mm): 2.9 | DCON (mm): 14.0 | Stock: Made to order
MDW1380NHGS10 DC (mm): 13.8 | L/D: 10 | LU (mm): 178.2 | LCF (mm): 198.9 | OAL (mm): 262.9 | PL (mm): 2.9 | DCON (mm): 14.0 | Stock: Made to order
MDW1390NHGS3 DC (mm): 13.9 | L/D: 3 | LU (mm): 52.1 | LCF (mm): 72.9 | OAL (mm): 136.9 | PL (mm): 2.9 | DCON (mm): 14.0 | Stock: Made to order
MDW1390NHGS5 DC (mm): 13.9 | L/D: 5 | LU (mm): 94.1 | LCF (mm): 114.9 | OAL (mm): 178.9 | PL (mm): 2.9 | DCON (mm): 14.0 | Stock: Made to order
MDW1390NHGS10 DC (mm): 13.9 | L/D: 10 | LU (mm): 178.1 | LCF (mm): 198.9 | OAL (mm): 262.9 | PL (mm): 2.9 | DCON (mm): 14.0 | Stock: Made to order
MDW1400NHGS3 DC (mm): 14.0 | L/D: 3 | LU (mm): 51.9 | LCF (mm): 72.9 | OAL (mm): 136.9 | PL (mm): 2.9 | DCON (mm): 14.0 | Stock: Yes
MDW1400NHGS5 DC (mm): 14.0 | L/D: 5 | LU (mm): 93.9 | LCF (mm): 114.9 | OAL (mm): 178.9 | PL (mm): 2.9 | DCON (mm): 14.0 | Stock: Yes
MDW1400NHGS10 DC (mm): 14.0 | L/D: 10 | LU (mm): 177.9 | LCF (mm): 198.9 | OAL (mm): 262.9 | PL (mm): 2.9 | DCON (mm): 14.0 | Stock: Made to order
MDW1410NHGS3 DC (mm): 14.1 | L/D: 3 | LU (mm): 54.3 | LCF (mm): 75.4 | OAL (mm): 142.9 | PL (mm): 2.9 | DCON (mm): 15.0 | Stock: Yes
MDW1410NHGS5 DC (mm): 14.1 | L/D: 5 | LU (mm): 97.8 | LCF (mm): 118.9 | OAL (mm): 187.9 | PL (mm): 2.9 | DCON (mm): 15.0 | Stock: Yes
MDW1410NHGS10 DC (mm): 14.1 | L/D: 10 | LU (mm): 184.8 | LCF (mm): 205.9 | OAL (mm): 277.9 | PL (mm): 2.9 | DCON (mm): 15.0 | Stock: Made to order
MDW1420NHGS3 DC (mm): 14.2 | L/D: 3 | LU (mm): 54.1 | LCF (mm): 75.4 | OAL (mm): 142.9 | PL (mm): 2.9 | DCON (mm): 15.0 | Stock: Made to order
MDW1420NHGS5 DC (mm): 14.2 | L/D: 5 | LU (mm): 97.6 | LCF (mm): 118.9 | OAL (mm): 187.9 | PL (mm): 2.9 | DCON (mm): 15.0 | Stock: Made to order
MDW1420NHGS10 DC (mm): 14.2 | L/D: 10 | LU (mm): 184.6 | LCF (mm): 205.9 | OAL (mm): 277.9 | PL (mm): 2.9 | DCON (mm): 15.0 | Stock: Made to order
MDW1430NHGS3 DC (mm): 14.3 | L/D: 3 | LU (mm): 54.1 | LCF (mm): 75.5 | OAL (mm): 143.0 | PL (mm): 3.0 | DCON (mm): 15.0 | Stock: Made to order
MDW1430NHGS5 DC (mm): 14.3 | L/D: 5 | LU (mm): 97.6 | LCF (mm): 119.0 | OAL (mm): 188.0 | PL (mm): 3.0 | DCON (mm): 15.0 | Stock: Made to order
MDW1430NHGS10 DC (mm): 14.3 | L/D: 10 | LU (mm): 184.6 | LCF (mm): 206.0 | OAL (mm): 278.0 | PL (mm): 3.0 | DCON (mm): 15.0 | Stock: Made to order
MDW1440NHGS3 DC (mm): 14.4 | L/D: 3 | LU (mm): 53.9 | LCF (mm): 75.5 | OAL (mm): 143.0 | PL (mm): 3.0 | DCON (mm): 15.0 | Stock: Made to order
MDW1440NHGS5 DC (mm): 14.4 | L/D: 5 | LU (mm): 97.4 | LCF (mm): 119.0 | OAL (mm): 188.0 | PL (mm): 3.0 | DCON (mm): 15.0 | Stock: Made to order
MDW1440NHGS10 DC (mm): 14.4 | L/D: 10 | LU (mm): 184.4 | LCF (mm): 206.0 | OAL (mm): 278.0 | PL (mm): 3.0 | DCON (mm): 15.0 | Stock: Made to order
MDW1450NHGS3 DC (mm): 14.5 | L/D: 3 | LU (mm): 53.8 | LCF (mm): 75.5 | OAL (mm): 143.0 | PL (mm): 3.0 | DCON (mm): 15.0 | Stock: Yes
MDW1450NHGS5 DC (mm): 14.5 | L/D: 5 | LU (mm): 97.3 | LCF (mm): 119.0 | OAL (mm): 188.0 | PL (mm): 3.0 | DCON (mm): 15.0 | Stock: Yes
MDW1450NHGS10 DC (mm): 14.5 | L/D: 10 | LU (mm): 184.3 | LCF (mm): 206.0 | OAL (mm): 278.0 | PL (mm): 3.0 | DCON (mm): 15.0 | Stock: Made to order
MDW1460NHGS3 DC (mm): 14.6 | L/D: 3 | LU (mm): 56.1 | LCF (mm): 78.0 | OAL (mm): 143.0 | PL (mm): 3.0 | DCON (mm): 15.0 | Stock: Made to order
MDW1460NHGS5 DC (mm): 14.6 | L/D: 5 | LU (mm): 101.1 | LCF (mm): 123.0 | OAL (mm): 188.0 | PL (mm): 3.0 | DCON (mm): 15.0 | Stock: Made to order
MDW1460NHGS10 DC (mm): 14.6 | L/D: 10 | LU (mm): 191.1 | LCF (mm): 213.0 | OAL (mm): 278.0 | PL (mm): 3.0 | DCON (mm): 15.0 | Stock: Made to order
MDW1470NHGS3 DC (mm): 14.7 | L/D: 3 | LU (mm): 56.0 | LCF (mm): 78.0 | OAL (mm): 143.0 | PL (mm): 3.0 | DCON (mm): 15.0 | Stock: Made to order
MDW1470NHGS5 DC (mm): 14.7 | L/D: 5 | LU (mm): 101.0 | LCF (mm): 123.0 | OAL (mm): 188.0 | PL (mm): 3.0 | DCON (mm): 15.0 | Stock: Made to order
MDW1470NHGS10 DC (mm): 14.7 | L/D: 10 | LU (mm): 191.0 | LCF (mm): 213.0 | OAL (mm): 278.0 | PL (mm): 3.0 | DCON (mm): 15.0 | Stock: Made to order
MDW1480NHGS3 DC (mm): 14.8 | L/D: 3 | LU (mm): 55.9 | LCF (mm): 78.1 | OAL (mm): 143.1 | PL (mm): 3.1 | DCON (mm): 15.0 | Stock: Made to order
MDW1480NHGS5 DC (mm): 14.8 | L/D: 5 | LU (mm): 100.9 | LCF (mm): 123.1 | OAL (mm): 188.1 | PL (mm): 3.1 | DCON (mm): 15.0 | Stock: Made to order
MDW1480NHGS10 DC (mm): 14.8 | L/D: 10 | LU (mm): 190.9 | LCF (mm): 213.1 | OAL (mm): 278.1 | PL (mm): 3.1 | DCON (mm): 15.0 | Stock: Made to order
MDW1490NHGS3 DC (mm): 14.9 | L/D: 3 | LU (mm): 55.8 | LCF (mm): 78.1 | OAL (mm): 143.1 | PL (mm): 3.1 | DCON (mm): 15.0 | Stock: Yes
MDW1490NHGS5 DC (mm): 14.9 | L/D: 5 | LU (mm): 100.8 | LCF (mm): 123.1 | OAL (mm): 188.1 | PL (mm): 3.1 | DCON (mm): 15.0 | Stock: Yes
MDW1490NHGS10 DC (mm): 14.9 | L/D: 10 | LU (mm): 190.8 | LCF (mm): 213.1 | OAL (mm): 278.1 | PL (mm): 3.1 | DCON (mm): 15.0 | Stock: Made to order
MDW1496NHGS3 DC (mm): 14.96 | L/D: 3 | LU (mm): 55.7 | LCF (mm): 78.1 | OAL (mm): 143.1 | PL (mm): 3.1 | DCON (mm): 15.0 | Stock: Yes
MDW1496NHGS5 DC (mm): 14.96 | L/D: 5 | LU (mm): 100.7 | LCF (mm): 123.1 | OAL (mm): 188.1 | PL (mm): 3.1 | DCON (mm): 15.0 | Stock: Yes
MDW1496NHGS10 DC (mm): 14.96 | L/D: 10 | LU (mm): 190.7 | LCF (mm): 213.1 | OAL (mm): 278.1 | PL (mm): 3.1 | DCON (mm): 15.0 | Stock: Made to order
MDW1500NHGS3 DC (mm): 15.0 | L/D: 3 | LU (mm): 55.6 | LCF (mm): 78.1 | OAL (mm): 143.1 | PL (mm): 3.1 | DCON (mm): 15.0 | Stock: Yes
MDW1500NHGS5 DC (mm): 15.0 | L/D: 5 | LU (mm): 100.6 | LCF (mm): 123.1 | OAL (mm): 188.1 | PL (mm): 3.1 | DCON (mm): 15.0 | Stock: Yes
MDW1500NHGS10 DC (mm): 15.0 | L/D: 10 | LU (mm): 190.6 | LCF (mm): 213.1 | OAL (mm): 278.1 | PL (mm): 3.1 | DCON (mm): 15.0 | Stock: Made to order
MDW1510NHGS3 DC (mm): 15.1 | L/D: 3 | LU (mm): 58.0 | LCF (mm): 80.6 | OAL (mm): 149.1 | PL (mm): 3.1 | DCON (mm): 16.0 | Stock: Made to order
MDW1510NHGS5 DC (mm): 15.1 | L/D: 5 | LU (mm): 104.5 | LCF (mm): 127.1 | OAL (mm): 197.1 | PL (mm): 3.1 | DCON (mm): 16.0 | Stock: Made to order
MDW1510NHGS10 DC (mm): 15.1 | L/D: 10 | LU (mm): 197.5 | LCF (mm): 220.1 | OAL (mm): 293.1 | PL (mm): 3.1 | DCON (mm): 16.0 | Stock: Made to order
MDW1520NHGS3 DC (mm): 15.2 | L/D: 3 | LU (mm): 57.8 | LCF (mm): 80.6 | OAL (mm): 149.1 | PL (mm): 3.1 | DCON (mm): 16.0 | Stock: Made to order
MDW1520NHGS5 DC (mm): 15.2 | L/D: 5 | LU (mm): 104.3 | LCF (mm): 127.1 | OAL (mm): 197.1 | PL (mm): 3.1 | DCON (mm): 16.0 | Stock: Made to order
MDW1520NHGS10 DC (mm): 15.2 | L/D: 10 | LU (mm): 197.3 | LCF (mm): 220.1 | OAL (mm): 293.1 | PL (mm): 3.1 | DCON (mm): 16.0 | Stock: Made to order
MDW1530NHGS3 DC (mm): 15.3 | L/D: 3 | LU (mm): 57.8 | LCF (mm): 80.7 | OAL (mm): 149.2 | PL (mm): 3.2 | DCON (mm): 16.0 | Stock: Made to order
MDW1530NHGS5 DC (mm): 15.3 | L/D: 5 | LU (mm): 104.3 | LCF (mm): 127.2 | OAL (mm): 197.2 | PL (mm): 3.2 | DCON (mm): 16.0 | Stock: Made to order
MDW1530NHGS10 DC (mm): 15.3 | L/D: 10 | LU (mm): 197.3 | LCF (mm): 220.2 | OAL (mm): 293.2 | PL (mm): 3.2 | DCON (mm): 16.0 | Stock: Made to order
MDW1540NHGS3 DC (mm): 15.4 | L/D: 3 | LU (mm): 57.6 | LCF (mm): 80.7 | OAL (mm): 149.2 | PL (mm): 3.2 | DCON (mm): 16.0 | Stock: Made to order
MDW1540NHGS5 DC (mm): 15.4 | L/D: 5 | LU (mm): 104.1 | LCF (mm): 127.2 | OAL (mm): 197.2 | PL (mm): 3.2 | DCON (mm): 16.0 | Stock: Made to order
MDW1540NHGS10 DC (mm): 15.4 | L/D: 10 | LU (mm): 197.1 | LCF (mm): 220.2 | OAL (mm): 293.2 | PL (mm): 3.2 | DCON (mm): 16.0 | Stock: Made to order
MDW1550NHGS3 DC (mm): 15.5 | L/D: 3 | LU (mm): 57.5 | LCF (mm): 80.7 | OAL (mm): 149.2 | PL (mm): 3.2 | DCON (mm): 16.0 | Stock: Yes
MDW1550NHGS5 DC (mm): 15.5 | L/D: 5 | LU (mm): 104.0 | LCF (mm): 127.2 | OAL (mm): 197.2 | PL (mm): 3.2 | DCON (mm): 16.0 | Stock: Yes
MDW1550NHGS10 DC (mm): 15.5 | L/D: 10 | LU (mm): 197.0 | LCF (mm): 220.2 | OAL (mm): 293.2 | PL (mm): 3.2 | DCON (mm): 16.0 | Stock: Made to order
MDW1560NHGS3 DC (mm): 15.6 | L/D: 3 | LU (mm): 59.8 | LCF (mm): 83.2 | OAL (mm): 149.2 | PL (mm): 3.2 | DCON (mm): 16.0 | Stock: Made to order
MDW1560NHGS5 DC (mm): 15.6 | L/D: 5 | LU (mm): 107.8 | LCF (mm): 131.2 | OAL (mm): 197.2 | PL (mm): 3.2 | DCON (mm): 16.0 | Stock: Made to order
MDW1560NHGS10 DC (mm): 15.6 | L/D: 10 | LU (mm): 203.8 | LCF (mm): 227.2 | OAL (mm): 293.2 | PL (mm): 3.2 | DCON (mm): 16.0 | Stock: Made to order
MDW1570NHGS3 DC (mm): 15.7 | L/D: 3 | LU (mm): 59.7 | LCF (mm): 83.2 | OAL (mm): 149.2 | PL (mm): 3.2 | DCON (mm): 16.0 | Stock: Made to order
MDW1570NHGS5 DC (mm): 15.7 | L/D: 5 | LU (mm): 107.7 | LCF (mm): 131.2 | OAL (mm): 197.2 | PL (mm): 3.2 | DCON (mm): 16.0 | Stock: Made to order
MDW1570NHGS10 DC (mm): 15.7 | L/D: 10 | LU (mm): 203.7 | LCF (mm): 227.2 | OAL (mm): 293.2 | PL (mm): 3.2 | DCON (mm): 16.0 | Stock: Made to order
MDW1580NHGS3 DC (mm): 15.8 | L/D: 3 | LU (mm): 59.6 | LCF (mm): 83.3 | OAL (mm): 149.3 | PL (mm): 3.3 | DCON (mm): 16.0 | Stock: Made to order
MDW1580NHGS5 DC (mm): 15.8 | L/D: 5 | LU (mm): 107.6 | LCF (mm): 131.3 | OAL (mm): 197.3 | PL (mm): 3.3 | DCON (mm): 16.0 | Stock: Made to order
MDW1580NHGS10 DC (mm): 15.8 | L/D: 10 | LU (mm): 203.6 | LCF (mm): 227.3 | OAL (mm): 293.3 | PL (mm): 3.3 | DCON (mm): 16.0 | Stock: Made to order
MDW1590NHGS3 DC (mm): 15.9 | L/D: 3 | LU (mm): 59.5 | LCF (mm): 83.3 | OAL (mm): 149.3 | PL (mm): 3.3 | DCON (mm): 16.0 | Stock: Made to order
MDW1590NHGS5 DC (mm): 15.9 | L/D: 5 | LU (mm): 107.5 | LCF (mm): 131.3 | OAL (mm): 197.3 | PL (mm): 3.3 | DCON (mm): 16.0 | Stock: Made to order
MDW1590NHGS10 DC (mm): 15.9 | L/D: 10 | LU (mm): 203.5 | LCF (mm): 227.3 | OAL (mm): 293.3 | PL (mm): 3.3 | DCON (mm): 16.0 | Stock: Made to order
MDW1600NHGS3 DC (mm): 16.0 | L/D: 3 | LU (mm): 59.3 | LCF (mm): 83.3 | OAL (mm): 149.3 | PL (mm): 3.3 | DCON (mm): 16.0 | Stock: Yes
MDW1600NHGS5 DC (mm): 16.0 | L/D: 5 | LU (mm): 107.3 | LCF (mm): 131.3 | OAL (mm): 197.3 | PL (mm): 3.3 | DCON (mm): 16.0 | Stock: Yes
MDW1600NHGS10 DC (mm): 16.0 | L/D: 10 | LU (mm): 203.3 | LCF (mm): 227.3 | OAL (mm): 293.3 | PL (mm): 3.3 | DCON (mm): 16.0 | Stock: Made to order
DrillsSumitomo Electric Hardmetal
414 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal Super Multi Drill NHGS Type (Internal Coolant)

Brand Sumitomo Electric Hardmetal·Drills

Available part numbers (414)

MDW0300NHGS3, MDW0300NHGS5, MDW0300NHGS10, MDW0310NHGS3, MDW0310NHGS5, MDW0310NHGS10, MDW0320NHGS3, MDW0320NHGS5, MDW0320NHGS10, MDW0330NHGS3 + 404 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MDW0300NHGS3DC (mm): 3.0 | L/D: 3 | LU (mm): 13.6 | LCF (mm): 18.1 | OAL (mm): 68.6 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDW0300NHGS5DC (mm): 3.0 | L/D: 5 | LU (mm): 24.1 | LCF (mm): 28.6 | OAL (mm): 78.6 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDW0300NHGS10DC (mm): 3.0 | L/D: 10 | LU (mm): 38.1 | LCF (mm): 42.6 | OAL (mm): 92.6 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDW0310NHGS3DC (mm): 3.1 | L/D: 3 | LU (mm): 16.0 | LCF (mm): 20.6 | OAL (mm): 72.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Made to order
MDW0310NHGS5DC (mm): 3.1 | L/D: 5 | LU (mm): 28.0 | LCF (mm): 32.6 | OAL (mm): 86.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDW0310NHGS10DC (mm): 3.1 | L/D: 10 | LU (mm): 45.0 | LCF (mm): 49.6 | OAL (mm): 106.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Made to order
MDW0320NHGS3DC (mm): 3.2 | L/D: 3 | LU (mm): 15.9 | LCF (mm): 20.7 | OAL (mm): 72.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0320NHGS5DC (mm): 3.2 | L/D: 5 | LU (mm): 27.9 | LCF (mm): 32.7 | OAL (mm): 86.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0320NHGS10DC (mm): 3.2 | L/D: 10 | LU (mm): 44.9 | LCF (mm): 49.7 | OAL (mm): 106.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0330NHGS3DC (mm): 3.3 | L/D: 3 | LU (mm): 15.8 | LCF (mm): 20.7 | OAL (mm): 72.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0330NHGS5DC (mm): 3.3 | L/D: 5 | LU (mm): 27.8 | LCF (mm): 32.7 | OAL (mm): 86.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0330NHGS10DC (mm): 3.3 | L/D: 10 | LU (mm): 44.8 | LCF (mm): 49.7 | OAL (mm): 106.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Made to order
MDW0340NHGS3DC (mm): 3.4 | L/D: 3 | LU (mm): 15.6 | LCF (mm): 20.7 | OAL (mm): 72.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Made to order
MDW0340NHGS5DC (mm): 3.4 | L/D: 5 | LU (mm): 27.6 | LCF (mm): 32.7 | OAL (mm): 86.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0340NHGS10DC (mm): 3.4 | L/D: 10 | LU (mm): 44.6 | LCF (mm): 49.7 | OAL (mm): 106.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0350NHGS3DC (mm): 3.5 | L/D: 3 | LU (mm): 15.5 | LCF (mm): 20.7 | OAL (mm): 72.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0350NHGS5DC (mm): 3.5 | L/D: 5 | LU (mm): 27.5 | LCF (mm): 32.7 | OAL (mm): 86.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0350NHGS10DC (mm): 3.5 | L/D: 10 | LU (mm): 44.5 | LCF (mm): 49.7 | OAL (mm): 106.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0360NHGS3DC (mm): 3.6 | L/D: 3 | LU (mm): 17.8 | LCF (mm): 23.2 | OAL (mm): 72.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Made to order
MDW0360NHGS5DC (mm): 3.6 | L/D: 5 | LU (mm): 31.3 | LCF (mm): 36.7 | OAL (mm): 86.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0360NHGS10DC (mm): 3.6 | L/D: 10 | LU (mm): 51.3 | LCF (mm): 56.7 | OAL (mm): 106.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0365NHGS3DC (mm): 3.65 | L/D: 3 | LU (mm): 17.8 | LCF (mm): 23.3 | OAL (mm): 72.8 | PL (mm): 0.8 | DCON (mm): 4.0 | Stock: Yes
MDW0365NHGS5DC (mm): 3.65 | L/D: 5 | LU (mm): 31.3 | LCF (mm): 36.8 | OAL (mm): 86.8 | PL (mm): 0.8 | DCON (mm): 4.0 | Stock: Yes
MDW0365NHGS10DC (mm): 3.65 | L/D: 10 | LU (mm): 51.3 | LCF (mm): 56.8 | OAL (mm): 106.8 | PL (mm): 0.8 | DCON (mm): 4.0 | Stock: Made to order
MDW0366NHGS3DC (mm): 3.66 | L/D: 3 | LU (mm): 17.8 | LCF (mm): 23.3 | OAL (mm): 72.8 | PL (mm): 0.8 | DCON (mm): 4.0 | Stock: Made to order
MDW0366NHGS5DC (mm): 3.66 | L/D: 5 | LU (mm): 31.3 | LCF (mm): 36.8 | OAL (mm): 86.8 | PL (mm): 0.8 | DCON (mm): 4.0 | Stock: Yes
MDW0366NHGS10DC (mm): 3.66 | L/D: 10 | LU (mm): 51.3 | LCF (mm): 56.8 | OAL (mm): 106.8 | PL (mm): 0.8 | DCON (mm): 4.0 | Stock: Made to order
MDW0370NHGS3DC (mm): 3.7 | L/D: 3 | LU (mm): 17.8 | LCF (mm): 23.3 | OAL (mm): 72.8 | PL (mm): 0.8 | DCON (mm): 4.0 | Stock: Made to order
MDW0370NHGS5DC (mm): 3.7 | L/D: 5 | LU (mm): 31.3 | LCF (mm): 36.8 | OAL (mm): 86.8 | PL (mm): 0.8 | DCON (mm): 4.0 | Stock: Yes
MDW0370NHGS10DC (mm): 3.7 | L/D: 10 | LU (mm): 51.3 | LCF (mm): 56.8 | OAL (mm): 106.8 | PL (mm): 0.8 | DCON (mm): 4.0 | Stock: Made to order
MDW0380NHGS3DC (mm): 3.8 | L/D: 3 | LU (mm): 17.6 | LCF (mm): 23.3 | OAL (mm): 72.8 | PL (mm): 0.8 | DCON (mm): 4.0 | Stock: Made to order
MDW0380NHGS5DC (mm): 3.8 | L/D: 5 | LU (mm): 31.1 | LCF (mm): 36.8 | OAL (mm): 86.8 | PL (mm): 0.8 | DCON (mm): 4.0 | Stock: Yes
MDW0380NHGS10DC (mm): 3.8 | L/D: 10 | LU (mm): 51.1 | LCF (mm): 56.8 | OAL (mm): 106.8 | PL (mm): 0.8 | DCON (mm): 4.0 | Stock: Made to order
MDW0390NHGS3DC (mm): 3.9 | L/D: 3 | LU (mm): 17.5 | LCF (mm): 23.3 | OAL (mm): 72.8 | PL (mm): 0.8 | DCON (mm): 4.0 | Stock: Made to order
MDW0390NHGS5DC (mm): 3.9 | L/D: 5 | LU (mm): 31.0 | LCF (mm): 36.8 | OAL (mm): 86.8 | PL (mm): 0.8 | DCON (mm): 4.0 | Stock: Yes
MDW0390NHGS10DC (mm): 3.9 | L/D: 10 | LU (mm): 51.0 | LCF (mm): 56.8 | OAL (mm): 106.8 | PL (mm): 0.8 | DCON (mm): 4.0 | Stock: Yes
MDW0400NHGS3DC (mm): 4.0 | L/D: 3 | LU (mm): 17.3 | LCF (mm): 23.3 | OAL (mm): 72.8 | PL (mm): 0.8 | DCON (mm): 4.0 | Stock: Yes
MDW0400NHGS5DC (mm): 4.0 | L/D: 5 | LU (mm): 30.8 | LCF (mm): 36.8 | OAL (mm): 86.8 | PL (mm): 0.8 | DCON (mm): 4.0 | Stock: Yes
MDW0400NHGS10DC (mm): 4.0 | L/D: 10 | LU (mm): 50.8 | LCF (mm): 56.8 | OAL (mm): 106.8 | PL (mm): 0.8 | DCON (mm): 4.0 | Stock: Yes
MDW0410NHGS3DC (mm): 4.1 | L/D: 3 | LU (mm): 19.7 | LCF (mm): 25.8 | OAL (mm): 80.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDW0410NHGS5DC (mm): 4.1 | L/D: 5 | LU (mm): 34.7 | LCF (mm): 40.8 | OAL (mm): 98.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDW0410NHGS10DC (mm): 4.1 | L/D: 10 | LU (mm): 57.7 | LCF (mm): 63.8 | OAL (mm): 121.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Made to order
MDW0420NHGS3DC (mm): 4.2 | L/D: 3 | LU (mm): 19.6 | LCF (mm): 25.9 | OAL (mm): 80.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0420NHGS5DC (mm): 4.2 | L/D: 5 | LU (mm): 34.6 | LCF (mm): 40.9 | OAL (mm): 98.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0420NHGS10DC (mm): 4.2 | L/D: 10 | LU (mm): 57.6 | LCF (mm): 63.9 | OAL (mm): 121.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Made to order
MDW0430NHGS3DC (mm): 4.3 | L/D: 3 | LU (mm): 19.5 | LCF (mm): 25.9 | OAL (mm): 80.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Made to order
MDW0430NHGS5DC (mm): 4.3 | L/D: 5 | LU (mm): 34.5 | LCF (mm): 40.9 | OAL (mm): 98.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0430NHGS10DC (mm): 4.3 | L/D: 10 | LU (mm): 57.5 | LCF (mm): 63.9 | OAL (mm): 121.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Made to order
MDW0440NHGS3DC (mm): 4.4 | L/D: 3 | LU (mm): 19.3 | LCF (mm): 25.9 | OAL (mm): 80.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Made to order
MDW0440NHGS5DC (mm): 4.4 | L/D: 5 | LU (mm): 34.3 | LCF (mm): 40.9 | OAL (mm): 98.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0440NHGS10DC (mm): 4.4 | L/D: 10 | LU (mm): 57.3 | LCF (mm): 63.9 | OAL (mm): 121.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Made to order
MDW0450NHGS3DC (mm): 4.5 | L/D: 3 | LU (mm): 19.2 | LCF (mm): 25.9 | OAL (mm): 80.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0450NHGS5DC (mm): 4.5 | L/D: 5 | LU (mm): 34.2 | LCF (mm): 40.9 | OAL (mm): 98.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0450NHGS10DC (mm): 4.5 | L/D: 10 | LU (mm): 57.2 | LCF (mm): 63.9 | OAL (mm): 121.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0460NHGS3DC (mm): 4.6 | L/D: 3 | LU (mm): 21.6 | LCF (mm): 28.5 | OAL (mm): 81.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Yes
MDW0460NHGS5DC (mm): 4.6 | L/D: 5 | LU (mm): 38.1 | LCF (mm): 45.0 | OAL (mm): 99.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Yes
MDW0460NHGS10DC (mm): 4.6 | L/D: 10 | LU (mm): 64.1 | LCF (mm): 71.0 | OAL (mm): 122.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Made to order
MDW0470NHGS3DC (mm): 4.7 | L/D: 3 | LU (mm): 21.5 | LCF (mm): 28.5 | OAL (mm): 81.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Made to order
MDW0470NHGS5DC (mm): 4.7 | L/D: 5 | LU (mm): 38.0 | LCF (mm): 45.0 | OAL (mm): 99.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Yes
MDW0470NHGS10DC (mm): 4.7 | L/D: 10 | LU (mm): 64.0 | LCF (mm): 71.0 | OAL (mm): 122.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Made to order
MDW0480NHGS3DC (mm): 4.8 | L/D: 3 | LU (mm): 21.3 | LCF (mm): 28.5 | OAL (mm): 81.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Made to order
MDW0480NHGS5DC (mm): 4.8 | L/D: 5 | LU (mm): 37.8 | LCF (mm): 45.0 | OAL (mm): 99.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Yes
MDW0480NHGS10DC (mm): 4.8 | L/D: 10 | LU (mm): 63.8 | LCF (mm): 71.0 | OAL (mm): 122.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Made to order
MDW0490NHGS3DC (mm): 4.9 | L/D: 3 | LU (mm): 21.2 | LCF (mm): 28.5 | OAL (mm): 81.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Made to order
MDW0490NHGS5DC (mm): 4.9 | L/D: 5 | LU (mm): 37.7 | LCF (mm): 45.0 | OAL (mm): 99.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Yes
MDW0490NHGS10DC (mm): 4.9 | L/D: 10 | LU (mm): 63.7 | LCF (mm): 71.0 | OAL (mm): 122.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Yes
MDW0500NHGS3DC (mm): 5.0 | L/D: 3 | LU (mm): 21.0 | LCF (mm): 28.5 | OAL (mm): 81.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Yes
MDW0500NHGS5DC (mm): 5.0 | L/D: 5 | LU (mm): 37.5 | LCF (mm): 45.0 | OAL (mm): 99.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Yes
MDW0500NHGS10DC (mm): 5.0 | L/D: 10 | LU (mm): 63.5 | LCF (mm): 71.0 | OAL (mm): 122.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Yes
MDW0510NHGS3DC (mm): 5.1 | L/D: 3 | LU (mm): 21.0 | LCF (mm): 28.6 | OAL (mm): 83.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Made to order
MDW0510NHGS5DC (mm): 5.1 | L/D: 5 | LU (mm): 37.5 | LCF (mm): 45.1 | OAL (mm): 101.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0510NHGS10DC (mm): 5.1 | L/D: 10 | LU (mm): 70.5 | LCF (mm): 78.1 | OAL (mm): 137.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0520NHGS3DC (mm): 5.2 | L/D: 3 | LU (mm): 20.8 | LCF (mm): 28.6 | OAL (mm): 83.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0520NHGS5DC (mm): 5.2 | L/D: 5 | LU (mm): 37.3 | LCF (mm): 45.1 | OAL (mm): 101.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0520NHGS10DC (mm): 5.2 | L/D: 10 | LU (mm): 70.3 | LCF (mm): 78.1 | OAL (mm): 137.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Made to order
MDW0530NHGS3DC (mm): 5.3 | L/D: 3 | LU (mm): 20.7 | LCF (mm): 28.6 | OAL (mm): 83.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0530NHGS5DC (mm): 5.3 | L/D: 5 | LU (mm): 37.2 | LCF (mm): 45.1 | OAL (mm): 101.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0530NHGS10DC (mm): 5.3 | L/D: 10 | LU (mm): 70.2 | LCF (mm): 78.1 | OAL (mm): 137.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Made to order
MDW0540NHGS3DC (mm): 5.4 | L/D: 3 | LU (mm): 20.5 | LCF (mm): 28.6 | OAL (mm): 83.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Made to order
MDW0540NHGS5DC (mm): 5.4 | L/D: 5 | LU (mm): 37.0 | LCF (mm): 45.1 | OAL (mm): 101.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0540NHGS10DC (mm): 5.4 | L/D: 10 | LU (mm): 70.0 | LCF (mm): 78.1 | OAL (mm): 137.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Made to order
MDW0550NHGS3DC (mm): 5.5 | L/D: 3 | LU (mm): 20.4 | LCF (mm): 28.6 | OAL (mm): 83.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0550NHGS5DC (mm): 5.5 | L/D: 5 | LU (mm): 36.9 | LCF (mm): 45.1 | OAL (mm): 101.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0550NHGS10DC (mm): 5.5 | L/D: 10 | LU (mm): 69.9 | LCF (mm): 78.1 | OAL (mm): 137.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0560NHGS3DC (mm): 5.6 | L/D: 3 | LU (mm): 22.8 | LCF (mm): 31.2 | OAL (mm): 83.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Made to order
MDW0560NHGS5DC (mm): 5.6 | L/D: 5 | LU (mm): 40.8 | LCF (mm): 49.2 | OAL (mm): 101.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Yes
MDW0560NHGS10DC (mm): 5.6 | L/D: 10 | LU (mm): 76.8 | LCF (mm): 85.2 | OAL (mm): 137.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Made to order
MDW0570NHGS3DC (mm): 5.7 | L/D: 3 | LU (mm): 22.7 | LCF (mm): 31.2 | OAL (mm): 83.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Made to order
MDW0570NHGS5DC (mm): 5.7 | L/D: 5 | LU (mm): 40.7 | LCF (mm): 49.2 | OAL (mm): 101.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Yes
MDW0570NHGS10DC (mm): 5.7 | L/D: 10 | LU (mm): 76.7 | LCF (mm): 85.2 | OAL (mm): 137.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Made to order
MDW0580NHGS3DC (mm): 5.8 | L/D: 3 | LU (mm): 22.5 | LCF (mm): 31.2 | OAL (mm): 83.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Made to order
MDW0580NHGS5DC (mm): 5.8 | L/D: 5 | LU (mm): 40.5 | LCF (mm): 49.2 | OAL (mm): 101.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Yes
MDW0580NHGS10DC (mm): 5.8 | L/D: 10 | LU (mm): 76.5 | LCF (mm): 85.2 | OAL (mm): 137.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Made to order
MDW0590NHGS3DC (mm): 5.9 | L/D: 3 | LU (mm): 22.4 | LCF (mm): 31.2 | OAL (mm): 83.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Yes
MDW0590NHGS5DC (mm): 5.9 | L/D: 5 | LU (mm): 40.4 | LCF (mm): 49.2 | OAL (mm): 101.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Yes
MDW0590NHGS10DC (mm): 5.9 | L/D: 10 | LU (mm): 76.4 | LCF (mm): 85.2 | OAL (mm): 137.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Made to order
MDW0600NHGS3DC (mm): 6.0 | L/D: 3 | LU (mm): 22.2 | LCF (mm): 31.2 | OAL (mm): 83.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Yes
MDW0600NHGS5DC (mm): 6.0 | L/D: 5 | LU (mm): 40.2 | LCF (mm): 49.2 | OAL (mm): 101.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Yes
MDW0600NHGS10DC (mm): 6.0 | L/D: 10 | LU (mm): 76.2 | LCF (mm): 85.2 | OAL (mm): 137.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Yes
MDW0610NHGS3DC (mm): 6.1 | L/D: 3 | LU (mm): 24.7 | LCF (mm): 33.8 | OAL (mm): 89.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Made to order
MDW0610NHGS5DC (mm): 6.1 | L/D: 5 | LU (mm): 44.2 | LCF (mm): 53.3 | OAL (mm): 110.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0610NHGS10DC (mm): 6.1 | L/D: 10 | LU (mm): 83.2 | LCF (mm): 92.3 | OAL (mm): 152.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0620NHGS3DC (mm): 6.2 | L/D: 3 | LU (mm): 24.5 | LCF (mm): 33.8 | OAL (mm): 89.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Made to order
MDW0620NHGS5DC (mm): 6.2 | L/D: 5 | LU (mm): 44.0 | LCF (mm): 53.3 | OAL (mm): 110.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0620NHGS10DC (mm): 6.2 | L/D: 10 | LU (mm): 83.0 | LCF (mm): 92.3 | OAL (mm): 152.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Made to order
MDW0630NHGS3DC (mm): 6.3 | L/D: 3 | LU (mm): 24.4 | LCF (mm): 33.8 | OAL (mm): 89.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Made to order
MDW0630NHGS5DC (mm): 6.3 | L/D: 5 | LU (mm): 43.9 | LCF (mm): 53.3 | OAL (mm): 110.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0630NHGS10DC (mm): 6.3 | L/D: 10 | LU (mm): 82.9 | LCF (mm): 92.3 | OAL (mm): 152.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Made to order
MDW0640NHGS3DC (mm): 6.4 | L/D: 3 | LU (mm): 24.2 | LCF (mm): 33.8 | OAL (mm): 89.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Made to order
MDW0640NHGS5DC (mm): 6.4 | L/D: 5 | LU (mm): 43.7 | LCF (mm): 53.3 | OAL (mm): 110.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0640NHGS10DC (mm): 6.4 | L/D: 10 | LU (mm): 82.7 | LCF (mm): 92.3 | OAL (mm): 152.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Made to order
MDW0650NHGS3DC (mm): 6.5 | L/D: 3 | LU (mm): 24.1 | LCF (mm): 33.8 | OAL (mm): 89.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0650NHGS5DC (mm): 6.5 | L/D: 5 | LU (mm): 43.6 | LCF (mm): 53.3 | OAL (mm): 110.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0650NHGS10DC (mm): 6.5 | L/D: 10 | LU (mm): 82.6 | LCF (mm): 92.3 | OAL (mm): 152.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0660NHGS3DC (mm): 6.6 | L/D: 3 | LU (mm): 26.5 | LCF (mm): 36.4 | OAL (mm): 89.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Made to order
MDW0660NHGS5DC (mm): 6.6 | L/D: 5 | LU (mm): 47.5 | LCF (mm): 57.4 | OAL (mm): 110.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Yes
MDW0660NHGS10DC (mm): 6.6 | L/D: 10 | LU (mm): 89.5 | LCF (mm): 99.4 | OAL (mm): 152.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Made to order
MDW0670NHGS3DC (mm): 6.7 | L/D: 3 | LU (mm): 26.4 | LCF (mm): 36.4 | OAL (mm): 89.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Yes
MDW0670NHGS5DC (mm): 6.7 | L/D: 5 | LU (mm): 47.4 | LCF (mm): 57.4 | OAL (mm): 110.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Yes
MDW0670NHGS10DC (mm): 6.7 | L/D: 10 | LU (mm): 89.4 | LCF (mm): 99.4 | OAL (mm): 152.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Yes
MDW0680NHGS3DC (mm): 6.8 | L/D: 3 | LU (mm): 26.2 | LCF (mm): 36.4 | OAL (mm): 89.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Yes
MDW0680NHGS5DC (mm): 6.8 | L/D: 5 | LU (mm): 47.2 | LCF (mm): 57.4 | OAL (mm): 110.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Yes
MDW0680NHGS10DC (mm): 6.8 | L/D: 10 | LU (mm): 89.2 | LCF (mm): 99.4 | OAL (mm): 152.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Yes
MDW0690NHGS3DC (mm): 6.9 | L/D: 3 | LU (mm): 26.1 | LCF (mm): 36.4 | OAL (mm): 89.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Made to order
MDW0690NHGS5DC (mm): 6.9 | L/D: 5 | LU (mm): 47.1 | LCF (mm): 57.4 | OAL (mm): 110.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Yes
MDW0690NHGS10DC (mm): 6.9 | L/D: 10 | LU (mm): 89.1 | LCF (mm): 99.4 | OAL (mm): 152.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Made to order
MDW0700NHGS3DC (mm): 7.0 | L/D: 3 | LU (mm): 25.9 | LCF (mm): 36.4 | OAL (mm): 89.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Yes
MDW0700NHGS5DC (mm): 7.0 | L/D: 5 | LU (mm): 46.9 | LCF (mm): 57.4 | OAL (mm): 110.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Yes
MDW0700NHGS10DC (mm): 7.0 | L/D: 10 | LU (mm): 88.9 | LCF (mm): 99.4 | OAL (mm): 152.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Yes
MDW0710NHGS3DC (mm): 7.1 | L/D: 3 | LU (mm): 28.4 | LCF (mm): 39.0 | OAL (mm): 95.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Made to order
MDW0710NHGS5DC (mm): 7.1 | L/D: 5 | LU (mm): 50.9 | LCF (mm): 61.5 | OAL (mm): 119.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDW0710NHGS10DC (mm): 7.1 | L/D: 10 | LU (mm): 95.9 | LCF (mm): 106.5 | OAL (mm): 167.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Made to order
MDW0720NHGS3DC (mm): 7.2 | L/D: 3 | LU (mm): 28.2 | LCF (mm): 39.0 | OAL (mm): 95.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Made to order
MDW0720NHGS5DC (mm): 7.2 | L/D: 5 | LU (mm): 50.7 | LCF (mm): 61.5 | OAL (mm): 119.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDW0720NHGS10DC (mm): 7.2 | L/D: 10 | LU (mm): 95.7 | LCF (mm): 106.5 | OAL (mm): 167.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDW0730NHGS3DC (mm): 7.3 | L/D: 3 | LU (mm): 28.1 | LCF (mm): 39.0 | OAL (mm): 95.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Made to order
MDW0730NHGS5DC (mm): 7.3 | L/D: 5 | LU (mm): 50.6 | LCF (mm): 61.5 | OAL (mm): 119.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDW0730NHGS10DC (mm): 7.3 | L/D: 10 | LU (mm): 95.6 | LCF (mm): 106.5 | OAL (mm): 167.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Made to order
MDW0735NHGS3DC (mm): 7.35 | L/D: 3 | LU (mm): 28.0 | LCF (mm): 39.0 | OAL (mm): 95.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDW0735NHGS5DC (mm): 7.35 | L/D: 5 | LU (mm): 50.5 | LCF (mm): 61.5 | OAL (mm): 119.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDW0735NHGS10DC (mm): 7.35 | L/D: 10 | LU (mm): 95.5 | LCF (mm): 106.5 | OAL (mm): 167.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Made to order
MDW0740NHGS3DC (mm): 7.4 | L/D: 3 | LU (mm): 27.9 | LCF (mm): 39.0 | OAL (mm): 95.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDW0740NHGS5DC (mm): 7.4 | L/D: 5 | LU (mm): 50.4 | LCF (mm): 61.5 | OAL (mm): 119.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDW0740NHGS10DC (mm): 7.4 | L/D: 10 | LU (mm): 95.4 | LCF (mm): 106.5 | OAL (mm): 167.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Made to order
MDW0750NHGS3DC (mm): 7.5 | L/D: 3 | LU (mm): 27.9 | LCF (mm): 39.1 | OAL (mm): 95.6 | PL (mm): 1.6 | DCON (mm): 8.0 | Stock: Yes
MDW0750NHGS5DC (mm): 7.5 | L/D: 5 | LU (mm): 50.4 | LCF (mm): 61.6 | OAL (mm): 119.6 | PL (mm): 1.6 | DCON (mm): 8.0 | Stock: Yes
MDW0750NHGS10DC (mm): 7.5 | L/D: 10 | LU (mm): 95.4 | LCF (mm): 106.6 | OAL (mm): 167.6 | PL (mm): 1.6 | DCON (mm): 8.0 | Stock: Yes
MDW0760NHGS3DC (mm): 7.6 | L/D: 3 | LU (mm): 30.2 | LCF (mm): 41.6 | OAL (mm): 95.6 | PL (mm): 1.6 | DCON (mm): 8.0 | Stock: Made to order
MDW0760NHGS5DC (mm): 7.6 | L/D: 5 | LU (mm): 54.2 | LCF (mm): 65.6 | OAL (mm): 119.6 | PL (mm): 1.6 | DCON (mm): 8.0 | Stock: Yes
MDW0760NHGS10DC (mm): 7.6 | L/D: 10 | LU (mm): 102.2 | LCF (mm): 113.6 | OAL (mm): 167.6 | PL (mm): 1.6 | DCON (mm): 8.0 | Stock: Made to order
MDW0770NHGS3DC (mm): 7.7 | L/D: 3 | LU (mm): 30.1 | LCF (mm): 41.6 | OAL (mm): 95.6 | PL (mm): 1.6 | DCON (mm): 8.0 | Stock: Made to order
MDW0770NHGS5DC (mm): 7.7 | L/D: 5 | LU (mm): 54.1 | LCF (mm): 65.6 | OAL (mm): 119.6 | PL (mm): 1.6 | DCON (mm): 8.0 | Stock: Yes
MDW0770NHGS10DC (mm): 7.7 | L/D: 10 | LU (mm): 102.1 | LCF (mm): 113.6 | OAL (mm): 167.6 | PL (mm): 1.6 | DCON (mm): 8.0 | Stock: Made to order
MDW0780NHGS3DC (mm): 7.8 | L/D: 3 | LU (mm): 29.9 | LCF (mm): 41.6 | OAL (mm): 95.6 | PL (mm): 1.6 | DCON (mm): 8.0 | Stock: Yes
MDW0780NHGS5DC (mm): 7.8 | L/D: 5 | LU (mm): 53.9 | LCF (mm): 65.6 | OAL (mm): 119.6 | PL (mm): 1.6 | DCON (mm): 8.0 | Stock: Yes
MDW0780NHGS10DC (mm): 7.8 | L/D: 10 | LU (mm): 101.9 | LCF (mm): 113.6 | OAL (mm): 167.6 | PL (mm): 1.6 | DCON (mm): 8.0 | Stock: Yes
MDW0790NHGS3DC (mm): 7.9 | L/D: 3 | LU (mm): 29.8 | LCF (mm): 41.6 | OAL (mm): 95.6 | PL (mm): 1.6 | DCON (mm): 8.0 | Stock: Made to order
MDW0790NHGS5DC (mm): 7.9 | L/D: 5 | LU (mm): 53.8 | LCF (mm): 65.6 | OAL (mm): 119.6 | PL (mm): 1.6 | DCON (mm): 8.0 | Stock: Yes
MDW0790NHGS10DC (mm): 7.9 | L/D: 10 | LU (mm): 101.8 | LCF (mm): 113.6 | OAL (mm): 167.6 | PL (mm): 1.6 | DCON (mm): 8.0 | Stock: Made to order
MDW0800NHGS3DC (mm): 8.0 | L/D: 3 | LU (mm): 29.7 | LCF (mm): 41.7 | OAL (mm): 95.7 | PL (mm): 1.7 | DCON (mm): 8.0 | Stock: Yes
MDW0800NHGS5DC (mm): 8.0 | L/D: 5 | LU (mm): 53.7 | LCF (mm): 65.7 | OAL (mm): 119.7 | PL (mm): 1.7 | DCON (mm): 8.0 | Stock: Yes
MDW0800NHGS10DC (mm): 8.0 | L/D: 10 | LU (mm): 101.7 | LCF (mm): 113.7 | OAL (mm): 167.7 | PL (mm): 1.7 | DCON (mm): 8.0 | Stock: Yes
MDW0810NHGS3DC (mm): 8.1 | L/D: 3 | LU (mm): 32.1 | LCF (mm): 44.2 | OAL (mm): 101.7 | PL (mm): 1.7 | DCON (mm): 9.0 | Stock: Made to order
MDW0810NHGS5DC (mm): 8.1 | L/D: 5 | LU (mm): 57.6 | LCF (mm): 69.7 | OAL (mm): 128.7 | PL (mm): 1.7 | DCON (mm): 9.0 | Stock: Yes
MDW0810NHGS10DC (mm): 8.1 | L/D: 10 | LU (mm): 108.6 | LCF (mm): 120.7 | OAL (mm): 182.7 | PL (mm): 1.7 | DCON (mm): 9.0 | Stock: Made to order
MDW0820NHGS3DC (mm): 8.2 | L/D: 3 | LU (mm): 31.9 | LCF (mm): 44.2 | OAL (mm): 101.7 | PL (mm): 1.7 | DCON (mm): 9.0 | Stock: Made to order
MDW0820NHGS5DC (mm): 8.2 | L/D: 5 | LU (mm): 57.4 | LCF (mm): 69.7 | OAL (mm): 128.7 | PL (mm): 1.7 | DCON (mm): 9.0 | Stock: Yes
MDW0820NHGS10DC (mm): 8.2 | L/D: 10 | LU (mm): 108.4 | LCF (mm): 120.7 | OAL (mm): 182.7 | PL (mm): 1.7 | DCON (mm): 9.0 | Stock: Made to order
MDW0830NHGS3DC (mm): 8.3 | L/D: 3 | LU (mm): 31.8 | LCF (mm): 44.2 | OAL (mm): 101.7 | PL (mm): 1.7 | DCON (mm): 9.0 | Stock: Made to order
MDW0830NHGS5DC (mm): 8.3 | L/D: 5 | LU (mm): 57.3 | LCF (mm): 69.7 | OAL (mm): 128.7 | PL (mm): 1.7 | DCON (mm): 9.0 | Stock: Yes
MDW0830NHGS10DC (mm): 8.3 | L/D: 10 | LU (mm): 108.3 | LCF (mm): 120.7 | OAL (mm): 182.7 | PL (mm): 1.7 | DCON (mm): 9.0 | Stock: Made to order
MDW0840NHGS3DC (mm): 8.4 | L/D: 3 | LU (mm): 31.6 | LCF (mm): 44.2 | OAL (mm): 101.7 | PL (mm): 1.7 | DCON (mm): 9.0 | Stock: Made to order
MDW0840NHGS5DC (mm): 8.4 | L/D: 5 | LU (mm): 57.1 | LCF (mm): 69.7 | OAL (mm): 128.7 | PL (mm): 1.7 | DCON (mm): 9.0 | Stock: Yes
MDW0840NHGS10DC (mm): 8.4 | L/D: 10 | LU (mm): 108.1 | LCF (mm): 120.7 | OAL (mm): 182.7 | PL (mm): 1.7 | DCON (mm): 9.0 | Stock: Made to order
MDW0850NHGS3DC (mm): 8.5 | L/D: 3 | LU (mm): 31.6 | LCF (mm): 44.3 | OAL (mm): 101.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Yes
MDW0850NHGS5DC (mm): 8.5 | L/D: 5 | LU (mm): 57.1 | LCF (mm): 69.8 | OAL (mm): 128.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Yes
MDW0850NHGS10DC (mm): 8.5 | L/D: 10 | LU (mm): 108.1 | LCF (mm): 120.8 | OAL (mm): 182.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Yes
MDW0860NHGS3DC (mm): 8.6 | L/D: 3 | LU (mm): 33.9 | LCF (mm): 46.8 | OAL (mm): 101.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Yes
MDW0860NHGS5DC (mm): 8.6 | L/D: 5 | LU (mm): 60.9 | LCF (mm): 73.8 | OAL (mm): 128.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Yes
MDW0860NHGS10DC (mm): 8.6 | L/D: 10 | LU (mm): 114.9 | LCF (mm): 127.8 | OAL (mm): 182.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Made to order
MDW0870NHGS3DC (mm): 8.7 | L/D: 3 | LU (mm): 33.8 | LCF (mm): 46.8 | OAL (mm): 101.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Made to order
MDW0870NHGS5DC (mm): 8.7 | L/D: 5 | LU (mm): 60.8 | LCF (mm): 73.8 | OAL (mm): 128.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Yes
MDW0870NHGS10DC (mm): 8.7 | L/D: 10 | LU (mm): 114.8 | LCF (mm): 127.8 | OAL (mm): 182.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Made to order
MDW0880NHGS3DC (mm): 8.8 | L/D: 3 | LU (mm): 33.6 | LCF (mm): 46.8 | OAL (mm): 101.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Yes
MDW0880NHGS5DC (mm): 8.8 | L/D: 5 | LU (mm): 60.6 | LCF (mm): 73.8 | OAL (mm): 128.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Yes
MDW0880NHGS10DC (mm): 8.8 | L/D: 10 | LU (mm): 114.6 | LCF (mm): 127.8 | OAL (mm): 182.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Made to order
MDW0890NHGS3DC (mm): 8.9 | L/D: 3 | LU (mm): 33.5 | LCF (mm): 46.8 | OAL (mm): 101.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Made to order
MDW0890NHGS5DC (mm): 8.9 | L/D: 5 | LU (mm): 60.5 | LCF (mm): 73.8 | OAL (mm): 128.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Yes
MDW0890NHGS10DC (mm): 8.9 | L/D: 10 | LU (mm): 114.5 | LCF (mm): 127.8 | OAL (mm): 182.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Made to order
MDW0900NHGS3DC (mm): 9.0 | L/D: 3 | LU (mm): 33.4 | LCF (mm): 46.9 | OAL (mm): 101.9 | PL (mm): 1.9 | DCON (mm): 9.0 | Stock: Yes
MDW0900NHGS5DC (mm): 9.0 | L/D: 5 | LU (mm): 60.4 | LCF (mm): 73.9 | OAL (mm): 128.9 | PL (mm): 1.9 | DCON (mm): 9.0 | Stock: Yes
MDW0900NHGS10DC (mm): 9.0 | L/D: 10 | LU (mm): 114.4 | LCF (mm): 127.9 | OAL (mm): 182.9 | PL (mm): 1.9 | DCON (mm): 9.0 | Stock: Yes
MDW0910NHGS3DC (mm): 9.1 | L/D: 3 | LU (mm): 35.8 | LCF (mm): 49.4 | OAL (mm): 107.9 | PL (mm): 1.9 | DCON (mm): 10.0 | Stock: Made to order
MDW0910NHGS5DC (mm): 9.1 | L/D: 5 | LU (mm): 64.3 | LCF (mm): 77.9 | OAL (mm): 137.9 | PL (mm): 1.9 | DCON (mm): 10.0 | Stock: Yes
MDW0910NHGS10DC (mm): 9.1 | L/D: 10 | LU (mm): 121.3 | LCF (mm): 134.9 | OAL (mm): 197.9 | PL (mm): 1.9 | DCON (mm): 10.0 | Stock: Made to order
MDW0920NHGS3DC (mm): 9.2 | L/D: 3 | LU (mm): 35.6 | LCF (mm): 49.4 | OAL (mm): 107.9 | PL (mm): 1.9 | DCON (mm): 10.0 | Stock: Made to order
MDW0920NHGS5DC (mm): 9.2 | L/D: 5 | LU (mm): 64.1 | LCF (mm): 77.9 | OAL (mm): 137.9 | PL (mm): 1.9 | DCON (mm): 10.0 | Stock: Yes
MDW0920NHGS10DC (mm): 9.2 | L/D: 10 | LU (mm): 121.1 | LCF (mm): 134.9 | OAL (mm): 197.9 | PL (mm): 1.9 | DCON (mm): 10.0 | Stock: Made to order
MDW0921NHGS3DC (mm): 9.21 | L/D: 3 | LU (mm): 35.6 | LCF (mm): 49.4 | OAL (mm): 107.9 | PL (mm): 1.9 | DCON (mm): 10.0 | Stock: Yes
MDW0921NHGS5DC (mm): 9.21 | L/D: 5 | LU (mm): 64.1 | LCF (mm): 77.9 | OAL (mm): 137.9 | PL (mm): 1.9 | DCON (mm): 10.0 | Stock: Yes
MDW0921NHGS10DC (mm): 9.21 | L/D: 10 | LU (mm): 121.1 | LCF (mm): 134.9 | OAL (mm): 197.9 | PL (mm): 1.9 | DCON (mm): 10.0 | Stock: Made to order
MDW0930NHGS3DC (mm): 9.3 | L/D: 3 | LU (mm): 35.5 | LCF (mm): 49.4 | OAL (mm): 107.9 | PL (mm): 1.9 | DCON (mm): 10.0 | Stock: Made to order
MDW0930NHGS5DC (mm): 9.3 | L/D: 5 | LU (mm): 64.0 | LCF (mm): 77.9 | OAL (mm): 137.9 | PL (mm): 1.9 | DCON (mm): 10.0 | Stock: Yes
MDW0930NHGS10DC (mm): 9.3 | L/D: 10 | LU (mm): 121.0 | LCF (mm): 134.9 | OAL (mm): 197.9 | PL (mm): 1.9 | DCON (mm): 10.0 | Stock: Made to order
MDW0940NHGS3DC (mm): 9.4 | L/D: 3 | LU (mm): 35.3 | LCF (mm): 49.4 | OAL (mm): 107.9 | PL (mm): 1.9 | DCON (mm): 10.0 | Stock: Yes
MDW0940NHGS5DC (mm): 9.4 | L/D: 5 | LU (mm): 63.8 | LCF (mm): 77.9 | OAL (mm): 137.9 | PL (mm): 1.9 | DCON (mm): 10.0 | Stock: Yes
MDW0940NHGS10DC (mm): 9.4 | L/D: 10 | LU (mm): 120.8 | LCF (mm): 134.9 | OAL (mm): 197.9 | PL (mm): 1.9 | DCON (mm): 10.0 | Stock: Made to order
MDW0950NHGS3DC (mm): 9.5 | L/D: 3 | LU (mm): 35.3 | LCF (mm): 49.5 | OAL (mm): 108.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Yes
MDW0950NHGS5DC (mm): 9.5 | L/D: 5 | LU (mm): 63.8 | LCF (mm): 78.0 | OAL (mm): 138.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Yes
MDW0950NHGS10DC (mm): 9.5 | L/D: 10 | LU (mm): 120.8 | LCF (mm): 135.0 | OAL (mm): 198.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Yes
MDW0960NHGS3DC (mm): 9.6 | L/D: 3 | LU (mm): 37.6 | LCF (mm): 52.0 | OAL (mm): 108.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Made to order
MDW0960NHGS5DC (mm): 9.6 | L/D: 5 | LU (mm): 67.6 | LCF (mm): 82.0 | OAL (mm): 138.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Yes
MDW0960NHGS10DC (mm): 9.6 | L/D: 10 | LU (mm): 127.6 | LCF (mm): 142.0 | OAL (mm): 198.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Made to order
MDW0970NHGS3DC (mm): 9.7 | L/D: 3 | LU (mm): 37.5 | LCF (mm): 52.0 | OAL (mm): 108.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Made to order
MDW0970NHGS5DC (mm): 9.7 | L/D: 5 | LU (mm): 67.5 | LCF (mm): 82.0 | OAL (mm): 138.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Yes
MDW0970NHGS10DC (mm): 9.7 | L/D: 10 | LU (mm): 127.5 | LCF (mm): 142.0 | OAL (mm): 198.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Made to order
MDW0980NHGS3DC (mm): 9.8 | L/D: 3 | LU (mm): 37.3 | LCF (mm): 52.0 | OAL (mm): 108.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Made to order
MDW0980NHGS5DC (mm): 9.8 | L/D: 5 | LU (mm): 67.3 | LCF (mm): 82.0 | OAL (mm): 138.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Yes
MDW0980NHGS10DC (mm): 9.8 | L/D: 10 | LU (mm): 127.3 | LCF (mm): 142.0 | OAL (mm): 198.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Yes
MDW0990NHGS3DC (mm): 9.9 | L/D: 3 | LU (mm): 37.2 | LCF (mm): 52.0 | OAL (mm): 108.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Made to order
MDW0990NHGS5DC (mm): 9.9 | L/D: 5 | LU (mm): 67.2 | LCF (mm): 82.0 | OAL (mm): 138.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Yes
MDW0990NHGS10DC (mm): 9.9 | L/D: 10 | LU (mm): 127.2 | LCF (mm): 142.0 | OAL (mm): 198.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Made to order
MDW1000NHGS3DC (mm): 10.0 | L/D: 3 | LU (mm): 37.1 | LCF (mm): 52.1 | OAL (mm): 108.1 | PL (mm): 2.1 | DCON (mm): 10.0 | Stock: Yes
MDW1000NHGS5DC (mm): 10.0 | L/D: 5 | LU (mm): 67.1 | LCF (mm): 82.1 | OAL (mm): 138.1 | PL (mm): 2.1 | DCON (mm): 10.0 | Stock: Yes
MDW1000NHGS10DC (mm): 10.0 | L/D: 10 | LU (mm): 127.1 | LCF (mm): 142.1 | OAL (mm): 198.1 | PL (mm): 2.1 | DCON (mm): 10.0 | Stock: Yes
MDW1010NHGS3DC (mm): 10.1 | L/D: 3 | LU (mm): 39.5 | LCF (mm): 54.6 | OAL (mm): 118.1 | PL (mm): 2.1 | DCON (mm): 11.0 | Stock: Yes
MDW1010NHGS5DC (mm): 10.1 | L/D: 5 | LU (mm): 71.0 | LCF (mm): 86.1 | OAL (mm): 151.1 | PL (mm): 2.1 | DCON (mm): 11.0 | Stock: Made to order
MDW1010NHGS10DC (mm): 10.1 | L/D: 10 | LU (mm): 134.0 | LCF (mm): 149.1 | OAL (mm): 217.1 | PL (mm): 2.1 | DCON (mm): 11.0 | Stock: Made to order
MDW1020NHGS3DC (mm): 10.2 | L/D: 3 | LU (mm): 39.3 | LCF (mm): 54.6 | OAL (mm): 118.1 | PL (mm): 2.1 | DCON (mm): 11.0 | Stock: Made to order
MDW1020NHGS5DC (mm): 10.2 | L/D: 5 | LU (mm): 70.8 | LCF (mm): 86.1 | OAL (mm): 151.1 | PL (mm): 2.1 | DCON (mm): 11.0 | Stock: Made to order
MDW1020NHGS10DC (mm): 10.2 | L/D: 10 | LU (mm): 133.8 | LCF (mm): 149.1 | OAL (mm): 217.1 | PL (mm): 2.1 | DCON (mm): 11.0 | Stock: Made to order
MDW1030NHGS3DC (mm): 10.3 | L/D: 3 | LU (mm): 39.2 | LCF (mm): 54.6 | OAL (mm): 118.1 | PL (mm): 2.1 | DCON (mm): 11.0 | Stock: Yes
MDW1030NHGS5DC (mm): 10.3 | L/D: 5 | LU (mm): 70.7 | LCF (mm): 86.1 | OAL (mm): 151.1 | PL (mm): 2.1 | DCON (mm): 11.0 | Stock: Yes
MDW1030NHGS10DC (mm): 10.3 | L/D: 10 | LU (mm): 133.7 | LCF (mm): 149.1 | OAL (mm): 217.1 | PL (mm): 2.1 | DCON (mm): 11.0 | Stock: Made to order
MDW1040NHGS3DC (mm): 10.4 | L/D: 3 | LU (mm): 39.1 | LCF (mm): 54.7 | OAL (mm): 118.2 | PL (mm): 2.2 | DCON (mm): 11.0 | Stock: Made to order
MDW1040NHGS5DC (mm): 10.4 | L/D: 5 | LU (mm): 70.6 | LCF (mm): 86.2 | OAL (mm): 151.2 | PL (mm): 2.2 | DCON (mm): 11.0 | Stock: Yes
MDW1040NHGS10DC (mm): 10.4 | L/D: 10 | LU (mm): 133.6 | LCF (mm): 149.2 | OAL (mm): 217.2 | PL (mm): 2.2 | DCON (mm): 11.0 | Stock: Made to order
MDW1050NHGS3DC (mm): 10.5 | L/D: 3 | LU (mm): 39.0 | LCF (mm): 54.7 | OAL (mm): 118.2 | PL (mm): 2.2 | DCON (mm): 11.0 | Stock: Yes
MDW1050NHGS5DC (mm): 10.5 | L/D: 5 | LU (mm): 70.5 | LCF (mm): 86.2 | OAL (mm): 151.2 | PL (mm): 2.2 | DCON (mm): 11.0 | Stock: Yes
MDW1050NHGS10DC (mm): 10.5 | L/D: 10 | LU (mm): 133.5 | LCF (mm): 149.2 | OAL (mm): 217.2 | PL (mm): 2.2 | DCON (mm): 11.0 | Stock: Yes
MDW1060NHGS3DC (mm): 10.6 | L/D: 3 | LU (mm): 41.3 | LCF (mm): 57.2 | OAL (mm): 118.2 | PL (mm): 2.2 | DCON (mm): 11.0 | Stock: Yes
MDW1060NHGS5DC (mm): 10.6 | L/D: 5 | LU (mm): 74.3 | LCF (mm): 90.2 | OAL (mm): 151.2 | PL (mm): 2.2 | DCON (mm): 11.0 | Stock: Yes
MDW1060NHGS10DC (mm): 10.6 | L/D: 10 | LU (mm): 140.3 | LCF (mm): 156.2 | OAL (mm): 217.2 | PL (mm): 2.2 | DCON (mm): 11.0 | Stock: Made to order
MDW1070NHGS3DC (mm): 10.7 | L/D: 3 | LU (mm): 41.2 | LCF (mm): 57.2 | OAL (mm): 118.2 | PL (mm): 2.2 | DCON (mm): 11.0 | Stock: Made to order
MDW1070NHGS5DC (mm): 10.7 | L/D: 5 | LU (mm): 74.2 | LCF (mm): 90.2 | OAL (mm): 151.2 | PL (mm): 2.2 | DCON (mm): 11.0 | Stock: Made to order
MDW1070NHGS10DC (mm): 10.7 | L/D: 10 | LU (mm): 140.2 | LCF (mm): 156.2 | OAL (mm): 217.2 | PL (mm): 2.2 | DCON (mm): 11.0 | Stock: Made to order
MDW1080NHGS3DC (mm): 10.8 | L/D: 3 | LU (mm): 41.0 | LCF (mm): 57.2 | OAL (mm): 118.2 | PL (mm): 2.2 | DCON (mm): 11.0 | Stock: Made to order
MDW1080NHGS5DC (mm): 10.8 | L/D: 5 | LU (mm): 74.0 | LCF (mm): 90.2 | OAL (mm): 151.2 | PL (mm): 2.2 | DCON (mm): 11.0 | Stock: Made to order
MDW1080NHGS10DC (mm): 10.8 | L/D: 10 | LU (mm): 140.0 | LCF (mm): 156.2 | OAL (mm): 217.2 | PL (mm): 2.2 | DCON (mm): 11.0 | Stock: Made to order
MDW1090NHGS3DC (mm): 10.9 | L/D: 3 | LU (mm): 41.0 | LCF (mm): 57.3 | OAL (mm): 118.3 | PL (mm): 2.3 | DCON (mm): 11.0 | Stock: Made to order
MDW1090NHGS5DC (mm): 10.9 | L/D: 5 | LU (mm): 74.0 | LCF (mm): 90.3 | OAL (mm): 151.3 | PL (mm): 2.3 | DCON (mm): 11.0 | Stock: Made to order
MDW1090NHGS10DC (mm): 10.9 | L/D: 10 | LU (mm): 140.0 | LCF (mm): 156.3 | OAL (mm): 217.3 | PL (mm): 2.3 | DCON (mm): 11.0 | Stock: Made to order
MDW1100NHGS3DC (mm): 11.0 | L/D: 3 | LU (mm): 40.8 | LCF (mm): 57.3 | OAL (mm): 118.3 | PL (mm): 2.3 | DCON (mm): 11.0 | Stock: Yes
MDW1100NHGS5DC (mm): 11.0 | L/D: 5 | LU (mm): 73.8 | LCF (mm): 90.3 | OAL (mm): 151.3 | PL (mm): 2.3 | DCON (mm): 11.0 | Stock: Yes
MDW1100NHGS10DC (mm): 11.0 | L/D: 10 | LU (mm): 139.8 | LCF (mm): 156.3 | OAL (mm): 217.3 | PL (mm): 2.3 | DCON (mm): 11.0 | Stock: Yes
MDW1108NHGS3DC (mm): 11.08 | L/D: 3 | LU (mm): 43.2 | LCF (mm): 59.8 | OAL (mm): 124.3 | PL (mm): 2.3 | DCON (mm): 12.0 | Stock: Yes
MDW1108NHGS5DC (mm): 11.08 | L/D: 5 | LU (mm): 77.7 | LCF (mm): 94.3 | OAL (mm): 160.3 | PL (mm): 2.3 | DCON (mm): 12.0 | Stock: Yes
MDW1108NHGS10DC (mm): 11.08 | L/D: 10 | LU (mm): 146.7 | LCF (mm): 163.3 | OAL (mm): 232.3 | PL (mm): 2.3 | DCON (mm): 12.0 | Stock: Made to order
MDW1110NHGS3DC (mm): 11.1 | L/D: 3 | LU (mm): 43.2 | LCF (mm): 59.8 | OAL (mm): 124.3 | PL (mm): 2.3 | DCON (mm): 12.0 | Stock: Yes
MDW1110NHGS5DC (mm): 11.1 | L/D: 5 | LU (mm): 77.7 | LCF (mm): 94.3 | OAL (mm): 160.3 | PL (mm): 2.3 | DCON (mm): 12.0 | Stock: Yes
MDW1110NHGS10DC (mm): 11.1 | L/D: 10 | LU (mm): 146.7 | LCF (mm): 163.3 | OAL (mm): 232.3 | PL (mm): 2.3 | DCON (mm): 12.0 | Stock: Made to order
MDW1120NHGS3DC (mm): 11.2 | L/D: 3 | LU (mm): 43.0 | LCF (mm): 59.8 | OAL (mm): 124.3 | PL (mm): 2.3 | DCON (mm): 12.0 | Stock: Yes
MDW1120NHGS5DC (mm): 11.2 | L/D: 5 | LU (mm): 77.5 | LCF (mm): 94.3 | OAL (mm): 160.3 | PL (mm): 2.3 | DCON (mm): 12.0 | Stock: Yes
MDW1120NHGS10DC (mm): 11.2 | L/D: 10 | LU (mm): 146.5 | LCF (mm): 163.3 | OAL (mm): 232.3 | PL (mm): 2.3 | DCON (mm): 12.0 | Stock: Made to order
MDW1130NHGS3DC (mm): 11.3 | L/D: 3 | LU (mm): 42.9 | LCF (mm): 59.8 | OAL (mm): 124.3 | PL (mm): 2.3 | DCON (mm): 12.0 | Stock: Made to order
MDW1130NHGS5DC (mm): 11.3 | L/D: 5 | LU (mm): 77.4 | LCF (mm): 94.3 | OAL (mm): 160.3 | PL (mm): 2.3 | DCON (mm): 12.0 | Stock: Made to order
MDW1130NHGS10DC (mm): 11.3 | L/D: 10 | LU (mm): 146.4 | LCF (mm): 163.3 | OAL (mm): 232.3 | PL (mm): 2.3 | DCON (mm): 12.0 | Stock: Made to order
MDW1140NHGS3DC (mm): 11.4 | L/D: 3 | LU (mm): 42.8 | LCF (mm): 59.9 | OAL (mm): 124.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Yes
MDW1140NHGS5DC (mm): 11.4 | L/D: 5 | LU (mm): 77.3 | LCF (mm): 94.4 | OAL (mm): 160.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Yes
MDW1140NHGS10DC (mm): 11.4 | L/D: 10 | LU (mm): 146.3 | LCF (mm): 163.4 | OAL (mm): 232.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Made to order
MDW1150NHGS3DC (mm): 11.5 | L/D: 3 | LU (mm): 42.7 | LCF (mm): 59.9 | OAL (mm): 124.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Yes
MDW1150NHGS5DC (mm): 11.5 | L/D: 5 | LU (mm): 77.2 | LCF (mm): 94.4 | OAL (mm): 160.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Yes
MDW1150NHGS10DC (mm): 11.5 | L/D: 10 | LU (mm): 146.2 | LCF (mm): 163.4 | OAL (mm): 232.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Yes
MDW1160NHGS3DC (mm): 11.6 | L/D: 3 | LU (mm): 45.0 | LCF (mm): 62.4 | OAL (mm): 124.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Made to order
MDW1160NHGS5DC (mm): 11.6 | L/D: 5 | LU (mm): 81.0 | LCF (mm): 98.4 | OAL (mm): 160.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Made to order
MDW1160NHGS10DC (mm): 11.6 | L/D: 10 | LU (mm): 153.0 | LCF (mm): 170.4 | OAL (mm): 232.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Made to order
MDW1170NHGS3DC (mm): 11.7 | L/D: 3 | LU (mm): 44.9 | LCF (mm): 62.4 | OAL (mm): 124.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Made to order
MDW1170NHGS5DC (mm): 11.7 | L/D: 5 | LU (mm): 80.9 | LCF (mm): 98.4 | OAL (mm): 160.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Made to order
MDW1170NHGS10DC (mm): 11.7 | L/D: 10 | LU (mm): 152.9 | LCF (mm): 170.4 | OAL (mm): 232.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Made to order
MDW1180NHGS3DC (mm): 11.8 | L/D: 3 | LU (mm): 44.7 | LCF (mm): 62.4 | OAL (mm): 124.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Made to order
MDW1180NHGS5DC (mm): 11.8 | L/D: 5 | LU (mm): 80.7 | LCF (mm): 98.4 | OAL (mm): 160.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Made to order
MDW1180NHGS10DC (mm): 11.8 | L/D: 10 | LU (mm): 152.7 | LCF (mm): 170.4 | OAL (mm): 232.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Made to order
MDW1190NHGS3DC (mm): 11.9 | L/D: 3 | LU (mm): 44.7 | LCF (mm): 62.5 | OAL (mm): 124.5 | PL (mm): 2.5 | DCON (mm): 12.0 | Stock: Made to order
MDW1190NHGS5DC (mm): 11.9 | L/D: 5 | LU (mm): 80.7 | LCF (mm): 98.5 | OAL (mm): 160.5 | PL (mm): 2.5 | DCON (mm): 12.0 | Stock: Made to order
MDW1190NHGS10DC (mm): 11.9 | L/D: 10 | LU (mm): 152.7 | LCF (mm): 170.5 | OAL (mm): 232.5 | PL (mm): 2.5 | DCON (mm): 12.0 | Stock: Made to order
MDW1200NHGS3DC (mm): 12.0 | L/D: 3 | LU (mm): 44.5 | LCF (mm): 62.5 | OAL (mm): 124.5 | PL (mm): 2.5 | DCON (mm): 12.0 | Stock: Yes
MDW1200NHGS5DC (mm): 12.0 | L/D: 5 | LU (mm): 80.5 | LCF (mm): 98.5 | OAL (mm): 160.5 | PL (mm): 2.5 | DCON (mm): 12.0 | Stock: Yes
MDW1200NHGS10DC (mm): 12.0 | L/D: 10 | LU (mm): 152.5 | LCF (mm): 170.5 | OAL (mm): 232.5 | PL (mm): 2.5 | DCON (mm): 12.0 | Stock: Yes
MDW1210NHGS3DC (mm): 12.1 | L/D: 3 | LU (mm): 46.9 | LCF (mm): 65.0 | OAL (mm): 130.5 | PL (mm): 2.5 | DCON (mm): 13.0 | Stock: Yes
MDW1210NHGS5DC (mm): 12.1 | L/D: 5 | LU (mm): 84.4 | LCF (mm): 102.5 | OAL (mm): 169.5 | PL (mm): 2.5 | DCON (mm): 13.0 | Stock: Yes
MDW1210NHGS10DC (mm): 12.1 | L/D: 10 | LU (mm): 159.4 | LCF (mm): 177.5 | OAL (mm): 247.5 | PL (mm): 2.5 | DCON (mm): 13.0 | Stock: Made to order
MDW1220NHGS3DC (mm): 12.2 | L/D: 3 | LU (mm): 46.7 | LCF (mm): 65.0 | OAL (mm): 130.5 | PL (mm): 2.5 | DCON (mm): 13.0 | Stock: Made to order
MDW1220NHGS5DC (mm): 12.2 | L/D: 5 | LU (mm): 84.2 | LCF (mm): 102.5 | OAL (mm): 169.5 | PL (mm): 2.5 | DCON (mm): 13.0 | Stock: Made to order
MDW1220NHGS10DC (mm): 12.2 | L/D: 10 | LU (mm): 159.2 | LCF (mm): 177.5 | OAL (mm): 247.5 | PL (mm): 2.5 | DCON (mm): 13.0 | Stock: Made to order
MDW1230NHGS3DC (mm): 12.3 | L/D: 3 | LU (mm): 46.6 | LCF (mm): 65.0 | OAL (mm): 130.5 | PL (mm): 2.5 | DCON (mm): 13.0 | Stock: Yes
MDW1230NHGS5DC (mm): 12.3 | L/D: 5 | LU (mm): 84.1 | LCF (mm): 102.5 | OAL (mm): 169.5 | PL (mm): 2.5 | DCON (mm): 13.0 | Stock: Yes
MDW1230NHGS10DC (mm): 12.3 | L/D: 10 | LU (mm): 159.1 | LCF (mm): 177.5 | OAL (mm): 247.5 | PL (mm): 2.5 | DCON (mm): 13.0 | Stock: Made to order
MDW1240NHGS3DC (mm): 12.4 | L/D: 3 | LU (mm): 46.5 | LCF (mm): 65.1 | OAL (mm): 130.6 | PL (mm): 2.6 | DCON (mm): 13.0 | Stock: Made to order
MDW1240NHGS5DC (mm): 12.4 | L/D: 5 | LU (mm): 84.0 | LCF (mm): 102.6 | OAL (mm): 169.6 | PL (mm): 2.6 | DCON (mm): 13.0 | Stock: Made to order
MDW1240NHGS10DC (mm): 12.4 | L/D: 10 | LU (mm): 159.0 | LCF (mm): 177.6 | OAL (mm): 247.6 | PL (mm): 2.6 | DCON (mm): 13.0 | Stock: Made to order
MDW1250NHGS3DC (mm): 12.5 | L/D: 3 | LU (mm): 46.4 | LCF (mm): 65.1 | OAL (mm): 130.6 | PL (mm): 2.6 | DCON (mm): 13.0 | Stock: Yes
MDW1250NHGS5DC (mm): 12.5 | L/D: 5 | LU (mm): 83.9 | LCF (mm): 102.6 | OAL (mm): 169.6 | PL (mm): 2.6 | DCON (mm): 13.0 | Stock: Yes
MDW1250NHGS10DC (mm): 12.5 | L/D: 10 | LU (mm): 158.9 | LCF (mm): 177.6 | OAL (mm): 247.6 | PL (mm): 2.6 | DCON (mm): 13.0 | Stock: Yes
MDW1260NHGS3DC (mm): 12.6 | L/D: 3 | LU (mm): 48.7 | LCF (mm): 67.6 | OAL (mm): 130.6 | PL (mm): 2.6 | DCON (mm): 13.0 | Stock: Made to order
MDW1260NHGS5DC (mm): 12.6 | L/D: 5 | LU (mm): 87.7 | LCF (mm): 106.6 | OAL (mm): 169.6 | PL (mm): 2.6 | DCON (mm): 13.0 | Stock: Made to order
MDW1260NHGS10DC (mm): 12.6 | L/D: 10 | LU (mm): 165.7 | LCF (mm): 184.6 | OAL (mm): 247.6 | PL (mm): 2.6 | DCON (mm): 13.0 | Stock: Made to order
MDW1270NHGS3DC (mm): 12.7 | L/D: 3 | LU (mm): 48.6 | LCF (mm): 67.6 | OAL (mm): 130.6 | PL (mm): 2.6 | DCON (mm): 13.0 | Stock: Made to order
MDW1270NHGS5DC (mm): 12.7 | L/D: 5 | LU (mm): 87.6 | LCF (mm): 106.6 | OAL (mm): 169.6 | PL (mm): 2.6 | DCON (mm): 13.0 | Stock: Made to order
MDW1270NHGS10DC (mm): 12.7 | L/D: 10 | LU (mm): 165.6 | LCF (mm): 184.6 | OAL (mm): 247.6 | PL (mm): 2.6 | DCON (mm): 13.0 | Stock: Made to order
MDW1280NHGS3DC (mm): 12.8 | L/D: 3 | LU (mm): 48.4 | LCF (mm): 67.6 | OAL (mm): 130.6 | PL (mm): 2.6 | DCON (mm): 13.0 | Stock: Made to order
MDW1280NHGS5DC (mm): 12.8 | L/D: 5 | LU (mm): 87.4 | LCF (mm): 106.6 | OAL (mm): 169.6 | PL (mm): 2.6 | DCON (mm): 13.0 | Stock: Made to order
MDW1280NHGS10DC (mm): 12.8 | L/D: 10 | LU (mm): 165.4 | LCF (mm): 184.6 | OAL (mm): 247.6 | PL (mm): 2.6 | DCON (mm): 13.0 | Stock: Made to order
MDW1290NHGS3DC (mm): 12.9 | L/D: 3 | LU (mm): 48.4 | LCF (mm): 67.7 | OAL (mm): 130.7 | PL (mm): 2.7 | DCON (mm): 13.0 | Stock: Made to order
MDW1290NHGS5DC (mm): 12.9 | L/D: 5 | LU (mm): 87.4 | LCF (mm): 106.7 | OAL (mm): 169.7 | PL (mm): 2.7 | DCON (mm): 13.0 | Stock: Made to order
MDW1290NHGS10DC (mm): 12.9 | L/D: 10 | LU (mm): 165.4 | LCF (mm): 184.7 | OAL (mm): 247.7 | PL (mm): 2.7 | DCON (mm): 13.0 | Stock: Made to order
MDW1296NHGS3DC (mm): 12.96 | L/D: 3 | LU (mm): 48.3 | LCF (mm): 67.7 | OAL (mm): 130.7 | PL (mm): 2.7 | DCON (mm): 13.0 | Stock: Yes
MDW1296NHGS5DC (mm): 12.96 | L/D: 5 | LU (mm): 87.3 | LCF (mm): 106.7 | OAL (mm): 169.7 | PL (mm): 2.7 | DCON (mm): 13.0 | Stock: Yes
MDW1296NHGS10DC (mm): 12.96 | L/D: 10 | LU (mm): 165.3 | LCF (mm): 184.7 | OAL (mm): 247.7 | PL (mm): 2.7 | DCON (mm): 13.0 | Stock: Made to order
MDW1300NHGS3DC (mm): 13.0 | L/D: 3 | LU (mm): 48.2 | LCF (mm): 67.7 | OAL (mm): 130.7 | PL (mm): 2.7 | DCON (mm): 13.0 | Stock: Yes
MDW1300NHGS5DC (mm): 13.0 | L/D: 5 | LU (mm): 87.2 | LCF (mm): 106.7 | OAL (mm): 169.7 | PL (mm): 2.7 | DCON (mm): 13.0 | Stock: Yes
MDW1300NHGS10DC (mm): 13.0 | L/D: 10 | LU (mm): 165.2 | LCF (mm): 184.7 | OAL (mm): 247.7 | PL (mm): 2.7 | DCON (mm): 13.0 | Stock: Yes
MDW1310NHGS3DC (mm): 13.1 | L/D: 3 | LU (mm): 50.6 | LCF (mm): 70.2 | OAL (mm): 136.7 | PL (mm): 2.7 | DCON (mm): 14.0 | Stock: Made to order
MDW1310NHGS5DC (mm): 13.1 | L/D: 5 | LU (mm): 91.1 | LCF (mm): 110.7 | OAL (mm): 178.7 | PL (mm): 2.7 | DCON (mm): 14.0 | Stock: Made to order
MDW1310NHGS10DC (mm): 13.1 | L/D: 10 | LU (mm): 172.1 | LCF (mm): 191.7 | OAL (mm): 262.7 | PL (mm): 2.7 | DCON (mm): 14.0 | Stock: Made to order
MDW1320NHGS3DC (mm): 13.2 | L/D: 3 | LU (mm): 50.4 | LCF (mm): 70.2 | OAL (mm): 136.7 | PL (mm): 2.7 | DCON (mm): 14.0 | Stock: Made to order
MDW1320NHGS5DC (mm): 13.2 | L/D: 5 | LU (mm): 90.9 | LCF (mm): 110.7 | OAL (mm): 178.7 | PL (mm): 2.7 | DCON (mm): 14.0 | Stock: Made to order
MDW1320NHGS10DC (mm): 13.2 | L/D: 10 | LU (mm): 171.9 | LCF (mm): 191.7 | OAL (mm): 262.7 | PL (mm): 2.7 | DCON (mm): 14.0 | Stock: Made to order
MDW1330NHGS3DC (mm): 13.3 | L/D: 3 | LU (mm): 50.4 | LCF (mm): 70.3 | OAL (mm): 136.8 | PL (mm): 2.8 | DCON (mm): 14.0 | Stock: Made to order
MDW1330NHGS5DC (mm): 13.3 | L/D: 5 | LU (mm): 90.9 | LCF (mm): 110.8 | OAL (mm): 178.8 | PL (mm): 2.8 | DCON (mm): 14.0 | Stock: Made to order
MDW1330NHGS10DC (mm): 13.3 | L/D: 10 | LU (mm): 171.9 | LCF (mm): 191.8 | OAL (mm): 262.8 | PL (mm): 2.8 | DCON (mm): 14.0 | Stock: Made to order
MDW1340NHGS3DC (mm): 13.4 | L/D: 3 | LU (mm): 50.2 | LCF (mm): 70.3 | OAL (mm): 136.8 | PL (mm): 2.8 | DCON (mm): 14.0 | Stock: Made to order
MDW1340NHGS5DC (mm): 13.4 | L/D: 5 | LU (mm): 90.7 | LCF (mm): 110.8 | OAL (mm): 178.8 | PL (mm): 2.8 | DCON (mm): 14.0 | Stock: Made to order
MDW1340NHGS10DC (mm): 13.4 | L/D: 10 | LU (mm): 171.7 | LCF (mm): 191.8 | OAL (mm): 262.8 | PL (mm): 2.8 | DCON (mm): 14.0 | Stock: Made to order
MDW1350NHGS3DC (mm): 13.5 | L/D: 3 | LU (mm): 50.1 | LCF (mm): 70.3 | OAL (mm): 136.8 | PL (mm): 2.8 | DCON (mm): 14.0 | Stock: Yes
MDW1350NHGS5DC (mm): 13.5 | L/D: 5 | LU (mm): 90.6 | LCF (mm): 110.8 | OAL (mm): 178.8 | PL (mm): 2.8 | DCON (mm): 14.0 | Stock: Yes
MDW1350NHGS10DC (mm): 13.5 | L/D: 10 | LU (mm): 171.6 | LCF (mm): 191.8 | OAL (mm): 262.8 | PL (mm): 2.8 | DCON (mm): 14.0 | Stock: Made to order
MDW1360NHGS3DC (mm): 13.6 | L/D: 3 | LU (mm): 52.4 | LCF (mm): 72.8 | OAL (mm): 136.8 | PL (mm): 2.8 | DCON (mm): 14.0 | Stock: Made to order
MDW1360NHGS5DC (mm): 13.6 | L/D: 5 | LU (mm): 94.4 | LCF (mm): 114.8 | OAL (mm): 178.8 | PL (mm): 2.8 | DCON (mm): 14.0 | Stock: Made to order
MDW1360NHGS10DC (mm): 13.6 | L/D: 10 | LU (mm): 178.4 | LCF (mm): 198.8 | OAL (mm): 262.8 | PL (mm): 2.8 | DCON (mm): 14.0 | Stock: Made to order
MDW1370NHGS3DC (mm): 13.7 | L/D: 3 | LU (mm): 52.3 | LCF (mm): 72.8 | OAL (mm): 136.8 | PL (mm): 2.8 | DCON (mm): 14.0 | Stock: Made to order
MDW1370NHGS5DC (mm): 13.7 | L/D: 5 | LU (mm): 94.3 | LCF (mm): 114.8 | OAL (mm): 178.8 | PL (mm): 2.8 | DCON (mm): 14.0 | Stock: Made to order
MDW1370NHGS10DC (mm): 13.7 | L/D: 10 | LU (mm): 178.3 | LCF (mm): 198.8 | OAL (mm): 262.8 | PL (mm): 2.8 | DCON (mm): 14.0 | Stock: Made to order
MDW1380NHGS3DC (mm): 13.8 | L/D: 3 | LU (mm): 52.2 | LCF (mm): 72.9 | OAL (mm): 136.9 | PL (mm): 2.9 | DCON (mm): 14.0 | Stock: Made to order
MDW1380NHGS5DC (mm): 13.8 | L/D: 5 | LU (mm): 94.2 | LCF (mm): 114.9 | OAL (mm): 178.9 | PL (mm): 2.9 | DCON (mm): 14.0 | Stock: Made to order
MDW1380NHGS10DC (mm): 13.8 | L/D: 10 | LU (mm): 178.2 | LCF (mm): 198.9 | OAL (mm): 262.9 | PL (mm): 2.9 | DCON (mm): 14.0 | Stock: Made to order
MDW1390NHGS3DC (mm): 13.9 | L/D: 3 | LU (mm): 52.1 | LCF (mm): 72.9 | OAL (mm): 136.9 | PL (mm): 2.9 | DCON (mm): 14.0 | Stock: Made to order
MDW1390NHGS5DC (mm): 13.9 | L/D: 5 | LU (mm): 94.1 | LCF (mm): 114.9 | OAL (mm): 178.9 | PL (mm): 2.9 | DCON (mm): 14.0 | Stock: Made to order
MDW1390NHGS10DC (mm): 13.9 | L/D: 10 | LU (mm): 178.1 | LCF (mm): 198.9 | OAL (mm): 262.9 | PL (mm): 2.9 | DCON (mm): 14.0 | Stock: Made to order
MDW1400NHGS3DC (mm): 14.0 | L/D: 3 | LU (mm): 51.9 | LCF (mm): 72.9 | OAL (mm): 136.9 | PL (mm): 2.9 | DCON (mm): 14.0 | Stock: Yes
MDW1400NHGS5DC (mm): 14.0 | L/D: 5 | LU (mm): 93.9 | LCF (mm): 114.9 | OAL (mm): 178.9 | PL (mm): 2.9 | DCON (mm): 14.0 | Stock: Yes
MDW1400NHGS10DC (mm): 14.0 | L/D: 10 | LU (mm): 177.9 | LCF (mm): 198.9 | OAL (mm): 262.9 | PL (mm): 2.9 | DCON (mm): 14.0 | Stock: Made to order
MDW1410NHGS3DC (mm): 14.1 | L/D: 3 | LU (mm): 54.3 | LCF (mm): 75.4 | OAL (mm): 142.9 | PL (mm): 2.9 | DCON (mm): 15.0 | Stock: Yes
MDW1410NHGS5DC (mm): 14.1 | L/D: 5 | LU (mm): 97.8 | LCF (mm): 118.9 | OAL (mm): 187.9 | PL (mm): 2.9 | DCON (mm): 15.0 | Stock: Yes
MDW1410NHGS10DC (mm): 14.1 | L/D: 10 | LU (mm): 184.8 | LCF (mm): 205.9 | OAL (mm): 277.9 | PL (mm): 2.9 | DCON (mm): 15.0 | Stock: Made to order
MDW1420NHGS3DC (mm): 14.2 | L/D: 3 | LU (mm): 54.1 | LCF (mm): 75.4 | OAL (mm): 142.9 | PL (mm): 2.9 | DCON (mm): 15.0 | Stock: Made to order
MDW1420NHGS5DC (mm): 14.2 | L/D: 5 | LU (mm): 97.6 | LCF (mm): 118.9 | OAL (mm): 187.9 | PL (mm): 2.9 | DCON (mm): 15.0 | Stock: Made to order
MDW1420NHGS10DC (mm): 14.2 | L/D: 10 | LU (mm): 184.6 | LCF (mm): 205.9 | OAL (mm): 277.9 | PL (mm): 2.9 | DCON (mm): 15.0 | Stock: Made to order
MDW1430NHGS3DC (mm): 14.3 | L/D: 3 | LU (mm): 54.1 | LCF (mm): 75.5 | OAL (mm): 143.0 | PL (mm): 3.0 | DCON (mm): 15.0 | Stock: Made to order
MDW1430NHGS5DC (mm): 14.3 | L/D: 5 | LU (mm): 97.6 | LCF (mm): 119.0 | OAL (mm): 188.0 | PL (mm): 3.0 | DCON (mm): 15.0 | Stock: Made to order
MDW1430NHGS10DC (mm): 14.3 | L/D: 10 | LU (mm): 184.6 | LCF (mm): 206.0 | OAL (mm): 278.0 | PL (mm): 3.0 | DCON (mm): 15.0 | Stock: Made to order
MDW1440NHGS3DC (mm): 14.4 | L/D: 3 | LU (mm): 53.9 | LCF (mm): 75.5 | OAL (mm): 143.0 | PL (mm): 3.0 | DCON (mm): 15.0 | Stock: Made to order
MDW1440NHGS5DC (mm): 14.4 | L/D: 5 | LU (mm): 97.4 | LCF (mm): 119.0 | OAL (mm): 188.0 | PL (mm): 3.0 | DCON (mm): 15.0 | Stock: Made to order
MDW1440NHGS10DC (mm): 14.4 | L/D: 10 | LU (mm): 184.4 | LCF (mm): 206.0 | OAL (mm): 278.0 | PL (mm): 3.0 | DCON (mm): 15.0 | Stock: Made to order
MDW1450NHGS3DC (mm): 14.5 | L/D: 3 | LU (mm): 53.8 | LCF (mm): 75.5 | OAL (mm): 143.0 | PL (mm): 3.0 | DCON (mm): 15.0 | Stock: Yes
MDW1450NHGS5DC (mm): 14.5 | L/D: 5 | LU (mm): 97.3 | LCF (mm): 119.0 | OAL (mm): 188.0 | PL (mm): 3.0 | DCON (mm): 15.0 | Stock: Yes
MDW1450NHGS10DC (mm): 14.5 | L/D: 10 | LU (mm): 184.3 | LCF (mm): 206.0 | OAL (mm): 278.0 | PL (mm): 3.0 | DCON (mm): 15.0 | Stock: Made to order
MDW1460NHGS3DC (mm): 14.6 | L/D: 3 | LU (mm): 56.1 | LCF (mm): 78.0 | OAL (mm): 143.0 | PL (mm): 3.0 | DCON (mm): 15.0 | Stock: Made to order
MDW1460NHGS5DC (mm): 14.6 | L/D: 5 | LU (mm): 101.1 | LCF (mm): 123.0 | OAL (mm): 188.0 | PL (mm): 3.0 | DCON (mm): 15.0 | Stock: Made to order
MDW1460NHGS10DC (mm): 14.6 | L/D: 10 | LU (mm): 191.1 | LCF (mm): 213.0 | OAL (mm): 278.0 | PL (mm): 3.0 | DCON (mm): 15.0 | Stock: Made to order
MDW1470NHGS3DC (mm): 14.7 | L/D: 3 | LU (mm): 56.0 | LCF (mm): 78.0 | OAL (mm): 143.0 | PL (mm): 3.0 | DCON (mm): 15.0 | Stock: Made to order
MDW1470NHGS5DC (mm): 14.7 | L/D: 5 | LU (mm): 101.0 | LCF (mm): 123.0 | OAL (mm): 188.0 | PL (mm): 3.0 | DCON (mm): 15.0 | Stock: Made to order
MDW1470NHGS10DC (mm): 14.7 | L/D: 10 | LU (mm): 191.0 | LCF (mm): 213.0 | OAL (mm): 278.0 | PL (mm): 3.0 | DCON (mm): 15.0 | Stock: Made to order
MDW1480NHGS3DC (mm): 14.8 | L/D: 3 | LU (mm): 55.9 | LCF (mm): 78.1 | OAL (mm): 143.1 | PL (mm): 3.1 | DCON (mm): 15.0 | Stock: Made to order
MDW1480NHGS5DC (mm): 14.8 | L/D: 5 | LU (mm): 100.9 | LCF (mm): 123.1 | OAL (mm): 188.1 | PL (mm): 3.1 | DCON (mm): 15.0 | Stock: Made to order
MDW1480NHGS10DC (mm): 14.8 | L/D: 10 | LU (mm): 190.9 | LCF (mm): 213.1 | OAL (mm): 278.1 | PL (mm): 3.1 | DCON (mm): 15.0 | Stock: Made to order
MDW1490NHGS3DC (mm): 14.9 | L/D: 3 | LU (mm): 55.8 | LCF (mm): 78.1 | OAL (mm): 143.1 | PL (mm): 3.1 | DCON (mm): 15.0 | Stock: Yes
MDW1490NHGS5DC (mm): 14.9 | L/D: 5 | LU (mm): 100.8 | LCF (mm): 123.1 | OAL (mm): 188.1 | PL (mm): 3.1 | DCON (mm): 15.0 | Stock: Yes
MDW1490NHGS10DC (mm): 14.9 | L/D: 10 | LU (mm): 190.8 | LCF (mm): 213.1 | OAL (mm): 278.1 | PL (mm): 3.1 | DCON (mm): 15.0 | Stock: Made to order
MDW1496NHGS3DC (mm): 14.96 | L/D: 3 | LU (mm): 55.7 | LCF (mm): 78.1 | OAL (mm): 143.1 | PL (mm): 3.1 | DCON (mm): 15.0 | Stock: Yes
MDW1496NHGS5DC (mm): 14.96 | L/D: 5 | LU (mm): 100.7 | LCF (mm): 123.1 | OAL (mm): 188.1 | PL (mm): 3.1 | DCON (mm): 15.0 | Stock: Yes
MDW1496NHGS10DC (mm): 14.96 | L/D: 10 | LU (mm): 190.7 | LCF (mm): 213.1 | OAL (mm): 278.1 | PL (mm): 3.1 | DCON (mm): 15.0 | Stock: Made to order
MDW1500NHGS3DC (mm): 15.0 | L/D: 3 | LU (mm): 55.6 | LCF (mm): 78.1 | OAL (mm): 143.1 | PL (mm): 3.1 | DCON (mm): 15.0 | Stock: Yes
MDW1500NHGS5DC (mm): 15.0 | L/D: 5 | LU (mm): 100.6 | LCF (mm): 123.1 | OAL (mm): 188.1 | PL (mm): 3.1 | DCON (mm): 15.0 | Stock: Yes
MDW1500NHGS10DC (mm): 15.0 | L/D: 10 | LU (mm): 190.6 | LCF (mm): 213.1 | OAL (mm): 278.1 | PL (mm): 3.1 | DCON (mm): 15.0 | Stock: Made to order
MDW1510NHGS3DC (mm): 15.1 | L/D: 3 | LU (mm): 58.0 | LCF (mm): 80.6 | OAL (mm): 149.1 | PL (mm): 3.1 | DCON (mm): 16.0 | Stock: Made to order
MDW1510NHGS5DC (mm): 15.1 | L/D: 5 | LU (mm): 104.5 | LCF (mm): 127.1 | OAL (mm): 197.1 | PL (mm): 3.1 | DCON (mm): 16.0 | Stock: Made to order
MDW1510NHGS10DC (mm): 15.1 | L/D: 10 | LU (mm): 197.5 | LCF (mm): 220.1 | OAL (mm): 293.1 | PL (mm): 3.1 | DCON (mm): 16.0 | Stock: Made to order
MDW1520NHGS3DC (mm): 15.2 | L/D: 3 | LU (mm): 57.8 | LCF (mm): 80.6 | OAL (mm): 149.1 | PL (mm): 3.1 | DCON (mm): 16.0 | Stock: Made to order
MDW1520NHGS5DC (mm): 15.2 | L/D: 5 | LU (mm): 104.3 | LCF (mm): 127.1 | OAL (mm): 197.1 | PL (mm): 3.1 | DCON (mm): 16.0 | Stock: Made to order
MDW1520NHGS10DC (mm): 15.2 | L/D: 10 | LU (mm): 197.3 | LCF (mm): 220.1 | OAL (mm): 293.1 | PL (mm): 3.1 | DCON (mm): 16.0 | Stock: Made to order
MDW1530NHGS3DC (mm): 15.3 | L/D: 3 | LU (mm): 57.8 | LCF (mm): 80.7 | OAL (mm): 149.2 | PL (mm): 3.2 | DCON (mm): 16.0 | Stock: Made to order
MDW1530NHGS5DC (mm): 15.3 | L/D: 5 | LU (mm): 104.3 | LCF (mm): 127.2 | OAL (mm): 197.2 | PL (mm): 3.2 | DCON (mm): 16.0 | Stock: Made to order
MDW1530NHGS10DC (mm): 15.3 | L/D: 10 | LU (mm): 197.3 | LCF (mm): 220.2 | OAL (mm): 293.2 | PL (mm): 3.2 | DCON (mm): 16.0 | Stock: Made to order
MDW1540NHGS3DC (mm): 15.4 | L/D: 3 | LU (mm): 57.6 | LCF (mm): 80.7 | OAL (mm): 149.2 | PL (mm): 3.2 | DCON (mm): 16.0 | Stock: Made to order
MDW1540NHGS5DC (mm): 15.4 | L/D: 5 | LU (mm): 104.1 | LCF (mm): 127.2 | OAL (mm): 197.2 | PL (mm): 3.2 | DCON (mm): 16.0 | Stock: Made to order
MDW1540NHGS10DC (mm): 15.4 | L/D: 10 | LU (mm): 197.1 | LCF (mm): 220.2 | OAL (mm): 293.2 | PL (mm): 3.2 | DCON (mm): 16.0 | Stock: Made to order
MDW1550NHGS3DC (mm): 15.5 | L/D: 3 | LU (mm): 57.5 | LCF (mm): 80.7 | OAL (mm): 149.2 | PL (mm): 3.2 | DCON (mm): 16.0 | Stock: Yes
MDW1550NHGS5DC (mm): 15.5 | L/D: 5 | LU (mm): 104.0 | LCF (mm): 127.2 | OAL (mm): 197.2 | PL (mm): 3.2 | DCON (mm): 16.0 | Stock: Yes
MDW1550NHGS10DC (mm): 15.5 | L/D: 10 | LU (mm): 197.0 | LCF (mm): 220.2 | OAL (mm): 293.2 | PL (mm): 3.2 | DCON (mm): 16.0 | Stock: Made to order
MDW1560NHGS3DC (mm): 15.6 | L/D: 3 | LU (mm): 59.8 | LCF (mm): 83.2 | OAL (mm): 149.2 | PL (mm): 3.2 | DCON (mm): 16.0 | Stock: Made to order
MDW1560NHGS5DC (mm): 15.6 | L/D: 5 | LU (mm): 107.8 | LCF (mm): 131.2 | OAL (mm): 197.2 | PL (mm): 3.2 | DCON (mm): 16.0 | Stock: Made to order
MDW1560NHGS10DC (mm): 15.6 | L/D: 10 | LU (mm): 203.8 | LCF (mm): 227.2 | OAL (mm): 293.2 | PL (mm): 3.2 | DCON (mm): 16.0 | Stock: Made to order
MDW1570NHGS3DC (mm): 15.7 | L/D: 3 | LU (mm): 59.7 | LCF (mm): 83.2 | OAL (mm): 149.2 | PL (mm): 3.2 | DCON (mm): 16.0 | Stock: Made to order
MDW1570NHGS5DC (mm): 15.7 | L/D: 5 | LU (mm): 107.7 | LCF (mm): 131.2 | OAL (mm): 197.2 | PL (mm): 3.2 | DCON (mm): 16.0 | Stock: Made to order
MDW1570NHGS10DC (mm): 15.7 | L/D: 10 | LU (mm): 203.7 | LCF (mm): 227.2 | OAL (mm): 293.2 | PL (mm): 3.2 | DCON (mm): 16.0 | Stock: Made to order
MDW1580NHGS3DC (mm): 15.8 | L/D: 3 | LU (mm): 59.6 | LCF (mm): 83.3 | OAL (mm): 149.3 | PL (mm): 3.3 | DCON (mm): 16.0 | Stock: Made to order
MDW1580NHGS5DC (mm): 15.8 | L/D: 5 | LU (mm): 107.6 | LCF (mm): 131.3 | OAL (mm): 197.3 | PL (mm): 3.3 | DCON (mm): 16.0 | Stock: Made to order
MDW1580NHGS10DC (mm): 15.8 | L/D: 10 | LU (mm): 203.6 | LCF (mm): 227.3 | OAL (mm): 293.3 | PL (mm): 3.3 | DCON (mm): 16.0 | Stock: Made to order
MDW1590NHGS3DC (mm): 15.9 | L/D: 3 | LU (mm): 59.5 | LCF (mm): 83.3 | OAL (mm): 149.3 | PL (mm): 3.3 | DCON (mm): 16.0 | Stock: Made to order
MDW1590NHGS5DC (mm): 15.9 | L/D: 5 | LU (mm): 107.5 | LCF (mm): 131.3 | OAL (mm): 197.3 | PL (mm): 3.3 | DCON (mm): 16.0 | Stock: Made to order
MDW1590NHGS10DC (mm): 15.9 | L/D: 10 | LU (mm): 203.5 | LCF (mm): 227.3 | OAL (mm): 293.3 | PL (mm): 3.3 | DCON (mm): 16.0 | Stock: Made to order
MDW1600NHGS3DC (mm): 16.0 | L/D: 3 | LU (mm): 59.3 | LCF (mm): 83.3 | OAL (mm): 149.3 | PL (mm): 3.3 | DCON (mm): 16.0 | Stock: Yes
MDW1600NHGS5DC (mm): 16.0 | L/D: 5 | LU (mm): 107.3 | LCF (mm): 131.3 | OAL (mm): 197.3 | PL (mm): 3.3 | DCON (mm): 16.0 | Stock: Yes
MDW1600NHGS10DC (mm): 16.0 | L/D: 10 | LU (mm): 203.3 | LCF (mm): 227.3 | OAL (mm): 293.3 | PL (mm): 3.3 | DCON (mm): 16.0 | Stock: Made to order

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Cutting Tools →
