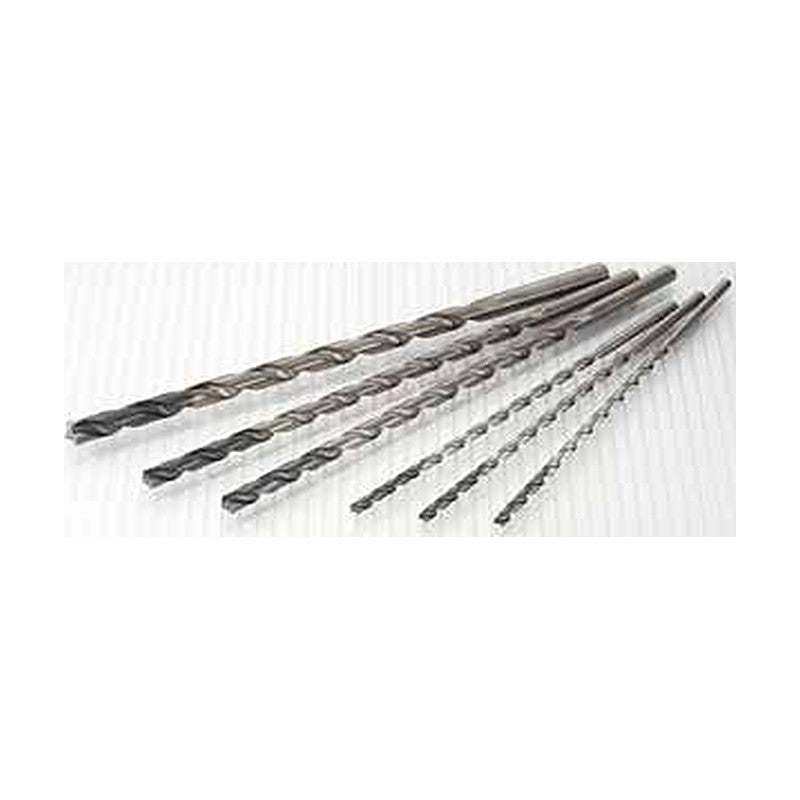

Sumitomo Electric Hardmetal Super Multi Drill XHGS Type Deep Hole (Internal Coolant)

Sumitomo Electric Hardmetal Super Multi Drill XHGS Type Deep Hole (Internal Coolant)

Solid carbide drill for ultra-deep holes up to 30D with J-flute, RX thinning and DEX coating for high drill strength and stable chip evacuation.

Key features

  • J-flute for stable chip evacuation in deep holes
  • RX thinning
  • DEX coating
  • MQL and two-fluid mist capable
  • Hole depth 10D-30D
  • Grade ACX70

Specifications

Coolant Internal
Point angle 140 deg
Grade ACX70
MDW0210XHGS10 DC (mm): 2.1 | L/D: 10 | LU (mm): 35.3 | LCF (mm): 38.4 | OAL (mm): 88.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0210XHGS15 DC (mm): 2.1 | L/D: 15 | LU (mm): 45.3 | LCF (mm): 48.4 | OAL (mm): 98.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0210XHGS20 DC (mm): 2.1 | L/D: 20 | LU (mm): 58.3 | LCF (mm): 61.4 | OAL (mm): 111.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0210XHGS25 DC (mm): 2.1 | L/D: 25 | LU (mm): 70.3 | LCF (mm): 73.4 | OAL (mm): 123.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0210XHGS30 DC (mm): 2.1 | L/D: 30 | LU (mm): 83.3 | LCF (mm): 86.4 | OAL (mm): 136.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0220XHGS10 DC (mm): 2.2 | L/D: 10 | LU (mm): 35.1 | LCF (mm): 38.4 | OAL (mm): 88.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0220XHGS15 DC (mm): 2.2 | L/D: 15 | LU (mm): 45.1 | LCF (mm): 48.4 | OAL (mm): 98.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0220XHGS20 DC (mm): 2.2 | L/D: 20 | LU (mm): 58.1 | LCF (mm): 61.4 | OAL (mm): 111.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0220XHGS25 DC (mm): 2.2 | L/D: 25 | LU (mm): 70.1 | LCF (mm): 73.4 | OAL (mm): 123.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0220XHGS30 DC (mm): 2.2 | L/D: 30 | LU (mm): 83.1 | LCF (mm): 86.4 | OAL (mm): 136.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0230XHGS10 DC (mm): 2.3 | L/D: 10 | LU (mm): 35.0 | LCF (mm): 38.4 | OAL (mm): 88.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0230XHGS15 DC (mm): 2.3 | L/D: 15 | LU (mm): 45.0 | LCF (mm): 48.4 | OAL (mm): 98.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0230XHGS20 DC (mm): 2.3 | L/D: 20 | LU (mm): 58.0 | LCF (mm): 61.4 | OAL (mm): 111.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0230XHGS25 DC (mm): 2.3 | L/D: 25 | LU (mm): 70.0 | LCF (mm): 73.4 | OAL (mm): 123.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0230XHGS30 DC (mm): 2.3 | L/D: 30 | LU (mm): 83.0 | LCF (mm): 86.4 | OAL (mm): 136.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0240XHGS10 DC (mm): 2.4 | L/D: 10 | LU (mm): 34.8 | LCF (mm): 38.4 | OAL (mm): 88.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0240XHGS15 DC (mm): 2.4 | L/D: 15 | LU (mm): 44.8 | LCF (mm): 48.4 | OAL (mm): 98.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0240XHGS20 DC (mm): 2.4 | L/D: 20 | LU (mm): 57.8 | LCF (mm): 61.4 | OAL (mm): 111.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0240XHGS25 DC (mm): 2.4 | L/D: 25 | LU (mm): 69.8 | LCF (mm): 73.4 | OAL (mm): 123.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0240XHGS30 DC (mm): 2.4 | L/D: 30 | LU (mm): 82.8 | LCF (mm): 86.4 | OAL (mm): 136.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0250XHGS10 DC (mm): 2.5 | L/D: 10 | LU (mm): 34.8 | LCF (mm): 38.5 | OAL (mm): 88.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0250XHGS12 DC (mm): 2.5 | L/D: 12 | LU (mm): 37.8 | LCF (mm): 41.5 | OAL (mm): 91.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0250XHGS15 DC (mm): 2.5 | L/D: 15 | LU (mm): 44.8 | LCF (mm): 48.5 | OAL (mm): 98.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0250XHGS20 DC (mm): 2.5 | L/D: 20 | LU (mm): 57.8 | LCF (mm): 61.5 | OAL (mm): 111.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0250XHGS25 DC (mm): 2.5 | L/D: 25 | LU (mm): 69.8 | LCF (mm): 73.5 | OAL (mm): 123.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0250XHGS30 DC (mm): 2.5 | L/D: 30 | LU (mm): 82.8 | LCF (mm): 86.5 | OAL (mm): 136.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0260XHGS10 DC (mm): 2.6 | L/D: 10 | LU (mm): 41.6 | LCF (mm): 45.5 | OAL (mm): 93.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0260XHGS12 DC (mm): 2.6 | L/D: 12 | LU (mm): 47.6 | LCF (mm): 51.5 | OAL (mm): 99.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Made to order
MDW0260XHGS15 DC (mm): 2.6 | L/D: 15 | LU (mm): 56.6 | LCF (mm): 60.5 | OAL (mm): 108.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0260XHGS20 DC (mm): 2.6 | L/D: 20 | LU (mm): 71.6 | LCF (mm): 75.5 | OAL (mm): 123.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0260XHGS25 DC (mm): 2.6 | L/D: 25 | LU (mm): 86.6 | LCF (mm): 90.5 | OAL (mm): 138.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0260XHGS30 DC (mm): 2.6 | L/D: 30 | LU (mm): 101.6 | LCF (mm): 105.5 | OAL (mm): 153.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0270XHGS10 DC (mm): 2.7 | L/D: 10 | LU (mm): 41.5 | LCF (mm): 45.5 | OAL (mm): 93.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0270XHGS12 DC (mm): 2.7 | L/D: 12 | LU (mm): 47.5 | LCF (mm): 51.5 | OAL (mm): 99.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Made to order
MDW0270XHGS15 DC (mm): 2.7 | L/D: 15 | LU (mm): 56.5 | LCF (mm): 60.5 | OAL (mm): 108.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0270XHGS20 DC (mm): 2.7 | L/D: 20 | LU (mm): 71.5 | LCF (mm): 75.5 | OAL (mm): 123.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0270XHGS25 DC (mm): 2.7 | L/D: 25 | LU (mm): 86.5 | LCF (mm): 90.5 | OAL (mm): 138.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0270XHGS30 DC (mm): 2.7 | L/D: 30 | LU (mm): 101.5 | LCF (mm): 105.5 | OAL (mm): 153.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0280XHGS10 DC (mm): 2.8 | L/D: 10 | LU (mm): 41.3 | LCF (mm): 45.5 | OAL (mm): 93.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0280XHGS12 DC (mm): 2.8 | L/D: 12 | LU (mm): 47.3 | LCF (mm): 51.5 | OAL (mm): 99.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Made to order
MDW0280XHGS15 DC (mm): 2.8 | L/D: 15 | LU (mm): 56.3 | LCF (mm): 60.5 | OAL (mm): 108.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0280XHGS20 DC (mm): 2.8 | L/D: 20 | LU (mm): 71.3 | LCF (mm): 75.5 | OAL (mm): 123.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0280XHGS25 DC (mm): 2.8 | L/D: 25 | LU (mm): 86.3 | LCF (mm): 90.5 | OAL (mm): 138.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0280XHGS30 DC (mm): 2.8 | L/D: 30 | LU (mm): 101.3 | LCF (mm): 105.5 | OAL (mm): 153.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0290XHGS10 DC (mm): 2.9 | L/D: 10 | LU (mm): 41.2 | LCF (mm): 45.5 | OAL (mm): 93.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0290XHGS12 DC (mm): 2.9 | L/D: 12 | LU (mm): 47.2 | LCF (mm): 51.5 | OAL (mm): 99.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Made to order
MDW0290XHGS15 DC (mm): 2.9 | L/D: 15 | LU (mm): 56.2 | LCF (mm): 60.5 | OAL (mm): 108.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0290XHGS20 DC (mm): 2.9 | L/D: 20 | LU (mm): 71.2 | LCF (mm): 75.5 | OAL (mm): 123.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0290XHGS25 DC (mm): 2.9 | L/D: 25 | LU (mm): 86.2 | LCF (mm): 90.5 | OAL (mm): 138.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0290XHGS30 DC (mm): 2.9 | L/D: 30 | LU (mm): 101.2 | LCF (mm): 105.5 | OAL (mm): 153.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0300XHGS10 DC (mm): 3.0 | L/D: 10 | LU (mm): 41.0 | LCF (mm): 45.5 | OAL (mm): 93.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0300XHGS12 DC (mm): 3.0 | L/D: 12 | LU (mm): 47.0 | LCF (mm): 51.5 | OAL (mm): 99.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0300XHGS15 DC (mm): 3.0 | L/D: 15 | LU (mm): 56.0 | LCF (mm): 60.5 | OAL (mm): 108.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0300XHGS20 DC (mm): 3.0 | L/D: 20 | LU (mm): 71.0 | LCF (mm): 75.5 | OAL (mm): 123.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0300XHGS25 DC (mm): 3.0 | L/D: 25 | LU (mm): 86.0 | LCF (mm): 90.5 | OAL (mm): 138.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0300XHGS30 DC (mm): 3.0 | L/D: 30 | LU (mm): 101.0 | LCF (mm): 105.5 | OAL (mm): 153.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0310XHGS10 DC (mm): 3.1 | L/D: 10 | LU (mm): 49.0 | LCF (mm): 53.6 | OAL (mm): 103.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDW0310XHGS12 DC (mm): 3.1 | L/D: 12 | LU (mm): 54.0 | LCF (mm): 58.6 | OAL (mm): 108.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Made to order
MDW0310XHGS15 DC (mm): 3.1 | L/D: 15 | LU (mm): 64.0 | LCF (mm): 68.6 | OAL (mm): 118.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDW0310XHGS20 DC (mm): 3.1 | L/D: 20 | LU (mm): 82.0 | LCF (mm): 86.6 | OAL (mm): 136.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDW0310XHGS25 DC (mm): 3.1 | L/D: 25 | LU (mm): 99.0 | LCF (mm): 103.6 | OAL (mm): 153.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDW0310XHGS30 DC (mm): 3.1 | L/D: 30 | LU (mm): 117.0 | LCF (mm): 121.6 | OAL (mm): 171.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDW0320XHGS10 DC (mm): 3.2 | L/D: 10 | LU (mm): 48.8 | LCF (mm): 53.6 | OAL (mm): 103.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDW0320XHGS12 DC (mm): 3.2 | L/D: 12 | LU (mm): 53.8 | LCF (mm): 58.6 | OAL (mm): 108.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Made to order
MDW0320XHGS15 DC (mm): 3.2 | L/D: 15 | LU (mm): 63.8 | LCF (mm): 68.6 | OAL (mm): 118.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDW0320XHGS20 DC (mm): 3.2 | L/D: 20 | LU (mm): 81.8 | LCF (mm): 86.6 | OAL (mm): 136.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDW0320XHGS25 DC (mm): 3.2 | L/D: 25 | LU (mm): 98.8 | LCF (mm): 103.6 | OAL (mm): 153.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDW0320XHGS30 DC (mm): 3.2 | L/D: 30 | LU (mm): 116.8 | LCF (mm): 121.6 | OAL (mm): 171.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDW0330XHGS10 DC (mm): 3.3 | L/D: 10 | LU (mm): 48.7 | LCF (mm): 53.6 | OAL (mm): 103.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDW0330XHGS12 DC (mm): 3.3 | L/D: 12 | LU (mm): 53.7 | LCF (mm): 58.6 | OAL (mm): 108.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Made to order
MDW0330XHGS15 DC (mm): 3.3 | L/D: 15 | LU (mm): 63.7 | LCF (mm): 68.6 | OAL (mm): 118.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDW0330XHGS20 DC (mm): 3.3 | L/D: 20 | LU (mm): 81.7 | LCF (mm): 86.6 | OAL (mm): 136.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDW0330XHGS25 DC (mm): 3.3 | L/D: 25 | LU (mm): 98.7 | LCF (mm): 103.6 | OAL (mm): 153.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDW0330XHGS30 DC (mm): 3.3 | L/D: 30 | LU (mm): 116.7 | LCF (mm): 121.6 | OAL (mm): 171.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDW0340XHGS10 DC (mm): 3.4 | L/D: 10 | LU (mm): 48.5 | LCF (mm): 53.6 | OAL (mm): 103.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDW0340XHGS12 DC (mm): 3.4 | L/D: 12 | LU (mm): 53.5 | LCF (mm): 58.6 | OAL (mm): 108.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Made to order
MDW0340XHGS15 DC (mm): 3.4 | L/D: 15 | LU (mm): 63.5 | LCF (mm): 68.6 | OAL (mm): 118.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDW0340XHGS20 DC (mm): 3.4 | L/D: 20 | LU (mm): 81.5 | LCF (mm): 86.6 | OAL (mm): 136.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDW0340XHGS25 DC (mm): 3.4 | L/D: 25 | LU (mm): 98.5 | LCF (mm): 103.6 | OAL (mm): 153.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDW0340XHGS30 DC (mm): 3.4 | L/D: 30 | LU (mm): 116.5 | LCF (mm): 121.6 | OAL (mm): 171.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDW0350XHGS10 DC (mm): 3.5 | L/D: 10 | LU (mm): 48.4 | LCF (mm): 53.6 | OAL (mm): 103.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDW0350XHGS12 DC (mm): 3.5 | L/D: 12 | LU (mm): 53.4 | LCF (mm): 58.6 | OAL (mm): 108.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDW0350XHGS15 DC (mm): 3.5 | L/D: 15 | LU (mm): 63.4 | LCF (mm): 68.6 | OAL (mm): 118.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDW0350XHGS20 DC (mm): 3.5 | L/D: 20 | LU (mm): 81.4 | LCF (mm): 86.6 | OAL (mm): 136.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDW0350XHGS25 DC (mm): 3.5 | L/D: 25 | LU (mm): 98.4 | LCF (mm): 103.6 | OAL (mm): 153.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDW0350XHGS30 DC (mm): 3.5 | L/D: 30 | LU (mm): 116.4 | LCF (mm): 121.6 | OAL (mm): 171.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDW0360XHGS10 DC (mm): 3.6 | L/D: 10 | LU (mm): 55.3 | LCF (mm): 60.7 | OAL (mm): 108.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0360XHGS12 DC (mm): 3.6 | L/D: 12 | LU (mm): 63.3 | LCF (mm): 68.7 | OAL (mm): 116.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Made to order
MDW0360XHGS15 DC (mm): 3.6 | L/D: 15 | LU (mm): 75.3 | LCF (mm): 80.7 | OAL (mm): 128.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0360XHGS20 DC (mm): 3.6 | L/D: 20 | LU (mm): 95.3 | LCF (mm): 100.7 | OAL (mm): 148.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0360XHGS25 DC (mm): 3.6 | L/D: 25 | LU (mm): 115.3 | LCF (mm): 120.7 | OAL (mm): 168.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0360XHGS30 DC (mm): 3.6 | L/D: 30 | LU (mm): 135.3 | LCF (mm): 140.7 | OAL (mm): 188.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0370XHGS10 DC (mm): 3.7 | L/D: 10 | LU (mm): 55.2 | LCF (mm): 60.7 | OAL (mm): 108.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0370XHGS12 DC (mm): 3.7 | L/D: 12 | LU (mm): 63.2 | LCF (mm): 68.7 | OAL (mm): 116.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Made to order
MDW0370XHGS15 DC (mm): 3.7 | L/D: 15 | LU (mm): 75.2 | LCF (mm): 80.7 | OAL (mm): 128.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0370XHGS20 DC (mm): 3.7 | L/D: 20 | LU (mm): 95.2 | LCF (mm): 100.7 | OAL (mm): 148.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0370XHGS25 DC (mm): 3.7 | L/D: 25 | LU (mm): 115.2 | LCF (mm): 120.7 | OAL (mm): 168.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0370XHGS30 DC (mm): 3.7 | L/D: 30 | LU (mm): 135.2 | LCF (mm): 140.7 | OAL (mm): 188.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0380XHGS10 DC (mm): 3.8 | L/D: 10 | LU (mm): 55.0 | LCF (mm): 60.7 | OAL (mm): 108.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0380XHGS12 DC (mm): 3.8 | L/D: 12 | LU (mm): 63.0 | LCF (mm): 68.7 | OAL (mm): 116.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Made to order
MDW0380XHGS15 DC (mm): 3.8 | L/D: 15 | LU (mm): 75.0 | LCF (mm): 80.7 | OAL (mm): 128.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0380XHGS20 DC (mm): 3.8 | L/D: 20 | LU (mm): 95.0 | LCF (mm): 100.7 | OAL (mm): 148.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0380XHGS25 DC (mm): 3.8 | L/D: 25 | LU (mm): 115.0 | LCF (mm): 120.7 | OAL (mm): 168.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0380XHGS30 DC (mm): 3.8 | L/D: 30 | LU (mm): 135.0 | LCF (mm): 140.7 | OAL (mm): 188.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0390XHGS10 DC (mm): 3.9 | L/D: 10 | LU (mm): 54.9 | LCF (mm): 60.7 | OAL (mm): 108.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0390XHGS12 DC (mm): 3.9 | L/D: 12 | LU (mm): 62.9 | LCF (mm): 68.7 | OAL (mm): 116.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Made to order
MDW0390XHGS15 DC (mm): 3.9 | L/D: 15 | LU (mm): 74.9 | LCF (mm): 80.7 | OAL (mm): 128.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0390XHGS20 DC (mm): 3.9 | L/D: 20 | LU (mm): 94.9 | LCF (mm): 100.7 | OAL (mm): 148.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0390XHGS25 DC (mm): 3.9 | L/D: 25 | LU (mm): 114.9 | LCF (mm): 120.7 | OAL (mm): 168.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0390XHGS30 DC (mm): 3.9 | L/D: 30 | LU (mm): 134.9 | LCF (mm): 140.7 | OAL (mm): 188.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0400XHGS10 DC (mm): 4.0 | L/D: 10 | LU (mm): 54.7 | LCF (mm): 60.7 | OAL (mm): 108.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0400XHGS12 DC (mm): 4.0 | L/D: 12 | LU (mm): 62.7 | LCF (mm): 68.7 | OAL (mm): 116.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0400XHGS15 DC (mm): 4.0 | L/D: 15 | LU (mm): 74.7 | LCF (mm): 80.7 | OAL (mm): 128.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0400XHGS20 DC (mm): 4.0 | L/D: 20 | LU (mm): 94.7 | LCF (mm): 100.7 | OAL (mm): 148.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0400XHGS25 DC (mm): 4.0 | L/D: 25 | LU (mm): 114.7 | LCF (mm): 120.7 | OAL (mm): 168.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0400XHGS30 DC (mm): 4.0 | L/D: 30 | LU (mm): 134.7 | LCF (mm): 140.7 | OAL (mm): 188.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0410XHGS10 DC (mm): 4.1 | L/D: 10 | LU (mm): 62.6 | LCF (mm): 68.7 | OAL (mm): 120.7 | PL (mm): 0.7 | DCON (mm): 5.0 | Stock: Yes
MDW0410XHGS12 DC (mm): 4.1 | L/D: 12 | LU (mm): 69.6 | LCF (mm): 75.7 | OAL (mm): 127.7 | PL (mm): 0.7 | DCON (mm): 5.0 | Stock: Made to order
MDW0410XHGS15 DC (mm): 4.1 | L/D: 15 | LU (mm): 82.6 | LCF (mm): 88.7 | OAL (mm): 140.7 | PL (mm): 0.7 | DCON (mm): 5.0 | Stock: Yes
MDW0410XHGS20 DC (mm): 4.1 | L/D: 20 | LU (mm): 105.6 | LCF (mm): 111.7 | OAL (mm): 163.7 | PL (mm): 0.7 | DCON (mm): 5.0 | Stock: Yes
MDW0410XHGS25 DC (mm): 4.1 | L/D: 25 | LU (mm): 127.6 | LCF (mm): 133.7 | OAL (mm): 185.7 | PL (mm): 0.7 | DCON (mm): 5.0 | Stock: Yes
MDW0410XHGS30 DC (mm): 4.1 | L/D: 30 | LU (mm): 150.6 | LCF (mm): 156.7 | OAL (mm): 208.7 | PL (mm): 0.7 | DCON (mm): 5.0 | Stock: Yes
MDW0420XHGS10 DC (mm): 4.2 | L/D: 10 | LU (mm): 62.5 | LCF (mm): 68.8 | OAL (mm): 120.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDW0420XHGS12 DC (mm): 4.2 | L/D: 12 | LU (mm): 69.5 | LCF (mm): 75.8 | OAL (mm): 127.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Made to order
MDW0420XHGS15 DC (mm): 4.2 | L/D: 15 | LU (mm): 82.5 | LCF (mm): 88.8 | OAL (mm): 140.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDW0420XHGS20 DC (mm): 4.2 | L/D: 20 | LU (mm): 105.5 | LCF (mm): 111.8 | OAL (mm): 163.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDW0420XHGS25 DC (mm): 4.2 | L/D: 25 | LU (mm): 127.5 | LCF (mm): 133.8 | OAL (mm): 185.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDW0420XHGS30 DC (mm): 4.2 | L/D: 30 | LU (mm): 150.5 | LCF (mm): 156.8 | OAL (mm): 208.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDW0430XHGS10 DC (mm): 4.3 | L/D: 10 | LU (mm): 62.4 | LCF (mm): 68.8 | OAL (mm): 120.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDW0430XHGS12 DC (mm): 4.3 | L/D: 12 | LU (mm): 69.4 | LCF (mm): 75.8 | OAL (mm): 127.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Made to order
MDW0430XHGS15 DC (mm): 4.3 | L/D: 15 | LU (mm): 82.4 | LCF (mm): 88.8 | OAL (mm): 140.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDW0430XHGS20 DC (mm): 4.3 | L/D: 20 | LU (mm): 105.4 | LCF (mm): 111.8 | OAL (mm): 163.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDW0430XHGS25 DC (mm): 4.3 | L/D: 25 | LU (mm): 127.4 | LCF (mm): 133.8 | OAL (mm): 185.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDW0430XHGS30 DC (mm): 4.3 | L/D: 30 | LU (mm): 150.4 | LCF (mm): 156.8 | OAL (mm): 208.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDW0440XHGS10 DC (mm): 4.4 | L/D: 10 | LU (mm): 62.2 | LCF (mm): 68.8 | OAL (mm): 120.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDW0440XHGS12 DC (mm): 4.4 | L/D: 12 | LU (mm): 69.2 | LCF (mm): 75.8 | OAL (mm): 127.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Made to order
MDW0440XHGS15 DC (mm): 4.4 | L/D: 15 | LU (mm): 82.2 | LCF (mm): 88.8 | OAL (mm): 140.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDW0440XHGS20 DC (mm): 4.4 | L/D: 20 | LU (mm): 105.2 | LCF (mm): 111.8 | OAL (mm): 163.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDW0440XHGS25 DC (mm): 4.4 | L/D: 25 | LU (mm): 127.2 | LCF (mm): 133.8 | OAL (mm): 185.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDW0440XHGS30 DC (mm): 4.4 | L/D: 30 | LU (mm): 150.2 | LCF (mm): 156.8 | OAL (mm): 208.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDW0450XHGS10 DC (mm): 4.5 | L/D: 10 | LU (mm): 62.1 | LCF (mm): 68.8 | OAL (mm): 120.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDW0450XHGS12 DC (mm): 4.5 | L/D: 12 | LU (mm): 69.1 | LCF (mm): 75.8 | OAL (mm): 127.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDW0450XHGS15 DC (mm): 4.5 | L/D: 15 | LU (mm): 82.1 | LCF (mm): 88.8 | OAL (mm): 140.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDW0450XHGS20 DC (mm): 4.5 | L/D: 20 | LU (mm): 105.1 | LCF (mm): 111.8 | OAL (mm): 163.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDW0450XHGS25 DC (mm): 4.5 | L/D: 25 | LU (mm): 127.1 | LCF (mm): 133.8 | OAL (mm): 185.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDW0450XHGS30 DC (mm): 4.5 | L/D: 30 | LU (mm): 150.1 | LCF (mm): 156.8 | OAL (mm): 208.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDW0460XHGS10 DC (mm): 4.6 | L/D: 10 | LU (mm): 68.9 | LCF (mm): 75.8 | OAL (mm): 125.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDW0460XHGS12 DC (mm): 4.6 | L/D: 12 | LU (mm): 78.9 | LCF (mm): 85.8 | OAL (mm): 135.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Made to order
MDW0460XHGS15 DC (mm): 4.6 | L/D: 15 | LU (mm): 93.9 | LCF (mm): 100.8 | OAL (mm): 150.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDW0460XHGS20 DC (mm): 4.6 | L/D: 20 | LU (mm): 118.9 | LCF (mm): 125.8 | OAL (mm): 175.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDW0460XHGS25 DC (mm): 4.6 | L/D: 25 | LU (mm): 143.9 | LCF (mm): 150.8 | OAL (mm): 200.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDW0460XHGS30 DC (mm): 4.6 | L/D: 30 | LU (mm): 168.9 | LCF (mm): 175.8 | OAL (mm): 225.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDW0470XHGS10 DC (mm): 4.7 | L/D: 10 | LU (mm): 68.9 | LCF (mm): 75.9 | OAL (mm): 125.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0470XHGS12 DC (mm): 4.7 | L/D: 12 | LU (mm): 78.9 | LCF (mm): 85.9 | OAL (mm): 135.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Made to order
MDW0470XHGS15 DC (mm): 4.7 | L/D: 15 | LU (mm): 93.9 | LCF (mm): 100.9 | OAL (mm): 150.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0470XHGS20 DC (mm): 4.7 | L/D: 20 | LU (mm): 118.9 | LCF (mm): 125.9 | OAL (mm): 175.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0470XHGS25 DC (mm): 4.7 | L/D: 25 | LU (mm): 143.9 | LCF (mm): 150.9 | OAL (mm): 200.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0470XHGS30 DC (mm): 4.7 | L/D: 30 | LU (mm): 168.9 | LCF (mm): 175.9 | OAL (mm): 225.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0480XHGS10 DC (mm): 4.8 | L/D: 10 | LU (mm): 68.7 | LCF (mm): 75.9 | OAL (mm): 125.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0480XHGS12 DC (mm): 4.8 | L/D: 12 | LU (mm): 78.7 | LCF (mm): 85.9 | OAL (mm): 135.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Made to order
MDW0480XHGS15 DC (mm): 4.8 | L/D: 15 | LU (mm): 93.7 | LCF (mm): 100.9 | OAL (mm): 150.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0480XHGS20 DC (mm): 4.8 | L/D: 20 | LU (mm): 118.7 | LCF (mm): 125.9 | OAL (mm): 175.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0480XHGS25 DC (mm): 4.8 | L/D: 25 | LU (mm): 143.7 | LCF (mm): 150.9 | OAL (mm): 200.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0480XHGS30 DC (mm): 4.8 | L/D: 30 | LU (mm): 168.7 | LCF (mm): 175.9 | OAL (mm): 225.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0490XHGS10 DC (mm): 4.9 | L/D: 10 | LU (mm): 68.6 | LCF (mm): 75.9 | OAL (mm): 125.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0490XHGS12 DC (mm): 4.9 | L/D: 12 | LU (mm): 78.6 | LCF (mm): 85.9 | OAL (mm): 135.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Made to order
MDW0490XHGS15 DC (mm): 4.9 | L/D: 15 | LU (mm): 93.6 | LCF (mm): 100.9 | OAL (mm): 150.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0490XHGS20 DC (mm): 4.9 | L/D: 20 | LU (mm): 118.6 | LCF (mm): 125.9 | OAL (mm): 175.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0490XHGS25 DC (mm): 4.9 | L/D: 25 | LU (mm): 143.6 | LCF (mm): 150.9 | OAL (mm): 200.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0490XHGS30 DC (mm): 4.9 | L/D: 30 | LU (mm): 168.6 | LCF (mm): 175.9 | OAL (mm): 225.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0500XHGS10 DC (mm): 5.0 | L/D: 10 | LU (mm): 68.4 | LCF (mm): 75.9 | OAL (mm): 125.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0500XHGS12 DC (mm): 5.0 | L/D: 12 | LU (mm): 78.4 | LCF (mm): 85.9 | OAL (mm): 135.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0500XHGS15 DC (mm): 5.0 | L/D: 15 | LU (mm): 93.4 | LCF (mm): 100.9 | OAL (mm): 150.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0500XHGS20 DC (mm): 5.0 | L/D: 20 | LU (mm): 118.4 | LCF (mm): 125.9 | OAL (mm): 175.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0500XHGS25 DC (mm): 5.0 | L/D: 25 | LU (mm): 143.4 | LCF (mm): 150.9 | OAL (mm): 200.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0500XHGS30 DC (mm): 5.0 | L/D: 30 | LU (mm): 168.4 | LCF (mm): 175.9 | OAL (mm): 225.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0510XHGS10 DC (mm): 5.1 | L/D: 10 | LU (mm): 76.3 | LCF (mm): 83.9 | OAL (mm): 137.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDW0510XHGS12 DC (mm): 5.1 | L/D: 12 | LU (mm): 85.3 | LCF (mm): 92.9 | OAL (mm): 146.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Made to order
MDW0510XHGS15 DC (mm): 5.1 | L/D: 15 | LU (mm): 101.3 | LCF (mm): 108.9 | OAL (mm): 162.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDW0510XHGS20 DC (mm): 5.1 | L/D: 20 | LU (mm): 131.3 | LCF (mm): 138.9 | OAL (mm): 192.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDW0510XHGS25 DC (mm): 5.1 | L/D: 25 | LU (mm): 156.3 | LCF (mm): 163.9 | OAL (mm): 217.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDW0510XHGS30 DC (mm): 5.1 | L/D: 30 | LU (mm): 184.3 | LCF (mm): 191.9 | OAL (mm): 245.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDW0520XHGS10 DC (mm): 5.2 | L/D: 10 | LU (mm): 76.1 | LCF (mm): 83.9 | OAL (mm): 137.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDW0520XHGS12 DC (mm): 5.2 | L/D: 12 | LU (mm): 85.1 | LCF (mm): 92.9 | OAL (mm): 146.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Made to order
MDW0520XHGS15 DC (mm): 5.2 | L/D: 15 | LU (mm): 101.1 | LCF (mm): 108.9 | OAL (mm): 162.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDW0520XHGS20 DC (mm): 5.2 | L/D: 20 | LU (mm): 131.1 | LCF (mm): 138.9 | OAL (mm): 192.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDW0520XHGS25 DC (mm): 5.2 | L/D: 25 | LU (mm): 156.1 | LCF (mm): 163.9 | OAL (mm): 217.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDW0520XHGS30 DC (mm): 5.2 | L/D: 30 | LU (mm): 184.1 | LCF (mm): 191.9 | OAL (mm): 245.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDW0530XHGS10 DC (mm): 5.3 | L/D: 10 | LU (mm): 76.1 | LCF (mm): 84.0 | OAL (mm): 138.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDW0530XHGS12 DC (mm): 5.3 | L/D: 12 | LU (mm): 85.1 | LCF (mm): 93.0 | OAL (mm): 147.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Made to order
MDW0530XHGS15 DC (mm): 5.3 | L/D: 15 | LU (mm): 101.1 | LCF (mm): 109.0 | OAL (mm): 163.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDW0530XHGS20 DC (mm): 5.3 | L/D: 20 | LU (mm): 131.1 | LCF (mm): 139.0 | OAL (mm): 193.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDW0530XHGS25 DC (mm): 5.3 | L/D: 25 | LU (mm): 156.1 | LCF (mm): 164.0 | OAL (mm): 218.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDW0530XHGS30 DC (mm): 5.3 | L/D: 30 | LU (mm): 184.1 | LCF (mm): 192.0 | OAL (mm): 246.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDW0540XHGS10 DC (mm): 5.4 | L/D: 10 | LU (mm): 75.9 | LCF (mm): 84.0 | OAL (mm): 138.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDW0540XHGS12 DC (mm): 5.4 | L/D: 12 | LU (mm): 84.9 | LCF (mm): 93.0 | OAL (mm): 147.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Made to order
MDW0540XHGS15 DC (mm): 5.4 | L/D: 15 | LU (mm): 100.9 | LCF (mm): 109.0 | OAL (mm): 163.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDW0540XHGS20 DC (mm): 5.4 | L/D: 20 | LU (mm): 130.9 | LCF (mm): 139.0 | OAL (mm): 193.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDW0540XHGS25 DC (mm): 5.4 | L/D: 25 | LU (mm): 155.9 | LCF (mm): 164.0 | OAL (mm): 218.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDW0540XHGS30 DC (mm): 5.4 | L/D: 30 | LU (mm): 183.9 | LCF (mm): 192.0 | OAL (mm): 246.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDW0550XHGS10 DC (mm): 5.5 | L/D: 10 | LU (mm): 75.8 | LCF (mm): 84.0 | OAL (mm): 138.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDW0550XHGS12 DC (mm): 5.5 | L/D: 12 | LU (mm): 84.8 | LCF (mm): 93.0 | OAL (mm): 147.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDW0550XHGS15 DC (mm): 5.5 | L/D: 15 | LU (mm): 100.8 | LCF (mm): 109.0 | OAL (mm): 163.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDW0550XHGS20 DC (mm): 5.5 | L/D: 20 | LU (mm): 130.8 | LCF (mm): 139.0 | OAL (mm): 193.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDW0550XHGS25 DC (mm): 5.5 | L/D: 25 | LU (mm): 155.8 | LCF (mm): 164.0 | OAL (mm): 218.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDW0550XHGS30 DC (mm): 5.5 | L/D: 30 | LU (mm): 183.8 | LCF (mm): 192.0 | OAL (mm): 246.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDW0560XHGS10 DC (mm): 5.6 | L/D: 10 | LU (mm): 82.6 | LCF (mm): 91.0 | OAL (mm): 143.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDW0560XHGS12 DC (mm): 5.6 | L/D: 12 | LU (mm): 94.6 | LCF (mm): 103.0 | OAL (mm): 155.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Made to order
MDW0560XHGS15 DC (mm): 5.6 | L/D: 15 | LU (mm): 112.6 | LCF (mm): 121.0 | OAL (mm): 173.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDW0560XHGS20 DC (mm): 5.6 | L/D: 20 | LU (mm): 142.6 | LCF (mm): 151.0 | OAL (mm): 203.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDW0560XHGS25 DC (mm): 5.6 | L/D: 25 | LU (mm): 172.6 | LCF (mm): 181.0 | OAL (mm): 233.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDW0560XHGS30 DC (mm): 5.6 | L/D: 30 | LU (mm): 202.6 | LCF (mm): 211.0 | OAL (mm): 263.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDW0570XHGS10 DC (mm): 5.7 | L/D: 10 | LU (mm): 82.5 | LCF (mm): 91.0 | OAL (mm): 143.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDW0570XHGS12 DC (mm): 5.7 | L/D: 12 | LU (mm): 94.5 | LCF (mm): 103.0 | OAL (mm): 155.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Made to order
MDW0570XHGS15 DC (mm): 5.7 | L/D: 15 | LU (mm): 112.5 | LCF (mm): 121.0 | OAL (mm): 173.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDW0570XHGS20 DC (mm): 5.7 | L/D: 20 | LU (mm): 142.5 | LCF (mm): 151.0 | OAL (mm): 203.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDW0570XHGS25 DC (mm): 5.7 | L/D: 25 | LU (mm): 172.5 | LCF (mm): 181.0 | OAL (mm): 233.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDW0570XHGS30 DC (mm): 5.7 | L/D: 30 | LU (mm): 202.5 | LCF (mm): 211.0 | OAL (mm): 263.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDW0580XHGS10 DC (mm): 5.8 | L/D: 10 | LU (mm): 82.4 | LCF (mm): 91.1 | OAL (mm): 143.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0580XHGS12 DC (mm): 5.8 | L/D: 12 | LU (mm): 94.4 | LCF (mm): 103.1 | OAL (mm): 155.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Made to order
MDW0580XHGS15 DC (mm): 5.8 | L/D: 15 | LU (mm): 112.4 | LCF (mm): 121.1 | OAL (mm): 173.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0580XHGS20 DC (mm): 5.8 | L/D: 20 | LU (mm): 142.4 | LCF (mm): 151.1 | OAL (mm): 203.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0580XHGS25 DC (mm): 5.8 | L/D: 25 | LU (mm): 172.4 | LCF (mm): 181.1 | OAL (mm): 233.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0580XHGS30 DC (mm): 5.8 | L/D: 30 | LU (mm): 202.4 | LCF (mm): 211.1 | OAL (mm): 263.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0590XHGS10 DC (mm): 5.9 | L/D: 10 | LU (mm): 82.3 | LCF (mm): 91.1 | OAL (mm): 143.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0590XHGS12 DC (mm): 5.9 | L/D: 12 | LU (mm): 94.3 | LCF (mm): 103.1 | OAL (mm): 155.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Made to order
MDW0590XHGS15 DC (mm): 5.9 | L/D: 15 | LU (mm): 112.3 | LCF (mm): 121.1 | OAL (mm): 173.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0590XHGS20 DC (mm): 5.9 | L/D: 20 | LU (mm): 142.3 | LCF (mm): 151.1 | OAL (mm): 203.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0590XHGS25 DC (mm): 5.9 | L/D: 25 | LU (mm): 172.3 | LCF (mm): 181.1 | OAL (mm): 233.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0590XHGS30 DC (mm): 5.9 | L/D: 30 | LU (mm): 202.3 | LCF (mm): 211.1 | OAL (mm): 263.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0600XHGS10 DC (mm): 6.0 | L/D: 10 | LU (mm): 82.1 | LCF (mm): 91.1 | OAL (mm): 143.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0600XHGS12 DC (mm): 6.0 | L/D: 12 | LU (mm): 94.1 | LCF (mm): 103.1 | OAL (mm): 155.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0600XHGS15 DC (mm): 6.0 | L/D: 15 | LU (mm): 112.1 | LCF (mm): 121.1 | OAL (mm): 173.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0600XHGS20 DC (mm): 6.0 | L/D: 20 | LU (mm): 142.1 | LCF (mm): 151.1 | OAL (mm): 203.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0600XHGS25 DC (mm): 6.0 | L/D: 25 | LU (mm): 172.1 | LCF (mm): 181.1 | OAL (mm): 233.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0600XHGS30 DC (mm): 6.0 | L/D: 30 | LU (mm): 202.1 | LCF (mm): 211.1 | OAL (mm): 263.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0610XHGS10 DC (mm): 6.1 | L/D: 10 | LU (mm): 90.0 | LCF (mm): 99.1 | OAL (mm): 154.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDW0610XHGS12 DC (mm): 6.1 | L/D: 12 | LU (mm): 101.0 | LCF (mm): 110.1 | OAL (mm): 165.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Made to order
MDW0610XHGS15 DC (mm): 6.1 | L/D: 15 | LU (mm): 120.0 | LCF (mm): 129.1 | OAL (mm): 184.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDW0610XHGS20 DC (mm): 6.1 | L/D: 20 | LU (mm): 153.0 | LCF (mm): 162.1 | OAL (mm): 217.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDW0610XHGS25 DC (mm): 6.1 | L/D: 25 | LU (mm): 185.0 | LCF (mm): 194.1 | OAL (mm): 249.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDW0610XHGS30 DC (mm): 6.1 | L/D: 30 | LU (mm): 218.0 | LCF (mm): 227.1 | OAL (mm): 282.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDW0620XHGS10 DC (mm): 6.2 | L/D: 10 | LU (mm): 89.8 | LCF (mm): 99.1 | OAL (mm): 154.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDW0620XHGS12 DC (mm): 6.2 | L/D: 12 | LU (mm): 100.8 | LCF (mm): 110.1 | OAL (mm): 165.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Made to order
MDW0620XHGS15 DC (mm): 6.2 | L/D: 15 | LU (mm): 119.8 | LCF (mm): 129.1 | OAL (mm): 184.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDW0620XHGS20 DC (mm): 6.2 | L/D: 20 | LU (mm): 152.8 | LCF (mm): 162.1 | OAL (mm): 217.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDW0620XHGS25 DC (mm): 6.2 | L/D: 25 | LU (mm): 184.8 | LCF (mm): 194.1 | OAL (mm): 249.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDW0620XHGS30 DC (mm): 6.2 | L/D: 30 | LU (mm): 217.8 | LCF (mm): 227.1 | OAL (mm): 282.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDW0630XHGS10 DC (mm): 6.3 | L/D: 10 | LU (mm): 89.7 | LCF (mm): 99.1 | OAL (mm): 154.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDW0630XHGS12 DC (mm): 6.3 | L/D: 12 | LU (mm): 100.7 | LCF (mm): 110.1 | OAL (mm): 165.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Made to order
MDW0630XHGS15 DC (mm): 6.3 | L/D: 15 | LU (mm): 119.7 | LCF (mm): 129.1 | OAL (mm): 184.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDW0630XHGS20 DC (mm): 6.3 | L/D: 20 | LU (mm): 152.7 | LCF (mm): 162.1 | OAL (mm): 217.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDW0630XHGS25 DC (mm): 6.3 | L/D: 25 | LU (mm): 184.7 | LCF (mm): 194.1 | OAL (mm): 249.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDW0630XHGS30 DC (mm): 6.3 | L/D: 30 | LU (mm): 217.7 | LCF (mm): 227.1 | OAL (mm): 282.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDW0640XHGS10 DC (mm): 6.4 | L/D: 10 | LU (mm): 89.6 | LCF (mm): 99.2 | OAL (mm): 154.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDW0640XHGS12 DC (mm): 6.4 | L/D: 12 | LU (mm): 100.6 | LCF (mm): 110.2 | OAL (mm): 165.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Made to order
MDW0640XHGS15 DC (mm): 6.4 | L/D: 15 | LU (mm): 119.6 | LCF (mm): 129.2 | OAL (mm): 184.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDW0640XHGS20 DC (mm): 6.4 | L/D: 20 | LU (mm): 152.6 | LCF (mm): 162.2 | OAL (mm): 217.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDW0640XHGS25 DC (mm): 6.4 | L/D: 25 | LU (mm): 184.6 | LCF (mm): 194.2 | OAL (mm): 249.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDW0640XHGS30 DC (mm): 6.4 | L/D: 30 | LU (mm): 217.6 | LCF (mm): 227.2 | OAL (mm): 282.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDW0650XHGS10 DC (mm): 6.5 | L/D: 10 | LU (mm): 89.5 | LCF (mm): 99.2 | OAL (mm): 154.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDW0650XHGS12 DC (mm): 6.5 | L/D: 12 | LU (mm): 100.5 | LCF (mm): 110.2 | OAL (mm): 165.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDW0650XHGS15 DC (mm): 6.5 | L/D: 15 | LU (mm): 119.5 | LCF (mm): 129.2 | OAL (mm): 184.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDW0650XHGS20 DC (mm): 6.5 | L/D: 20 | LU (mm): 152.5 | LCF (mm): 162.2 | OAL (mm): 217.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDW0650XHGS25 DC (mm): 6.5 | L/D: 25 | LU (mm): 184.5 | LCF (mm): 194.2 | OAL (mm): 249.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDW0650XHGS30 DC (mm): 6.5 | L/D: 30 | LU (mm): 217.5 | LCF (mm): 227.2 | OAL (mm): 282.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDW0660XHGS10 DC (mm): 6.6 | L/D: 10 | LU (mm): 96.3 | LCF (mm): 106.2 | OAL (mm): 159.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDW0660XHGS12 DC (mm): 6.6 | L/D: 12 | LU (mm): 110.3 | LCF (mm): 120.2 | OAL (mm): 173.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Made to order
MDW0660XHGS15 DC (mm): 6.6 | L/D: 15 | LU (mm): 131.3 | LCF (mm): 141.2 | OAL (mm): 194.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDW0660XHGS20 DC (mm): 6.6 | L/D: 20 | LU (mm): 166.3 | LCF (mm): 176.2 | OAL (mm): 229.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDW0660XHGS25 DC (mm): 6.6 | L/D: 25 | LU (mm): 201.3 | LCF (mm): 211.2 | OAL (mm): 264.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDW0660XHGS30 DC (mm): 6.6 | L/D: 30 | LU (mm): 236.3 | LCF (mm): 246.2 | OAL (mm): 299.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDW0670XHGS10 DC (mm): 6.7 | L/D: 10 | LU (mm): 96.2 | LCF (mm): 106.2 | OAL (mm): 159.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDW0670XHGS12 DC (mm): 6.7 | L/D: 12 | LU (mm): 110.2 | LCF (mm): 120.2 | OAL (mm): 173.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Made to order
MDW0670XHGS15 DC (mm): 6.7 | L/D: 15 | LU (mm): 131.2 | LCF (mm): 141.2 | OAL (mm): 194.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDW0670XHGS20 DC (mm): 6.7 | L/D: 20 | LU (mm): 166.2 | LCF (mm): 176.2 | OAL (mm): 229.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDW0670XHGS25 DC (mm): 6.7 | L/D: 25 | LU (mm): 201.2 | LCF (mm): 211.2 | OAL (mm): 264.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDW0670XHGS30 DC (mm): 6.7 | L/D: 30 | LU (mm): 236.2 | LCF (mm): 246.2 | OAL (mm): 299.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDW0680XHGS10 DC (mm): 6.8 | L/D: 10 | LU (mm): 96.0 | LCF (mm): 106.2 | OAL (mm): 159.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDW0680XHGS12 DC (mm): 6.8 | L/D: 12 | LU (mm): 110.0 | LCF (mm): 120.2 | OAL (mm): 173.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Made to order
MDW0680XHGS15 DC (mm): 6.8 | L/D: 15 | LU (mm): 131.0 | LCF (mm): 141.2 | OAL (mm): 194.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDW0680XHGS20 DC (mm): 6.8 | L/D: 20 | LU (mm): 166.0 | LCF (mm): 176.2 | OAL (mm): 229.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDW0680XHGS25 DC (mm): 6.8 | L/D: 25 | LU (mm): 201.0 | LCF (mm): 211.2 | OAL (mm): 264.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDW0680XHGS30 DC (mm): 6.8 | L/D: 30 | LU (mm): 236.0 | LCF (mm): 246.2 | OAL (mm): 299.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDW0690XHGS10 DC (mm): 6.9 | L/D: 10 | LU (mm): 96.0 | LCF (mm): 106.3 | OAL (mm): 159.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0690XHGS12 DC (mm): 6.9 | L/D: 12 | LU (mm): 110.0 | LCF (mm): 120.3 | OAL (mm): 173.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Made to order
MDW0690XHGS15 DC (mm): 6.9 | L/D: 15 | LU (mm): 131.0 | LCF (mm): 141.3 | OAL (mm): 194.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0690XHGS20 DC (mm): 6.9 | L/D: 20 | LU (mm): 166.0 | LCF (mm): 176.3 | OAL (mm): 229.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0690XHGS25 DC (mm): 6.9 | L/D: 25 | LU (mm): 201.0 | LCF (mm): 211.3 | OAL (mm): 264.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0690XHGS30 DC (mm): 6.9 | L/D: 30 | LU (mm): 236.0 | LCF (mm): 246.3 | OAL (mm): 299.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0700XHGS10 DC (mm): 7.0 | L/D: 10 | LU (mm): 95.8 | LCF (mm): 106.3 | OAL (mm): 159.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0700XHGS12 DC (mm): 7.0 | L/D: 12 | LU (mm): 109.8 | LCF (mm): 120.3 | OAL (mm): 173.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0700XHGS15 DC (mm): 7.0 | L/D: 15 | LU (mm): 130.8 | LCF (mm): 141.3 | OAL (mm): 194.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0700XHGS20 DC (mm): 7.0 | L/D: 20 | LU (mm): 165.8 | LCF (mm): 176.3 | OAL (mm): 229.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0700XHGS25 DC (mm): 7.0 | L/D: 25 | LU (mm): 200.8 | LCF (mm): 211.3 | OAL (mm): 264.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0700XHGS30 DC (mm): 7.0 | L/D: 30 | LU (mm): 235.8 | LCF (mm): 246.3 | OAL (mm): 299.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0710XHGS10 DC (mm): 7.1 | L/D: 10 | LU (mm): 103.7 | LCF (mm): 114.3 | OAL (mm): 170.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDW0710XHGS12 DC (mm): 7.1 | L/D: 12 | LU (mm): 116.7 | LCF (mm): 127.3 | OAL (mm): 183.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Made to order
MDW0710XHGS15 DC (mm): 7.1 | L/D: 15 | LU (mm): 138.7 | LCF (mm): 149.3 | OAL (mm): 205.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDW0710XHGS20 DC (mm): 7.1 | L/D: 20 | LU (mm): 176.7 | LCF (mm): 187.3 | OAL (mm): 243.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDW0710XHGS25 DC (mm): 7.1 | L/D: 25 | LU (mm): 213.7 | LCF (mm): 224.3 | OAL (mm): 280.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDW0710XHGS30 DC (mm): 7.1 | L/D: 30 | LU (mm): 251.7 | LCF (mm): 262.3 | OAL (mm): 318.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDW0720XHGS10 DC (mm): 7.2 | L/D: 10 | LU (mm): 103.5 | LCF (mm): 114.3 | OAL (mm): 170.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDW0720XHGS12 DC (mm): 7.2 | L/D: 12 | LU (mm): 116.5 | LCF (mm): 127.3 | OAL (mm): 183.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Made to order
MDW0720XHGS15 DC (mm): 7.2 | L/D: 15 | LU (mm): 138.5 | LCF (mm): 149.3 | OAL (mm): 205.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDW0720XHGS20 DC (mm): 7.2 | L/D: 20 | LU (mm): 176.5 | LCF (mm): 187.3 | OAL (mm): 243.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDW0720XHGS25 DC (mm): 7.2 | L/D: 25 | LU (mm): 213.5 | LCF (mm): 224.3 | OAL (mm): 280.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDW0720XHGS30 DC (mm): 7.2 | L/D: 30 | LU (mm): 251.5 | LCF (mm): 262.3 | OAL (mm): 318.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDW0730XHGS10 DC (mm): 7.3 | L/D: 10 | LU (mm): 103.4 | LCF (mm): 114.3 | OAL (mm): 170.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDW0730XHGS12 DC (mm): 7.3 | L/D: 12 | LU (mm): 116.4 | LCF (mm): 127.3 | OAL (mm): 183.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Made to order
MDW0730XHGS15 DC (mm): 7.3 | L/D: 15 | LU (mm): 138.4 | LCF (mm): 149.3 | OAL (mm): 205.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDW0730XHGS20 DC (mm): 7.3 | L/D: 20 | LU (mm): 176.4 | LCF (mm): 187.3 | OAL (mm): 243.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDW0730XHGS25 DC (mm): 7.3 | L/D: 25 | LU (mm): 213.4 | LCF (mm): 224.3 | OAL (mm): 280.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDW0730XHGS30 DC (mm): 7.3 | L/D: 30 | LU (mm): 251.4 | LCF (mm): 262.3 | OAL (mm): 318.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDW0740XHGS10 DC (mm): 7.4 | L/D: 10 | LU (mm): 103.2 | LCF (mm): 114.3 | OAL (mm): 170.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDW0740XHGS12 DC (mm): 7.4 | L/D: 12 | LU (mm): 116.2 | LCF (mm): 127.3 | OAL (mm): 183.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Made to order
MDW0740XHGS15 DC (mm): 7.4 | L/D: 15 | LU (mm): 138.2 | LCF (mm): 149.3 | OAL (mm): 205.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDW0740XHGS20 DC (mm): 7.4 | L/D: 20 | LU (mm): 176.2 | LCF (mm): 187.3 | OAL (mm): 243.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDW0740XHGS25 DC (mm): 7.4 | L/D: 25 | LU (mm): 213.2 | LCF (mm): 224.3 | OAL (mm): 280.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDW0740XHGS30 DC (mm): 7.4 | L/D: 30 | LU (mm): 251.2 | LCF (mm): 262.3 | OAL (mm): 318.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDW0750XHGS10 DC (mm): 7.5 | L/D: 10 | LU (mm): 103.2 | LCF (mm): 114.4 | OAL (mm): 170.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDW0750XHGS12 DC (mm): 7.5 | L/D: 12 | LU (mm): 116.2 | LCF (mm): 127.4 | OAL (mm): 183.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDW0750XHGS15 DC (mm): 7.5 | L/D: 15 | LU (mm): 138.2 | LCF (mm): 149.4 | OAL (mm): 205.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDW0750XHGS20 DC (mm): 7.5 | L/D: 20 | LU (mm): 176.2 | LCF (mm): 187.4 | OAL (mm): 243.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDW0750XHGS25 DC (mm): 7.5 | L/D: 25 | LU (mm): 213.2 | LCF (mm): 224.4 | OAL (mm): 280.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDW0750XHGS30 DC (mm): 7.5 | L/D: 30 | LU (mm): 251.2 | LCF (mm): 262.4 | OAL (mm): 318.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDW0760XHGS10 DC (mm): 7.6 | L/D: 10 | LU (mm): 110.0 | LCF (mm): 121.4 | OAL (mm): 175.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDW0760XHGS12 DC (mm): 7.6 | L/D: 12 | LU (mm): 126.0 | LCF (mm): 137.4 | OAL (mm): 191.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Made to order
MDW0760XHGS15 DC (mm): 7.6 | L/D: 15 | LU (mm): 150.0 | LCF (mm): 161.4 | OAL (mm): 215.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDW0760XHGS20 DC (mm): 7.6 | L/D: 20 | LU (mm): 190.0 | LCF (mm): 201.4 | OAL (mm): 255.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDW0760XHGS25 DC (mm): 7.6 | L/D: 25 | LU (mm): 230.0 | LCF (mm): 241.4 | OAL (mm): 295.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDW0760XHGS30 DC (mm): 7.6 | L/D: 30 | LU (mm): 270.0 | LCF (mm): 281.4 | OAL (mm): 335.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDW0770XHGS10 DC (mm): 7.7 | L/D: 10 | LU (mm): 109.9 | LCF (mm): 121.4 | OAL (mm): 175.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDW0770XHGS12 DC (mm): 7.7 | L/D: 12 | LU (mm): 125.9 | LCF (mm): 137.4 | OAL (mm): 191.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Made to order
MDW0770XHGS15 DC (mm): 7.7 | L/D: 15 | LU (mm): 149.9 | LCF (mm): 161.4 | OAL (mm): 215.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDW0770XHGS20 DC (mm): 7.7 | L/D: 20 | LU (mm): 189.9 | LCF (mm): 201.4 | OAL (mm): 255.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDW0770XHGS25 DC (mm): 7.7 | L/D: 25 | LU (mm): 229.9 | LCF (mm): 241.4 | OAL (mm): 295.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDW0770XHGS30 DC (mm): 7.7 | L/D: 30 | LU (mm): 269.9 | LCF (mm): 281.4 | OAL (mm): 335.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDW0780XHGS10 DC (mm): 7.8 | L/D: 10 | LU (mm): 109.7 | LCF (mm): 121.4 | OAL (mm): 175.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDW0780XHGS12 DC (mm): 7.8 | L/D: 12 | LU (mm): 125.7 | LCF (mm): 137.4 | OAL (mm): 191.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Made to order
MDW0780XHGS15 DC (mm): 7.8 | L/D: 15 | LU (mm): 149.7 | LCF (mm): 161.4 | OAL (mm): 215.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDW0780XHGS20 DC (mm): 7.8 | L/D: 20 | LU (mm): 189.7 | LCF (mm): 201.4 | OAL (mm): 255.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDW0780XHGS25 DC (mm): 7.8 | L/D: 25 | LU (mm): 229.7 | LCF (mm): 241.4 | OAL (mm): 295.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDW0780XHGS30 DC (mm): 7.8 | L/D: 30 | LU (mm): 269.7 | LCF (mm): 281.4 | OAL (mm): 335.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDW0790XHGS10 DC (mm): 7.9 | L/D: 10 | LU (mm): 109.6 | LCF (mm): 121.4 | OAL (mm): 175.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDW0790XHGS12 DC (mm): 7.9 | L/D: 12 | LU (mm): 125.6 | LCF (mm): 137.4 | OAL (mm): 191.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Made to order
MDW0790XHGS15 DC (mm): 7.9 | L/D: 15 | LU (mm): 149.6 | LCF (mm): 161.4 | OAL (mm): 215.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDW0790XHGS20 DC (mm): 7.9 | L/D: 20 | LU (mm): 189.6 | LCF (mm): 201.4 | OAL (mm): 255.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDW0790XHGS25 DC (mm): 7.9 | L/D: 25 | LU (mm): 229.6 | LCF (mm): 241.4 | OAL (mm): 295.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDW0790XHGS30 DC (mm): 7.9 | L/D: 30 | LU (mm): 269.6 | LCF (mm): 281.4 | OAL (mm): 335.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDW0800XHGS10 DC (mm): 8.0 | L/D: 10 | LU (mm): 109.5 | LCF (mm): 121.5 | OAL (mm): 175.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDW0800XHGS12 DC (mm): 8.0 | L/D: 12 | LU (mm): 125.5 | LCF (mm): 137.5 | OAL (mm): 191.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDW0800XHGS15 DC (mm): 8.0 | L/D: 15 | LU (mm): 149.5 | LCF (mm): 161.5 | OAL (mm): 215.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDW0800XHGS20 DC (mm): 8.0 | L/D: 20 | LU (mm): 189.5 | LCF (mm): 201.5 | OAL (mm): 255.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDW0800XHGS25 DC (mm): 8.0 | L/D: 25 | LU (mm): 229.5 | LCF (mm): 241.5 | OAL (mm): 295.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDW0800XHGS30 DC (mm): 8.0 | L/D: 30 | LU (mm): 269.5 | LCF (mm): 281.5 | OAL (mm): 335.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDW0850XHGS10 DC (mm): 8.5 | L/D: 10 | LU (mm): 116.8 | LCF (mm): 129.5 | OAL (mm): 186.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDW0850XHGS12 DC (mm): 8.5 | L/D: 12 | LU (mm): 131.8 | LCF (mm): 144.5 | OAL (mm): 201.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDW0850XHGS15 DC (mm): 8.5 | L/D: 15 | LU (mm): 156.8 | LCF (mm): 169.5 | OAL (mm): 226.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDW0850XHGS20 DC (mm): 8.5 | L/D: 20 | LU (mm): 199.8 | LCF (mm): 212.5 | OAL (mm): 269.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDW0850XHGS25 DC (mm): 8.5 | L/D: 25 | LU (mm): 241.8 | LCF (mm): 254.5 | OAL (mm): 311.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDW0850XHGS30 DC (mm): 8.5 | L/D: 30 | LU (mm): 284.8 | LCF (mm): 297.5 | OAL (mm): 354.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDW0900XHGS10 DC (mm): 9.0 | L/D: 10 | LU (mm): 123.1 | LCF (mm): 136.6 | OAL (mm): 191.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDW0900XHGS12 DC (mm): 9.0 | L/D: 12 | LU (mm): 141.1 | LCF (mm): 154.6 | OAL (mm): 209.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDW0900XHGS15 DC (mm): 9.0 | L/D: 15 | LU (mm): 168.1 | LCF (mm): 181.6 | OAL (mm): 236.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDW0900XHGS20 DC (mm): 9.0 | L/D: 20 | LU (mm): 213.1 | LCF (mm): 226.6 | OAL (mm): 281.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDW0900XHGS25 DC (mm): 9.0 | L/D: 25 | LU (mm): 258.1 | LCF (mm): 271.6 | OAL (mm): 326.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDW0900XHGS30 DC (mm): 9.0 | L/D: 30 | LU (mm): 303.1 | LCF (mm): 316.6 | OAL (mm): 371.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDW0950XHGS10 DC (mm): 9.5 | L/D: 10 | LU (mm): 130.5 | LCF (mm): 144.7 | OAL (mm): 202.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDW0950XHGS12 DC (mm): 9.5 | L/D: 12 | LU (mm): 147.5 | LCF (mm): 161.7 | OAL (mm): 219.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDW0950XHGS15 DC (mm): 9.5 | L/D: 15 | LU (mm): 175.5 | LCF (mm): 189.7 | OAL (mm): 247.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDW0950XHGS20 DC (mm): 9.5 | L/D: 20 | LU (mm): 223.5 | LCF (mm): 237.7 | OAL (mm): 295.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDW0950XHGS25 DC (mm): 9.5 | L/D: 25 | LU (mm): 270.5 | LCF (mm): 284.7 | OAL (mm): 342.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDW0950XHGS30 DC (mm): 9.5 | L/D: 30 | LU (mm): 318.5 | LCF (mm): 332.7 | OAL (mm): 390.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDW1000XHGS10 DC (mm): 10.0 | L/D: 10 | LU (mm): 136.8 | LCF (mm): 151.8 | OAL (mm): 207.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDW1000XHGS12 DC (mm): 10.0 | L/D: 12 | LU (mm): 156.8 | LCF (mm): 171.8 | OAL (mm): 227.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDW1000XHGS15 DC (mm): 10.0 | L/D: 15 | LU (mm): 186.8 | LCF (mm): 201.8 | OAL (mm): 257.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDW1000XHGS20 DC (mm): 10.0 | L/D: 20 | LU (mm): 236.8 | LCF (mm): 251.8 | OAL (mm): 307.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDW1000XHGS25 DC (mm): 10.0 | L/D: 25 | LU (mm): 286.8 | LCF (mm): 301.8 | OAL (mm): 357.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDW1000XHGS30 DC (mm): 10.0 | L/D: 30 | LU (mm): 336.8 | LCF (mm): 351.8 | OAL (mm): 407.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDW1050XHGS10 DC (mm): 10.5 | L/D: 10 | LU (mm): 144.2 | LCF (mm): 159.9 | OAL (mm): 222.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDW1050XHGS12 DC (mm): 10.5 | L/D: 12 | LU (mm): 163.2 | LCF (mm): 178.9 | OAL (mm): 241.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDW1050XHGS15 DC (mm): 10.5 | L/D: 15 | LU (mm): 194.2 | LCF (mm): 209.9 | OAL (mm): 272.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDW1050XHGS20 DC (mm): 10.5 | L/D: 20 | LU (mm): 247.2 | LCF (mm): 262.9 | OAL (mm): 325.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDW1050XHGS25 DC (mm): 10.5 | L/D: 25 | LU (mm): 299.2 | LCF (mm): 314.9 | OAL (mm): 377.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDW1100XHGS10 DC (mm): 11.0 | L/D: 10 | LU (mm): 150.5 | LCF (mm): 167.0 | OAL (mm): 228.0 | PL (mm): 2.0 | DCON (mm): 11.0 | Stock: Yes
MDW1100XHGS12 DC (mm): 11.0 | L/D: 12 | LU (mm): 172.5 | LCF (mm): 189.0 | OAL (mm): 250.0 | PL (mm): 2.0 | DCON (mm): 11.0 | Stock: Yes
MDW1100XHGS15 DC (mm): 11.0 | L/D: 15 | LU (mm): 205.5 | LCF (mm): 222.0 | OAL (mm): 283.0 | PL (mm): 2.0 | DCON (mm): 11.0 | Stock: Yes
MDW1100XHGS20 DC (mm): 11.0 | L/D: 20 | LU (mm): 260.5 | LCF (mm): 277.0 | OAL (mm): 338.0 | PL (mm): 2.0 | DCON (mm): 11.0 | Stock: Yes
MDW1100XHGS25 DC (mm): 11.0 | L/D: 25 | LU (mm): 315.5 | LCF (mm): 332.0 | OAL (mm): 393.0 | PL (mm): 2.0 | DCON (mm): 11.0 | Stock: Yes
MDW1150XHGS10 DC (mm): 11.5 | L/D: 10 | LU (mm): 157.9 | LCF (mm): 175.1 | OAL (mm): 239.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDW1150XHGS12 DC (mm): 11.5 | L/D: 12 | LU (mm): 178.9 | LCF (mm): 196.1 | OAL (mm): 260.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDW1150XHGS15 DC (mm): 11.5 | L/D: 15 | LU (mm): 212.9 | LCF (mm): 230.1 | OAL (mm): 294.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDW1150XHGS20 DC (mm): 11.5 | L/D: 20 | LU (mm): 270.9 | LCF (mm): 288.1 | OAL (mm): 352.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDW1150XHGS25 DC (mm): 11.5 | L/D: 25 | LU (mm): 327.9 | LCF (mm): 345.1 | OAL (mm): 409.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDW1200XHGS10 DC (mm): 12.0 | L/D: 10 | LU (mm): 164.2 | LCF (mm): 182.2 | OAL (mm): 244.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Yes
MDW1200XHGS12 DC (mm): 12.0 | L/D: 12 | LU (mm): 188.2 | LCF (mm): 206.2 | OAL (mm): 268.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Yes
MDW1200XHGS15 DC (mm): 12.0 | L/D: 15 | LU (mm): 224.2 | LCF (mm): 242.2 | OAL (mm): 304.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Yes
MDW1200XHGS20 DC (mm): 12.0 | L/D: 20 | LU (mm): 284.2 | LCF (mm): 302.2 | OAL (mm): 364.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Yes
MDW1200XHGS25 DC (mm): 12.0 | L/D: 25 | LU (mm): 344.2 | LCF (mm): 362.2 | OAL (mm): 424.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Yes
MDW1250XHGS10 DC (mm): 12.5 | L/D: 10 | LU (mm): 171.6 | LCF (mm): 190.3 | OAL (mm): 255.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDW1250XHGS12 DC (mm): 12.5 | L/D: 12 | LU (mm): 194.6 | LCF (mm): 213.3 | OAL (mm): 278.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDW1250XHGS15 DC (mm): 12.5 | L/D: 15 | LU (mm): 231.6 | LCF (mm): 250.3 | OAL (mm): 315.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDW1250XHGS20 DC (mm): 12.5 | L/D: 20 | LU (mm): 294.6 | LCF (mm): 313.3 | OAL (mm): 378.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDW1300XHGS10 DC (mm): 13.0 | L/D: 10 | LU (mm): 177.9 | LCF (mm): 197.4 | OAL (mm): 260.4 | PL (mm): 2.4 | DCON (mm): 13.0 | Stock: Yes
MDW1300XHGS12 DC (mm): 13.0 | L/D: 12 | LU (mm): 203.9 | LCF (mm): 223.4 | OAL (mm): 286.4 | PL (mm): 2.4 | DCON (mm): 13.0 | Stock: Yes
MDW1300XHGS15 DC (mm): 13.0 | L/D: 15 | LU (mm): 242.9 | LCF (mm): 262.4 | OAL (mm): 325.4 | PL (mm): 2.4 | DCON (mm): 13.0 | Stock: Yes
MDW1300XHGS20 DC (mm): 13.0 | L/D: 20 | LU (mm): 307.9 | LCF (mm): 327.4 | OAL (mm): 390.4 | PL (mm): 2.4 | DCON (mm): 13.0 | Stock: Yes
MDW1350XHGS10 DC (mm): 13.5 | L/D: 10 | LU (mm): 185.3 | LCF (mm): 205.5 | OAL (mm): 271.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDW1350XHGS12 DC (mm): 13.5 | L/D: 12 | LU (mm): 210.3 | LCF (mm): 230.5 | OAL (mm): 296.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDW1350XHGS15 DC (mm): 13.5 | L/D: 15 | LU (mm): 250.3 | LCF (mm): 270.5 | OAL (mm): 336.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDW1350XHGS20 DC (mm): 13.5 | L/D: 20 | LU (mm): 318.3 | LCF (mm): 338.5 | OAL (mm): 404.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDW1400XHGS10 DC (mm): 14.0 | L/D: 10 | LU (mm): 191.5 | LCF (mm): 212.5 | OAL (mm): 276.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDW1400XHGS12 DC (mm): 14.0 | L/D: 12 | LU (mm): 219.5 | LCF (mm): 240.5 | OAL (mm): 304.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDW1400XHGS15 DC (mm): 14.0 | L/D: 15 | LU (mm): 261.5 | LCF (mm): 282.5 | OAL (mm): 346.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDW1400XHGS20 DC (mm): 14.0 | L/D: 20 | LU (mm): 331.5 | LCF (mm): 352.5 | OAL (mm): 416.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDW1450XHGS10 DC (mm): 14.5 | L/D: 10 | LU (mm): 198.9 | LCF (mm): 220.6 | OAL (mm): 287.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Yes
MDW1450XHGS12 DC (mm): 14.5 | L/D: 12 | LU (mm): 225.9 | LCF (mm): 247.6 | OAL (mm): 314.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Yes
MDW1450XHGS15 DC (mm): 14.5 | L/D: 15 | LU (mm): 268.9 | LCF (mm): 290.6 | OAL (mm): 357.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Yes
MDW1500XHGS10 DC (mm): 15.0 | L/D: 10 | LU (mm): 205.2 | LCF (mm): 227.7 | OAL (mm): 292.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDW1500XHGS12 DC (mm): 15.0 | L/D: 12 | LU (mm): 235.2 | LCF (mm): 257.7 | OAL (mm): 322.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDW1500XHGS15 DC (mm): 15.0 | L/D: 15 | LU (mm): 280.2 | LCF (mm): 302.7 | OAL (mm): 367.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDW1550XHGS10 DC (mm): 15.5 | L/D: 10 | LU (mm): 212.6 | LCF (mm): 235.8 | OAL (mm): 303.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Yes
MDW1550XHGS12 DC (mm): 15.5 | L/D: 12 | LU (mm): 241.6 | LCF (mm): 264.8 | OAL (mm): 332.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Yes
MDW1550XHGS15 DC (mm): 15.5 | L/D: 15 | LU (mm): 287.6 | LCF (mm): 310.8 | OAL (mm): 378.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Yes
MDW1600XHGS10 DC (mm): 16.0 | L/D: 10 | LU (mm): 218.9 | LCF (mm): 242.9 | OAL (mm): 308.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Yes
MDW1600XHGS12 DC (mm): 16.0 | L/D: 12 | LU (mm): 248.9 | LCF (mm): 272.9 | OAL (mm): 340.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Yes
MDW1600XHGS15 DC (mm): 16.0 | L/D: 15 | LU (mm): 298.9 | LCF (mm): 322.9 | OAL (mm): 388.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Yes
DrillsSumitomo Electric Hardmetal
428 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal Super Multi Drill XHGS Type Deep Hole (Internal Coolant)

Brand Sumitomo Electric Hardmetal·Drills

Available part numbers (428)

MDW0210XHGS10, MDW0210XHGS15, MDW0210XHGS20, MDW0210XHGS25, MDW0210XHGS30, MDW0220XHGS10, MDW0220XHGS15, MDW0220XHGS20, MDW0220XHGS25, MDW0220XHGS30 + 418 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MDW0210XHGS10DC (mm): 2.1 | L/D: 10 | LU (mm): 35.3 | LCF (mm): 38.4 | OAL (mm): 88.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0210XHGS15DC (mm): 2.1 | L/D: 15 | LU (mm): 45.3 | LCF (mm): 48.4 | OAL (mm): 98.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0210XHGS20DC (mm): 2.1 | L/D: 20 | LU (mm): 58.3 | LCF (mm): 61.4 | OAL (mm): 111.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0210XHGS25DC (mm): 2.1 | L/D: 25 | LU (mm): 70.3 | LCF (mm): 73.4 | OAL (mm): 123.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0210XHGS30DC (mm): 2.1 | L/D: 30 | LU (mm): 83.3 | LCF (mm): 86.4 | OAL (mm): 136.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0220XHGS10DC (mm): 2.2 | L/D: 10 | LU (mm): 35.1 | LCF (mm): 38.4 | OAL (mm): 88.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0220XHGS15DC (mm): 2.2 | L/D: 15 | LU (mm): 45.1 | LCF (mm): 48.4 | OAL (mm): 98.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0220XHGS20DC (mm): 2.2 | L/D: 20 | LU (mm): 58.1 | LCF (mm): 61.4 | OAL (mm): 111.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0220XHGS25DC (mm): 2.2 | L/D: 25 | LU (mm): 70.1 | LCF (mm): 73.4 | OAL (mm): 123.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0220XHGS30DC (mm): 2.2 | L/D: 30 | LU (mm): 83.1 | LCF (mm): 86.4 | OAL (mm): 136.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0230XHGS10DC (mm): 2.3 | L/D: 10 | LU (mm): 35.0 | LCF (mm): 38.4 | OAL (mm): 88.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0230XHGS15DC (mm): 2.3 | L/D: 15 | LU (mm): 45.0 | LCF (mm): 48.4 | OAL (mm): 98.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0230XHGS20DC (mm): 2.3 | L/D: 20 | LU (mm): 58.0 | LCF (mm): 61.4 | OAL (mm): 111.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0230XHGS25DC (mm): 2.3 | L/D: 25 | LU (mm): 70.0 | LCF (mm): 73.4 | OAL (mm): 123.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0230XHGS30DC (mm): 2.3 | L/D: 30 | LU (mm): 83.0 | LCF (mm): 86.4 | OAL (mm): 136.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0240XHGS10DC (mm): 2.4 | L/D: 10 | LU (mm): 34.8 | LCF (mm): 38.4 | OAL (mm): 88.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0240XHGS15DC (mm): 2.4 | L/D: 15 | LU (mm): 44.8 | LCF (mm): 48.4 | OAL (mm): 98.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0240XHGS20DC (mm): 2.4 | L/D: 20 | LU (mm): 57.8 | LCF (mm): 61.4 | OAL (mm): 111.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0240XHGS25DC (mm): 2.4 | L/D: 25 | LU (mm): 69.8 | LCF (mm): 73.4 | OAL (mm): 123.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0240XHGS30DC (mm): 2.4 | L/D: 30 | LU (mm): 82.8 | LCF (mm): 86.4 | OAL (mm): 136.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDW0250XHGS10DC (mm): 2.5 | L/D: 10 | LU (mm): 34.8 | LCF (mm): 38.5 | OAL (mm): 88.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0250XHGS12DC (mm): 2.5 | L/D: 12 | LU (mm): 37.8 | LCF (mm): 41.5 | OAL (mm): 91.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0250XHGS15DC (mm): 2.5 | L/D: 15 | LU (mm): 44.8 | LCF (mm): 48.5 | OAL (mm): 98.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0250XHGS20DC (mm): 2.5 | L/D: 20 | LU (mm): 57.8 | LCF (mm): 61.5 | OAL (mm): 111.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0250XHGS25DC (mm): 2.5 | L/D: 25 | LU (mm): 69.8 | LCF (mm): 73.5 | OAL (mm): 123.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0250XHGS30DC (mm): 2.5 | L/D: 30 | LU (mm): 82.8 | LCF (mm): 86.5 | OAL (mm): 136.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0260XHGS10DC (mm): 2.6 | L/D: 10 | LU (mm): 41.6 | LCF (mm): 45.5 | OAL (mm): 93.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0260XHGS12DC (mm): 2.6 | L/D: 12 | LU (mm): 47.6 | LCF (mm): 51.5 | OAL (mm): 99.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Made to order
MDW0260XHGS15DC (mm): 2.6 | L/D: 15 | LU (mm): 56.6 | LCF (mm): 60.5 | OAL (mm): 108.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0260XHGS20DC (mm): 2.6 | L/D: 20 | LU (mm): 71.6 | LCF (mm): 75.5 | OAL (mm): 123.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0260XHGS25DC (mm): 2.6 | L/D: 25 | LU (mm): 86.6 | LCF (mm): 90.5 | OAL (mm): 138.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0260XHGS30DC (mm): 2.6 | L/D: 30 | LU (mm): 101.6 | LCF (mm): 105.5 | OAL (mm): 153.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0270XHGS10DC (mm): 2.7 | L/D: 10 | LU (mm): 41.5 | LCF (mm): 45.5 | OAL (mm): 93.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0270XHGS12DC (mm): 2.7 | L/D: 12 | LU (mm): 47.5 | LCF (mm): 51.5 | OAL (mm): 99.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Made to order
MDW0270XHGS15DC (mm): 2.7 | L/D: 15 | LU (mm): 56.5 | LCF (mm): 60.5 | OAL (mm): 108.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0270XHGS20DC (mm): 2.7 | L/D: 20 | LU (mm): 71.5 | LCF (mm): 75.5 | OAL (mm): 123.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0270XHGS25DC (mm): 2.7 | L/D: 25 | LU (mm): 86.5 | LCF (mm): 90.5 | OAL (mm): 138.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0270XHGS30DC (mm): 2.7 | L/D: 30 | LU (mm): 101.5 | LCF (mm): 105.5 | OAL (mm): 153.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0280XHGS10DC (mm): 2.8 | L/D: 10 | LU (mm): 41.3 | LCF (mm): 45.5 | OAL (mm): 93.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0280XHGS12DC (mm): 2.8 | L/D: 12 | LU (mm): 47.3 | LCF (mm): 51.5 | OAL (mm): 99.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Made to order
MDW0280XHGS15DC (mm): 2.8 | L/D: 15 | LU (mm): 56.3 | LCF (mm): 60.5 | OAL (mm): 108.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0280XHGS20DC (mm): 2.8 | L/D: 20 | LU (mm): 71.3 | LCF (mm): 75.5 | OAL (mm): 123.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0280XHGS25DC (mm): 2.8 | L/D: 25 | LU (mm): 86.3 | LCF (mm): 90.5 | OAL (mm): 138.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0280XHGS30DC (mm): 2.8 | L/D: 30 | LU (mm): 101.3 | LCF (mm): 105.5 | OAL (mm): 153.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0290XHGS10DC (mm): 2.9 | L/D: 10 | LU (mm): 41.2 | LCF (mm): 45.5 | OAL (mm): 93.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0290XHGS12DC (mm): 2.9 | L/D: 12 | LU (mm): 47.2 | LCF (mm): 51.5 | OAL (mm): 99.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Made to order
MDW0290XHGS15DC (mm): 2.9 | L/D: 15 | LU (mm): 56.2 | LCF (mm): 60.5 | OAL (mm): 108.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0290XHGS20DC (mm): 2.9 | L/D: 20 | LU (mm): 71.2 | LCF (mm): 75.5 | OAL (mm): 123.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0290XHGS25DC (mm): 2.9 | L/D: 25 | LU (mm): 86.2 | LCF (mm): 90.5 | OAL (mm): 138.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0290XHGS30DC (mm): 2.9 | L/D: 30 | LU (mm): 101.2 | LCF (mm): 105.5 | OAL (mm): 153.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0300XHGS10DC (mm): 3.0 | L/D: 10 | LU (mm): 41.0 | LCF (mm): 45.5 | OAL (mm): 93.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0300XHGS12DC (mm): 3.0 | L/D: 12 | LU (mm): 47.0 | LCF (mm): 51.5 | OAL (mm): 99.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0300XHGS15DC (mm): 3.0 | L/D: 15 | LU (mm): 56.0 | LCF (mm): 60.5 | OAL (mm): 108.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0300XHGS20DC (mm): 3.0 | L/D: 20 | LU (mm): 71.0 | LCF (mm): 75.5 | OAL (mm): 123.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0300XHGS25DC (mm): 3.0 | L/D: 25 | LU (mm): 86.0 | LCF (mm): 90.5 | OAL (mm): 138.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0300XHGS30DC (mm): 3.0 | L/D: 30 | LU (mm): 101.0 | LCF (mm): 105.5 | OAL (mm): 153.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0310XHGS10DC (mm): 3.1 | L/D: 10 | LU (mm): 49.0 | LCF (mm): 53.6 | OAL (mm): 103.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDW0310XHGS12DC (mm): 3.1 | L/D: 12 | LU (mm): 54.0 | LCF (mm): 58.6 | OAL (mm): 108.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Made to order
MDW0310XHGS15DC (mm): 3.1 | L/D: 15 | LU (mm): 64.0 | LCF (mm): 68.6 | OAL (mm): 118.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDW0310XHGS20DC (mm): 3.1 | L/D: 20 | LU (mm): 82.0 | LCF (mm): 86.6 | OAL (mm): 136.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDW0310XHGS25DC (mm): 3.1 | L/D: 25 | LU (mm): 99.0 | LCF (mm): 103.6 | OAL (mm): 153.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDW0310XHGS30DC (mm): 3.1 | L/D: 30 | LU (mm): 117.0 | LCF (mm): 121.6 | OAL (mm): 171.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDW0320XHGS10DC (mm): 3.2 | L/D: 10 | LU (mm): 48.8 | LCF (mm): 53.6 | OAL (mm): 103.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDW0320XHGS12DC (mm): 3.2 | L/D: 12 | LU (mm): 53.8 | LCF (mm): 58.6 | OAL (mm): 108.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Made to order
MDW0320XHGS15DC (mm): 3.2 | L/D: 15 | LU (mm): 63.8 | LCF (mm): 68.6 | OAL (mm): 118.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDW0320XHGS20DC (mm): 3.2 | L/D: 20 | LU (mm): 81.8 | LCF (mm): 86.6 | OAL (mm): 136.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDW0320XHGS25DC (mm): 3.2 | L/D: 25 | LU (mm): 98.8 | LCF (mm): 103.6 | OAL (mm): 153.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDW0320XHGS30DC (mm): 3.2 | L/D: 30 | LU (mm): 116.8 | LCF (mm): 121.6 | OAL (mm): 171.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDW0330XHGS10DC (mm): 3.3 | L/D: 10 | LU (mm): 48.7 | LCF (mm): 53.6 | OAL (mm): 103.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDW0330XHGS12DC (mm): 3.3 | L/D: 12 | LU (mm): 53.7 | LCF (mm): 58.6 | OAL (mm): 108.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Made to order
MDW0330XHGS15DC (mm): 3.3 | L/D: 15 | LU (mm): 63.7 | LCF (mm): 68.6 | OAL (mm): 118.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDW0330XHGS20DC (mm): 3.3 | L/D: 20 | LU (mm): 81.7 | LCF (mm): 86.6 | OAL (mm): 136.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDW0330XHGS25DC (mm): 3.3 | L/D: 25 | LU (mm): 98.7 | LCF (mm): 103.6 | OAL (mm): 153.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDW0330XHGS30DC (mm): 3.3 | L/D: 30 | LU (mm): 116.7 | LCF (mm): 121.6 | OAL (mm): 171.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDW0340XHGS10DC (mm): 3.4 | L/D: 10 | LU (mm): 48.5 | LCF (mm): 53.6 | OAL (mm): 103.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDW0340XHGS12DC (mm): 3.4 | L/D: 12 | LU (mm): 53.5 | LCF (mm): 58.6 | OAL (mm): 108.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Made to order
MDW0340XHGS15DC (mm): 3.4 | L/D: 15 | LU (mm): 63.5 | LCF (mm): 68.6 | OAL (mm): 118.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDW0340XHGS20DC (mm): 3.4 | L/D: 20 | LU (mm): 81.5 | LCF (mm): 86.6 | OAL (mm): 136.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDW0340XHGS25DC (mm): 3.4 | L/D: 25 | LU (mm): 98.5 | LCF (mm): 103.6 | OAL (mm): 153.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDW0340XHGS30DC (mm): 3.4 | L/D: 30 | LU (mm): 116.5 | LCF (mm): 121.6 | OAL (mm): 171.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDW0350XHGS10DC (mm): 3.5 | L/D: 10 | LU (mm): 48.4 | LCF (mm): 53.6 | OAL (mm): 103.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDW0350XHGS12DC (mm): 3.5 | L/D: 12 | LU (mm): 53.4 | LCF (mm): 58.6 | OAL (mm): 108.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDW0350XHGS15DC (mm): 3.5 | L/D: 15 | LU (mm): 63.4 | LCF (mm): 68.6 | OAL (mm): 118.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDW0350XHGS20DC (mm): 3.5 | L/D: 20 | LU (mm): 81.4 | LCF (mm): 86.6 | OAL (mm): 136.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDW0350XHGS25DC (mm): 3.5 | L/D: 25 | LU (mm): 98.4 | LCF (mm): 103.6 | OAL (mm): 153.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDW0350XHGS30DC (mm): 3.5 | L/D: 30 | LU (mm): 116.4 | LCF (mm): 121.6 | OAL (mm): 171.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDW0360XHGS10DC (mm): 3.6 | L/D: 10 | LU (mm): 55.3 | LCF (mm): 60.7 | OAL (mm): 108.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0360XHGS12DC (mm): 3.6 | L/D: 12 | LU (mm): 63.3 | LCF (mm): 68.7 | OAL (mm): 116.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Made to order
MDW0360XHGS15DC (mm): 3.6 | L/D: 15 | LU (mm): 75.3 | LCF (mm): 80.7 | OAL (mm): 128.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0360XHGS20DC (mm): 3.6 | L/D: 20 | LU (mm): 95.3 | LCF (mm): 100.7 | OAL (mm): 148.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0360XHGS25DC (mm): 3.6 | L/D: 25 | LU (mm): 115.3 | LCF (mm): 120.7 | OAL (mm): 168.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0360XHGS30DC (mm): 3.6 | L/D: 30 | LU (mm): 135.3 | LCF (mm): 140.7 | OAL (mm): 188.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0370XHGS10DC (mm): 3.7 | L/D: 10 | LU (mm): 55.2 | LCF (mm): 60.7 | OAL (mm): 108.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0370XHGS12DC (mm): 3.7 | L/D: 12 | LU (mm): 63.2 | LCF (mm): 68.7 | OAL (mm): 116.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Made to order
MDW0370XHGS15DC (mm): 3.7 | L/D: 15 | LU (mm): 75.2 | LCF (mm): 80.7 | OAL (mm): 128.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0370XHGS20DC (mm): 3.7 | L/D: 20 | LU (mm): 95.2 | LCF (mm): 100.7 | OAL (mm): 148.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0370XHGS25DC (mm): 3.7 | L/D: 25 | LU (mm): 115.2 | LCF (mm): 120.7 | OAL (mm): 168.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0370XHGS30DC (mm): 3.7 | L/D: 30 | LU (mm): 135.2 | LCF (mm): 140.7 | OAL (mm): 188.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0380XHGS10DC (mm): 3.8 | L/D: 10 | LU (mm): 55.0 | LCF (mm): 60.7 | OAL (mm): 108.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0380XHGS12DC (mm): 3.8 | L/D: 12 | LU (mm): 63.0 | LCF (mm): 68.7 | OAL (mm): 116.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Made to order
MDW0380XHGS15DC (mm): 3.8 | L/D: 15 | LU (mm): 75.0 | LCF (mm): 80.7 | OAL (mm): 128.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0380XHGS20DC (mm): 3.8 | L/D: 20 | LU (mm): 95.0 | LCF (mm): 100.7 | OAL (mm): 148.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0380XHGS25DC (mm): 3.8 | L/D: 25 | LU (mm): 115.0 | LCF (mm): 120.7 | OAL (mm): 168.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0380XHGS30DC (mm): 3.8 | L/D: 30 | LU (mm): 135.0 | LCF (mm): 140.7 | OAL (mm): 188.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0390XHGS10DC (mm): 3.9 | L/D: 10 | LU (mm): 54.9 | LCF (mm): 60.7 | OAL (mm): 108.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0390XHGS12DC (mm): 3.9 | L/D: 12 | LU (mm): 62.9 | LCF (mm): 68.7 | OAL (mm): 116.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Made to order
MDW0390XHGS15DC (mm): 3.9 | L/D: 15 | LU (mm): 74.9 | LCF (mm): 80.7 | OAL (mm): 128.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0390XHGS20DC (mm): 3.9 | L/D: 20 | LU (mm): 94.9 | LCF (mm): 100.7 | OAL (mm): 148.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0390XHGS25DC (mm): 3.9 | L/D: 25 | LU (mm): 114.9 | LCF (mm): 120.7 | OAL (mm): 168.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0390XHGS30DC (mm): 3.9 | L/D: 30 | LU (mm): 134.9 | LCF (mm): 140.7 | OAL (mm): 188.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0400XHGS10DC (mm): 4.0 | L/D: 10 | LU (mm): 54.7 | LCF (mm): 60.7 | OAL (mm): 108.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0400XHGS12DC (mm): 4.0 | L/D: 12 | LU (mm): 62.7 | LCF (mm): 68.7 | OAL (mm): 116.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0400XHGS15DC (mm): 4.0 | L/D: 15 | LU (mm): 74.7 | LCF (mm): 80.7 | OAL (mm): 128.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0400XHGS20DC (mm): 4.0 | L/D: 20 | LU (mm): 94.7 | LCF (mm): 100.7 | OAL (mm): 148.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0400XHGS25DC (mm): 4.0 | L/D: 25 | LU (mm): 114.7 | LCF (mm): 120.7 | OAL (mm): 168.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0400XHGS30DC (mm): 4.0 | L/D: 30 | LU (mm): 134.7 | LCF (mm): 140.7 | OAL (mm): 188.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0410XHGS10DC (mm): 4.1 | L/D: 10 | LU (mm): 62.6 | LCF (mm): 68.7 | OAL (mm): 120.7 | PL (mm): 0.7 | DCON (mm): 5.0 | Stock: Yes
MDW0410XHGS12DC (mm): 4.1 | L/D: 12 | LU (mm): 69.6 | LCF (mm): 75.7 | OAL (mm): 127.7 | PL (mm): 0.7 | DCON (mm): 5.0 | Stock: Made to order
MDW0410XHGS15DC (mm): 4.1 | L/D: 15 | LU (mm): 82.6 | LCF (mm): 88.7 | OAL (mm): 140.7 | PL (mm): 0.7 | DCON (mm): 5.0 | Stock: Yes
MDW0410XHGS20DC (mm): 4.1 | L/D: 20 | LU (mm): 105.6 | LCF (mm): 111.7 | OAL (mm): 163.7 | PL (mm): 0.7 | DCON (mm): 5.0 | Stock: Yes
MDW0410XHGS25DC (mm): 4.1 | L/D: 25 | LU (mm): 127.6 | LCF (mm): 133.7 | OAL (mm): 185.7 | PL (mm): 0.7 | DCON (mm): 5.0 | Stock: Yes
MDW0410XHGS30DC (mm): 4.1 | L/D: 30 | LU (mm): 150.6 | LCF (mm): 156.7 | OAL (mm): 208.7 | PL (mm): 0.7 | DCON (mm): 5.0 | Stock: Yes
MDW0420XHGS10DC (mm): 4.2 | L/D: 10 | LU (mm): 62.5 | LCF (mm): 68.8 | OAL (mm): 120.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDW0420XHGS12DC (mm): 4.2 | L/D: 12 | LU (mm): 69.5 | LCF (mm): 75.8 | OAL (mm): 127.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Made to order
MDW0420XHGS15DC (mm): 4.2 | L/D: 15 | LU (mm): 82.5 | LCF (mm): 88.8 | OAL (mm): 140.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDW0420XHGS20DC (mm): 4.2 | L/D: 20 | LU (mm): 105.5 | LCF (mm): 111.8 | OAL (mm): 163.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDW0420XHGS25DC (mm): 4.2 | L/D: 25 | LU (mm): 127.5 | LCF (mm): 133.8 | OAL (mm): 185.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDW0420XHGS30DC (mm): 4.2 | L/D: 30 | LU (mm): 150.5 | LCF (mm): 156.8 | OAL (mm): 208.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDW0430XHGS10DC (mm): 4.3 | L/D: 10 | LU (mm): 62.4 | LCF (mm): 68.8 | OAL (mm): 120.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDW0430XHGS12DC (mm): 4.3 | L/D: 12 | LU (mm): 69.4 | LCF (mm): 75.8 | OAL (mm): 127.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Made to order
MDW0430XHGS15DC (mm): 4.3 | L/D: 15 | LU (mm): 82.4 | LCF (mm): 88.8 | OAL (mm): 140.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDW0430XHGS20DC (mm): 4.3 | L/D: 20 | LU (mm): 105.4 | LCF (mm): 111.8 | OAL (mm): 163.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDW0430XHGS25DC (mm): 4.3 | L/D: 25 | LU (mm): 127.4 | LCF (mm): 133.8 | OAL (mm): 185.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDW0430XHGS30DC (mm): 4.3 | L/D: 30 | LU (mm): 150.4 | LCF (mm): 156.8 | OAL (mm): 208.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDW0440XHGS10DC (mm): 4.4 | L/D: 10 | LU (mm): 62.2 | LCF (mm): 68.8 | OAL (mm): 120.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDW0440XHGS12DC (mm): 4.4 | L/D: 12 | LU (mm): 69.2 | LCF (mm): 75.8 | OAL (mm): 127.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Made to order
MDW0440XHGS15DC (mm): 4.4 | L/D: 15 | LU (mm): 82.2 | LCF (mm): 88.8 | OAL (mm): 140.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDW0440XHGS20DC (mm): 4.4 | L/D: 20 | LU (mm): 105.2 | LCF (mm): 111.8 | OAL (mm): 163.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDW0440XHGS25DC (mm): 4.4 | L/D: 25 | LU (mm): 127.2 | LCF (mm): 133.8 | OAL (mm): 185.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDW0440XHGS30DC (mm): 4.4 | L/D: 30 | LU (mm): 150.2 | LCF (mm): 156.8 | OAL (mm): 208.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDW0450XHGS10DC (mm): 4.5 | L/D: 10 | LU (mm): 62.1 | LCF (mm): 68.8 | OAL (mm): 120.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDW0450XHGS12DC (mm): 4.5 | L/D: 12 | LU (mm): 69.1 | LCF (mm): 75.8 | OAL (mm): 127.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDW0450XHGS15DC (mm): 4.5 | L/D: 15 | LU (mm): 82.1 | LCF (mm): 88.8 | OAL (mm): 140.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDW0450XHGS20DC (mm): 4.5 | L/D: 20 | LU (mm): 105.1 | LCF (mm): 111.8 | OAL (mm): 163.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDW0450XHGS25DC (mm): 4.5 | L/D: 25 | LU (mm): 127.1 | LCF (mm): 133.8 | OAL (mm): 185.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDW0450XHGS30DC (mm): 4.5 | L/D: 30 | LU (mm): 150.1 | LCF (mm): 156.8 | OAL (mm): 208.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDW0460XHGS10DC (mm): 4.6 | L/D: 10 | LU (mm): 68.9 | LCF (mm): 75.8 | OAL (mm): 125.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDW0460XHGS12DC (mm): 4.6 | L/D: 12 | LU (mm): 78.9 | LCF (mm): 85.8 | OAL (mm): 135.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Made to order
MDW0460XHGS15DC (mm): 4.6 | L/D: 15 | LU (mm): 93.9 | LCF (mm): 100.8 | OAL (mm): 150.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDW0460XHGS20DC (mm): 4.6 | L/D: 20 | LU (mm): 118.9 | LCF (mm): 125.8 | OAL (mm): 175.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDW0460XHGS25DC (mm): 4.6 | L/D: 25 | LU (mm): 143.9 | LCF (mm): 150.8 | OAL (mm): 200.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDW0460XHGS30DC (mm): 4.6 | L/D: 30 | LU (mm): 168.9 | LCF (mm): 175.8 | OAL (mm): 225.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDW0470XHGS10DC (mm): 4.7 | L/D: 10 | LU (mm): 68.9 | LCF (mm): 75.9 | OAL (mm): 125.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0470XHGS12DC (mm): 4.7 | L/D: 12 | LU (mm): 78.9 | LCF (mm): 85.9 | OAL (mm): 135.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Made to order
MDW0470XHGS15DC (mm): 4.7 | L/D: 15 | LU (mm): 93.9 | LCF (mm): 100.9 | OAL (mm): 150.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0470XHGS20DC (mm): 4.7 | L/D: 20 | LU (mm): 118.9 | LCF (mm): 125.9 | OAL (mm): 175.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0470XHGS25DC (mm): 4.7 | L/D: 25 | LU (mm): 143.9 | LCF (mm): 150.9 | OAL (mm): 200.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0470XHGS30DC (mm): 4.7 | L/D: 30 | LU (mm): 168.9 | LCF (mm): 175.9 | OAL (mm): 225.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0480XHGS10DC (mm): 4.8 | L/D: 10 | LU (mm): 68.7 | LCF (mm): 75.9 | OAL (mm): 125.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0480XHGS12DC (mm): 4.8 | L/D: 12 | LU (mm): 78.7 | LCF (mm): 85.9 | OAL (mm): 135.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Made to order
MDW0480XHGS15DC (mm): 4.8 | L/D: 15 | LU (mm): 93.7 | LCF (mm): 100.9 | OAL (mm): 150.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0480XHGS20DC (mm): 4.8 | L/D: 20 | LU (mm): 118.7 | LCF (mm): 125.9 | OAL (mm): 175.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0480XHGS25DC (mm): 4.8 | L/D: 25 | LU (mm): 143.7 | LCF (mm): 150.9 | OAL (mm): 200.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0480XHGS30DC (mm): 4.8 | L/D: 30 | LU (mm): 168.7 | LCF (mm): 175.9 | OAL (mm): 225.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0490XHGS10DC (mm): 4.9 | L/D: 10 | LU (mm): 68.6 | LCF (mm): 75.9 | OAL (mm): 125.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0490XHGS12DC (mm): 4.9 | L/D: 12 | LU (mm): 78.6 | LCF (mm): 85.9 | OAL (mm): 135.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Made to order
MDW0490XHGS15DC (mm): 4.9 | L/D: 15 | LU (mm): 93.6 | LCF (mm): 100.9 | OAL (mm): 150.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0490XHGS20DC (mm): 4.9 | L/D: 20 | LU (mm): 118.6 | LCF (mm): 125.9 | OAL (mm): 175.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0490XHGS25DC (mm): 4.9 | L/D: 25 | LU (mm): 143.6 | LCF (mm): 150.9 | OAL (mm): 200.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0490XHGS30DC (mm): 4.9 | L/D: 30 | LU (mm): 168.6 | LCF (mm): 175.9 | OAL (mm): 225.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0500XHGS10DC (mm): 5.0 | L/D: 10 | LU (mm): 68.4 | LCF (mm): 75.9 | OAL (mm): 125.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0500XHGS12DC (mm): 5.0 | L/D: 12 | LU (mm): 78.4 | LCF (mm): 85.9 | OAL (mm): 135.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0500XHGS15DC (mm): 5.0 | L/D: 15 | LU (mm): 93.4 | LCF (mm): 100.9 | OAL (mm): 150.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0500XHGS20DC (mm): 5.0 | L/D: 20 | LU (mm): 118.4 | LCF (mm): 125.9 | OAL (mm): 175.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0500XHGS25DC (mm): 5.0 | L/D: 25 | LU (mm): 143.4 | LCF (mm): 150.9 | OAL (mm): 200.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0500XHGS30DC (mm): 5.0 | L/D: 30 | LU (mm): 168.4 | LCF (mm): 175.9 | OAL (mm): 225.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0510XHGS10DC (mm): 5.1 | L/D: 10 | LU (mm): 76.3 | LCF (mm): 83.9 | OAL (mm): 137.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDW0510XHGS12DC (mm): 5.1 | L/D: 12 | LU (mm): 85.3 | LCF (mm): 92.9 | OAL (mm): 146.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Made to order
MDW0510XHGS15DC (mm): 5.1 | L/D: 15 | LU (mm): 101.3 | LCF (mm): 108.9 | OAL (mm): 162.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDW0510XHGS20DC (mm): 5.1 | L/D: 20 | LU (mm): 131.3 | LCF (mm): 138.9 | OAL (mm): 192.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDW0510XHGS25DC (mm): 5.1 | L/D: 25 | LU (mm): 156.3 | LCF (mm): 163.9 | OAL (mm): 217.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDW0510XHGS30DC (mm): 5.1 | L/D: 30 | LU (mm): 184.3 | LCF (mm): 191.9 | OAL (mm): 245.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDW0520XHGS10DC (mm): 5.2 | L/D: 10 | LU (mm): 76.1 | LCF (mm): 83.9 | OAL (mm): 137.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDW0520XHGS12DC (mm): 5.2 | L/D: 12 | LU (mm): 85.1 | LCF (mm): 92.9 | OAL (mm): 146.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Made to order
MDW0520XHGS15DC (mm): 5.2 | L/D: 15 | LU (mm): 101.1 | LCF (mm): 108.9 | OAL (mm): 162.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDW0520XHGS20DC (mm): 5.2 | L/D: 20 | LU (mm): 131.1 | LCF (mm): 138.9 | OAL (mm): 192.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDW0520XHGS25DC (mm): 5.2 | L/D: 25 | LU (mm): 156.1 | LCF (mm): 163.9 | OAL (mm): 217.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDW0520XHGS30DC (mm): 5.2 | L/D: 30 | LU (mm): 184.1 | LCF (mm): 191.9 | OAL (mm): 245.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDW0530XHGS10DC (mm): 5.3 | L/D: 10 | LU (mm): 76.1 | LCF (mm): 84.0 | OAL (mm): 138.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDW0530XHGS12DC (mm): 5.3 | L/D: 12 | LU (mm): 85.1 | LCF (mm): 93.0 | OAL (mm): 147.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Made to order
MDW0530XHGS15DC (mm): 5.3 | L/D: 15 | LU (mm): 101.1 | LCF (mm): 109.0 | OAL (mm): 163.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDW0530XHGS20DC (mm): 5.3 | L/D: 20 | LU (mm): 131.1 | LCF (mm): 139.0 | OAL (mm): 193.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDW0530XHGS25DC (mm): 5.3 | L/D: 25 | LU (mm): 156.1 | LCF (mm): 164.0 | OAL (mm): 218.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDW0530XHGS30DC (mm): 5.3 | L/D: 30 | LU (mm): 184.1 | LCF (mm): 192.0 | OAL (mm): 246.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDW0540XHGS10DC (mm): 5.4 | L/D: 10 | LU (mm): 75.9 | LCF (mm): 84.0 | OAL (mm): 138.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDW0540XHGS12DC (mm): 5.4 | L/D: 12 | LU (mm): 84.9 | LCF (mm): 93.0 | OAL (mm): 147.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Made to order
MDW0540XHGS15DC (mm): 5.4 | L/D: 15 | LU (mm): 100.9 | LCF (mm): 109.0 | OAL (mm): 163.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDW0540XHGS20DC (mm): 5.4 | L/D: 20 | LU (mm): 130.9 | LCF (mm): 139.0 | OAL (mm): 193.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDW0540XHGS25DC (mm): 5.4 | L/D: 25 | LU (mm): 155.9 | LCF (mm): 164.0 | OAL (mm): 218.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDW0540XHGS30DC (mm): 5.4 | L/D: 30 | LU (mm): 183.9 | LCF (mm): 192.0 | OAL (mm): 246.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDW0550XHGS10DC (mm): 5.5 | L/D: 10 | LU (mm): 75.8 | LCF (mm): 84.0 | OAL (mm): 138.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDW0550XHGS12DC (mm): 5.5 | L/D: 12 | LU (mm): 84.8 | LCF (mm): 93.0 | OAL (mm): 147.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDW0550XHGS15DC (mm): 5.5 | L/D: 15 | LU (mm): 100.8 | LCF (mm): 109.0 | OAL (mm): 163.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDW0550XHGS20DC (mm): 5.5 | L/D: 20 | LU (mm): 130.8 | LCF (mm): 139.0 | OAL (mm): 193.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDW0550XHGS25DC (mm): 5.5 | L/D: 25 | LU (mm): 155.8 | LCF (mm): 164.0 | OAL (mm): 218.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDW0550XHGS30DC (mm): 5.5 | L/D: 30 | LU (mm): 183.8 | LCF (mm): 192.0 | OAL (mm): 246.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDW0560XHGS10DC (mm): 5.6 | L/D: 10 | LU (mm): 82.6 | LCF (mm): 91.0 | OAL (mm): 143.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDW0560XHGS12DC (mm): 5.6 | L/D: 12 | LU (mm): 94.6 | LCF (mm): 103.0 | OAL (mm): 155.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Made to order
MDW0560XHGS15DC (mm): 5.6 | L/D: 15 | LU (mm): 112.6 | LCF (mm): 121.0 | OAL (mm): 173.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDW0560XHGS20DC (mm): 5.6 | L/D: 20 | LU (mm): 142.6 | LCF (mm): 151.0 | OAL (mm): 203.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDW0560XHGS25DC (mm): 5.6 | L/D: 25 | LU (mm): 172.6 | LCF (mm): 181.0 | OAL (mm): 233.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDW0560XHGS30DC (mm): 5.6 | L/D: 30 | LU (mm): 202.6 | LCF (mm): 211.0 | OAL (mm): 263.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDW0570XHGS10DC (mm): 5.7 | L/D: 10 | LU (mm): 82.5 | LCF (mm): 91.0 | OAL (mm): 143.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDW0570XHGS12DC (mm): 5.7 | L/D: 12 | LU (mm): 94.5 | LCF (mm): 103.0 | OAL (mm): 155.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Made to order
MDW0570XHGS15DC (mm): 5.7 | L/D: 15 | LU (mm): 112.5 | LCF (mm): 121.0 | OAL (mm): 173.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDW0570XHGS20DC (mm): 5.7 | L/D: 20 | LU (mm): 142.5 | LCF (mm): 151.0 | OAL (mm): 203.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDW0570XHGS25DC (mm): 5.7 | L/D: 25 | LU (mm): 172.5 | LCF (mm): 181.0 | OAL (mm): 233.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDW0570XHGS30DC (mm): 5.7 | L/D: 30 | LU (mm): 202.5 | LCF (mm): 211.0 | OAL (mm): 263.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDW0580XHGS10DC (mm): 5.8 | L/D: 10 | LU (mm): 82.4 | LCF (mm): 91.1 | OAL (mm): 143.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0580XHGS12DC (mm): 5.8 | L/D: 12 | LU (mm): 94.4 | LCF (mm): 103.1 | OAL (mm): 155.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Made to order
MDW0580XHGS15DC (mm): 5.8 | L/D: 15 | LU (mm): 112.4 | LCF (mm): 121.1 | OAL (mm): 173.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0580XHGS20DC (mm): 5.8 | L/D: 20 | LU (mm): 142.4 | LCF (mm): 151.1 | OAL (mm): 203.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0580XHGS25DC (mm): 5.8 | L/D: 25 | LU (mm): 172.4 | LCF (mm): 181.1 | OAL (mm): 233.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0580XHGS30DC (mm): 5.8 | L/D: 30 | LU (mm): 202.4 | LCF (mm): 211.1 | OAL (mm): 263.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0590XHGS10DC (mm): 5.9 | L/D: 10 | LU (mm): 82.3 | LCF (mm): 91.1 | OAL (mm): 143.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0590XHGS12DC (mm): 5.9 | L/D: 12 | LU (mm): 94.3 | LCF (mm): 103.1 | OAL (mm): 155.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Made to order
MDW0590XHGS15DC (mm): 5.9 | L/D: 15 | LU (mm): 112.3 | LCF (mm): 121.1 | OAL (mm): 173.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0590XHGS20DC (mm): 5.9 | L/D: 20 | LU (mm): 142.3 | LCF (mm): 151.1 | OAL (mm): 203.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0590XHGS25DC (mm): 5.9 | L/D: 25 | LU (mm): 172.3 | LCF (mm): 181.1 | OAL (mm): 233.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0590XHGS30DC (mm): 5.9 | L/D: 30 | LU (mm): 202.3 | LCF (mm): 211.1 | OAL (mm): 263.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0600XHGS10DC (mm): 6.0 | L/D: 10 | LU (mm): 82.1 | LCF (mm): 91.1 | OAL (mm): 143.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0600XHGS12DC (mm): 6.0 | L/D: 12 | LU (mm): 94.1 | LCF (mm): 103.1 | OAL (mm): 155.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0600XHGS15DC (mm): 6.0 | L/D: 15 | LU (mm): 112.1 | LCF (mm): 121.1 | OAL (mm): 173.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0600XHGS20DC (mm): 6.0 | L/D: 20 | LU (mm): 142.1 | LCF (mm): 151.1 | OAL (mm): 203.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0600XHGS25DC (mm): 6.0 | L/D: 25 | LU (mm): 172.1 | LCF (mm): 181.1 | OAL (mm): 233.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0600XHGS30DC (mm): 6.0 | L/D: 30 | LU (mm): 202.1 | LCF (mm): 211.1 | OAL (mm): 263.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0610XHGS10DC (mm): 6.1 | L/D: 10 | LU (mm): 90.0 | LCF (mm): 99.1 | OAL (mm): 154.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDW0610XHGS12DC (mm): 6.1 | L/D: 12 | LU (mm): 101.0 | LCF (mm): 110.1 | OAL (mm): 165.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Made to order
MDW0610XHGS15DC (mm): 6.1 | L/D: 15 | LU (mm): 120.0 | LCF (mm): 129.1 | OAL (mm): 184.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDW0610XHGS20DC (mm): 6.1 | L/D: 20 | LU (mm): 153.0 | LCF (mm): 162.1 | OAL (mm): 217.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDW0610XHGS25DC (mm): 6.1 | L/D: 25 | LU (mm): 185.0 | LCF (mm): 194.1 | OAL (mm): 249.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDW0610XHGS30DC (mm): 6.1 | L/D: 30 | LU (mm): 218.0 | LCF (mm): 227.1 | OAL (mm): 282.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDW0620XHGS10DC (mm): 6.2 | L/D: 10 | LU (mm): 89.8 | LCF (mm): 99.1 | OAL (mm): 154.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDW0620XHGS12DC (mm): 6.2 | L/D: 12 | LU (mm): 100.8 | LCF (mm): 110.1 | OAL (mm): 165.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Made to order
MDW0620XHGS15DC (mm): 6.2 | L/D: 15 | LU (mm): 119.8 | LCF (mm): 129.1 | OAL (mm): 184.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDW0620XHGS20DC (mm): 6.2 | L/D: 20 | LU (mm): 152.8 | LCF (mm): 162.1 | OAL (mm): 217.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDW0620XHGS25DC (mm): 6.2 | L/D: 25 | LU (mm): 184.8 | LCF (mm): 194.1 | OAL (mm): 249.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDW0620XHGS30DC (mm): 6.2 | L/D: 30 | LU (mm): 217.8 | LCF (mm): 227.1 | OAL (mm): 282.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDW0630XHGS10DC (mm): 6.3 | L/D: 10 | LU (mm): 89.7 | LCF (mm): 99.1 | OAL (mm): 154.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDW0630XHGS12DC (mm): 6.3 | L/D: 12 | LU (mm): 100.7 | LCF (mm): 110.1 | OAL (mm): 165.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Made to order
MDW0630XHGS15DC (mm): 6.3 | L/D: 15 | LU (mm): 119.7 | LCF (mm): 129.1 | OAL (mm): 184.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDW0630XHGS20DC (mm): 6.3 | L/D: 20 | LU (mm): 152.7 | LCF (mm): 162.1 | OAL (mm): 217.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDW0630XHGS25DC (mm): 6.3 | L/D: 25 | LU (mm): 184.7 | LCF (mm): 194.1 | OAL (mm): 249.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDW0630XHGS30DC (mm): 6.3 | L/D: 30 | LU (mm): 217.7 | LCF (mm): 227.1 | OAL (mm): 282.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDW0640XHGS10DC (mm): 6.4 | L/D: 10 | LU (mm): 89.6 | LCF (mm): 99.2 | OAL (mm): 154.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDW0640XHGS12DC (mm): 6.4 | L/D: 12 | LU (mm): 100.6 | LCF (mm): 110.2 | OAL (mm): 165.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Made to order
MDW0640XHGS15DC (mm): 6.4 | L/D: 15 | LU (mm): 119.6 | LCF (mm): 129.2 | OAL (mm): 184.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDW0640XHGS20DC (mm): 6.4 | L/D: 20 | LU (mm): 152.6 | LCF (mm): 162.2 | OAL (mm): 217.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDW0640XHGS25DC (mm): 6.4 | L/D: 25 | LU (mm): 184.6 | LCF (mm): 194.2 | OAL (mm): 249.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDW0640XHGS30DC (mm): 6.4 | L/D: 30 | LU (mm): 217.6 | LCF (mm): 227.2 | OAL (mm): 282.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDW0650XHGS10DC (mm): 6.5 | L/D: 10 | LU (mm): 89.5 | LCF (mm): 99.2 | OAL (mm): 154.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDW0650XHGS12DC (mm): 6.5 | L/D: 12 | LU (mm): 100.5 | LCF (mm): 110.2 | OAL (mm): 165.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDW0650XHGS15DC (mm): 6.5 | L/D: 15 | LU (mm): 119.5 | LCF (mm): 129.2 | OAL (mm): 184.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDW0650XHGS20DC (mm): 6.5 | L/D: 20 | LU (mm): 152.5 | LCF (mm): 162.2 | OAL (mm): 217.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDW0650XHGS25DC (mm): 6.5 | L/D: 25 | LU (mm): 184.5 | LCF (mm): 194.2 | OAL (mm): 249.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDW0650XHGS30DC (mm): 6.5 | L/D: 30 | LU (mm): 217.5 | LCF (mm): 227.2 | OAL (mm): 282.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDW0660XHGS10DC (mm): 6.6 | L/D: 10 | LU (mm): 96.3 | LCF (mm): 106.2 | OAL (mm): 159.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDW0660XHGS12DC (mm): 6.6 | L/D: 12 | LU (mm): 110.3 | LCF (mm): 120.2 | OAL (mm): 173.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Made to order
MDW0660XHGS15DC (mm): 6.6 | L/D: 15 | LU (mm): 131.3 | LCF (mm): 141.2 | OAL (mm): 194.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDW0660XHGS20DC (mm): 6.6 | L/D: 20 | LU (mm): 166.3 | LCF (mm): 176.2 | OAL (mm): 229.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDW0660XHGS25DC (mm): 6.6 | L/D: 25 | LU (mm): 201.3 | LCF (mm): 211.2 | OAL (mm): 264.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDW0660XHGS30DC (mm): 6.6 | L/D: 30 | LU (mm): 236.3 | LCF (mm): 246.2 | OAL (mm): 299.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDW0670XHGS10DC (mm): 6.7 | L/D: 10 | LU (mm): 96.2 | LCF (mm): 106.2 | OAL (mm): 159.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDW0670XHGS12DC (mm): 6.7 | L/D: 12 | LU (mm): 110.2 | LCF (mm): 120.2 | OAL (mm): 173.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Made to order
MDW0670XHGS15DC (mm): 6.7 | L/D: 15 | LU (mm): 131.2 | LCF (mm): 141.2 | OAL (mm): 194.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDW0670XHGS20DC (mm): 6.7 | L/D: 20 | LU (mm): 166.2 | LCF (mm): 176.2 | OAL (mm): 229.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDW0670XHGS25DC (mm): 6.7 | L/D: 25 | LU (mm): 201.2 | LCF (mm): 211.2 | OAL (mm): 264.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDW0670XHGS30DC (mm): 6.7 | L/D: 30 | LU (mm): 236.2 | LCF (mm): 246.2 | OAL (mm): 299.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDW0680XHGS10DC (mm): 6.8 | L/D: 10 | LU (mm): 96.0 | LCF (mm): 106.2 | OAL (mm): 159.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDW0680XHGS12DC (mm): 6.8 | L/D: 12 | LU (mm): 110.0 | LCF (mm): 120.2 | OAL (mm): 173.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Made to order
MDW0680XHGS15DC (mm): 6.8 | L/D: 15 | LU (mm): 131.0 | LCF (mm): 141.2 | OAL (mm): 194.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDW0680XHGS20DC (mm): 6.8 | L/D: 20 | LU (mm): 166.0 | LCF (mm): 176.2 | OAL (mm): 229.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDW0680XHGS25DC (mm): 6.8 | L/D: 25 | LU (mm): 201.0 | LCF (mm): 211.2 | OAL (mm): 264.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDW0680XHGS30DC (mm): 6.8 | L/D: 30 | LU (mm): 236.0 | LCF (mm): 246.2 | OAL (mm): 299.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDW0690XHGS10DC (mm): 6.9 | L/D: 10 | LU (mm): 96.0 | LCF (mm): 106.3 | OAL (mm): 159.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0690XHGS12DC (mm): 6.9 | L/D: 12 | LU (mm): 110.0 | LCF (mm): 120.3 | OAL (mm): 173.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Made to order
MDW0690XHGS15DC (mm): 6.9 | L/D: 15 | LU (mm): 131.0 | LCF (mm): 141.3 | OAL (mm): 194.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0690XHGS20DC (mm): 6.9 | L/D: 20 | LU (mm): 166.0 | LCF (mm): 176.3 | OAL (mm): 229.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0690XHGS25DC (mm): 6.9 | L/D: 25 | LU (mm): 201.0 | LCF (mm): 211.3 | OAL (mm): 264.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0690XHGS30DC (mm): 6.9 | L/D: 30 | LU (mm): 236.0 | LCF (mm): 246.3 | OAL (mm): 299.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0700XHGS10DC (mm): 7.0 | L/D: 10 | LU (mm): 95.8 | LCF (mm): 106.3 | OAL (mm): 159.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0700XHGS12DC (mm): 7.0 | L/D: 12 | LU (mm): 109.8 | LCF (mm): 120.3 | OAL (mm): 173.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0700XHGS15DC (mm): 7.0 | L/D: 15 | LU (mm): 130.8 | LCF (mm): 141.3 | OAL (mm): 194.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0700XHGS20DC (mm): 7.0 | L/D: 20 | LU (mm): 165.8 | LCF (mm): 176.3 | OAL (mm): 229.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0700XHGS25DC (mm): 7.0 | L/D: 25 | LU (mm): 200.8 | LCF (mm): 211.3 | OAL (mm): 264.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0700XHGS30DC (mm): 7.0 | L/D: 30 | LU (mm): 235.8 | LCF (mm): 246.3 | OAL (mm): 299.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0710XHGS10DC (mm): 7.1 | L/D: 10 | LU (mm): 103.7 | LCF (mm): 114.3 | OAL (mm): 170.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDW0710XHGS12DC (mm): 7.1 | L/D: 12 | LU (mm): 116.7 | LCF (mm): 127.3 | OAL (mm): 183.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Made to order
MDW0710XHGS15DC (mm): 7.1 | L/D: 15 | LU (mm): 138.7 | LCF (mm): 149.3 | OAL (mm): 205.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDW0710XHGS20DC (mm): 7.1 | L/D: 20 | LU (mm): 176.7 | LCF (mm): 187.3 | OAL (mm): 243.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDW0710XHGS25DC (mm): 7.1 | L/D: 25 | LU (mm): 213.7 | LCF (mm): 224.3 | OAL (mm): 280.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDW0710XHGS30DC (mm): 7.1 | L/D: 30 | LU (mm): 251.7 | LCF (mm): 262.3 | OAL (mm): 318.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDW0720XHGS10DC (mm): 7.2 | L/D: 10 | LU (mm): 103.5 | LCF (mm): 114.3 | OAL (mm): 170.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDW0720XHGS12DC (mm): 7.2 | L/D: 12 | LU (mm): 116.5 | LCF (mm): 127.3 | OAL (mm): 183.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Made to order
MDW0720XHGS15DC (mm): 7.2 | L/D: 15 | LU (mm): 138.5 | LCF (mm): 149.3 | OAL (mm): 205.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDW0720XHGS20DC (mm): 7.2 | L/D: 20 | LU (mm): 176.5 | LCF (mm): 187.3 | OAL (mm): 243.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDW0720XHGS25DC (mm): 7.2 | L/D: 25 | LU (mm): 213.5 | LCF (mm): 224.3 | OAL (mm): 280.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDW0720XHGS30DC (mm): 7.2 | L/D: 30 | LU (mm): 251.5 | LCF (mm): 262.3 | OAL (mm): 318.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDW0730XHGS10DC (mm): 7.3 | L/D: 10 | LU (mm): 103.4 | LCF (mm): 114.3 | OAL (mm): 170.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDW0730XHGS12DC (mm): 7.3 | L/D: 12 | LU (mm): 116.4 | LCF (mm): 127.3 | OAL (mm): 183.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Made to order
MDW0730XHGS15DC (mm): 7.3 | L/D: 15 | LU (mm): 138.4 | LCF (mm): 149.3 | OAL (mm): 205.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDW0730XHGS20DC (mm): 7.3 | L/D: 20 | LU (mm): 176.4 | LCF (mm): 187.3 | OAL (mm): 243.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDW0730XHGS25DC (mm): 7.3 | L/D: 25 | LU (mm): 213.4 | LCF (mm): 224.3 | OAL (mm): 280.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDW0730XHGS30DC (mm): 7.3 | L/D: 30 | LU (mm): 251.4 | LCF (mm): 262.3 | OAL (mm): 318.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDW0740XHGS10DC (mm): 7.4 | L/D: 10 | LU (mm): 103.2 | LCF (mm): 114.3 | OAL (mm): 170.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDW0740XHGS12DC (mm): 7.4 | L/D: 12 | LU (mm): 116.2 | LCF (mm): 127.3 | OAL (mm): 183.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Made to order
MDW0740XHGS15DC (mm): 7.4 | L/D: 15 | LU (mm): 138.2 | LCF (mm): 149.3 | OAL (mm): 205.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDW0740XHGS20DC (mm): 7.4 | L/D: 20 | LU (mm): 176.2 | LCF (mm): 187.3 | OAL (mm): 243.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDW0740XHGS25DC (mm): 7.4 | L/D: 25 | LU (mm): 213.2 | LCF (mm): 224.3 | OAL (mm): 280.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDW0740XHGS30DC (mm): 7.4 | L/D: 30 | LU (mm): 251.2 | LCF (mm): 262.3 | OAL (mm): 318.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDW0750XHGS10DC (mm): 7.5 | L/D: 10 | LU (mm): 103.2 | LCF (mm): 114.4 | OAL (mm): 170.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDW0750XHGS12DC (mm): 7.5 | L/D: 12 | LU (mm): 116.2 | LCF (mm): 127.4 | OAL (mm): 183.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDW0750XHGS15DC (mm): 7.5 | L/D: 15 | LU (mm): 138.2 | LCF (mm): 149.4 | OAL (mm): 205.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDW0750XHGS20DC (mm): 7.5 | L/D: 20 | LU (mm): 176.2 | LCF (mm): 187.4 | OAL (mm): 243.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDW0750XHGS25DC (mm): 7.5 | L/D: 25 | LU (mm): 213.2 | LCF (mm): 224.4 | OAL (mm): 280.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDW0750XHGS30DC (mm): 7.5 | L/D: 30 | LU (mm): 251.2 | LCF (mm): 262.4 | OAL (mm): 318.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDW0760XHGS10DC (mm): 7.6 | L/D: 10 | LU (mm): 110.0 | LCF (mm): 121.4 | OAL (mm): 175.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDW0760XHGS12DC (mm): 7.6 | L/D: 12 | LU (mm): 126.0 | LCF (mm): 137.4 | OAL (mm): 191.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Made to order
MDW0760XHGS15DC (mm): 7.6 | L/D: 15 | LU (mm): 150.0 | LCF (mm): 161.4 | OAL (mm): 215.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDW0760XHGS20DC (mm): 7.6 | L/D: 20 | LU (mm): 190.0 | LCF (mm): 201.4 | OAL (mm): 255.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDW0760XHGS25DC (mm): 7.6 | L/D: 25 | LU (mm): 230.0 | LCF (mm): 241.4 | OAL (mm): 295.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDW0760XHGS30DC (mm): 7.6 | L/D: 30 | LU (mm): 270.0 | LCF (mm): 281.4 | OAL (mm): 335.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDW0770XHGS10DC (mm): 7.7 | L/D: 10 | LU (mm): 109.9 | LCF (mm): 121.4 | OAL (mm): 175.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDW0770XHGS12DC (mm): 7.7 | L/D: 12 | LU (mm): 125.9 | LCF (mm): 137.4 | OAL (mm): 191.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Made to order
MDW0770XHGS15DC (mm): 7.7 | L/D: 15 | LU (mm): 149.9 | LCF (mm): 161.4 | OAL (mm): 215.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDW0770XHGS20DC (mm): 7.7 | L/D: 20 | LU (mm): 189.9 | LCF (mm): 201.4 | OAL (mm): 255.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDW0770XHGS25DC (mm): 7.7 | L/D: 25 | LU (mm): 229.9 | LCF (mm): 241.4 | OAL (mm): 295.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDW0770XHGS30DC (mm): 7.7 | L/D: 30 | LU (mm): 269.9 | LCF (mm): 281.4 | OAL (mm): 335.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDW0780XHGS10DC (mm): 7.8 | L/D: 10 | LU (mm): 109.7 | LCF (mm): 121.4 | OAL (mm): 175.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDW0780XHGS12DC (mm): 7.8 | L/D: 12 | LU (mm): 125.7 | LCF (mm): 137.4 | OAL (mm): 191.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Made to order
MDW0780XHGS15DC (mm): 7.8 | L/D: 15 | LU (mm): 149.7 | LCF (mm): 161.4 | OAL (mm): 215.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDW0780XHGS20DC (mm): 7.8 | L/D: 20 | LU (mm): 189.7 | LCF (mm): 201.4 | OAL (mm): 255.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDW0780XHGS25DC (mm): 7.8 | L/D: 25 | LU (mm): 229.7 | LCF (mm): 241.4 | OAL (mm): 295.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDW0780XHGS30DC (mm): 7.8 | L/D: 30 | LU (mm): 269.7 | LCF (mm): 281.4 | OAL (mm): 335.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDW0790XHGS10DC (mm): 7.9 | L/D: 10 | LU (mm): 109.6 | LCF (mm): 121.4 | OAL (mm): 175.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDW0790XHGS12DC (mm): 7.9 | L/D: 12 | LU (mm): 125.6 | LCF (mm): 137.4 | OAL (mm): 191.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Made to order
MDW0790XHGS15DC (mm): 7.9 | L/D: 15 | LU (mm): 149.6 | LCF (mm): 161.4 | OAL (mm): 215.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDW0790XHGS20DC (mm): 7.9 | L/D: 20 | LU (mm): 189.6 | LCF (mm): 201.4 | OAL (mm): 255.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDW0790XHGS25DC (mm): 7.9 | L/D: 25 | LU (mm): 229.6 | LCF (mm): 241.4 | OAL (mm): 295.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDW0790XHGS30DC (mm): 7.9 | L/D: 30 | LU (mm): 269.6 | LCF (mm): 281.4 | OAL (mm): 335.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDW0800XHGS10DC (mm): 8.0 | L/D: 10 | LU (mm): 109.5 | LCF (mm): 121.5 | OAL (mm): 175.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDW0800XHGS12DC (mm): 8.0 | L/D: 12 | LU (mm): 125.5 | LCF (mm): 137.5 | OAL (mm): 191.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDW0800XHGS15DC (mm): 8.0 | L/D: 15 | LU (mm): 149.5 | LCF (mm): 161.5 | OAL (mm): 215.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDW0800XHGS20DC (mm): 8.0 | L/D: 20 | LU (mm): 189.5 | LCF (mm): 201.5 | OAL (mm): 255.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDW0800XHGS25DC (mm): 8.0 | L/D: 25 | LU (mm): 229.5 | LCF (mm): 241.5 | OAL (mm): 295.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDW0800XHGS30DC (mm): 8.0 | L/D: 30 | LU (mm): 269.5 | LCF (mm): 281.5 | OAL (mm): 335.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDW0850XHGS10DC (mm): 8.5 | L/D: 10 | LU (mm): 116.8 | LCF (mm): 129.5 | OAL (mm): 186.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDW0850XHGS12DC (mm): 8.5 | L/D: 12 | LU (mm): 131.8 | LCF (mm): 144.5 | OAL (mm): 201.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDW0850XHGS15DC (mm): 8.5 | L/D: 15 | LU (mm): 156.8 | LCF (mm): 169.5 | OAL (mm): 226.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDW0850XHGS20DC (mm): 8.5 | L/D: 20 | LU (mm): 199.8 | LCF (mm): 212.5 | OAL (mm): 269.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDW0850XHGS25DC (mm): 8.5 | L/D: 25 | LU (mm): 241.8 | LCF (mm): 254.5 | OAL (mm): 311.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDW0850XHGS30DC (mm): 8.5 | L/D: 30 | LU (mm): 284.8 | LCF (mm): 297.5 | OAL (mm): 354.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDW0900XHGS10DC (mm): 9.0 | L/D: 10 | LU (mm): 123.1 | LCF (mm): 136.6 | OAL (mm): 191.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDW0900XHGS12DC (mm): 9.0 | L/D: 12 | LU (mm): 141.1 | LCF (mm): 154.6 | OAL (mm): 209.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDW0900XHGS15DC (mm): 9.0 | L/D: 15 | LU (mm): 168.1 | LCF (mm): 181.6 | OAL (mm): 236.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDW0900XHGS20DC (mm): 9.0 | L/D: 20 | LU (mm): 213.1 | LCF (mm): 226.6 | OAL (mm): 281.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDW0900XHGS25DC (mm): 9.0 | L/D: 25 | LU (mm): 258.1 | LCF (mm): 271.6 | OAL (mm): 326.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDW0900XHGS30DC (mm): 9.0 | L/D: 30 | LU (mm): 303.1 | LCF (mm): 316.6 | OAL (mm): 371.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDW0950XHGS10DC (mm): 9.5 | L/D: 10 | LU (mm): 130.5 | LCF (mm): 144.7 | OAL (mm): 202.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDW0950XHGS12DC (mm): 9.5 | L/D: 12 | LU (mm): 147.5 | LCF (mm): 161.7 | OAL (mm): 219.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDW0950XHGS15DC (mm): 9.5 | L/D: 15 | LU (mm): 175.5 | LCF (mm): 189.7 | OAL (mm): 247.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDW0950XHGS20DC (mm): 9.5 | L/D: 20 | LU (mm): 223.5 | LCF (mm): 237.7 | OAL (mm): 295.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDW0950XHGS25DC (mm): 9.5 | L/D: 25 | LU (mm): 270.5 | LCF (mm): 284.7 | OAL (mm): 342.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDW0950XHGS30DC (mm): 9.5 | L/D: 30 | LU (mm): 318.5 | LCF (mm): 332.7 | OAL (mm): 390.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDW1000XHGS10DC (mm): 10.0 | L/D: 10 | LU (mm): 136.8 | LCF (mm): 151.8 | OAL (mm): 207.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDW1000XHGS12DC (mm): 10.0 | L/D: 12 | LU (mm): 156.8 | LCF (mm): 171.8 | OAL (mm): 227.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDW1000XHGS15DC (mm): 10.0 | L/D: 15 | LU (mm): 186.8 | LCF (mm): 201.8 | OAL (mm): 257.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDW1000XHGS20DC (mm): 10.0 | L/D: 20 | LU (mm): 236.8 | LCF (mm): 251.8 | OAL (mm): 307.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDW1000XHGS25DC (mm): 10.0 | L/D: 25 | LU (mm): 286.8 | LCF (mm): 301.8 | OAL (mm): 357.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDW1000XHGS30DC (mm): 10.0 | L/D: 30 | LU (mm): 336.8 | LCF (mm): 351.8 | OAL (mm): 407.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDW1050XHGS10DC (mm): 10.5 | L/D: 10 | LU (mm): 144.2 | LCF (mm): 159.9 | OAL (mm): 222.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDW1050XHGS12DC (mm): 10.5 | L/D: 12 | LU (mm): 163.2 | LCF (mm): 178.9 | OAL (mm): 241.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDW1050XHGS15DC (mm): 10.5 | L/D: 15 | LU (mm): 194.2 | LCF (mm): 209.9 | OAL (mm): 272.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDW1050XHGS20DC (mm): 10.5 | L/D: 20 | LU (mm): 247.2 | LCF (mm): 262.9 | OAL (mm): 325.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDW1050XHGS25DC (mm): 10.5 | L/D: 25 | LU (mm): 299.2 | LCF (mm): 314.9 | OAL (mm): 377.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDW1100XHGS10DC (mm): 11.0 | L/D: 10 | LU (mm): 150.5 | LCF (mm): 167.0 | OAL (mm): 228.0 | PL (mm): 2.0 | DCON (mm): 11.0 | Stock: Yes
MDW1100XHGS12DC (mm): 11.0 | L/D: 12 | LU (mm): 172.5 | LCF (mm): 189.0 | OAL (mm): 250.0 | PL (mm): 2.0 | DCON (mm): 11.0 | Stock: Yes
MDW1100XHGS15DC (mm): 11.0 | L/D: 15 | LU (mm): 205.5 | LCF (mm): 222.0 | OAL (mm): 283.0 | PL (mm): 2.0 | DCON (mm): 11.0 | Stock: Yes
MDW1100XHGS20DC (mm): 11.0 | L/D: 20 | LU (mm): 260.5 | LCF (mm): 277.0 | OAL (mm): 338.0 | PL (mm): 2.0 | DCON (mm): 11.0 | Stock: Yes
MDW1100XHGS25DC (mm): 11.0 | L/D: 25 | LU (mm): 315.5 | LCF (mm): 332.0 | OAL (mm): 393.0 | PL (mm): 2.0 | DCON (mm): 11.0 | Stock: Yes
MDW1150XHGS10DC (mm): 11.5 | L/D: 10 | LU (mm): 157.9 | LCF (mm): 175.1 | OAL (mm): 239.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDW1150XHGS12DC (mm): 11.5 | L/D: 12 | LU (mm): 178.9 | LCF (mm): 196.1 | OAL (mm): 260.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDW1150XHGS15DC (mm): 11.5 | L/D: 15 | LU (mm): 212.9 | LCF (mm): 230.1 | OAL (mm): 294.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDW1150XHGS20DC (mm): 11.5 | L/D: 20 | LU (mm): 270.9 | LCF (mm): 288.1 | OAL (mm): 352.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDW1150XHGS25DC (mm): 11.5 | L/D: 25 | LU (mm): 327.9 | LCF (mm): 345.1 | OAL (mm): 409.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDW1200XHGS10DC (mm): 12.0 | L/D: 10 | LU (mm): 164.2 | LCF (mm): 182.2 | OAL (mm): 244.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Yes
MDW1200XHGS12DC (mm): 12.0 | L/D: 12 | LU (mm): 188.2 | LCF (mm): 206.2 | OAL (mm): 268.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Yes
MDW1200XHGS15DC (mm): 12.0 | L/D: 15 | LU (mm): 224.2 | LCF (mm): 242.2 | OAL (mm): 304.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Yes
MDW1200XHGS20DC (mm): 12.0 | L/D: 20 | LU (mm): 284.2 | LCF (mm): 302.2 | OAL (mm): 364.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Yes
MDW1200XHGS25DC (mm): 12.0 | L/D: 25 | LU (mm): 344.2 | LCF (mm): 362.2 | OAL (mm): 424.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Yes
MDW1250XHGS10DC (mm): 12.5 | L/D: 10 | LU (mm): 171.6 | LCF (mm): 190.3 | OAL (mm): 255.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDW1250XHGS12DC (mm): 12.5 | L/D: 12 | LU (mm): 194.6 | LCF (mm): 213.3 | OAL (mm): 278.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDW1250XHGS15DC (mm): 12.5 | L/D: 15 | LU (mm): 231.6 | LCF (mm): 250.3 | OAL (mm): 315.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDW1250XHGS20DC (mm): 12.5 | L/D: 20 | LU (mm): 294.6 | LCF (mm): 313.3 | OAL (mm): 378.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDW1300XHGS10DC (mm): 13.0 | L/D: 10 | LU (mm): 177.9 | LCF (mm): 197.4 | OAL (mm): 260.4 | PL (mm): 2.4 | DCON (mm): 13.0 | Stock: Yes
MDW1300XHGS12DC (mm): 13.0 | L/D: 12 | LU (mm): 203.9 | LCF (mm): 223.4 | OAL (mm): 286.4 | PL (mm): 2.4 | DCON (mm): 13.0 | Stock: Yes
MDW1300XHGS15DC (mm): 13.0 | L/D: 15 | LU (mm): 242.9 | LCF (mm): 262.4 | OAL (mm): 325.4 | PL (mm): 2.4 | DCON (mm): 13.0 | Stock: Yes
MDW1300XHGS20DC (mm): 13.0 | L/D: 20 | LU (mm): 307.9 | LCF (mm): 327.4 | OAL (mm): 390.4 | PL (mm): 2.4 | DCON (mm): 13.0 | Stock: Yes
MDW1350XHGS10DC (mm): 13.5 | L/D: 10 | LU (mm): 185.3 | LCF (mm): 205.5 | OAL (mm): 271.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDW1350XHGS12DC (mm): 13.5 | L/D: 12 | LU (mm): 210.3 | LCF (mm): 230.5 | OAL (mm): 296.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDW1350XHGS15DC (mm): 13.5 | L/D: 15 | LU (mm): 250.3 | LCF (mm): 270.5 | OAL (mm): 336.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDW1350XHGS20DC (mm): 13.5 | L/D: 20 | LU (mm): 318.3 | LCF (mm): 338.5 | OAL (mm): 404.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDW1400XHGS10DC (mm): 14.0 | L/D: 10 | LU (mm): 191.5 | LCF (mm): 212.5 | OAL (mm): 276.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDW1400XHGS12DC (mm): 14.0 | L/D: 12 | LU (mm): 219.5 | LCF (mm): 240.5 | OAL (mm): 304.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDW1400XHGS15DC (mm): 14.0 | L/D: 15 | LU (mm): 261.5 | LCF (mm): 282.5 | OAL (mm): 346.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDW1400XHGS20DC (mm): 14.0 | L/D: 20 | LU (mm): 331.5 | LCF (mm): 352.5 | OAL (mm): 416.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDW1450XHGS10DC (mm): 14.5 | L/D: 10 | LU (mm): 198.9 | LCF (mm): 220.6 | OAL (mm): 287.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Yes
MDW1450XHGS12DC (mm): 14.5 | L/D: 12 | LU (mm): 225.9 | LCF (mm): 247.6 | OAL (mm): 314.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Yes
MDW1450XHGS15DC (mm): 14.5 | L/D: 15 | LU (mm): 268.9 | LCF (mm): 290.6 | OAL (mm): 357.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Yes
MDW1500XHGS10DC (mm): 15.0 | L/D: 10 | LU (mm): 205.2 | LCF (mm): 227.7 | OAL (mm): 292.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDW1500XHGS12DC (mm): 15.0 | L/D: 12 | LU (mm): 235.2 | LCF (mm): 257.7 | OAL (mm): 322.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDW1500XHGS15DC (mm): 15.0 | L/D: 15 | LU (mm): 280.2 | LCF (mm): 302.7 | OAL (mm): 367.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDW1550XHGS10DC (mm): 15.5 | L/D: 10 | LU (mm): 212.6 | LCF (mm): 235.8 | OAL (mm): 303.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Yes
MDW1550XHGS12DC (mm): 15.5 | L/D: 12 | LU (mm): 241.6 | LCF (mm): 264.8 | OAL (mm): 332.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Yes
MDW1550XHGS15DC (mm): 15.5 | L/D: 15 | LU (mm): 287.6 | LCF (mm): 310.8 | OAL (mm): 378.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Yes
MDW1600XHGS10DC (mm): 16.0 | L/D: 10 | LU (mm): 218.9 | LCF (mm): 242.9 | OAL (mm): 308.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Yes
MDW1600XHGS12DC (mm): 16.0 | L/D: 12 | LU (mm): 248.9 | LCF (mm): 272.9 | OAL (mm): 340.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Yes
MDW1600XHGS15DC (mm): 16.0 | L/D: 15 | LU (mm): 298.9 | LCF (mm): 322.9 | OAL (mm): 388.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Yes

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Cutting Tools →
