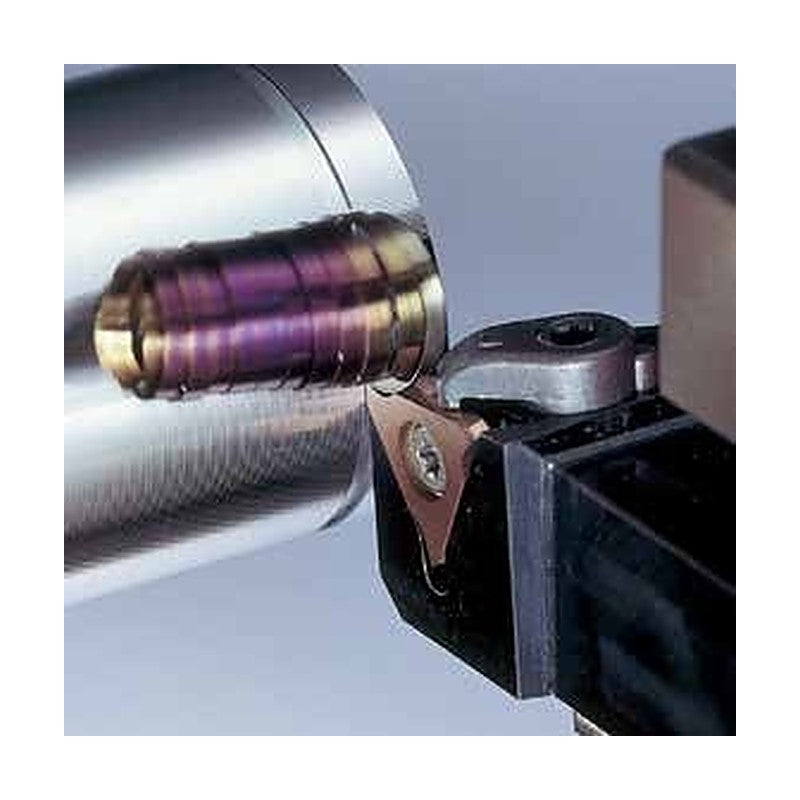

Sumitomo Electric Hardmetal TGA Blank Insert (Customer Ground)

Sumitomo Electric Hardmetal TGA Blank Insert (Customer Ground)

Semi-finished TGA blank insert for GWC holders; width, corner radius and rake face are ground by the customer.

Key features

  • Blank for customer-specific groove forms
  • Carbide and cermet grades
TGA R3-T18 H03 Cutting width CW (mm): 1.85 | Max cutting depth CDX3 (mm): (3.4) | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: H03 | Stock: Yes
TGA L3-T18 H03 Cutting width CW (mm): 1.85 | Max cutting depth CDX3 (mm): (3.4) | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: H03 | Stock: Yes
TGA R3-T18 H1 Cutting width CW (mm): 1.85 | Max cutting depth CDX3 (mm): (3.4) | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: H1 | Stock: Yes
TGA L3-T18 H1 Cutting width CW (mm): 1.85 | Max cutting depth CDX3 (mm): (3.4) | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: H1 | Stock: Yes
TGA R3-T18 EH510 Cutting width CW (mm): 1.85 | Max cutting depth CDX3 (mm): (3.4) | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: EH510 | Stock: Yes
TGA L3-T18 EH510 Cutting width CW (mm): 1.85 | Max cutting depth CDX3 (mm): (3.4) | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: EH510 | Stock: Yes
TGA R3-T18 T1500A Cutting width CW (mm): 1.85 | Max cutting depth CDX3 (mm): (3.4) | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA L3-T18 T1500A Cutting width CW (mm): 1.85 | Max cutting depth CDX3 (mm): (3.4) | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA R3-T23 H03 Cutting width CW (mm): 2.35 | Max cutting depth CDX3 (mm): (3.4) | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: H03 | Stock: Yes
TGA L3-T23 H03 Cutting width CW (mm): 2.35 | Max cutting depth CDX3 (mm): (3.4) | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: H03 | Stock: Yes
TGA R3-T23 H1 Cutting width CW (mm): 2.35 | Max cutting depth CDX3 (mm): (3.4) | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: H1 | Stock: Yes
TGA L3-T23 H1 Cutting width CW (mm): 2.35 | Max cutting depth CDX3 (mm): (3.4) | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: H1 | Stock: Yes
TGA R3-T23 EH510 Cutting width CW (mm): 2.35 | Max cutting depth CDX3 (mm): (3.4) | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: EH510 | Stock: Yes
TGA L3-T23 EH510 Cutting width CW (mm): 2.35 | Max cutting depth CDX3 (mm): (3.4) | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: EH510 | Stock: Yes
TGA R3-T23 T1500A Cutting width CW (mm): 2.35 | Max cutting depth CDX3 (mm): (3.4) | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA L3-T23 T1500A Cutting width CW (mm): 2.35 | Max cutting depth CDX3 (mm): (3.4) | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA R3-T31 H03 Cutting width CW (mm): 3.18 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: H03 | Stock: Yes
TGA L3-T31 H03 Cutting width CW (mm): 3.18 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: H03 | Stock: Yes
TGA R3-T31 H1 Cutting width CW (mm): 3.18 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: H1 | Stock: Yes
TGA L3-T31 H1 Cutting width CW (mm): 3.18 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: H1 | Stock: Yes
TGA R3-T31 EH510 Cutting width CW (mm): 3.18 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: EH510 | Stock: Yes
TGA L3-T31 EH510 Cutting width CW (mm): 3.18 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: EH510 | Stock: Yes
TGA R3-T31 T1500A Cutting width CW (mm): 3.18 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA L3-T31 T1500A Cutting width CW (mm): 3.18 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA R4-T22 H03 Cutting width CW (mm): 2.20 | Max cutting depth CDX3 (mm): (4.8) | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H03 | Stock: Yes
TGA L4-T22 H03 Cutting width CW (mm): 2.20 | Max cutting depth CDX3 (mm): (4.8) | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H03 | Stock: Yes
TGA R4-T22 H1 Cutting width CW (mm): 2.20 | Max cutting depth CDX3 (mm): (4.8) | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA L4-T22 H1 Cutting width CW (mm): 2.20 | Max cutting depth CDX3 (mm): (4.8) | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA R4-T22 EH510 Cutting width CW (mm): 2.20 | Max cutting depth CDX3 (mm): (4.8) | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: EH510 | Stock: Yes
TGA L4-T22 EH510 Cutting width CW (mm): 2.20 | Max cutting depth CDX3 (mm): (4.8) | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: EH510 | Stock: Yes
TGA R4-T22 T1500A Cutting width CW (mm): 2.20 | Max cutting depth CDX3 (mm): (4.8) | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA L4-T22 T1500A Cutting width CW (mm): 2.20 | Max cutting depth CDX3 (mm): (4.8) | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA R4-T37 H03 Cutting width CW (mm): 3.75 | Max cutting depth CDX3 (mm): (6.2) | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H03 | Stock: Yes
TGA L4-T37 H03 Cutting width CW (mm): 3.75 | Max cutting depth CDX3 (mm): (6.2) | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H03 | Stock: Yes
TGA R4-T37 H1 Cutting width CW (mm): 3.75 | Max cutting depth CDX3 (mm): (6.2) | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA L4-T37 H1 Cutting width CW (mm): 3.75 | Max cutting depth CDX3 (mm): (6.2) | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA R4-T37 EH510 Cutting width CW (mm): 3.75 | Max cutting depth CDX3 (mm): (6.2) | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: EH510 | Stock: Yes
TGA L4-T37 EH510 Cutting width CW (mm): 3.75 | Max cutting depth CDX3 (mm): (6.2) | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: EH510 | Stock: Yes
TGA R4-T37 T1500A Cutting width CW (mm): 3.75 | Max cutting depth CDX3 (mm): (6.2) | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA L4-T37 T1500A Cutting width CW (mm): 3.75 | Max cutting depth CDX3 (mm): (6.2) | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA R4-T47 H03 Cutting width CW (mm): 4.76 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H03 | Stock: Yes
TGA L4-T47 H03 Cutting width CW (mm): 4.76 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H03 | Stock: Yes
TGA R4-T47 H1 Cutting width CW (mm): 4.76 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA L4-T47 H1 Cutting width CW (mm): 4.76 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA R4-T47 EH510 Cutting width CW (mm): 4.76 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: EH510 | Stock: Yes
TGA L4-T47 EH510 Cutting width CW (mm): 4.76 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: EH510 | Stock: Yes
TGA R4-T47 T1500A Cutting width CW (mm): 4.76 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA L4-T47 T1500A Cutting width CW (mm): 4.76 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
Grooving InsertsSumitomo Electric Hardmetal
48 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal TGA Blank Insert (Customer Ground)

Brand Sumitomo Electric Hardmetal·Grooving Inserts

Available part numbers (48)

TGA R3-T18 H03, TGA L3-T18 H03, TGA R3-T18 H1, TGA L3-T18 H1, TGA R3-T18 EH510, TGA L3-T18 EH510, TGA R3-T18 T1500A, TGA L3-T18 T1500A, TGA R3-T23 H03, TGA L3-T23 H03 + 38 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TGA R3-T18 H03Cutting width CW (mm): 1.85 | Max cutting depth CDX3 (mm): (3.4) | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: H03 | Stock: Yes
TGA L3-T18 H03Cutting width CW (mm): 1.85 | Max cutting depth CDX3 (mm): (3.4) | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: H03 | Stock: Yes
TGA R3-T18 H1Cutting width CW (mm): 1.85 | Max cutting depth CDX3 (mm): (3.4) | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: H1 | Stock: Yes
TGA L3-T18 H1Cutting width CW (mm): 1.85 | Max cutting depth CDX3 (mm): (3.4) | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: H1 | Stock: Yes
TGA R3-T18 EH510Cutting width CW (mm): 1.85 | Max cutting depth CDX3 (mm): (3.4) | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: EH510 | Stock: Yes
TGA L3-T18 EH510Cutting width CW (mm): 1.85 | Max cutting depth CDX3 (mm): (3.4) | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: EH510 | Stock: Yes
TGA R3-T18 T1500ACutting width CW (mm): 1.85 | Max cutting depth CDX3 (mm): (3.4) | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA L3-T18 T1500ACutting width CW (mm): 1.85 | Max cutting depth CDX3 (mm): (3.4) | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA R3-T23 H03Cutting width CW (mm): 2.35 | Max cutting depth CDX3 (mm): (3.4) | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: H03 | Stock: Yes
TGA L3-T23 H03Cutting width CW (mm): 2.35 | Max cutting depth CDX3 (mm): (3.4) | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: H03 | Stock: Yes
TGA R3-T23 H1Cutting width CW (mm): 2.35 | Max cutting depth CDX3 (mm): (3.4) | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: H1 | Stock: Yes
TGA L3-T23 H1Cutting width CW (mm): 2.35 | Max cutting depth CDX3 (mm): (3.4) | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: H1 | Stock: Yes
TGA R3-T23 EH510Cutting width CW (mm): 2.35 | Max cutting depth CDX3 (mm): (3.4) | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: EH510 | Stock: Yes
TGA L3-T23 EH510Cutting width CW (mm): 2.35 | Max cutting depth CDX3 (mm): (3.4) | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: EH510 | Stock: Yes
TGA R3-T23 T1500ACutting width CW (mm): 2.35 | Max cutting depth CDX3 (mm): (3.4) | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA L3-T23 T1500ACutting width CW (mm): 2.35 | Max cutting depth CDX3 (mm): (3.4) | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA R3-T31 H03Cutting width CW (mm): 3.18 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: H03 | Stock: Yes
TGA L3-T31 H03Cutting width CW (mm): 3.18 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: H03 | Stock: Yes
TGA R3-T31 H1Cutting width CW (mm): 3.18 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: H1 | Stock: Yes
TGA L3-T31 H1Cutting width CW (mm): 3.18 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: H1 | Stock: Yes
TGA R3-T31 EH510Cutting width CW (mm): 3.18 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: EH510 | Stock: Yes
TGA L3-T31 EH510Cutting width CW (mm): 3.18 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: EH510 | Stock: Yes
TGA R3-T31 T1500ACutting width CW (mm): 3.18 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA L3-T31 T1500ACutting width CW (mm): 3.18 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA R4-T22 H03Cutting width CW (mm): 2.20 | Max cutting depth CDX3 (mm): (4.8) | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H03 | Stock: Yes
TGA L4-T22 H03Cutting width CW (mm): 2.20 | Max cutting depth CDX3 (mm): (4.8) | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H03 | Stock: Yes
TGA R4-T22 H1Cutting width CW (mm): 2.20 | Max cutting depth CDX3 (mm): (4.8) | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA L4-T22 H1Cutting width CW (mm): 2.20 | Max cutting depth CDX3 (mm): (4.8) | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA R4-T22 EH510Cutting width CW (mm): 2.20 | Max cutting depth CDX3 (mm): (4.8) | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: EH510 | Stock: Yes
TGA L4-T22 EH510Cutting width CW (mm): 2.20 | Max cutting depth CDX3 (mm): (4.8) | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: EH510 | Stock: Yes
TGA R4-T22 T1500ACutting width CW (mm): 2.20 | Max cutting depth CDX3 (mm): (4.8) | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA L4-T22 T1500ACutting width CW (mm): 2.20 | Max cutting depth CDX3 (mm): (4.8) | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA R4-T37 H03Cutting width CW (mm): 3.75 | Max cutting depth CDX3 (mm): (6.2) | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H03 | Stock: Yes
TGA L4-T37 H03Cutting width CW (mm): 3.75 | Max cutting depth CDX3 (mm): (6.2) | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H03 | Stock: Yes
TGA R4-T37 H1Cutting width CW (mm): 3.75 | Max cutting depth CDX3 (mm): (6.2) | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA L4-T37 H1Cutting width CW (mm): 3.75 | Max cutting depth CDX3 (mm): (6.2) | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA R4-T37 EH510Cutting width CW (mm): 3.75 | Max cutting depth CDX3 (mm): (6.2) | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: EH510 | Stock: Yes
TGA L4-T37 EH510Cutting width CW (mm): 3.75 | Max cutting depth CDX3 (mm): (6.2) | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: EH510 | Stock: Yes
TGA R4-T37 T1500ACutting width CW (mm): 3.75 | Max cutting depth CDX3 (mm): (6.2) | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA L4-T37 T1500ACutting width CW (mm): 3.75 | Max cutting depth CDX3 (mm): (6.2) | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA R4-T47 H03Cutting width CW (mm): 4.76 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H03 | Stock: Yes
TGA L4-T47 H03Cutting width CW (mm): 4.76 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H03 | Stock: Yes
TGA R4-T47 H1Cutting width CW (mm): 4.76 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA L4-T47 H1Cutting width CW (mm): 4.76 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA R4-T47 EH510Cutting width CW (mm): 4.76 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: EH510 | Stock: Yes
TGA L4-T47 EH510Cutting width CW (mm): 4.76 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: EH510 | Stock: Yes
TGA R4-T47 T1500ACutting width CW (mm): 4.76 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA L4-T47 T1500ACutting width CW (mm): 4.76 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
