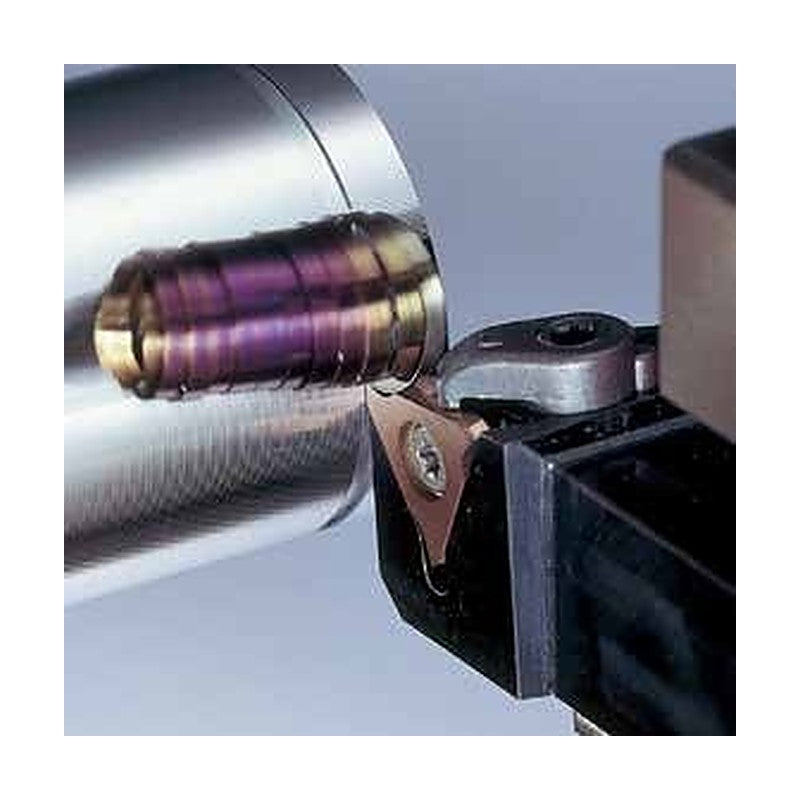

Sumitomo Electric Hardmetal TGA Full-Radius Grooving Insert

Sumitomo Electric Hardmetal TGA Full-Radius Grooving Insert

Full-radius (R-groove) TGA grooving insert for GWC type holders.

Key features

  • Full-radius cutting edge
  • For GWC, GWCS and GWCI holders

Specifications

Inscribed circle IC (mm) 12.70
Thickness S (mm) 4.76
TGA R4050R AC530U Cutting width CW (mm): 1.00 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.7 | Corner radius RE (mm): 0.50 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4050R AC530U Cutting width CW (mm): 1.00 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.7 | Corner radius RE (mm): 0.50 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4050R H1 Cutting width CW (mm): 1.00 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.7 | Corner radius RE (mm): 0.50 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA L4050R H1 Cutting width CW (mm): 1.00 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.7 | Corner radius RE (mm): 0.50 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA R4050R T2500Z Cutting width CW (mm): 1.00 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.7 | Corner radius RE (mm): 0.50 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA R4075R AC530U Cutting width CW (mm): 1.50 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.75 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4075R AC530U Cutting width CW (mm): 1.50 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.75 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4075R H1 Cutting width CW (mm): 1.50 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.75 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA L4075R H1 Cutting width CW (mm): 1.50 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.75 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA R4075R T2500Z Cutting width CW (mm): 1.50 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.75 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA R4100R AC530U Cutting width CW (mm): 2.00 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 1.00 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4100R AC530U Cutting width CW (mm): 2.00 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 1.00 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4100R H1 Cutting width CW (mm): 2.00 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 1.00 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA L4100R H1 Cutting width CW (mm): 2.00 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 1.00 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA R4100R T2500Z Cutting width CW (mm): 2.00 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 1.00 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA R4125R AC530U Cutting width CW (mm): 2.50 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 1.25 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4125R AC530U Cutting width CW (mm): 2.50 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 1.25 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4125R H1 Cutting width CW (mm): 2.50 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 1.25 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA L4125R H1 Cutting width CW (mm): 2.50 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 1.25 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA R4125R T2500Z Cutting width CW (mm): 2.50 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 1.25 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA R4150R AC530U Cutting width CW (mm): 3.00 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 1.50 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4150R AC530U Cutting width CW (mm): 3.00 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 1.50 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4150R H1 Cutting width CW (mm): 3.00 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 1.50 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA L4150R H1 Cutting width CW (mm): 3.00 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 1.50 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA R4150R T2500Z Cutting width CW (mm): 3.00 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 1.50 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA R4200R AC530U Cutting width CW (mm): 4.00 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 2.00 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4200R AC530U Cutting width CW (mm): 4.00 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 2.00 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4200R H1 Cutting width CW (mm): 4.00 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 2.00 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA L4200R H1 Cutting width CW (mm): 4.00 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 2.00 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA R4200R T2500Z Cutting width CW (mm): 4.00 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 2.00 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
Grooving InsertsSumitomo Electric Hardmetal
30 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal TGA Full-Radius Grooving Insert

Brand Sumitomo Electric Hardmetal·Grooving Inserts

Available part numbers (30)

TGA R4050R AC530U, TGA L4050R AC530U, TGA R4050R H1, TGA L4050R H1, TGA R4050R T2500Z, TGA R4075R AC530U, TGA L4075R AC530U, TGA R4075R H1, TGA L4075R H1, TGA R4075R T2500Z + 20 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TGA R4050R AC530UCutting width CW (mm): 1.00 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.7 | Corner radius RE (mm): 0.50 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4050R AC530UCutting width CW (mm): 1.00 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.7 | Corner radius RE (mm): 0.50 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4050R H1Cutting width CW (mm): 1.00 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.7 | Corner radius RE (mm): 0.50 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA L4050R H1Cutting width CW (mm): 1.00 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.7 | Corner radius RE (mm): 0.50 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA R4050R T2500ZCutting width CW (mm): 1.00 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.7 | Corner radius RE (mm): 0.50 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA R4075R AC530UCutting width CW (mm): 1.50 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.75 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4075R AC530UCutting width CW (mm): 1.50 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.75 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4075R H1Cutting width CW (mm): 1.50 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.75 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA L4075R H1Cutting width CW (mm): 1.50 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.75 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA R4075R T2500ZCutting width CW (mm): 1.50 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.75 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA R4100R AC530UCutting width CW (mm): 2.00 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 1.00 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4100R AC530UCutting width CW (mm): 2.00 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 1.00 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4100R H1Cutting width CW (mm): 2.00 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 1.00 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA L4100R H1Cutting width CW (mm): 2.00 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 1.00 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA R4100R T2500ZCutting width CW (mm): 2.00 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 1.00 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA R4125R AC530UCutting width CW (mm): 2.50 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 1.25 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4125R AC530UCutting width CW (mm): 2.50 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 1.25 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4125R H1Cutting width CW (mm): 2.50 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 1.25 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA L4125R H1Cutting width CW (mm): 2.50 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 1.25 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA R4125R T2500ZCutting width CW (mm): 2.50 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 1.25 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA R4150R AC530UCutting width CW (mm): 3.00 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 1.50 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4150R AC530UCutting width CW (mm): 3.00 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 1.50 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4150R H1Cutting width CW (mm): 3.00 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 1.50 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA L4150R H1Cutting width CW (mm): 3.00 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 1.50 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA R4150R T2500ZCutting width CW (mm): 3.00 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 1.50 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA R4200R AC530UCutting width CW (mm): 4.00 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 2.00 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4200R AC530UCutting width CW (mm): 4.00 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 2.00 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4200R H1Cutting width CW (mm): 4.00 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 2.00 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA L4200R H1Cutting width CW (mm): 4.00 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 2.00 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA R4200R T2500ZCutting width CW (mm): 4.00 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 2.00 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
