Sumitomo Electric Hardmetal TGA Grooving Insert for GWC Holders

Sumitomo Electric Hardmetal TGA Grooving Insert for GWC Holders

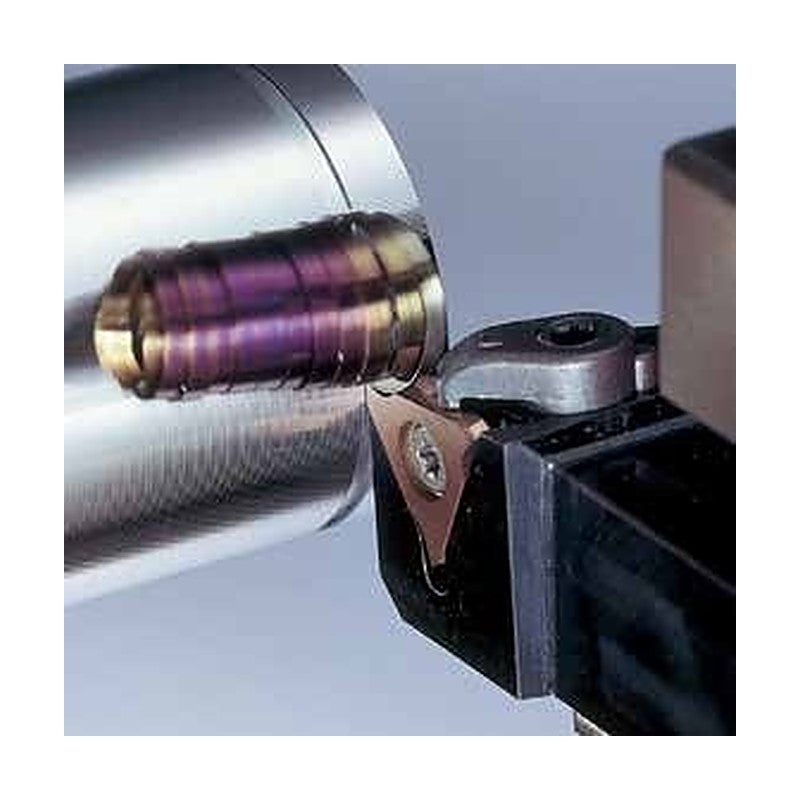

Triangular 3-corner grooving insert TGA for GWC, GWCS and GWCI holders, usable for external and internal shallow grooving.

Key features

  • Groove widths 0.33-4.8 mm
  • Grades for steel, stainless, non-ferrous and hardened steel
  • Cermet T1500A versions carry an E suffix
  • Right- and left-hand versions
TGA R3033 AC530U Cutting width CW (mm): 0.33 | Max cutting depth CDX3 external (mm): 0.8 | Max cutting depth CDX3 internal (mm): 0.5 | Corner radius RE (mm): 0.05 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA L3033 AC530U Cutting width CW (mm): 0.33 | Max cutting depth CDX3 external (mm): 0.8 | Max cutting depth CDX3 internal (mm): 0.5 | Corner radius RE (mm): 0.05 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA R3033 H1 Cutting width CW (mm): 0.33 | Max cutting depth CDX3 external (mm): 0.8 | Max cutting depth CDX3 internal (mm): 0.5 | Corner radius RE (mm): 0.05 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: H1 | Stock: Yes
TGA L3033 H1 Cutting width CW (mm): 0.33 | Max cutting depth CDX3 external (mm): 0.8 | Max cutting depth CDX3 internal (mm): 0.5 | Corner radius RE (mm): 0.05 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: H1 | Stock: Yes
TGA R3033 T2500Z Cutting width CW (mm): 0.33 | Max cutting depth CDX3 external (mm): 0.8 | Max cutting depth CDX3 internal (mm): 0.5 | Corner radius RE (mm): 0.05 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T2500Z | Stock: Yes
TGA L3033 T2500Z Cutting width CW (mm): 0.33 | Max cutting depth CDX3 external (mm): 0.8 | Max cutting depth CDX3 internal (mm): 0.5 | Corner radius RE (mm): 0.05 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T2500Z | Stock: Yes
TGA R3033E T1500A Cutting width CW (mm): 0.33 | Max cutting depth CDX3 external (mm): 0.8 | Max cutting depth CDX3 internal (mm): 0.5 | Corner radius RE (mm): 0.05 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA L3033E T1500A Cutting width CW (mm): 0.33 | Max cutting depth CDX3 external (mm): 0.8 | Max cutting depth CDX3 internal (mm): 0.5 | Corner radius RE (mm): 0.05 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA R3043 AC530U Cutting width CW (mm): 0.43 | Max cutting depth CDX3 external (mm): 0.8 | Max cutting depth CDX3 internal (mm): 0.5 | Corner radius RE (mm): 0.05 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA L3043 AC530U Cutting width CW (mm): 0.43 | Max cutting depth CDX3 external (mm): 0.8 | Max cutting depth CDX3 internal (mm): 0.5 | Corner radius RE (mm): 0.05 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA R3043E T1500A Cutting width CW (mm): 0.43 | Max cutting depth CDX3 external (mm): 0.8 | Max cutting depth CDX3 internal (mm): 0.5 | Corner radius RE (mm): 0.05 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA L3043E T1500A Cutting width CW (mm): 0.43 | Max cutting depth CDX3 external (mm): 0.8 | Max cutting depth CDX3 internal (mm): 0.5 | Corner radius RE (mm): 0.05 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA R3050 AC530U Cutting width CW (mm): 0.50 | Max cutting depth CDX3 external (mm): 1.2 | Max cutting depth CDX3 internal (mm): 0.8 | Corner radius RE (mm): 0.05 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA L3050 AC530U Cutting width CW (mm): 0.50 | Max cutting depth CDX3 external (mm): 1.2 | Max cutting depth CDX3 internal (mm): 0.8 | Corner radius RE (mm): 0.05 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA R3050 H1 Cutting width CW (mm): 0.50 | Max cutting depth CDX3 external (mm): 1.2 | Max cutting depth CDX3 internal (mm): 0.8 | Corner radius RE (mm): 0.05 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: H1 | Stock: Yes
TGA L3050 H1 Cutting width CW (mm): 0.50 | Max cutting depth CDX3 external (mm): 1.2 | Max cutting depth CDX3 internal (mm): 0.8 | Corner radius RE (mm): 0.05 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: H1 | Stock: Yes
TGA R3050 DL1500 Cutting width CW (mm): 0.50 | Max cutting depth CDX3 external (mm): 1.2 | Max cutting depth CDX3 internal (mm): 0.8 | Corner radius RE (mm): 0.05 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: DL1500 | Stock: Yes
TGA L3050 DL1500 Cutting width CW (mm): 0.50 | Max cutting depth CDX3 external (mm): 1.2 | Max cutting depth CDX3 internal (mm): 0.8 | Corner radius RE (mm): 0.05 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: DL1500 | Stock: Yes
TGA R3050 T2500Z Cutting width CW (mm): 0.50 | Max cutting depth CDX3 external (mm): 1.2 | Max cutting depth CDX3 internal (mm): 0.8 | Corner radius RE (mm): 0.05 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T2500Z | Stock: Yes
TGA L3050 T2500Z Cutting width CW (mm): 0.50 | Max cutting depth CDX3 external (mm): 1.2 | Max cutting depth CDX3 internal (mm): 0.8 | Corner radius RE (mm): 0.05 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T2500Z | Stock: Yes
TGA R3050E T1500A Cutting width CW (mm): 0.50 | Max cutting depth CDX3 external (mm): 1.2 | Max cutting depth CDX3 internal (mm): 0.8 | Corner radius RE (mm): 0.05 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA L3050E T1500A Cutting width CW (mm): 0.50 | Max cutting depth CDX3 external (mm): 1.2 | Max cutting depth CDX3 internal (mm): 0.8 | Corner radius RE (mm): 0.05 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA R3053 AC530U Cutting width CW (mm): 0.53 | Max cutting depth CDX3 external (mm): 1.2 | Max cutting depth CDX3 internal (mm): 0.8 | Corner radius RE (mm): 0.05 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA L3053 AC530U Cutting width CW (mm): 0.53 | Max cutting depth CDX3 external (mm): 1.2 | Max cutting depth CDX3 internal (mm): 0.8 | Corner radius RE (mm): 0.05 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA R3053E T1500A Cutting width CW (mm): 0.53 | Max cutting depth CDX3 external (mm): 1.2 | Max cutting depth CDX3 internal (mm): 0.8 | Corner radius RE (mm): 0.05 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA L3053E T1500A Cutting width CW (mm): 0.53 | Max cutting depth CDX3 external (mm): 1.2 | Max cutting depth CDX3 internal (mm): 0.8 | Corner radius RE (mm): 0.05 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA R3065 AC530U Cutting width CW (mm): 0.65 | Max cutting depth CDX3 external (mm): 1.2 | Max cutting depth CDX3 internal (mm): 0.8 | Corner radius RE (mm): 0.05 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA L3065 AC530U Cutting width CW (mm): 0.65 | Max cutting depth CDX3 external (mm): 1.2 | Max cutting depth CDX3 internal (mm): 0.8 | Corner radius RE (mm): 0.05 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA R3065E T1500A Cutting width CW (mm): 0.65 | Max cutting depth CDX3 external (mm): 1.2 | Max cutting depth CDX3 internal (mm): 0.8 | Corner radius RE (mm): 0.05 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA L3065E T1500A Cutting width CW (mm): 0.65 | Max cutting depth CDX3 external (mm): 1.2 | Max cutting depth CDX3 internal (mm): 0.8 | Corner radius RE (mm): 0.05 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA R3075 AC530U Cutting width CW (mm): 0.75 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA L3075 AC530U Cutting width CW (mm): 0.75 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA R3075 H1 Cutting width CW (mm): 0.75 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: H1 | Stock: Yes
TGA L3075 H1 Cutting width CW (mm): 0.75 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: H1 | Stock: Yes
TGA R3075 DL1500 Cutting width CW (mm): 0.75 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: DL1500 | Stock: Yes
TGA L3075 DL1500 Cutting width CW (mm): 0.75 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: DL1500 | Stock: Yes
TGA R3075 T2500Z Cutting width CW (mm): 0.75 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T2500Z | Stock: Yes
TGA L3075 T2500Z Cutting width CW (mm): 0.75 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T2500Z | Stock: Yes
TGA R3075E T1500A Cutting width CW (mm): 0.75 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA L3075E T1500A Cutting width CW (mm): 0.75 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA R3080 AC530U Cutting width CW (mm): 0.80 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA L3080 AC530U Cutting width CW (mm): 0.80 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA R3080E T1500A Cutting width CW (mm): 0.80 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA L3080E T1500A Cutting width CW (mm): 0.80 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA R3095 AC530U Cutting width CW (mm): 0.95 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA L3095 AC530U Cutting width CW (mm): 0.95 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA R3095 H1 Cutting width CW (mm): 0.95 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: H1 | Stock: Yes
TGA L3095 H1 Cutting width CW (mm): 0.95 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: H1 | Stock: Yes
TGA R3095 T2500Z Cutting width CW (mm): 0.95 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T2500Z | Stock: Yes
TGA L3095 T2500Z Cutting width CW (mm): 0.95 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T2500Z | Stock: Yes
TGA R3095E T1500A Cutting width CW (mm): 0.95 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA L3095E T1500A Cutting width CW (mm): 0.95 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA R3100 AC5015S Cutting width CW (mm): 1.00 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC5015S | Stock: Yes
TGA L3100 AC5015S Cutting width CW (mm): 1.00 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC5015S | Stock: Yes
TGA R3100 AC5025S Cutting width CW (mm): 1.00 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC5025S | Stock: Yes
TGA L3100 AC5025S Cutting width CW (mm): 1.00 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC5025S | Stock: Yes
TGA R3100 AC530U Cutting width CW (mm): 1.00 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA L3100 AC530U Cutting width CW (mm): 1.00 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA R3100 H1 Cutting width CW (mm): 1.00 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: H1 | Stock: Yes
TGA L3100 H1 Cutting width CW (mm): 1.00 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: H1 | Stock: Yes
TGA R3100 DL1500 Cutting width CW (mm): 1.00 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: DL1500 | Stock: Yes
TGA L3100 DL1500 Cutting width CW (mm): 1.00 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: DL1500 | Stock: Yes
TGA R3100 T2500Z Cutting width CW (mm): 1.00 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T2500Z | Stock: Yes
TGA L3100 T2500Z Cutting width CW (mm): 1.00 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T2500Z | Stock: Yes
TGA R3100E T1500A Cutting width CW (mm): 1.00 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA L3100E T1500A Cutting width CW (mm): 1.00 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA R3110 AC5015S Cutting width CW (mm): 1.10 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC5015S | Stock: Yes
TGA L3110 AC5015S Cutting width CW (mm): 1.10 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC5015S | Stock: Yes
TGA R3110 AC5025S Cutting width CW (mm): 1.10 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC5025S | Stock: Yes
TGA L3110 AC5025S Cutting width CW (mm): 1.10 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC5025S | Stock: Yes
TGA R3110 AC530U Cutting width CW (mm): 1.10 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA L3110 AC530U Cutting width CW (mm): 1.10 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA R3110 T2500Z Cutting width CW (mm): 1.10 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T2500Z | Stock: Yes
TGA L3110 T2500Z Cutting width CW (mm): 1.10 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T2500Z | Stock: Yes
TGA R3110E T1500A Cutting width CW (mm): 1.10 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA L3110E T1500A Cutting width CW (mm): 1.10 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA R3120 AC530U Cutting width CW (mm): 1.20 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA L3120 AC530U Cutting width CW (mm): 1.20 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA R3120E T1500A Cutting width CW (mm): 1.20 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA L3120E T1500A Cutting width CW (mm): 1.20 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA R3125 AC5015S Cutting width CW (mm): 1.25 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC5015S | Stock: Yes
TGA L3125 AC5015S Cutting width CW (mm): 1.25 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC5015S | Stock: Yes
TGA R3125 AC5025S Cutting width CW (mm): 1.25 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC5025S | Stock: Yes
TGA L3125 AC5025S Cutting width CW (mm): 1.25 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC5025S | Stock: Yes
TGA R3125 AC530U Cutting width CW (mm): 1.25 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA L3125 AC530U Cutting width CW (mm): 1.25 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA R3125 H1 Cutting width CW (mm): 1.25 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: H1 | Stock: Yes
TGA L3125 H1 Cutting width CW (mm): 1.25 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: H1 | Stock: Yes
TGA R3125 DL1500 Cutting width CW (mm): 1.25 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: DL1500 | Stock: Yes
TGA L3125 DL1500 Cutting width CW (mm): 1.25 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: DL1500 | Stock: Yes
TGA R3125 T2500Z Cutting width CW (mm): 1.25 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T2500Z | Stock: Yes
TGA L3125 T2500Z Cutting width CW (mm): 1.25 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T2500Z | Stock: Yes
TGA R3125E T1500A Cutting width CW (mm): 1.25 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA L3125E T1500A Cutting width CW (mm): 1.25 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA R3130 AC530U Cutting width CW (mm): 1.30 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA L3130 AC530U Cutting width CW (mm): 1.30 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA R3130E T1500A Cutting width CW (mm): 1.30 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA L3130E T1500A Cutting width CW (mm): 1.30 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA R3135 AC530U Cutting width CW (mm): 1.35 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA L3135 AC530U Cutting width CW (mm): 1.35 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA R3135 T2500Z Cutting width CW (mm): 1.35 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T2500Z | Stock: Yes
TGA L3135 T2500Z Cutting width CW (mm): 1.35 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T2500Z | Stock: Yes
TGA R3135E T1500A Cutting width CW (mm): 1.35 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA L3135E T1500A Cutting width CW (mm): 1.35 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA R3140 AC530U Cutting width CW (mm): 1.40 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA L3140 AC530U Cutting width CW (mm): 1.40 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA R3140E T1500A Cutting width CW (mm): 1.40 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA L3140E T1500A Cutting width CW (mm): 1.40 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA R3145 AC530U Cutting width CW (mm): 1.45 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA L3145 AC530U Cutting width CW (mm): 1.45 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA R3145 H1 Cutting width CW (mm): 1.45 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: H1 | Stock: Yes
TGA L3145 H1 Cutting width CW (mm): 1.45 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: H1 | Stock: Yes
TGA R3145 T2500Z Cutting width CW (mm): 1.45 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T2500Z | Stock: Yes
TGA L3145 T2500Z Cutting width CW (mm): 1.45 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T2500Z | Stock: Yes
TGA R3145E T1500A Cutting width CW (mm): 1.45 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA L3145E T1500A Cutting width CW (mm): 1.45 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA R3150 AC5015S Cutting width CW (mm): 1.50 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC5015S | Stock: Yes
TGA L3150 AC5015S Cutting width CW (mm): 1.50 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC5015S | Stock: Yes
TGA R3150 AC5025S Cutting width CW (mm): 1.50 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC5025S | Stock: Yes
TGA L3150 AC5025S Cutting width CW (mm): 1.50 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC5025S | Stock: Yes
TGA R3150 AC530U Cutting width CW (mm): 1.50 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA L3150 AC530U Cutting width CW (mm): 1.50 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA R3150 H1 Cutting width CW (mm): 1.50 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: H1 | Stock: Yes
TGA L3150 H1 Cutting width CW (mm): 1.50 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: H1 | Stock: Yes
TGA R3150 DL1500 Cutting width CW (mm): 1.50 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: DL1500 | Stock: Yes
TGA L3150 DL1500 Cutting width CW (mm): 1.50 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: DL1500 | Stock: Yes
TGA R3150 T2500Z Cutting width CW (mm): 1.50 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T2500Z | Stock: Yes
TGA L3150 T2500Z Cutting width CW (mm): 1.50 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T2500Z | Stock: Yes
TGA R3150E T1500A Cutting width CW (mm): 1.50 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA L3150E T1500A Cutting width CW (mm): 1.50 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA R3160 AC530U Cutting width CW (mm): 1.60 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA L3160 AC530U Cutting width CW (mm): 1.60 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA R3160E T1500A Cutting width CW (mm): 1.60 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA L3160E T1500A Cutting width CW (mm): 1.60 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA R3165 AC530U Cutting width CW (mm): 1.65 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA L3165 AC530U Cutting width CW (mm): 1.65 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA R3165 T2500Z Cutting width CW (mm): 1.65 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T2500Z | Stock: Yes
TGA L3165 T2500Z Cutting width CW (mm): 1.65 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T2500Z | Stock: Yes
TGA R3165E T1500A Cutting width CW (mm): 1.65 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA L3165E T1500A Cutting width CW (mm): 1.65 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA R3175 AC530U Cutting width CW (mm): 1.75 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA L3175 AC530U Cutting width CW (mm): 1.75 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA R3175 T2500Z Cutting width CW (mm): 1.75 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T2500Z | Stock: Yes
TGA L3175 T2500Z Cutting width CW (mm): 1.75 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T2500Z | Stock: Yes
TGA R3175E T1500A Cutting width CW (mm): 1.75 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA L3175E T1500A Cutting width CW (mm): 1.75 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA R3185 AC530U Cutting width CW (mm): 1.85 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA L3185 AC530U Cutting width CW (mm): 1.85 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA R3185 H1 Cutting width CW (mm): 1.85 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: H1 | Stock: Yes
TGA L3185 H1 Cutting width CW (mm): 1.85 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: H1 | Stock: Yes
TGA R3185 T2500Z Cutting width CW (mm): 1.85 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T2500Z | Stock: Yes
TGA L3185 T2500Z Cutting width CW (mm): 1.85 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T2500Z | Stock: Yes
TGA R3185E T1500A Cutting width CW (mm): 1.85 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA L3185E T1500A Cutting width CW (mm): 1.85 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA R3200 AC5015S Cutting width CW (mm): 2.00 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC5015S | Stock: Yes
TGA L3200 AC5015S Cutting width CW (mm): 2.00 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC5015S | Stock: Yes
TGA R3200 AC5025S Cutting width CW (mm): 2.00 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC5025S | Stock: Yes
TGA L3200 AC5025S Cutting width CW (mm): 2.00 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC5025S | Stock: Yes
TGA R3200 AC530U Cutting width CW (mm): 2.00 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA L3200 AC530U Cutting width CW (mm): 2.00 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA R3200 H1 Cutting width CW (mm): 2.00 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: H1 | Stock: Yes
TGA L3200 H1 Cutting width CW (mm): 2.00 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: H1 | Stock: Yes
TGA R3200 DL1500 Cutting width CW (mm): 2.00 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: DL1500 | Stock: Yes
TGA L3200 DL1500 Cutting width CW (mm): 2.00 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: DL1500 | Stock: Yes
TGA R3200 T2500Z Cutting width CW (mm): 2.00 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T2500Z | Stock: Yes
TGA L3200 T2500Z Cutting width CW (mm): 2.00 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T2500Z | Stock: Yes
TGA R3200E T1500A Cutting width CW (mm): 2.00 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA L3200E T1500A Cutting width CW (mm): 2.00 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA R3220 AC530U Cutting width CW (mm): 2.20 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA L3220 AC530U Cutting width CW (mm): 2.20 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA R3220 T2500Z Cutting width CW (mm): 2.20 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T2500Z | Stock: Yes
TGA L3220 T2500Z Cutting width CW (mm): 2.20 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T2500Z | Stock: Yes
TGA R3220E T1500A Cutting width CW (mm): 2.20 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA L3220E T1500A Cutting width CW (mm): 2.20 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA R3230 AC530U Cutting width CW (mm): 2.30 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA L3230 AC530U Cutting width CW (mm): 2.30 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA R3230 H1 Cutting width CW (mm): 2.30 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: H1 | Stock: Yes
TGA L3230 H1 Cutting width CW (mm): 2.30 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: H1 | Stock: Yes
TGA R3230 T2500Z Cutting width CW (mm): 2.30 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T2500Z | Stock: Yes
TGA L3230 T2500Z Cutting width CW (mm): 2.30 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T2500Z | Stock: Yes
TGA R3230E T1500A Cutting width CW (mm): 2.30 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA L3230E T1500A Cutting width CW (mm): 2.30 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA R3250 AC530U Cutting width CW (mm): 2.50 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA L3250 AC530U Cutting width CW (mm): 2.50 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA R3250 H1 Cutting width CW (mm): 2.50 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: H1 | Stock: Yes
TGA L3250 H1 Cutting width CW (mm): 2.50 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: H1 | Stock: Yes
TGA R3250 T2500Z Cutting width CW (mm): 2.50 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T2500Z | Stock: Yes
TGA L3250 T2500Z Cutting width CW (mm): 2.50 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T2500Z | Stock: Yes
TGA R3250E T1500A Cutting width CW (mm): 2.50 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA L3250E T1500A Cutting width CW (mm): 2.50 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA R3265 AC530U Cutting width CW (mm): 2.65 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA L3265 AC530U Cutting width CW (mm): 2.65 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA R3265 T2500Z Cutting width CW (mm): 2.65 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T2500Z | Stock: Yes
TGA L3265 T2500Z Cutting width CW (mm): 2.65 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T2500Z | Stock: Yes
TGA R3265E T1500A Cutting width CW (mm): 2.65 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA L3265E T1500A Cutting width CW (mm): 2.65 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA R3270 AC530U Cutting width CW (mm): 2.70 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA L3270 AC530U Cutting width CW (mm): 2.70 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA R3270 T2500Z Cutting width CW (mm): 2.70 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T2500Z | Stock: Yes
TGA L3270 T2500Z Cutting width CW (mm): 2.70 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T2500Z | Stock: Yes
TGA R3270E T1500A Cutting width CW (mm): 2.70 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA L3270E T1500A Cutting width CW (mm): 2.70 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA R3280 AC530U Cutting width CW (mm): 2.80 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA L3280 AC530U Cutting width CW (mm): 2.80 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA R3280 T2500Z Cutting width CW (mm): 2.80 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T2500Z | Stock: Yes
TGA L3280 T2500Z Cutting width CW (mm): 2.80 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T2500Z | Stock: Yes
TGA R3280E T1500A Cutting width CW (mm): 2.80 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA L3280E T1500A Cutting width CW (mm): 2.80 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA R3300 AC5015S Cutting width CW (mm): 3.00 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC5015S | Stock: Yes
TGA L3300 AC5015S Cutting width CW (mm): 3.00 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC5015S | Stock: Yes
TGA R3300 AC5025S Cutting width CW (mm): 3.00 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC5025S | Stock: Yes
TGA L3300 AC5025S Cutting width CW (mm): 3.00 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC5025S | Stock: Yes
TGA R3300 AC530U Cutting width CW (mm): 3.00 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA L3300 AC530U Cutting width CW (mm): 3.00 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA R3300 DL1500 Cutting width CW (mm): 3.00 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: DL1500 | Stock: Yes
TGA L3300 DL1500 Cutting width CW (mm): 3.00 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: DL1500 | Stock: Yes
TGA R3300E T1500A Cutting width CW (mm): 3.00 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA L3300E T1500A Cutting width CW (mm): 3.00 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA R4125 AC530U Cutting width CW (mm): 1.25 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.7 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4125 AC530U Cutting width CW (mm): 1.25 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.7 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4125 H1 Cutting width CW (mm): 1.25 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.7 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA L4125 H1 Cutting width CW (mm): 1.25 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.7 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA R4125 T2500Z Cutting width CW (mm): 1.25 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.7 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA L4125 T2500Z Cutting width CW (mm): 1.25 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.7 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA R4125E T1500A Cutting width CW (mm): 1.25 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.7 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA L4125E T1500A Cutting width CW (mm): 1.25 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.7 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA R4125 BN2000 Cutting width CW (mm): 1.25 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.7 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: BN2000 | Stock: Yes
TGA R4125 DA2200 Cutting width CW (mm): 1.25 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.7 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: DA2200 | Stock: Yes
TGA R4145 AC530U Cutting width CW (mm): 1.45 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.7 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4145 AC530U Cutting width CW (mm): 1.45 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.7 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4145 H1 Cutting width CW (mm): 1.45 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.7 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA L4145 H1 Cutting width CW (mm): 1.45 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.7 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA R4145 T2500Z Cutting width CW (mm): 1.45 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.7 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA L4145 T2500Z Cutting width CW (mm): 1.45 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.7 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA R4145E T1500A Cutting width CW (mm): 1.45 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.7 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA L4145E T1500A Cutting width CW (mm): 1.45 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.7 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA R4150 AC530U Cutting width CW (mm): 1.50 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4150 AC530U Cutting width CW (mm): 1.50 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4150 H1 Cutting width CW (mm): 1.50 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA L4150 H1 Cutting width CW (mm): 1.50 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA R4150 T2500Z Cutting width CW (mm): 1.50 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA L4150 T2500Z Cutting width CW (mm): 1.50 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA R4150E T1500A Cutting width CW (mm): 1.50 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA L4150E T1500A Cutting width CW (mm): 1.50 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA R4150 BN2000 Cutting width CW (mm): 1.50 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: BN2000 | Stock: Yes
TGA R4150 DA2200 Cutting width CW (mm): 1.50 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: DA2200 | Stock: Yes
TGA R4165 AC530U Cutting width CW (mm): 1.65 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4165 AC530U Cutting width CW (mm): 1.65 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4165 T2500Z Cutting width CW (mm): 1.65 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA L4165 T2500Z Cutting width CW (mm): 1.65 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA R4165E T1500A Cutting width CW (mm): 1.65 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA L4165E T1500A Cutting width CW (mm): 1.65 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA R4175 AC530U Cutting width CW (mm): 1.75 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4175 AC530U Cutting width CW (mm): 1.75 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4175 H1 Cutting width CW (mm): 1.75 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA L4175 H1 Cutting width CW (mm): 1.75 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA R4175 T2500Z Cutting width CW (mm): 1.75 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA L4175 T2500Z Cutting width CW (mm): 1.75 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA R4175E T1500A Cutting width CW (mm): 1.75 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA L4175E T1500A Cutting width CW (mm): 1.75 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA R4185 AC530U Cutting width CW (mm): 1.85 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4185 AC530U Cutting width CW (mm): 1.85 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4185 H1 Cutting width CW (mm): 1.85 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA L4185 H1 Cutting width CW (mm): 1.85 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA R4185 T2500Z Cutting width CW (mm): 1.85 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA L4185 T2500Z Cutting width CW (mm): 1.85 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA R4185E T1500A Cutting width CW (mm): 1.85 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA L4185E T1500A Cutting width CW (mm): 1.85 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA R4200 AC530U Cutting width CW (mm): 2.00 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4200 AC530U Cutting width CW (mm): 2.00 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4200 H1 Cutting width CW (mm): 2.00 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA L4200 H1 Cutting width CW (mm): 2.00 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA R4200 T2500Z Cutting width CW (mm): 2.00 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA L4200 T2500Z Cutting width CW (mm): 2.00 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA R4200E T1500A Cutting width CW (mm): 2.00 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA L4200E T1500A Cutting width CW (mm): 2.00 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA R4200 BN2000 Cutting width CW (mm): 2.00 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: BN2000 | Stock: Yes
TGA R4200 DA2200 Cutting width CW (mm): 2.00 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: DA2200 | Stock: Yes
TGA R4220 AC530U Cutting width CW (mm): 2.20 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4220 AC530U Cutting width CW (mm): 2.20 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4220 T2500Z Cutting width CW (mm): 2.20 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA L4220 T2500Z Cutting width CW (mm): 2.20 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA R4220E T1500A Cutting width CW (mm): 2.20 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA L4220E T1500A Cutting width CW (mm): 2.20 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA R4230 AC530U Cutting width CW (mm): 2.30 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4230 AC530U Cutting width CW (mm): 2.30 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4230 H1 Cutting width CW (mm): 2.30 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA L4230 H1 Cutting width CW (mm): 2.30 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA R4230 T2500Z Cutting width CW (mm): 2.30 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA L4230 T2500Z Cutting width CW (mm): 2.30 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA R4230E T1500A Cutting width CW (mm): 2.30 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA L4230E T1500A Cutting width CW (mm): 2.30 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA R4250 AC530U Cutting width CW (mm): 2.50 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4250 AC530U Cutting width CW (mm): 2.50 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4250 H1 Cutting width CW (mm): 2.50 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA L4250 H1 Cutting width CW (mm): 2.50 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA R4250 T2500Z Cutting width CW (mm): 2.50 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA L4250 T2500Z Cutting width CW (mm): 2.50 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA R4250E T1500A Cutting width CW (mm): 2.50 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA L4250E T1500A Cutting width CW (mm): 2.50 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA R4250 BN2000 Cutting width CW (mm): 2.50 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: BN2000 | Stock: Yes
TGA R4250 DA2200 Cutting width CW (mm): 2.50 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: DA2200 | Stock: Yes
TGA R4265 AC530U Cutting width CW (mm): 2.65 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4265 AC530U Cutting width CW (mm): 2.65 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4265 H1 Cutting width CW (mm): 2.65 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA L4265 H1 Cutting width CW (mm): 2.65 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA R4265 T2500Z Cutting width CW (mm): 2.65 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA L4265 T2500Z Cutting width CW (mm): 2.65 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA R4265E T1500A Cutting width CW (mm): 2.65 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA L4265E T1500A Cutting width CW (mm): 2.65 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA R4270 AC530U Cutting width CW (mm): 2.70 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4270 AC530U Cutting width CW (mm): 2.70 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4270 T2500Z Cutting width CW (mm): 2.70 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA L4270 T2500Z Cutting width CW (mm): 2.70 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA R4270E T1500A Cutting width CW (mm): 2.70 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA L4270E T1500A Cutting width CW (mm): 2.70 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA R4280 AC530U Cutting width CW (mm): 2.80 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4280 AC530U Cutting width CW (mm): 2.80 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4280 H1 Cutting width CW (mm): 2.80 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA L4280 H1 Cutting width CW (mm): 2.80 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA R4280 T2500Z Cutting width CW (mm): 2.80 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA L4280 T2500Z Cutting width CW (mm): 2.80 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA R4280E T1500A Cutting width CW (mm): 2.80 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA L4280E T1500A Cutting width CW (mm): 2.80 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA R4300 AC530U Cutting width CW (mm): 3.00 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4300 AC530U Cutting width CW (mm): 3.00 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4300 H1 Cutting width CW (mm): 3.00 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA L4300 H1 Cutting width CW (mm): 3.00 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA R4300 T2500Z Cutting width CW (mm): 3.00 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA L4300 T2500Z Cutting width CW (mm): 3.00 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA R4300E T1500A Cutting width CW (mm): 3.00 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA L4300E T1500A Cutting width CW (mm): 3.00 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA R4300 BN2000 Cutting width CW (mm): 3.00 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: BN2000 | Stock: Yes
TGA R4300 DA2200 Cutting width CW (mm): 3.00 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: DA2200 | Stock: Yes
TGA R4320 AC530U Cutting width CW (mm): 3.20 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4320 AC530U Cutting width CW (mm): 3.20 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4320 T2500Z Cutting width CW (mm): 3.20 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA L4320 T2500Z Cutting width CW (mm): 3.20 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA R4320E T1500A Cutting width CW (mm): 3.20 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA L4320E T1500A Cutting width CW (mm): 3.20 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA R4330 AC530U Cutting width CW (mm): 3.30 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4330 AC530U Cutting width CW (mm): 3.30 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4330 H1 Cutting width CW (mm): 3.30 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA L4330 H1 Cutting width CW (mm): 3.30 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA R4330 T2500Z Cutting width CW (mm): 3.30 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA L4330 T2500Z Cutting width CW (mm): 3.30 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA R4330E T1500A Cutting width CW (mm): 3.30 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA L4330E T1500A Cutting width CW (mm): 3.30 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA R4350 AC530U Cutting width CW (mm): 3.50 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4350 AC530U Cutting width CW (mm): 3.50 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4350 H1 Cutting width CW (mm): 3.50 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA L4350 H1 Cutting width CW (mm): 3.50 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA R4350 T2500Z Cutting width CW (mm): 3.50 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA L4350 T2500Z Cutting width CW (mm): 3.50 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA R4350E T1500A Cutting width CW (mm): 3.50 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA L4350E T1500A Cutting width CW (mm): 3.50 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA R4350 BN2000 Cutting width CW (mm): 3.50 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: BN2000 | Stock: Yes
TGA R4350 DA2200 Cutting width CW (mm): 3.50 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: DA2200 | Stock: Yes
TGA R4370 AC530U Cutting width CW (mm): 3.70 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4370 AC530U Cutting width CW (mm): 3.70 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4370 T2500Z Cutting width CW (mm): 3.70 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA L4370 T2500Z Cutting width CW (mm): 3.70 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA R4370E T1500A Cutting width CW (mm): 3.70 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA L4370E T1500A Cutting width CW (mm): 3.70 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA R4390 AC530U Cutting width CW (mm): 3.90 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4390 AC530U Cutting width CW (mm): 3.90 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4390 T2500Z Cutting width CW (mm): 3.90 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA L4390 T2500Z Cutting width CW (mm): 3.90 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA R4390E T1500A Cutting width CW (mm): 3.90 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA L4390E T1500A Cutting width CW (mm): 3.90 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA R4400 AC530U Cutting width CW (mm): 4.00 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4400 AC530U Cutting width CW (mm): 4.00 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4400 H1 Cutting width CW (mm): 4.00 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA L4400 H1 Cutting width CW (mm): 4.00 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA R4400 T2500Z Cutting width CW (mm): 4.00 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA L4400 T2500Z Cutting width CW (mm): 4.00 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA R4400E T1500A Cutting width CW (mm): 4.00 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA L4400E T1500A Cutting width CW (mm): 4.00 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA R4400 BN2000 Cutting width CW (mm): 4.00 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: BN2000 | Stock: Yes
TGA R4400 DA2200 Cutting width CW (mm): 4.00 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: DA2200 | Stock: Yes
TGA R4410 AC530U Cutting width CW (mm): 4.10 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4410 AC530U Cutting width CW (mm): 4.10 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4410 T2500Z Cutting width CW (mm): 4.10 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA L4410 T2500Z Cutting width CW (mm): 4.10 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA R4410E T1500A Cutting width CW (mm): 4.10 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA L4410E T1500A Cutting width CW (mm): 4.10 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA R4420 AC530U Cutting width CW (mm): 4.20 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4420 AC530U Cutting width CW (mm): 4.20 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4420 T2500Z Cutting width CW (mm): 4.20 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA L4420 T2500Z Cutting width CW (mm): 4.20 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA R4420E T1500A Cutting width CW (mm): 4.20 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA L4420E T1500A Cutting width CW (mm): 4.20 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA R4430 AC530U Cutting width CW (mm): 4.30 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4430 AC530U Cutting width CW (mm): 4.30 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4430 H1 Cutting width CW (mm): 4.30 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA L4430 H1 Cutting width CW (mm): 4.30 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA R4430 T2500Z Cutting width CW (mm): 4.30 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA L4430 T2500Z Cutting width CW (mm): 4.30 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA R4430E T1500A Cutting width CW (mm): 4.30 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA L4430E T1500A Cutting width CW (mm): 4.30 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA R4440 AC530U Cutting width CW (mm): 4.40 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4440 AC530U Cutting width CW (mm): 4.40 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4440 T2500Z Cutting width CW (mm): 4.40 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA L4440 T2500Z Cutting width CW (mm): 4.40 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA R4440E T1500A Cutting width CW (mm): 4.40 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA L4440E T1500A Cutting width CW (mm): 4.40 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA R4450 AC530U Cutting width CW (mm): 4.50 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4450 AC530U Cutting width CW (mm): 4.50 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4450 H1 Cutting width CW (mm): 4.50 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA L4450 H1 Cutting width CW (mm): 4.50 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA R4450 T2500Z Cutting width CW (mm): 4.50 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA L4450 T2500Z Cutting width CW (mm): 4.50 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA R4450E T1500A Cutting width CW (mm): 4.50 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA L4450E T1500A Cutting width CW (mm): 4.50 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA R4480 AC530U Cutting width CW (mm): 4.80 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 5.00 | Grade: AC530U | Stock: Yes
TGA L4480 AC530U Cutting width CW (mm): 4.80 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 5.00 | Grade: AC530U | Stock: Yes
TGA R4480 H1 Cutting width CW (mm): 4.80 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 5.00 | Grade: H1 | Stock: Yes
TGA L4480 H1 Cutting width CW (mm): 4.80 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 5.00 | Grade: H1 | Stock: Yes
TGA R4480 T2500Z Cutting width CW (mm): 4.80 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 5.00 | Grade: T2500Z | Stock: Yes
TGA L4480 T2500Z Cutting width CW (mm): 4.80 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 5.00 | Grade: T2500Z | Stock: Yes
TGA R4480E T1500A Cutting width CW (mm): 4.80 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 5.00 | Grade: T1500A | Stock: Yes
TGA L4480E T1500A Cutting width CW (mm): 4.80 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 5.00 | Grade: T1500A | Stock: Yes
Grooving InsertsSumitomo Electric Hardmetal
422 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal TGA Grooving Insert for GWC Holders

Brand Sumitomo Electric Hardmetal·Grooving Inserts

Available part numbers (422)

TGA R3033 AC530U, TGA L3033 AC530U, TGA R3033 H1, TGA L3033 H1, TGA R3033 T2500Z, TGA L3033 T2500Z, TGA R3033E T1500A, TGA L3033E T1500A, TGA R3043 AC530U, TGA L3043 AC530U + 412 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TGA R3033 AC530UCutting width CW (mm): 0.33 | Max cutting depth CDX3 external (mm): 0.8 | Max cutting depth CDX3 internal (mm): 0.5 | Corner radius RE (mm): 0.05 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA L3033 AC530UCutting width CW (mm): 0.33 | Max cutting depth CDX3 external (mm): 0.8 | Max cutting depth CDX3 internal (mm): 0.5 | Corner radius RE (mm): 0.05 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA R3033 H1Cutting width CW (mm): 0.33 | Max cutting depth CDX3 external (mm): 0.8 | Max cutting depth CDX3 internal (mm): 0.5 | Corner radius RE (mm): 0.05 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: H1 | Stock: Yes
TGA L3033 H1Cutting width CW (mm): 0.33 | Max cutting depth CDX3 external (mm): 0.8 | Max cutting depth CDX3 internal (mm): 0.5 | Corner radius RE (mm): 0.05 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: H1 | Stock: Yes
TGA R3033 T2500ZCutting width CW (mm): 0.33 | Max cutting depth CDX3 external (mm): 0.8 | Max cutting depth CDX3 internal (mm): 0.5 | Corner radius RE (mm): 0.05 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T2500Z | Stock: Yes
TGA L3033 T2500ZCutting width CW (mm): 0.33 | Max cutting depth CDX3 external (mm): 0.8 | Max cutting depth CDX3 internal (mm): 0.5 | Corner radius RE (mm): 0.05 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T2500Z | Stock: Yes
TGA R3033E T1500ACutting width CW (mm): 0.33 | Max cutting depth CDX3 external (mm): 0.8 | Max cutting depth CDX3 internal (mm): 0.5 | Corner radius RE (mm): 0.05 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA L3033E T1500ACutting width CW (mm): 0.33 | Max cutting depth CDX3 external (mm): 0.8 | Max cutting depth CDX3 internal (mm): 0.5 | Corner radius RE (mm): 0.05 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA R3043 AC530UCutting width CW (mm): 0.43 | Max cutting depth CDX3 external (mm): 0.8 | Max cutting depth CDX3 internal (mm): 0.5 | Corner radius RE (mm): 0.05 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA L3043 AC530UCutting width CW (mm): 0.43 | Max cutting depth CDX3 external (mm): 0.8 | Max cutting depth CDX3 internal (mm): 0.5 | Corner radius RE (mm): 0.05 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA R3043E T1500ACutting width CW (mm): 0.43 | Max cutting depth CDX3 external (mm): 0.8 | Max cutting depth CDX3 internal (mm): 0.5 | Corner radius RE (mm): 0.05 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA L3043E T1500ACutting width CW (mm): 0.43 | Max cutting depth CDX3 external (mm): 0.8 | Max cutting depth CDX3 internal (mm): 0.5 | Corner radius RE (mm): 0.05 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA R3050 AC530UCutting width CW (mm): 0.50 | Max cutting depth CDX3 external (mm): 1.2 | Max cutting depth CDX3 internal (mm): 0.8 | Corner radius RE (mm): 0.05 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA L3050 AC530UCutting width CW (mm): 0.50 | Max cutting depth CDX3 external (mm): 1.2 | Max cutting depth CDX3 internal (mm): 0.8 | Corner radius RE (mm): 0.05 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA R3050 H1Cutting width CW (mm): 0.50 | Max cutting depth CDX3 external (mm): 1.2 | Max cutting depth CDX3 internal (mm): 0.8 | Corner radius RE (mm): 0.05 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: H1 | Stock: Yes
TGA L3050 H1Cutting width CW (mm): 0.50 | Max cutting depth CDX3 external (mm): 1.2 | Max cutting depth CDX3 internal (mm): 0.8 | Corner radius RE (mm): 0.05 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: H1 | Stock: Yes
TGA R3050 DL1500Cutting width CW (mm): 0.50 | Max cutting depth CDX3 external (mm): 1.2 | Max cutting depth CDX3 internal (mm): 0.8 | Corner radius RE (mm): 0.05 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: DL1500 | Stock: Yes
TGA L3050 DL1500Cutting width CW (mm): 0.50 | Max cutting depth CDX3 external (mm): 1.2 | Max cutting depth CDX3 internal (mm): 0.8 | Corner radius RE (mm): 0.05 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: DL1500 | Stock: Yes
TGA R3050 T2500ZCutting width CW (mm): 0.50 | Max cutting depth CDX3 external (mm): 1.2 | Max cutting depth CDX3 internal (mm): 0.8 | Corner radius RE (mm): 0.05 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T2500Z | Stock: Yes
TGA L3050 T2500ZCutting width CW (mm): 0.50 | Max cutting depth CDX3 external (mm): 1.2 | Max cutting depth CDX3 internal (mm): 0.8 | Corner radius RE (mm): 0.05 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T2500Z | Stock: Yes
TGA R3050E T1500ACutting width CW (mm): 0.50 | Max cutting depth CDX3 external (mm): 1.2 | Max cutting depth CDX3 internal (mm): 0.8 | Corner radius RE (mm): 0.05 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA L3050E T1500ACutting width CW (mm): 0.50 | Max cutting depth CDX3 external (mm): 1.2 | Max cutting depth CDX3 internal (mm): 0.8 | Corner radius RE (mm): 0.05 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA R3053 AC530UCutting width CW (mm): 0.53 | Max cutting depth CDX3 external (mm): 1.2 | Max cutting depth CDX3 internal (mm): 0.8 | Corner radius RE (mm): 0.05 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA L3053 AC530UCutting width CW (mm): 0.53 | Max cutting depth CDX3 external (mm): 1.2 | Max cutting depth CDX3 internal (mm): 0.8 | Corner radius RE (mm): 0.05 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA R3053E T1500ACutting width CW (mm): 0.53 | Max cutting depth CDX3 external (mm): 1.2 | Max cutting depth CDX3 internal (mm): 0.8 | Corner radius RE (mm): 0.05 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA L3053E T1500ACutting width CW (mm): 0.53 | Max cutting depth CDX3 external (mm): 1.2 | Max cutting depth CDX3 internal (mm): 0.8 | Corner radius RE (mm): 0.05 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA R3065 AC530UCutting width CW (mm): 0.65 | Max cutting depth CDX3 external (mm): 1.2 | Max cutting depth CDX3 internal (mm): 0.8 | Corner radius RE (mm): 0.05 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA L3065 AC530UCutting width CW (mm): 0.65 | Max cutting depth CDX3 external (mm): 1.2 | Max cutting depth CDX3 internal (mm): 0.8 | Corner radius RE (mm): 0.05 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA R3065E T1500ACutting width CW (mm): 0.65 | Max cutting depth CDX3 external (mm): 1.2 | Max cutting depth CDX3 internal (mm): 0.8 | Corner radius RE (mm): 0.05 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA L3065E T1500ACutting width CW (mm): 0.65 | Max cutting depth CDX3 external (mm): 1.2 | Max cutting depth CDX3 internal (mm): 0.8 | Corner radius RE (mm): 0.05 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA R3075 AC530UCutting width CW (mm): 0.75 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA L3075 AC530UCutting width CW (mm): 0.75 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA R3075 H1Cutting width CW (mm): 0.75 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: H1 | Stock: Yes
TGA L3075 H1Cutting width CW (mm): 0.75 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: H1 | Stock: Yes
TGA R3075 DL1500Cutting width CW (mm): 0.75 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: DL1500 | Stock: Yes
TGA L3075 DL1500Cutting width CW (mm): 0.75 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: DL1500 | Stock: Yes
TGA R3075 T2500ZCutting width CW (mm): 0.75 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T2500Z | Stock: Yes
TGA L3075 T2500ZCutting width CW (mm): 0.75 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T2500Z | Stock: Yes
TGA R3075E T1500ACutting width CW (mm): 0.75 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA L3075E T1500ACutting width CW (mm): 0.75 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA R3080 AC530UCutting width CW (mm): 0.80 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA L3080 AC530UCutting width CW (mm): 0.80 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA R3080E T1500ACutting width CW (mm): 0.80 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA L3080E T1500ACutting width CW (mm): 0.80 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA R3095 AC530UCutting width CW (mm): 0.95 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA L3095 AC530UCutting width CW (mm): 0.95 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA R3095 H1Cutting width CW (mm): 0.95 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: H1 | Stock: Yes
TGA L3095 H1Cutting width CW (mm): 0.95 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: H1 | Stock: Yes
TGA R3095 T2500ZCutting width CW (mm): 0.95 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T2500Z | Stock: Yes
TGA L3095 T2500ZCutting width CW (mm): 0.95 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T2500Z | Stock: Yes
TGA R3095E T1500ACutting width CW (mm): 0.95 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA L3095E T1500ACutting width CW (mm): 0.95 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA R3100 AC5015SCutting width CW (mm): 1.00 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC5015S | Stock: Yes
TGA L3100 AC5015SCutting width CW (mm): 1.00 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC5015S | Stock: Yes
TGA R3100 AC5025SCutting width CW (mm): 1.00 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC5025S | Stock: Yes
TGA L3100 AC5025SCutting width CW (mm): 1.00 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC5025S | Stock: Yes
TGA R3100 AC530UCutting width CW (mm): 1.00 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA L3100 AC530UCutting width CW (mm): 1.00 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA R3100 H1Cutting width CW (mm): 1.00 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: H1 | Stock: Yes
TGA L3100 H1Cutting width CW (mm): 1.00 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: H1 | Stock: Yes
TGA R3100 DL1500Cutting width CW (mm): 1.00 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: DL1500 | Stock: Yes
TGA L3100 DL1500Cutting width CW (mm): 1.00 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: DL1500 | Stock: Yes
TGA R3100 T2500ZCutting width CW (mm): 1.00 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T2500Z | Stock: Yes
TGA L3100 T2500ZCutting width CW (mm): 1.00 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T2500Z | Stock: Yes
TGA R3100E T1500ACutting width CW (mm): 1.00 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA L3100E T1500ACutting width CW (mm): 1.00 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA R3110 AC5015SCutting width CW (mm): 1.10 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC5015S | Stock: Yes
TGA L3110 AC5015SCutting width CW (mm): 1.10 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC5015S | Stock: Yes
TGA R3110 AC5025SCutting width CW (mm): 1.10 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC5025S | Stock: Yes
TGA L3110 AC5025SCutting width CW (mm): 1.10 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC5025S | Stock: Yes
TGA R3110 AC530UCutting width CW (mm): 1.10 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA L3110 AC530UCutting width CW (mm): 1.10 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA R3110 T2500ZCutting width CW (mm): 1.10 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T2500Z | Stock: Yes
TGA L3110 T2500ZCutting width CW (mm): 1.10 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T2500Z | Stock: Yes
TGA R3110E T1500ACutting width CW (mm): 1.10 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA L3110E T1500ACutting width CW (mm): 1.10 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA R3120 AC530UCutting width CW (mm): 1.20 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA L3120 AC530UCutting width CW (mm): 1.20 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA R3120E T1500ACutting width CW (mm): 1.20 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA L3120E T1500ACutting width CW (mm): 1.20 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA R3125 AC5015SCutting width CW (mm): 1.25 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC5015S | Stock: Yes
TGA L3125 AC5015SCutting width CW (mm): 1.25 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC5015S | Stock: Yes
TGA R3125 AC5025SCutting width CW (mm): 1.25 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC5025S | Stock: Yes
TGA L3125 AC5025SCutting width CW (mm): 1.25 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC5025S | Stock: Yes
TGA R3125 AC530UCutting width CW (mm): 1.25 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA L3125 AC530UCutting width CW (mm): 1.25 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA R3125 H1Cutting width CW (mm): 1.25 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: H1 | Stock: Yes
TGA L3125 H1Cutting width CW (mm): 1.25 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: H1 | Stock: Yes
TGA R3125 DL1500Cutting width CW (mm): 1.25 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: DL1500 | Stock: Yes
TGA L3125 DL1500Cutting width CW (mm): 1.25 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: DL1500 | Stock: Yes
TGA R3125 T2500ZCutting width CW (mm): 1.25 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T2500Z | Stock: Yes
TGA L3125 T2500ZCutting width CW (mm): 1.25 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T2500Z | Stock: Yes
TGA R3125E T1500ACutting width CW (mm): 1.25 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA L3125E T1500ACutting width CW (mm): 1.25 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA R3130 AC530UCutting width CW (mm): 1.30 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA L3130 AC530UCutting width CW (mm): 1.30 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA R3130E T1500ACutting width CW (mm): 1.30 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA L3130E T1500ACutting width CW (mm): 1.30 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA R3135 AC530UCutting width CW (mm): 1.35 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA L3135 AC530UCutting width CW (mm): 1.35 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA R3135 T2500ZCutting width CW (mm): 1.35 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T2500Z | Stock: Yes
TGA L3135 T2500ZCutting width CW (mm): 1.35 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T2500Z | Stock: Yes
TGA R3135E T1500ACutting width CW (mm): 1.35 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA L3135E T1500ACutting width CW (mm): 1.35 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA R3140 AC530UCutting width CW (mm): 1.40 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA L3140 AC530UCutting width CW (mm): 1.40 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA R3140E T1500ACutting width CW (mm): 1.40 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA L3140E T1500ACutting width CW (mm): 1.40 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA R3145 AC530UCutting width CW (mm): 1.45 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA L3145 AC530UCutting width CW (mm): 1.45 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA R3145 H1Cutting width CW (mm): 1.45 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: H1 | Stock: Yes
TGA L3145 H1Cutting width CW (mm): 1.45 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: H1 | Stock: Yes
TGA R3145 T2500ZCutting width CW (mm): 1.45 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T2500Z | Stock: Yes
TGA L3145 T2500ZCutting width CW (mm): 1.45 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T2500Z | Stock: Yes
TGA R3145E T1500ACutting width CW (mm): 1.45 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA L3145E T1500ACutting width CW (mm): 1.45 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA R3150 AC5015SCutting width CW (mm): 1.50 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC5015S | Stock: Yes
TGA L3150 AC5015SCutting width CW (mm): 1.50 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC5015S | Stock: Yes
TGA R3150 AC5025SCutting width CW (mm): 1.50 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC5025S | Stock: Yes
TGA L3150 AC5025SCutting width CW (mm): 1.50 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC5025S | Stock: Yes
TGA R3150 AC530UCutting width CW (mm): 1.50 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA L3150 AC530UCutting width CW (mm): 1.50 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA R3150 H1Cutting width CW (mm): 1.50 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: H1 | Stock: Yes
TGA L3150 H1Cutting width CW (mm): 1.50 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: H1 | Stock: Yes
TGA R3150 DL1500Cutting width CW (mm): 1.50 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: DL1500 | Stock: Yes
TGA L3150 DL1500Cutting width CW (mm): 1.50 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: DL1500 | Stock: Yes
TGA R3150 T2500ZCutting width CW (mm): 1.50 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T2500Z | Stock: Yes
TGA L3150 T2500ZCutting width CW (mm): 1.50 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T2500Z | Stock: Yes
TGA R3150E T1500ACutting width CW (mm): 1.50 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA L3150E T1500ACutting width CW (mm): 1.50 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA R3160 AC530UCutting width CW (mm): 1.60 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA L3160 AC530UCutting width CW (mm): 1.60 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA R3160E T1500ACutting width CW (mm): 1.60 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA L3160E T1500ACutting width CW (mm): 1.60 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA R3165 AC530UCutting width CW (mm): 1.65 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA L3165 AC530UCutting width CW (mm): 1.65 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA R3165 T2500ZCutting width CW (mm): 1.65 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T2500Z | Stock: Yes
TGA L3165 T2500ZCutting width CW (mm): 1.65 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T2500Z | Stock: Yes
TGA R3165E T1500ACutting width CW (mm): 1.65 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA L3165E T1500ACutting width CW (mm): 1.65 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA R3175 AC530UCutting width CW (mm): 1.75 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA L3175 AC530UCutting width CW (mm): 1.75 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA R3175 T2500ZCutting width CW (mm): 1.75 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T2500Z | Stock: Yes
TGA L3175 T2500ZCutting width CW (mm): 1.75 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T2500Z | Stock: Yes
TGA R3175E T1500ACutting width CW (mm): 1.75 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA L3175E T1500ACutting width CW (mm): 1.75 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA R3185 AC530UCutting width CW (mm): 1.85 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA L3185 AC530UCutting width CW (mm): 1.85 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA R3185 H1Cutting width CW (mm): 1.85 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: H1 | Stock: Yes
TGA L3185 H1Cutting width CW (mm): 1.85 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: H1 | Stock: Yes
TGA R3185 T2500ZCutting width CW (mm): 1.85 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T2500Z | Stock: Yes
TGA L3185 T2500ZCutting width CW (mm): 1.85 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T2500Z | Stock: Yes
TGA R3185E T1500ACutting width CW (mm): 1.85 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA L3185E T1500ACutting width CW (mm): 1.85 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.5 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA R3200 AC5015SCutting width CW (mm): 2.00 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC5015S | Stock: Yes
TGA L3200 AC5015SCutting width CW (mm): 2.00 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC5015S | Stock: Yes
TGA R3200 AC5025SCutting width CW (mm): 2.00 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC5025S | Stock: Yes
TGA L3200 AC5025SCutting width CW (mm): 2.00 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC5025S | Stock: Yes
TGA R3200 AC530UCutting width CW (mm): 2.00 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA L3200 AC530UCutting width CW (mm): 2.00 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA R3200 H1Cutting width CW (mm): 2.00 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: H1 | Stock: Yes
TGA L3200 H1Cutting width CW (mm): 2.00 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: H1 | Stock: Yes
TGA R3200 DL1500Cutting width CW (mm): 2.00 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: DL1500 | Stock: Yes
TGA L3200 DL1500Cutting width CW (mm): 2.00 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: DL1500 | Stock: Yes
TGA R3200 T2500ZCutting width CW (mm): 2.00 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T2500Z | Stock: Yes
TGA L3200 T2500ZCutting width CW (mm): 2.00 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T2500Z | Stock: Yes
TGA R3200E T1500ACutting width CW (mm): 2.00 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA L3200E T1500ACutting width CW (mm): 2.00 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA R3220 AC530UCutting width CW (mm): 2.20 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA L3220 AC530UCutting width CW (mm): 2.20 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA R3220 T2500ZCutting width CW (mm): 2.20 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T2500Z | Stock: Yes
TGA L3220 T2500ZCutting width CW (mm): 2.20 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T2500Z | Stock: Yes
TGA R3220E T1500ACutting width CW (mm): 2.20 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA L3220E T1500ACutting width CW (mm): 2.20 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA R3230 AC530UCutting width CW (mm): 2.30 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA L3230 AC530UCutting width CW (mm): 2.30 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA R3230 H1Cutting width CW (mm): 2.30 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: H1 | Stock: Yes
TGA L3230 H1Cutting width CW (mm): 2.30 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: H1 | Stock: Yes
TGA R3230 T2500ZCutting width CW (mm): 2.30 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T2500Z | Stock: Yes
TGA L3230 T2500ZCutting width CW (mm): 2.30 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T2500Z | Stock: Yes
TGA R3230E T1500ACutting width CW (mm): 2.30 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA L3230E T1500ACutting width CW (mm): 2.30 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA R3250 AC530UCutting width CW (mm): 2.50 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA L3250 AC530UCutting width CW (mm): 2.50 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA R3250 H1Cutting width CW (mm): 2.50 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: H1 | Stock: Yes
TGA L3250 H1Cutting width CW (mm): 2.50 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: H1 | Stock: Yes
TGA R3250 T2500ZCutting width CW (mm): 2.50 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T2500Z | Stock: Yes
TGA L3250 T2500ZCutting width CW (mm): 2.50 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T2500Z | Stock: Yes
TGA R3250E T1500ACutting width CW (mm): 2.50 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA L3250E T1500ACutting width CW (mm): 2.50 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA R3265 AC530UCutting width CW (mm): 2.65 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA L3265 AC530UCutting width CW (mm): 2.65 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA R3265 T2500ZCutting width CW (mm): 2.65 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T2500Z | Stock: Yes
TGA L3265 T2500ZCutting width CW (mm): 2.65 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T2500Z | Stock: Yes
TGA R3265E T1500ACutting width CW (mm): 2.65 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA L3265E T1500ACutting width CW (mm): 2.65 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA R3270 AC530UCutting width CW (mm): 2.70 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA L3270 AC530UCutting width CW (mm): 2.70 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA R3270 T2500ZCutting width CW (mm): 2.70 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T2500Z | Stock: Yes
TGA L3270 T2500ZCutting width CW (mm): 2.70 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T2500Z | Stock: Yes
TGA R3270E T1500ACutting width CW (mm): 2.70 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA L3270E T1500ACutting width CW (mm): 2.70 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA R3280 AC530UCutting width CW (mm): 2.80 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA L3280 AC530UCutting width CW (mm): 2.80 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA R3280 T2500ZCutting width CW (mm): 2.80 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T2500Z | Stock: Yes
TGA L3280 T2500ZCutting width CW (mm): 2.80 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T2500Z | Stock: Yes
TGA R3280E T1500ACutting width CW (mm): 2.80 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA L3280E T1500ACutting width CW (mm): 2.80 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA R3300 AC5015SCutting width CW (mm): 3.00 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC5015S | Stock: Yes
TGA L3300 AC5015SCutting width CW (mm): 3.00 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC5015S | Stock: Yes
TGA R3300 AC5025SCutting width CW (mm): 3.00 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC5025S | Stock: Yes
TGA L3300 AC5025SCutting width CW (mm): 3.00 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC5025S | Stock: Yes
TGA R3300 AC530UCutting width CW (mm): 3.00 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA L3300 AC530UCutting width CW (mm): 3.00 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: AC530U | Stock: Yes
TGA R3300 DL1500Cutting width CW (mm): 3.00 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: DL1500 | Stock: Yes
TGA L3300 DL1500Cutting width CW (mm): 3.00 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: DL1500 | Stock: Yes
TGA R3300E T1500ACutting width CW (mm): 3.00 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA L3300E T1500ACutting width CW (mm): 3.00 | Max cutting depth CDX3 external (mm): 2.5 | Max cutting depth CDX3 internal (mm): 2.0 | Corner radius RE (mm): 0.1 | Inscribed circle IC (mm): 9.525 | Thickness S (mm): 3.18 | Grade: T1500A | Stock: Yes
TGA R4125 AC530UCutting width CW (mm): 1.25 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.7 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4125 AC530UCutting width CW (mm): 1.25 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.7 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4125 H1Cutting width CW (mm): 1.25 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.7 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA L4125 H1Cutting width CW (mm): 1.25 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.7 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA R4125 T2500ZCutting width CW (mm): 1.25 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.7 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA L4125 T2500ZCutting width CW (mm): 1.25 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.7 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA R4125E T1500ACutting width CW (mm): 1.25 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.7 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA L4125E T1500ACutting width CW (mm): 1.25 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.7 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA R4125 BN2000Cutting width CW (mm): 1.25 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.7 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: BN2000 | Stock: Yes
TGA R4125 DA2200Cutting width CW (mm): 1.25 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.7 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: DA2200 | Stock: Yes
TGA R4145 AC530UCutting width CW (mm): 1.45 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.7 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4145 AC530UCutting width CW (mm): 1.45 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.7 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4145 H1Cutting width CW (mm): 1.45 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.7 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA L4145 H1Cutting width CW (mm): 1.45 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.7 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA R4145 T2500ZCutting width CW (mm): 1.45 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.7 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA L4145 T2500ZCutting width CW (mm): 1.45 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.7 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA R4145E T1500ACutting width CW (mm): 1.45 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.7 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA L4145E T1500ACutting width CW (mm): 1.45 | Max cutting depth CDX3 external (mm): 2.0 | Max cutting depth CDX3 internal (mm): 1.7 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA R4150 AC530UCutting width CW (mm): 1.50 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4150 AC530UCutting width CW (mm): 1.50 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4150 H1Cutting width CW (mm): 1.50 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA L4150 H1Cutting width CW (mm): 1.50 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA R4150 T2500ZCutting width CW (mm): 1.50 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA L4150 T2500ZCutting width CW (mm): 1.50 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA R4150E T1500ACutting width CW (mm): 1.50 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA L4150E T1500ACutting width CW (mm): 1.50 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA R4150 BN2000Cutting width CW (mm): 1.50 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: BN2000 | Stock: Yes
TGA R4150 DA2200Cutting width CW (mm): 1.50 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: DA2200 | Stock: Yes
TGA R4165 AC530UCutting width CW (mm): 1.65 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4165 AC530UCutting width CW (mm): 1.65 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4165 T2500ZCutting width CW (mm): 1.65 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA L4165 T2500ZCutting width CW (mm): 1.65 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA R4165E T1500ACutting width CW (mm): 1.65 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA L4165E T1500ACutting width CW (mm): 1.65 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA R4175 AC530UCutting width CW (mm): 1.75 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4175 AC530UCutting width CW (mm): 1.75 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4175 H1Cutting width CW (mm): 1.75 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA L4175 H1Cutting width CW (mm): 1.75 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA R4175 T2500ZCutting width CW (mm): 1.75 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA L4175 T2500ZCutting width CW (mm): 1.75 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA R4175E T1500ACutting width CW (mm): 1.75 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA L4175E T1500ACutting width CW (mm): 1.75 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA R4185 AC530UCutting width CW (mm): 1.85 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4185 AC530UCutting width CW (mm): 1.85 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4185 H1Cutting width CW (mm): 1.85 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA L4185 H1Cutting width CW (mm): 1.85 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA R4185 T2500ZCutting width CW (mm): 1.85 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA L4185 T2500ZCutting width CW (mm): 1.85 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA R4185E T1500ACutting width CW (mm): 1.85 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA L4185E T1500ACutting width CW (mm): 1.85 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA R4200 AC530UCutting width CW (mm): 2.00 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4200 AC530UCutting width CW (mm): 2.00 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4200 H1Cutting width CW (mm): 2.00 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA L4200 H1Cutting width CW (mm): 2.00 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA R4200 T2500ZCutting width CW (mm): 2.00 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA L4200 T2500ZCutting width CW (mm): 2.00 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA R4200E T1500ACutting width CW (mm): 2.00 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA L4200E T1500ACutting width CW (mm): 2.00 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA R4200 BN2000Cutting width CW (mm): 2.00 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: BN2000 | Stock: Yes
TGA R4200 DA2200Cutting width CW (mm): 2.00 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: DA2200 | Stock: Yes
TGA R4220 AC530UCutting width CW (mm): 2.20 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4220 AC530UCutting width CW (mm): 2.20 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4220 T2500ZCutting width CW (mm): 2.20 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA L4220 T2500ZCutting width CW (mm): 2.20 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA R4220E T1500ACutting width CW (mm): 2.20 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA L4220E T1500ACutting width CW (mm): 2.20 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA R4230 AC530UCutting width CW (mm): 2.30 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4230 AC530UCutting width CW (mm): 2.30 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4230 H1Cutting width CW (mm): 2.30 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA L4230 H1Cutting width CW (mm): 2.30 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA R4230 T2500ZCutting width CW (mm): 2.30 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA L4230 T2500ZCutting width CW (mm): 2.30 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA R4230E T1500ACutting width CW (mm): 2.30 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA L4230E T1500ACutting width CW (mm): 2.30 | Max cutting depth CDX3 external (mm): 3.5 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.2 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA R4250 AC530UCutting width CW (mm): 2.50 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4250 AC530UCutting width CW (mm): 2.50 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4250 H1Cutting width CW (mm): 2.50 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA L4250 H1Cutting width CW (mm): 2.50 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA R4250 T2500ZCutting width CW (mm): 2.50 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA L4250 T2500ZCutting width CW (mm): 2.50 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA R4250E T1500ACutting width CW (mm): 2.50 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA L4250E T1500ACutting width CW (mm): 2.50 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA R4250 BN2000Cutting width CW (mm): 2.50 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: BN2000 | Stock: Yes
TGA R4250 DA2200Cutting width CW (mm): 2.50 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: DA2200 | Stock: Yes
TGA R4265 AC530UCutting width CW (mm): 2.65 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4265 AC530UCutting width CW (mm): 2.65 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4265 H1Cutting width CW (mm): 2.65 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA L4265 H1Cutting width CW (mm): 2.65 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA R4265 T2500ZCutting width CW (mm): 2.65 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA L4265 T2500ZCutting width CW (mm): 2.65 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA R4265E T1500ACutting width CW (mm): 2.65 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA L4265E T1500ACutting width CW (mm): 2.65 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA R4270 AC530UCutting width CW (mm): 2.70 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4270 AC530UCutting width CW (mm): 2.70 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4270 T2500ZCutting width CW (mm): 2.70 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA L4270 T2500ZCutting width CW (mm): 2.70 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA R4270E T1500ACutting width CW (mm): 2.70 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA L4270E T1500ACutting width CW (mm): 2.70 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA R4280 AC530UCutting width CW (mm): 2.80 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4280 AC530UCutting width CW (mm): 2.80 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4280 H1Cutting width CW (mm): 2.80 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA L4280 H1Cutting width CW (mm): 2.80 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA R4280 T2500ZCutting width CW (mm): 2.80 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA L4280 T2500ZCutting width CW (mm): 2.80 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA R4280E T1500ACutting width CW (mm): 2.80 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA L4280E T1500ACutting width CW (mm): 2.80 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA R4300 AC530UCutting width CW (mm): 3.00 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4300 AC530UCutting width CW (mm): 3.00 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4300 H1Cutting width CW (mm): 3.00 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA L4300 H1Cutting width CW (mm): 3.00 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA R4300 T2500ZCutting width CW (mm): 3.00 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA L4300 T2500ZCutting width CW (mm): 3.00 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA R4300E T1500ACutting width CW (mm): 3.00 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA L4300E T1500ACutting width CW (mm): 3.00 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA R4300 BN2000Cutting width CW (mm): 3.00 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: BN2000 | Stock: Yes
TGA R4300 DA2200Cutting width CW (mm): 3.00 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: DA2200 | Stock: Yes
TGA R4320 AC530UCutting width CW (mm): 3.20 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4320 AC530UCutting width CW (mm): 3.20 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4320 T2500ZCutting width CW (mm): 3.20 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA L4320 T2500ZCutting width CW (mm): 3.20 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA R4320E T1500ACutting width CW (mm): 3.20 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA L4320E T1500ACutting width CW (mm): 3.20 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA R4330 AC530UCutting width CW (mm): 3.30 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4330 AC530UCutting width CW (mm): 3.30 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4330 H1Cutting width CW (mm): 3.30 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA L4330 H1Cutting width CW (mm): 3.30 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA R4330 T2500ZCutting width CW (mm): 3.30 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA L4330 T2500ZCutting width CW (mm): 3.30 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA R4330E T1500ACutting width CW (mm): 3.30 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA L4330E T1500ACutting width CW (mm): 3.30 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA R4350 AC530UCutting width CW (mm): 3.50 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4350 AC530UCutting width CW (mm): 3.50 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4350 H1Cutting width CW (mm): 3.50 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA L4350 H1Cutting width CW (mm): 3.50 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA R4350 T2500ZCutting width CW (mm): 3.50 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA L4350 T2500ZCutting width CW (mm): 3.50 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA R4350E T1500ACutting width CW (mm): 3.50 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA L4350E T1500ACutting width CW (mm): 3.50 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA R4350 BN2000Cutting width CW (mm): 3.50 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: BN2000 | Stock: Yes
TGA R4350 DA2200Cutting width CW (mm): 3.50 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: DA2200 | Stock: Yes
TGA R4370 AC530UCutting width CW (mm): 3.70 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4370 AC530UCutting width CW (mm): 3.70 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4370 T2500ZCutting width CW (mm): 3.70 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA L4370 T2500ZCutting width CW (mm): 3.70 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA R4370E T1500ACutting width CW (mm): 3.70 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA L4370E T1500ACutting width CW (mm): 3.70 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA R4390 AC530UCutting width CW (mm): 3.90 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4390 AC530UCutting width CW (mm): 3.90 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4390 T2500ZCutting width CW (mm): 3.90 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA L4390 T2500ZCutting width CW (mm): 3.90 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA R4390E T1500ACutting width CW (mm): 3.90 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA L4390E T1500ACutting width CW (mm): 3.90 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.3 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA R4400 AC530UCutting width CW (mm): 4.00 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4400 AC530UCutting width CW (mm): 4.00 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4400 H1Cutting width CW (mm): 4.00 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA L4400 H1Cutting width CW (mm): 4.00 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA R4400 T2500ZCutting width CW (mm): 4.00 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA L4400 T2500ZCutting width CW (mm): 4.00 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA R4400E T1500ACutting width CW (mm): 4.00 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA L4400E T1500ACutting width CW (mm): 4.00 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA R4400 BN2000Cutting width CW (mm): 4.00 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: BN2000 | Stock: Yes
TGA R4400 DA2200Cutting width CW (mm): 4.00 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: DA2200 | Stock: Yes
TGA R4410 AC530UCutting width CW (mm): 4.10 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4410 AC530UCutting width CW (mm): 4.10 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4410 T2500ZCutting width CW (mm): 4.10 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA L4410 T2500ZCutting width CW (mm): 4.10 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA R4410E T1500ACutting width CW (mm): 4.10 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA L4410E T1500ACutting width CW (mm): 4.10 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA R4420 AC530UCutting width CW (mm): 4.20 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4420 AC530UCutting width CW (mm): 4.20 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4420 T2500ZCutting width CW (mm): 4.20 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA L4420 T2500ZCutting width CW (mm): 4.20 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA R4420E T1500ACutting width CW (mm): 4.20 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA L4420E T1500ACutting width CW (mm): 4.20 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA R4430 AC530UCutting width CW (mm): 4.30 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4430 AC530UCutting width CW (mm): 4.30 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4430 H1Cutting width CW (mm): 4.30 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA L4430 H1Cutting width CW (mm): 4.30 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA R4430 T2500ZCutting width CW (mm): 4.30 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA L4430 T2500ZCutting width CW (mm): 4.30 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA R4430E T1500ACutting width CW (mm): 4.30 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA L4430E T1500ACutting width CW (mm): 4.30 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA R4440 AC530UCutting width CW (mm): 4.40 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4440 AC530UCutting width CW (mm): 4.40 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4440 T2500ZCutting width CW (mm): 4.40 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA L4440 T2500ZCutting width CW (mm): 4.40 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA R4440E T1500ACutting width CW (mm): 4.40 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA L4440E T1500ACutting width CW (mm): 4.40 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA R4450 AC530UCutting width CW (mm): 4.50 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA L4450 AC530UCutting width CW (mm): 4.50 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: AC530U | Stock: Yes
TGA R4450 H1Cutting width CW (mm): 4.50 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA L4450 H1Cutting width CW (mm): 4.50 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: H1 | Stock: Yes
TGA R4450 T2500ZCutting width CW (mm): 4.50 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA L4450 T2500ZCutting width CW (mm): 4.50 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T2500Z | Stock: Yes
TGA R4450E T1500ACutting width CW (mm): 4.50 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA L4450E T1500ACutting width CW (mm): 4.50 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 4.76 | Grade: T1500A | Stock: Yes
TGA R4480 AC530UCutting width CW (mm): 4.80 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 5.00 | Grade: AC530U | Stock: Yes
TGA L4480 AC530UCutting width CW (mm): 4.80 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 5.00 | Grade: AC530U | Stock: Yes
TGA R4480 H1Cutting width CW (mm): 4.80 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 5.00 | Grade: H1 | Stock: Yes
TGA L4480 H1Cutting width CW (mm): 4.80 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 5.00 | Grade: H1 | Stock: Yes
TGA R4480 T2500ZCutting width CW (mm): 4.80 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 5.00 | Grade: T2500Z | Stock: Yes
TGA L4480 T2500ZCutting width CW (mm): 4.80 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 5.00 | Grade: T2500Z | Stock: Yes
TGA R4480E T1500ACutting width CW (mm): 4.80 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 5.00 | Grade: T1500A | Stock: Yes
TGA L4480E T1500ACutting width CW (mm): 4.80 | Max cutting depth CDX3 external (mm): 5.0 | Max cutting depth CDX3 internal (mm): 2.5 | Corner radius RE (mm): 0.4 | Inscribed circle IC (mm): 12.70 | Thickness S (mm): 5.00 | Grade: T1500A | Stock: Yes

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Cutting Tools →
