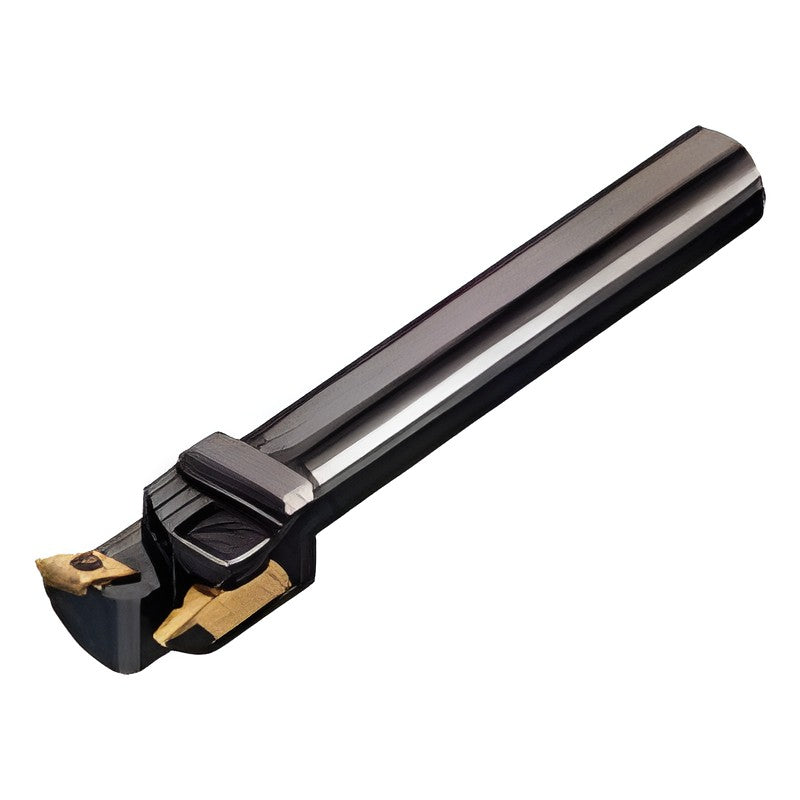

Sumitomo Electric Hardmetal Twin Head Holder CKBE (Internal + External)

Sumitomo Electric Hardmetal Twin Head Holder CKBE (Internal + External)

Twin head holder for small lathes: one holder performs internal and external turning, screw-on + clamp-on clamping.

Key features

  • Two operations with one holder
  • Edge height difference within 40 µm

Specifications

Length LF (mm) 130
Max. workpiece dia. (mm) 12.0
Insert (external) DC□□0702○○
S1588X-CKBE-06 Shank dia. DCON (mm): 15.875 | Height H (mm): 15 | Head length LH (mm): 27 | Depth CDX (mm): 6 | LH2 (mm): 10 | Insert (internal): KBMXR○○06-○○ KBMXR○○06-○○T | Stock: Yes
S16X-CKBE-06 Shank dia. DCON (mm): 16 | Height H (mm): 15 | Head length LH (mm): 27 | Depth CDX (mm): 6 | LH2 (mm): 10 | Insert (internal): KBMXR○○06-○○ KBMXR○○06-○○T | Stock: Yes
S1905X-CKBE-06 Shank dia. DCON (mm): 19.05 | Height H (mm): 17 | Head length LH (mm): 27 | Depth CDX (mm): 6 | LH2 (mm): 10 | Insert (internal): KBMXR○○06-○○ KBMXR○○06-○○T | Stock: Yes
S20X-CKBE-06 Shank dia. DCON (mm): 20 | Height H (mm): 18 | Head length LH (mm): 27 | Depth CDX (mm): 6 | LH2 (mm): 10 | Insert (internal): KBMXR○○06-○○ KBMXR○○06-○○T | Stock: Yes
S22X-CKBE-06 Shank dia. DCON (mm): 22 | Height H (mm): 20 | Head length LH (mm): 27 | Depth CDX (mm): 6 | LH2 (mm): 10 | Insert (internal): KBMXR○○06-○○ KBMXR○○06-○○T | Stock: Yes
S1588X-CKBE-11 Shank dia. DCON (mm): 15.875 | Height H (mm): 15 | Head length LH (mm): 32 | Depth CDX (mm): 11 | LH2 (mm): 15 | Insert (internal): KBMXR○○11-○○ KBMXR○○11-○○T | Stock: Yes
S16X-CKBE-11 Shank dia. DCON (mm): 16 | Height H (mm): 15 | Head length LH (mm): 32 | Depth CDX (mm): 11 | LH2 (mm): 15 | Insert (internal): KBMXR○○11-○○ KBMXR○○11-○○T | Stock: Yes
S1905X-CKBE-11 Shank dia. DCON (mm): 19.05 | Height H (mm): 17 | Head length LH (mm): 32 | Depth CDX (mm): 11 | LH2 (mm): 15 | Insert (internal): KBMXR○○11-○○ KBMXR○○11-○○T | Stock: Yes
S20X-CKBE-11 Shank dia. DCON (mm): 20 | Height H (mm): 18 | Head length LH (mm): 32 | Depth CDX (mm): 11 | LH2 (mm): 15 | Insert (internal): KBMXR○○11-○○ KBMXR○○11-○○T | Stock: Yes
S22X-CKBE-11 Shank dia. DCON (mm): 22 | Height H (mm): 20 | Head length LH (mm): 32 | Depth CDX (mm): 11 | LH2 (mm): 15 | Insert (internal): KBMXR○○11-○○ KBMXR○○11-○○T | Stock: Yes
Boring BarsSumitomo Electric Hardmetal
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal Twin Head Holder CKBE (Internal + External)

Brand Sumitomo Electric Hardmetal·Boring Bars

Available part numbers (10)

S1588X-CKBE-06, S16X-CKBE-06, S1905X-CKBE-06, S20X-CKBE-06, S22X-CKBE-06, S1588X-CKBE-11, S16X-CKBE-11, S1905X-CKBE-11, S20X-CKBE-11, S22X-CKBE-11

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
S1588X-CKBE-06Shank dia. DCON (mm): 15.875 | Height H (mm): 15 | Head length LH (mm): 27 | Depth CDX (mm): 6 | LH2 (mm): 10 | Insert (internal): KBMXR○○06-○○ KBMXR○○06-○○T | Stock: Yes
S16X-CKBE-06Shank dia. DCON (mm): 16 | Height H (mm): 15 | Head length LH (mm): 27 | Depth CDX (mm): 6 | LH2 (mm): 10 | Insert (internal): KBMXR○○06-○○ KBMXR○○06-○○T | Stock: Yes
S1905X-CKBE-06Shank dia. DCON (mm): 19.05 | Height H (mm): 17 | Head length LH (mm): 27 | Depth CDX (mm): 6 | LH2 (mm): 10 | Insert (internal): KBMXR○○06-○○ KBMXR○○06-○○T | Stock: Yes
S20X-CKBE-06Shank dia. DCON (mm): 20 | Height H (mm): 18 | Head length LH (mm): 27 | Depth CDX (mm): 6 | LH2 (mm): 10 | Insert (internal): KBMXR○○06-○○ KBMXR○○06-○○T | Stock: Yes
S22X-CKBE-06Shank dia. DCON (mm): 22 | Height H (mm): 20 | Head length LH (mm): 27 | Depth CDX (mm): 6 | LH2 (mm): 10 | Insert (internal): KBMXR○○06-○○ KBMXR○○06-○○T | Stock: Yes
S1588X-CKBE-11Shank dia. DCON (mm): 15.875 | Height H (mm): 15 | Head length LH (mm): 32 | Depth CDX (mm): 11 | LH2 (mm): 15 | Insert (internal): KBMXR○○11-○○ KBMXR○○11-○○T | Stock: Yes
S16X-CKBE-11Shank dia. DCON (mm): 16 | Height H (mm): 15 | Head length LH (mm): 32 | Depth CDX (mm): 11 | LH2 (mm): 15 | Insert (internal): KBMXR○○11-○○ KBMXR○○11-○○T | Stock: Yes
S1905X-CKBE-11Shank dia. DCON (mm): 19.05 | Height H (mm): 17 | Head length LH (mm): 32 | Depth CDX (mm): 11 | LH2 (mm): 15 | Insert (internal): KBMXR○○11-○○ KBMXR○○11-○○T | Stock: Yes
S20X-CKBE-11Shank dia. DCON (mm): 20 | Height H (mm): 18 | Head length LH (mm): 32 | Depth CDX (mm): 11 | LH2 (mm): 15 | Insert (internal): KBMXR○○11-○○ KBMXR○○11-○○T | Stock: Yes
S22X-CKBE-11Shank dia. DCON (mm): 22 | Height H (mm): 20 | Head length LH (mm): 32 | Depth CDX (mm): 11 | LH2 (mm): 15 | Insert (internal): KBMXR○○11-○○ KBMXR○○11-○○T | Stock: Yes
