• Sumitomo Electric Hardmetal Uncoated Anti-Vibration Radius End Mill for Difficult-to-Cut Materials SSEHVL4000-R
1 1

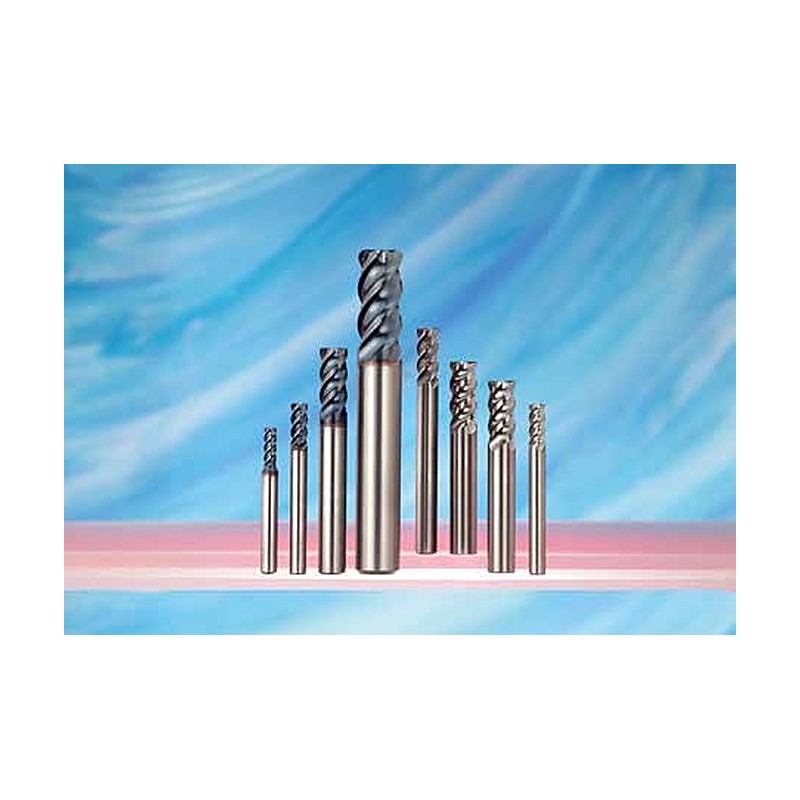

Sumitomo Electric Hardmetal Uncoated Anti-Vibration Radius End Mill for Difficult-to-Cut Materials SSEHVL4000-R

Sumitomo Electric Hardmetal Uncoated Anti-Vibration Radius End Mill for Difficult-to-Cut Materials SSEHVL4000-R

Uncoated 4-flute anti-vibration corner radius end mill for difficult-to-cut materials.

Key features

  • Unequal lead for anti-vibration effect
  • Non-coated type

Specifications

Flutes 4
Grade EH520
Workpiece Stainless steel, Ti alloy/heat-resistant alloy
SSEHVL4045-R05 DC (mm): 4.5 | RE (mm): 0.5 | APMX (mm): 12.0 | LU (mm): 14.5 | LF (mm): 50 | DMM (mm): 6 | Stock: Yes
SSEHVL4045-R10 DC (mm): 4.5 | RE (mm): 1.0 | APMX (mm): 12.0 | LU (mm): 14.5 | LF (mm): 50 | DMM (mm): 6 | Stock: Yes
SSEHVL4050-R05 DC (mm): 5.0 | RE (mm): 0.5 | APMX (mm): 13.0 | LU (mm): 15.5 | LF (mm): 60 | DMM (mm): 6 | Stock: Yes
SSEHVL4050-R10 DC (mm): 5.0 | RE (mm): 1.0 | APMX (mm): 13.0 | LU (mm): 15.5 | LF (mm): 60 | DMM (mm): 6 | Stock: Yes
SSEHVL4060-R10 DC (mm): 6.0 | RE (mm): 1.0 | APMX (mm): 13.0 | LF (mm): 60 | DMM (mm): 6 | Stock: Yes
SSEHVL4080-R10 DC (mm): 8.0 | RE (mm): 1.0 | APMX (mm): 19.0 | LF (mm): 80 | DMM (mm): 8 | Stock: Yes
SSEHVL4100-R10 DC (mm): 10.0 | RE (mm): 1.0 | APMX (mm): 22.0 | LF (mm): 90 | DMM (mm): 10 | Stock: Yes
SSEHVL4100-R30 DC (mm): 10.0 | RE (mm): 3.0 | APMX (mm): 22.0 | LF (mm): 90 | DMM (mm): 10 | Stock: Yes
SSEHVL4120-R10 DC (mm): 12.0 | RE (mm): 1.0 | APMX (mm): 26.0 | LF (mm): 90 | DMM (mm): 12 | Stock: Yes
SSEHVL4120-R30 DC (mm): 12.0 | RE (mm): 3.0 | APMX (mm): 26.0 | LF (mm): 90 | DMM (mm): 12 | Stock: Yes
SSEHVL4160-R10 DC (mm): 16.0 | RE (mm): 1.0 | APMX (mm): 32.0 | LF (mm): 115 | DMM (mm): 16 | Stock: Yes
SSEHVL4160-R30 DC (mm): 16.0 | RE (mm): 3.0 | APMX (mm): 32.0 | LF (mm): 115 | DMM (mm): 16 | Stock: Yes
End MillsSumitomo Electric Hardmetal
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal Uncoated Anti-Vibration Radius End Mill for Difficult-to-Cut Materials SSEHVL4000-R

Brand Sumitomo Electric Hardmetal·End Mills

Available part numbers (12)

SSEHVL4045-R05, SSEHVL4045-R10, SSEHVL4050-R05, SSEHVL4050-R10, SSEHVL4060-R10, SSEHVL4080-R10, SSEHVL4100-R10, SSEHVL4100-R30, SSEHVL4120-R10, SSEHVL4120-R30 + 2 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SSEHVL4045-R05DC (mm): 4.5 | RE (mm): 0.5 | APMX (mm): 12.0 | LU (mm): 14.5 | LF (mm): 50 | DMM (mm): 6 | Stock: Yes
SSEHVL4045-R10DC (mm): 4.5 | RE (mm): 1.0 | APMX (mm): 12.0 | LU (mm): 14.5 | LF (mm): 50 | DMM (mm): 6 | Stock: Yes
SSEHVL4050-R05DC (mm): 5.0 | RE (mm): 0.5 | APMX (mm): 13.0 | LU (mm): 15.5 | LF (mm): 60 | DMM (mm): 6 | Stock: Yes
SSEHVL4050-R10DC (mm): 5.0 | RE (mm): 1.0 | APMX (mm): 13.0 | LU (mm): 15.5 | LF (mm): 60 | DMM (mm): 6 | Stock: Yes
SSEHVL4060-R10DC (mm): 6.0 | RE (mm): 1.0 | APMX (mm): 13.0 | LF (mm): 60 | DMM (mm): 6 | Stock: Yes
SSEHVL4080-R10DC (mm): 8.0 | RE (mm): 1.0 | APMX (mm): 19.0 | LF (mm): 80 | DMM (mm): 8 | Stock: Yes
SSEHVL4100-R10DC (mm): 10.0 | RE (mm): 1.0 | APMX (mm): 22.0 | LF (mm): 90 | DMM (mm): 10 | Stock: Yes
SSEHVL4100-R30DC (mm): 10.0 | RE (mm): 3.0 | APMX (mm): 22.0 | LF (mm): 90 | DMM (mm): 10 | Stock: Yes
SSEHVL4120-R10DC (mm): 12.0 | RE (mm): 1.0 | APMX (mm): 26.0 | LF (mm): 90 | DMM (mm): 12 | Stock: Yes
SSEHVL4120-R30DC (mm): 12.0 | RE (mm): 3.0 | APMX (mm): 26.0 | LF (mm): 90 | DMM (mm): 12 | Stock: Yes
SSEHVL4160-R10DC (mm): 16.0 | RE (mm): 1.0 | APMX (mm): 32.0 | LF (mm): 115 | DMM (mm): 16 | Stock: Yes
SSEHVL4160-R30DC (mm): 16.0 | RE (mm): 3.0 | APMX (mm): 32.0 | LF (mm): 115 | DMM (mm): 16 | Stock: Yes
