• Sumitomo Electric Hardmetal WCFH Carbide Cut-off Blade (Tsukkirikun)
1 1

Sumitomo Electric Hardmetal WCFH Carbide Cut-off Blade (Tsukkirikun)

Sumitomo Electric Hardmetal WCFH Carbide Cut-off Blade (Tsukkirikun)

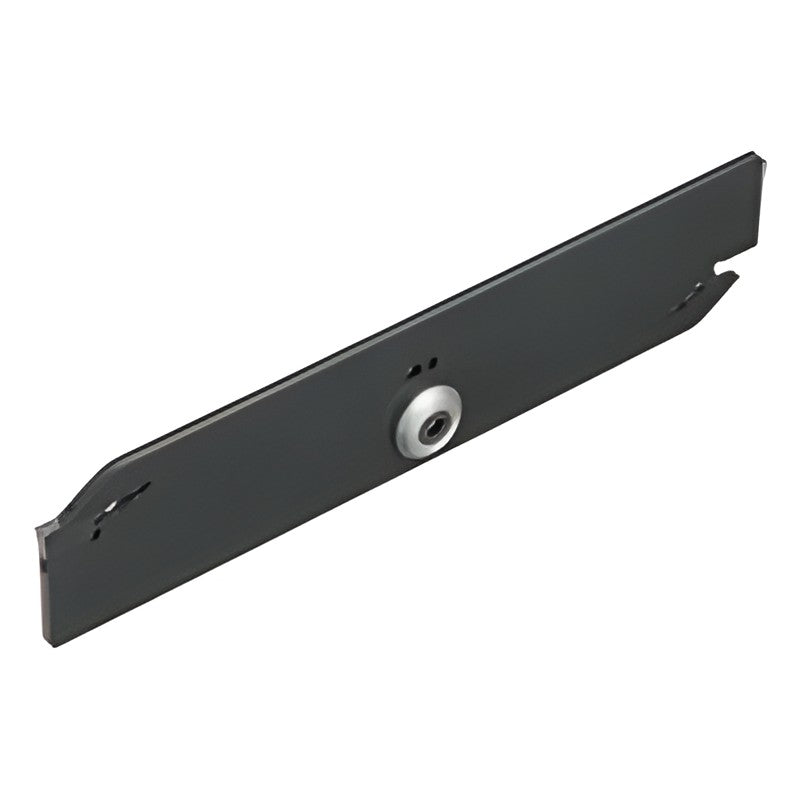

Tsukkirikun WCFH carbide cut-off blade for tool blocks.

Key features

  • Carbide blade
  • Uses WCF inserts
WCFH 26-2 Height H (mm): 26 | Width B (mm): 1.7 | Length LF (mm): 110 | Cutting height HF (mm): 21.4 | Length LF2 (mm): 109.0 | Cutting width CW (mm): 2.0 | Max cut-off dia (mm): 40 | Stock: Phase-out (check availability)
WCFH 26-3 Height H (mm): 26 | Width B (mm): 2.4 | Length LF (mm): 110 | Cutting height HF (mm): 21.4 | Length LF2 (mm): 108.5 | Cutting width CW (mm): 3.0 | Max cut-off dia (mm): 80 | Stock: Phase-out (check availability)
WCFH 26-4 Height H (mm): 26 | Width B (mm): 3.4 | Length LF (mm): 110 | Cutting height HF (mm): 21.4 | Length LF2 (mm): 108.5 | Cutting width CW (mm): 4.0 | Max cut-off dia (mm): 80 | Stock: Phase-out (check availability)
WCFH 26-5 Height H (mm): 26 | Width B (mm): 4.3 | Length LF (mm): 110 | Cutting height HF (mm): 21.4 | Length LF2 (mm): 108.5 | Cutting width CW (mm): 5.0 | Max cut-off dia (mm): 80 | Stock: Phase-out (check availability)
WCFH 32-2 Height H (mm): 32 | Width B (mm): 1.7 | Length LF (mm): 150 | Cutting height HF (mm): 25.0 | Length LF2 (mm): 149.0 | Cutting width CW (mm): 2.0 | Max cut-off dia (mm): 40 | Stock: Phase-out (check availability)
WCFH 32-3 Height H (mm): 32 | Width B (mm): 2.4 | Length LF (mm): 150 | Cutting height HF (mm): 25.0 | Length LF2 (mm): 148.5 | Cutting width CW (mm): 3.0 | Max cut-off dia (mm): 140 | Stock: Phase-out (check availability)
WCFH 32-4 Height H (mm): 32 | Width B (mm): 3.4 | Length LF (mm): 150 | Cutting height HF (mm): 25.0 | Length LF2 (mm): 148.5 | Cutting width CW (mm): 4.0 | Max cut-off dia (mm): 140 | Stock: Phase-out (check availability)
WCFH 32-5 Height H (mm): 32 | Width B (mm): 4.3 | Length LF (mm): 150 | Cutting height HF (mm): 25.0 | Length LF2 (mm): 148.5 | Cutting width CW (mm): 5.0 | Max cut-off dia (mm): 140 | Stock: Phase-out (check availability)
Grooving HoldersSumitomo Electric Hardmetal
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal WCFH Carbide Cut-off Blade (Tsukkirikun)

Brand Sumitomo Electric Hardmetal·Grooving Holders

Available part numbers (8)

WCFH 26-2, WCFH 26-3, WCFH 26-4, WCFH 26-5, WCFH 32-2, WCFH 32-3, WCFH 32-4, WCFH 32-5

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WCFH 26-2Height H (mm): 26 | Width B (mm): 1.7 | Length LF (mm): 110 | Cutting height HF (mm): 21.4 | Length LF2 (mm): 109.0 | Cutting width CW (mm): 2.0 | Max cut-off dia (mm): 40 | Stock: Phase-out (check availability)
WCFH 26-3Height H (mm): 26 | Width B (mm): 2.4 | Length LF (mm): 110 | Cutting height HF (mm): 21.4 | Length LF2 (mm): 108.5 | Cutting width CW (mm): 3.0 | Max cut-off dia (mm): 80 | Stock: Phase-out (check availability)
WCFH 26-4Height H (mm): 26 | Width B (mm): 3.4 | Length LF (mm): 110 | Cutting height HF (mm): 21.4 | Length LF2 (mm): 108.5 | Cutting width CW (mm): 4.0 | Max cut-off dia (mm): 80 | Stock: Phase-out (check availability)
WCFH 26-5Height H (mm): 26 | Width B (mm): 4.3 | Length LF (mm): 110 | Cutting height HF (mm): 21.4 | Length LF2 (mm): 108.5 | Cutting width CW (mm): 5.0 | Max cut-off dia (mm): 80 | Stock: Phase-out (check availability)
WCFH 32-2Height H (mm): 32 | Width B (mm): 1.7 | Length LF (mm): 150 | Cutting height HF (mm): 25.0 | Length LF2 (mm): 149.0 | Cutting width CW (mm): 2.0 | Max cut-off dia (mm): 40 | Stock: Phase-out (check availability)
WCFH 32-3Height H (mm): 32 | Width B (mm): 2.4 | Length LF (mm): 150 | Cutting height HF (mm): 25.0 | Length LF2 (mm): 148.5 | Cutting width CW (mm): 3.0 | Max cut-off dia (mm): 140 | Stock: Phase-out (check availability)
WCFH 32-4Height H (mm): 32 | Width B (mm): 3.4 | Length LF (mm): 150 | Cutting height HF (mm): 25.0 | Length LF2 (mm): 148.5 | Cutting width CW (mm): 4.0 | Max cut-off dia (mm): 140 | Stock: Phase-out (check availability)
WCFH 32-5Height H (mm): 32 | Width B (mm): 4.3 | Length LF (mm): 150 | Cutting height HF (mm): 25.0 | Length LF2 (mm): 148.5 | Cutting width CW (mm): 5.0 | Max cut-off dia (mm): 140 | Stock: Phase-out (check availability)

Need a different model, or a part not listed here? Send us your parts list →
