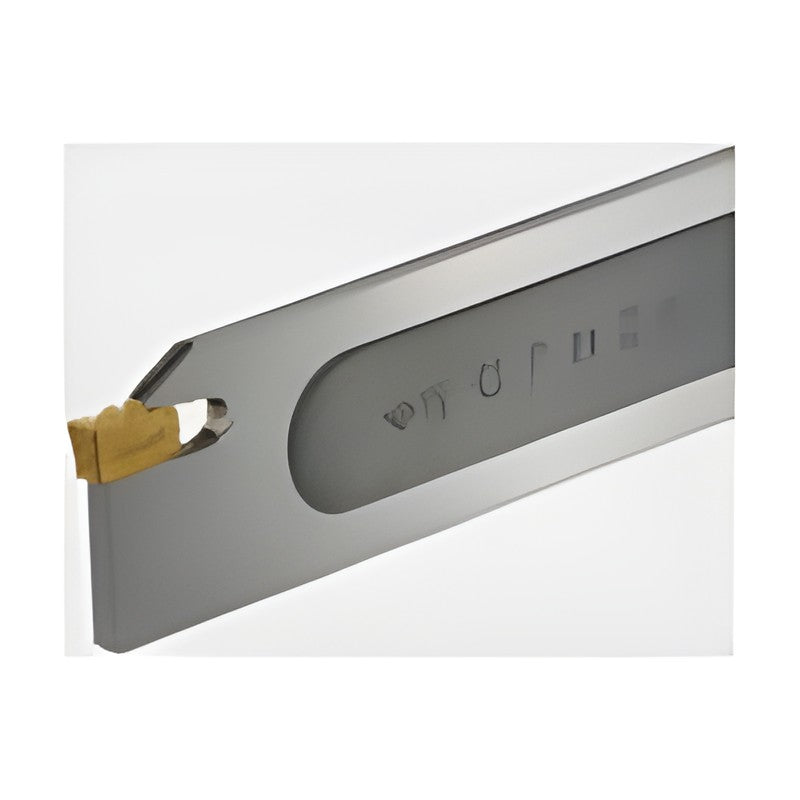

Sumitomo Electric Hardmetal WCFS Cut-off Shank Holder (Tsukkirikun)

Sumitomo Electric Hardmetal WCFS Cut-off Shank Holder (Tsukkirikun)

Tsukkirikun WCFS shank-type cut-off holder with carbide blade (blade-brazed and clamp types).

Key features

  • Blade-brazed and clamp types
  • Uses WCF inserts
WCFS R1010-2 Height H (mm): 10 | Width B (mm): 10 | Length LF (mm): 86 | Cutting height HF (mm): 10 | Head length LH (mm): 10 | Cutting width CW (mm): 2.0 | Max cut-off dia (mm): 28 | Stock: Yes
WCFS L1010-2 Height H (mm): 10 | Width B (mm): 10 | Length LF (mm): 86 | Cutting height HF (mm): 10 | Head length LH (mm): 10 | Cutting width CW (mm): 2.0 | Max cut-off dia (mm): 28 | Stock: Yes
WCFS R1212-2 Height H (mm): 12 | Width B (mm): 12 | Length LF (mm): 110 | Cutting height HF (mm): 12 | Head length LH (mm): 18 | Cutting width CW (mm): 2.0 | Max cut-off dia (mm): 30 | Stock: Yes
WCFS L1212-2 Height H (mm): 12 | Width B (mm): 12 | Length LF (mm): 110 | Cutting height HF (mm): 12 | Head length LH (mm): 18 | Cutting width CW (mm): 2.0 | Max cut-off dia (mm): 30 | Stock: Yes
WCFS R1616-2 Height H (mm): 16 | Width B (mm): 16 | Length LF (mm): 100 | Cutting height HF (mm): 16 | Head length LH (mm): 25 | Cutting width CW (mm): 2.0 | Max cut-off dia (mm): 35 | Stock: Yes
WCFS L1616-2 Height H (mm): 16 | Width B (mm): 16 | Length LF (mm): 100 | Cutting height HF (mm): 16 | Head length LH (mm): 25 | Cutting width CW (mm): 2.0 | Max cut-off dia (mm): 35 | Stock: Yes
WCFS R1616-3 Height H (mm): 16 | Width B (mm): 16 | Length LF (mm): 100 | Cutting height HF (mm): 16 | Head length LH (mm): 25 | Cutting width CW (mm): 3.0 | Max cut-off dia (mm): 35 | Stock: Yes
WCFS L1616-3 Height H (mm): 16 | Width B (mm): 16 | Length LF (mm): 100 | Cutting height HF (mm): 16 | Head length LH (mm): 25 | Cutting width CW (mm): 3.0 | Max cut-off dia (mm): 35 | Stock: Yes
WCFS R20-3 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | Cutting height HF (mm): 20 | Head length LH (mm): 46 | Cutting width CW (mm): 3.0 | Max cut-off dia (mm): 50 | Stock: Yes
WCFS L20-3 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | Cutting height HF (mm): 20 | Head length LH (mm): 46 | Cutting width CW (mm): 3.0 | Max cut-off dia (mm): 50 | Stock: Yes
WCFS R20-4 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | Cutting height HF (mm): 20 | Head length LH (mm): 46 | Cutting width CW (mm): 4.0 | Max cut-off dia (mm): 50 | Stock: Yes
WCFS L20-4 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | Cutting height HF (mm): 20 | Head length LH (mm): 46 | Cutting width CW (mm): 4.0 | Max cut-off dia (mm): 50 | Stock: Yes
WCFS R20-5 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | Cutting height HF (mm): 20 | Head length LH (mm): 46 | Cutting width CW (mm): 5.0 | Max cut-off dia (mm): 50 | Stock: Yes
WCFS R25-3 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | Cutting height HF (mm): 25 | Head length LH (mm): 46 | Cutting width CW (mm): 3.0 | Max cut-off dia (mm): 50 | Stock: Yes
WCFS L25-3 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | Cutting height HF (mm): 25 | Head length LH (mm): 46 | Cutting width CW (mm): 3.0 | Max cut-off dia (mm): 50 | Stock: Yes
WCFS R25-4 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | Cutting height HF (mm): 25 | Head length LH (mm): 46 | Cutting width CW (mm): 4.0 | Max cut-off dia (mm): 50 | Stock: Yes
WCFS L25-4 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | Cutting height HF (mm): 25 | Head length LH (mm): 46 | Cutting width CW (mm): 4.0 | Max cut-off dia (mm): 50 | Stock: Yes
WCFS R25-5 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | Cutting height HF (mm): 25 | Head length LH (mm): 46 | Cutting width CW (mm): 5.0 | Max cut-off dia (mm): 50 | Stock: Yes
Grooving HoldersSumitomo Electric Hardmetal
18 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal WCFS Cut-off Shank Holder (Tsukkirikun)

Brand Sumitomo Electric Hardmetal·Grooving Holders

Available part numbers (18)

WCFS R1010-2, WCFS L1010-2, WCFS R1212-2, WCFS L1212-2, WCFS R1616-2, WCFS L1616-2, WCFS R1616-3, WCFS L1616-3, WCFS R20-3, WCFS L20-3 + 8 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WCFS R1010-2Height H (mm): 10 | Width B (mm): 10 | Length LF (mm): 86 | Cutting height HF (mm): 10 | Head length LH (mm): 10 | Cutting width CW (mm): 2.0 | Max cut-off dia (mm): 28 | Stock: Yes
WCFS L1010-2Height H (mm): 10 | Width B (mm): 10 | Length LF (mm): 86 | Cutting height HF (mm): 10 | Head length LH (mm): 10 | Cutting width CW (mm): 2.0 | Max cut-off dia (mm): 28 | Stock: Yes
WCFS R1212-2Height H (mm): 12 | Width B (mm): 12 | Length LF (mm): 110 | Cutting height HF (mm): 12 | Head length LH (mm): 18 | Cutting width CW (mm): 2.0 | Max cut-off dia (mm): 30 | Stock: Yes
WCFS L1212-2Height H (mm): 12 | Width B (mm): 12 | Length LF (mm): 110 | Cutting height HF (mm): 12 | Head length LH (mm): 18 | Cutting width CW (mm): 2.0 | Max cut-off dia (mm): 30 | Stock: Yes
WCFS R1616-2Height H (mm): 16 | Width B (mm): 16 | Length LF (mm): 100 | Cutting height HF (mm): 16 | Head length LH (mm): 25 | Cutting width CW (mm): 2.0 | Max cut-off dia (mm): 35 | Stock: Yes
WCFS L1616-2Height H (mm): 16 | Width B (mm): 16 | Length LF (mm): 100 | Cutting height HF (mm): 16 | Head length LH (mm): 25 | Cutting width CW (mm): 2.0 | Max cut-off dia (mm): 35 | Stock: Yes
WCFS R1616-3Height H (mm): 16 | Width B (mm): 16 | Length LF (mm): 100 | Cutting height HF (mm): 16 | Head length LH (mm): 25 | Cutting width CW (mm): 3.0 | Max cut-off dia (mm): 35 | Stock: Yes
WCFS L1616-3Height H (mm): 16 | Width B (mm): 16 | Length LF (mm): 100 | Cutting height HF (mm): 16 | Head length LH (mm): 25 | Cutting width CW (mm): 3.0 | Max cut-off dia (mm): 35 | Stock: Yes
WCFS R20-3Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | Cutting height HF (mm): 20 | Head length LH (mm): 46 | Cutting width CW (mm): 3.0 | Max cut-off dia (mm): 50 | Stock: Yes
WCFS L20-3Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | Cutting height HF (mm): 20 | Head length LH (mm): 46 | Cutting width CW (mm): 3.0 | Max cut-off dia (mm): 50 | Stock: Yes
WCFS R20-4Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | Cutting height HF (mm): 20 | Head length LH (mm): 46 | Cutting width CW (mm): 4.0 | Max cut-off dia (mm): 50 | Stock: Yes
WCFS L20-4Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | Cutting height HF (mm): 20 | Head length LH (mm): 46 | Cutting width CW (mm): 4.0 | Max cut-off dia (mm): 50 | Stock: Yes
WCFS R20-5Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | Cutting height HF (mm): 20 | Head length LH (mm): 46 | Cutting width CW (mm): 5.0 | Max cut-off dia (mm): 50 | Stock: Yes
WCFS R25-3Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | Cutting height HF (mm): 25 | Head length LH (mm): 46 | Cutting width CW (mm): 3.0 | Max cut-off dia (mm): 50 | Stock: Yes
WCFS L25-3Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | Cutting height HF (mm): 25 | Head length LH (mm): 46 | Cutting width CW (mm): 3.0 | Max cut-off dia (mm): 50 | Stock: Yes
WCFS R25-4Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | Cutting height HF (mm): 25 | Head length LH (mm): 46 | Cutting width CW (mm): 4.0 | Max cut-off dia (mm): 50 | Stock: Yes
WCFS L25-4Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | Cutting height HF (mm): 25 | Head length LH (mm): 46 | Cutting width CW (mm): 4.0 | Max cut-off dia (mm): 50 | Stock: Yes
WCFS R25-5Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | Cutting height HF (mm): 25 | Head length LH (mm): 46 | Cutting width CW (mm): 5.0 | Max cut-off dia (mm): 50 | Stock: Yes
