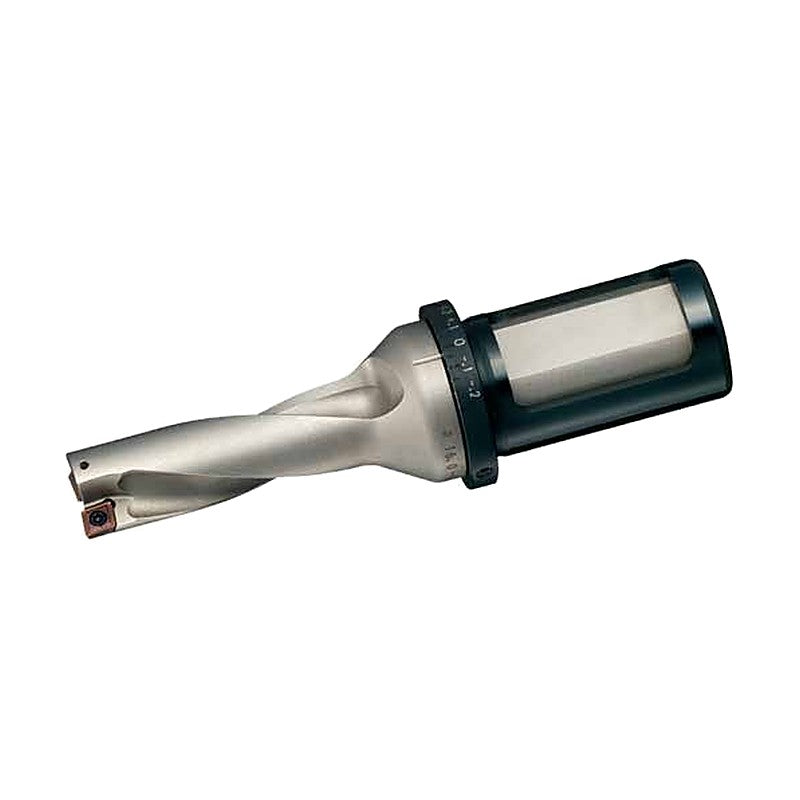

Sumitomo Electric Hardmetal WDX Eccentric Sleeve WAS Type

Sumitomo Electric Hardmetal WDX Eccentric Sleeve WAS Type

Eccentric sleeve for SumiDrill WDX type drills that allows the drilled hole diameter to be adjusted by about +/-0.3 mm.

Key features

  • Hole diameter adjustment by eccentric rotation
  • Scale for setting the offset
WAS2025-48 DCB (mm): 20 | DCON (mm): 25 | BDX (mm): 33 | LS (mm): 43 | L2 (mm): 5 | L3 (mm): 32 | L4 (mm): 5 | Diameter adjustment range (mm): +0.3~-0.2 | Screw: BT0306 | Wrench: LH015 | Stock: Yes
WAS2532-60 DCB (mm): 25 | DCON (mm): 32 | BDX (mm): 42 | LS (mm): 60 | L2 (mm): 7 | L3 (mm): 46 | L4 (mm): 6 | Diameter adjustment range (mm): +0.3~-0.3 | Screw: BT0406 | Wrench: LH020 | Stock: Yes
WAS3240-70 DCB (mm): 32 | DCON (mm): 40 | BDX (mm): 55 | LS (mm): 70 | L2 (mm): 7 | L3 (mm): 57 | L4 (mm): 6 | Diameter adjustment range (mm): +0.3~-0.3 | Screw: BT0408 | Wrench: LH020 | Stock: Yes
WAS4050-85 DCB (mm): 40 | DCON (mm): 50 | BDX (mm): 60 | LS (mm): 70 | L2 (mm): 7 | L3 (mm): 54 | L4 (mm): 6 | Diameter adjustment range (mm): +0.5~-0.5 | Screw: BT0408 | Wrench: LH020 | Stock: Yes
Tool Holder Spare PartsSumitomo Electric Hardmetal
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal WDX Eccentric Sleeve WAS Type

Brand Sumitomo Electric Hardmetal·Tool Holder Spare Parts

Available part numbers (4)

WAS2025-48, WAS2532-60, WAS3240-70, WAS4050-85

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WAS2025-48DCB (mm): 20 | DCON (mm): 25 | BDX (mm): 33 | LS (mm): 43 | L2 (mm): 5 | L3 (mm): 32 | L4 (mm): 5 | Diameter adjustment range (mm): +0.3~-0.2 | Screw: BT0306 | Wrench: LH015 | Stock: Yes
WAS2532-60DCB (mm): 25 | DCON (mm): 32 | BDX (mm): 42 | LS (mm): 60 | L2 (mm): 7 | L3 (mm): 46 | L4 (mm): 6 | Diameter adjustment range (mm): +0.3~-0.3 | Screw: BT0406 | Wrench: LH020 | Stock: Yes
WAS3240-70DCB (mm): 32 | DCON (mm): 40 | BDX (mm): 55 | LS (mm): 70 | L2 (mm): 7 | L3 (mm): 57 | L4 (mm): 6 | Diameter adjustment range (mm): +0.3~-0.3 | Screw: BT0408 | Wrench: LH020 | Stock: Yes
WAS4050-85DCB (mm): 40 | DCON (mm): 50 | BDX (mm): 60 | LS (mm): 70 | L2 (mm): 7 | L3 (mm): 54 | L4 (mm): 6 | Diameter adjustment range (mm): +0.5~-0.5 | Screw: BT0408 | Wrench: LH020 | Stock: Yes
