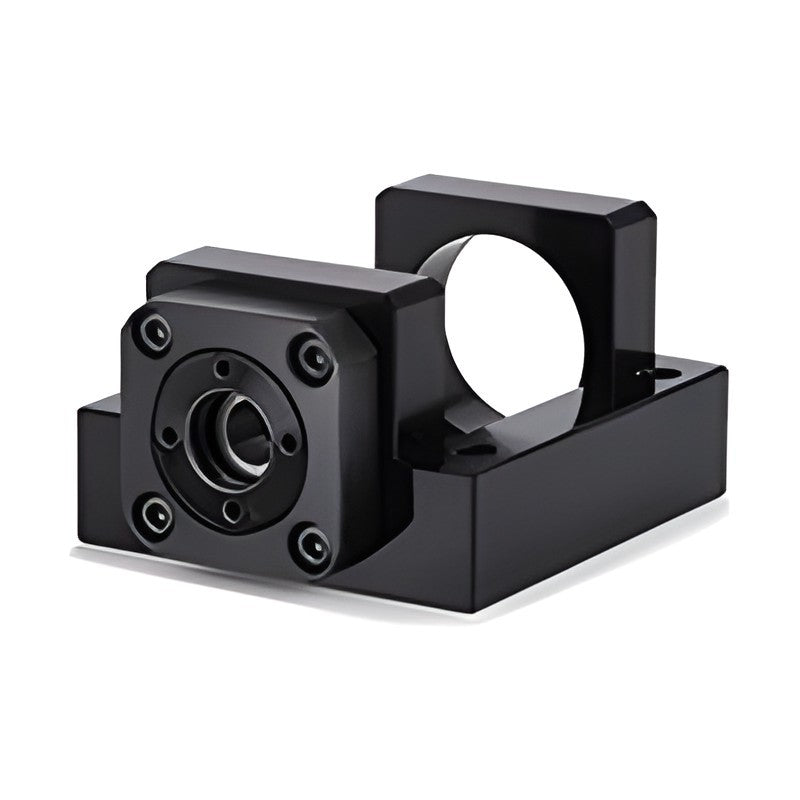

SUNGIL O-SBU Motor Bracket Unit for Ball Screw (Open type, fixed side)

SUNGIL O-SBU Motor Bracket Unit for Ball Screw (Open type, fixed side)

Fixed-side motor bracket unit with an open body that integrates ball screw support and servo motor mounting for easy coupling access.

Key features

  • Ball screw support and motor mount in one body for precise alignment
  • Easy design-in for a wide range of servo motor flanges
  • Saves cost and time versus separate bracket and support unit
  • Preloaded bearings, supplied with lock nut and collars
  • Anodizing, electroless nickel or Raydent finishes available

Specifications

Series O-SBU
Type Open type, fixed side
Code format SBU-d1.motor flange.screw
Body Aluminum alloy, BA black / WA white anodizing
Precision grade P5 / C8 / P0-C7 (fixed side)
Grease options Standard, AG, AE, AF, AH, AN, AX
Source SUNGIL Catalogue (EN), Motor Bracket Unit p.242
O-SBU-8.38.3 Shaft d1: 8 mm | Motor flange: □38 mm | Pilot D: 30 mm | Grade: P5/C8/P0-C7
O-SBU-8.40.4 Shaft d1: 8 mm | Motor flange: □40 mm | Pilot D: 30 mm | Grade: P5/C8/P0-C7
O-SBU-10.38.3 Shaft d1: 10 mm | Motor flange: □38 mm | Pilot D: 30 mm | Grade: P5/C8/P0-C7
O-SBU-10.40.4 Shaft d1: 10 mm | Motor flange: □40 mm | Pilot D: 30 mm | Grade: P5/C8/P0-C7
O-SBU-12.38.3 Shaft d1: 12 mm | Motor flange: □38 mm | Pilot D: 30 mm | Grade: P5/C8/P0-C7
O-SBU-12.40.4 Shaft d1: 12 mm | Motor flange: □40 mm | Pilot D: 30 mm | Grade: P5/C8/P0-C7
O-SBU-15.60.5 Shaft d1: 15 mm | Motor flange: □60 mm | Pilot D: 50 mm | Grade: P5/C8/P0-C7
O-SBU-20.80.6 Shaft d1: 20 mm | Motor flange: □80 mm | Pilot D: 70 mm | Grade: P5/C8/P0-C7
Motor Bracket UnitSUNGIL
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SUNGIL O-SBU Motor Bracket Unit for Ball Screw (Open type, fixed side)

Brand SUNGIL·Motor Bracket Unit

Available part numbers (8)

O-SBU-8.38.3, O-SBU-8.40.4, O-SBU-10.38.3, O-SBU-10.40.4, O-SBU-12.38.3, O-SBU-12.40.4, O-SBU-15.60.5, O-SBU-20.80.6

How to order

Send the SUNGIL part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
O-SBU-8.38.3Shaft d1: 8 mm | Motor flange: □38 mm | Pilot D: 30 mm | Grade: P5/C8/P0-C7
O-SBU-8.40.4Shaft d1: 8 mm | Motor flange: □40 mm | Pilot D: 30 mm | Grade: P5/C8/P0-C7
O-SBU-10.38.3Shaft d1: 10 mm | Motor flange: □38 mm | Pilot D: 30 mm | Grade: P5/C8/P0-C7
O-SBU-10.40.4Shaft d1: 10 mm | Motor flange: □40 mm | Pilot D: 30 mm | Grade: P5/C8/P0-C7
O-SBU-12.38.3Shaft d1: 12 mm | Motor flange: □38 mm | Pilot D: 30 mm | Grade: P5/C8/P0-C7
O-SBU-12.40.4Shaft d1: 12 mm | Motor flange: □40 mm | Pilot D: 30 mm | Grade: P5/C8/P0-C7
O-SBU-15.60.5Shaft d1: 15 mm | Motor flange: □60 mm | Pilot D: 50 mm | Grade: P5/C8/P0-C7
O-SBU-20.80.6Shaft d1: 20 mm | Motor flange: □80 mm | Pilot D: 70 mm | Grade: P5/C8/P0-C7
