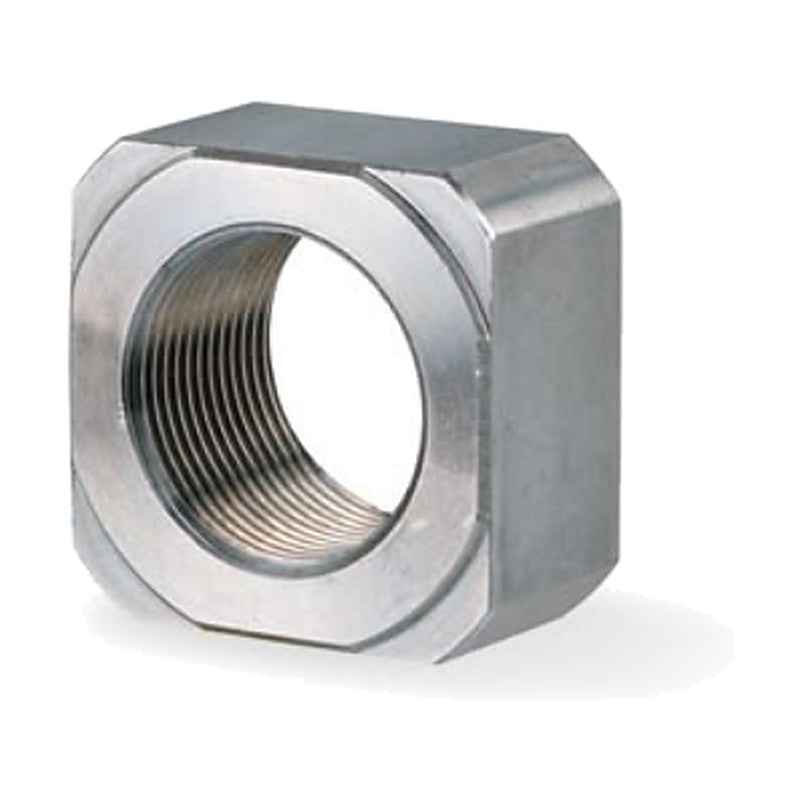

SUNGIL RNSS Lock Nut for Ball Screw Support Units

SUNGIL RNSS Lock Nut for Ball Screw Support Units

All-stainless steel version of the RN lock nut for clean or corrosive environments.

Key features

  • Precision thread for ball screw shaft ends
  • Set-screw locking with brass crush pad protects the thread
  • Used with SUNGIL support units
  • Fine-pitch versions (0.75P) for M8/M10

Specifications

Series RNSS
Material All stainless steel (body and set screw), brass crush pad
Load class General load
Thread range M4x0.5 to M40x1.5
Locking Set screw with brass crush pad
Source SUNGIL Catalogue (EN), Lock Nut p.278
RNSS-4 Thread T: M4x0.5 | Set screw: M3x0.5 | OD D: 11 mm | Width L: 5 mm | Torque: 1.6 N·m | Mass: 4 g
RNSS-5 Thread T: M5x0.5 | Set screw: M3x0.5 | OD D: 13 mm | Width L: 5 mm | Torque: 2 N·m | Mass: 5 g
RNSS-6 Thread T: M6x0.75 | Set screw: M3x0.5 | OD D: 14.5 mm | Width L: 5 mm | Torque: 2.5 N·m | Mass: 5 g
RNSS-8 Thread T: M8x1 | Set screw: M3x0.5 | OD D: 17 mm | Width L: 6.5 mm | Torque: 5 N·m | Mass: 8 g
RNSS-8 (0.75P) Thread T: M8x0.75 | Set screw: M3x0.5 | OD D: 17 mm | Width L: 6.5 mm | Torque: 5 N·m | Mass: 8 g
RNSS-10 Thread T: M10x1 | Set screw: M4x0.7 | OD D: 20 mm | Width L: 8 mm | Torque: 9.5 N·m | Mass: 10 g
RNSS-10 (0.75P) Thread T: M10x0.75 | Set screw: M4x0.7 | OD D: 20 mm | Width L: 8 mm | Torque: 9.5 N·m | Mass: 10 g
RNSS-12 Thread T: M12x1 | Set screw: M4x0.7 | OD D: 22 mm | Width L: 8 mm | Torque: 14 N·m | Mass: 14 g
RNSS-15 Thread T: M15x1 | Set screw: M4x0.7 | OD D: 25 mm | Width L: 8 mm | Torque: 24 N·m | Mass: 15 g
RNSS-17 Thread T: M17x1 | Set screw: M4x0.7 | OD D: 30 mm | Width L: 13 mm | Torque: 35 N·m | Mass: 17 g
RNSS-20 Thread T: M20x1 | Set screw: M4x0.7 | OD D: 35 mm | Width L: 11 mm | Torque: 48 N·m | Mass: 35 g
RNSS-25 Thread T: M25x1.5 | Set screw: M5x0.8 | OD D: 43 mm | Width L: 15 mm | Torque: 86 N·m | Mass: 45 g
RNSS-30 Thread T: M30x1.5 | Set screw: M6x1 | OD D: 48 mm | Width L: 20 mm | Torque: 128 N·m | Mass: 80 g
RNSS-35 Thread T: M35x1.5 | Set screw: M8x1.25 | OD D: 60 mm | Width L: 21 mm | Torque: 192 N·m | Mass: 130 g
RNSS-40 Thread T: M40x1.5 | Set screw: M8x1.25 | OD D: 63 mm | Width L: 25 mm | Torque: 256 N·m | Mass: 235 g
