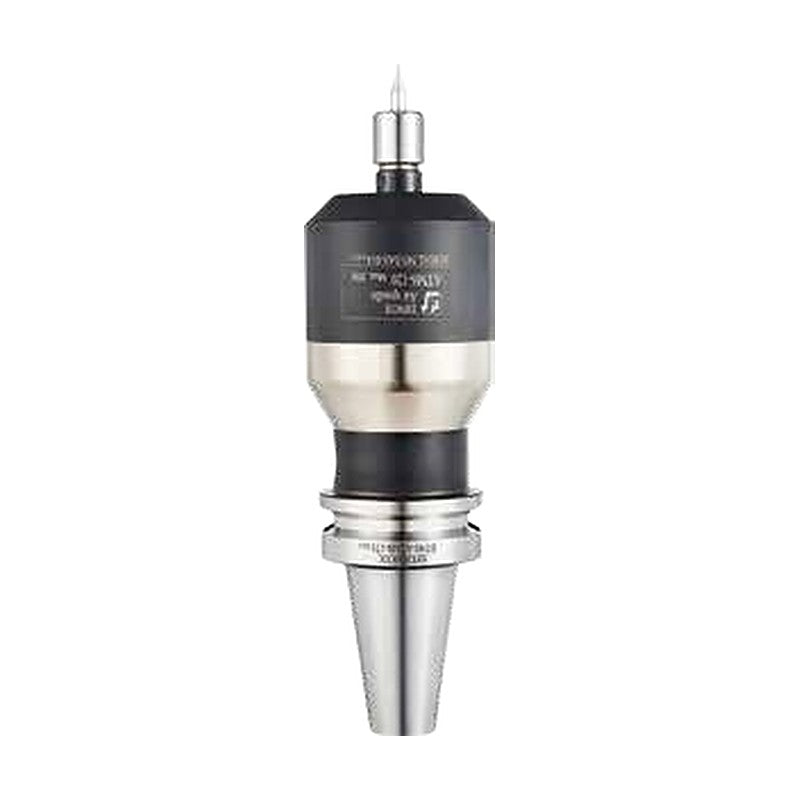

TAUMAX Air Turbine Machine ATM

TAUMAX Air Turbine Machine ATM

Air turbine spindle driven by compressed air for high-speed machining up to 50,000 rpm on conventional machining centers.

Key features

  • Max. 50,000 rpm by compressed air
  • Run-out 5 um (based on spindle)
  • HC collet 1-6 mm
  • General and ATC types, BT30/40/50 and HSK63A shanks
  • No internal coolant

Specifications

Power 0.47 HP
Collet HC6
Air pressure 2 bar (general) / 2.5 bar (ATC)
BT30-ATM6-176 Shank: BT30 | Type: General | ØD (mm): 72 | ØD1 (mm): 19.5 | L (mm): 176 | L1 (mm): 31.5 | Max RPM: 50,000 (2 bar regulator) | Fitting: PC12-02
BT40-ATM6-171 Shank: BT40 | Type: General | ØD (mm): 72 | ØD1 (mm): 19.5 | L (mm): 171 | L1 (mm): 31.5 | Max RPM: 50,000 (2 bar regulator) | Fitting: PC12-02
BT50-ATM6-182 Shank: BT50 | Type: General | ØD (mm): 72 | ØD1 (mm): 19.5 | L (mm): 182 | L1 (mm): 31.5 | Max RPM: 50,000 (2 bar regulator) | Fitting: PC12-02
BT40-ATM6-227(ATC) Shank: BT40 | Type: ATC | ØD (mm): 72 | ØD1 (mm): 19.5 | ØD2 (mm): 96 | L (mm): 227 | Max RPM: 50,000 (2 bar regulator)
BT50-ATM6-228(ATC) Shank: BT50 | Type: ATC | ØD (mm): 72 | ØD1 (mm): 19.5 | ØD2 (mm): 96 | L (mm): 228 | Max RPM: 50,000 (2 bar regulator)
HSK63A-ATM6-170 Shank: HSK63A | Type: General | ØD (mm): 72 | ØD1 (mm): 19.5 | L (mm): 170 | L1 (mm): 31.5 | Max RPM: 50,000 (2 bar regulator) | Fitting: PC12-02
HSK63A-ATM6-235(ATC) Shank: HSK63A | Type: ATC | ØD (mm): 72 | ØD1 (mm): 19.5 | ØD2 (mm): 96 | L (mm): 235 | Max RPM: 50,000 (2 bar regulator)
Air Turbine SpindlesTAUMAX
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TAUMAX Air Turbine Machine ATM

Brand TAUMAX·Air Turbine Spindles

Available part numbers (7)

BT30-ATM6-176, BT40-ATM6-171, BT50-ATM6-182, BT40-ATM6-227(ATC), BT50-ATM6-228(ATC), HSK63A-ATM6-170, HSK63A-ATM6-235(ATC)

How to order

Send the TAUMAX part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
