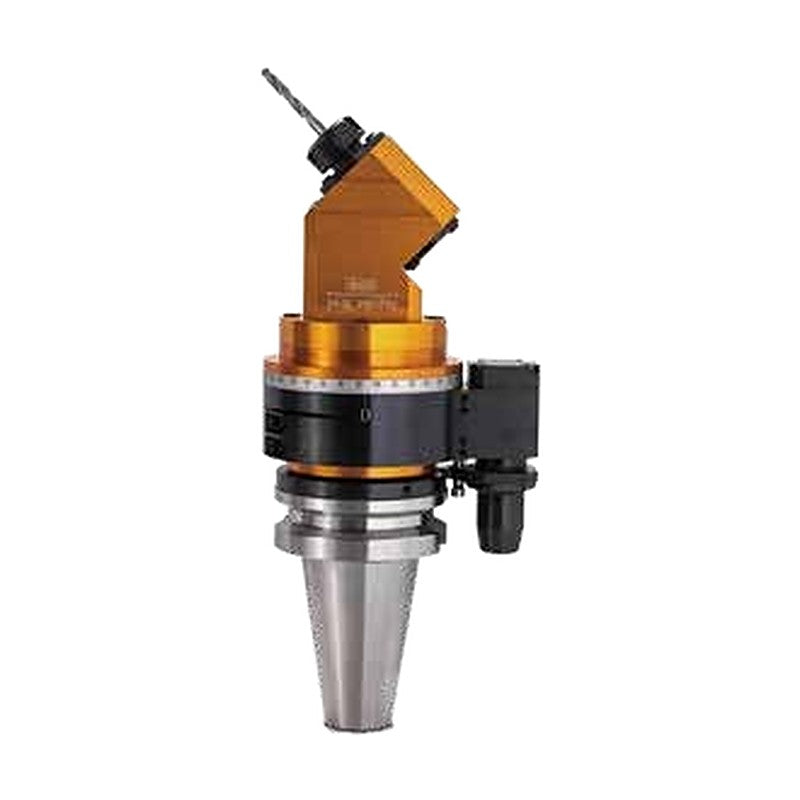

TAUMAX Angular Head KAC 45 Degree Fixed

TAUMAX Angular Head KAC 45 Degree Fixed

45-degree fixed angular head with MAS 403-BT shank for slope machining and corner rounding.

Key features

  • 45-degree fixed head
  • Head angle adjustable up to 360 degrees
  • High-strength aluminum alloy body

Specifications

Shank standard MAS 403-BT
Clamping GERC collet
BT50-KAC10-240 Shank: BT50 | Tool dia. range (mm): 1.0-10.0 | L (mm): 240 | Gear ratio (IN:OUT): 1:1 | Rotation: CW:CCW | Max RPM: 5,000 | Collet: GERC16 | Weight (kg): 9.7 | Stock: Yes
BT50-KAC13-240 Shank: BT50 | Tool dia. range (mm): 1.0-13.0 | L (mm): 240 | Gear ratio (IN:OUT): 1:1 | Rotation: CW:CCW | Max RPM: 5,000 | Collet: GERC20 | Weight (kg): 10.7 | Stock: Yes
BT50-KAC20-250 Shank: BT50 | Tool dia. range (mm): 2.0-20.0 | L (mm): 250 | Gear ratio (IN:OUT): 1:1 | Rotation: CW:CCW | Max RPM: 3,500 | Collet: GERC32 | Weight (kg): 11.7 | Stock: Yes
Angular HeadsTAUMAX
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TAUMAX Angular Head KAC 45 Degree Fixed

Brand TAUMAX·Angular Heads

Available part numbers (3)

BT50-KAC10-240, BT50-KAC13-240, BT50-KAC20-250

How to order

Send the TAUMAX part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
BT50-KAC10-240Shank: BT50 | Tool dia. range (mm): 1.0-10.0 | L (mm): 240 | Gear ratio (IN:OUT): 1:1 | Rotation: CW:CCW | Max RPM: 5,000 | Collet: GERC16 | Weight (kg): 9.7 | Stock: Yes
BT50-KAC13-240Shank: BT50 | Tool dia. range (mm): 1.0-13.0 | L (mm): 240 | Gear ratio (IN:OUT): 1:1 | Rotation: CW:CCW | Max RPM: 5,000 | Collet: GERC20 | Weight (kg): 10.7 | Stock: Yes
BT50-KAC20-250Shank: BT50 | Tool dia. range (mm): 2.0-20.0 | L (mm): 250 | Gear ratio (IN:OUT): 1:1 | Rotation: CW:CCW | Max RPM: 3,500 | Collet: GERC32 | Weight (kg): 11.7 | Stock: Yes
