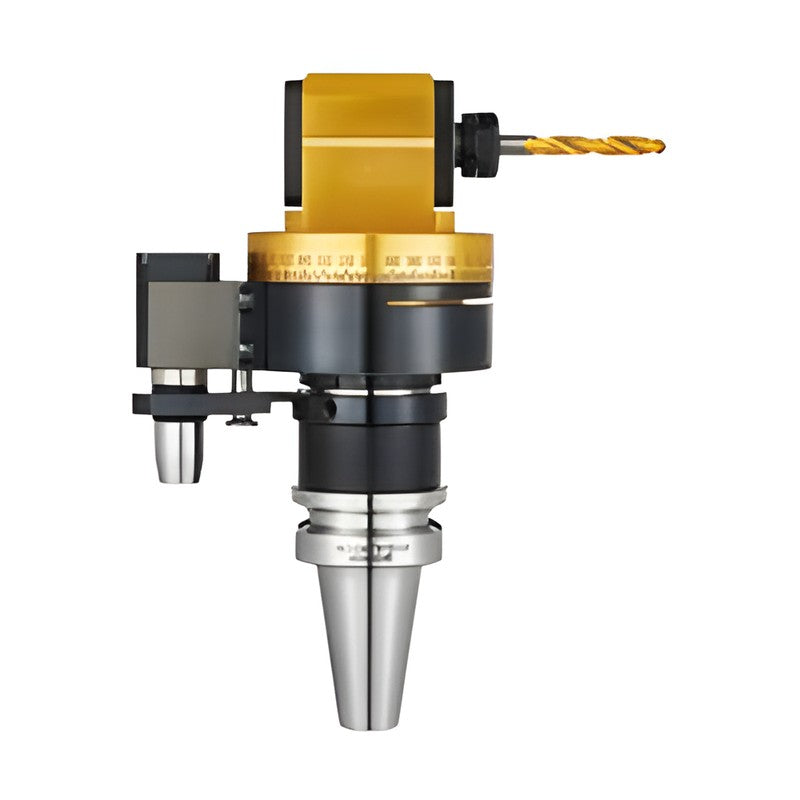

TAUMAX Angular Head KAH 90 Degree Fixed

TAUMAX Angular Head KAH 90 Degree Fixed

90-degree fixed angular head with MAS 403-BT shank and GERC collet clamping for milling, drilling and inner-side machining.

Key features

  • 90-degree fixed head
  • Head adjustable 360 degrees
  • ATC compatible (optional)
  • High-strength aluminum alloy body

Specifications

Shank standard MAS 403-BT
Clamping GERC collet
BT30-KAH7-120 Shank: BT30 | Tool dia. range (mm): 1.0-7.0 | L (mm): 120 | Gear ratio (IN:OUT): 1:1 | Rotation: CW:CCW | Max RPM: 5,000 | Collet: GERC11 | Weight (kg): 2.6 | Stock: Yes
BT40-KAH7-170 Shank: BT40 | Tool dia. range (mm): 1.0-7.0 | L (mm): 170 | Gear ratio (IN:OUT): 1:1 | Rotation: CW:CCW | Max RPM: 5,000 | Collet: GERC11 | Weight (kg): 5.8 | Stock: Yes
BT40-KAH10-195 Shank: BT40 | Tool dia. range (mm): 1.0-10.0 | L (mm): 195 | Gear ratio (IN:OUT): 1:1 | Rotation: CW:CCW | Max RPM: 5,000 | Collet: GERC16 | Weight (kg): 6.2 | Stock: Yes
BT40-KAH13-165 Shank: BT40 | Tool dia. range (mm): 1.0-13.0 | L (mm): 165 | Gear ratio (IN:OUT): 1:1 | Rotation: CW:CCW | Max RPM: 5,000 | Collet: GERC20 | Weight (kg): 6.0 | Stock: Yes
BT40-KAH20-180 Shank: BT40 | Tool dia. range (mm): 2.0-20.0 | L (mm): 180 | Gear ratio (IN:OUT): 1:1 | Rotation: CW:CCW | Max RPM: 3,500 | Collet: GERC32 | Weight (kg): 7.5 | Stock: Yes
BT50-KAH7-220 Shank: BT50 | Tool dia. range (mm): 1.0-7.0 | L (mm): 220 | Gear ratio (IN:OUT): 1:1 | Rotation: CW:CCW | Max RPM: 3,500 | Collet: GERC11 | Weight (kg): 10.7 | Stock: Yes
BT50-KAH10-215 Shank: BT50 | Tool dia. range (mm): 1.0-10.0 | L (mm): 215 | Gear ratio (IN:OUT): 1:1 | Rotation: CW:CCW | Max RPM: 3,500 | Collet: GERC16 | Weight (kg): 11.0 | Stock: Yes
BT50-KAH10-260 Shank: BT50 | Tool dia. range (mm): 1.0-10.0 | L (mm): 260 | Gear ratio (IN:OUT): 1:1 | Rotation: CW:CCW | Max RPM: 3,500 | Collet: GERC16 | Weight (kg): 11.4 | Stock: Yes
BT50-KAH13-260 Shank: BT50 | Tool dia. range (mm): 1.0-13.0 | L (mm): 260 | Gear ratio (IN:OUT): 1:1 | Rotation: CW:CCW | Max RPM: 3,500 | Collet: GERC20 | Weight (kg): 12.0 | Stock: Yes
BT50-KAH20-200 Shank: BT50 | Tool dia. range (mm): 2.0-20.0 | L (mm): 200 | Gear ratio (IN:OUT): 1:1 | Rotation: CW:CCW | Max RPM: 3,500 | Collet: GERC32 | Weight (kg): 11.6 | Stock: Yes
BT50-KAH20-240 Shank: BT50 | Tool dia. range (mm): 2.0-20.0 | L (mm): 240 | Gear ratio (IN:OUT): 1:1 | Rotation: CW:CCW | Max RPM: 3,500 | Collet: GERC32 | Weight (kg): 13.5 | Stock: Yes
Angular HeadsTAUMAX
11 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TAUMAX Angular Head KAH 90 Degree Fixed

Brand TAUMAX·Angular Heads

Available part numbers (11)

BT30-KAH7-120, BT40-KAH7-170, BT40-KAH10-195, BT40-KAH13-165, BT40-KAH20-180, BT50-KAH7-220, BT50-KAH10-215, BT50-KAH10-260, BT50-KAH13-260, BT50-KAH20-200 + 1 more — see full table ↓

How to order

Send the TAUMAX part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
BT30-KAH7-120Shank: BT30 | Tool dia. range (mm): 1.0-7.0 | L (mm): 120 | Gear ratio (IN:OUT): 1:1 | Rotation: CW:CCW | Max RPM: 5,000 | Collet: GERC11 | Weight (kg): 2.6 | Stock: Yes
BT40-KAH7-170Shank: BT40 | Tool dia. range (mm): 1.0-7.0 | L (mm): 170 | Gear ratio (IN:OUT): 1:1 | Rotation: CW:CCW | Max RPM: 5,000 | Collet: GERC11 | Weight (kg): 5.8 | Stock: Yes
BT40-KAH10-195Shank: BT40 | Tool dia. range (mm): 1.0-10.0 | L (mm): 195 | Gear ratio (IN:OUT): 1:1 | Rotation: CW:CCW | Max RPM: 5,000 | Collet: GERC16 | Weight (kg): 6.2 | Stock: Yes
BT40-KAH13-165Shank: BT40 | Tool dia. range (mm): 1.0-13.0 | L (mm): 165 | Gear ratio (IN:OUT): 1:1 | Rotation: CW:CCW | Max RPM: 5,000 | Collet: GERC20 | Weight (kg): 6.0 | Stock: Yes
BT40-KAH20-180Shank: BT40 | Tool dia. range (mm): 2.0-20.0 | L (mm): 180 | Gear ratio (IN:OUT): 1:1 | Rotation: CW:CCW | Max RPM: 3,500 | Collet: GERC32 | Weight (kg): 7.5 | Stock: Yes
BT50-KAH7-220Shank: BT50 | Tool dia. range (mm): 1.0-7.0 | L (mm): 220 | Gear ratio (IN:OUT): 1:1 | Rotation: CW:CCW | Max RPM: 3,500 | Collet: GERC11 | Weight (kg): 10.7 | Stock: Yes
BT50-KAH10-215Shank: BT50 | Tool dia. range (mm): 1.0-10.0 | L (mm): 215 | Gear ratio (IN:OUT): 1:1 | Rotation: CW:CCW | Max RPM: 3,500 | Collet: GERC16 | Weight (kg): 11.0 | Stock: Yes
BT50-KAH10-260Shank: BT50 | Tool dia. range (mm): 1.0-10.0 | L (mm): 260 | Gear ratio (IN:OUT): 1:1 | Rotation: CW:CCW | Max RPM: 3,500 | Collet: GERC16 | Weight (kg): 11.4 | Stock: Yes
BT50-KAH13-260Shank: BT50 | Tool dia. range (mm): 1.0-13.0 | L (mm): 260 | Gear ratio (IN:OUT): 1:1 | Rotation: CW:CCW | Max RPM: 3,500 | Collet: GERC20 | Weight (kg): 12.0 | Stock: Yes
BT50-KAH20-200Shank: BT50 | Tool dia. range (mm): 2.0-20.0 | L (mm): 200 | Gear ratio (IN:OUT): 1:1 | Rotation: CW:CCW | Max RPM: 3,500 | Collet: GERC32 | Weight (kg): 11.6 | Stock: Yes
BT50-KAH20-240Shank: BT50 | Tool dia. range (mm): 2.0-20.0 | L (mm): 240 | Gear ratio (IN:OUT): 1:1 | Rotation: CW:CCW | Max RPM: 3,500 | Collet: GERC32 | Weight (kg): 13.5 | Stock: Yes

Need a different model, or a part not listed here? Send us your parts list →
