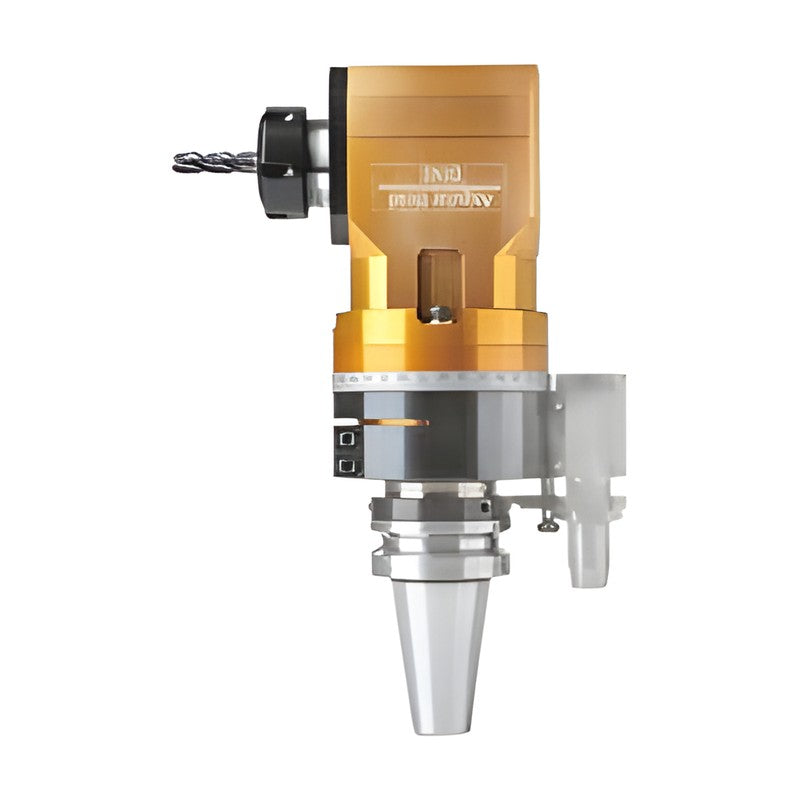

TAUMAX Angular Head KAH/C 90 Degree Fixed with Internal Coolant

TAUMAX Angular Head KAH/C 90 Degree Fixed with Internal Coolant

90-degree fixed angular head with internal coolant supply, MAS 403-BT shank and GERC collet clamping.

Key features

  • 90-degree fixed head with internal coolant
  • Head adjustable 360 degrees
  • ATC compatible (optional)
  • Coolant max. 40 bar (standard ST type)

Specifications

Shank standard MAS 403-BT
Clamping GERC collet
BT40-KAH13C-165 Shank: BT40 | Tool dia. range (mm): 6.0-12.0 | L (mm): 165 | Gear ratio (IN:OUT): 1:1 | Rotation: CW:CCW | Max RPM: 5,000 | Collet: GERC20 | Weight (kg): 6.4
BT40-KAH20C-180 Shank: BT40 | Tool dia. range (mm): 8.0-20.0 | L (mm): 180 | Gear ratio (IN:OUT): 1:1 | Rotation: CW:CCW | Max RPM: 3,500 | Collet: GERC32 | Weight (kg): 8.2
BT50-KAH13C-260 Shank: BT50 | Tool dia. range (mm): 6.0-12.0 | L (mm): 260 | Gear ratio (IN:OUT): 1:1 | Rotation: CW:CCW | Max RPM: 3,500 | Collet: GERC20 | Weight (kg): 12.4
BT50-KAH20C-200 Shank: BT50 | Tool dia. range (mm): 8.0-20.0 | L (mm): 200 | Gear ratio (IN:OUT): 1:1 | Rotation: CW:CCW | Max RPM: 3,500 | Collet: GERC32 | Weight (kg): 12.3
BT50-KAH20C-240 Shank: BT50 | Tool dia. range (mm): 8.0-20.0 | L (mm): 240 | Gear ratio (IN:OUT): 1:1 | Rotation: CW:CCW | Max RPM: 3,500 | Collet: GERC32 | Weight (kg): 14.2
Angular HeadsTAUMAX
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TAUMAX Angular Head KAH/C 90 Degree Fixed with Internal Coolant

Brand TAUMAX·Angular Heads

Available part numbers (5)

BT40-KAH13C-165, BT40-KAH20C-180, BT50-KAH13C-260, BT50-KAH20C-200, BT50-KAH20C-240

How to order

Send the TAUMAX part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
BT40-KAH13C-165Shank: BT40 | Tool dia. range (mm): 6.0-12.0 | L (mm): 165 | Gear ratio (IN:OUT): 1:1 | Rotation: CW:CCW | Max RPM: 5,000 | Collet: GERC20 | Weight (kg): 6.4
BT40-KAH20C-180Shank: BT40 | Tool dia. range (mm): 8.0-20.0 | L (mm): 180 | Gear ratio (IN:OUT): 1:1 | Rotation: CW:CCW | Max RPM: 3,500 | Collet: GERC32 | Weight (kg): 8.2
BT50-KAH13C-260Shank: BT50 | Tool dia. range (mm): 6.0-12.0 | L (mm): 260 | Gear ratio (IN:OUT): 1:1 | Rotation: CW:CCW | Max RPM: 3,500 | Collet: GERC20 | Weight (kg): 12.4
BT50-KAH20C-200Shank: BT50 | Tool dia. range (mm): 8.0-20.0 | L (mm): 200 | Gear ratio (IN:OUT): 1:1 | Rotation: CW:CCW | Max RPM: 3,500 | Collet: GERC32 | Weight (kg): 12.3
BT50-KAH20C-240Shank: BT50 | Tool dia. range (mm): 8.0-20.0 | L (mm): 240 | Gear ratio (IN:OUT): 1:1 | Rotation: CW:CCW | Max RPM: 3,500 | Collet: GERC32 | Weight (kg): 14.2
