• TAUMAX Balance Cut Head Set for Rough Boring TBC
1 1

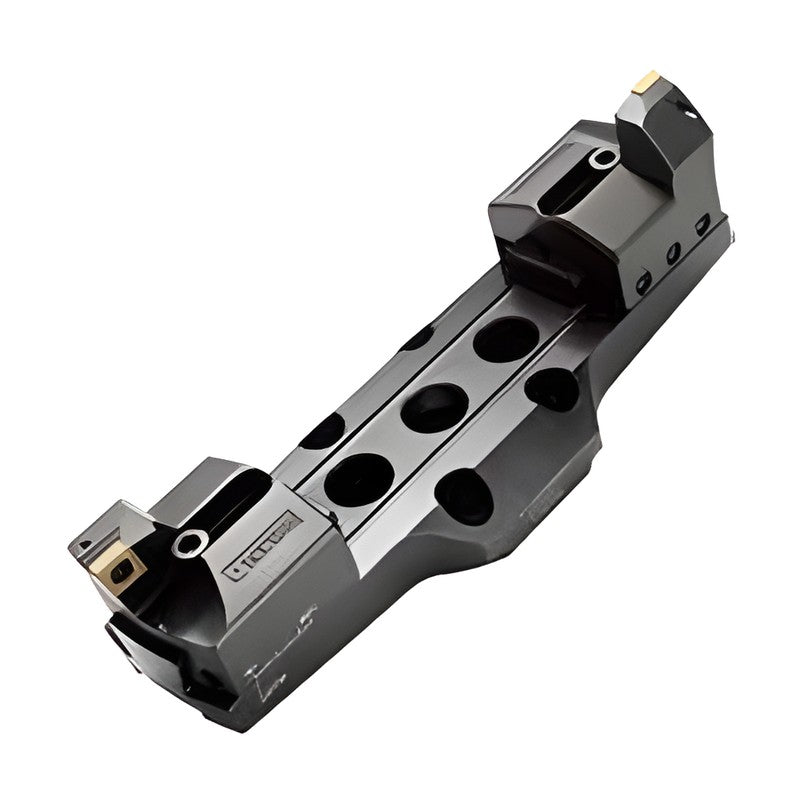

TAUMAX Balance Cut Head Set for Rough Boring TBC

TAUMAX Balance Cut Head Set for Rough Boring TBC

Twin-edge rough boring head set (rail + cartridges) for large bores from Ø130 to Ø540 mm, mounted on FMD arbors.

TBC130S Boring range (mm): 130~180 | L (mm): 90 | Weight (kg): 3.5 | Rail: TBR130 | Cartridge: BCC1348(SET) | Insert: CCMT1204 | Arbor: FMD50 arbor (sold separately)
TBC175S Boring range (mm): 175~225 | L (mm): 90 | Weight (kg): 3.9 | Rail: TBR175 | Cartridge: BCC1348(SET) | Insert: CCMT1204 | Arbor: FMD50 arbor (sold separately)
TBC220S Boring range (mm): 220~270 | L (mm): 90 | Weight (kg): 4.3 | Rail: TBR220 | Cartridge: BCC1348(SET) | Insert: CCMT1204 | Arbor: FMD50 arbor (sold separately)
TBC265S Boring range (mm): 265~315 | L (mm): 90 | Weight (kg): 4.5 | Rail: TBR265 | Cartridge: BCC1348(SET) | Insert: CCMT1204 | Arbor: FMD50 arbor (sold separately)
TBC310S Boring range (mm): 310~390 | L (mm): 90 | Weight (kg): 5.5 | Rail: TBR310 | Cartridge: BCC1354(SET) | Insert: CCMT1204 | Arbor: FMD50 arbor (sold separately)
TBC385S Boring range (mm): 385~465 | L (mm): 90 | Weight (kg): 5.8 | Rail: TBR385 | Cartridge: BCC1354(SET) | Insert: CCMT1204 | Arbor: FMD50 arbor (sold separately)
TBC460S Boring range (mm): 460~540 | L (mm): 90 | Weight (kg): 12.8 | Rail: TBR460 | Cartridge: BCC1354(SET) | Insert: CCMT1204 | Arbor: FMD50 arbor (sold separately)
Boring HeadsTAUMAX
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TAUMAX Balance Cut Head Set for Rough Boring TBC

Brand TAUMAX·Boring Heads

Available part numbers (7)

TBC130S, TBC175S, TBC220S, TBC265S, TBC310S, TBC385S, TBC460S

How to order

Send the TAUMAX part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TBC130SBoring range (mm): 130~180 | L (mm): 90 | Weight (kg): 3.5 | Rail: TBR130 | Cartridge: BCC1348(SET) | Insert: CCMT1204 | Arbor: FMD50 arbor (sold separately)
TBC175SBoring range (mm): 175~225 | L (mm): 90 | Weight (kg): 3.9 | Rail: TBR175 | Cartridge: BCC1348(SET) | Insert: CCMT1204 | Arbor: FMD50 arbor (sold separately)
TBC220SBoring range (mm): 220~270 | L (mm): 90 | Weight (kg): 4.3 | Rail: TBR220 | Cartridge: BCC1348(SET) | Insert: CCMT1204 | Arbor: FMD50 arbor (sold separately)
TBC265SBoring range (mm): 265~315 | L (mm): 90 | Weight (kg): 4.5 | Rail: TBR265 | Cartridge: BCC1348(SET) | Insert: CCMT1204 | Arbor: FMD50 arbor (sold separately)
TBC310SBoring range (mm): 310~390 | L (mm): 90 | Weight (kg): 5.5 | Rail: TBR310 | Cartridge: BCC1354(SET) | Insert: CCMT1204 | Arbor: FMD50 arbor (sold separately)
TBC385SBoring range (mm): 385~465 | L (mm): 90 | Weight (kg): 5.8 | Rail: TBR385 | Cartridge: BCC1354(SET) | Insert: CCMT1204 | Arbor: FMD50 arbor (sold separately)
TBC460SBoring range (mm): 460~540 | L (mm): 90 | Weight (kg): 12.8 | Rail: TBR460 | Cartridge: BCC1354(SET) | Insert: CCMT1204 | Arbor: FMD50 arbor (sold separately)
