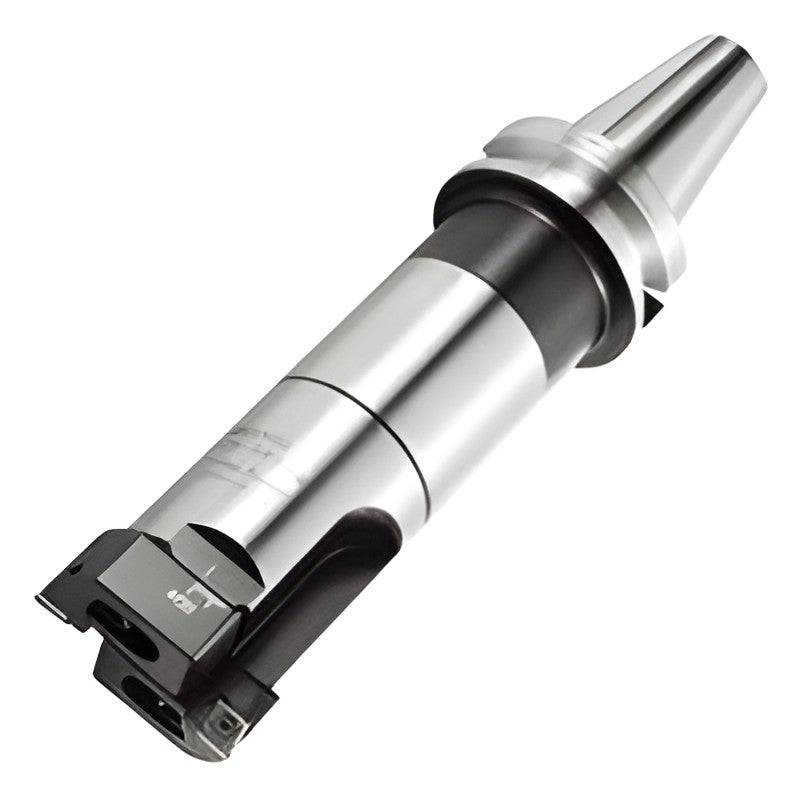

TAUMAX Balance Cut Rough Boring Head DBC

TAUMAX Balance Cut Rough Boring Head DBC

Twin-edge balance cut head for rough boring from Ø28 to Ø175 mm, mounted on MD modular arbors.

DBC2528S Boring range (mm): 28~35 | Head length L1 (mm): 60 | Connection ØD1 (mm): 25 | Head weight (kg): 0.3 | Arbor: MD modular arbor (sold separately) | Stock: Yes
DBC3235S Boring range (mm): 35~46 | Head length L1 (mm): 65 | Connection ØD1 (mm): 32 | Head weight (kg): 0.4 | Arbor: MD modular arbor (sold separately) | Stock: Yes
DBC4046S Boring range (mm): 46~58 | Head length L1 (mm): 70 | Connection ØD1 (mm): 40 | Head weight (kg): 0.6 | Arbor: MD modular arbor (sold separately) | Stock: Yes
DBC5058S Boring range (mm): 58~74 | Head length L1 (mm): 80 | Connection ØD1 (mm): 50 | Head weight (kg): 1.1 | Arbor: MD modular arbor (sold separately) | Stock: Yes
DBC6374S Boring range (mm): 74~94 | Head length L1 (mm): 90 | Connection ØD1 (mm): 63 | Head weight (kg): 2 | Arbor: MD modular arbor (sold separately) | Stock: Yes
DBC8094S Boring range (mm): 94~120 | Head length L1 (mm): 100 | Connection ØD1 (mm): 80 | Head weight (kg): 3.5 | Arbor: MD modular arbor (sold separately) | Stock: Yes
DBC120S Boring range (mm): 120~175 | Head length L1 (mm): 100 | Connection ØD1 (mm): 80 | Head weight (kg): 4.1 | Arbor: MD modular arbor (sold separately) | Stock: Yes
Boring HeadsTAUMAX
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TAUMAX Balance Cut Rough Boring Head DBC

Brand TAUMAX·Boring Heads

Available part numbers (7)

DBC2528S, DBC3235S, DBC4046S, DBC5058S, DBC6374S, DBC8094S, DBC120S

How to order

Send the TAUMAX part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
DBC2528SBoring range (mm): 28~35 | Head length L1 (mm): 60 | Connection ØD1 (mm): 25 | Head weight (kg): 0.3 | Arbor: MD modular arbor (sold separately) | Stock: Yes
DBC3235SBoring range (mm): 35~46 | Head length L1 (mm): 65 | Connection ØD1 (mm): 32 | Head weight (kg): 0.4 | Arbor: MD modular arbor (sold separately) | Stock: Yes
DBC4046SBoring range (mm): 46~58 | Head length L1 (mm): 70 | Connection ØD1 (mm): 40 | Head weight (kg): 0.6 | Arbor: MD modular arbor (sold separately) | Stock: Yes
DBC5058SBoring range (mm): 58~74 | Head length L1 (mm): 80 | Connection ØD1 (mm): 50 | Head weight (kg): 1.1 | Arbor: MD modular arbor (sold separately) | Stock: Yes
DBC6374SBoring range (mm): 74~94 | Head length L1 (mm): 90 | Connection ØD1 (mm): 63 | Head weight (kg): 2 | Arbor: MD modular arbor (sold separately) | Stock: Yes
DBC8094SBoring range (mm): 94~120 | Head length L1 (mm): 100 | Connection ØD1 (mm): 80 | Head weight (kg): 3.5 | Arbor: MD modular arbor (sold separately) | Stock: Yes
DBC120SBoring range (mm): 120~175 | Head length L1 (mm): 100 | Connection ØD1 (mm): 80 | Head weight (kg): 4.1 | Arbor: MD modular arbor (sold separately) | Stock: Yes
