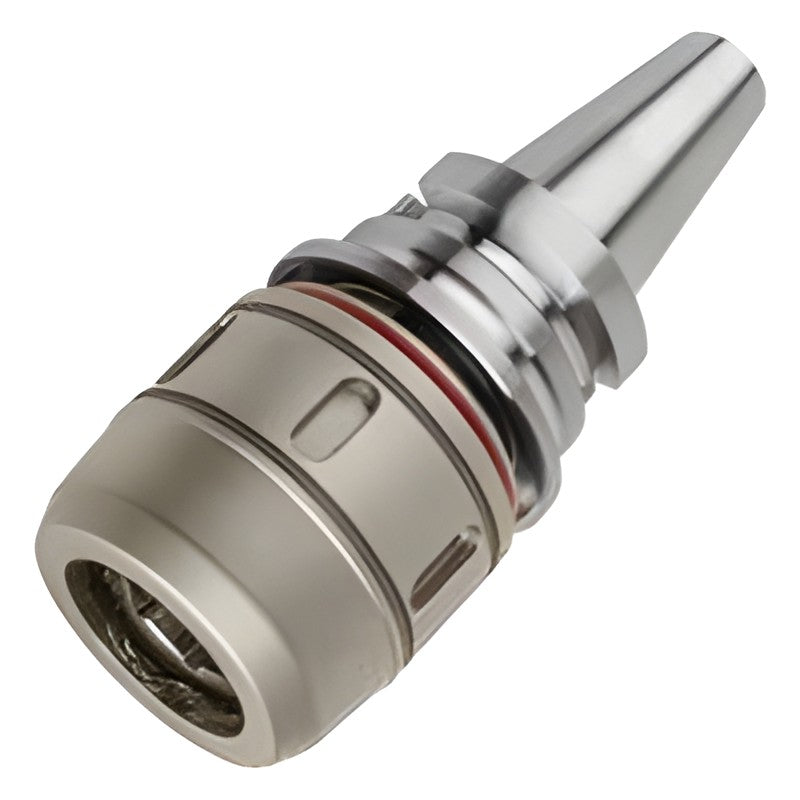

TAUMAX BT Shank Dine Milling Chuck BT-DMC

BT shank milling chuck with 130 to 500 kgf·m clamping force for DC/DCS straight collets.

Key features

Clamping force 130 kgf·m (min.) to 500 kgf·m (max.)
Run-out 15 µm
Internal coolant optional

BT30-DMC20-80		Shank: BT30 \| ØD (mm): 20 \| L (mm): 80 \| ØD1 (mm): 54 \| H insertion depth (mm): 80 \| G thread: M16 \| Applicable collet (optional): DC20, DCS20 \| Weight (kg): 0.9 \| Stock: Yes
BT40-DMC20-90		Shank: BT40 \| ØD (mm): 20 \| L (mm): 90 \| ØD1 (mm): 54 \| H insertion depth (mm): 80 \| G thread: M16 \| Applicable collet (optional): DC20, DCS20 \| Weight (kg): 2.1 \| Stock: Yes
BT40-DMC32-105		Shank: BT40 \| ØD (mm): 32 \| L (mm): 105 \| ØD1 (mm): 75 \| H insertion depth (mm): 95 \| G thread: M16 \| Applicable collet (optional): DC32, DCS32 \| Weight (kg): 2.6 \| Stock: Yes
BT50-DMC32-105		Shank: BT50 \| ØD (mm): 32 \| L (mm): 105 \| ØD1 (mm): 75 \| H insertion depth (mm): 95 \| G thread: M24 \| Applicable collet (optional): DC32, DCS32 \| Weight (kg): 4.6 \| Stock: Yes
BT50-DMC32-165		Shank: BT50 \| ØD (mm): 32 \| L (mm): 165 \| ØD1 (mm): 75 \| H insertion depth (mm): 95 \| G thread: M24 \| Applicable collet (optional): DC32, DCS32 \| Weight (kg): 6.3 \| Stock: Yes
BT50-DMC42-105		Shank: BT50 \| ØD (mm): 42 \| L (mm): 105 \| ØD1 (mm): 90 \| H insertion depth (mm): 125 \| G thread: M24 \| Applicable collet (optional): DC42, DCS42 \| Weight (kg): 4.9 \| Stock: Yes
BT50-DMC42-165		Shank: BT50 \| ØD (mm): 42 \| L (mm): 165 \| ØD1 (mm): 90 \| H insertion depth (mm): 125 \| G thread: M24 \| Applicable collet (optional): DC42, DCS42 \| Weight (kg): 7.6 \| Stock: Yes

Milling ChucksTAUMAX

7 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TAUMAX BT Shank Dine Milling Chuck BT-DMC

Brand TAUMAX·Milling Chucks

Available part numbers (7)

BT30-DMC20-80, BT40-DMC20-90, BT40-DMC32-105, BT50-DMC32-105, BT50-DMC32-165, BT50-DMC42-105, BT50-DMC42-165

How to order

Send the TAUMAX part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	BT30-DMC20-80	Shank: BT30 \| ØD (mm): 20 \| L (mm): 80 \| ØD1 (mm): 54 \| H insertion depth (mm): 80 \| G thread: M16 \| Applicable collet (optional): DC20, DCS20 \| Weight (kg): 0.9 \| Stock: Yes
	BT40-DMC20-90	Shank: BT40 \| ØD (mm): 20 \| L (mm): 90 \| ØD1 (mm): 54 \| H insertion depth (mm): 80 \| G thread: M16 \| Applicable collet (optional): DC20, DCS20 \| Weight (kg): 2.1 \| Stock: Yes
	BT40-DMC32-105	Shank: BT40 \| ØD (mm): 32 \| L (mm): 105 \| ØD1 (mm): 75 \| H insertion depth (mm): 95 \| G thread: M16 \| Applicable collet (optional): DC32, DCS32 \| Weight (kg): 2.6 \| Stock: Yes
	BT50-DMC32-105	Shank: BT50 \| ØD (mm): 32 \| L (mm): 105 \| ØD1 (mm): 75 \| H insertion depth (mm): 95 \| G thread: M24 \| Applicable collet (optional): DC32, DCS32 \| Weight (kg): 4.6 \| Stock: Yes
	BT50-DMC32-165	Shank: BT50 \| ØD (mm): 32 \| L (mm): 165 \| ØD1 (mm): 75 \| H insertion depth (mm): 95 \| G thread: M24 \| Applicable collet (optional): DC32, DCS32 \| Weight (kg): 6.3 \| Stock: Yes
	BT50-DMC42-105	Shank: BT50 \| ØD (mm): 42 \| L (mm): 105 \| ØD1 (mm): 90 \| H insertion depth (mm): 125 \| G thread: M24 \| Applicable collet (optional): DC42, DCS42 \| Weight (kg): 4.9 \| Stock: Yes
	BT50-DMC42-165	Shank: BT50 \| ØD (mm): 42 \| L (mm): 165 \| ØD1 (mm): 90 \| H insertion depth (mm): 125 \| G thread: M24 \| Applicable collet (optional): DC42, DCS42 \| Weight (kg): 7.6 \| Stock: Yes
